3-58 — FIXING PARTS; OIL PIPING (#126240) — 115 parça

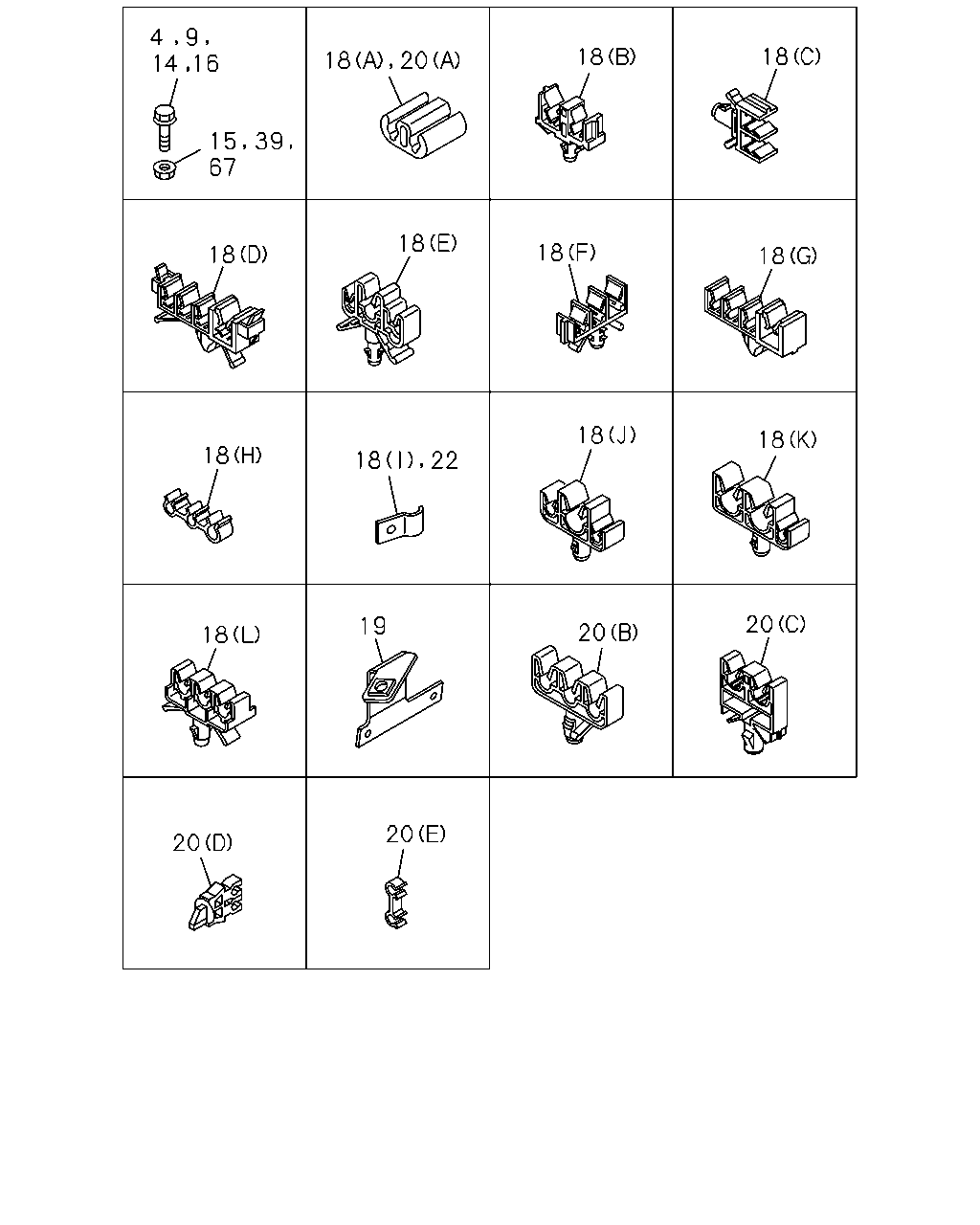

çizim 373986
9 4 16 14 39 15 67 18 20 18 18 18 18 18 18 18 18 22 18 18 20 20 19 18 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ● ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1408 ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1408 ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309-1408 ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309-1408 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309- ● ● ●
16 04.686 BOLT; BRKT TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309- ● ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1309- ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 03 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 03 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 03 1 1409- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 03 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1309-1408 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1409- ● ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1309- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1409- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1409- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
(L) ID=4.76X3 		8-97314-976-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=4.76X3 		8-97314-976-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(L) ID=4.76X3 		8-97314-976-0 01 1 1409- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=4.76X3 		8-97314-976-0 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
(J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1309-1310 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1309-1310 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1311-1401 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1311-1401 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1402-1408 ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1402-1408 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1402-1408 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1409- ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94389-060-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 		8-94455-816-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8X2 		8-94455-816-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 		8-94455-816-0 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 08 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
4HK1-TCS ENG(RJS) (D) ID=10 & 4.76X3 		8-97326-158-1 08 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 08 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (I) B=18 L=20 		1-09700-372-0 02 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(I) B=18 L=20 		1-09700-372-0 02 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (I) B=18 L=20 		1-09700-372-0 02 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
(H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 03 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 03 1 1309-1408 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 03 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1309-1310 ●
18 04.686 CLIP; BRK PIPE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1311-1401 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1311-1401 ●
18 04.686 CLIP; BRK PIPE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1402-1408 ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1402-1408 ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1402-1408 ●
18 04.686 CLIP; BRK PIPE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1409- ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1409- ● ●
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 1309- ● ● ●
20 04.686 CLIP; BRK PIPE
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 04.685 (D) 		8-94128-307-0 01 1 1402- ● ●
20 04.686 CLIP; BRK PIPE
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (E) 		8-94338-104-0 01 1 1402- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1309-1401 ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1402- ●
20 04.686 CLIP; BRK PIPE
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1402- ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=4.76X3 		8-98196-265-0 02 1 1309- ● ● ●
20 04.686 CLIP; BRK PIPE
(C) 		8-98204-480-0 01 1 1309-1401 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) 		8-98204-480-0 01 1 1402- ●
20 04.686 CLIP; BRK PIPE
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) 		8-98204-480-0 01 1 1402- ● ●
22 04.686 CLIP; PIPE TO FRAME
B=18 L=20 		1-09700-372-0 02 1 1309-1408 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 02 1 1309-1408 ●
22 04.686 CLIP; PIPE TO FRAME
B=18 L=20 		1-09700-372-0 02 1 1409- ●
22 04.686 CLIP; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 02 1 1409- ● ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309- ● ● ●
67 04.686 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1408 ● ●
67 04.686 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
67 04.686 NUT; BRKT
00.837 M10 		8-98034-487-1 01 1 1309-1408 ●
67 04.686 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10 		8-98034-487-1 01 1 1309-1408 ●
67 04.686 NUT; BRKT
00.837 M10 		8-98034-487-1 01 1 1409- ●
67 04.686 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10 		8-98034-487-1 01 1 1409- ● ●
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 1309-1408 ● ●
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 1409- ● ● ●
çizim 413383
68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
68 04.686 BRACKET; CLIP
(B) 		8-98017-159-0 01 1 1309-1408 ●
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98017-159-0 01 1 1309-1408 ●
68 04.686 BRACKET; CLIP
(B) 		8-98017-159-0 01 1 1409- ●
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98017-159-0 01 1 1409- ● ●
68 04.686 BRACKET; CLIP
(C) 		8-98034-786-0 01 1 1309-1408 ●
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-786-0 01 1 1309-1408 ●
68 04.686 BRACKET; CLIP
(C) 		8-98034-786-0 01 1 1409- ●
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-786-0 01 1 1409- ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-98049-137-1 01 1 1309-1408 ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-98049-137-1 01 1 1409- ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D) 		8-98060-016-3 01 1 1309-1408 ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> (D) 		8-98060-016-3 01 1 1409- ● ● ●
