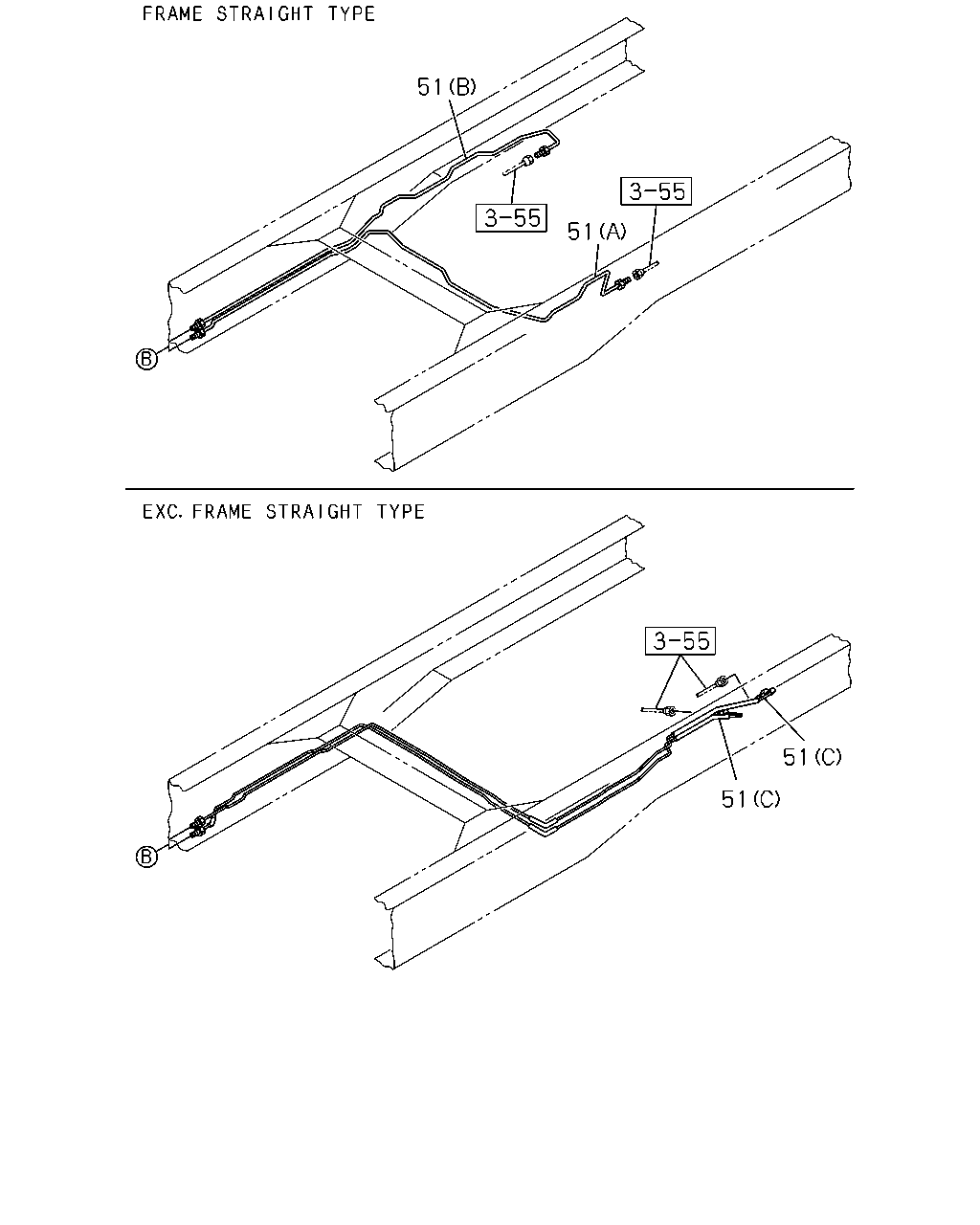

3-52 — BRAKE PIPING; OIL,FRONT (#126238) — 82 parça

51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-779-0	01	1	1309-	●
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-785-0	01	1	1309-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-783-0	01	1	1309-1408	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-783-0	01	1	1309-1408		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-783-0	01	1	1409-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-783-0	01	1	1409-		●	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-786-0	01	1	1309-1408	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-786-0	01	1	1309-1408		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-786-0	01	1	1409-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-786-0	01	1	1409-		●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1309-1408		●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1409-		●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1309-1408		●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1409-		●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1309-1408		●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1409-		●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1309-1408		●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1409-		●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1309-1408		●
51	04.685 PIPE; BRK 4HK1-TCS ENG(RJS) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1309-1408			●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1409-		●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-452-2	01	1	1309-1408		●
51	04.685 PIPE; BRK 4HK1-TCS ENG(RJS) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-452-2	01	1	1309-1408			●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-452-2	01	1	1409-		●	●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH	8-98206-784-0	01	1	1309-1408		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH	8-98206-784-0	01	1	1409-		●	●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH	8-98206-787-0	01	1	1309-1408		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH	8-98206-787-0	01	1	1409-		●	●

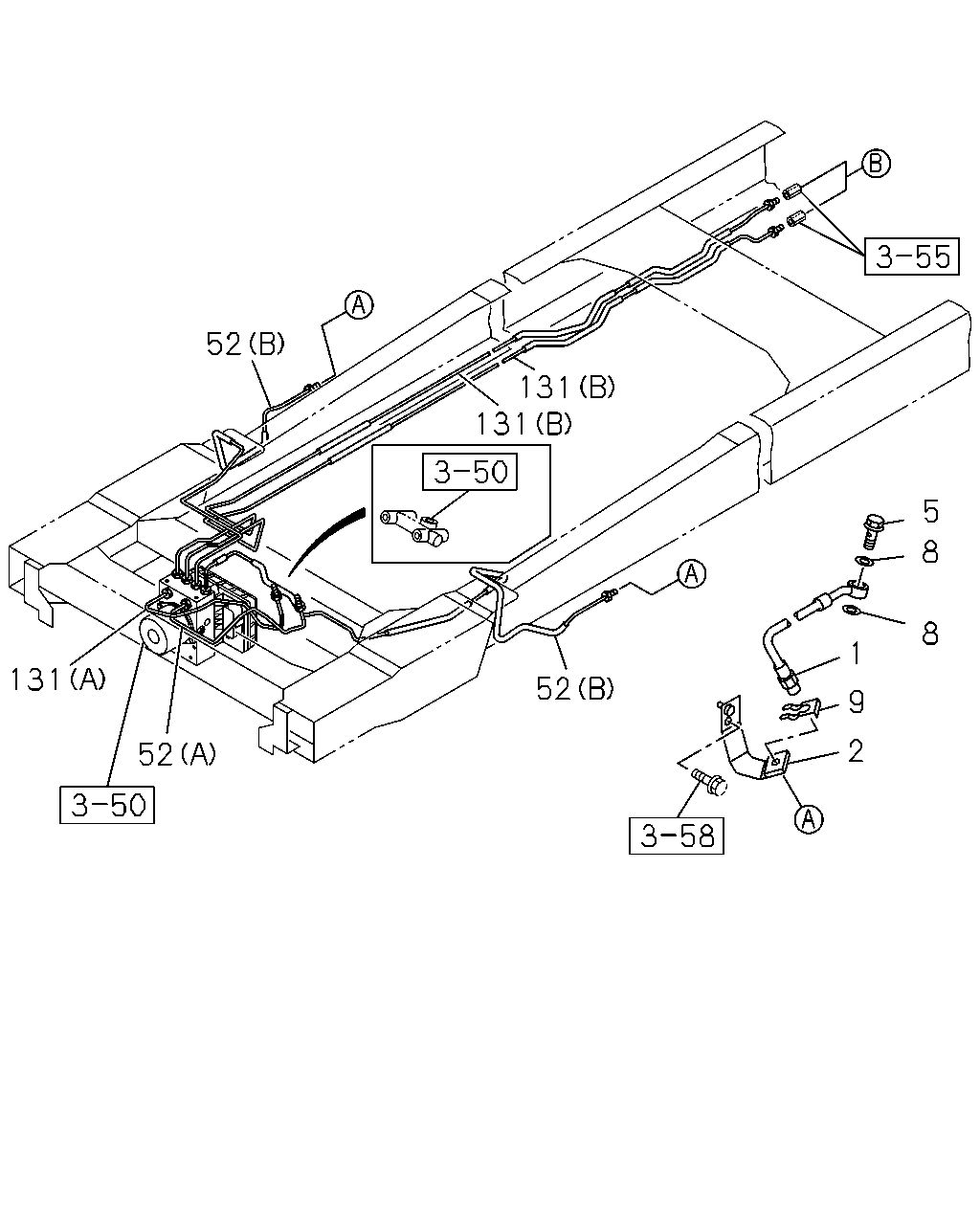

5 8 8 1 9 2 2 131 131 52 52 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK	8-97365-481-1	02	1	1309-	●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98047-527-1	01	1	1309-1408	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-527-1	01	1	1309-1408		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98047-527-1	01	1	1409-	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-527-1	01	1	1409-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98047-528-1	01	1	1309-1408	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-528-1	01	1	1309-1408		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98047-528-1	01	1	1409-	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-528-1	01	1	1409-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ>	8-97365-776-3	01	1	1309-1408		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97365-776-3	01	1	1309-1408			●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ>	8-97365-776-3	01	1	1409-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ>	8-97365-778-3	01	1	1309-1408		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97365-778-3	01	1	1309-1408			●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ>	8-97365-778-3	01	1	1409-		●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	1309-	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1309-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1309-	●	●	●
52	04.685 PIPE; BRK VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,FRONT	8-98201-456-0	01	1	1402-		●	●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-98192-389-1	01	1	1309-1401	●	●	●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-98192-389-1	01	1	1402-	●
52	04.685 PIPE; BRK EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,FRONT	8-98192-389-1	01	1	1402-		●	●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98193-949-0	01	1	1309-1408	●
52	04.685 PIPE; BRK EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98193-949-0	01	1	1309-1408		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98193-949-0	01	1	1409-	●
52	04.685 PIPE; BRK EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98193-949-0	01	1	1409-		●	●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98193-951-0	01	1	1309-1408	●
52	04.685 PIPE; BRK EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98193-951-0	01	1	1309-1408		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98193-951-0	01	1	1409-	●
52	04.685 PIPE; BRK EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98193-951-0	01	1	1409-		●	●
52	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98192-394-0	01	1	1309-1408		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98192-394-0	01	1	1309-1408			●
52	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98192-394-0	01	1	1409-		●	●
52	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98210-359-0	01	1	1309-1408		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98210-359-0	01	1	1309-1408			●
52	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98210-359-0	01	1	1409-		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,REAR	8-98201-457-0	01	1	1402-		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-98192-390-0	01	1	1309-1401	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-98192-390-0	01	1	1402-	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,REAR	8-98192-390-0	01	1	1402-		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98110-923-2	01	1	1309-1408	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98110-923-2	01	1	1309-1408		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98110-923-2	01	1	1409-	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98110-923-2	01	1	1409-		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98110-929-1	01	1	1309-1408	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98110-929-1	01	1	1309-1408		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98110-929-1	01	1	1409-	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98110-929-1	01	1	1409-		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-392-0	01	1	1309-1408		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-392-0	01	1	1309-1408			●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-392-0	01	1	1409-		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-393-1	01	1	1309-1408		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-393-1	01	1	1309-1408			●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-393-1	01	1	1409-		●	●
