3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#126237) — 135 parça

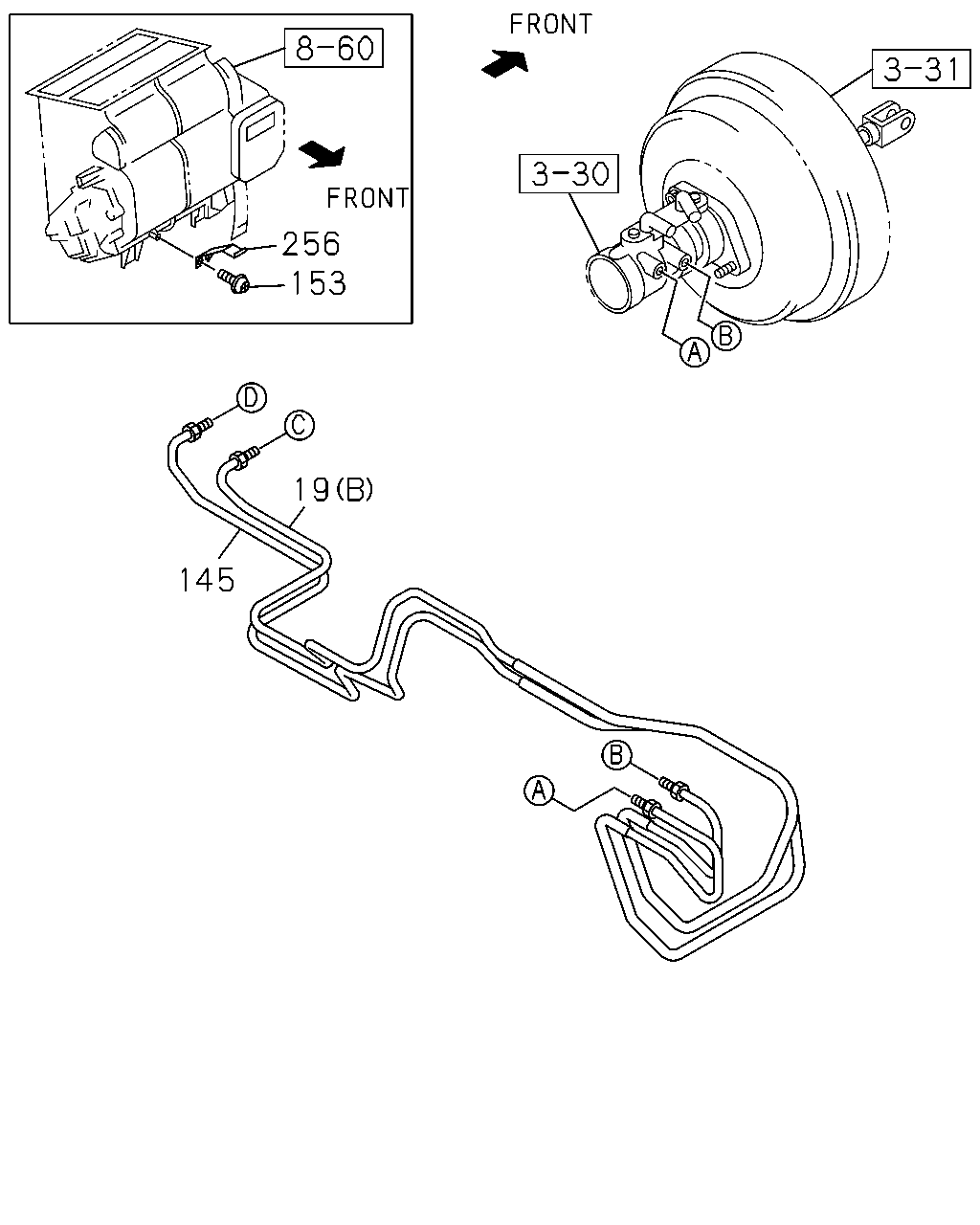

çizim 373261
256 153 19 145
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-97389-366-1 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) L=1274 		8-98115-279-1 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-790-2 02 1 1309-1401 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-790-2 02 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98206-790-2 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98204-479-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98204-479-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98204-479-1 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98204-479-1 01 1 1402- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> L=1371 		8-98115-269-1 01 1 1402- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98220-477-1 01 1 1309-1401 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98220-477-1 01 1 1309-1401 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98220-477-1 01 1 1402- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,BRAKE SYSTEM PA TYPE(8BX) 		8-98220-477-1 01 1 1402- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
BRAKE SYSTEM PA TYPE(8BX) 		8-98204-478-1 01 1 1309-1401 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98204-478-1 01 1 1309-1401 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
BRAKE SYSTEM PA TYPE(8BX) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98204-478-1 01 1 1402- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98204-478-1 01 1 1402- ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1309- ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1309- ● ● ●

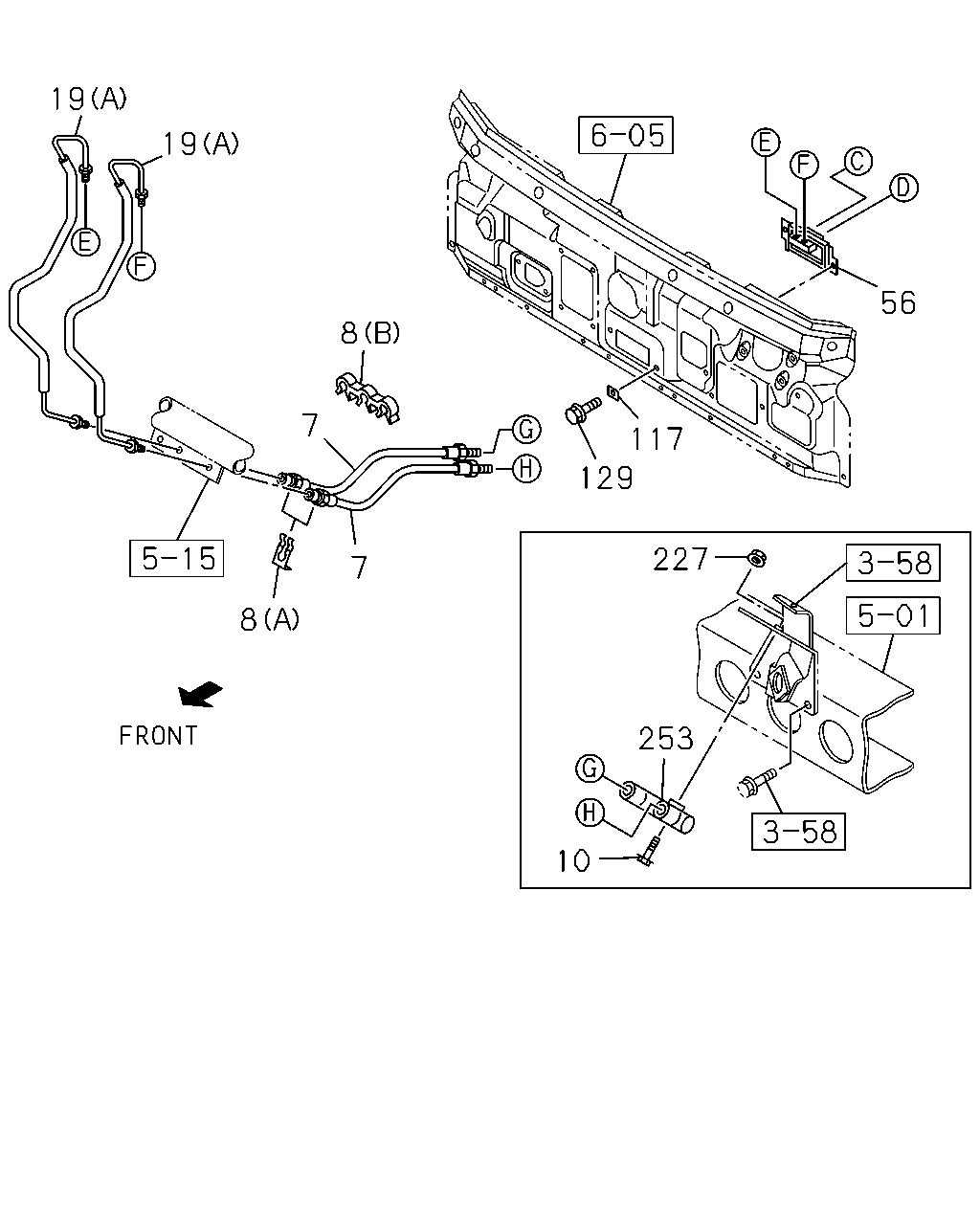

çizim 373845
19 19 8 7 7 8 56 117 129 227 253 10
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98029-865-0 02 1 1402- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98191-785-0 02 1 1309-1401 ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98191-785-0 02 1 1402- ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98191-785-0 02 1 1402- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1309- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1309- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1309- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-97389-366-1 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) L=1274 		8-98115-279-1 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-790-2 02 1 1309-1401 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-790-2 02 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98206-790-2 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98204-479-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98204-479-1 01 1 1309-1401 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98204-479-1 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98204-479-1 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98154-265-1 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98154-265-1 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98154-265-1 01 1 1409- ● ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98154-264-1 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK 8-98207-244-0 01 1 1309-1310 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-244-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-244-0 01 1 1311-1401 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-244-0 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98207-244-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-245-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-245-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98207-245-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98207-245-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1409- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98207-245-0 01 1 1409- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1309- ● ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1309- ● ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1401 ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1401 ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1402-1408 ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1402-1408 ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
253 04.840 JOINT
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-97038-940-1 01 1 1402- ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1309-1401 ● ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1402- ●
253 04.840 JOINT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98192-436-0 01 1 1402- ● ●

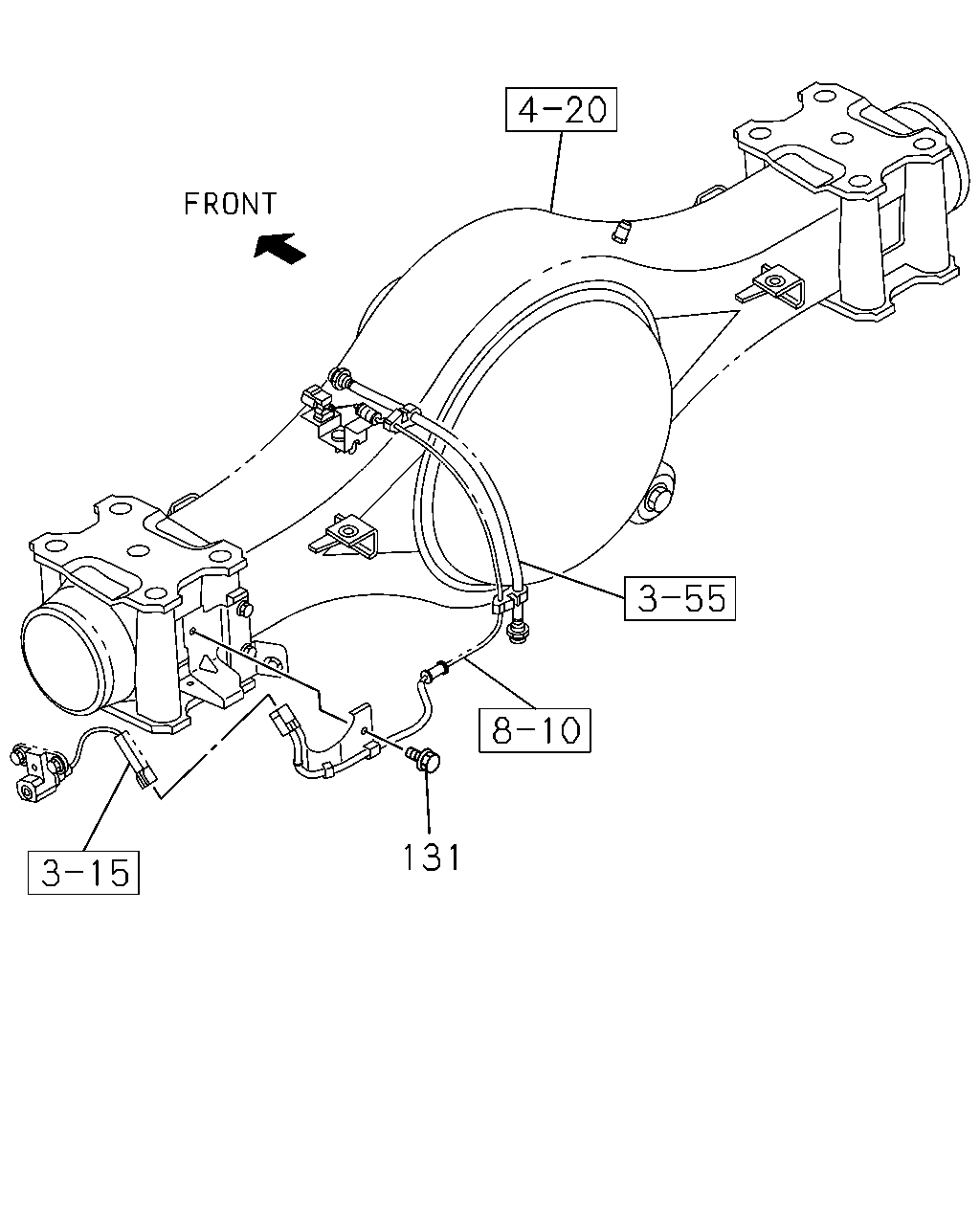

çizim 374241
131
BalonParca AdiParca NoAdetTipApplied Date A B C
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1309- ● ● ●
çizim 374604
89 103 72 179 197 94 184 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1309- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98270-235-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) BRAKE SYSTEM PA TYPE(8BX) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-236-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) BRAKE SYSTEM PA TYPE(8BX) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-236-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-236-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) BRAKE SYSTEM PA TYPE(8BX) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-237-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-237-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 		8-98252-589-0 01 1 1309- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98252-585-0 01 1 1309- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ>,BRAKE SYSTEM PA TYPE(8BX) 		8-98252-581-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ>,BRAKE SYST EM PA TYPE(8BX) 		8-98252-581-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 6.5-7.0TON(RPW) BRAKE SYSTEM PA TYPE(8BX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98252-599-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-599-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-599-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-599-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98252-595-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-595-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-595-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-595-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) BRAKE SYSTEM PA TYPE(8BX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98252-597-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-597-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-597-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-597-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98252-593-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-593-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-593-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-593-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98252-591-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-591-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-591-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-591-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 		8-98252-588-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98252-584-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98250-188-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-188-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-188-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-188-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98250-184-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-184-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-184-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-184-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98250-180-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) 		8-98250-180-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-180-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-180-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-180-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98250-180-0 01 1 1409- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-875-2 01 1 1309- ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1401 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1401 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1309- ● ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1309- ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1309- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
