Isuzu WW
▶
TRUCKS
▶
NNR
▶
51482 - NNR/NPR RHD EUROPE EURO5B+,6
▶
3 - Brakes, Brake System
▶
3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.)
▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.)
(#126233) — 39 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WN
◀

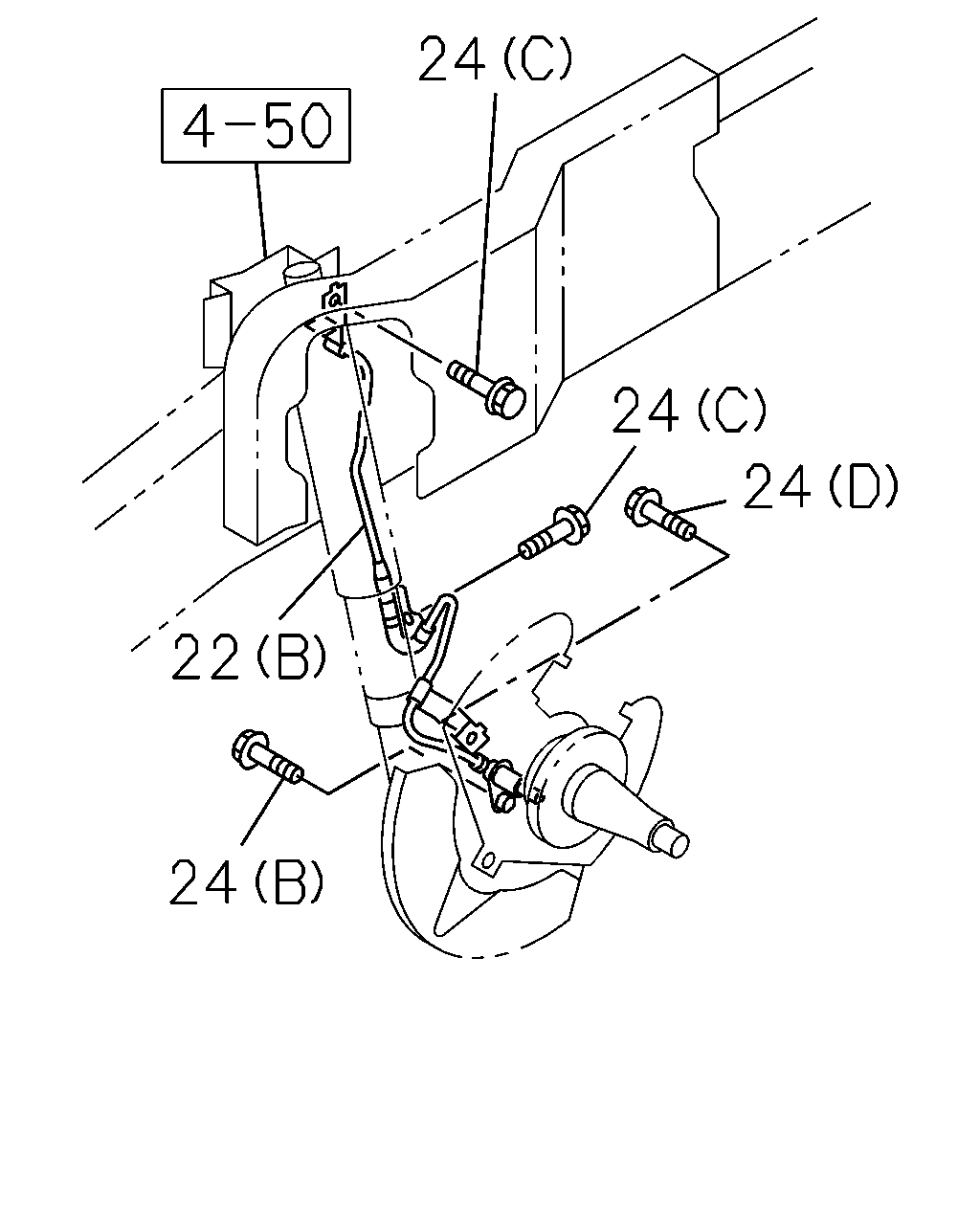

[315A] FRONT (13 parça)

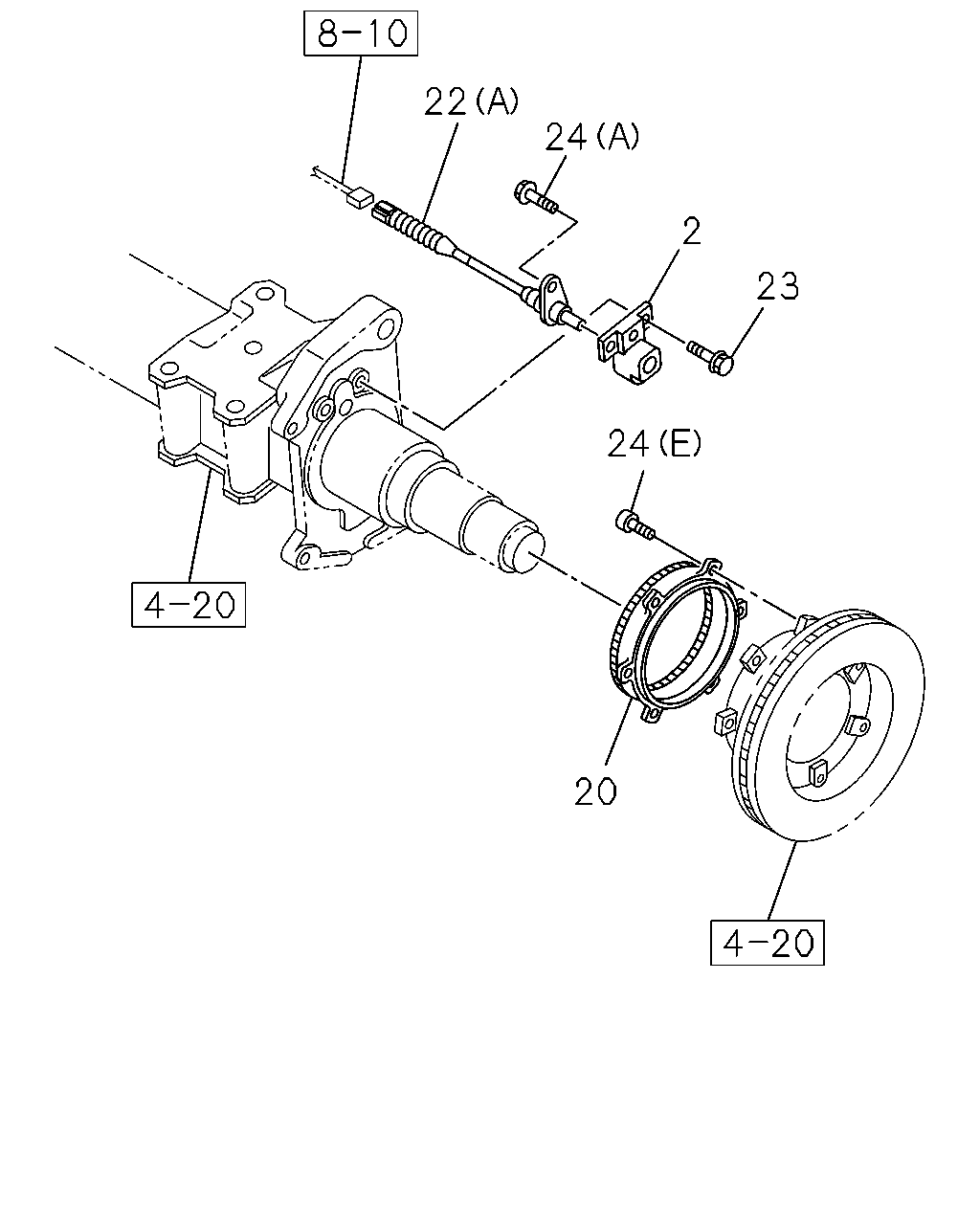

[315A] REAR (26 parça)
▶
24
22
24
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
22
04.710 SENSOR; SPEED
(A)
8-98012-753-1
02
1
1309-
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98112-348-1
01
1
1309-1311
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98220-126-0
01
1
1312-
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98112-349-1
01
1
1309-1311
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98220-127-0
01
1
1312-
●
●
●
24
04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1309-1401
●
●
●
24
04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1402-
●
●
●
24
04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1309-1310
●
●
●
24
04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE
0-28050-616-0
02
1
1311-
●
●
●
24
04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE
0-28050-812-0
02
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE
0-28051-012-0
02
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
01.251 (E) M6X12 HEX SOCKET
0-58330-612-0
12
1
1309-
●
●
●
22
24
2
23
24
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
04.730 BRACKET; SENSOR
8-98045-222-0
02
1
1309-
●
●
●
20
04.710 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU)
8-98312-785-0
02
1
1512-
●
20
04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY)
8-98207-952-0
02
1
1309-1408
●
20
04.710 ROTOR; SENSOR
8-98207-952-0
02
1
1309-1408
●
20
04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY)
8-98207-952-0
02
1
1409-
●
●
20
04.710 ROTOR; SENSOR
05.809
8-98187-136-0
02
1
1309-1511
●
20
04.710 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU) 05.809
8-98187-136-0
02
1
1309-1511
●
20
04.710 ROTOR; SENSOR
8-98312-785-0
02
1
1512-
●
20
04.710 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU)
8-98312-785-0
02
1
1512-
●
20
04.710 ROTOR; SENSOR
G.V.W. 6.5-7.0TON(RPW)
8-98187-137-0
02
1
1309-1401
●
20
04.710 ROTOR; SENSOR
G.V.W. 6.5-7.0TON(RPW)
8-98207-952-0
02
1
1402-1408
●
20
04.710 ROTOR; SENSOR
G.V.W. 6.5-7.0TON(RPW)
8-98207-952-0
02
1
1409-
●
●
22
04.710 SENSOR; SPEED
(A)
8-98012-753-1
02
1
1309-
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98112-348-1
01
1
1309-1311
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98220-126-0
01
1
1312-
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98112-349-1
01
1
1309-1311
●
●
●
22
04.710 SENSOR; SPEED
(B)
8-98220-127-0
01
1
1312-
●
●
●
23
04.710 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
04
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1309-1401
●
●
●
24
04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1402-
●
●
●
24
04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1309-1310
●
●
●
24
04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE
0-28050-616-0
02
1
1311-
●
●
●
24
04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE
0-28050-812-0
02
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE
0-28051-012-0
02
1
1309-
●
●
●
24
04.730 BOLT; SENSOR
01.251 (E) M6X12 HEX SOCKET
0-58330-612-0
12
1
1309-
●
●
●
