3-08 — PARKING BRAKE (#126230) — 156 parça

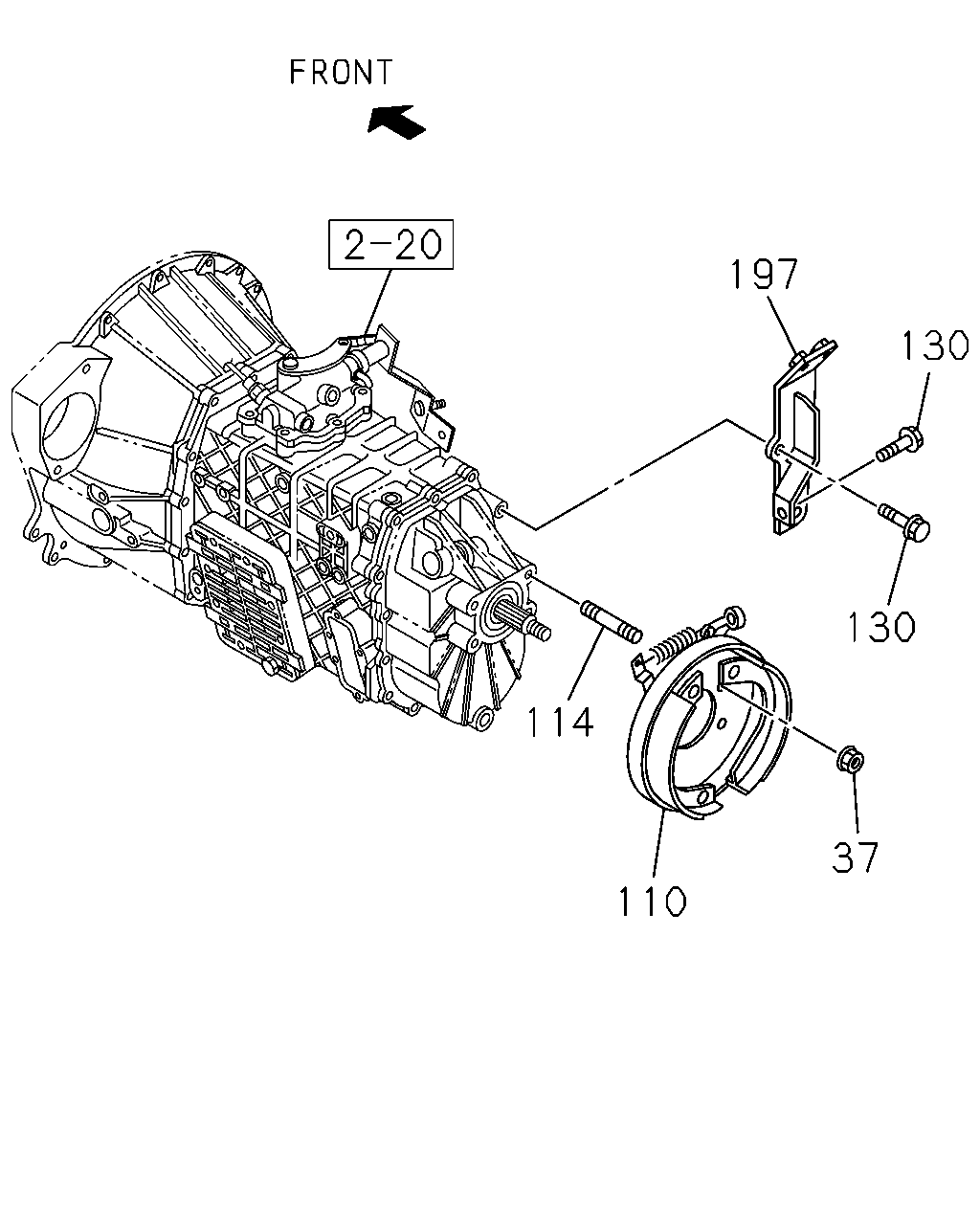

çizim 373478
110 37 130 130 114 197
BalonParca AdiParca NoAdetTipApplied Date A B C
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1309- ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5A(RSL),M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 1309- ●
37 05.610 NUT; SUPPORT PLATE
M/T MZZ6F(RSR) M14 FLANGE 		8-97365-444-0 04 1 1309-1408 ●
37 05.610 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 1309-1408 ●
37 05.610 NUT; SUPPORT PLATE
M/T MZZ6F(RSR) M14 FLANGE 		8-97365-444-0 04 1 1409- ● ●
110 05.610 BRAKE ASM; PARKING
M/T MZZ6F(RSR) 		8-98034-305-0 01 1 1309-1408 ●
110 05.610 BRAKE ASM; PARKING 8-98034-305-0 01 1 1309-1408 ●
110 05.610 BRAKE ASM; PARKING
M/T MZZ6F(RSR) 		8-98034-305-0 01 1 1409- ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1309- ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98029-929-0 04 1 1309- ●
114 05.605 STUD; SUPPORT PLATE
M/T MZZ6F(RSR) M14X22.5 L=42.5 		8-97365-445-0 04 1 1309-1408 ●
114 05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5 		8-97365-445-0 04 1 1309-1408 ●
114 05.605 STUD; SUPPORT PLATE
M/T MZZ6F(RSR) M14X22.5 L=42.5 		8-97365-445-0 04 1 1409- ● ●
130 05.605 BOLT; BRKT
M/T MZZ6F(RSR) 02.042 M10X25 FLANGE 		0-28151-025-0 03 1 1309-1408 ●
130 05.605 BOLT; BRKT
02.042 M10X25 FLANGE 		0-28151-025-0 03 1 1309-1408 ●
130 05.605 BOLT; BRKT
M/T MZZ6F(RSR) 02.042 M10X25 FLANGE 		0-28151-025-0 03 1 1409- ● ●
197 05.605 BRACKET; CENTER BRAKE CABLE
M/T MZZ6F(RSR) 		8-98219-479-0 01 1 1309-1408 ●
197 05.605 BRACKET; CENTER BRAKE CABLE 8-98219-479-0 01 1 1309-1408 ●
197 05.605 BRACKET; CENTER BRAKE CABLE
M/T MZZ6F(RSR) 		8-98219-479-0 01 1 1409- ● ●

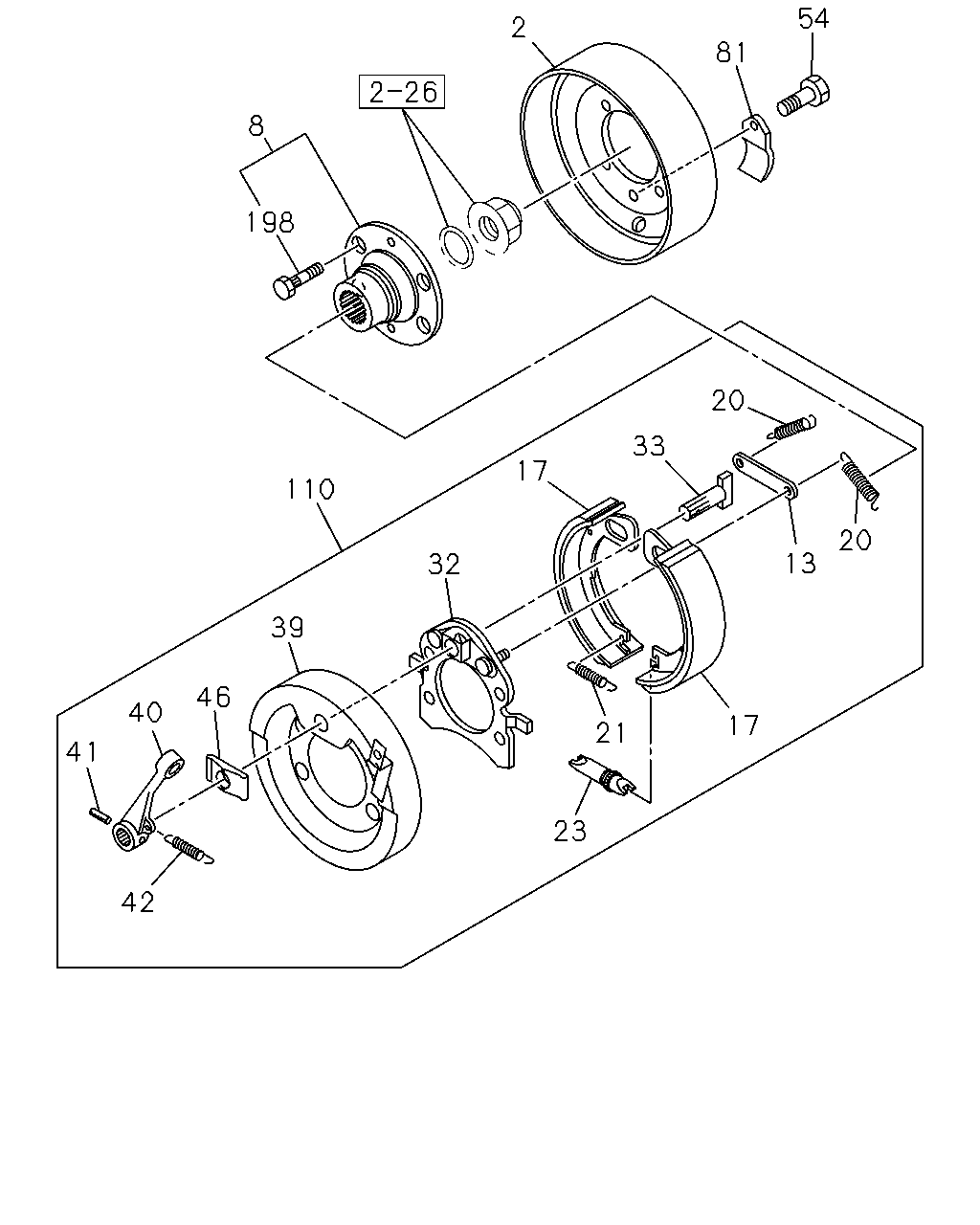

çizim 373963
8 2 81 54 198 110 17 33 20 20 13 17 21 23 32 39 46 40 41 42
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97033-989-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97033-989-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1409- ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97033-989-1 01 1 1409- ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97033-989-1 01 1 1409- ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97334-107-0 01 1 1309-1506 ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-289-0 01 1 1507- ●
2 05.605 DRUM; PARKING BRK
M/T MZZ6F(RSR) 		1-46211-057-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK 1-46211-057-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK
M/T MZZ6F(RSR) 		1-46211-057-1 01 1 1409- ● ●
8 05.605 FLANGE; PARKING BRK
M/T MZZ6F(RSR) 		8-98044-142-0 01 1 1309-1408 ●
8 05.605 FLANGE; PARKING BRK 8-98044-142-0 01 1 1309-1408 ●
8 05.605 FLANGE; PARKING BRK
M/T MZZ6F(RSR) 		8-98044-142-0 01 1 1409- ● ●
13 05.615 BRACE; PARKING BRK
M/T MZZ6F(RSR) 		1-46239-003-0 01 1 1309-1408 ●
13 05.615 BRACE; PARKING BRK 1-46239-003-0 01 1 1309-1408 ●
13 05.615 BRACE; PARKING BRK
M/T MZZ6F(RSR) 		1-46239-003-0 01 1 1409- ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1309- ●
17 05.606 SHOE; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-97020-250-2 02 1 1309- ●
17 05.606 SHOE; PARKING BRK
M/T MZZ6F(RSR) 		8-97042-934-1 02 1 1309-1408 ●
17 05.606 SHOE; PARKING BRK 8-97042-934-1 02 1 1309-1408 ●
17 05.606 SHOE; PARKING BRK
M/T MZZ6F(RSR) 		8-97042-934-1 02 1 1409- ● ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING
M/T MZZ6F(RSR) 		1-09586-002-0 02 1 1309-1408 ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING 1-09586-002-0 02 1 1309-1408 ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING
M/T MZZ6F(RSR) 		1-09586-002-0 02 1 1409- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1309- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5A(RSL),M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 1309- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MZZ6F(RSR) 		1-09583-280-0 01 1 1309-1408 ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE 1-09583-280-0 01 1 1309-1408 ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MZZ6F(RSR) 		1-09583-280-0 01 1 1409- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1309- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-954-0 01 1 1309- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MZZ6F(RSR) 		8-98043-963-0 01 1 1309-1408 ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-963-0 01 1 1309-1408 ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MZZ6F(RSR) 		8-98043-963-0 01 1 1409- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1309- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-97308-176-0 01 1 1309- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MZZ6F(RSR) 		1-46213-069-0 01 1 1309-1408 ●
32 05.610 PLATE; SUPPORT,PARKING BRK 1-46213-069-0 01 1 1309-1408 ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MZZ6F(RSR) 		1-46213-069-0 01 1 1409- ● ●
33 05.605 SHAFT; CAM,PARKING BRK
M/T MZZ6F(RSR) 		8-98043-961-0 01 1 1309-1408 ●
33 05.605 SHAFT; CAM,PARKING BRK 8-98043-961-0 01 1 1309-1408 ●
33 05.605 SHAFT; CAM,PARKING BRK
M/T MZZ6F(RSR) 		8-98043-961-0 01 1 1409- ● ●
39 05.610 COVER; DUST,PARKING BRK
M/T MZZ6F(RSR) 		1-46213-075-0 01 1 1309-1408 ●
39 05.610 COVER; DUST,PARKING BRK 1-46213-075-0 01 1 1309-1408 ●
39 05.610 COVER; DUST,PARKING BRK
M/T MZZ6F(RSR) 		1-46213-075-0 01 1 1409- ● ●
40 05.605 LEVER; CM/SHF,PARKING BRK
M/T MZZ6F(RSR) 		8-98047-550-0 01 1 1309-1408 ●
40 05.605 LEVER; CM/SHF,PARKING BRK 8-98047-550-0 01 1 1309-1408 ●
40 05.605 LEVER; CM/SHF,PARKING BRK
M/T MZZ6F(RSR) 		8-98047-550-0 01 1 1409- ● ●
41 05.605 PIN; KNOCK,LEVER
M/T MZZ6F(RSR) 		9-09878-594-0 01 1 1309-1408 ●
41 05.605 PIN; KNOCK,LEVER 9-09878-594-0 01 1 1309-1408 ●
41 05.605 PIN; KNOCK,LEVER
M/T MZZ6F(RSR) 		9-09878-594-0 01 1 1409- ● ●
42 05.605 SPRING; RETURN,LEVER
M/T MZZ6F(RSR) 		1-09583-041-0 01 1 1309-1408 ●
42 05.605 SPRING; RETURN,LEVER 1-09583-041-0 01 1 1309-1408 ●
42 05.605 SPRING; RETURN,LEVER
M/T MZZ6F(RSR) 		1-09583-041-0 01 1 1409- ● ●
46 05.605 WASHER; LEVER
M/T MZZ6F(RSR) 		1-09509-057-0 01 1 1309-1408 ●
46 05.605 WASHER; LEVER 1-09509-057-0 01 1 1309-1408 ●
46 05.605 WASHER; LEVER
M/T MZZ6F(RSR) 		1-09509-057-0 01 1 1409- ● ●
54 05.606 BOLT; COVER
M/T MZZ6F(RSR) 03.403 M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1309-1408 ●
54 05.606 BOLT; COVER
03.403 M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1309-1408 ●
54 05.606 BOLT; COVER
M/T MZZ6F(RSR) 03.403 M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1409- ● ●
81 05.606 COVER; CHECK HOLE,PARKING BRK
M/T MZZ6F(RSR) 		8-98031-861-0 02 1 1309-1408 ●
81 05.606 COVER; CHECK HOLE,PARKING BRK 8-98031-861-0 02 1 1309-1408 ●
81 05.606 COVER; CHECK HOLE,PARKING BRK
M/T MZZ6F(RSR) 		8-98031-861-0 02 1 1409- ● ●
110 05.610 BRAKE ASM; PARKING
M/T MZZ6F(RSR) 		8-98034-305-0 01 1 1309-1408 ●
110 05.610 BRAKE ASM; PARKING 8-98034-305-0 01 1 1309-1408 ●
110 05.610 BRAKE ASM; PARKING
M/T MZZ6F(RSR) 		8-98034-305-0 01 1 1409- ● ●
198 05.605 BOLT; KNURL
M/T MZZ6F(RSR) M12X39 		8-97365-446-0 04 1 1309-1408 ●
198 05.605 BOLT; KNURL
M12X39 		8-97365-446-0 04 1 1309-1408 ●
198 05.605 BOLT; KNURL
M/T MZZ6F(RSR) M12X39 		8-97365-446-0 04 1 1409- ● ●

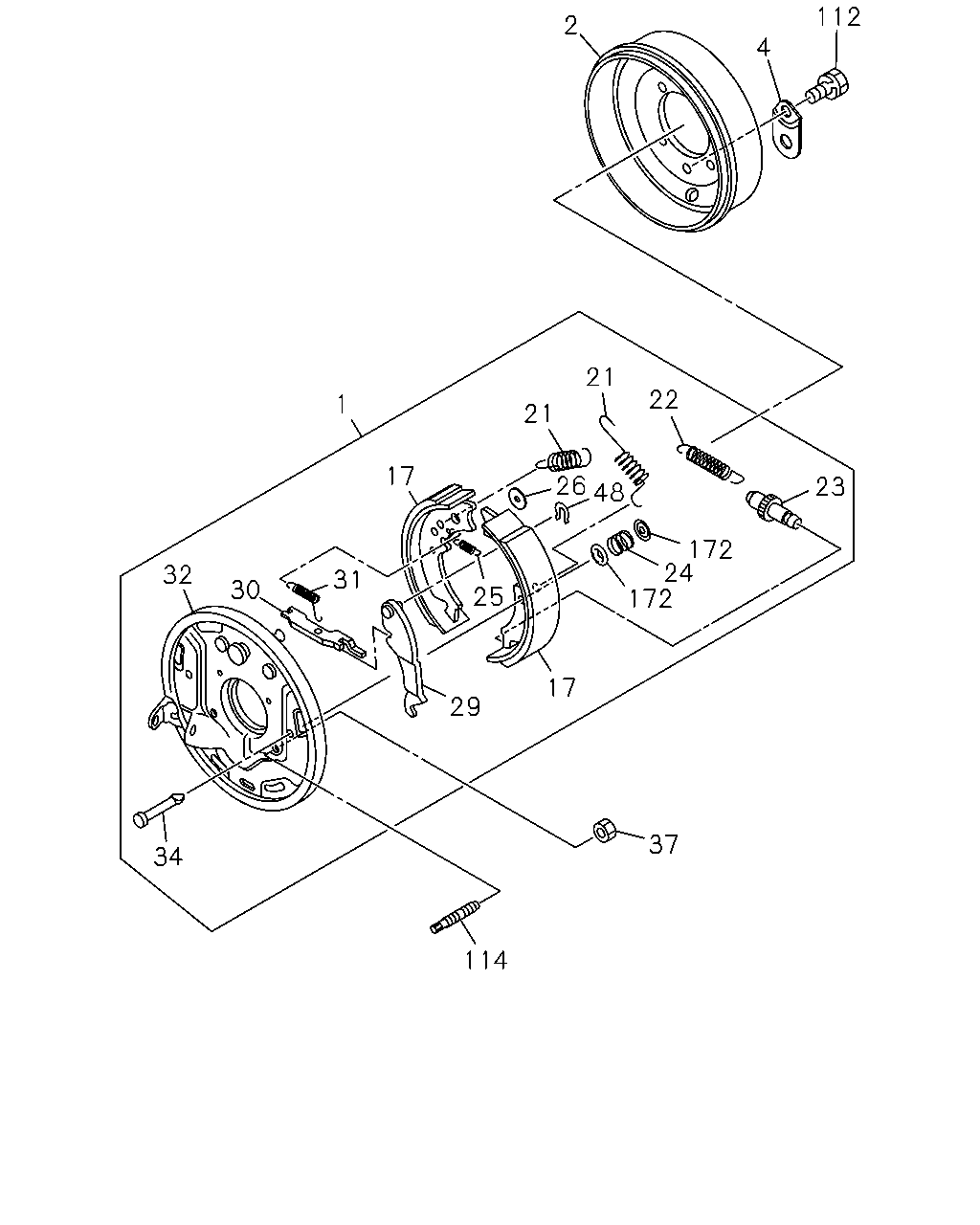

çizim 373985
2 4 112 22 23 21 21 172 24 172 17 37 114 34 29 17 1 31 30 32 25 26 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1309- ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98029-922-0 01 1 1309- ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97033-989-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97033-989-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1409- ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97033-989-1 01 1 1409- ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97033-989-1 01 1 1409- ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97334-107-0 01 1 1309-1506 ●
2 05.605 DRUM; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-289-0 01 1 1507- ●
2 05.605 DRUM; PARKING BRK
M/T MZZ6F(RSR) 		1-46211-057-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK 1-46211-057-1 01 1 1309-1408 ●
2 05.605 DRUM; PARKING BRK
M/T MZZ6F(RSR) 		1-46211-057-1 01 1 1409- ● ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1309- ●
4 05.606 COVER; ADJ HOLE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98029-820-0 01 1 1309- ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1309- ●
17 05.606 SHOE; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-97020-250-2 02 1 1309- ●
17 05.606 SHOE; PARKING BRK
M/T MZZ6F(RSR) 		8-97042-934-1 02 1 1309-1408 ●
17 05.606 SHOE; PARKING BRK 8-97042-934-1 02 1 1309-1408 ●
17 05.606 SHOE; PARKING BRK
M/T MZZ6F(RSR) 		8-97042-934-1 02 1 1409- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1309- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5A(RSL),M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 1309- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MZZ6F(RSR) 		1-09583-280-0 01 1 1309-1408 ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE 1-09583-280-0 01 1 1309-1408 ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MZZ6F(RSR) 		1-09583-280-0 01 1 1409- ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1309- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 1309- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1309- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-954-0 01 1 1309- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MZZ6F(RSR) 		8-98043-963-0 01 1 1309-1408 ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-963-0 01 1 1309-1408 ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MZZ6F(RSR) 		8-98043-963-0 01 1 1409- ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1309- ●
24 05.605 SPRING; BRK SHOE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-94132-155-1 02 1 1309- ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1309- ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-94132-156-0 01 1 1309- ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1309- ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-959-0 01 1 1309- ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1309- ●
29 04.591 LEVER; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-949-0 01 1 1309- ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1309- ●
30 05.605 STRUT; PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-953-0 01 1 1309- ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1309- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-94132-158-0 01 1 1309- ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1309- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-97308-176-0 01 1 1309- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MZZ6F(RSR) 		1-46213-069-0 01 1 1309-1408 ●
32 05.610 PLATE; SUPPORT,PARKING BRK 1-46213-069-0 01 1 1309-1408 ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MZZ6F(RSR) 		1-46213-069-0 01 1 1409- ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1309- ●
34 05.605 PIN; BRK SHOE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-955-0 02 1 1309- ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1309- ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5A(RSL),M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 1309- ●
37 05.610 NUT; SUPPORT PLATE
M/T MZZ6F(RSR) M14 FLANGE 		8-97365-444-0 04 1 1309-1408 ●
37 05.610 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 1309-1408 ●
37 05.610 NUT; SUPPORT PLATE
M/T MZZ6F(RSR) M14 FLANGE 		8-97365-444-0 04 1 1409- ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1309- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-958-0 01 1 1309- ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1309- ●
112 05.606 BOLT; COVER TO BRK DRUM
M/T MYY5A(RSL),M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1309- ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1309- ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98029-929-0 04 1 1309- ●
114 05.605 STUD; SUPPORT PLATE
M/T MZZ6F(RSR) M14X22.5 L=42.5 		8-97365-445-0 04 1 1309-1408 ●
114 05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5 		8-97365-445-0 04 1 1309-1408 ●
114 05.605 STUD; SUPPORT PLATE
M/T MZZ6F(RSR) M14X22.5 L=42.5 		8-97365-445-0 04 1 1409- ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1309- ●
172 05.605 CUP; SHOE HOLD
M/T MYY5A(RSL),M/T MYY6S(RST) 		8-98043-956-0 04 1 1309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
