◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-06 - REAR DISC BRAKE CALIPER ▶
3-06 — REAR DISC BRAKE CALIPER (#126229) — 89 parça

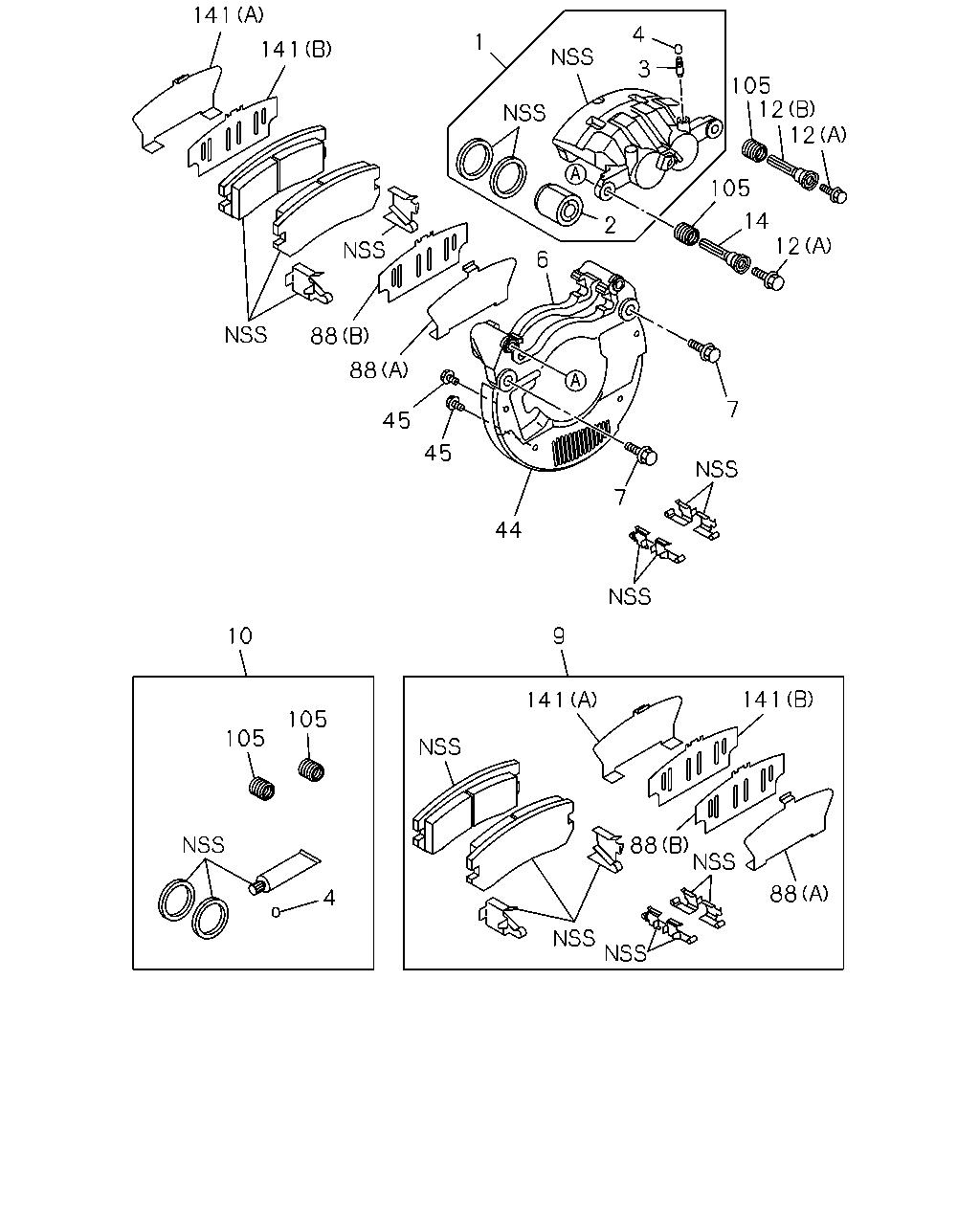

çizim 373888
141 141 1 4 3 105 12 12 12 14 105 2 7 6 7 9 44 45 45 88 88 10 105 105 4 141 141 88 88
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; RR DISC BRK 8-98082-925-0 01 1 1309-1412 ●
1 04.665 CALIPER; RR DISC BRK 8-98303-471-0 01 1 1501- ●
1 04.665 CALIPER; RR DISC BRK 8-98082-926-0 01 1 1309-1412 ●
1 04.665 CALIPER; RR DISC BRK 8-98303-472-0 01 1 1501- ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98089-670-0 01 1 1309-1310 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98251-564-0 01 1 1311-1408 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98251-564-0 01 1 1409-1412 ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98303-463-0 01 1 1501- ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98089-671-0 01 1 1309-1310 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98251-565-0 01 1 1311-1408 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98251-565-0 01 1 1409-1412 ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98303-464-0 01 1 1501- ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98240-309-0 01 1 1309-1408 ●
1 04.665 CALIPER; RR DISC BRK 8-98240-309-0 01 1 1309-1408 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98240-309-0 01 1 1409-1412 ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98303-467-0 01 1 1501- ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98240-310-0 01 1 1309-1408 ●
1 04.665 CALIPER; RR DISC BRK 8-98240-310-0 01 1 1309-1408 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98240-310-0 01 1 1409-1412 ● ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98303-468-0 01 1 1501- ● ●
2 04.665 PISTON; CALIPER,RR 8-98082-934-0 04 1 1309- ●
2 04.665 PISTON; CALIPER,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 04.668 		8-97365-269-0 04 1 1309-1408 ●
2 04.665 PISTON; CALIPER,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 04.668 		8-97365-269-0 04 1 1409- ● ●
2 04.665 PISTON; CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 04.668 		8-97365-279-0 04 1 1309-1408 ●
2 04.665 PISTON; CALIPER,RR
04.668 		8-97365-279-0 04 1 1309-1408 ●
2 04.665 PISTON; CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 04.668 		8-97365-279-0 04 1 1409- ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
04.666 		8-98050-476-0 02 1 1309- ● ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		8-98050-479-0 02 1 1309- ● ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-98082-935-0 02 1 1309- ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98089-674-0 02 1 1309-1408 ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98089-674-0 02 1 1409- ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98240-313-0 02 1 1309-1408 ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-98240-313-0 02 1 1309-1408 ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98240-313-0 02 1 1409- ● ●
7 04.665 BOLT; DISC BRK
04.681 M16X48 FLANGE 		8-98033-656-0 04 1 1309- ● ● ●
9 04.667 PAD KIT; CALIPER,RR
05.017 		8-98216-921-0 01 1 1309- ●
9 04.667 PAD KIT; CALIPER,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 05.017 		8-98216-922-0 01 1 1309-1408 ●
9 04.667 PAD KIT; CALIPER,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 05.017 		8-98216-922-0 01 1 1409- ● ●
9 04.667 PAD KIT; CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 05.017 		8-98244-794-0 01 1 1309-1408 ●
9 04.667 PAD KIT; CALIPER,RR
05.017 		8-98244-794-0 01 1 1309-1408 ●
9 04.667 PAD KIT; CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 05.017 		8-98244-794-0 01 1 1409- ● ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-98120-359-0 01 1 1309-1412 ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-98302-533-0 01 1 1501- ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 04.667 W/GREASE 		8-98120-357-0 01 1 1309-1310 ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 04.667 W/GREASE 		8-98248-904-0 01 1 1311-1408 ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 04.667 W/GREASE 		8-98248-904-0 01 1 1409-1412 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 04.667 W/GREASE 		8-98302-531-0 01 1 1501- ● ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 7.5-8.0TON(RPY) 04.667 W/GREASE 		8-98120-358-0 01 1 1309-1408 ●
10 04.665 REPAIR KIT; DISC BRK,RR
04.667 W/GREASE 		8-98120-358-0 01 1 1309-1408 ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 7.5-8.0TON(RPY) 04.667 W/GREASE 		8-98120-358-0 01 1 1409-1412 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 7.5-8.0TON(RPY) 04.667 W/GREASE 		8-98302-532-0 01 1 1501- ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-98248-005-0 02 1 1311-1408 ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-98248-005-0 02 1 1409- ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(B) 		8-98047-532-0 02 1 1309- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(A) 		8-97365-264-0 04 1 1309- ● ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(B) 		8-98047-531-0 02 1 1309-1310 ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (B) 		8-98047-531-0 02 1 1311-1408 ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(B) 		8-98047-531-0 02 1 1311-1408 ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (B) 		8-98047-531-0 02 1 1409- ● ●
14 04.665 PIN; GUIDE,CALIPER 8-98047-530-0 02 1 1309- ●
14 04.665 PIN; GUIDE,CALIPER 8-98047-529-0 02 1 1309- ● ●
44 04.665 COVER; DUST 8-98191-950-0 01 1 1309- ● ● ●
44 04.665 COVER; DUST 8-98191-951-0 01 1 1309- ● ● ●
45 04.665 BOLT; DUST COVER SET
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1309- ● ● ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(A) 		8-98092-330-0 02 1 1309- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(B) 		8-98092-331-0 02 1 1309- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97321-116-0 02 1 1309-1408 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97321-116-0 02 1 1409- ● ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-97321-117-0 02 1 1309-1408 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-97321-117-0 02 1 1409- ● ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97368-924-0 02 1 1309-1408 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(A) 		8-97368-924-0 02 1 1309-1408 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97368-924-0 02 1 1409- ● ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97368-925-0 02 1 1309-1408 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(B) 		8-97368-925-0 02 1 1309-1408 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97368-925-0 02 1 1409- ● ●
105 04.665 BOOT; PIN 8-98120-354-0 04 1 1309- ● ● ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(A) 		8-98092-330-0 02 1 1309- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(B) 		8-98092-331-0 02 1 1309- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97321-116-0 02 1 1309-1408 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97321-116-0 02 1 1409- ● ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-97321-117-0 02 1 1309-1408 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-97321-117-0 02 1 1409- ● ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97368-924-0 02 1 1309-1408 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(A) 		8-97368-924-0 02 1 1309-1408 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97368-924-0 02 1 1409- ● ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97368-925-0 02 1 1309-1408 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(B) 		8-97368-925-0 02 1 1309-1408 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97368-925-0 02 1 1409- ● ●
