2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#126223) — 14 parça

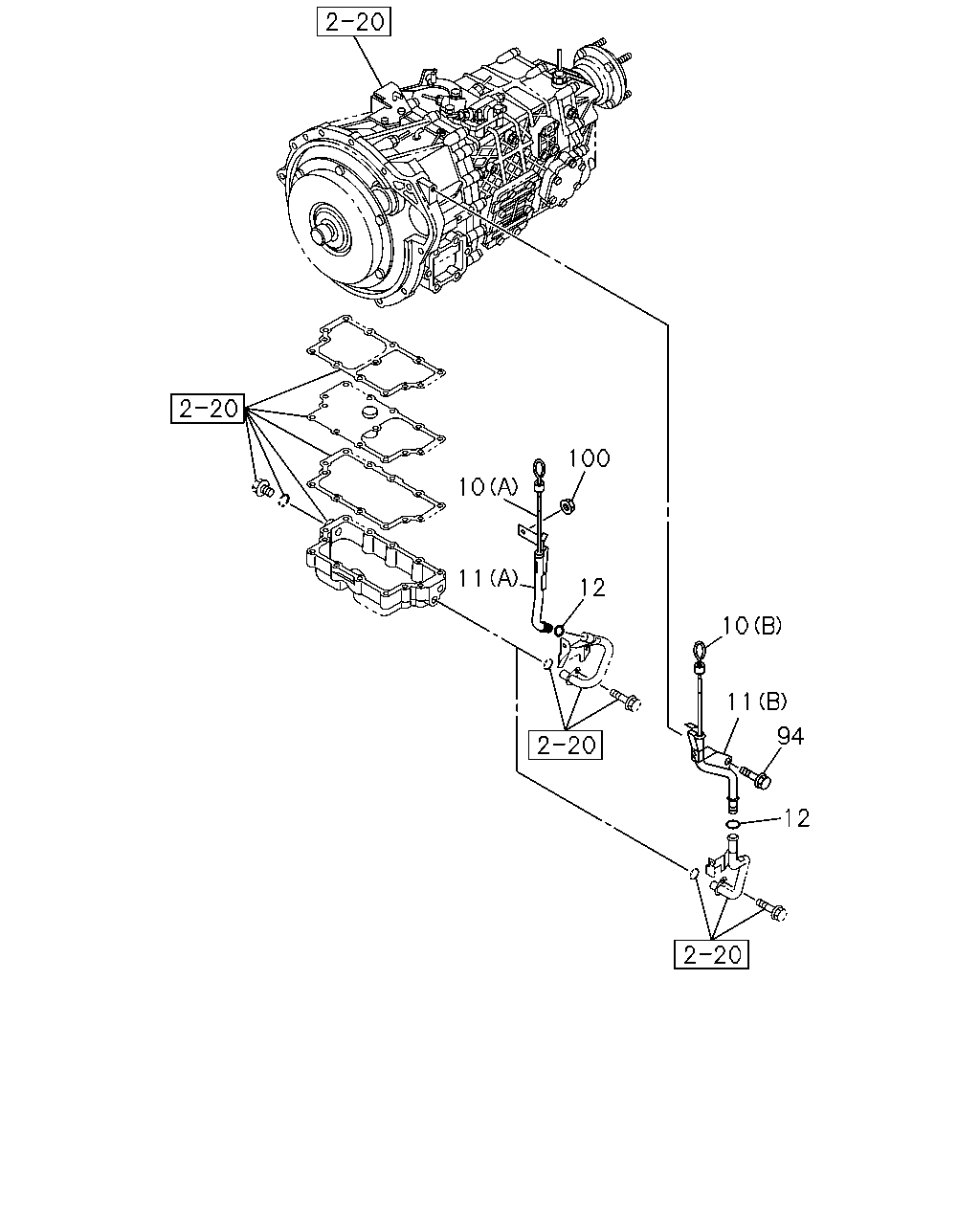

çizim 374183
10 11 12 100 10 11 94 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 04.197 GAUGE; OIL LEVEL
DBL CAB(NP**W*) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-447-1 01 1 1409- ● ● ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97325-010-1 01 1 1311-1401 ● ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97325-010-1 01 1 1402- ● ● ●
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-446-0 01 1 1309- ●
11 04.197 TUBE; OIL FILLER
DBL CAB(NP**W*) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97368-278-1 01 1 1409- ● ● ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98147-074-0 01 1 1311-1401 ● ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98147-074-0 01 1 1402- ● ● ●
11 04.197 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98060-185-0 01 1 1309- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 1309-1310 ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) ID=12.3 		8-97313-558-0 01 1 1311-1408 ● ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) ID=12.3 		8-97313-558-0 01 1 1409- ● ● ● ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1311-1408 ● ●
94 04.197 BOLT; OIL FILLER TUBE
SMOOTHER-EX(TYPE2)(8NS) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1409- ● ● ●
100 04.197 NUT; FILLER TUBE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ●
