◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#126215) — 12 parça

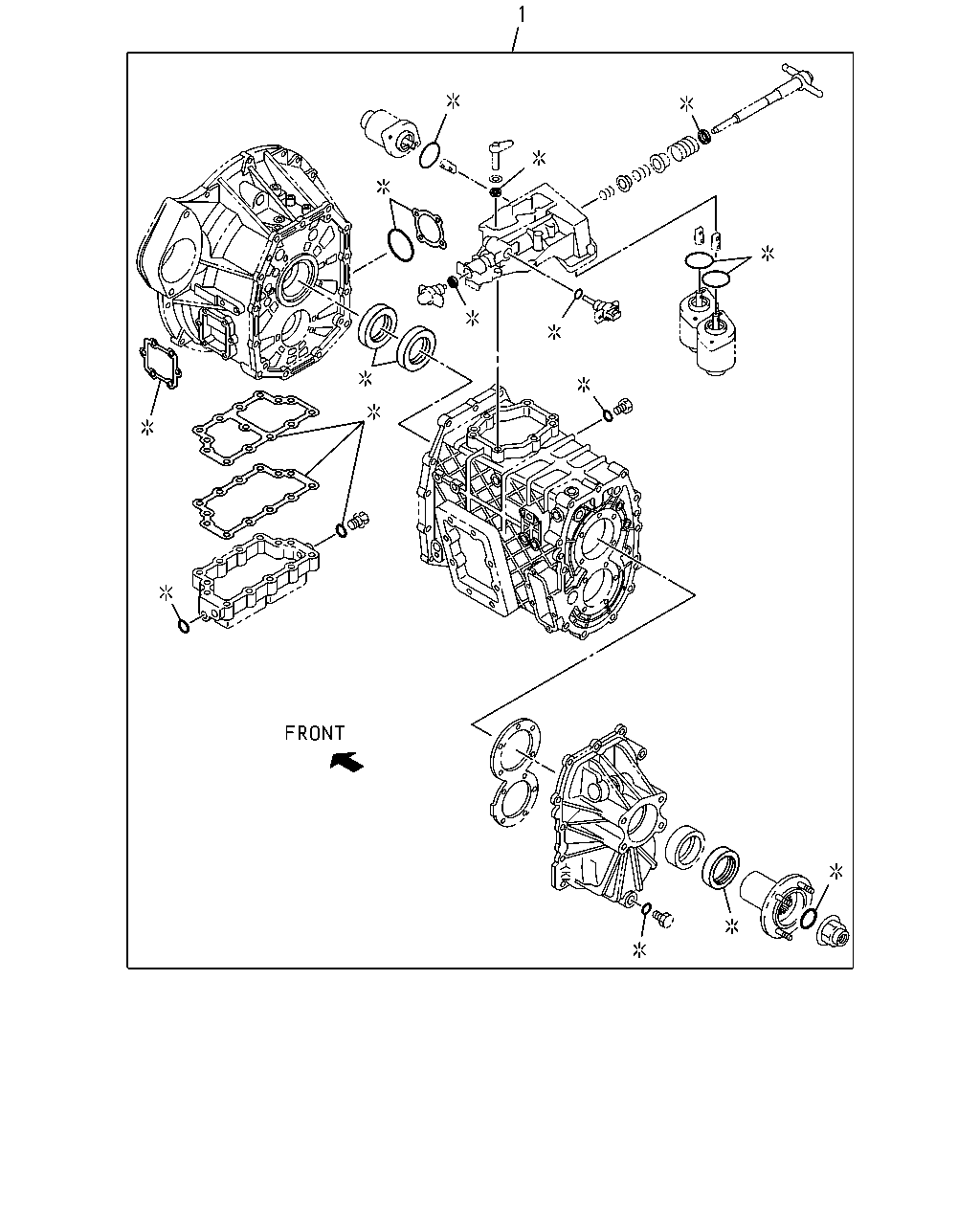

çizim 374217
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL
SMOOTHER-EX(TYPE2)(8NS) 		5-87832-192-1 01 1 1311-1401 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
SMOOTHER-EX(TYPE2)(8NS) 		5-87832-192-1 01 1 1402- ● ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-2 01 1 1309-1310 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 1311- ● ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 1309- ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 1309- ●

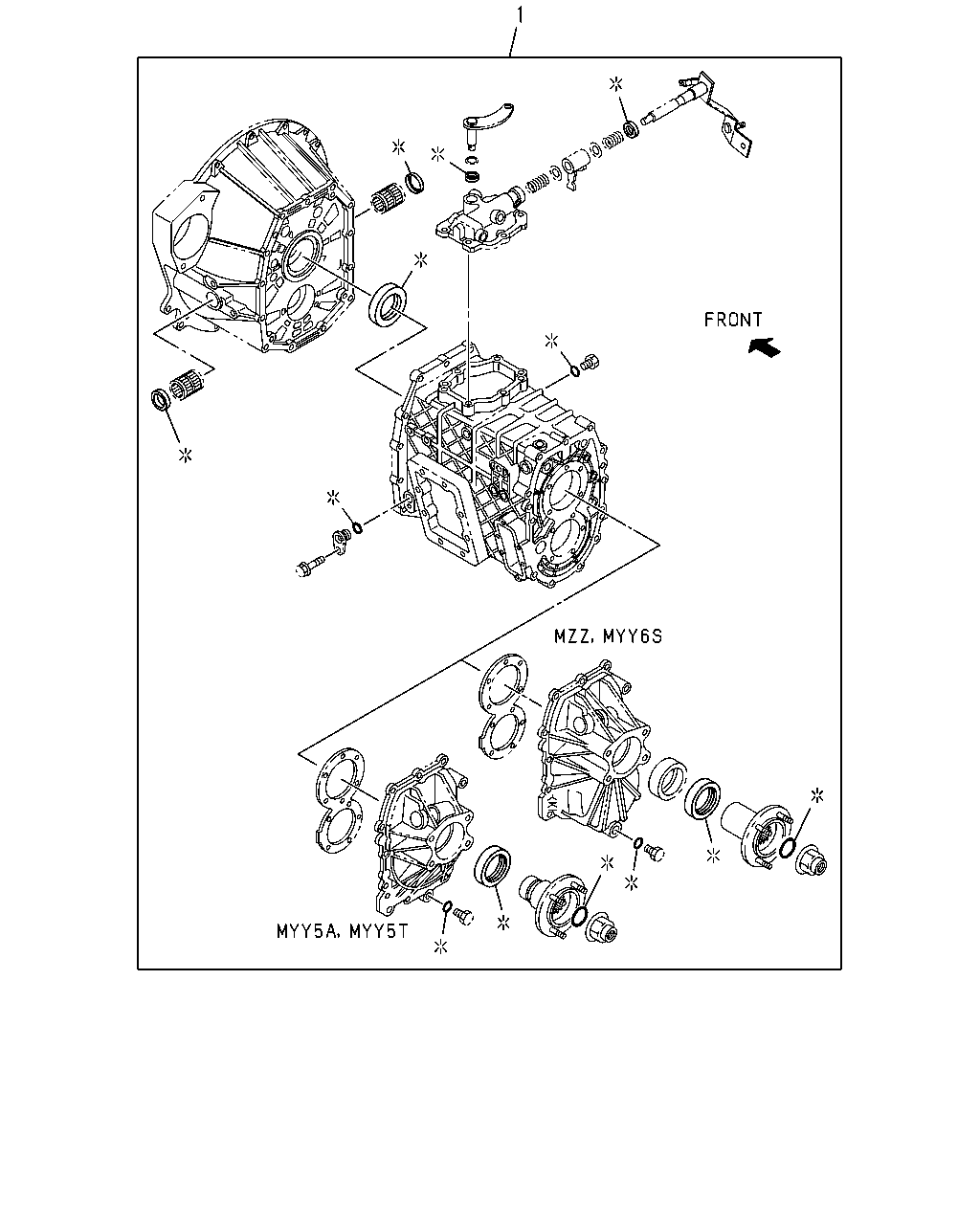

çizim 374543
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL
SMOOTHER-EX(TYPE2)(8NS) 		5-87832-192-1 01 1 1311-1401 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
SMOOTHER-EX(TYPE2)(8NS) 		5-87832-192-1 01 1 1402- ● ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-2 01 1 1309-1310 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 1311- ● ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 1309- ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 1309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
