2-05 — CLUTCH PIPING (#126211) — 46 parça

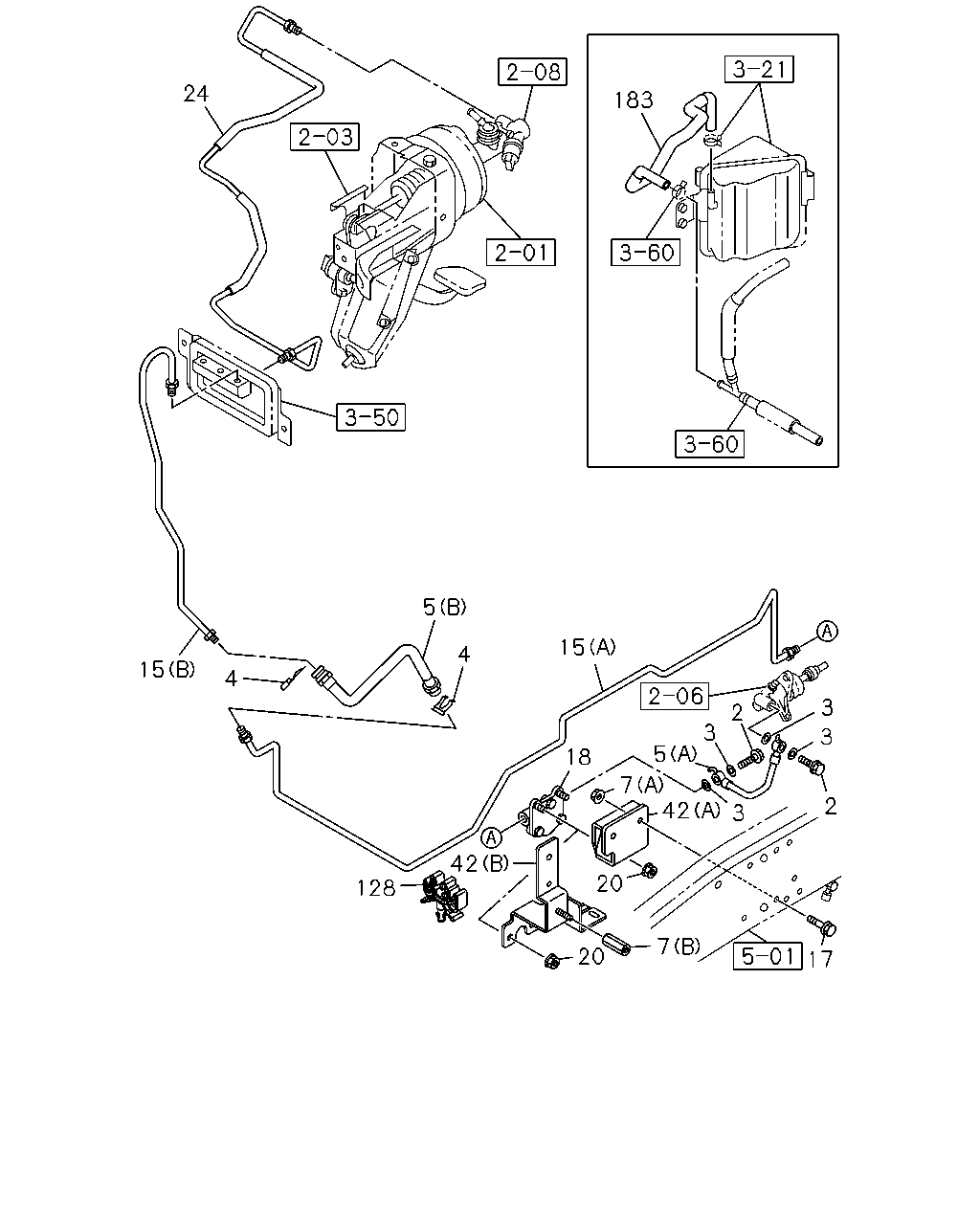

çizim 373839
24 15 4 5 4 15 18 128 42 7 2 3 5 3 2 3 42 20 3 7 183 20 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 1309-1310 ●
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1309-1310 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 1311- ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1309-1310 ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1309-1310 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1311- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 1309-1310 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1309-1310 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 1311- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 1309-1310 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1309-1310 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 1311- ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1311- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1309-1310 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1309-1310 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1311- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98089-665-2 01 1 1309- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 (B) M10 		8-98034-487-1 01 1 1309-1310 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 (B) M10 		8-98034-487-1 01 1 1311- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309- ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97389-643-0 01 1 1309-1310 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97389-643-0 01 1 1309-1310 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97389-643-0 01 1 1311-1401 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98250-269-0 01 1 1402- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98046-883-0 01 1 1309-1310 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98046-883-0 01 1 1311- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98210-360-0 01 1 1309- ● ● ●
17 00.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1309-1310 ●
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1309-1310 ● ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1311- ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97389-356-1 01 1 1309-1310 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97389-356-1 01 1 1311- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98077-617-0 01 1 1309-1310 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98077-617-0 01 1 1311- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-450-0 01 1 1309-1310 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-450-0 01 1 1311- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98082-472-2 01 1 1309- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98082-472-2 01 1 1309- ● ●
128 00.785 CLIP; AIR PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 01 1 1309- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1309- ● ● ● ●
