2-01 — CLUTCH (#126209) — 133 parça

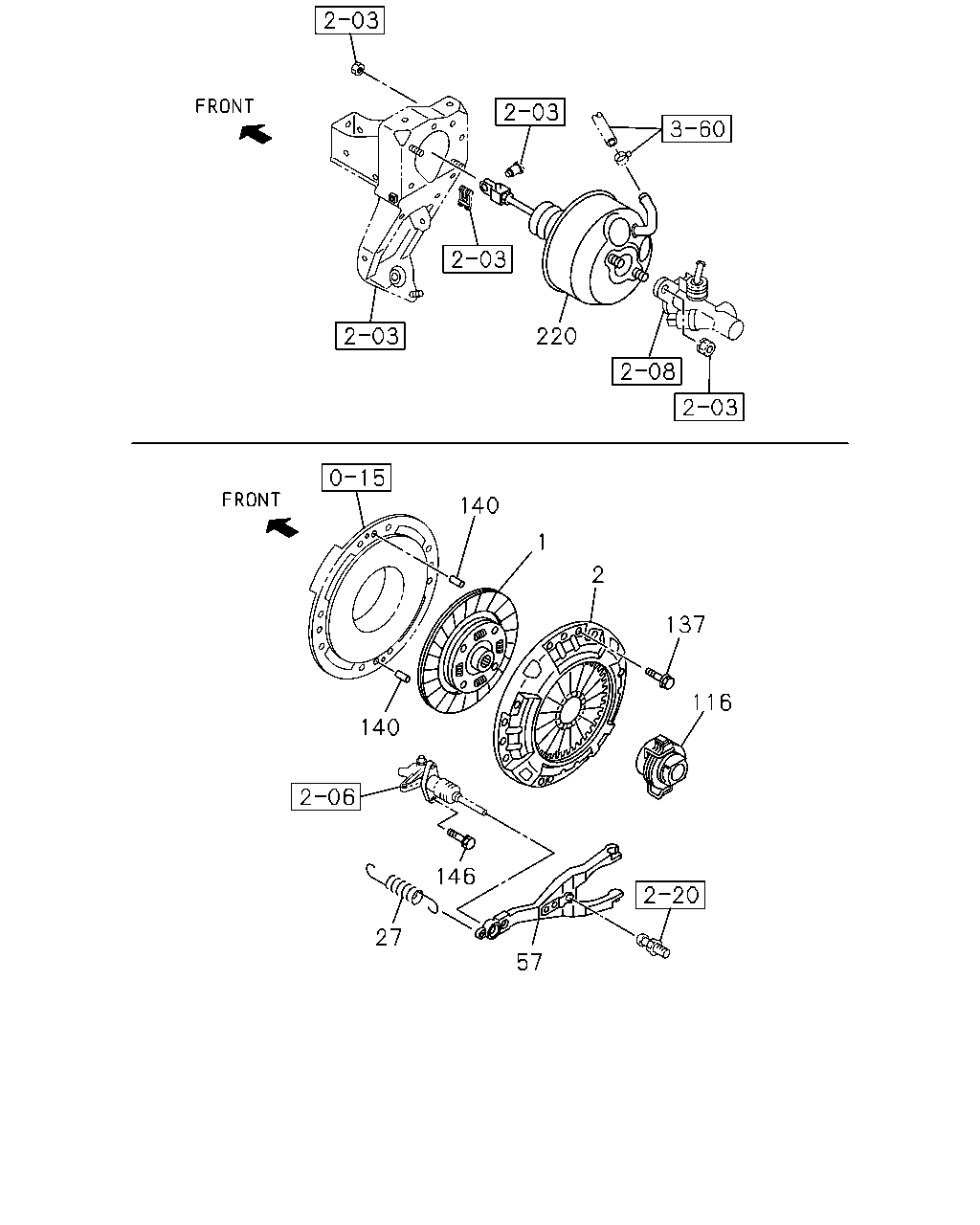

çizim 373232
140 1 2 137 116 146 57 27 140 220
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) 		8-98037-004-2 01 1 1309-1310 ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-004-2 01 1 1311-1401 ● ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98255-139-1 01 1 1402- ● ● ●
1 00.886 DISC; CLUTCH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98164-917-1 01 1 1309- ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) BEST VALUE PARTS 		5-87610-077-0 01 1 1309-1310 ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-077-1 01 1 1311- ● ● ●
1 00.886 DISC; CLUTCH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-092-0 01 1 1404- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB) 		8-98040-093-0 01 1 1309-1310 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98040-093-0 01 1 1311- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.859 		8-97351-794-0 01 1 1309-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB) BEST VALUE PARTS 		5-87610-091-0 01 1 1309-1310 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-091-0 01 1 1311- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-081-0 01 1 1309-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1309-1310 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1311- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-314-0 01 1 1309- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1309-1310 ● ●
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 1311- ● ● ●
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-456-1 01 1 1309- ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1309-1310 ● ●
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 1311- ● ● ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1309-1310 ● ●
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 1311- ● ● ●
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1309-1310 ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1309-1310 ● ●
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1311- ●
137 00.862 BOLT; CLU COVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1311- ● ● ●
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1309-1310 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1309-1310 ● ●
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1311- ●
140 00.862 PIN; STRAIGHT
EXC. SMOOTHER-EX(TYPE2)(8NS) L=25 		8-94410-361-0 02 1 1311- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1309-1310 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1309-1310 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1311- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98043-208-0 01 1 1309-1310 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 1311- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-837-0 01 1 1309- ●

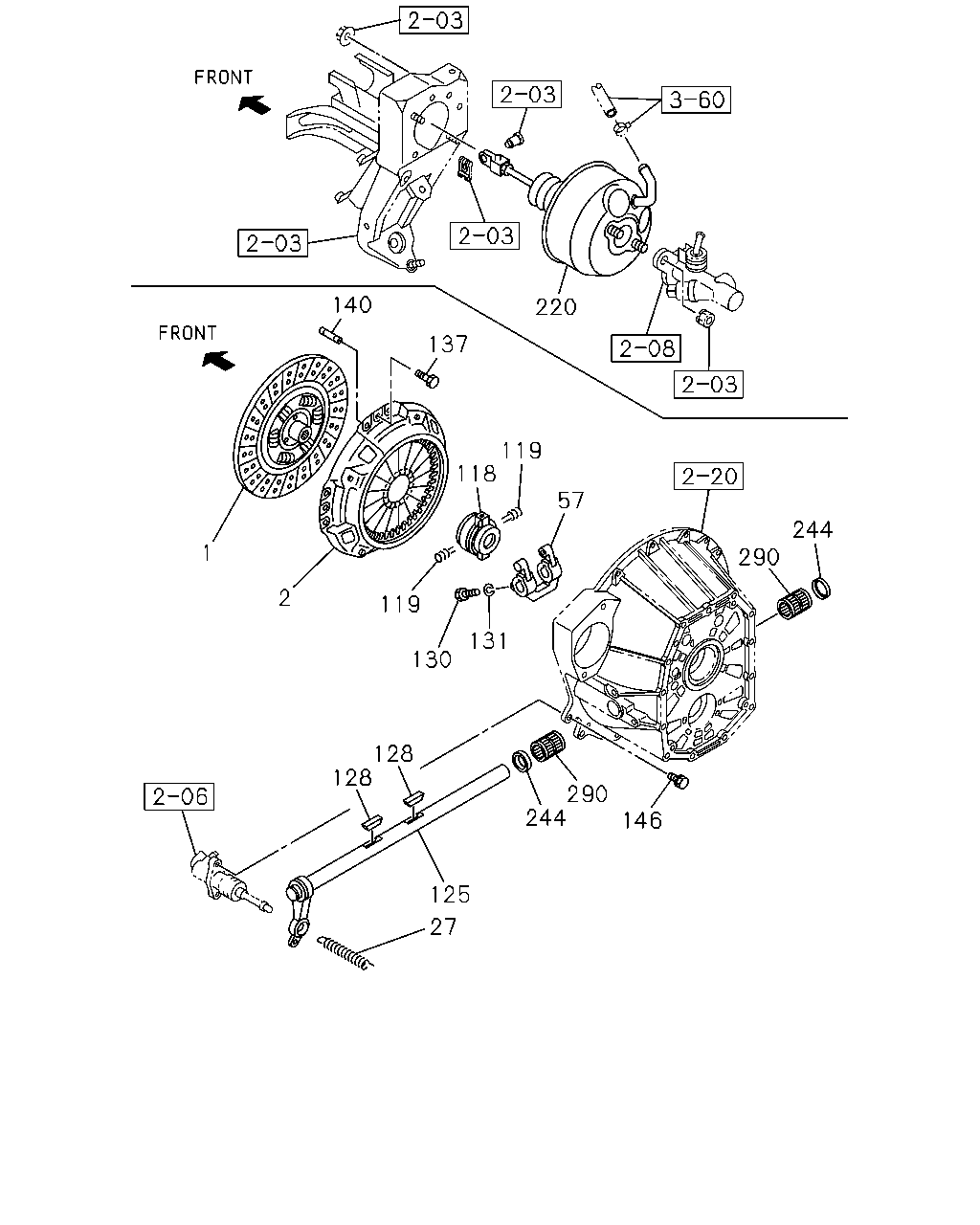

çizim 373979
1 2 119 130 131 118 119 57 137 140 244 290 146 290 244 125 27 128 128 220
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) 		8-98037-004-2 01 1 1309-1310 ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-004-2 01 1 1311-1401 ● ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98255-139-1 01 1 1402- ● ● ●
1 00.886 DISC; CLUTCH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98164-917-1 01 1 1309- ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) BEST VALUE PARTS 		5-87610-077-0 01 1 1309-1310 ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-077-1 01 1 1311- ● ● ●
1 00.886 DISC; CLUTCH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-092-0 01 1 1404- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB) 		8-98040-093-0 01 1 1309-1310 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98040-093-0 01 1 1311- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.859 		8-97351-794-0 01 1 1309-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB) BEST VALUE PARTS 		5-87610-091-0 01 1 1309-1310 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-091-0 01 1 1311- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-081-0 01 1 1309-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1309-1310 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1311- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-314-0 01 1 1309- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1309-1310 ● ●
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 1311- ● ● ●
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-456-1 01 1 1309- ●
118 00.799 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31310-012-0 01 1 1309- ●
118 00.799 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		1-87610-110-0 01 1 1309- ●
119 00.797 SPRING; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31329-024-0 02 1 1309- ●
125 00.805 SHAFT; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-435-0 01 1 1309- ●
128 00.833 KEY; FEATHER,CLU SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09867-008-0 02 1 1309- ●
130 00.833 SCREW; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14 		0-61200-814-0 01 1 1309- ●
131 00.833 WASHER; LK,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.439 ID=8.2 		0-91510-508-0 01 1 1309- ●
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1309-1310 ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1309-1310 ● ●
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1311- ●
137 00.862 BOLT; CLU COVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1311- ● ● ●
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1309-1310 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1309-1310 ● ●
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1311- ●
140 00.862 PIN; STRAIGHT
EXC. SMOOTHER-EX(TYPE2)(8NS) L=25 		8-94410-361-0 02 1 1311- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1309-1310 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1309-1310 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1311- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98043-208-0 01 1 1309-1310 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 1311- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-837-0 01 1 1309- ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.797 		1-09625-002-0 02 1 1309- ●
290 00.862 BEARING; NEEDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 NTN 		1-09811-002-1 02 1 1309- ●

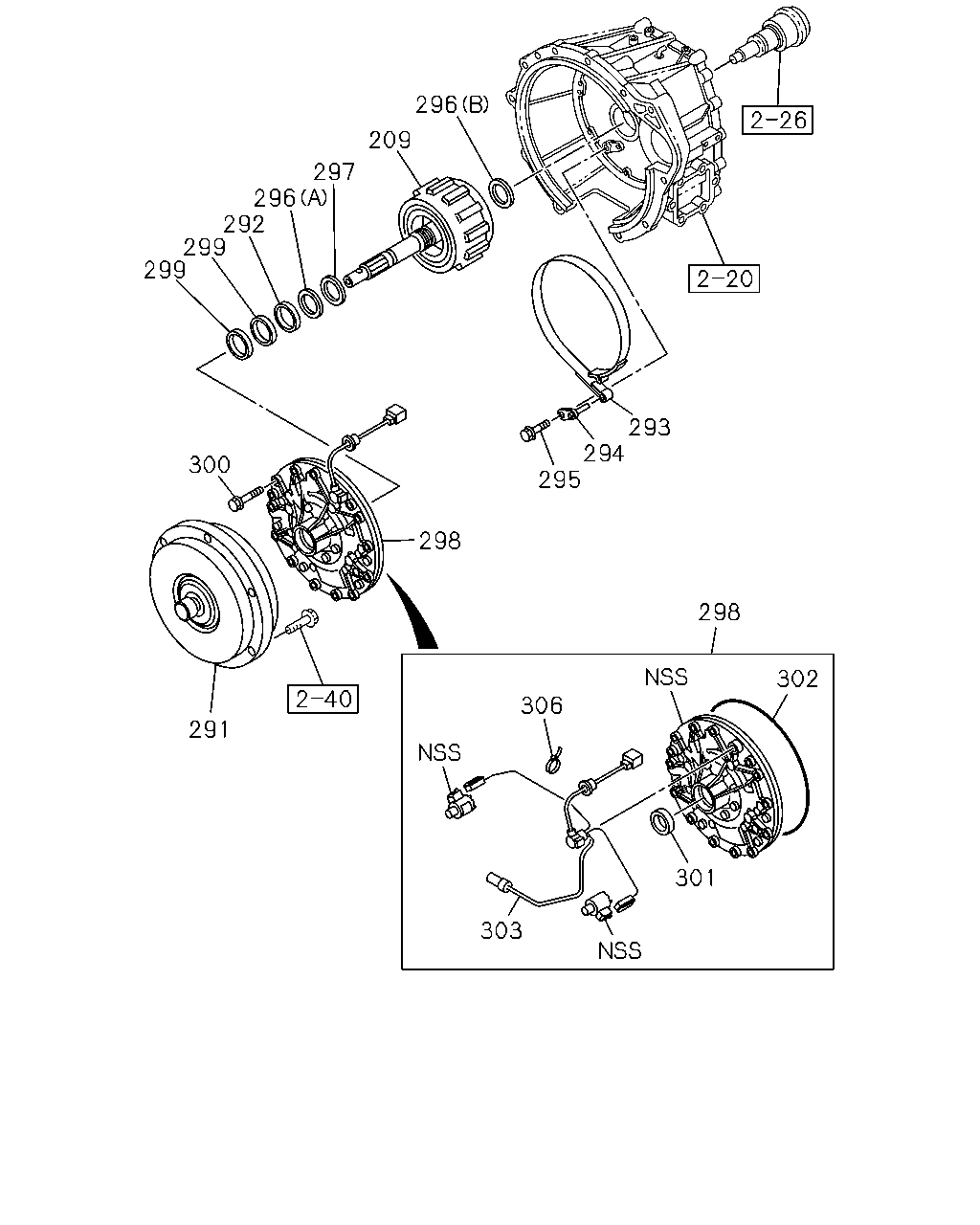

çizim 374002
299 299 292 296 297 209 296 300 298 295 294 293 291 303 301 302 298 306
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 00.885 CLUTCH ASM
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-433-1 01 1 1311-1401 ● ●
209 00.885 CLUTCH ASM
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-433-2 01 1 1402-1412 ● ● ●
209 00.885 CLUTCH ASM
SMOOTHER-EX(TYPE2)(8NS) 		8-98275-322-0 01 1 1501- ● ● ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-526-3 01 1 1309-1412 ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-318-0 01 1 1501- ●
291 00.863 COUPLING; FLUID
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-456-3 01 1 1311-1401 ● ●
291 00.863 COUPLING; FLUID
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-456-3 01 1 1402- ● ● ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98056-709-2 01 1 1309- ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1309-1310 ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-329-0 01 1 1311-1401 ● ● ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-329-0 01 1 1402- ● ● ● ●
293 00.799 BAND; BRAKE
SMOOTHER-EX(TYPE2)(8NS) 		8-97254-651-0 01 1 1311-1401 ● ●
293 00.799 BAND; BRAKE
SMOOTHER-EX(TYPE2)(8NS) 		8-97254-651-0 01 1 1402- ● ● ●
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98014-192-1 01 1 1309- ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1309-1310 ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-703-0 01 1 1311-1401 ● ● ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-703-0 01 1 1402- ● ● ● ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1309-1310 ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1311-1401 ● ● ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1402- ● ● ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1309-1310 ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97255-688-0 01 1 1311-1401 ● ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97255-688-0 01 1 1402- ● ● ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1309-1310 ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97255-689-0 01 1 1311-1401 ● ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97255-689-0 01 1 1402- ● ● ● ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1309-1310 ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97300-070-0 01 1 1311-1401 ● ● ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97300-070-0 01 1 1402- ● ● ● ●
298 04.020 PUMP ASM; OIL
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-429-1 01 1 1311-1401 ● ●
298 04.020 PUMP ASM; OIL
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-429-1 01 1 1402- ● ● ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 1309- ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1309-1310 ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-330-0 02 1 1311-1401 ● ● ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-330-0 02 1 1402- ● ● ● ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1309-1310 ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1311-1401 ● ● ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1402- ● ● ● ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1309-1310 ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97289-811-0 01 1 1311-1401 ● ● ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97289-811-0 01 1 1402- ● ● ● ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1309-1310 ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-188-0 01 1 1311-1401 ● ● ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97255-188-0 01 1 1402- ● ● ● ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 1309-1310 ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98000-265-2 01 1 1311-1401 ● ● ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98000-265-2 01 1 1402- ● ● ● ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 1309-1310 ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.559 L=100 		8-94279-939-0 03 1 1311-1401 ● ● ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.559 L=100 		8-94279-939-0 03 1 1402- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
