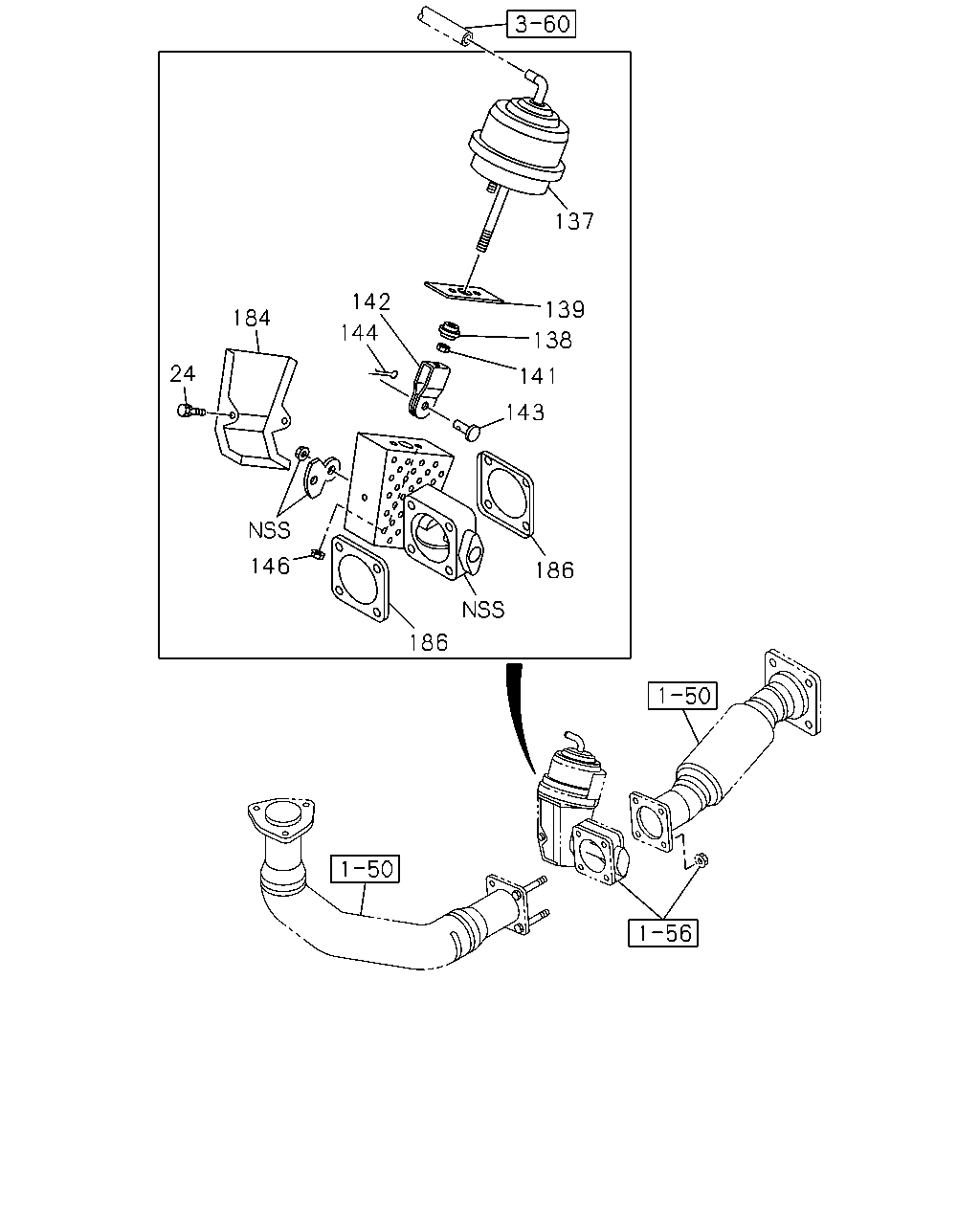

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#126207) — 62 parça

137 139 138 141 143 186 186 146 24 184 142 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.634 BOLT; COVER 4JJ1-TCS ENG(LFB) 03.444	8-97065-029-0	02	1	1309-1310	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1309-1310		●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1311-	●	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU)	8-98245-612-0	01	1	1311-	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB)	8-98229-058-0	01	1	1309-	●
137	03.634 CHAMBER; POWER	8-98229-058-0	01	1	1309-		●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU)	5-22189-004-0	01	1	1311-	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98231-608-0	01	1	1309-	●
138	03.634 BEARING; EXH BRK VLV	8-98231-608-0	01	1	1309-		●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-94328-234-0	01	1	1309-1310	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1309-1310		●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1311-	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) 05.122	8-94311-428-0	01	1	1309-1310	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122	8-94311-428-0	01	1	1309-1310		●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122	8-94311-428-0	01	1	1311-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-98245-611-0	01	1	1311-	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98231-609-0	01	1	1309-	●
142	03.636 CLEVIS; EXH BRK VLV	8-98231-609-0	01	1	1309-		●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97985-126-0	01	1	1311-	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98231-610-0	01	1	1309-	●
143	03.636 PIN; EXH BRK VLV	8-98231-610-0	01	1	1309-		●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-97985-124-0	01	1	1309-1310	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97985-124-0	01	1	1309-1310		●	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97985-124-0	01	1	1311-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310		●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU)	8-98245-610-0	01	1	1311-	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB)	8-97370-068-0	01	1	1309-	●
184	03.634 COVER; BRKT	8-97370-068-0	01	1	1309-		●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4JJ1-TCS ENG(LFB)	8-98022-713-0	02	1	1309-	●
186	03.611 GASKET; EXH BRK VLV,BODY	8-98022-713-0	02	1	1309-		●	●

137 138 139 141 142 144 143 24 24 24 184 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.634 BOLT; COVER 4JJ1-TCS ENG(LFB) 03.444	8-97065-029-0	02	1	1309-1310	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1309-1310		●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1311-	●	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU)	8-98245-612-0	01	1	1311-	●
137	03.634 CHAMBER; POWER 4JJ1-TCS ENG(LFB)	8-98229-058-0	01	1	1309-	●
137	03.634 CHAMBER; POWER	8-98229-058-0	01	1	1309-		●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU)	5-22189-004-0	01	1	1311-	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98231-608-0	01	1	1309-	●
138	03.634 BEARING; EXH BRK VLV	8-98231-608-0	01	1	1309-		●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-94328-234-0	01	1	1309-1310	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1309-1310		●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1311-	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCS ENG(LFB) 05.122	8-94311-428-0	01	1	1309-1310	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122	8-94311-428-0	01	1	1309-1310		●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122	8-94311-428-0	01	1	1311-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-98245-611-0	01	1	1311-	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98231-609-0	01	1	1309-	●
142	03.636 CLEVIS; EXH BRK VLV	8-98231-609-0	01	1	1309-		●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97985-126-0	01	1	1311-	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-98231-610-0	01	1	1309-	●
143	03.636 PIN; EXH BRK VLV	8-98231-610-0	01	1	1309-		●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCS ENG(LFB)	8-97985-124-0	01	1	1309-1310	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97985-124-0	01	1	1309-1310		●	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97985-124-0	01	1	1311-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310		●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU)	8-98245-610-0	01	1	1311-	●
184	03.634 COVER; BRKT 4JJ1-TCS ENG(LFB)	8-97370-068-0	01	1	1309-	●
184	03.634 COVER; BRKT	8-97370-068-0	01	1	1309-		●	●
