Sayfa 1-50 - Isuzu EPC

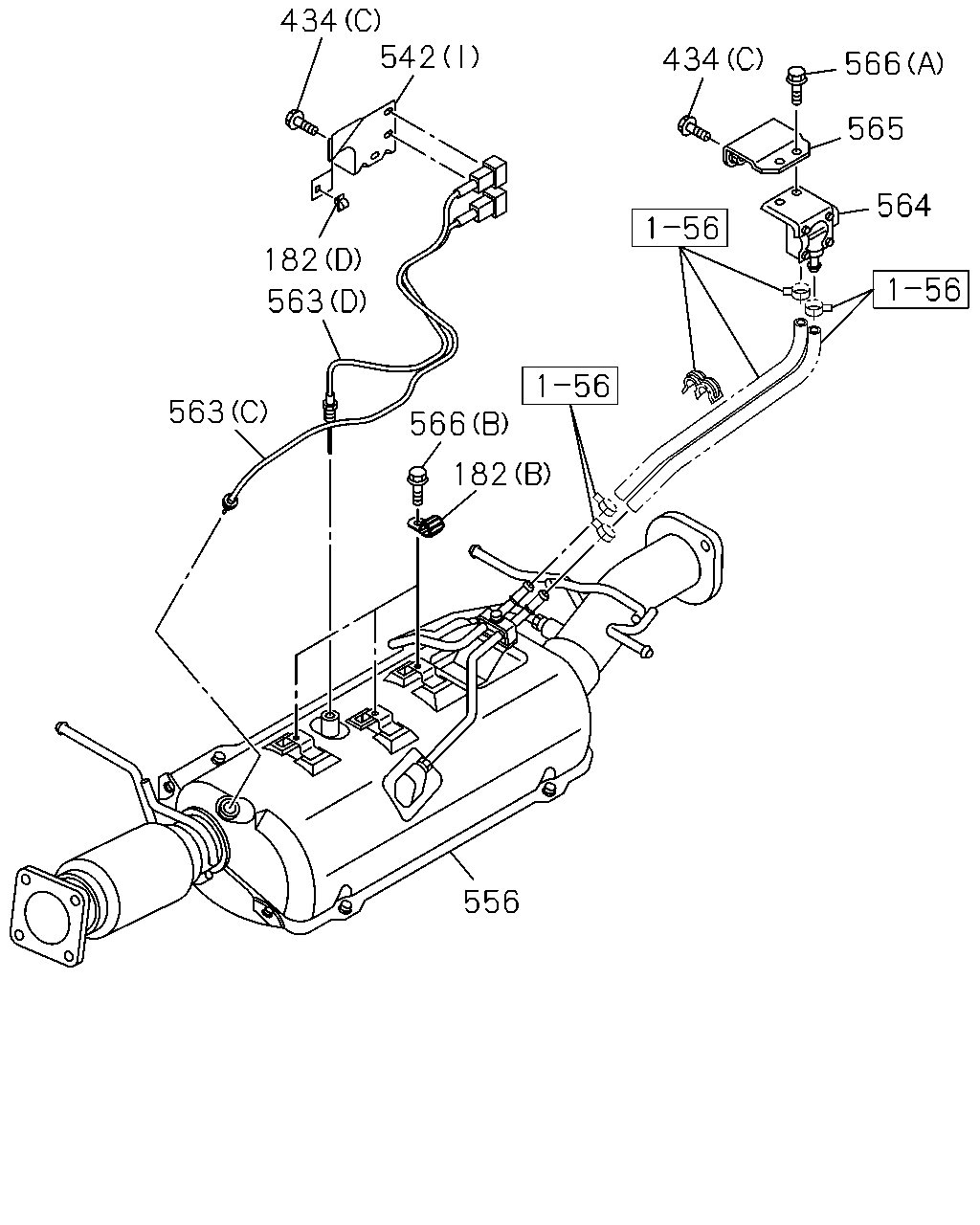

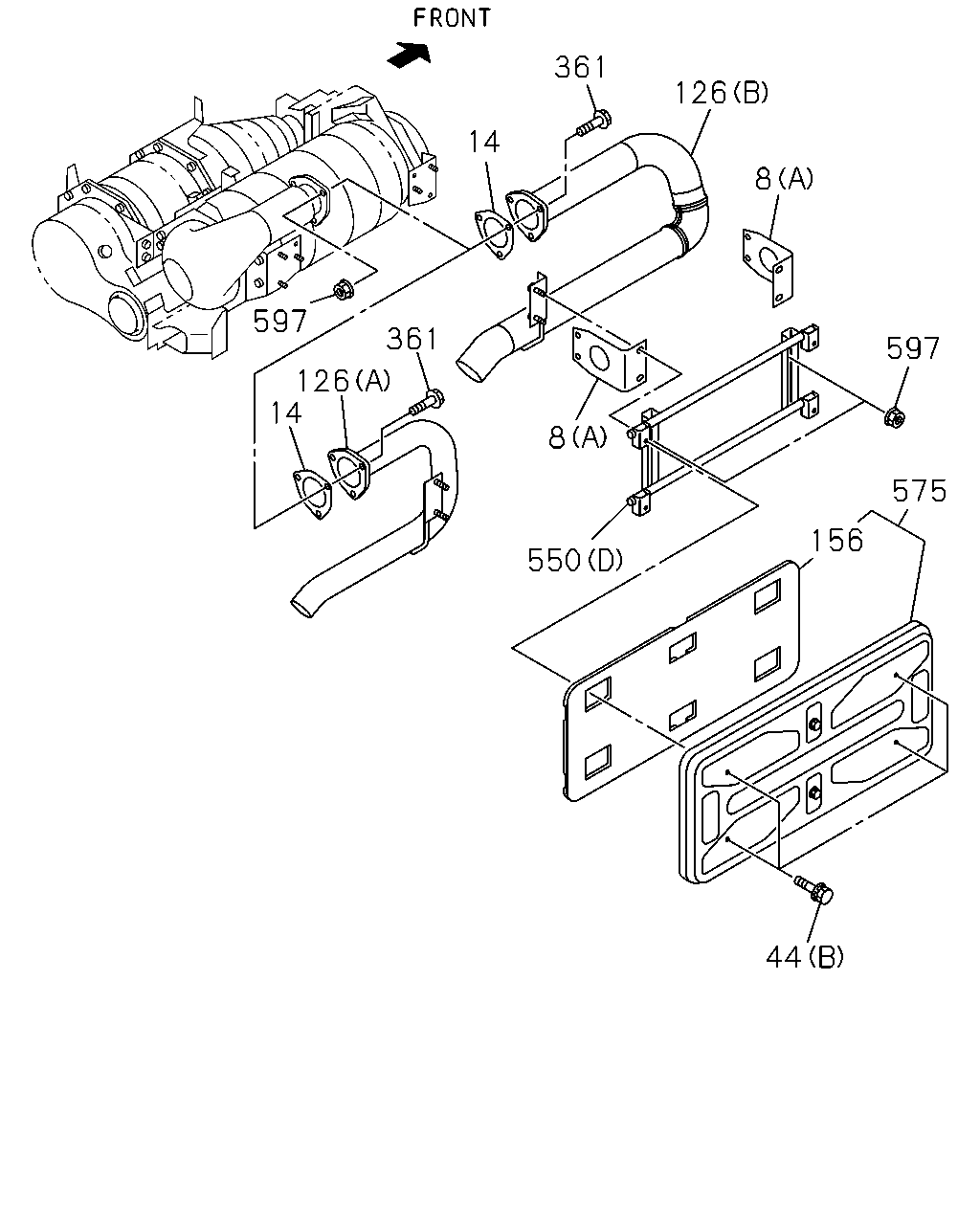

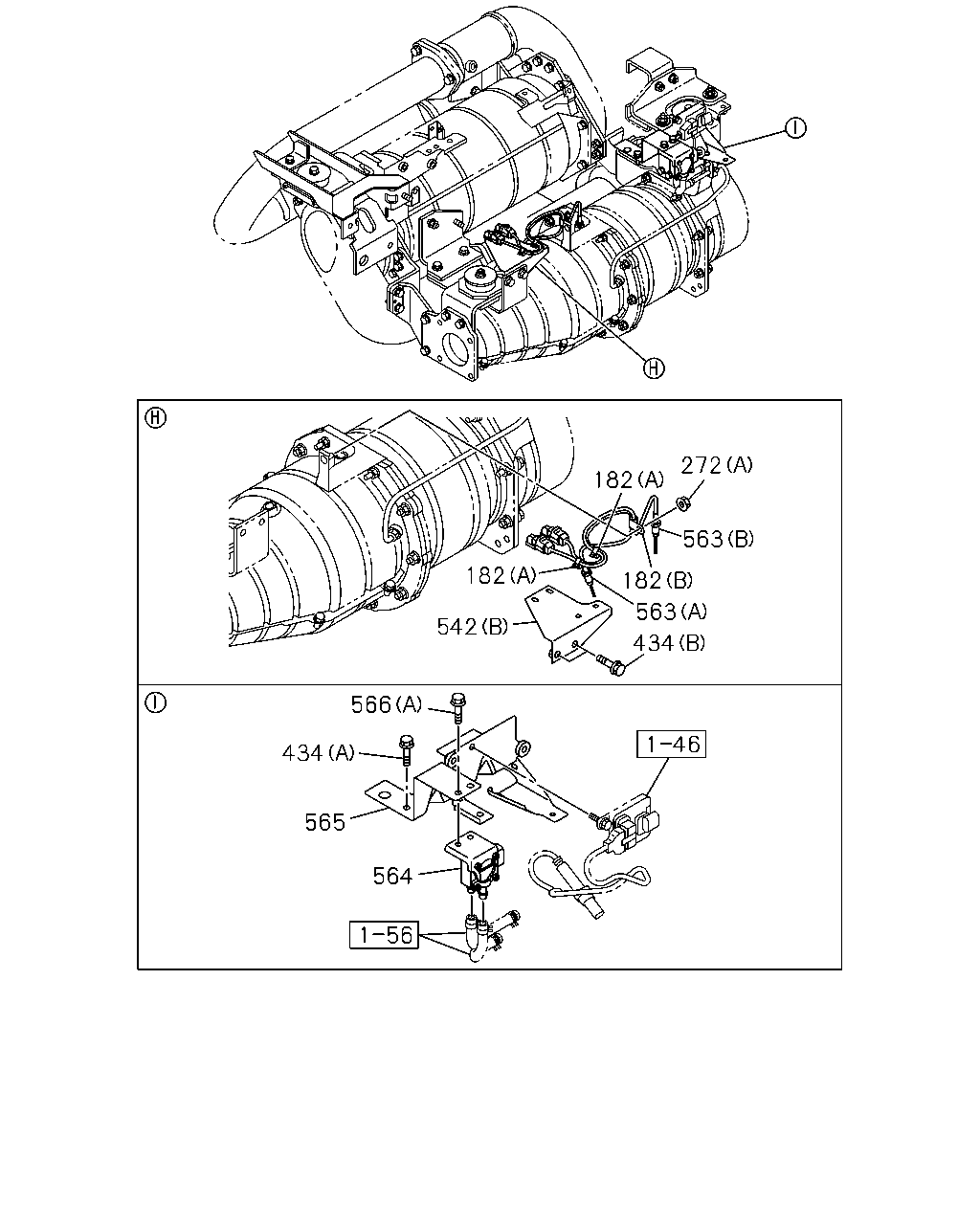

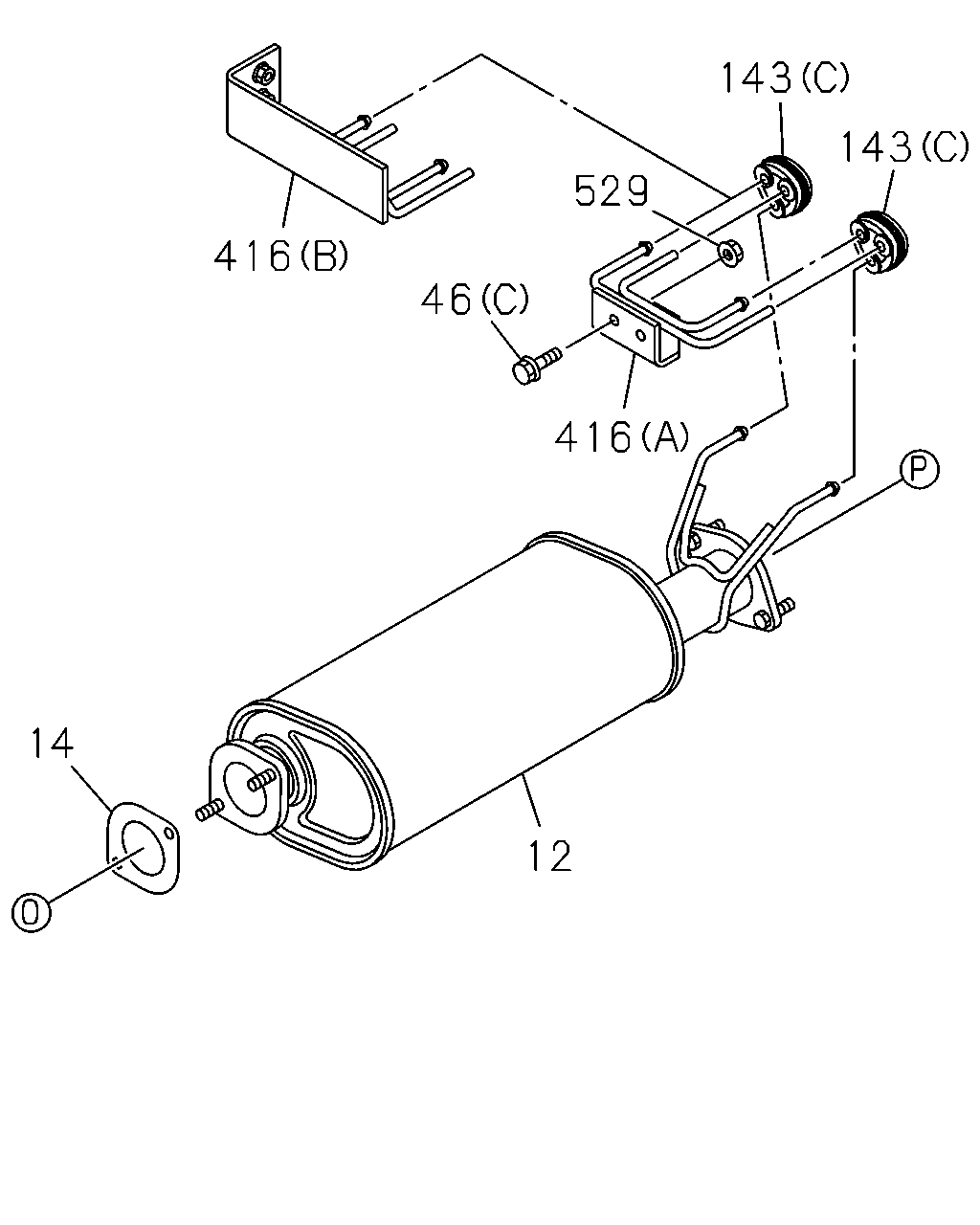

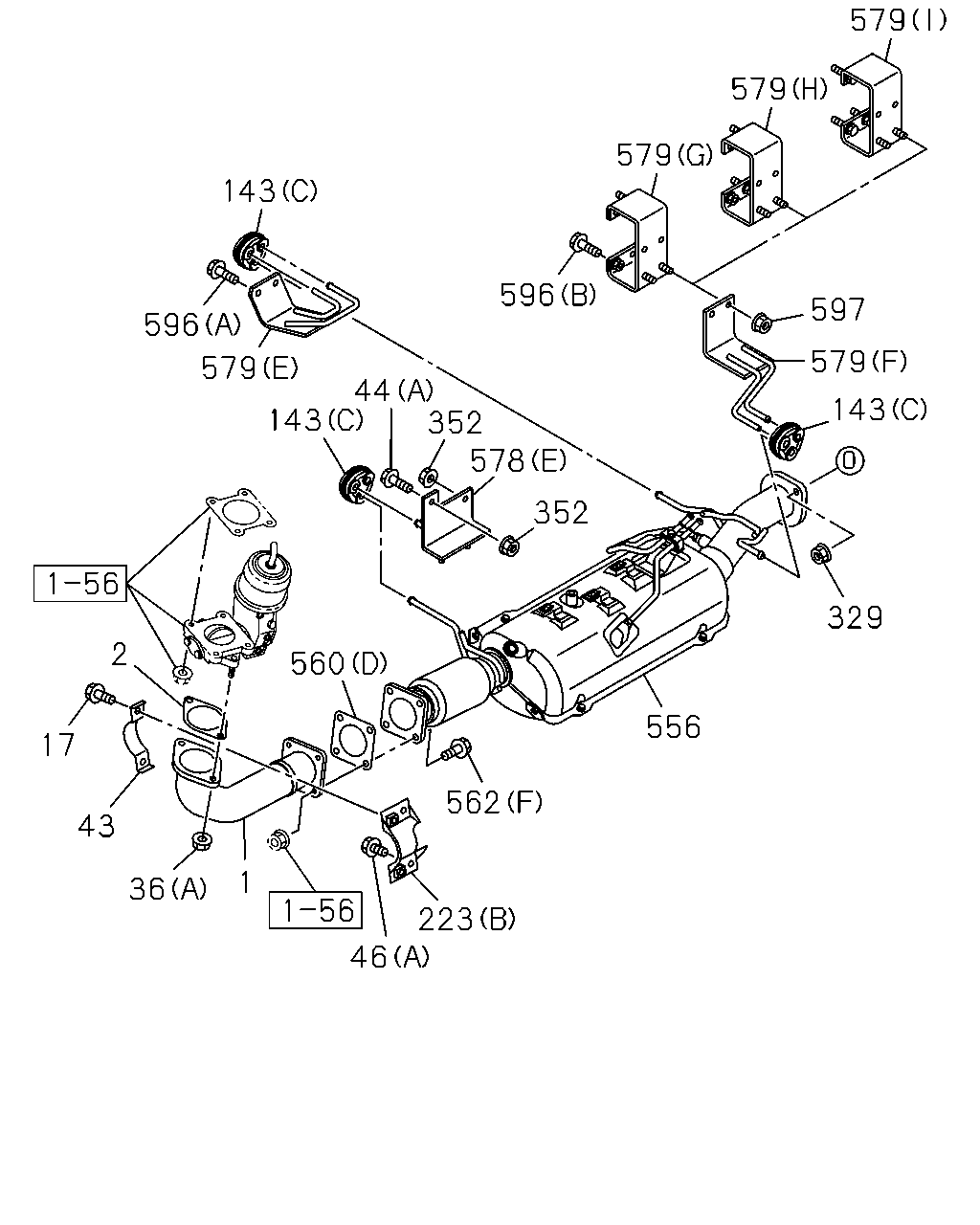

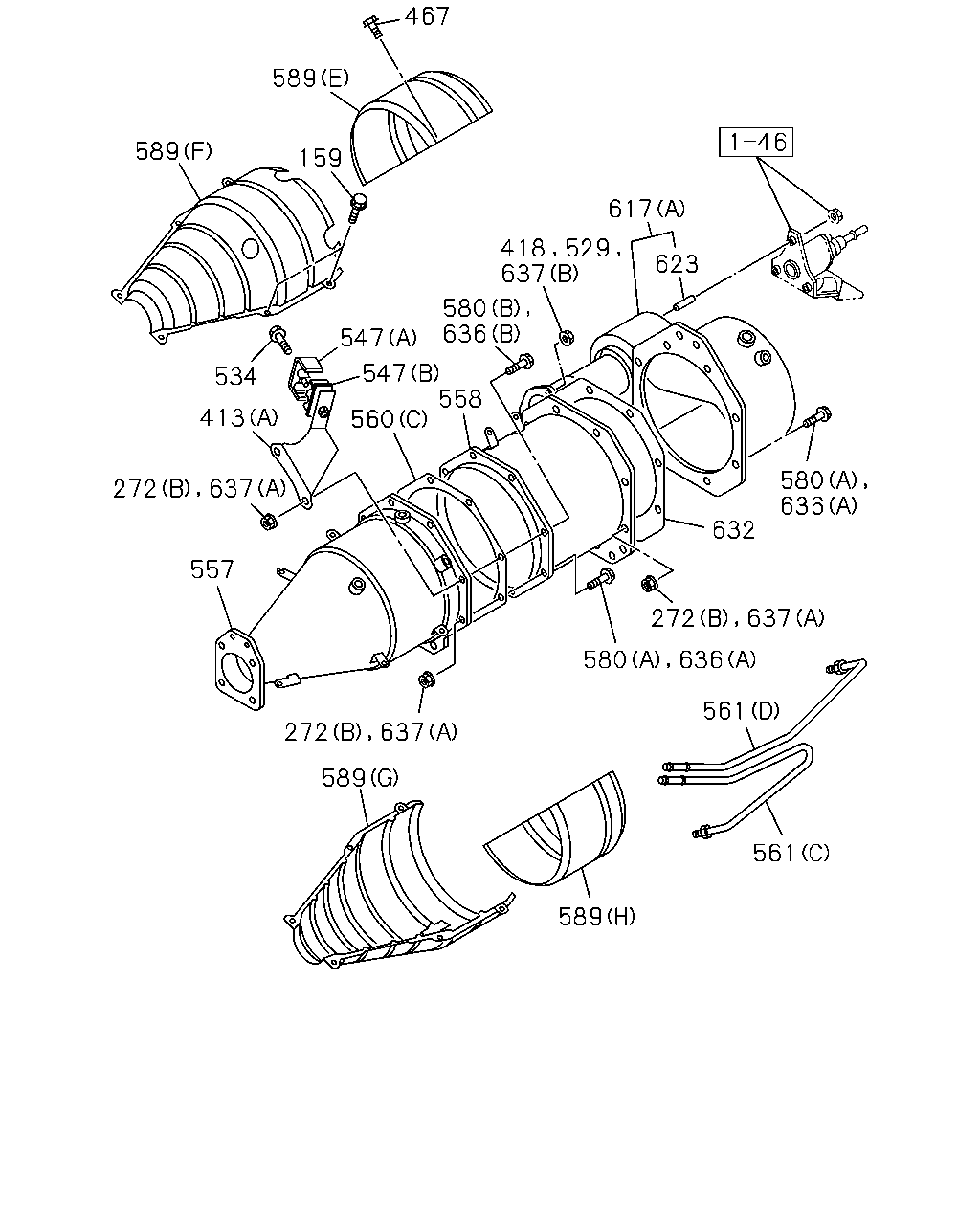

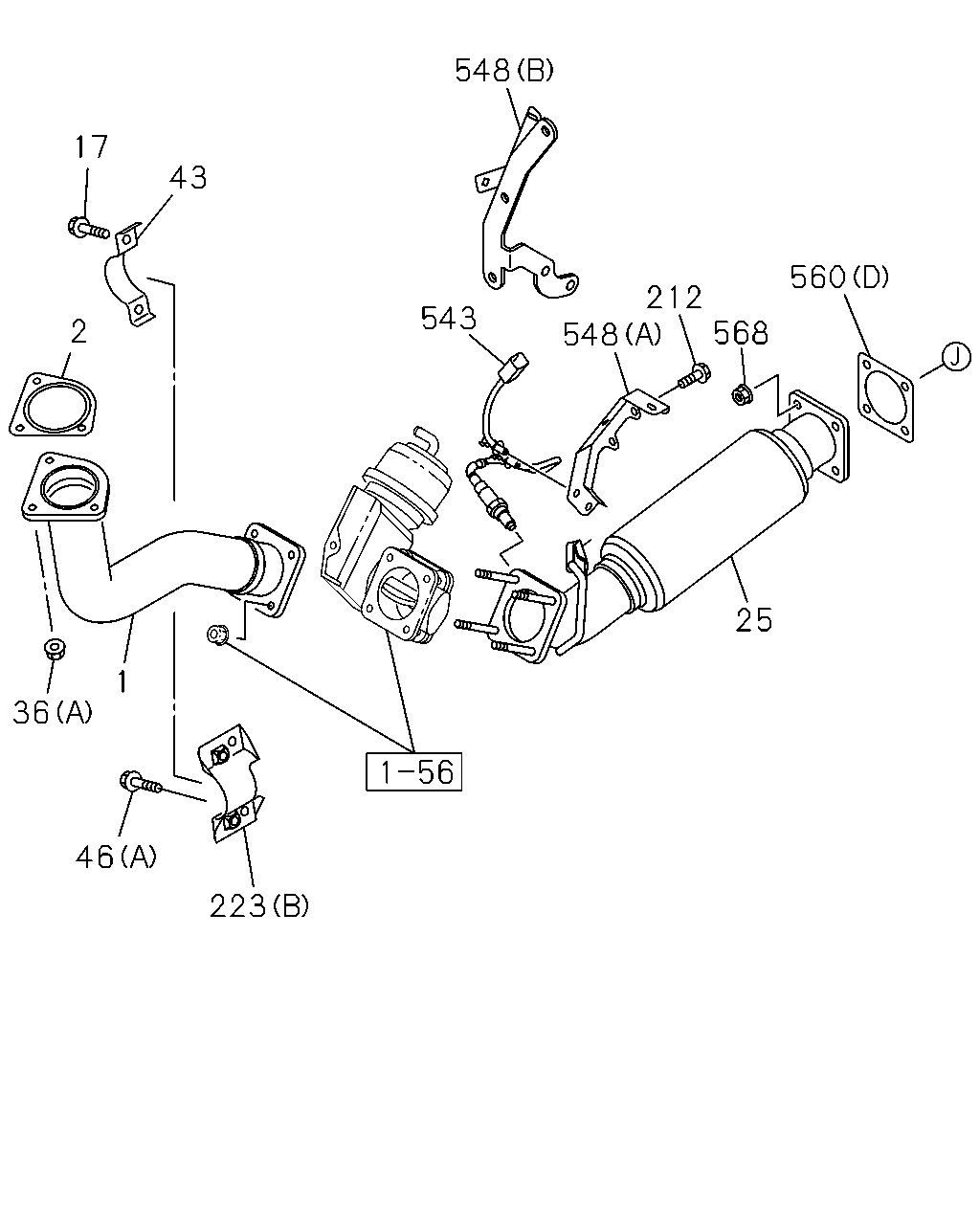

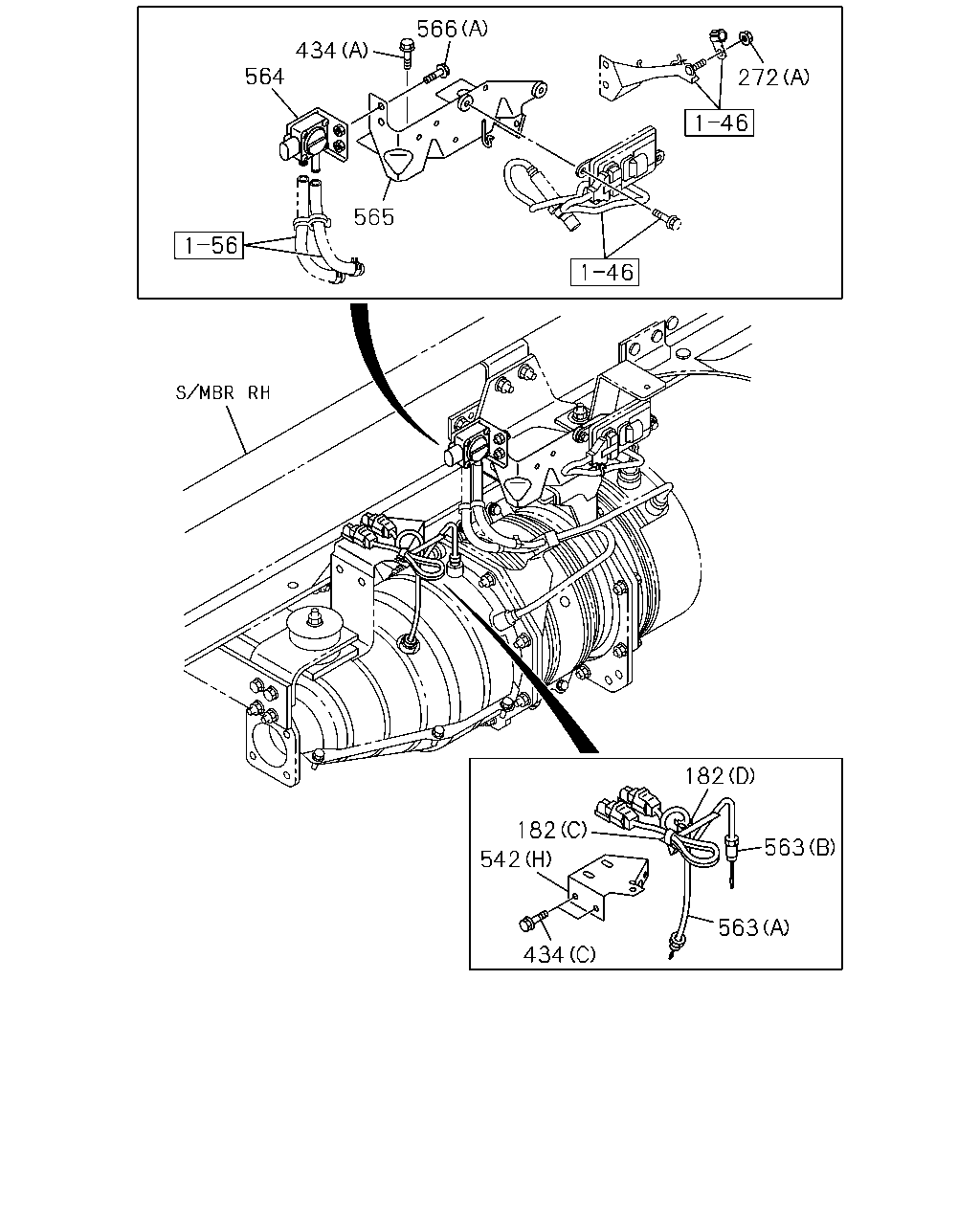

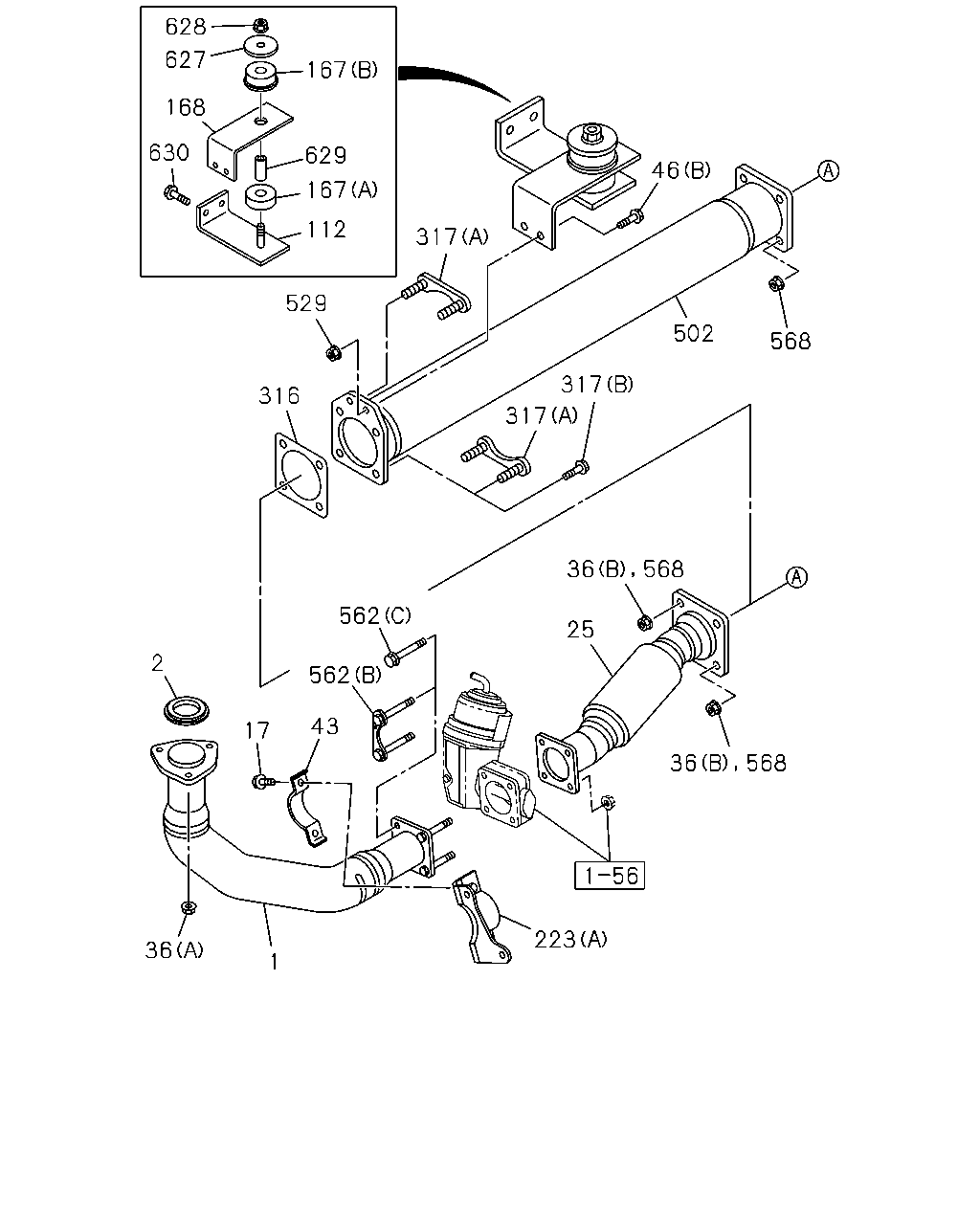

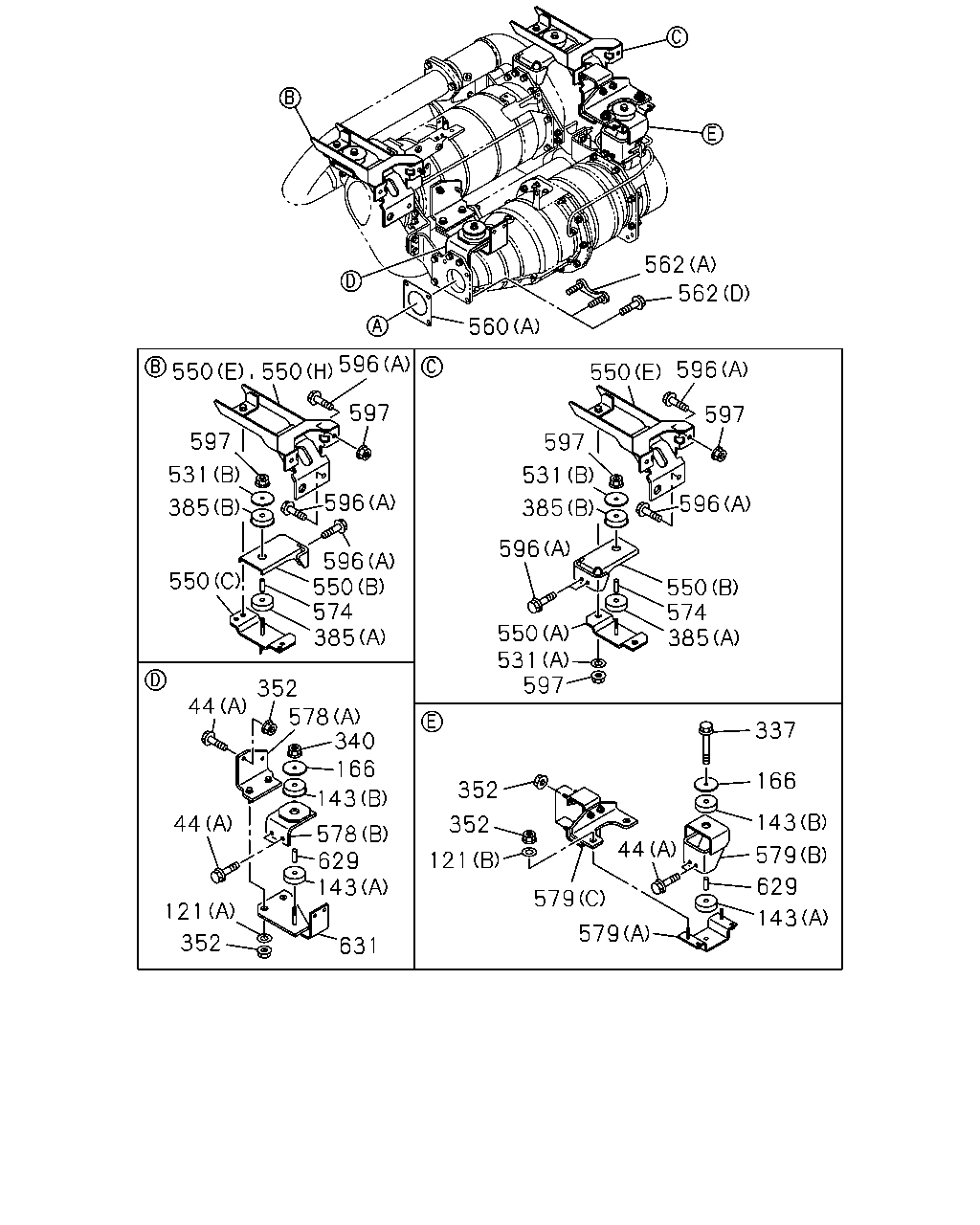

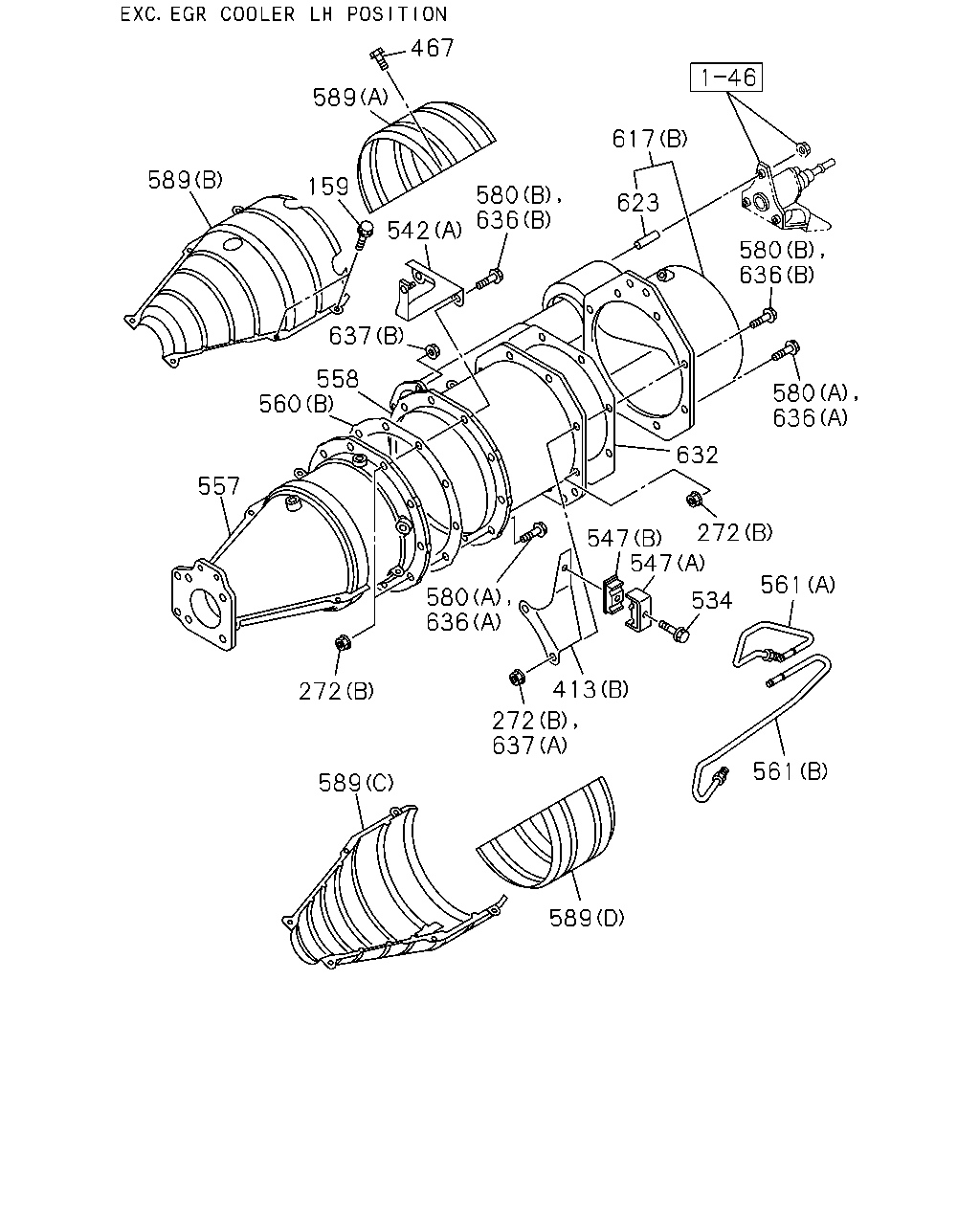

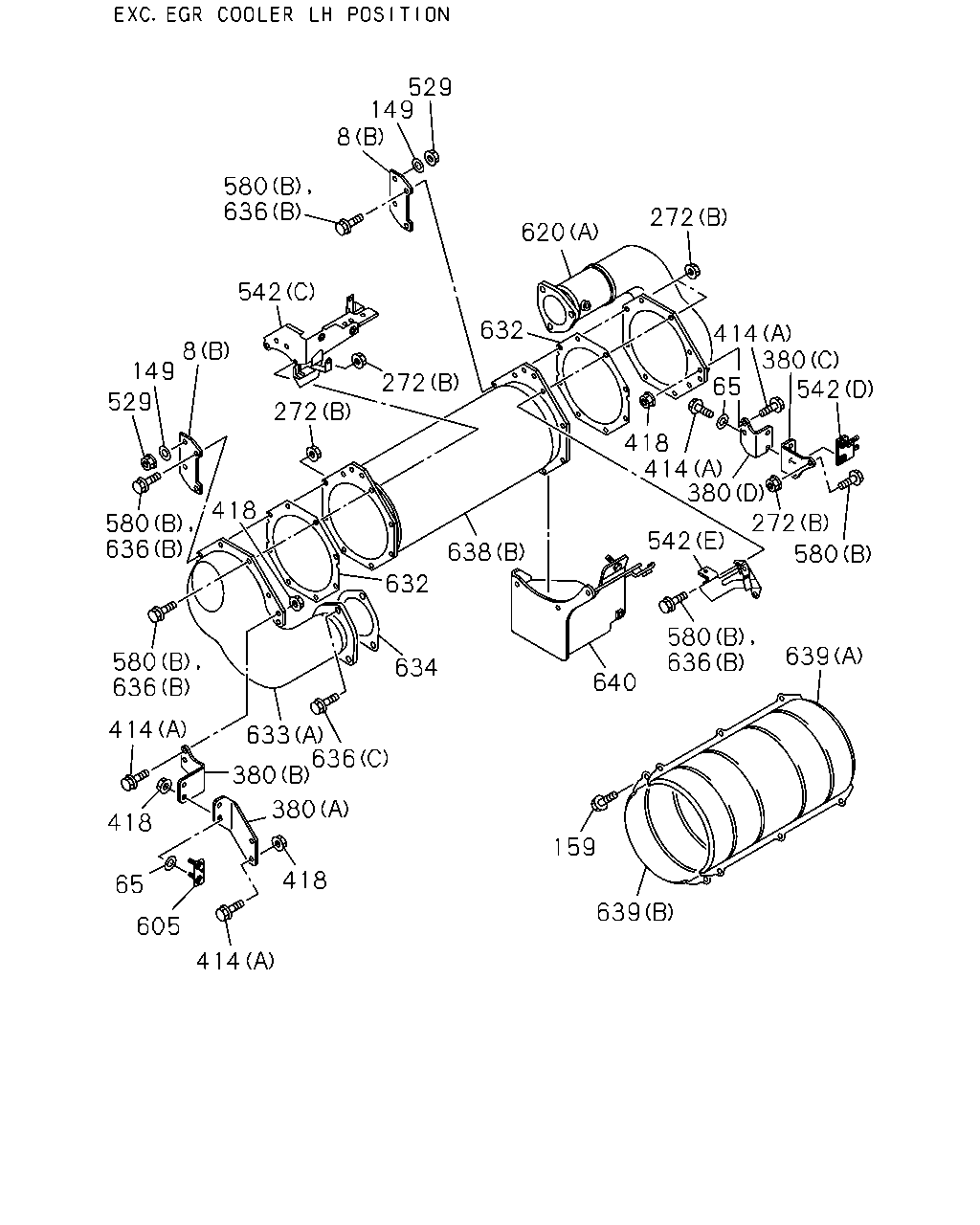

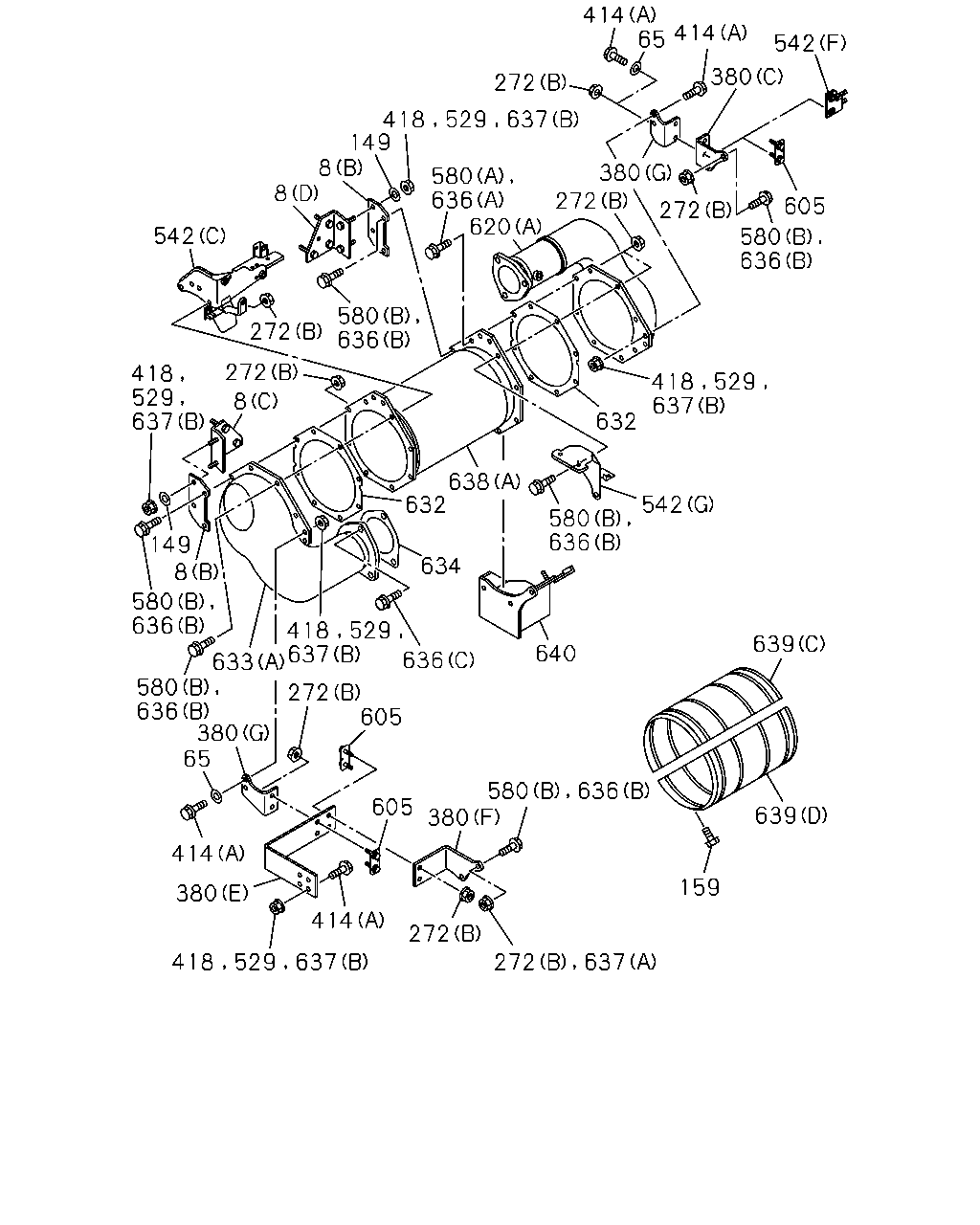

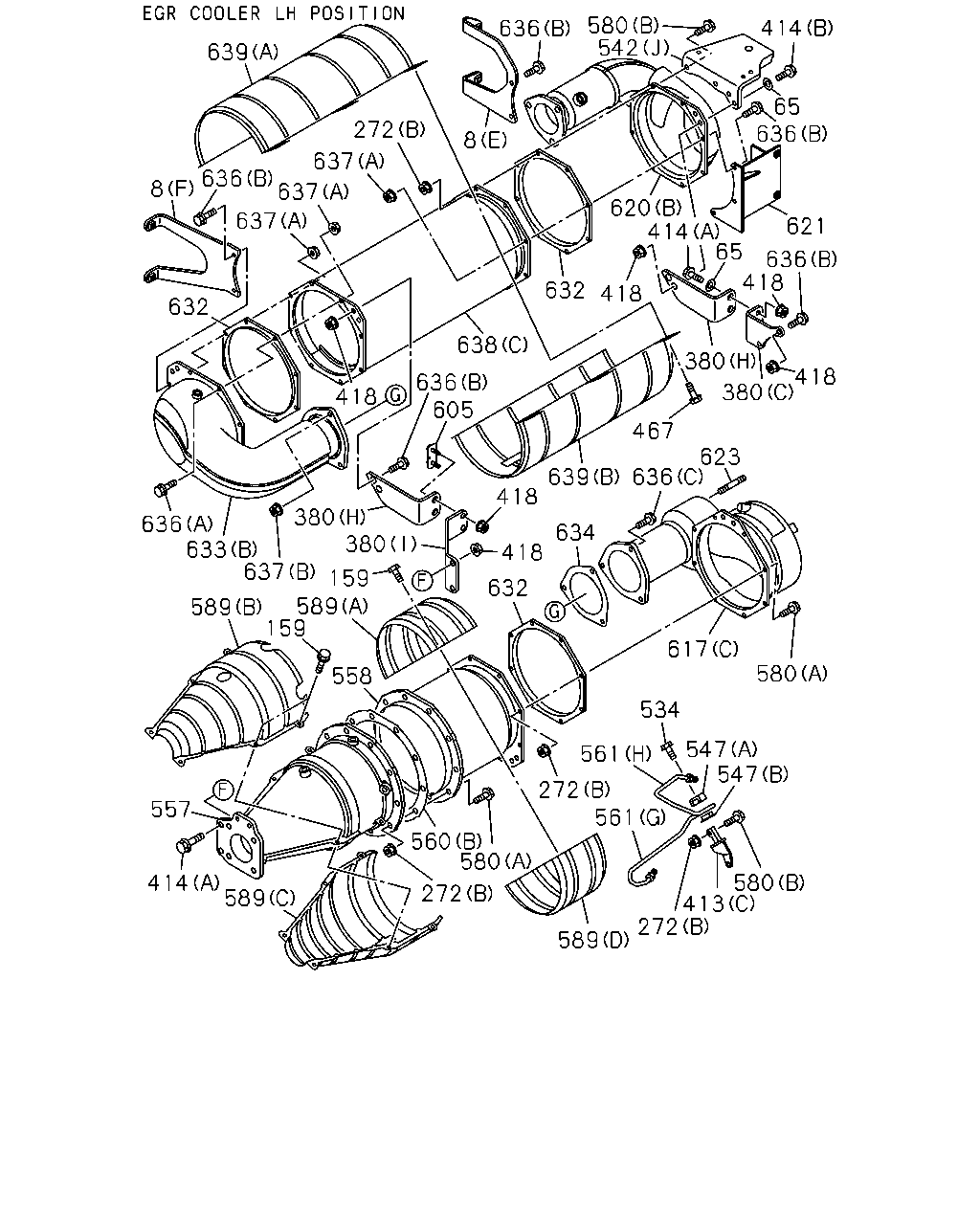

1-50 — EXHAUST PIPE AND SILENCER (#126206) — 1704 parça

639 639 159 637 272 272 414 637 529 418 380 414 605 380 580 636 640 636 605 272 380 65 636 580 637 634 632 638 8 418 529 637 149 580 636 8 272 272 542 8 8 418 149 529 580 636 620 580 636 418 632 580 636 542 637 529 636 580 605 542 380 414 414 272 380 272 529 418 633 637 65 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E)	8-98144-459-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F)	8-98203-726-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1309-1311	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1312-1408	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1312-1408	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1312-1408			●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1409-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1409-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1409-			●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1309-1311	●		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98225-557-0	02	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1312-			●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	06	1	1312-	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1309-1311	●	●	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408	●	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408			●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-			●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1309-1311	●	●	●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1312-1408	●	●
149	03.613 WASHER; LK,PIPE BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1312-1408	●
149	03.613 WASHER; LK,PIPE BRKT 4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1312-1408			●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-	●	●
149	03.613 WASHER; LK,PIPE BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-	●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-			●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-		●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16	8-98019-179-0	10	1	1309-	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-457-1	02	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (I)	8-98205-012-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (G)	8-98118-880-0	02	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (G)	8-98118-880-0	02	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (E)	8-98127-331-1	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (E)	8-98127-331-1	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (F)	8-98127-332-0	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (F)	8-98127-332-0	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98118-879-0	01	1	1309-	●	●	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (A)	8-98118-877-1	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-877-1	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (A)	8-98118-877-1	01	1	1312-			●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (B)	8-98118-878-0	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98118-878-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (B)	8-98118-878-0	01	1	1312-			●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (D)	8-98118-880-0	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98118-880-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (D)	8-98118-880-0	01	1	1312-			●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	06	1	1312-	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE	0-28051-045-0	02	1	1312-	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1309-1311	●	●	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408	●	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408			●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-	●	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-			●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-1311	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1311	●		●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1311	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
529	03.704 NUT; BRKT,EXH PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	04	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1311	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1309-1311	●		●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	14	1	1312-	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1309-1408	●	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1409-	●	●	●
605	03.690 PLATE; NUT 4HK1-TCS ENG(RJS)	8-98148-511-0	01	1	1309-	●		●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B)	8-98205-011-0	01	1	1312-	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1309-1311	●	●	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB) (A)	8-98118-876-1	01	1	1312-1408	●	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-876-1	01	1	1312-1408	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1312-1408			●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB) (A)	8-98118-876-1	01	1	1409-	●	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-876-1	01	1	1409-	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1409-			●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-97628-257-0	03	1	1309-	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B)	8-98138-451-0	01	1	1312-	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1309-1311	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB) (A)	8-98127-327-1	01	1	1312-1408	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-327-1	01	1	1312-1408	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1312-1408			●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB) (A)	8-98127-327-1	01	1	1409-	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-327-1	01	1	1409-	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1409-			●
634	03.611 GASKET; MIXER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98118-422-1	01	1	1309-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	09	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	15	1	1312-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1309-1311	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-	●	●	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98205-010-0	01	1	1312-	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB) (A)	8-98205-063-0	01	1	1309-1408	●	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB) (A)	8-98205-063-0	01	1	1409-	●	●	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) (B)	8-98205-048-0	01	1	1309-1311	●		●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98205-048-0	01	1	1312-	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) (B)	8-98205-048-0	01	1	1312-			●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (C)	8-98147-069-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (C)	8-98147-069-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (D)	8-98147-070-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (D)	8-98147-070-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4HK1-TCS ENG(RJS) (A)	8-98136-188-0	01	1	1309-	●		●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4HK1-TCS ENG(RJS) (B)	8-98136-189-1	01	1	1309-	●		●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98159-189-2	01	1	1309-1311	●	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-98159-189-2	01	1	1312-1408	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC>	8-98159-189-2	01	1	1312-1408	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4HK1-TCS ENG(RJS)	8-98159-189-2	01	1	1312-1408			●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-98159-189-2	01	1	1409-	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC>	8-98159-189-2	01	1	1409-	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98159-189-2	01	1	1409-			●

580 617 534 561 272 561 580 413 272 589 272 560 580 589 414 557 589 159 558 589 637 633 636 380 380 159 632 418 418 639 467 636 623 380 380 418 636 418 621 65 414 620 632 638 636 418 605 632 8 639 272 637 637 637 636 8 636 580 414 65 636 547 547 542 418 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E)	8-98144-459-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F)	8-98203-726-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1309-1311	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1312-1408	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1312-1408	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1312-1408			●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1409-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1409-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1409-			●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1309-1311	●		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98225-557-0	02	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1312-			●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	06	1	1312-	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1309-1311	●	●	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408	●	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408			●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-			●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-		●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16	8-98019-179-0	10	1	1309-	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-457-1	02	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (I)	8-98205-012-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (G)	8-98118-880-0	02	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (G)	8-98118-880-0	02	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (E)	8-98127-331-1	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (E)	8-98127-331-1	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (F)	8-98127-332-0	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (F)	8-98127-332-0	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98118-879-0	01	1	1309-	●	●	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (A)	8-98118-877-1	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-877-1	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (A)	8-98118-877-1	01	1	1312-			●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (B)	8-98118-878-0	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98118-878-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (B)	8-98118-878-0	01	1	1312-			●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (D)	8-98118-880-0	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98118-880-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (D)	8-98118-880-0	01	1	1312-			●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98138-485-0	01	1	1312-	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB) (A)	8-98127-336-0	01	1	1309-1408	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB) (A)	8-98127-336-0	01	1	1409-	●	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) (B)	8-98141-407-0	01	1	1309-1311	●		●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-407-0	01	1	1312-	●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) (B)	8-98141-407-0	01	1	1312-			●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	06	1	1312-	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE	0-28051-045-0	02	1	1312-	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1309-1311	●	●	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408	●	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408			●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-	●	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-			●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-1311	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1311	●		●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-			●
467	03.685 BOLT; PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16	8-98019-179-0	06	1	1309-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCC ENG(RDU)	8-98242-134-0	01	1	1311-		●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1309-	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1309-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1309-	●	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1309-1408	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1409-	●	●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-98204-940-1	01	1	1309-	●		●
558	03.634 FILTER ASM 4JJ1-TCC ENG(RDU)	8-98233-619-1	01	1	1311-		●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1309-1408	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1409-	●	●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-98204-942-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1311-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (B)	8-97611-080-0	01	1	1309-	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G)	8-98138-575-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-576-0	01	1	1312-	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98233-520-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98233-521-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-409-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1312-			●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98150-253-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1312-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	04	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1311	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1309-1311	●		●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	14	1	1312-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (I)	8-98233-517-1	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (J)	8-98233-518-0	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (B)	8-97611-086-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (A)	8-97628-261-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (D)	8-97628-262-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (C)	8-98140-713-0	01	1	1309-	●		●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1309-1408	●	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1409-	●	●	●
605	03.690 PLATE; NUT 4HK1-TCS ENG(RJS)	8-98148-511-0	01	1	1309-	●		●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98204-944-1	01	1	1312-	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB) (A)	8-98204-729-0	01	1	1309-1408	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB) (A)	8-98204-729-0	01	1	1409-	●	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) (B)	8-98156-630-1	01	1	1309-1311	●		●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98156-630-2	01	1	1312-	●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) (B)	8-98156-630-2	01	1	1312-			●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B)	8-98205-011-0	01	1	1312-	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1309-1311	●	●	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB) (A)	8-98118-876-1	01	1	1312-1408	●	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-876-1	01	1	1312-1408	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1312-1408			●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB) (A)	8-98118-876-1	01	1	1409-	●	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-876-1	01	1	1409-	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1409-			●
621	03.704 BRACKET; PROTECTOR 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC>	8-98159-190-1	01	1	1312-	●
623	03.704 STUD; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6	8-98141-351-0	03	1	1309-	●	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-97628-257-0	03	1	1309-	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B)	8-98138-451-0	01	1	1312-	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1309-1311	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB) (A)	8-98127-327-1	01	1	1312-1408	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-327-1	01	1	1312-1408	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1312-1408			●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB) (A)	8-98127-327-1	01	1	1409-	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-327-1	01	1	1409-	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1409-			●
634	03.611 GASKET; MIXER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98118-422-1	01	1	1309-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	09	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	15	1	1312-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1309-1311	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-	●	●	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98205-010-0	01	1	1312-	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB) (A)	8-98205-063-0	01	1	1309-1408	●	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB) (A)	8-98205-063-0	01	1	1409-	●	●	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) (B)	8-98205-048-0	01	1	1309-1311	●		●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98205-048-0	01	1	1312-	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) (B)	8-98205-048-0	01	1	1312-			●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (C)	8-98147-069-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (C)	8-98147-069-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (D)	8-98147-070-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (D)	8-98147-070-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4HK1-TCS ENG(RJS) (A)	8-98136-188-0	01	1	1309-	●		●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4HK1-TCS ENG(RJS) (B)	8-98136-189-1	01	1	1309-	●		●

467 589 589 560 557 558 637 542 159 580 636 617 623 580 636 580 636 272 547 547 534 561 561 632 589 637 272 589 272 580 636 413

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-		●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16	8-98019-179-0	10	1	1309-	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98138-485-0	01	1	1312-	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB) (A)	8-98127-336-0	01	1	1309-1408	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB) (A)	8-98127-336-0	01	1	1409-	●	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) (B)	8-98141-407-0	01	1	1309-1311	●		●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-407-0	01	1	1312-	●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) (B)	8-98141-407-0	01	1	1312-			●
467	03.685 BOLT; PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16	8-98019-179-0	06	1	1309-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCC ENG(RDU)	8-98242-134-0	01	1	1311-		●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1309-	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1309-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1309-	●	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1309-1408	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1409-	●	●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-98204-940-1	01	1	1309-	●		●
558	03.634 FILTER ASM 4JJ1-TCC ENG(RDU)	8-98233-619-1	01	1	1311-		●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1309-1408	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1409-	●	●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-98204-942-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1311-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (B)	8-97611-080-0	01	1	1309-	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G)	8-98138-575-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-576-0	01	1	1312-	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98233-520-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98233-521-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-409-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1312-			●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98150-253-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1312-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	04	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1311	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1309-1311	●		●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	14	1	1312-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (I)	8-98233-517-1	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (J)	8-98233-518-0	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (B)	8-97611-086-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (A)	8-97628-261-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (D)	8-97628-262-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (C)	8-98140-713-0	01	1	1309-	●		●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98204-944-1	01	1	1312-	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB) (A)	8-98204-729-0	01	1	1309-1408	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB) (A)	8-98204-729-0	01	1	1409-	●	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) (B)	8-98156-630-1	01	1	1309-1311	●		●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98156-630-2	01	1	1312-	●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) (B)	8-98156-630-2	01	1	1312-			●
623	03.704 STUD; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6	8-98141-351-0	03	1	1309-	●	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-97628-257-0	03	1	1309-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	09	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	15	1	1312-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1309-1311	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-	●	●	●

563 182 563 182 542 434 565 272 566 434 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
182	03.682 CLIP; HARNESS 4JJ1-TCC ENG(RDU) (B) ID=7	8-98002-767-0	03	1	1311-		●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	02	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (D) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5	8-97369-561-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5	8-97369-561-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1309-1310	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=7	8-98002-767-0	01	1	1311-	●		●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) ID=7 L=7.5	8-97369-561-0	02	1	1309-	●		●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
434	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1311-		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1309-1310	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●	●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98002-572-4	01	1	1406-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) 03.337 (C)	8-98031-605-1	01	1	1311-1405		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C)	8-98031-605-1	01	1	1406-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) (D)	8-98186-762-1	01	1	1311-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1309-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98299-541-0	01	1	1502-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1309-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98299-542-0	01	1	1502-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1309-1408	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1409-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1309-1310	●		●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCC ENG(RDU)	8-97359-985-2	01	1	1311-		●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1311-	●		●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCC ENG(RDU)	8-98029-347-0	01	1	1311-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1309-1408	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1409-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS)	8-98206-911-1	01	1	1309-	●		●
566	03.706 BOLT; SENSOR 4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE	0-28650-616-0	03	1	1311-		●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1309-	●	●	●

272 182 563 182 563 434 182 542 566 434 565 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
182	03.682 CLIP; HARNESS 4JJ1-TCC ENG(RDU) (B) ID=7	8-98002-767-0	03	1	1311-		●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	02	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (D) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5	8-97369-561-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5	8-97369-561-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1309-1310	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=7	8-98002-767-0	01	1	1311-	●		●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) ID=7 L=7.5	8-97369-561-0	02	1	1309-	●		●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
434	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1311-		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1309-1310	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●	●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98002-572-4	01	1	1406-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) 03.337 (C)	8-98031-605-1	01	1	1311-1405		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C)	8-98031-605-1	01	1	1406-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) (D)	8-98186-762-1	01	1	1311-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1309-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98299-541-0	01	1	1502-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1309-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98299-542-0	01	1	1502-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1309-1408	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1409-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1309-1310	●		●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCC ENG(RDU)	8-97359-985-2	01	1	1311-		●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1311-	●		●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCC ENG(RDU)	8-98029-347-0	01	1	1311-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1309-1408	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1409-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS)	8-98206-911-1	01	1	1309-	●		●
566	03.706 BOLT; SENSOR 4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE	0-28650-616-0	03	1	1311-		●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1309-	●	●	●

628 167 629 112 630 168 627 167 317 529 316 317 317 502 568 46 36 568 25 36 568 223 36 1 17 562 562 43 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98228-986-1	01	1	1311-		●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98026-060-0	01	1	1309-1408	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98026-060-0	01	1	1409-	●	●	●
1	03.609 PIPE; EXH 4HK1-TCS ENG(RJS)	8-98235-053-0	01	1	1309-	●		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-98228-985-0	01	1	1311-		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1309-1408	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1409-	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1309-	●		●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB)	8-98173-615-0	01	1	1309-1408		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98173-615-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB)	8-98173-615-0	01	1	1409-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98173-615-0	01	1	1409-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-607-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-607-0	01	1	1409-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W)	8-98207-608-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W)	8-98207-608-0	01	1	1409-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-98207-609-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS)	8-98207-609-0	01	1	1309-1408			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-98207-609-0	01	1	1409-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	8-97096-192-1	02	1	1311-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1309-	●	●	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE	0-91180-112-0	04	1	1309-1408			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.042 (B) M12 FLANGE	0-91180-112-0	04	1	1409-			●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1309-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-1408	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1409-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1408			●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-			●
112	03.706 BRACKET; HANGER 4HK1-TCS ENG(RJS)	8-98144-954-0	01	1	1309-1408			●
112	03.706 BRACKET; HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W)	8-98144-954-0	01	1	1409-			●
167	03.706 HANGER; EXH PIPE 4JJ1-TCC ENG(RDU) 03.704 (C)	8-97080-694-0	01	1	1311-		●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97625-670-0	01	1	1309-1408			●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (A)	8-97625-670-0	01	1	1409-			●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98149-202-0	01	1	1309-1408			●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B)	8-98149-202-0	01	1	1409-			●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS)	8-98144-955-0	01	1	1309-1408			●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W)	8-98144-955-0	01	1	1409-			●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (B)	8-98026-063-0	01	1	1309-1310	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	1311-1408	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	1409-	●	●	●
223	03.706 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.613 (A)	8-98020-555-0	01	1	1309-	●		●
316	03.613 GASKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) 03.611	1-22116-040-0	01	1	1309-1408			●
316	03.613 GASKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.611	1-22116-040-0	01	1	1409-			●
317	03.613 BOLT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (B) M12X35 FLANGE	0-28051-235-0	04	1	1309-1408			●
317	03.613 BOLT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (B) M12X35 FLANGE	0-28051-235-0	04	1	1409-			●
317	03.613 BOLT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	1-22131-962-0	02	1	1309-1408			●
317	03.613 BOLT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	1-22131-962-0	02	1	1409-			●
502	03.609 PIPE; EXH,FRT 4HK1-TCS ENG(RJS)	8-98109-475-0	01	1	1309-1408			●
502	03.609 PIPE; EXH,FRT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W)	8-98109-475-0	01	1	1409-			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1311	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
529	03.704 NUT; BRKT,EXH PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1309-1310	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1309-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE	0-28050-870-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE	0-28051-235-0	04	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1309-	●		●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-1310	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1311-1408	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1409-	●	●	●
568	03.704 NUT; DPD 4HK1-TCS ENG(RJS) 02.042 M12 FLANGE	0-91180-112-0	04	1	1309-	●		●
627	03.706 WASHER; HANGER 4HK1-TCS ENG(RJS) ID=10.5 OD=70	8-97625-671-0	01	1	1309-1408			●
627	03.706 WASHER; HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) ID=10.5 OD=70	8-97625-671-0	01	1	1409-			●
628	03.275 NUT; HANGER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408			●
628	03.275 NUT; HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-			●
629	03.706 SPACER; HANGER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39	8-98060-852-0	02	1	1309-	●	●	●
629	03.706 SPACER; HANGER 4HK1-TCS ENG(RJS) L=39	8-98060-852-0	01	1	1309-1408			●
629	03.706 SPACER; HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) L=39	8-98060-852-0	01	1	1409-			●
630	00.010 BOLT; BRKT,HANGER 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1309-1408			●
630	00.010 BOLT; BRKT,HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1409-			●

562 560 562 550 550 596 597 596 596 550 574 385 550 385 597 531 352 578 340 166 143 578 629 143 631 352 121 44 44 550 596 597 596 550 574 385 550 531 597 596 531 597 385 337 166 143 579 143 629 579 579 121 352 352 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1311-		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408	●
44	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1309-	●	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) ID=10.5	8-98073-091-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98034-767-0	01	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) ID=10.5 OD=70	8-97625-671-0	02	1	1309-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	1309-	●	●	●
340	03.706 NUT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-	●	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-	●	●	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-	●		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1309-	●	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) ID=10.5 OD=70	8-97625-671-0	02	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (F)	8-98144-192-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (F)	8-98144-192-1	02	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98148-477-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98148-477-1	02	1	1409-1502	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98292-852-0	02	1	1503-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D)	8-98113-038-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98144-205-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98144-207-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1309-1408	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-98144-929-1	01	1	1309-1408	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98144-929-1	01	1	1309-1408	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1309-1408			●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1409-	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-98144-929-1	01	1	1409-	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98144-929-1	01	1	1409-	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (E)	8-98144-929-1	01	1	1409-			●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (B)	8-98144-930-1	02	1	1309-1502	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (B)	8-98292-841-0	02	1	1503-	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98207-620-0	01	1	1309-	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1311-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (B)	8-97611-080-0	01	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1309-1310	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1309-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE	0-28050-870-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE	0-28051-235-0	04	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1309-	●		●
574	03.706 SPACER; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39	8-98060-852-0	02	1	1309-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) (E)	8-98228-998-1	01	1	1311-		●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (D)	8-98113-031-0	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (D)	8-98113-031-0	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (C)	8-98113-032-1	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (C)	8-98113-032-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (A)	8-98109-484-0	01	1	1309-	●		●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (B)	8-98109-485-3	01	1	1309-	●		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (E)	8-98232-385-1	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (G)	8-98232-083-3	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> (H)	8-98232-081-3	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (F)	8-98232-085-1	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (I)	8-98232-080-2	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-195-2	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-195-2	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (D)	8-98144-198-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (D)	8-98144-198-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98144-196-0	01	1	1309-	●	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (C)	8-98144-925-2	01	1	1309-1502	●		●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (C)	8-98300-829-0	01	1	1503-	●		●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (B)	8-98144-927-0	01	1	1309-	●		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	10	1	1309-1408	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	10	1	1409-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
596	03.704 BOLT; BRKT,DPD 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	08	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-			●
629	03.706 SPACER; HANGER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39	8-98060-852-0	02	1	1309-	●	●	●
629	03.706 SPACER; HANGER 4HK1-TCS ENG(RJS) L=39	8-98060-852-0	01	1	1309-1408			●
629	03.706 SPACER; HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) L=39	8-98060-852-0	01	1	1409-			●
631	03.706 BRACKET; DPD CENTER 4JJ1-TCS ENG(LFB)	8-98144-193-0	01	1	1309-1408	●	●
631	03.706 BRACKET; DPD CENTER 4JJ1-TCS ENG(LFB)	8-98144-193-0	01	1	1409-	●	●	●
631	03.706 BRACKET; DPD CENTER 4HK1-TCS ENG(RJS)	8-98144-920-0	01	1	1309-	●		●

550 596 597 597 531 550 385 596 597 596 550 574 385 531 597 352 340 597 562 562 550 596 597 143 44 166 352 121 337 166 143 629 143 44 579 579 352 579 578 143 631 578 352 44 629 121 352 574 550 385 597 596 385 596 531 550 597

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1311-		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408	●
44	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1309-	●	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) ID=10.5	8-98073-091-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98034-767-0	01	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) ID=10.5 OD=70	8-97625-671-0	02	1	1309-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	1309-	●	●	●
340	03.706 NUT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-	●	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-	●	●	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-	●		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1309-	●	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) ID=10.5 OD=70	8-97625-671-0	02	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (F)	8-98144-192-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (F)	8-98144-192-1	02	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98148-477-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98148-477-1	02	1	1409-1502	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98292-852-0	02	1	1503-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D)	8-98113-038-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98144-205-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98144-207-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1309-1408	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-98144-929-1	01	1	1309-1408	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98144-929-1	01	1	1309-1408	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1309-1408			●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1409-	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-98144-929-1	01	1	1409-	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98144-929-1	01	1	1409-	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (E)	8-98144-929-1	01	1	1409-			●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (B)	8-98144-930-1	02	1	1309-1502	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (B)	8-98292-841-0	02	1	1503-	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98207-620-0	01	1	1309-	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1309-1310	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1309-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE	0-28050-870-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE	0-28051-235-0	04	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1309-	●		●
574	03.706 SPACER; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39	8-98060-852-0	02	1	1309-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) (E)	8-98228-998-1	01	1	1311-		●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (D)	8-98113-031-0	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (D)	8-98113-031-0	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (C)	8-98113-032-1	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (C)	8-98113-032-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (A)	8-98109-484-0	01	1	1309-	●		●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (B)	8-98109-485-3	01	1	1309-	●		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (E)	8-98232-385-1	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (G)	8-98232-083-3	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> (H)	8-98232-081-3	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (F)	8-98232-085-1	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (I)	8-98232-080-2	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-195-2	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-195-2	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (D)	8-98144-198-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (D)	8-98144-198-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98144-196-0	01	1	1309-	●	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (C)	8-98144-925-2	01	1	1309-1502	●		●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (C)	8-98300-829-0	01	1	1503-	●		●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (B)	8-98144-927-0	01	1	1309-	●		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	10	1	1309-1408	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	10	1	1409-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
596	03.704 BOLT; BRKT,DPD 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	08	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-			●
629	03.706 SPACER; HANGER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39	8-98060-852-0	02	1	1309-	●	●	●
629	03.706 SPACER; HANGER 4HK1-TCS ENG(RJS) L=39	8-98060-852-0	01	1	1309-1408			●
629	03.706 SPACER; HANGER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) L=39	8-98060-852-0	01	1	1409-			●
631	03.706 BRACKET; DPD CENTER 4JJ1-TCS ENG(LFB)	8-98144-193-0	01	1	1309-1408	●	●
631	03.706 BRACKET; DPD CENTER 4JJ1-TCS ENG(LFB)	8-98144-193-0	01	1	1409-	●	●	●
631	03.706 BRACKET; DPD CENTER 4HK1-TCS ENG(RJS)	8-98144-920-0	01	1	1309-	●		●

639 636 640 159 639 418 414 605 65 418 414 636 580 633 380 380 636 634 632 542 414 418 380 580 272 542 380 414 65 272 620 632 272 272 418 636 580 542 636 580 8 149 529 8 149 529 638 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E)	8-98144-459-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F)	8-98203-726-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1309-1311	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1312-1408	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1312-1408	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1312-1408			●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1409-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1409-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1409-			●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1309-1311	●		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98225-557-0	02	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1312-			●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	06	1	1312-	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1309-1311	●	●	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408	●	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1312-1408			●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●	●
65	03.613 WASHER; PL 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-			●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1309-1311	●	●	●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1312-1408	●	●
149	03.613 WASHER; LK,PIPE BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1312-1408	●
149	03.613 WASHER; LK,PIPE BRKT 4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1312-1408			●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-	●	●
149	03.613 WASHER; LK,PIPE BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-	●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-			●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-		●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16	8-98019-179-0	10	1	1309-	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-457-1	02	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (I)	8-98205-012-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (G)	8-98118-880-0	02	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (G)	8-98118-880-0	02	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (E)	8-98127-331-1	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (E)	8-98127-331-1	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (F)	8-98127-332-0	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (F)	8-98127-332-0	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98118-879-0	01	1	1309-	●	●	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (A)	8-98118-877-1	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-877-1	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (A)	8-98118-877-1	01	1	1312-			●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (B)	8-98118-878-0	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98118-878-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (B)	8-98118-878-0	01	1	1312-			●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (D)	8-98118-880-0	01	1	1309-1311	●		●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98118-880-0	01	1	1312-	●
380	03.706 BRACKET; STAY 4HK1-TCS ENG(RJS) (D)	8-98118-880-0	01	1	1312-			●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	06	1	1312-	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE	0-28051-045-0	02	1	1312-	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1309-1311	●	●	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408	●	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1312-1408			●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-	●	●
414	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE	0-28051-035-0	08	1	1409-			●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-1311	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1311	●		●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1311	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
529	03.704 NUT; BRKT,EXH PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	04	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1311	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1309-1311	●		●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	14	1	1312-	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1309-1408	●	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1409-	●	●	●
605	03.690 PLATE; NUT 4HK1-TCS ENG(RJS)	8-98148-511-0	01	1	1309-	●		●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B)	8-98205-011-0	01	1	1312-	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1309-1311	●	●	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB) (A)	8-98118-876-1	01	1	1312-1408	●	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-876-1	01	1	1312-1408	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1312-1408			●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB) (A)	8-98118-876-1	01	1	1409-	●	●
620	03.440 CHAMBER ASM; RR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98118-876-1	01	1	1409-	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98118-876-1	01	1	1409-			●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-97628-257-0	03	1	1309-	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B)	8-98138-451-0	01	1	1312-	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1309-1311	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB) (A)	8-98127-327-1	01	1	1312-1408	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-327-1	01	1	1312-1408	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1312-1408			●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB) (A)	8-98127-327-1	01	1	1409-	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-327-1	01	1	1409-	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98127-327-1	01	1	1409-			●
634	03.611 GASKET; MIXER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98118-422-1	01	1	1309-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	09	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-	●	●	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98205-010-0	01	1	1312-	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB) (A)	8-98205-063-0	01	1	1309-1408	●	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB) (A)	8-98205-063-0	01	1	1409-	●	●	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) (B)	8-98205-048-0	01	1	1309-1311	●		●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98205-048-0	01	1	1312-	●
638	03.701 CATALYST ASM; DEF 4HK1-TCS ENG(RJS) (B)	8-98205-048-0	01	1	1312-			●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (C)	8-98147-069-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (C)	8-98147-069-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (D)	8-98147-070-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (D)	8-98147-070-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4HK1-TCS ENG(RJS) (A)	8-98136-188-0	01	1	1309-	●		●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4HK1-TCS ENG(RJS) (B)	8-98136-189-1	01	1	1309-	●		●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98159-189-2	01	1	1309-1311	●	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-98159-189-2	01	1	1312-1408	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC>	8-98159-189-2	01	1	1312-1408	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4HK1-TCS ENG(RJS)	8-98159-189-2	01	1	1312-1408			●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-98159-189-2	01	1	1409-	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC>	8-98159-189-2	01	1	1409-	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98159-189-2	01	1	1409-			●

25 223 46 36 2 17 43 548 543 212 548 560 568 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98228-986-1	01	1	1311-		●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98026-060-0	01	1	1309-1408	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98026-060-0	01	1	1409-	●	●	●
1	03.609 PIPE; EXH 4HK1-TCS ENG(RJS)	8-98235-053-0	01	1	1309-	●		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-98228-985-0	01	1	1311-		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1309-1408	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1409-	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1309-	●		●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB)	8-98173-615-0	01	1	1309-1408		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98173-615-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB)	8-98173-615-0	01	1	1409-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98173-615-0	01	1	1409-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-607-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-607-0	01	1	1409-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W)	8-98207-608-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W)	8-98207-608-0	01	1	1409-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-98207-609-0	01	1	1309-1408	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS)	8-98207-609-0	01	1	1309-1408			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-98207-609-0	01	1	1409-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	8-97096-192-1	02	1	1311-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1309-	●	●	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE	0-91180-112-0	04	1	1309-1408			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.042 (B) M12 FLANGE	0-91180-112-0	04	1	1409-			●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1309-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-1408	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1409-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1408			●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-			●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1309-1310	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1311-1408	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-	●	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1309-1310	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1311-1408	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1409-	●	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (B)	8-98026-063-0	01	1	1309-1310	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	1311-1408	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	1409-	●	●	●
223	03.706 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.613 (A)	8-98020-555-0	01	1	1309-	●		●
543	01.150 SENSOR; O2 4JJ1-TCS ENG(LFB)	8-98088-472-1	01	1	1309-1408	●	●
543	01.150 SENSOR; O2 4JJ1-TCS ENG(LFB)	8-98088-472-1	01	1	1409-	●	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98224-056-1	01	1	1311-1408	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98224-056-1	01	1	1409-	●	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) (A)	8-98224-055-1	01	1	1309-1310	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (A)	8-98224-055-1	01	1	1311-1408	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (A)	8-98224-055-1	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1311-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (B)	8-97611-080-0	01	1	1309-	●		●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-1310	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1311-1408	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1409-	●	●	●
568	03.704 NUT; DPD 4HK1-TCS ENG(RJS) 02.042 M12 FLANGE	0-91180-112-0	04	1	1309-	●		●

580 561 272 636 637 632 580 636 637 272 557 272 637 589 413 534 589 589 467 159 547 560 547 580 636 418 637 617 623 529 561 589 558

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-		●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16	8-98019-179-0	10	1	1309-	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1311-	●		●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	18	1	1309-	●		●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98138-485-0	01	1	1312-	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB) (A)	8-98127-336-0	01	1	1309-1408	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB) (A)	8-98127-336-0	01	1	1409-	●	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) (B)	8-98141-407-0	01	1	1309-1311	●		●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-407-0	01	1	1312-	●
413	03.613 BRACKET; EXH PIPE,CONN 4HK1-TCS ENG(RJS) (B)	8-98141-407-0	01	1	1312-			●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-1311	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1312-1408	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●	●	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1311	●		●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-	●
418	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	08	1	1312-			●
467	03.685 BOLT; PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16	8-98019-179-0	06	1	1309-	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1311	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
529	03.704 NUT; BRKT,EXH PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
534	03.704 BOLT; CLIP 4JJ1-TCC ENG(RDU)	8-98242-134-0	01	1	1311-		●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1309-	●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1309-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1309-	●	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1309-1408	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1409-	●	●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-98204-940-1	01	1	1309-	●		●
558	03.634 FILTER ASM 4JJ1-TCC ENG(RDU)	8-98233-619-1	01	1	1311-		●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1309-1408	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1409-	●	●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-98204-942-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1311-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (B)	8-97611-080-0	01	1	1309-	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G)	8-98138-575-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-576-0	01	1	1312-	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98233-520-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98233-521-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-409-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1312-			●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98150-253-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1312-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	04	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1312-			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1311	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1312-1408			●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-			●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	12	1	1309-1311	●		●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	14	1	1312-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (I)	8-98233-517-1	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (J)	8-98233-518-0	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (B)	8-97611-086-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (A)	8-97628-261-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (D)	8-97628-262-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (C)	8-98140-713-0	01	1	1309-	●		●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C)	8-98204-944-1	01	1	1312-	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB) (A)	8-98204-729-0	01	1	1309-1408	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB) (A)	8-98204-729-0	01	1	1409-	●	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) (B)	8-98156-630-1	01	1	1309-1311	●		●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98156-630-2	01	1	1312-	●
617	03.440 CHAMBER SUB ASM; MIXER 4HK1-TCS ENG(RJS) (B)	8-98156-630-2	01	1	1312-			●
623	03.704 STUD; FLANGE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6	8-98141-351-0	03	1	1309-	●	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-97628-257-0	03	1	1309-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	09	1	1312-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1311	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1312-1408			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-			●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	15	1	1312-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1309-1311	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1312-1408			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-			●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-	●	●	●

556 589 159 534 547 547 561 558 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-		●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16	8-98019-179-0	10	1	1309-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCC ENG(RDU)	8-98242-134-0	01	1	1311-		●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1309-	●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1309-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1309-	●	●	●
556	03.701 DPD ASM 4JJ1-TCC ENG(RDU)	8-98225-173-3	01	1	1311-		●
558	03.634 FILTER ASM 4JJ1-TCC ENG(RDU)	8-98233-619-1	01	1	1311-		●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1309-1408	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1409-	●	●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-98204-942-0	01	1	1309-	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G)	8-98138-575-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H)	8-98138-576-0	01	1	1312-	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98233-520-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98233-521-1	01	1	1311-		●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98127-334-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98127-335-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98141-409-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (B)	8-98141-409-0	01	1	1312-			●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1309-1311	●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98150-253-0	01	1	1312-	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (A)	8-98150-253-0	01	1	1312-			●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (I)	8-98233-517-1	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (J)	8-98233-518-0	01	1	1311-		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-97383-660-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-98032-921-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-98032-923-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-98032-924-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (B)	8-97611-086-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (A)	8-97628-261-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (D)	8-97628-262-0	01	1	1309-	●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (C)	8-98140-713-0	01	1	1309-	●		●

137 104 95 167 126 84 38 167 137 95 104 125 81 137 70 144 143 554 94 97 126 84 38 84 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-		●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) ID=65	8-97148-757-1	01	1	1311-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	1311-		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.023 M10X50 FLANGE	8-97301-165-0	01	1	1311-		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1311-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1311-		●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1311-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98228-992-1	01	1	1311-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98228-993-1	01	1	1311-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1309-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1409-	●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) (B)	8-98207-612-1	01	1	1309-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A)	8-98229-011-1	01	1	1311-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98019-904-2	01	1	1311-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98229-010-1	01	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98034-767-0	01	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-		●
167	03.706 HANGER; EXH PIPE 4JJ1-TCC ENG(RDU) 03.704 (C)	8-97080-694-0	01	1	1311-		●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97625-670-0	01	1	1309-1408			●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (A)	8-97625-670-0	01	1	1409-			●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98149-202-0	01	1	1309-1408			●
167	03.706 HANGER; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B)	8-98149-202-0	01	1	1409-			●
363	03.704 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-		●
554	03.705 PIPE; EXH,SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98228-988-0	01	1	1311-		●

44 156 575 597 8 126 361 14 8 550 14 126 361 597

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E)	8-98144-459-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F)	8-98203-726-0	01	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98225-555-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (D)	8-98225-556-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1309-1311	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1312-1408	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1312-1408	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1312-1408			●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98162-855-0	02	1	1409-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B)	8-98162-855-0	02	1	1409-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98162-855-0	02	1	1409-			●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1309-1311	●		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98225-557-0	02	1	1312-	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-557-0	02	1	1312-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=65	8-97148-757-1	01	1	1311-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.611 ID=81	8-98043-481-0	01	1	1309-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1311-		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408	●
44	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98228-992-1	01	1	1311-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98228-993-1	01	1	1311-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1309-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1409-	●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) (B)	8-98207-612-1	01	1	1309-	●		●
156	03.706 INSULATOR; HEAT PROTECTOR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98148-541-1	01	1	1309-	●	●	●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.003 M12X40 FLANGE	0-28651-240-0	03	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (F)	8-98144-192-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (F)	8-98144-192-1	02	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98148-477-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98148-477-1	02	1	1409-1502	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (G)	8-98292-852-0	02	1	1503-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D)	8-98113-038-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98144-205-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98144-207-0	01	1	1309-	●	●	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1309-1408	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-98144-929-1	01	1	1309-1408	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98144-929-1	01	1	1309-1408	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1309-1408			●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (E)	8-98144-929-1	01	1	1409-	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-98144-929-1	01	1	1409-	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98144-929-1	01	1	1409-	●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (E)	8-98144-929-1	01	1	1409-			●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (B)	8-98144-930-1	02	1	1309-1502	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) (B)	8-98292-841-0	02	1	1503-	●		●
550	03.704 BRACKET; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98207-620-0	01	1	1309-	●
575	03.706 COVER; SIDE,DPD 4JJ1-TCS ENG(LFB)	8-98290-055-0	01	1	1409-			●
575	03.706 COVER; SIDE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS)	8-98109-502-1	01	1	1309-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-			●

579 579 579 579 597 579 578 143 596 44 596 143 352 352 560 556 2 17 143 329 562 223 1 36 43 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98228-986-1	01	1	1311-		●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98026-060-0	01	1	1309-1408	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98026-060-0	01	1	1409-	●	●	●
1	03.609 PIPE; EXH 4HK1-TCS ENG(RJS)	8-98235-053-0	01	1	1309-	●		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-98228-985-0	01	1	1311-		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1309-1408	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1409-	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1309-	●		●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	8-97096-192-1	02	1	1311-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1309-	●	●	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE	0-91180-112-0	04	1	1309-1408			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.042 (B) M12 FLANGE	0-91180-112-0	04	1	1409-			●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1309-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1311-		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408	●
44	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●		●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-1408	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1409-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1408			●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-			●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98034-767-0	01	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (B)	8-98026-063-0	01	1	1309-1310	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	1311-1408	●	●
223	03.706 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	1409-	●	●	●
223	03.706 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.613 (A)	8-98020-555-0	01	1	1309-	●		●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●		●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-	●	●	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-	●		●
556	03.701 DPD ASM 4JJ1-TCC ENG(RDU)	8-98225-173-3	01	1	1311-		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1311-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64	8-97373-108-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	1309-	●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (B)	8-97611-080-0	01	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1309-1310	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE	0-28050-835-0	04	1	1409-		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1309-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-97373-966-0	02	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE	0-28050-870-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE	0-28051-235-0	04	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1309-	●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1309-	●		●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) (E)	8-98228-998-1	01	1	1311-		●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (D)	8-98113-031-0	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (D)	8-98113-031-0	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (C)	8-98113-032-1	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (C)	8-98113-032-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (A)	8-98109-484-0	01	1	1309-	●		●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (B)	8-98109-485-3	01	1	1309-	●		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (E)	8-98232-385-1	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (G)	8-98232-083-3	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> (H)	8-98232-081-3	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (F)	8-98232-085-1	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (I)	8-98232-080-2	01	1	1311-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-195-2	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-195-2	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (D)	8-98144-198-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (D)	8-98144-198-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98144-196-0	01	1	1309-	●	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (C)	8-98144-925-2	01	1	1309-1502	●		●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (C)	8-98300-829-0	01	1	1503-	●		●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (B)	8-98144-927-0	01	1	1309-	●		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1311-		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-		●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	10	1	1309-1408	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	10	1	1409-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1309-	●	●	●
596	03.704 BOLT; BRKT,DPD 4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	08	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1309-1408	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1409-	●		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-	●	●	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●		●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●
597	03.704 NUT; BRKT,DPD 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-			●

143 143 529 46 416 416 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98228-995-1	01	1	1311-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=65	8-97148-757-1	01	1	1311-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.611 ID=81	8-98043-481-0	01	1	1309-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-1408	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1409-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1408			●
46	03.704 BOLT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-			●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D)	8-98034-767-0	01	1	1311-		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A)	8-97625-670-0	02	1	1309-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B)	8-98149-202-0	02	1	1309-	●	●	●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A)	8-98229-006-1	01	1	1311-		●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98229-007-1	01	1	1311-		●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1311	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1312-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
529	03.704 NUT; BRKT,EXH PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1310			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●
529	03.704 NUT; BRKT,EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●

564 565 566 434 542 434 182 563 563 566 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
182	03.682 CLIP; HARNESS 4JJ1-TCC ENG(RDU) (B) ID=7	8-98002-767-0	03	1	1311-		●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	02	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (C) L=112	8-94232-618-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (D) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5	8-97369-561-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5	8-97369-561-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1309-1310	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=7	8-98002-767-0	01	1	1311-	●		●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) ID=7 L=7.5	8-97369-561-0	02	1	1309-	●		●
434	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1311-		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1309-1310	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●	●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J)	8-98232-788-0	01	1	1312-	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (I)	8-98236-438-1	01	1	1311-		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (F)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (G)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (H)	8-98242-537-0	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-0	01	1	1309-1311	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1312-1408	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1312-1408	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1312-1408			●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C)	8-98205-049-1	01	1	1409-	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C)	8-98205-049-1	01	1	1409-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98123-972-0	01	1	1309-	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98127-351-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (A)	8-98127-351-0	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98150-369-1	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (D)	8-98150-369-1	01	1	1312-			●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1309-1311	●		●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E)	8-98208-196-0	01	1	1312-	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (E)	8-98208-196-0	01	1	1312-			●
556	03.701 DPD ASM 4JJ1-TCC ENG(RDU)	8-98225-173-3	01	1	1311-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98002-572-4	01	1	1406-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) 03.337 (C)	8-98031-605-1	01	1	1311-1405		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C)	8-98031-605-1	01	1	1406-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) (D)	8-98186-762-1	01	1	1311-		●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1309-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A)	8-98299-541-0	01	1	1502-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1309-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B)	8-98299-542-0	01	1	1502-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1309-1408	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1409-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1309-1310	●		●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCC ENG(RDU)	8-97359-985-2	01	1	1311-		●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1311-	●		●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCC ENG(RDU)	8-98029-347-0	01	1	1311-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1309-1408	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1409-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS)	8-98206-911-1	01	1	1309-	●		●
566	03.706 BOLT; SENSOR 4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE	0-28650-616-0	03	1	1311-		●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1309-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
