Sayfa 1-31 - Isuzu EPC

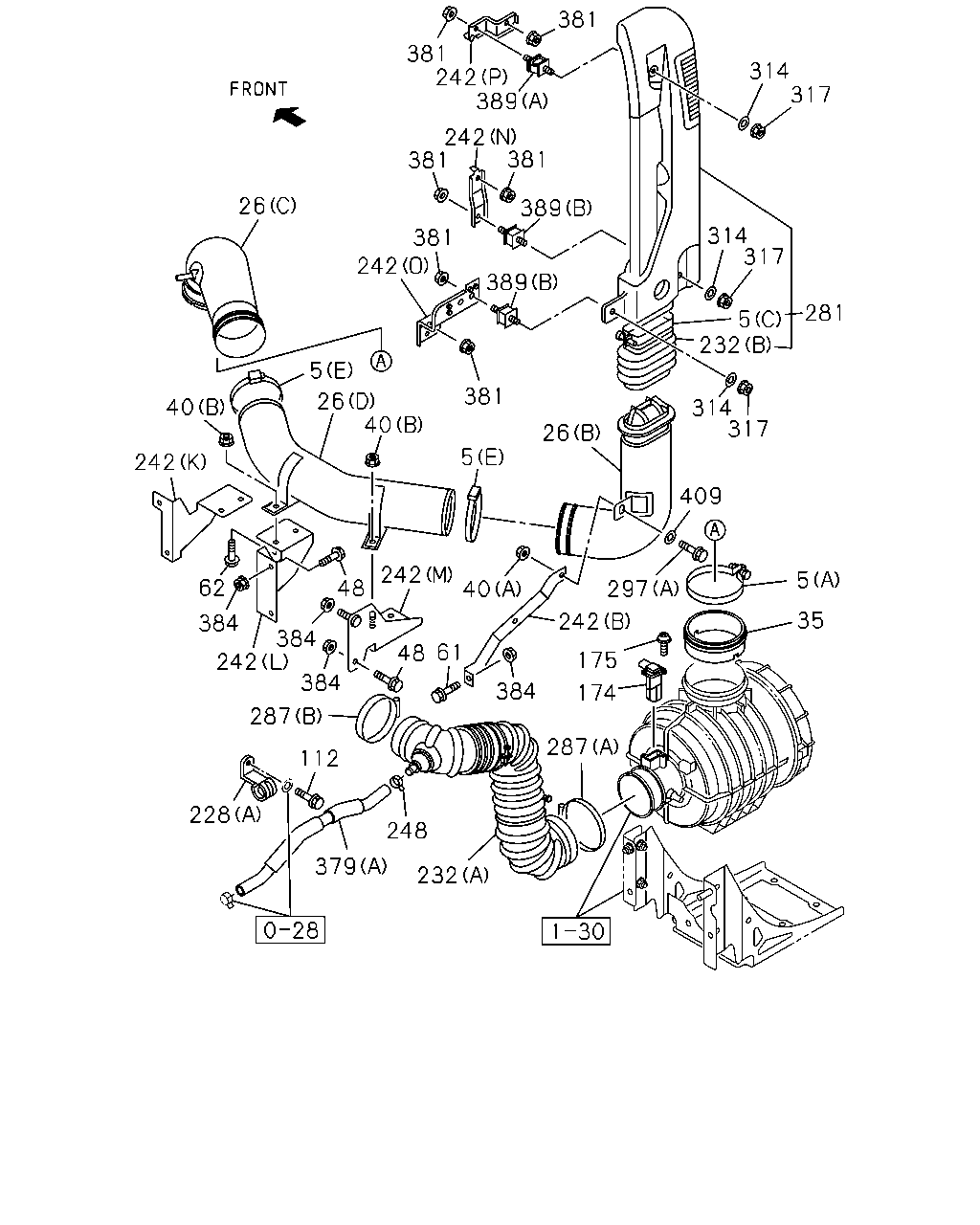

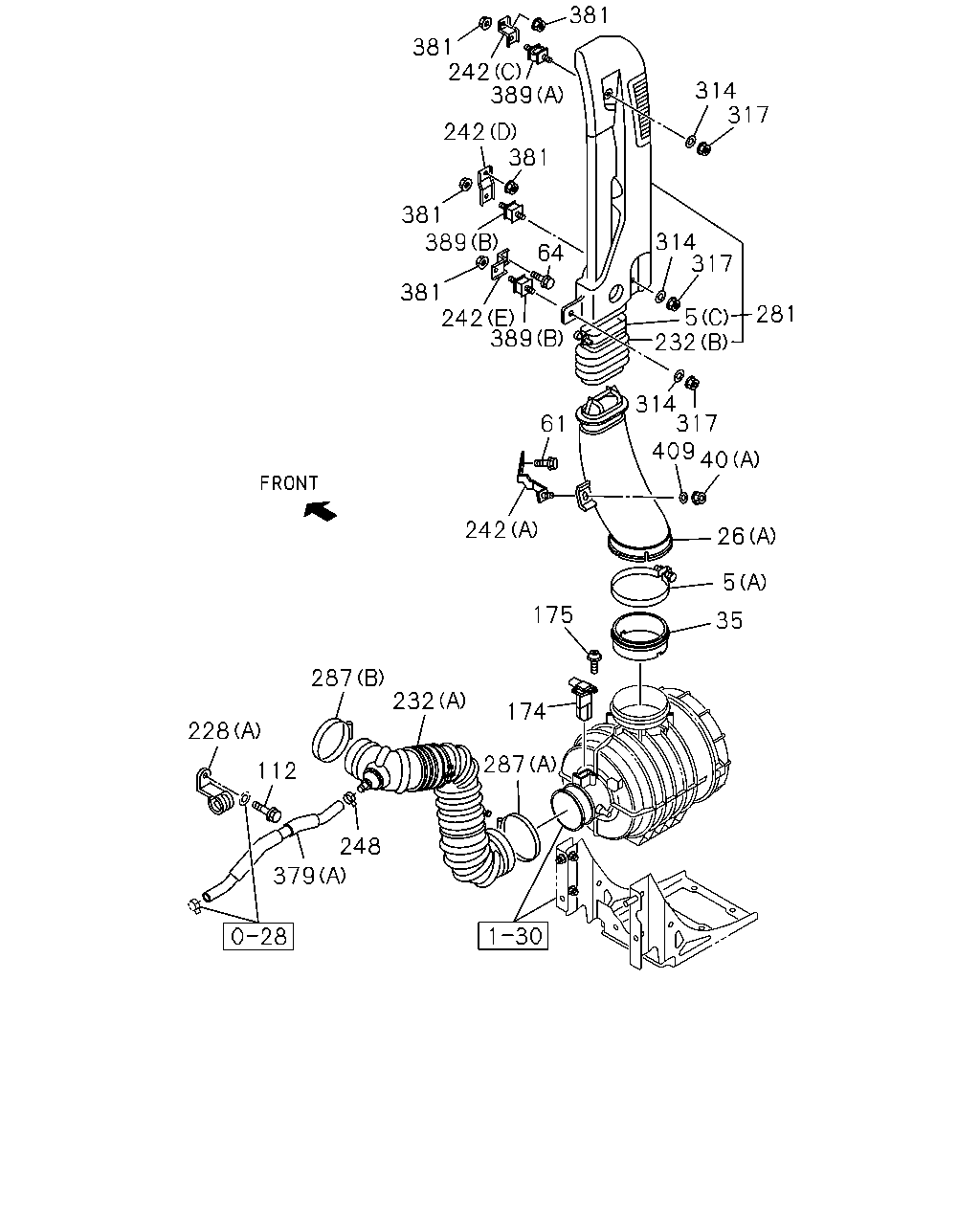

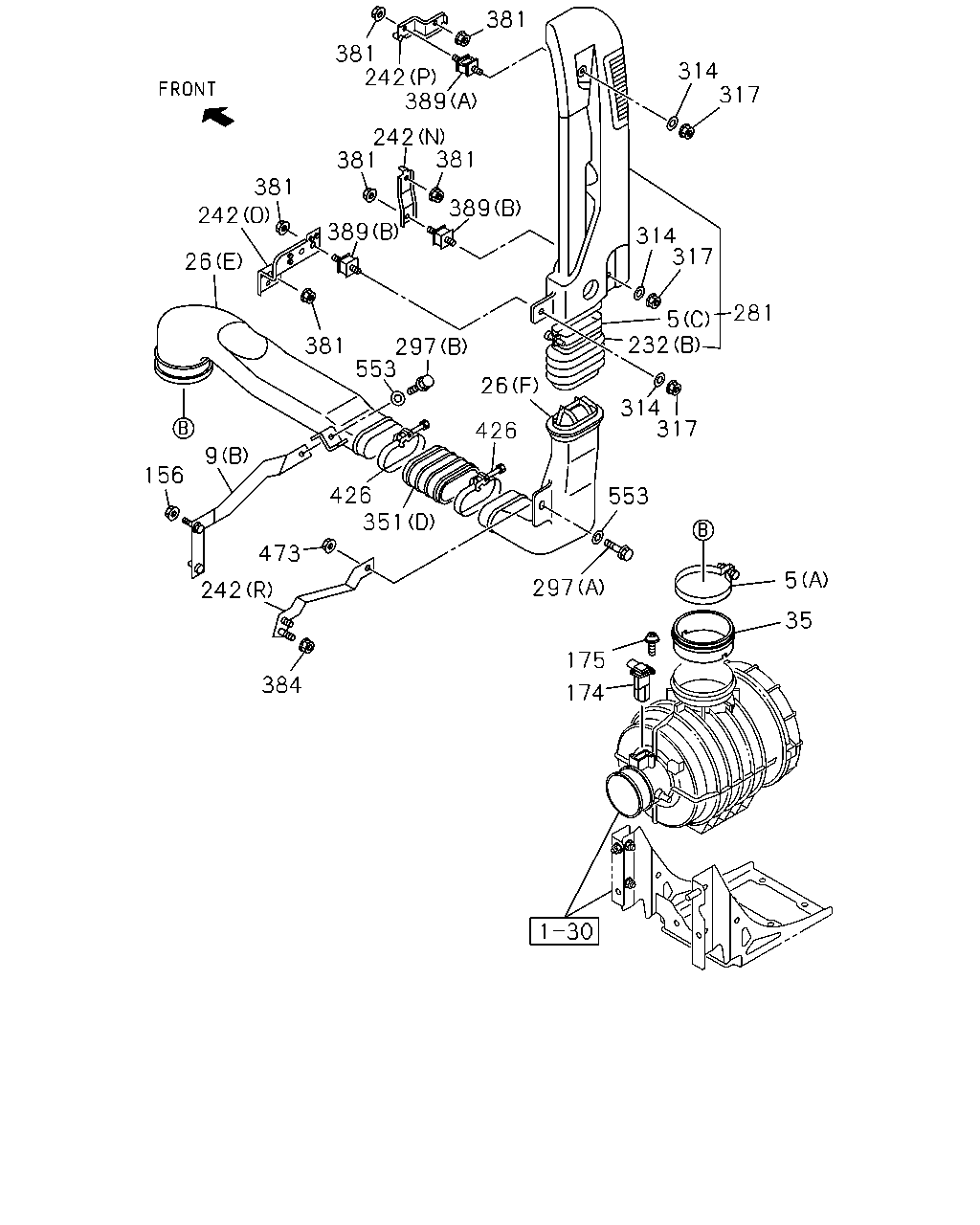

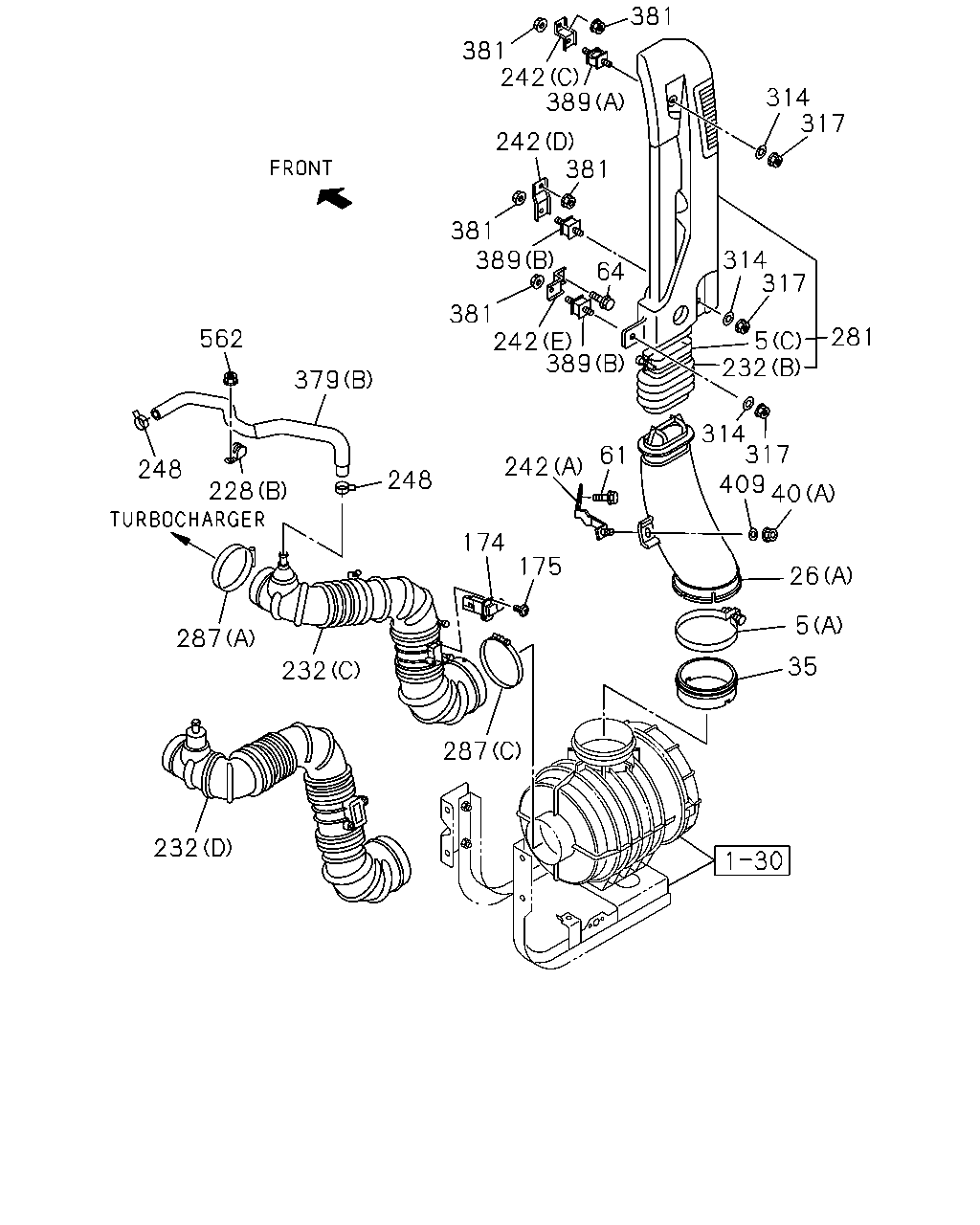

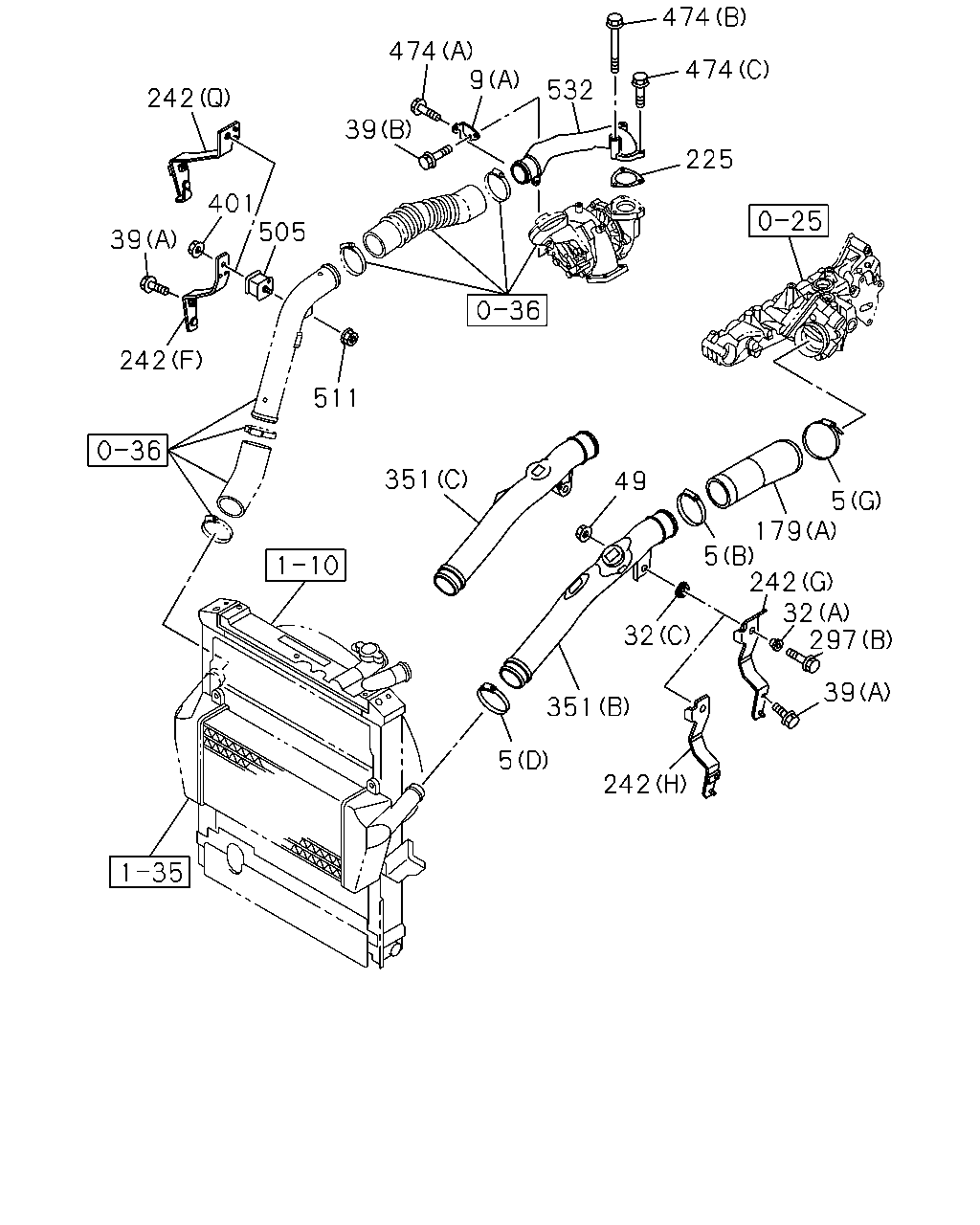

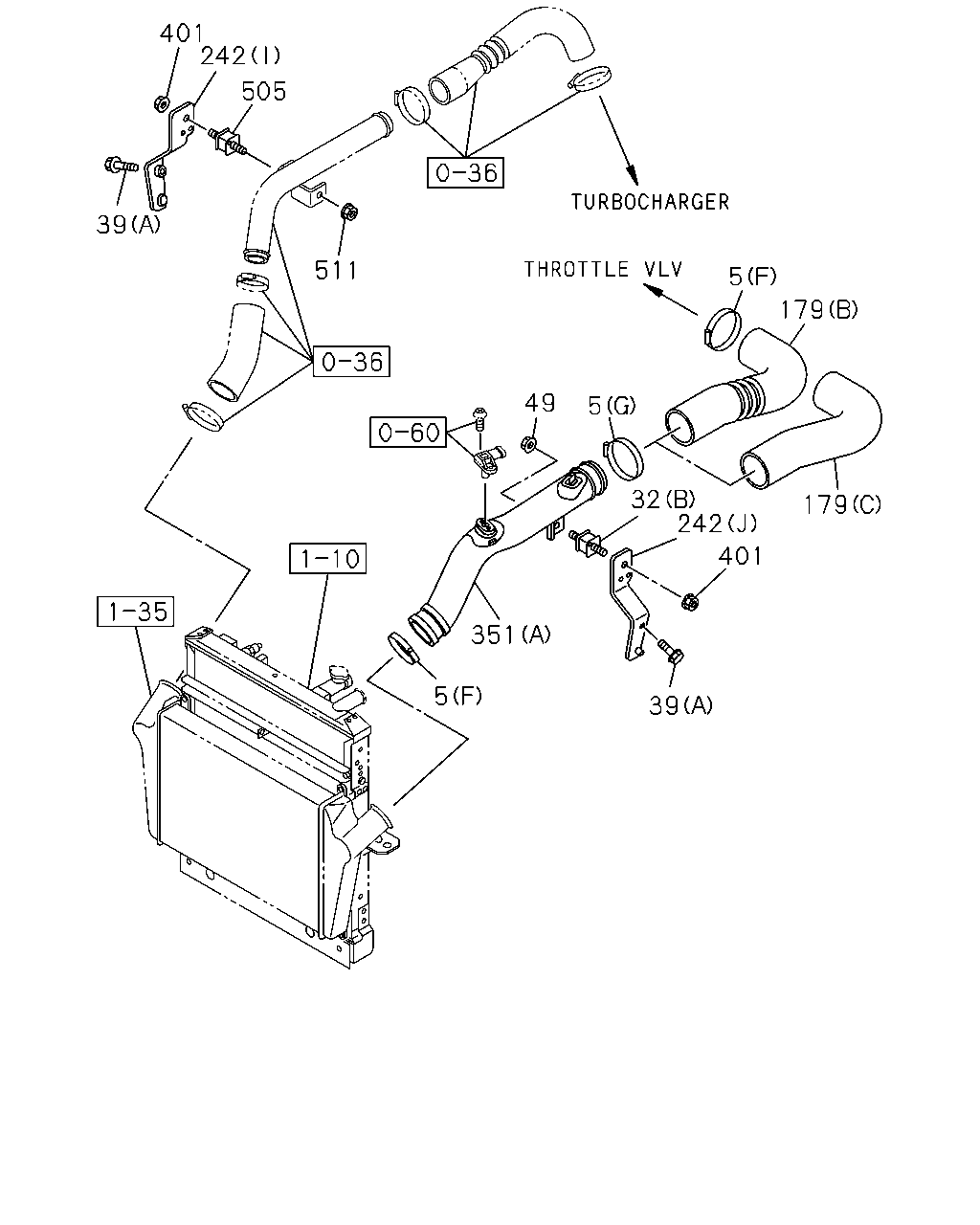

1-31 — AIR DUCT (#126201) — 640 parça

474 39 242 401 39 242 511 351 49 9 532 474 474 225 32 351 5 242 297 32 242 5 39 179 5 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1409-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (B)	8-98278-820-1	01	1	1409-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (A)	8-98009-086-0	01	1	1309-1408	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (A)	8-98009-086-0	01	1	1409-	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 01.277 (C) OD=32	8-94395-766-0	01	1	1309-1310	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32	8-94395-766-0	01	1	1311-1408	●	●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (C) OD=32	8-94395-766-0	01	1	1409-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 01.277 (C) OD=32	8-94395-766-0	01	1	1409-		●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 03.265 (A) OD=23	8-97105-689-6	01	1	1309-1310	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1311-1408	●	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (A) OD=23	8-97105-689-6	01	1	1409-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 03.265 (A) OD=23	8-97105-689-6	01	1	1409-		●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCS ENG(RJS) (B)	8-97081-886-0	01	1	1309-		●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1309-1408	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1409-	●	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (A)	8-98111-374-1	01	1	1309-1310	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98111-374-1	01	1	1311-1408	●	●
179	03.417 HOSE; AIR INT (A)	8-98111-374-1	01	1	1409-	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (A)	8-98111-374-1	01	1	1409-		●	●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98117-928-2	01	1	1309-		●
179	03.417 HOSE; AIR INT (C)	8-98245-722-0	01	1	1309-			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 ID=47	8-97202-328-1	01	1	1309-1408	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 ID=47	8-97202-328-1	01	1	1409-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (R)	8-98278-821-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1311-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (F)	8-98245-310-1	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F)	8-98245-310-1	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98245-899-0	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G)	8-98245-899-0	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1309-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1309-1408		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98205-667-0	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1309-			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1409-			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1309-1310	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1311-1408	●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-		●	●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1309-1408			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1409-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (D)	8-98278-809-1	01	1	1409-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98051-032-1	01	1	1311-	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1309-1310	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1311-1408	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B)	8-98205-465-0	01	1	1409-	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1409-		●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98205-145-0	01	1	1309-		●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-		●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	1309-1408	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	1409-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1309-1408	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1309-1408	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1409-	●	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1309-	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB)	8-98237-771-1	01	1	1309-1408	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB)	8-98237-771-1	01	1	1409-	●	●	●

401 505 242 39 511 49 5 32 242 401 179 5 179 351 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1409-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 01.277 (C) OD=32	8-94395-766-0	01	1	1309-1310	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32	8-94395-766-0	01	1	1311-1408	●	●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (C) OD=32	8-94395-766-0	01	1	1409-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 01.277 (C) OD=32	8-94395-766-0	01	1	1409-		●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 03.265 (A) OD=23	8-97105-689-6	01	1	1309-1310	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1311-1408	●	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (A) OD=23	8-97105-689-6	01	1	1409-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 03.265 (A) OD=23	8-97105-689-6	01	1	1409-		●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCS ENG(RJS) (B)	8-97081-886-0	01	1	1309-		●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1309-1408	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1409-	●	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (A)	8-98111-374-1	01	1	1309-1310	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98111-374-1	01	1	1311-1408	●	●
179	03.417 HOSE; AIR INT (A)	8-98111-374-1	01	1	1409-	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (A)	8-98111-374-1	01	1	1409-		●	●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98117-928-2	01	1	1309-		●
179	03.417 HOSE; AIR INT (C)	8-98245-722-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (R)	8-98278-821-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1311-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (F)	8-98245-310-1	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F)	8-98245-310-1	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98245-899-0	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G)	8-98245-899-0	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1309-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1309-1408		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98205-667-0	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1309-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (D)	8-98278-809-1	01	1	1409-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98051-032-1	01	1	1311-	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1309-1310	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1311-1408	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B)	8-98205-465-0	01	1	1409-	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1409-		●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98205-145-0	01	1	1309-		●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-		●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1309-	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●	●

381 381 242 389 314 317 242 381 381 64 314 317 389 381 5 281 232 314 317 409 26 5 35 61 242 242 389 40 175 174 287 248 379 562 248 228 287 232 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1409-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1309-	●	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1409-			●
26	03.417 DUCT; AIR INT (C)	8-98109-389-1	01	1	1309-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1409-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1409-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1309-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1409-			●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1309-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1309-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1309-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1311-	●	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1309-1310	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22	8-98120-916-0	01	1	1311-1408	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1409-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1409-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1309-		●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (D)	8-98242-344-0	01	1	1311-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1309-1310	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1311-1408	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C)	8-98242-345-0	01	1	1409-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1409-		●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1309-		●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1309-1309	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (R)	8-98278-821-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1311-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (F)	8-98245-310-1	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F)	8-98245-310-1	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98245-899-0	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G)	8-98245-899-0	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1309-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1309-1408		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98205-667-0	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1309-			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1309-1310	●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1311-1408	●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1409-	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1409-		●	●
248	03.417 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 08.846 ID=21.7	8-97203-074-0	01	1	1309-		●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1309-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1309-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1311-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1311-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=117	9-09915-075-1	01	1	1309-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1409-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1409-		●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1309-1408	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1409-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1409-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1309-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1309-		●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1309-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1311-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1309-1310	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1311-1408	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B)	8-98249-521-0	01	1	1409-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1409-		●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1309-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1309-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1309-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1309-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1309-	●	●	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1408	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-		●	●

381 242 389 381 242 381 389 381 381 242 389 26 40 242 62 384 242 287 384 384 48 242 48 61 40 384 242 175 174 297 409 5 35 317 314 232 317 314 281 317 314 381 5 26 40 26 5 112 228 379 232 248 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1409-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1309-	●	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1409-			●
26	03.417 DUCT; AIR INT (C)	8-98109-389-1	01	1	1309-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1409-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1409-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1309-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1409-			●
48	03.417 BOLT; AIR DUCT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1409-			●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1309-			●
62	03.417 BOLT; AIR INT DUCT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-			●
112	03.417 BOLT; CLIP 4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33	1-09300-058-1	01	1	1309-		●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1309-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1311-	●	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1309-1310	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22	8-98120-916-0	01	1	1311-1408	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1409-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1409-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1309-		●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (D)	8-98242-344-0	01	1	1311-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1309-1310	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1311-1408	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C)	8-98242-345-0	01	1	1409-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1409-		●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1309-		●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1309-1309	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (R)	8-98278-821-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1311-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (F)	8-98245-310-1	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F)	8-98245-310-1	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98245-899-0	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G)	8-98245-899-0	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1309-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1309-1408		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98205-667-0	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1309-			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1309-1310	●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1311-1408	●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1409-	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1409-		●	●
248	03.417 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 08.846 ID=21.7	8-97203-074-0	01	1	1309-		●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1309-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1309-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1311-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1311-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=117	9-09915-075-1	01	1	1309-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1409-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1409-		●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1309-1408	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1409-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1409-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1309-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1309-		●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1409-			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1309-1310	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1311-1408	●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-		●	●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1309-1408			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1409-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1309-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1311-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1309-1310	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1311-1408	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B)	8-98249-521-0	01	1	1409-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1409-		●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1309-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1309-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-			●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408			●
384	03.417 NUT; AIR INT DUCT BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1309-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1309-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1309-	●	●	●

381 381 242 389 242 381 314 317 314 64 381 389 381 242 389 232 281 317 5 314 61 317 409 242 26 5 35 175 287 232 174 287 40 228 112 248 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1409-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1309-	●	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1409-			●
26	03.417 DUCT; AIR INT (C)	8-98109-389-1	01	1	1309-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1409-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1409-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1309-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1409-			●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1309-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1309-	●	●
112	03.417 BOLT; CLIP 4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33	1-09300-058-1	01	1	1309-		●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1309-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1311-	●	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1309-1310	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22	8-98120-916-0	01	1	1311-1408	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1409-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1409-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1309-		●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (D)	8-98242-344-0	01	1	1311-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1309-1310	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1311-1408	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C)	8-98242-345-0	01	1	1409-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1409-		●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1309-		●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1309-1309	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (R)	8-98278-821-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1311-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (F)	8-98245-310-1	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F)	8-98245-310-1	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98245-899-0	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G)	8-98245-899-0	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1309-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1309-1408		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98205-667-0	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1309-			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1309-1310	●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1311-1408	●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1409-	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1409-		●	●
248	03.417 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 08.846 ID=21.7	8-97203-074-0	01	1	1309-		●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1309-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1309-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1311-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1311-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=117	9-09915-075-1	01	1	1309-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1409-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1409-		●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1309-1408	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1409-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1409-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1309-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1309-		●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1309-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1311-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1309-1310	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1311-1408	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B)	8-98249-521-0	01	1	1409-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1409-		●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1309-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1309-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1309-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1309-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1309-	●	●	●

35 5 175 174 297 384 473 242 156 9 26 242 381 381 242 389 242 381 381 314 317 281 314 317 232 5 317 314 553 426 26 297 553 381 426 351 389 381 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1311-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1309-1408	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1309-1310	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1311-1408	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1409-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1309-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1309-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1409-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (B)	8-98278-820-1	01	1	1409-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (A)	8-98009-086-0	01	1	1309-1408	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (A)	8-98009-086-0	01	1	1409-	●	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1409-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1409-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1309-	●	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1409-			●
26	03.417 DUCT; AIR INT (C)	8-98109-389-1	01	1	1309-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1409-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1409-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1309-	●	●	●
156	03.417 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-			●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1309-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1309-1310	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1311-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (D)	8-98242-344-0	01	1	1311-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1309-1310	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1311-1408	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C)	8-98242-345-0	01	1	1409-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1409-		●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1309-		●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1309-1309	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (R)	8-98278-821-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1311-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (F)	8-98245-310-1	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F)	8-98245-310-1	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (G)	8-98245-899-0	01	1	1309-1310	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1309-1310		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1311-1408	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G)	8-98245-899-0	01	1	1409-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1309-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1309-1408		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1309-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1309-1408		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1409-		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98205-667-0	01	1	1309-1408			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1409-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1309-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1309-			●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1309-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1309-			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1409-			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1309-1310	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1311-1408	●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-		●	●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1309-1408			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1409-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1309-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (D)	8-98278-809-1	01	1	1409-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98051-032-1	01	1	1311-	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1309-1310	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1311-1408	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B)	8-98205-465-0	01	1	1409-	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1409-		●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98205-145-0	01	1	1309-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1309-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1309-			●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408			●
384	03.417 NUT; AIR INT DUCT BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1309-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1309-	●	●	●
426	03.417 CLIP; DUCT 4JJ1-TCS ENG(LFB) 03.407 ID=127	1-14239-263-0	02	1	1409-			●
473	03.417 NUT; DUCT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1409			●
553	03.417 WASHER; AIR DUCT 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1409-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
