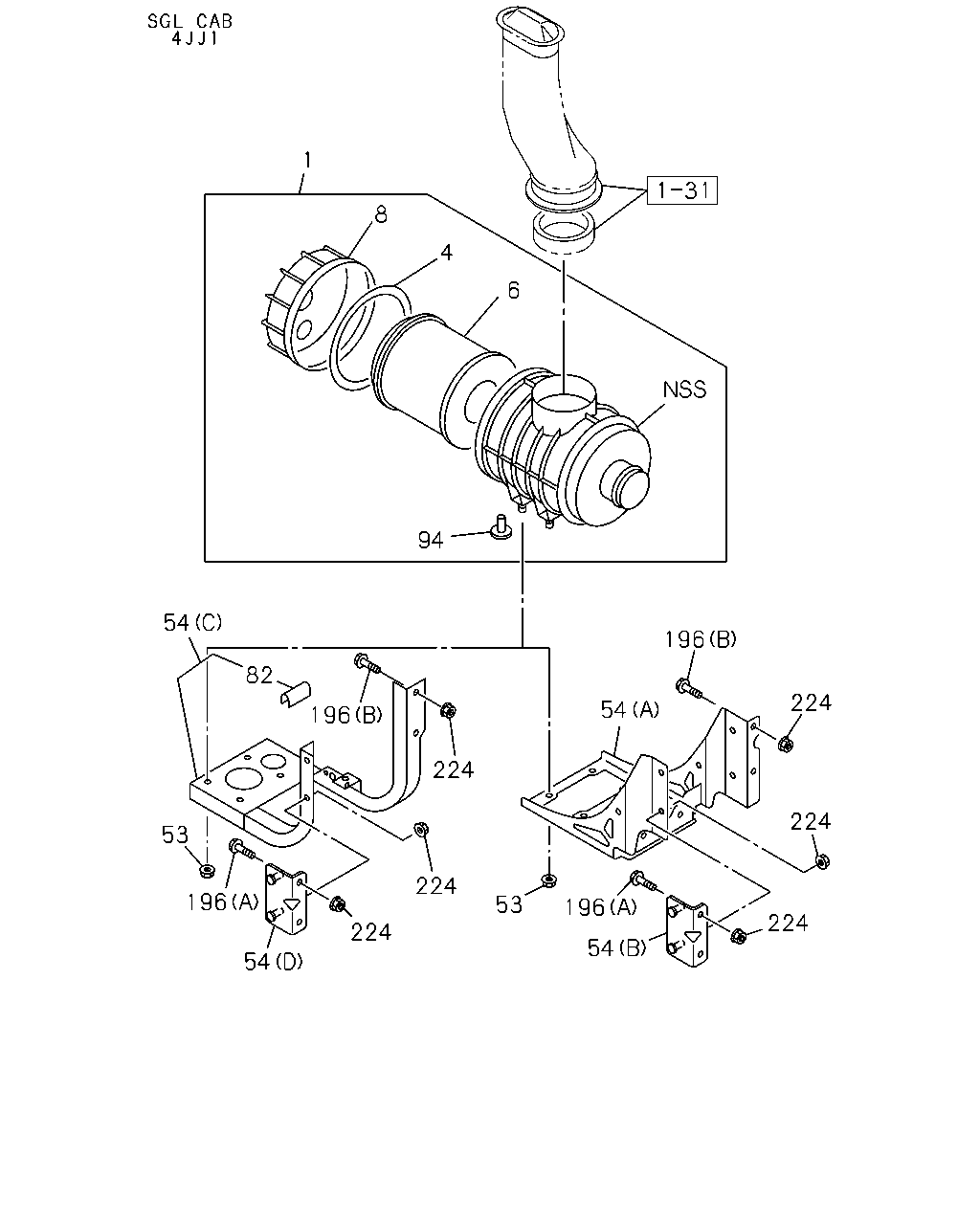

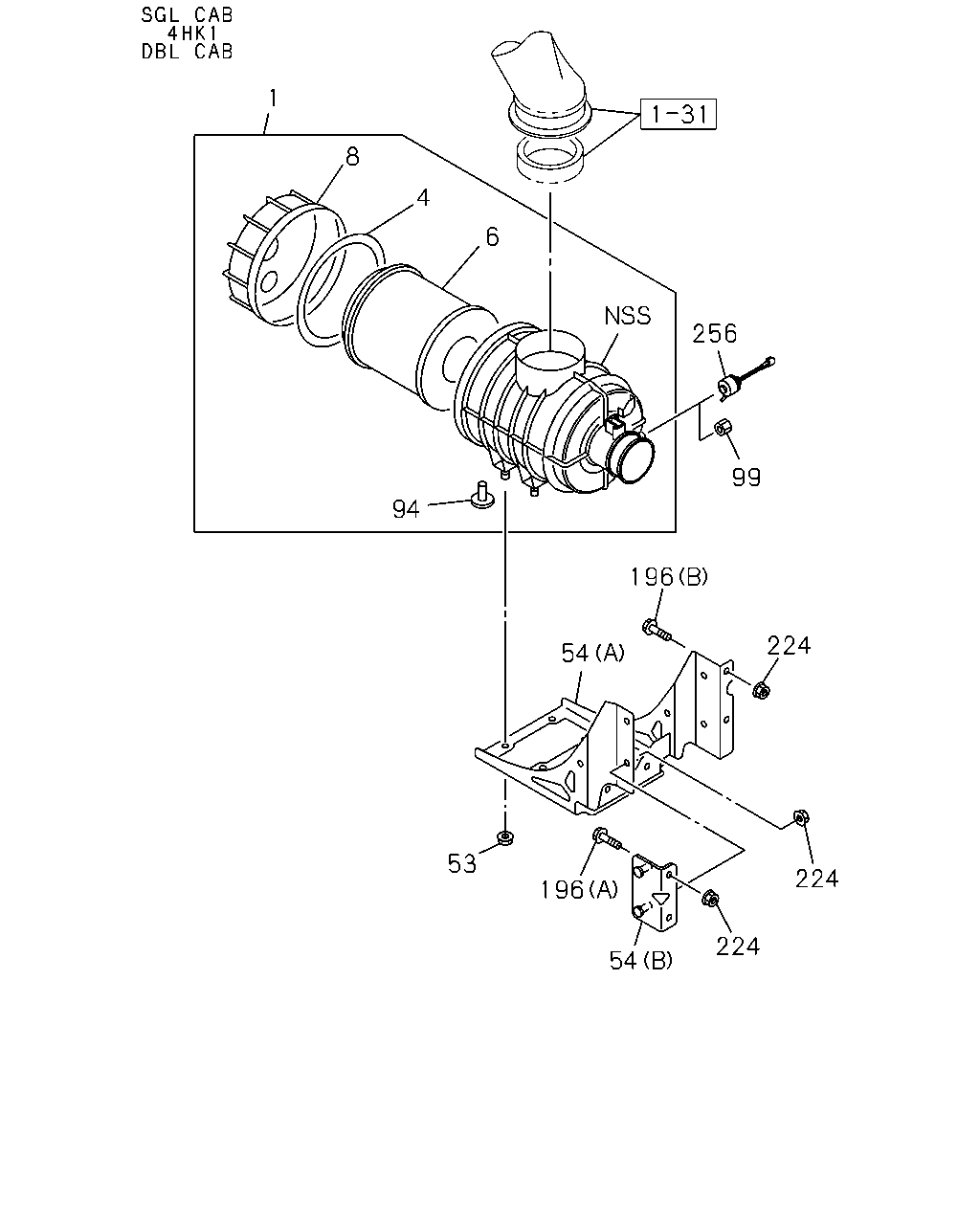

1-30 — AIR CLEANER (#126200) — 133 parça

1 8 4 6 256 99 196 224 54 94 224 224 54 196 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB)	8-98116-638-0	01	1	1409-	●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB)	8-98050-415-2	01	1	1309-1310		●	●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98050-415-2	01	1	1311-		●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS)	8-98123-532-2	01	1	1309-			●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS)	8-98215-723-0	01	1	1309-	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1309-	●	●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) BEST VALUE PARTS	5-87610-020-0	01	1	1309-1310		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-020-0	01	1	1311-1408		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-020-0	01	1	1409-		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) BEST VALUE PARTS	5-87610-020-0	01	1	1409-	●		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB)	8-97062-294-0	01	1	1309-1310		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97062-294-0	01	1	1311-1408		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97062-294-0	01	1	1409-		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB)	8-97062-294-0	01	1	1409-	●		●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS)	8-98177-271-0	01	1	1309-	●		●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1309-		●	●
8	03.410 COVER ASM; ACL	8-98116-639-0	01	1	1309-	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-	●	●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) (C)	8-98026-092-3	01	1	1309-1310		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1309-1310			●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1311-1408		●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98026-092-3	01	1	1409-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1409-	●		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) (D)	8-98070-835-3	01	1	1309-1310		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1309-1310			●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1311-1408		●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D)	8-98070-835-3	01	1	1409-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1409-	●		●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1309-1408	●		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1409-			●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1409-	●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1309-1408	●		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1409-			●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1409-	●
94	03.415 VALVE; VACUATOR 4JJ1-TCS ENG(LFB)	8-97352-112-0	01	1	1409-	●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1309-	●	●	●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94436-076-0	01	1	1309-	●		●
196	03.417 BOLT; BRKT,ACL 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1309-1310	●	●	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●	●	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	1309-1310	●	●	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408			●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408			●
224	03.407 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-	●		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-			●
224	03.407 NUT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-	●
256	03.405 SENSOR; AIRFLOW TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98152-742-1	01	1	1309-	●		●

1 8 4 6 94 196 82 54 53 196 224 224 224 53 196 54 224 224 224 196 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB)	8-98116-638-0	01	1	1409-	●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB)	8-98050-415-2	01	1	1309-1310		●	●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98050-415-2	01	1	1311-		●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS)	8-98123-532-2	01	1	1309-			●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS)	8-98215-723-0	01	1	1309-	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1309-	●	●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) BEST VALUE PARTS	5-87610-020-0	01	1	1309-1310		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-020-0	01	1	1311-1408		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-020-0	01	1	1409-		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) BEST VALUE PARTS	5-87610-020-0	01	1	1409-	●		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB)	8-97062-294-0	01	1	1309-1310		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97062-294-0	01	1	1311-1408		●	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97062-294-0	01	1	1409-		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB)	8-97062-294-0	01	1	1409-	●		●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS)	8-98177-271-0	01	1	1309-	●		●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1309-		●	●
8	03.410 COVER ASM; ACL	8-98116-639-0	01	1	1309-	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-	●	●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) (C)	8-98026-092-3	01	1	1309-1310		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1309-1310			●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1311-1408		●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98026-092-3	01	1	1409-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1409-	●		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) (D)	8-98070-835-3	01	1	1309-1310		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1309-1310			●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1311-1408		●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D)	8-98070-835-3	01	1	1409-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1409-	●		●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1309-1408	●		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1409-			●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1409-	●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1309-1408	●		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1409-			●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1409-	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) 03.671	8-97327-172-0	01	1	1309-1310		●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1309-1310			●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1311-1408		●	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.671	8-97327-172-0	01	1	1409-		●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1409-	●		●
94	03.415 VALVE; VACUATOR 4JJ1-TCS ENG(LFB)	8-97352-112-0	01	1	1409-	●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1309-	●	●	●
196	03.417 BOLT; BRKT,ACL 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1309-1310	●	●	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1310	●	●	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-1408	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-			●
196	03.417 BOLT; BRKT,ACL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	1309-1310	●	●	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408			●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408			●
224	03.407 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	06	1	1311-1408	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-	●		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-			●
224	03.407 NUT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1409-	●
