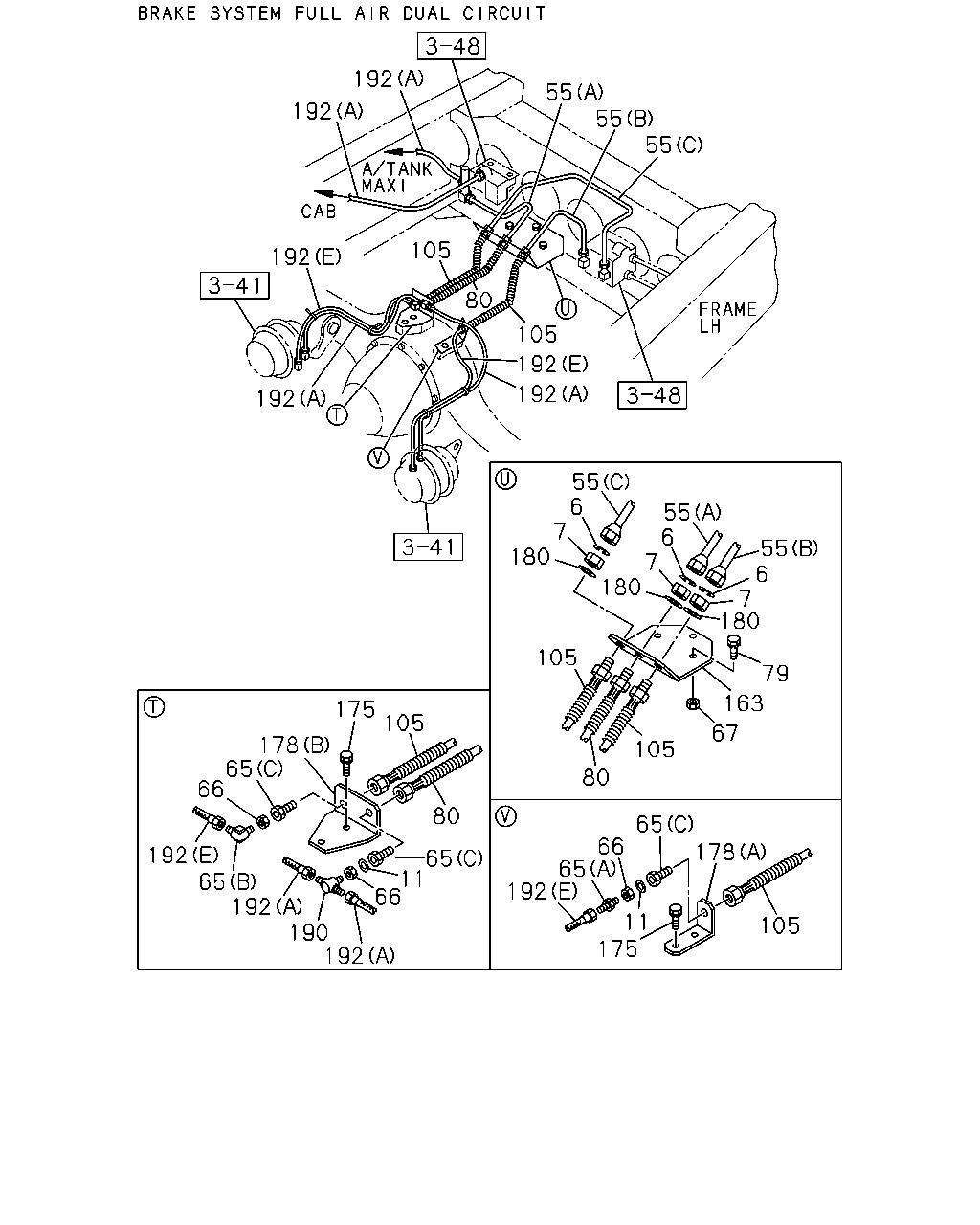

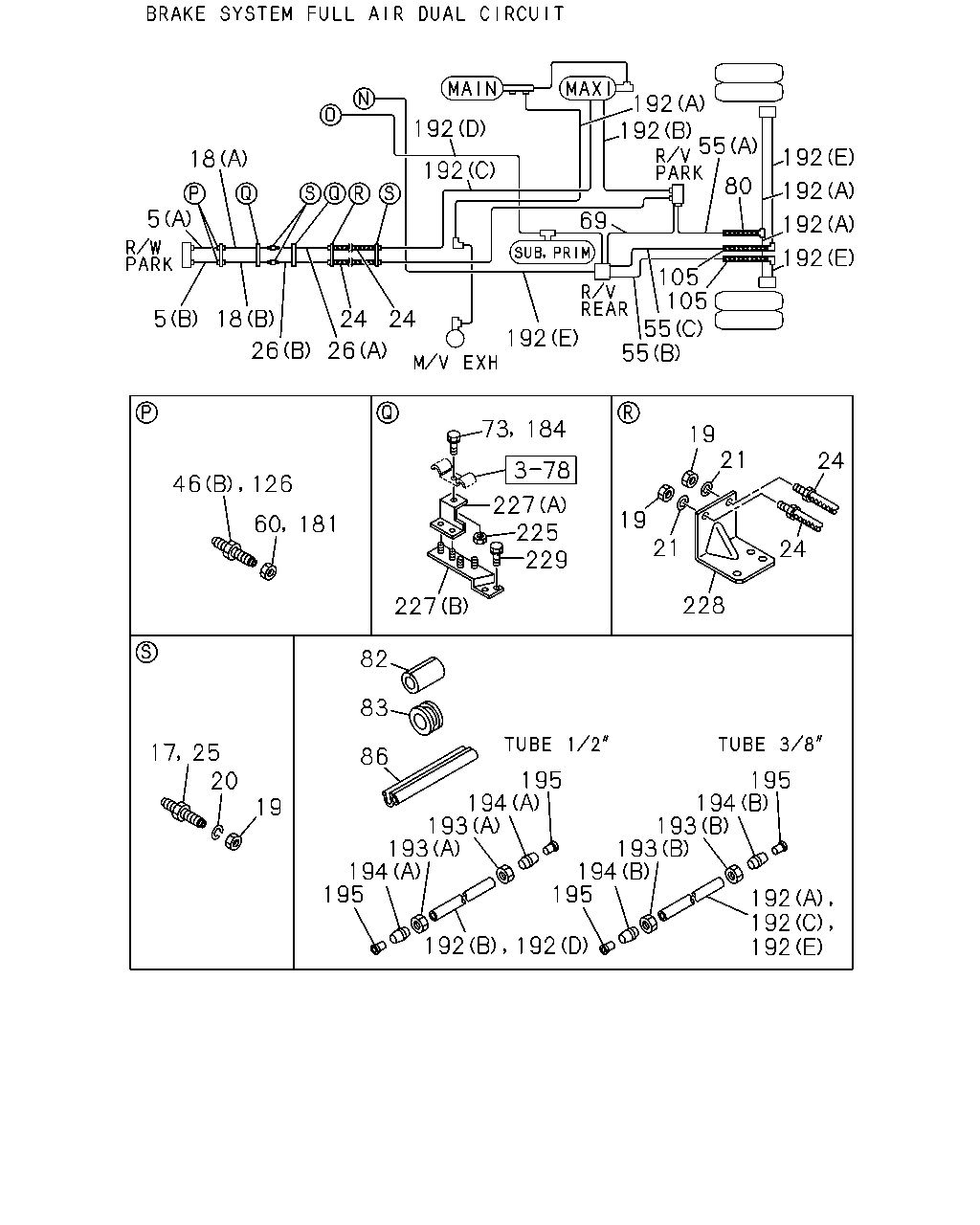

3-77 — BRAKE PIPING; AIR,REAR (#1262) — 272 parça

192 55 55 55 192 105 192 105 80 192 192 192 55 6 7 180 55 6 7 180 55 6 7 180 105 79 163 175 105 67 178 65 66 105 80 80 65 178 66 65 192 192 65 192 190 192 65 11 66 11 175 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	03	1	9202-	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	03	1	9202-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	04	1	9202-9406		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9407-		●
7	NUT; FLEX HOSE M20	9-99111-420-0	03	1	9202-	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	03	1	9202-		●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	04	1	9202-9406		●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9407-		●
11	WASHER; LK,CONNECTOR ID=20.2	9-09150-520-0	03	1	9502-	●
11	WASHER; LK,CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	03	1	9502-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450 SERVICED BY L=500	1-49111-435-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450 SERVICED BY L=500	1-49111-435-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=637 SERVICED BY L=660	1-49111-438-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=637 SERVICED BY L=660	1-49111-438-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9301-9307	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=420 SERVICED BY L=500	1-49111-435-0	01	1	9308-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (A)	1-09660-530-0	01	1	9202-	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-530-0	01	1	9202-		●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (B)	1-09660-533-0	01	1	9202-	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-533-0	01	1	9202-		●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (C)	1-09664-173-0	01	1	9202-	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09664-173-0	01	1	9202-		●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (C)	1-09664-173-0	02	1	9202-	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09664-173-0	02	1	9202-		●
66	NUT; HOSE CONNECTOR	9-99111-320-0	03	1	9202-	●
66	NUT; HOSE CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-99111-320-0	03	1	9202-		●
67	NUT; HOSE BRKT M8	9-09110-408-0	03	1	9202-	●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9202-		●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28010-820-0	03	1	9202-9204		●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	03	1	9205-	●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9205-		●
80	HOSE; FLEX,POWER CHAMBER L=610	0-07807-610-1	01	1	9202-	●
80	HOSE; FLEX,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	01	1	9202-		●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9202-	●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	02	1	9202-		●
163	BRACKET; FLEX HOSE	1-47476-787-0	01	1	9202-	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-787-0	01	1	9202-		●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204		●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9205-	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9205-		●
178	BRACKET; UNION (A)	1-47476-517-0	01	1	9202-	●
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47476-517-0	01	1	9202-		●
178	BRACKET; UNION (B)	1-47476-786-0	01	1	9202-	●
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47476-786-0	01	1	9202-		●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	9202-	●
180	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	03	1	9202-		●
190	UNION; 3 WAY	1-09660-553-0	01	1	9202-	●
190	UNION; 3 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-553-0	01	1	9202-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) GREEN 1/2" L=30000	1-09368-251-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ORANGE 1/2" L=30000	1-09368-253-0	AR	1	9202-	●	●

192 192 55 192 192 18 192 80 192 5 69 192 192 105 105 55 55 5 18 24 24 192 26 26 73 184 19 21 24 46 126 227 225 229 19 21 60 181 24 228 227 82 83 17 25 20 86 195 194 193 193 194 195 195 194 193 193 194 195 19 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV (A) L=688	1-47482-988-0	01	1	9202-9212	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=688	1-47482-988-0	01	1	9202-9212		●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=688	1-47497-612-0	01	1	9301-	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=688	1-47497-612-0	01	1	9301-		●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=759	1-47482-989-0	01	1	9202-9212	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=759	1-47482-989-0	01	1	9202-9212		●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=759	1-47497-613-0	01	1	9301-	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=759	1-47497-613-0	01	1	9301-		●
17	UNION; AIR PIPE M14	9-09225-208-1	02	1	9202-	●
17	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-09225-208-1	02	1	9202-		●
18	PIPE; AIR,UNION TO UNION (B) L=1034 SERVICED BY L=1100	1-47434-409-0	01	1	9202-9212	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100	1-47434-409-0	01	1	9202-9212		●
18	PIPE; AIR,UNION TO UNION (B) L=1034 SERVICED BY L=1100	1-47426-387-0	01	1	9301-	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100	1-47426-387-0	01	1	9301-		●
18	PIPE; AIR,UNION TO UNION (A) L=951 SERVICED BY L=1000	1-47437-956-0	01	1	9202-9212	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=951 SERVICED BY L=1000	1-47437-956-0	01	1	9202-9212		●
18	PIPE; AIR,UNION TO UNION (A) L=951 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=951 SERVICED BY L=1000	1-47426-386-0	01	1	9301-		●
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9202-	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	02	1	9202-		●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	02	1	9202-		●
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	02	1	9202-	●
20	WASHER; LK,PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-		●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-		●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-		●
25	UNION; AIR PIPE M14 STRAIGHT	9-09223-008-1	02	1	9202-	●
25	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	02	1	9202-		●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=620	1-47483-335-0	01	1	9202-9212	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=620	1-47483-335-0	01	1	9202-9212		●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=620	1-47497-690-0	01	1	9301-	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=620	1-47497-690-0	01	1	9301-		●
26	PIPE; AIR,FLEX HOSE TO UNION (A) W/MARKING L=778	1-47492-714-0	01	1	9202-9212	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NYLON TUBE AIR PIPING<Z29> (A) W/MARKING L=778	1-47492-714-0	01	1	9202-9212		●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=773	1-47499-743-0	01	1	9301-	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NYLON TUBE AIR PIPING<Z29> (A) L=773	1-47499-743-0	01	1	9301-		●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NYLON TUBE AIR PIPING<Z29> (A) WO/MARKING	1-47492-695-0	01	1	9202-9212		●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NYLON TUBE AIR PIPING<Z29> (A) L=778	1-47497-679-0	01	1	9301-		●
46	NIPPLE; AIR PIPE (A) M14 L=56	1-09650-371-0	01	1	9202-9308	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 L=56	1-09650-371-0	01	1	9202-9308		●
46	NIPPLE; AIR PIPE (A)	1-09654-295-0	01	1	9309-	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09654-295-0	01	1	9309-		●
46	NIPPLE; AIR PIPE (B) M16 L=59	1-09654-281-0	02	1	9202-	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=59	1-09654-281-0	02	1	9202-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450 SERVICED BY L=500	1-49111-435-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=450 SERVICED BY L=500	1-49111-435-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=637 SERVICED BY L=660	1-49111-438-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=637 SERVICED BY L=660	1-49111-438-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9301-9307	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=420 SERVICED BY L=500	1-49111-435-0	01	1	9308-	●	●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-314-0	02	1	9202-	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-314-0	02	1	9202-		●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-316-0	01	1	9202-	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-316-0	01	1	9202-		●
69	PIPE; AIR,RELAY VLV TO RELAY VLV L=857 SERVICED BY L=900	1-47426-349-0	01	1	9308-	●
69	PIPE; AIR,RELAY VLV TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=857 SERVICED BY L=900	1-47426-349-0	01	1	9308-		●
73	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9202-	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9202-		●
73	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	03	1	9202-	●
80	HOSE; FLEX,POWER CHAMBER L=610	0-07807-610-1	01	1	9202-	●
80	HOSE; FLEX,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	01	1	9202-		●
82	SLEEVE; RUBBER,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
82	SLEEVE; RUBBER,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
83	GROMMET; NYLON TUBE ID=39 OD=45 T=19	1-09332-077-0	01	1	9202-	●
86	PROTECTOR; NYLON TUBE L=100	8-94272-502-0	01	1	9202-	●
86	PROTECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=100	8-94272-502-0	01	1	9202-		●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9202-	●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	02	1	9202-		●
126	UNION; NYLON TUBE	1-09654-282-0	01	1	9202-	●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09654-282-0	01	1	9202-		●
181	NUT; TUBE UNION M16	9-99111-316-0	01	1	9202-	●
181	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-316-0	01	1	9202-		●
184	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9202-	●
184	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9202-		●
184	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9202-	●
184	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
184	BOLT; TUBE CLIP 6SA1 STD ENG(06L) M8X25 FLANGE	0-28080-825-0	02	1	9202-	●
184	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9202-9307		●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9308-	●
184	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9308-		●
184	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9308-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) GREEN 1/2" L=30000	1-09368-251-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ORANGE 1/2" L=30000	1-09368-253-0	AR	1	9202-	●	●
193	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=3/8"	1-09660-557-0	AR	1	9202-	●	●
193	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=1/2"	1-09660-558-0	AR	1	9202-	●	●
194	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9202-	●	●
194	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●	●
195	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9202-	●	●
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	AR	1	9204-	●	●
227	BRACKET ASM; AIR PIPE (B)	1-71998-376-1	01	1	9202-	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-71998-376-1	01	1	9202-		●
227	BRACKET ASM; AIR PIPE (A)	1-71998-421-0	02	1	9202-	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-71998-421-0	02	1	9202-		●
228	BRACKET; FLEX HOSE JOINT	1-79738-183-1	01	1	9202-9507	●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-183-1	01	1	9202-9507		●
228	BRACKET; FLEX HOSE JOINT	1-79738-824-0	01	1	9508-	●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-824-0	01	1	9508-		●
229	BOLT; HOSE UNION BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●
229	BOLT; HOSE UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-		●

98 61 37 94 72 94 88 91 37 37 91 37 91 37 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16 2WAY	1-09650-182-1	02	1	9202-9208	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 L=42	9-09233-010-1	02	1	9202-	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 L=74	9-09233-310-1	01	1	9202-9305	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 L=74	9-09233-310-1	01	1	9306-	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> (B) M16 L=74	9-09233-310-1	01	1	9306-	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M16 ELBOW	9-09235-210-1	02	1	9202-9305	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M16 ELBOW	9-09235-210-1	01	1	9306-	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (C) M16 ELBOW	9-09235-210-1	01	1	9306-	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	01	1	9202-9312	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9407-	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9202-9208	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	03	1	9202-9312	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99111-412-0	02	1	9202-9208	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	03	1	9202-	●
94	BRACKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	02	1	9202-9205	●
94	BRACKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 W/NUT	1-47475-439-2	02	1	9202-9205	●
94	BRACKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 W/NUT	1-47475-439-2	04	1	9206-	●
97	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 L=74	9-09233-310-1	01	1	9202-	●
98	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9202-	●

87 59 104 96 118 93 93 101 103 102 87 59 103 6 118 93 101 102 87 103 118 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	03	1	9202-	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	03	1	9202-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	04	1	9202-9406		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9407-		●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1091 SERVICED BY L=1250	1-47437-968-0	01	1	9202-9212		●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1091 SERVICED BY L=1250	1-47426-416-0	01	1	9301-		●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=383 SERVICED BY L=400	1-47426-404-0	01	1	9202-9208		●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=370 SERVICED BY L=400	1-47426-404-0	01	1	9209-		●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1198 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9208		●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ((C) L=2961 SERVICED BY L=3300	1-47437-975-0	01	1	9209-9211		●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=2990 SERVICED BY L=3300	1-47426-426-0	01	1	9212-		●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1801 SERVICED BY L=2100	1-47437-972-0	01	1	9202-9205		●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1785 SERVICED BY L=2100	1-47437-972-0	01	1	9206-9208		●
93	PIPE; AIR,UNION TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=2955 SERVICED BY L=3300	1-47426-426-0	01	1	9306-		●
96	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1707 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9205		●
96	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1691 SERVICED BY L=1900	1-47437-971-0	01	1	9206-9212		●
96	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1691 SERVICED BY L=1900	1-47426-421-0	01	1	9301-		●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1212 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212		●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1212 SERVICED BY L=1400	1-47426-418-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1528 SERVICED BY L=1700	1-47434-478-0	01	1	9202-9205		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1660 SERVICED BY L=1900	1-47437-971-0	01	1	9206-9212		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1660 SERVICED BY L=1900	1-47426-421-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2927 SERVICED BY L=3300	1-47437-975-0	01	1	9202-9203		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2930 SERVICED BY L=3300	1-47437-975-0	01	1	9204-9205		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2760 SERVICED BY L=3300	1-47437-975-0	01	1	9206-9207		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2703 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9208		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2928 SERVICED BY L=3300	1-47437-975-0	01	1	9209-9211		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2898 SERVICED BY L=3300	1-47426-426-0	01	1	9212-9212		●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2898 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2387 SERVICED BY L=2500	1-47426-423-0	01	1	9306-		●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1174 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9205		●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1153 SERVICED BY L=1400	1-47437-969-0	01	1	9206-9208		●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=420	1-47492-866-0	01	1	9202-9205		●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=408	1-47495-717-0	01	1	9206-9207		●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=353 SERVICED BY L=400	1-47426-404-0	01	1	9208-9208		●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=443 SERVICED BY L=450	1-47426-405-0	01	1	9209-		●

16 201 13 4 16 201 13 4 46 60 15 46 15 14 14 60 192 207 207 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	PIPE; AIR,UNION TO BRK VLV L=294 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212		●
4	PIPE; AIR,UNION TO BRK VLV L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-		●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=350	1-47426-403-0	01	1	9202-9212		●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-		●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
14	UNION; AIR PIPE	1-47470-219-1	01	1	9202-	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-219-1	01	1	9202-		●
14	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-196-1	01	1	9202-		●
15	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9202-	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1000	1-47434-476-0	01	1	9202-9212	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
46	NIPPLE; AIR PIPE (A) M14 L=56	1-09650-371-0	01	1	9202-9308	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 L=56	1-09650-371-0	01	1	9202-9308		●
46	NIPPLE; AIR PIPE (A)	1-09654-295-0	01	1	9309-	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09654-295-0	01	1	9309-		●
46	NIPPLE; AIR PIPE (B) M16 L=59	1-09654-281-0	02	1	9202-	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=59	1-09654-281-0	02	1	9202-		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-314-0	02	1	9202-	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-314-0	02	1	9202-		●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-316-0	01	1	9202-	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-316-0	01	1	9202-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) GREEN 1/2" L=30000	1-09368-251-0	AR	1	9202-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ORANGE 1/2" L=30000	1-09368-253-0	AR	1	9202-	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805 SERVICED BY L=900	1-47426-413-0	01	1	9202-9212	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805	1-47497-058-0	01	1	9301-	●	●
207	SEAL; PLATE,UNION	1-79998-233-0	01	1	9202-	●	●

16 201 13 4 16 201 13 4 7 7 6 6 15 15 14 14 8 8 207 207 6 7 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	PIPE; AIR,UNION TO BRK VLV L=294 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212		●
4	PIPE; AIR,UNION TO BRK VLV L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-		●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=350	1-47426-403-0	01	1	9202-9212		●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-		●
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	03	1	9202-	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	03	1	9202-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	04	1	9202-9406		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9407-		●
7	NUT; FLEX HOSE M20	9-99111-420-0	03	1	9202-	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	03	1	9202-		●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	04	1	9202-9406		●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9407-		●
8	HOSE; FLEX,AIR,CAB SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=630	0-07424-630-0	02	1	9202-9406		●
8	HOSE; FLEX,AIR,CAB SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=630	0-07424-630-0	01	1	9407-		●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
14	UNION; AIR PIPE	1-47470-219-1	01	1	9202-	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-219-1	01	1	9202-		●
14	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-196-1	01	1	9202-		●
15	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9202-	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1000	1-47434-476-0	01	1	9202-9212	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805 SERVICED BY L=900	1-47426-413-0	01	1	9202-9212	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805	1-47497-058-0	01	1	9301-	●	●
207	SEAL; PLATE,UNION	1-79998-233-0	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
