Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#126198) — 304 parça

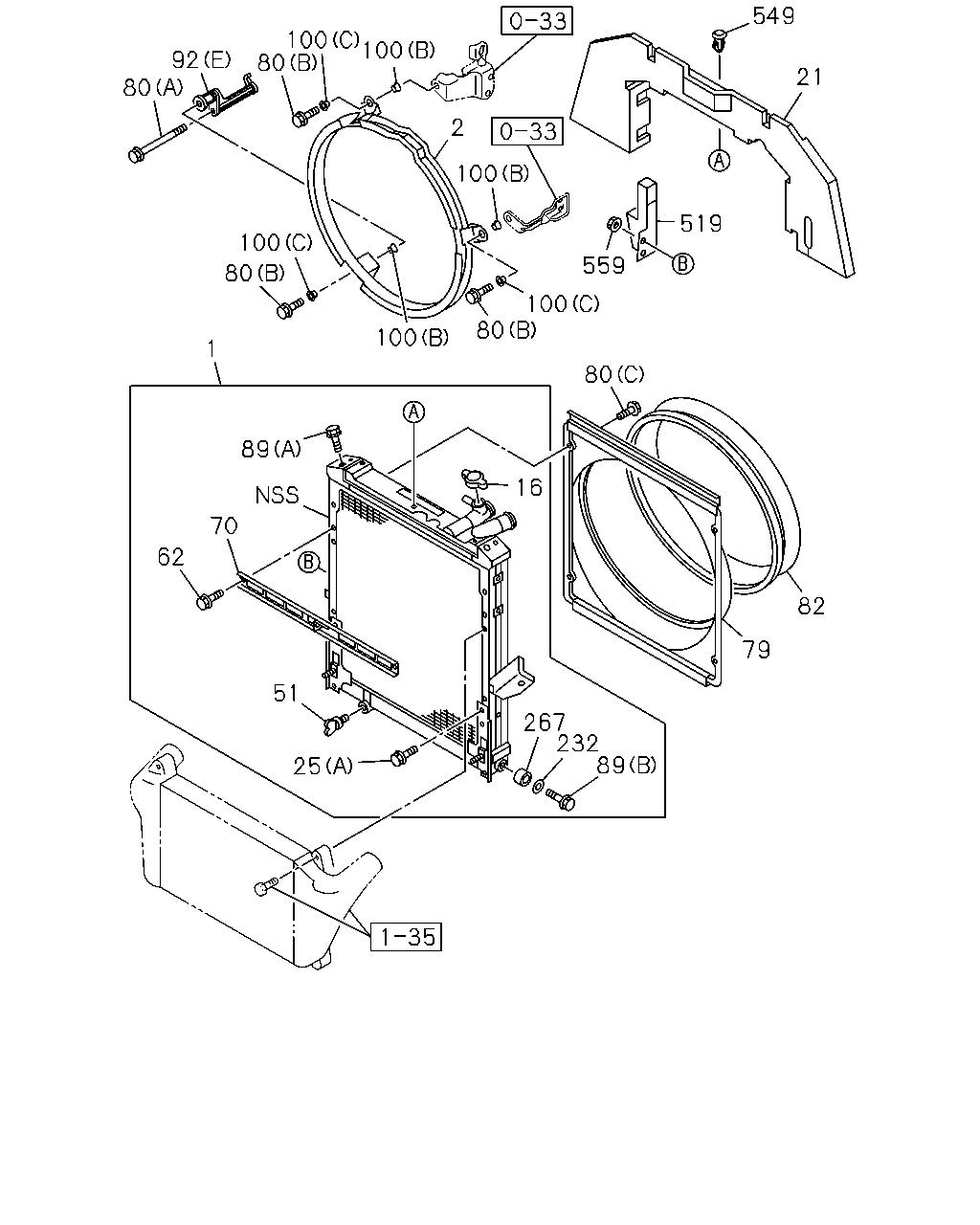

519 21 549 559 80 100 80 79 16 82 89 232 267 25 51 62 70 89 1 100 100 2 100 100 92 80 80 100 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98094-463-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98227-680-0	01	1	1309-1310	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-681-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-709-0	01	1	1309-1310		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98205-709-0	01	1	1311-		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-708-0	01	1	1309-		●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB)	8-98054-659-0	01	1	1309-1310	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1311-1408	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1409-	●	●	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1309-	●	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98025-371-0	01	1	1309-1310	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1311-1408	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1409-	●	●	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS)	8-98006-486-3	01	1	1309-		●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1309-1310	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1311-1408	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1409-	●	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1309-1310	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1311-1408	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1309-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98114-297-0	01	1	1309-1310	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98114-297-0	01	1	1311-1408	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98114-297-0	01	1	1409-	●	●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1309-		●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1311-1408	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-98234-712-0	01	1	1309-1408	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1409-	●	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1309-		●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1309-1310	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1311-1408	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1409-	●	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1309-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (C) M6X12	8-98039-672-0	02	1	1309-1310	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	1311-1408	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	1409-1409	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	04	1	1409-	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	02	1	1309-1311		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1312-1312		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1312-1312		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1312-1312			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1401-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1309-1311		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> 03.417 (E) M10X20 FLANGE	0-28151-020-0	02	1	1312-		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	02	1	1312-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (D) M6X16	1-21559-481-0	04	1	1309-		●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	1309-1310	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1311-1408	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1409-	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1309-		●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1409-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-98237-770-0	01	1	1309-1310	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1311-1408	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1409-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-97350-997-0	01	1	1309-1311		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> (C)	8-97350-997-0	01	1	1312-		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-97350-997-0	01	1	1312-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1309-1311		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1312-1312			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1401-		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1401-		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1401-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1309-		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1309-1311		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98032-526-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1312-1312			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1401-		●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1309-1310	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1311-1408	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1409-	●	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (C) OD=32	8-98058-502-1	03	1	1309-1310	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1311-1408	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1409-	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A)	1-09337-027-0	06	1	1309-1311		●	●
100	01.277 RUBBER; MTG 4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	1312-		●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1409-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1309-1408	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1409-1409	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1409-		●	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS)	1-21467-023-0	02	1	1309-1408	●	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1409-	●	●	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB)	8-98038-591-0	01	1	1309-1408	●	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98038-591-0	01	1	1409-	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB)	8-98038-591-0	01	1	1409-		●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	1309-1310	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1311-1408	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1409-	●	●	●
549	03.438 CLIP; SEAL,RAD 4HK1-TCS ENG(RJS) 01.276	8-97228-568-0	07	1	1309-		●	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1309-1408	●	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	02	1	1409-	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1409-		●	●

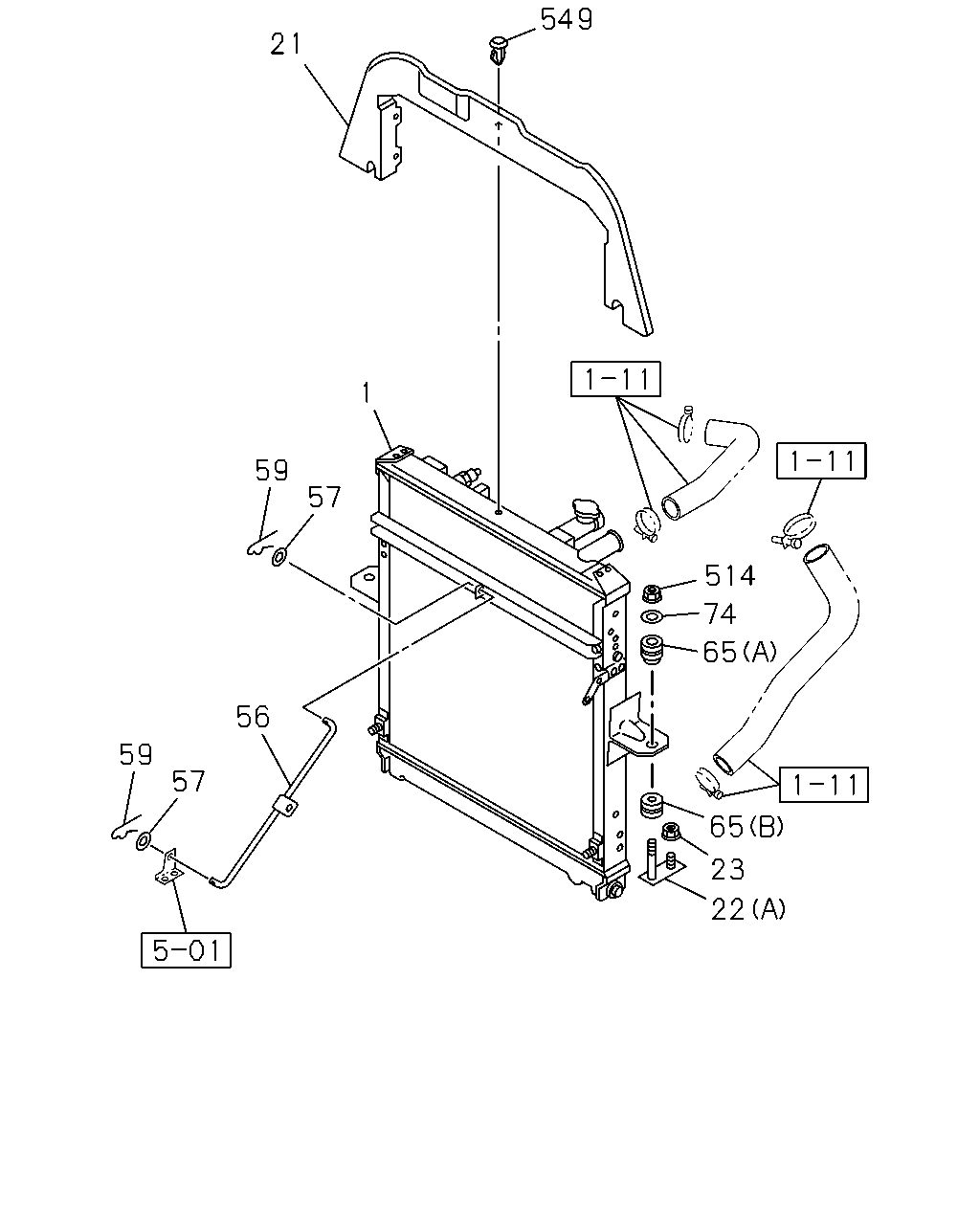

21 549 1 59 57 56 57 59 514 65 74 65 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98094-463-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98227-680-0	01	1	1309-1310	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-681-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-709-0	01	1	1309-1310		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98205-709-0	01	1	1311-		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-708-0	01	1	1309-		●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98025-371-0	01	1	1309-1310	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1311-1408	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1409-	●	●	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS)	8-98006-486-3	01	1	1309-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) (C)	8-97387-640-0	01	1	1309-1310	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-640-0	01	1	1309-1310		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-640-0	01	1	1311-1408	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-97387-640-0	01	1	1409-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-640-0	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) (C)	8-97387-641-0	01	1	1309-1310	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-641-0	01	1	1309-1310		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-641-0	01	1	1311-1408	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-97387-641-0	01	1	1409-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-641-0	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-236-1	01	1	1309-1408		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-236-1	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-238-1	01	1	1309-1408		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-238-1	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) 01.277 (A)	8-97330-527-1	02	1	1309-		●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1310	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
23	01.271 NUT; RAD MTG 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-		●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB)	8-97387-650-0	01	1	1309-1310	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1311-1408	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1409-	●	●	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-98006-490-2	01	1	1309-		●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1309-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1309-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1309-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1309-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1309-	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	1309-1310	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1311-1408	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1409-	●	●	●
549	03.438 CLIP; SEAL,RAD 4HK1-TCS ENG(RJS) 01.276	8-97228-568-0	07	1	1309-		●	●

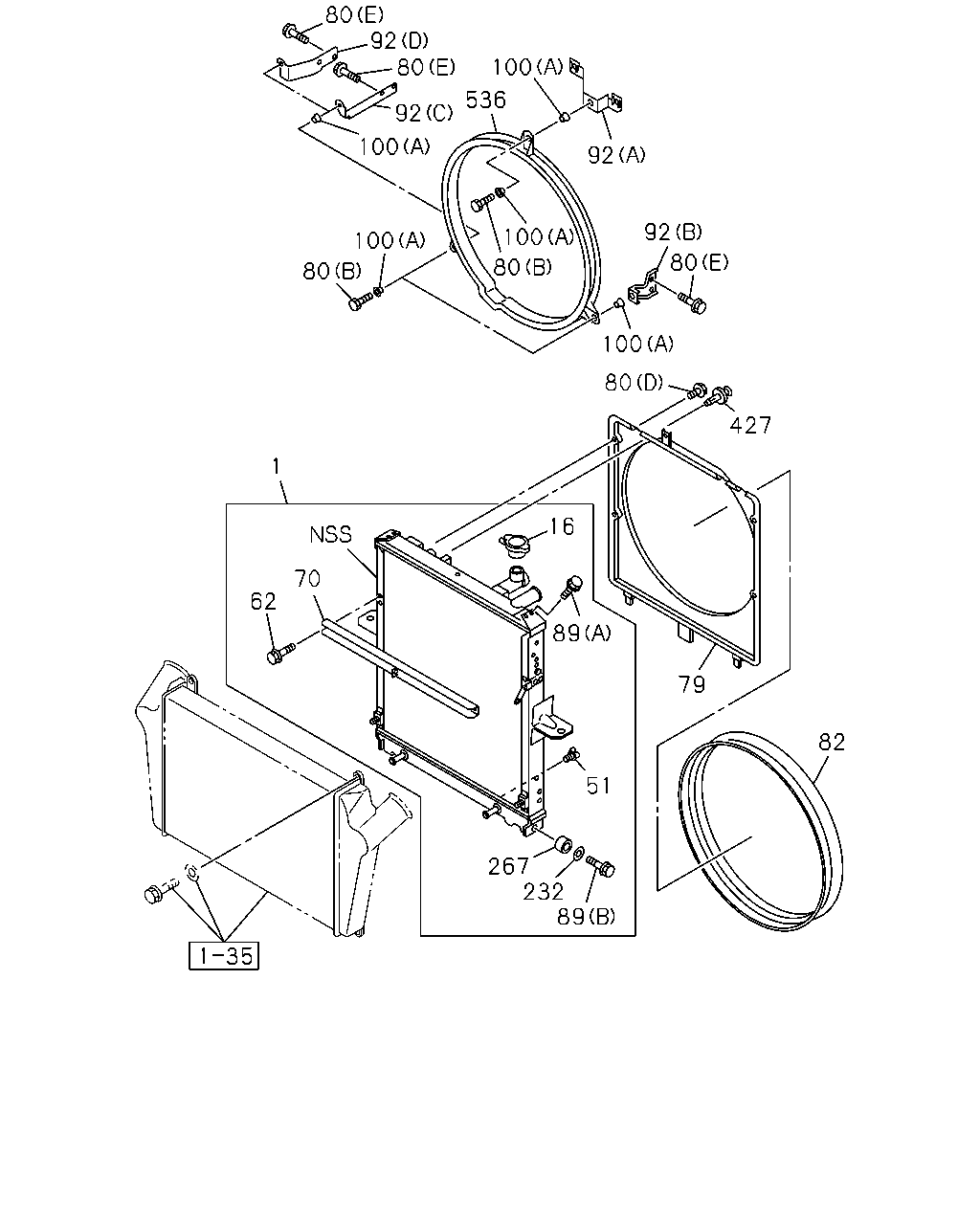

80 92 80 92 100 92 536 100 100 80 80 100 92 100 80 80 427 79 82 51 267 232 89 89 16 1 70 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98094-463-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98227-680-0	01	1	1309-1310	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-681-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-709-0	01	1	1309-1310		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98205-709-0	01	1	1311-		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-708-0	01	1	1309-		●	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1309-	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1309-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98114-297-0	01	1	1309-1310	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98114-297-0	01	1	1311-1408	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98114-297-0	01	1	1409-	●	●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1309-		●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1311-1408	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-98234-712-0	01	1	1309-1408	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1409-	●	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1309-		●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1309-1310	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1311-1408	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1409-	●	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1309-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (C) M6X12	8-98039-672-0	02	1	1309-1310	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	1311-1408	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	1409-1409	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	04	1	1409-	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	02	1	1309-1311		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1312-1312		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1312-1312		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1312-1312			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1401-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	04	1	1309-1311		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> 03.417 (E) M10X20 FLANGE	0-28151-020-0	02	1	1312-		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) 03.417 (E) M10X20 FLANGE	0-28151-020-0	02	1	1312-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (D) M6X16	1-21559-481-0	04	1	1309-		●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	1309-1310	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1311-1408	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1409-	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1309-		●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1409-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-98237-770-0	01	1	1309-1310	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1311-1408	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1409-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-97350-997-0	01	1	1309-1311		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> (C)	8-97350-997-0	01	1	1312-		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-97350-997-0	01	1	1312-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1309-1311		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1312-1312			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1401-		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1401-		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-97386-233-0	01	1	1401-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1309-		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1309-1311		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (D)	8-98032-526-0	01	1	1312-1312		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1312-1312			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1401-		●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1309-1310	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1311-1408	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1409-	●	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (C) OD=32	8-98058-502-1	03	1	1309-1310	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1311-1408	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1409-	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A)	1-09337-027-0	06	1	1309-1311		●	●
100	01.277 RUBBER; MTG 4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	1312-		●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1409-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1309-1408	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1409-1409	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1409-		●	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS)	1-21467-023-0	02	1	1309-1408	●	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1409-	●	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	1309-		●	●
536	01.020 SHROUD; FAN 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 01.277	8-97350-995-0	01	1	1309-1311		●	●
536	01.020 SHROUD; FAN 4HK1-TCS ENG(RJS) 01.277	8-97350-995-0	01	1	1312-		●	●

1 74 65 57 57 59 56 482 22 25 23 22 23 25 65 514 59 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98094-463-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98227-680-0	01	1	1309-1310	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-680-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-681-0	01	1	1309-1310		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1311-1408	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98227-681-0	01	1	1409-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-709-0	01	1	1309-1310		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98205-709-0	01	1	1311-		●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-708-0	01	1	1309-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) (C)	8-97387-640-0	01	1	1309-1310	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-640-0	01	1	1309-1310		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-640-0	01	1	1311-1408	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-97387-640-0	01	1	1409-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-640-0	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) (C)	8-97387-641-0	01	1	1309-1310	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-641-0	01	1	1309-1310		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-641-0	01	1	1311-1408	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C)	8-97387-641-0	01	1	1409-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-641-0	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-236-1	01	1	1309-1408		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-236-1	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-238-1	01	1	1309-1408		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-238-1	01	1	1409-		●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) 01.277 (A)	8-97330-527-1	02	1	1309-		●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1310	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
23	01.271 NUT; RAD MTG 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-		●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1309-1310	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1311-1408	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1409-	●	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1309-1310	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1311-1408	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB)	8-97387-650-0	01	1	1309-1310	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1311-1408	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1409-	●	●	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-98006-490-2	01	1	1309-		●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1309-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1309-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1309-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1309-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1309-	●	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1309-1310	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1311-1401	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1402-1408	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97383-928-1	01	1	1402-1408	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1409-	●	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97383-928-1	01	1	1409-	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-1401	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1402-1408	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1402-1408	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
