0-60 — ENGINE ELECTRICAL CONTROL PARTS (#126191) — 276 parça

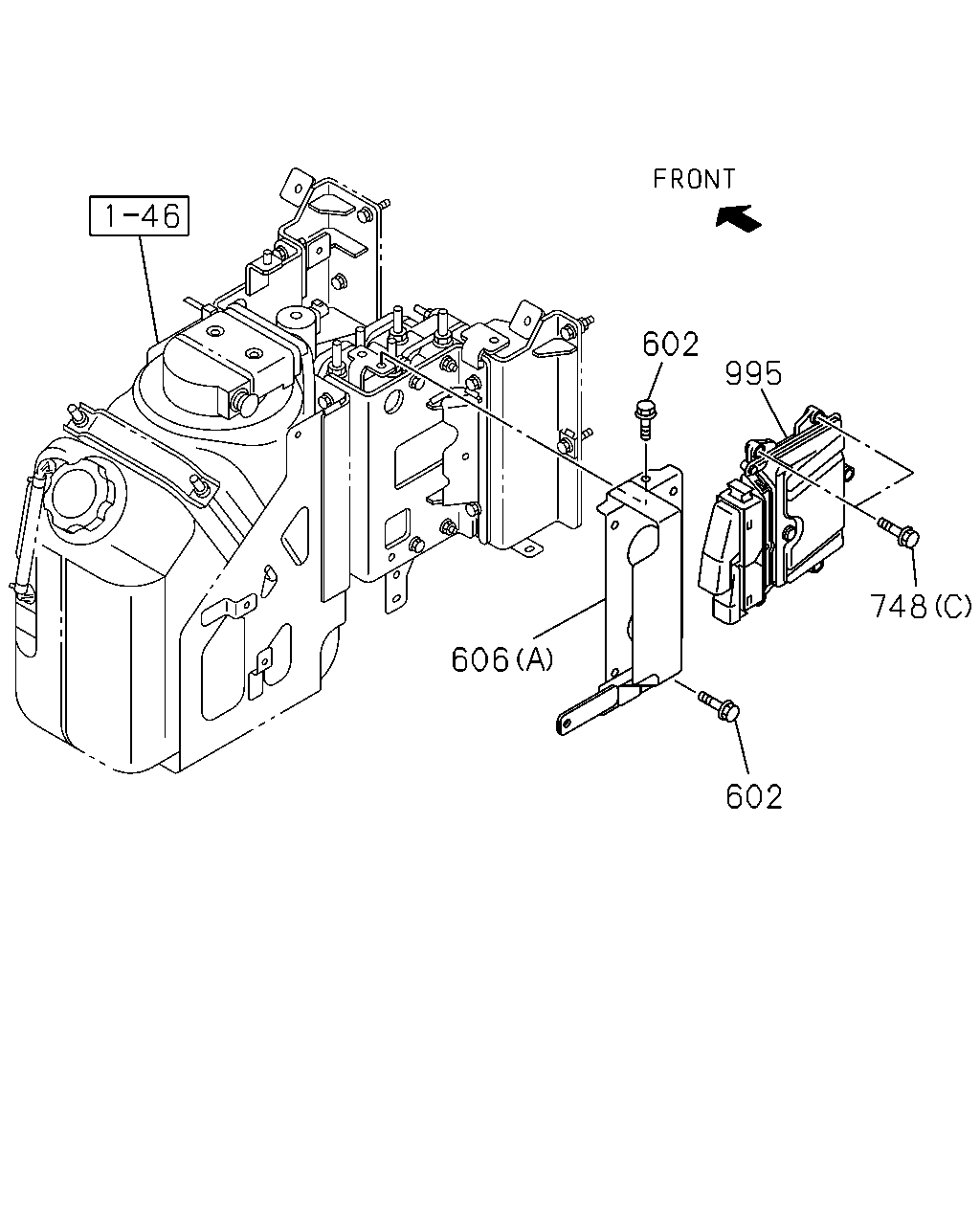

çizim 373177
602 606 602 748 995
BalonParca AdiParca NoAdetTipApplied Date A B C
602 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98207-086-2 01 1 1309- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98206-334-0 01 1 1309- ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-085-1 01 1 1309-1310 ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-085-1 01 1 1311- ● ●
748 02.500 BOLT; CONT UNIT
03.680 (D) M6X30 FLANGE 		0-28650-630-0 08 1 1309- ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1309-1310 ● ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1311- ● ● ●
748 02.500 BOLT; CONT UNIT
03.403 (C) M8X30 FLANGE 		0-28650-830-0 04 1 1309-1310 ● ●
748 02.500 BOLT; CONT UNIT
03.403 (C) M8X30 FLANGE 		0-28650-830-0 04 1 1311- ●
748 02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1309-1310 ●
748 02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ●
995 03.682 CONTROL UNIT; DEF DCM
EGR COOLER LH POSITION<KCC> 		8-98258-553-1 01 1 1312- ●
995 03.682 CONTROL UNIT; DEF DCM 8-98235-024-2 01 1 1309-1311 ●
995 03.682 CONTROL UNIT; DEF DCM
EXC. EGR COOLER LH POSITION<KCC> 		8-98235-024-2 01 1 1312- ●

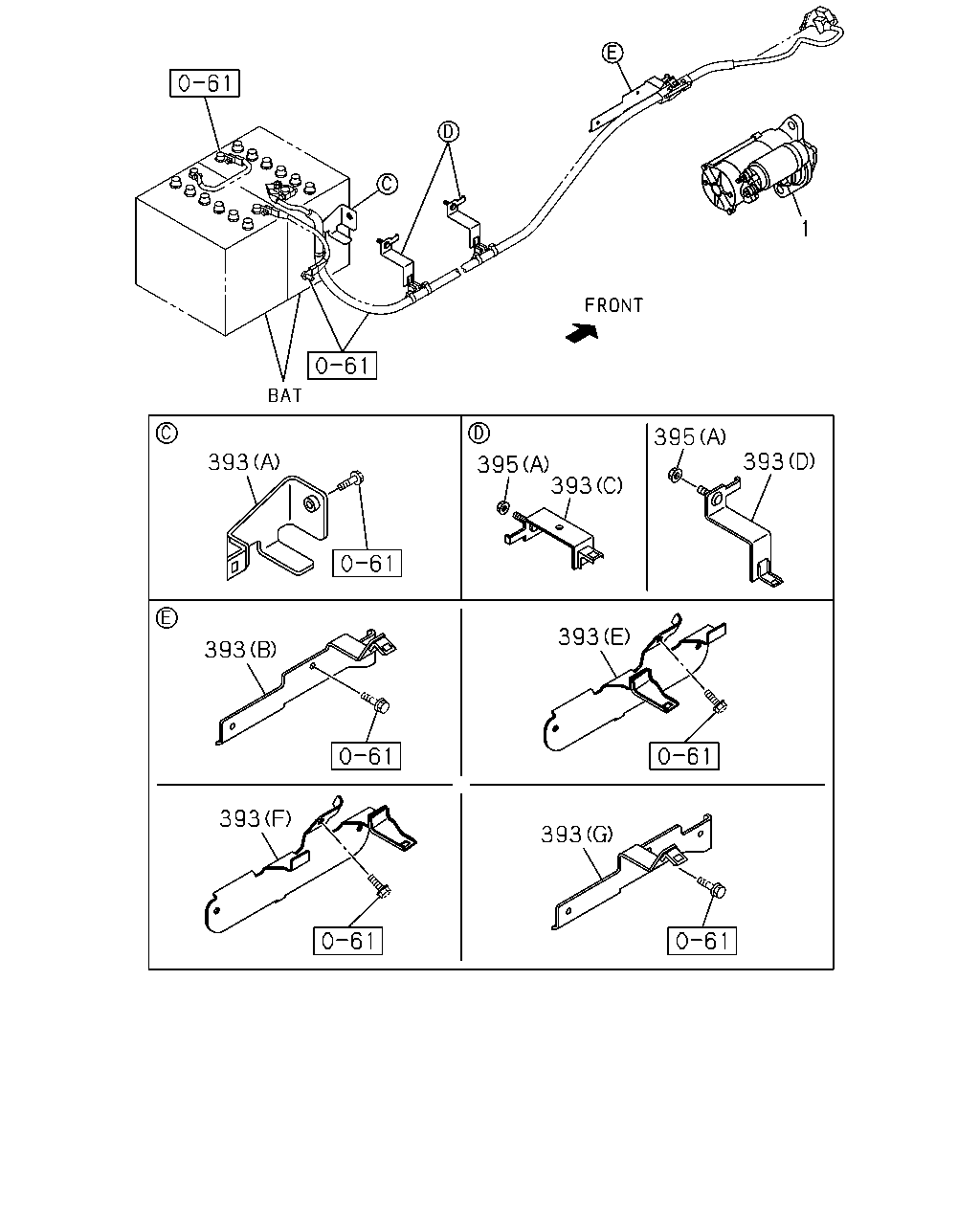

çizim 373186
393 393 393 395 393 395 393 393 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98260-939-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98245-926-0 02 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98245-926-0 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98245-926-0 01 1 1311-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98260-938-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (G) 		8-98222-736-0 01 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1311-1408 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (A) 		8-98123-872-0 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 01 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1309-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1409- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.787 (B) M10 		0-91111-510-0 02 1 1401- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1401- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ●

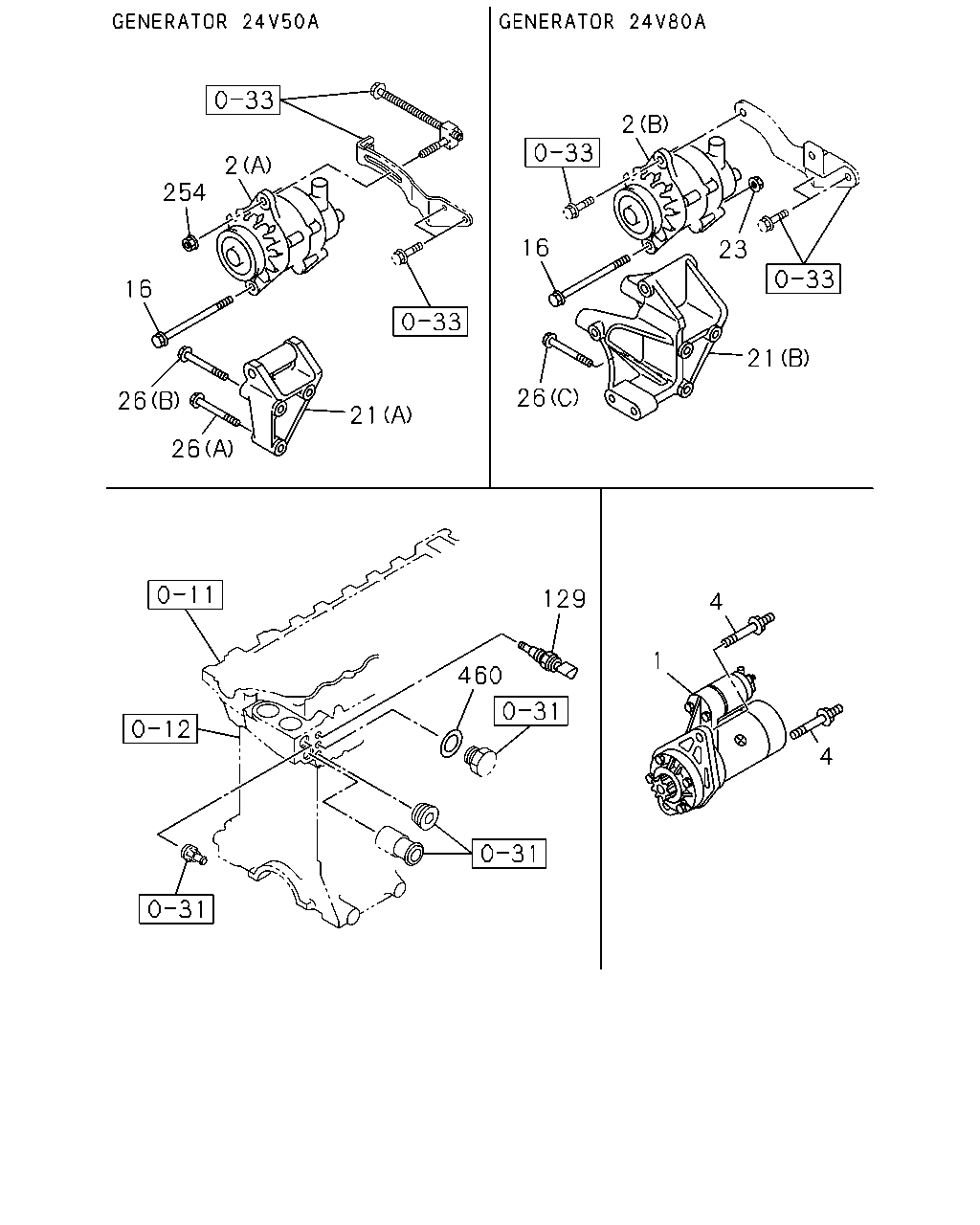

çizim 373578
4 1 4 129 460 21 26 26 16 254 2 16 2 23 21 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1309-1310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1309-1310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1309- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1309- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1309-1310 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1311- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1309-1310 ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1311- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1309- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1309- ●
23 02.277 NUT; GEN
EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 04.085 M10 FLANGE 		0-91180-210-0 01 1 1312-1312 ●
23 02.277 NUT; GEN
EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) 04.085 M10 FLANGE 		0-91180-210-0 01 1 1401- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1309- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1309- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1309- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1309-1310 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1311- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1309-1503 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ●
254 02.277 NUT; GEN BRKT
GENERATOR 24V50A(6QN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1309-1311 ●
254 02.277 NUT; GEN BRKT
EGR COOLER LH POSITION<KCC> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1312-1312 ●
254 02.277 NUT; GEN BRKT
GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1312-1312 ●
254 02.277 NUT; GEN BRKT
EGR COOLER LH POSITION<KCC> GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1401- ●
254 02.277 NUT; GEN BRKT
GENERATOR 24V50A(6QN) EXC. EGR COOLER LH POSITION<KCC> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1401- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1309- ●

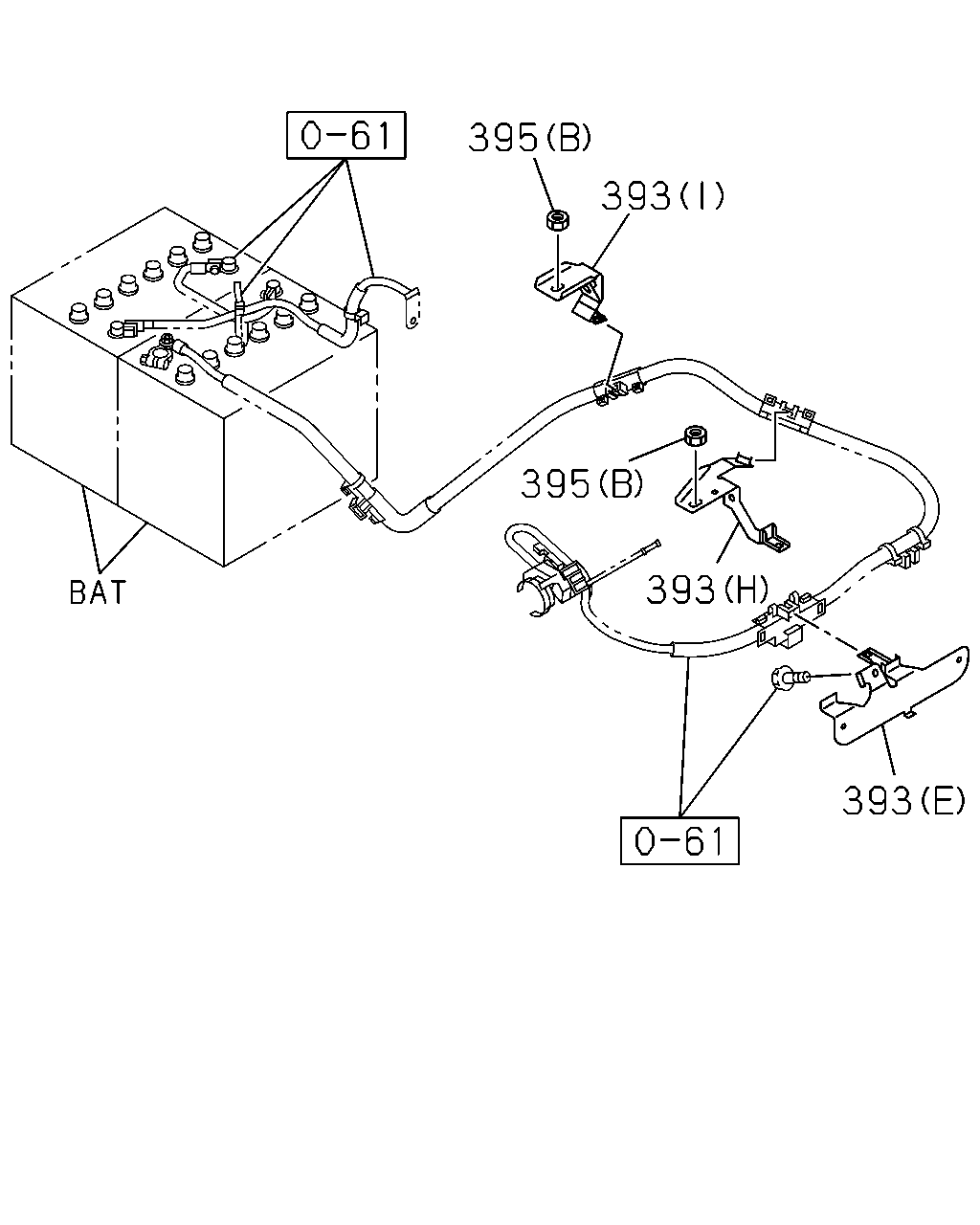

çizim 373640
393 393 395 393 395
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98260-939-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98245-926-0 02 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98245-926-0 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98245-926-0 01 1 1311-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98260-938-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98030-138-2 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98245-494-0 02 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (G) 		8-98222-736-0 01 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1311-1408 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (A) 		8-98123-872-0 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98123-872-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (D) 		8-98245-494-0 01 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1309-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-737-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1309-1310 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1311-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1409- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98030-139-2 01 1 1409- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.787 (B) M10 		0-91111-510-0 02 1 1401- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1401- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1409- ●

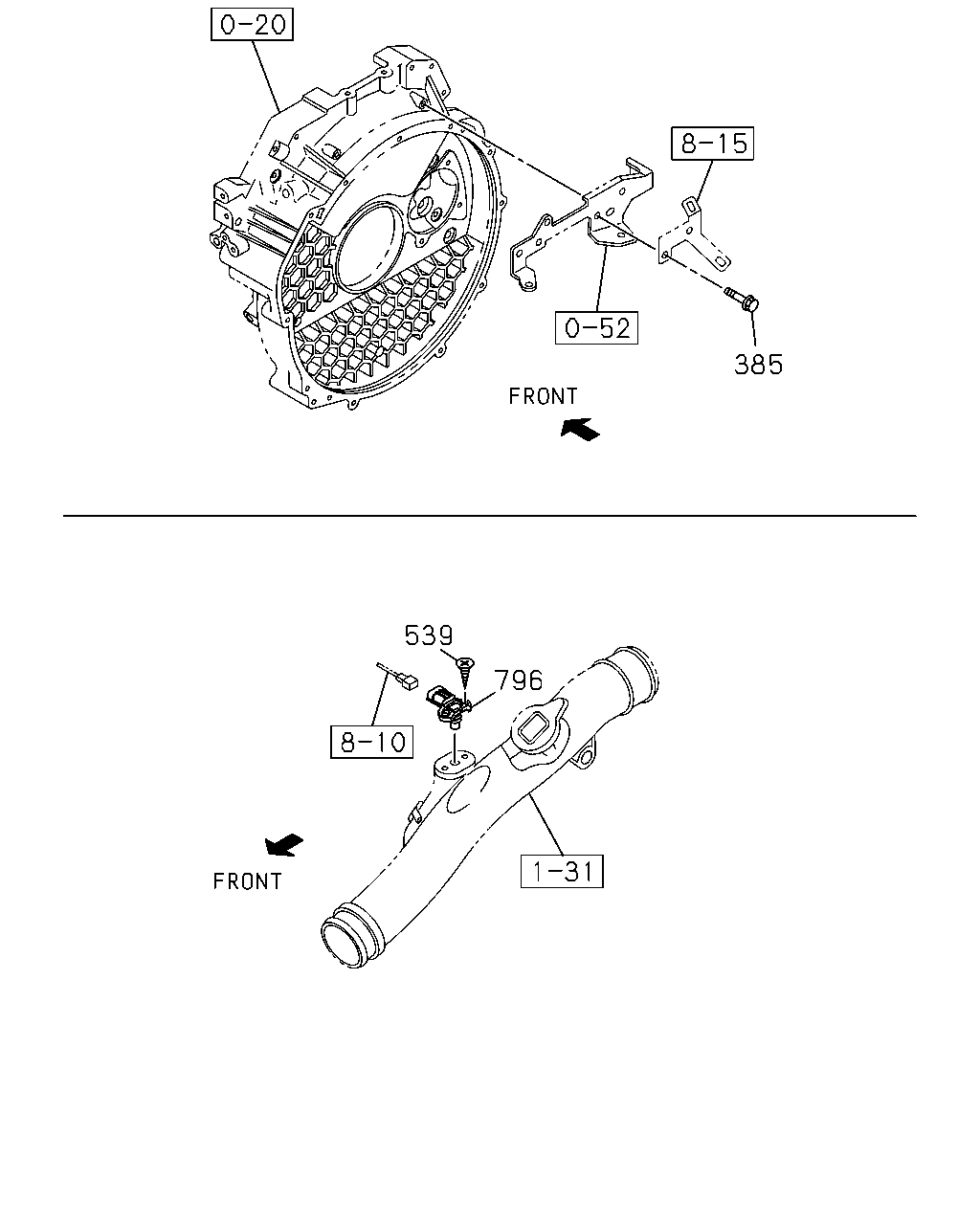

çizim 374324
385 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
385 02.183 BOLT; BRKT,IGN COIL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1309- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1309-1310 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1311- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1309-1310 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1311- ● ●

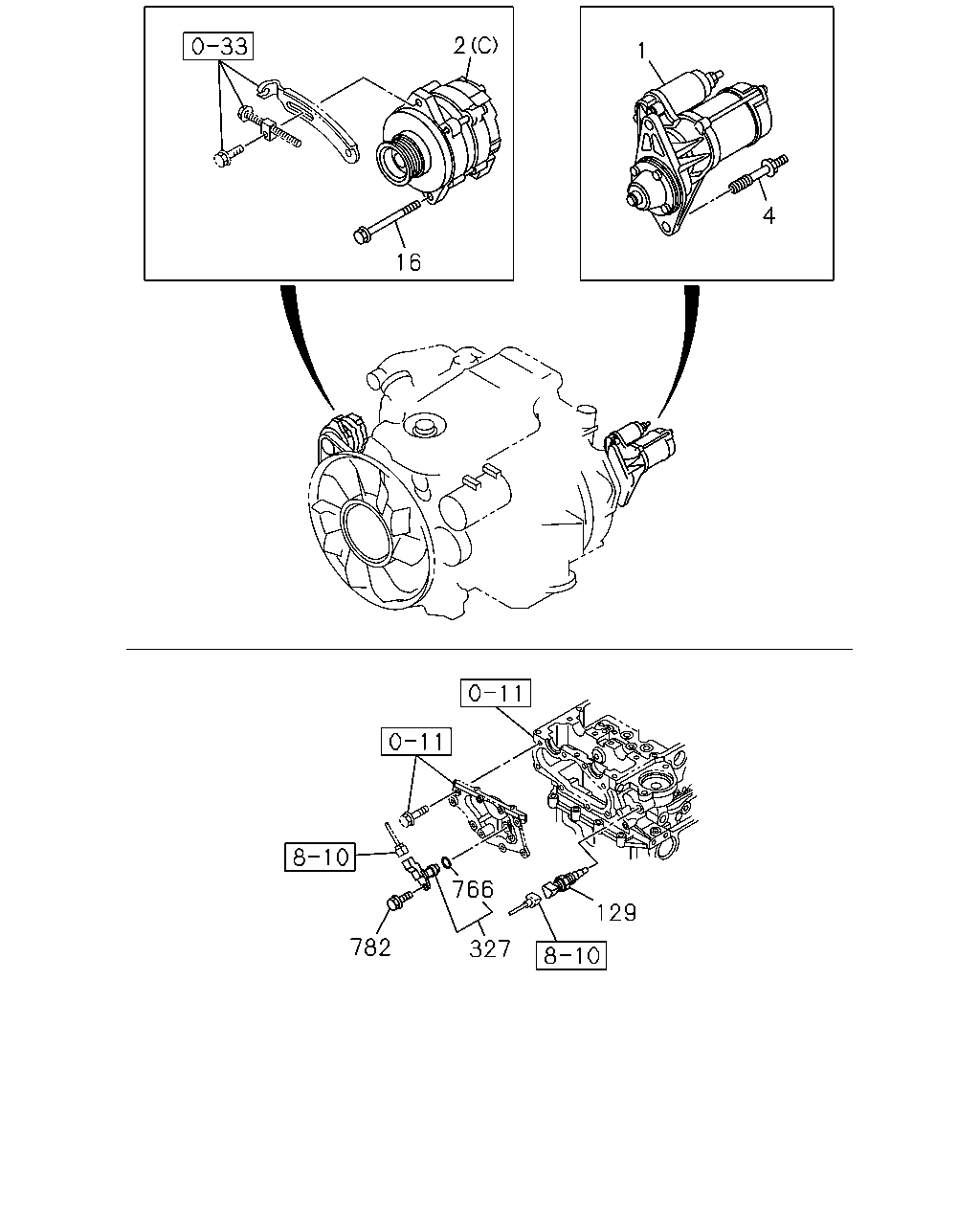

çizim 374420
2 16 1 4 129 327 766 782
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1309-1310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1309-1310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1309- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1309- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1309-1310 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1311- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1309-1310 ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1311- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1309-1310 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1311- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1309-1503 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1309-1310 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1311- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1309-1310 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1311- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1309-1310 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1311- ● ●

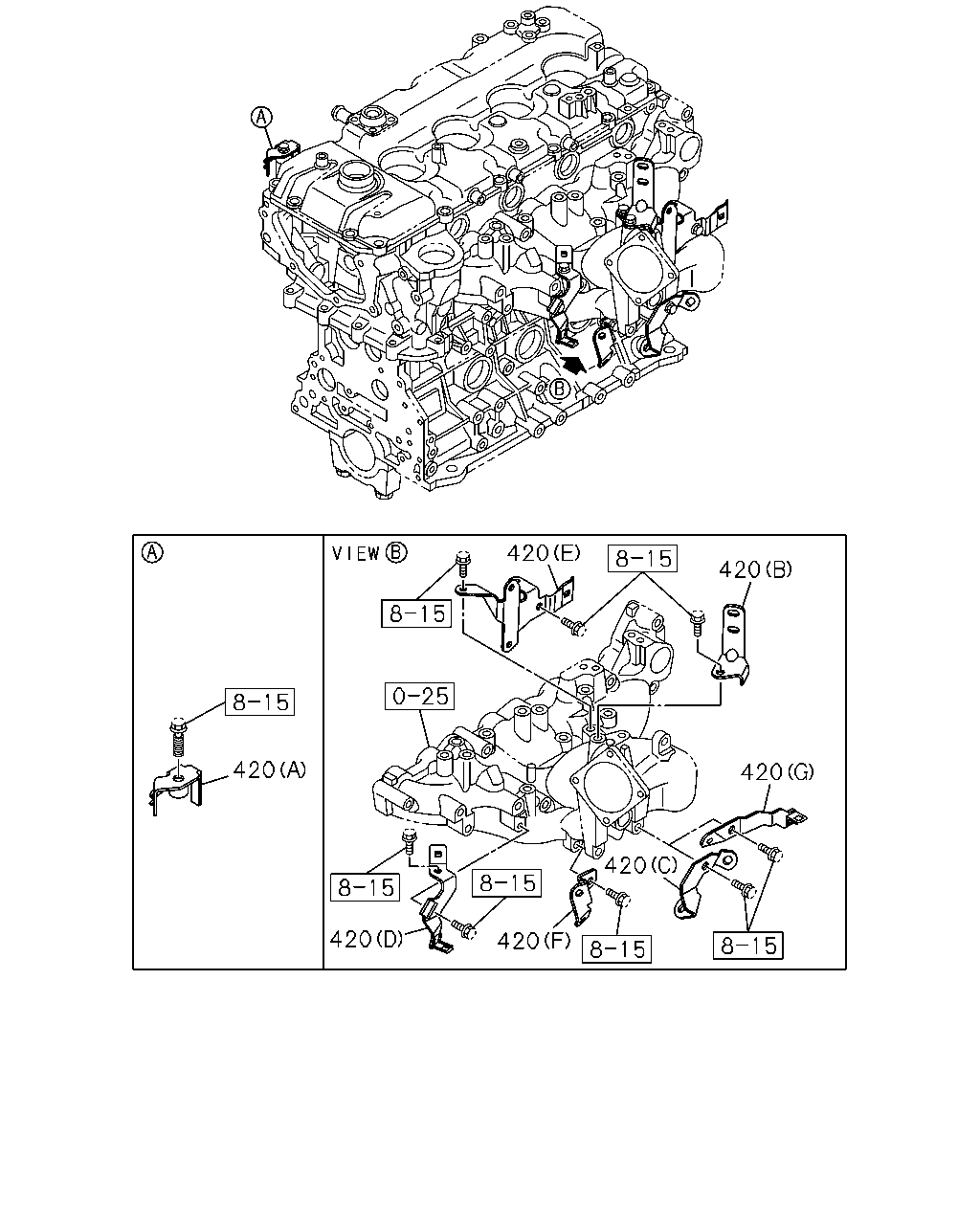

çizim 374460
420 420 420 420 420 420 420
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS
(D) 		8-98115-415-1 01 1 1311- ●
420 02.183 BRACKET; HARNESS
02.483 (E) 		8-98195-122-0 01 1 1311- ●
420 02.183 BRACKET; HARNESS
(F) 		8-98203-403-0 01 1 1311- ●
420 02.183 BRACKET; HARNESS
(G) 		8-98209-805-1 01 1 1311- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-2 01 1 1309-1310 ●
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-3 01 1 1311- ● ●
420 02.183 BRACKET; HARNESS
(C) 		8-98209-803-1 01 1 1309- ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1309-1310 ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1311- ● ●

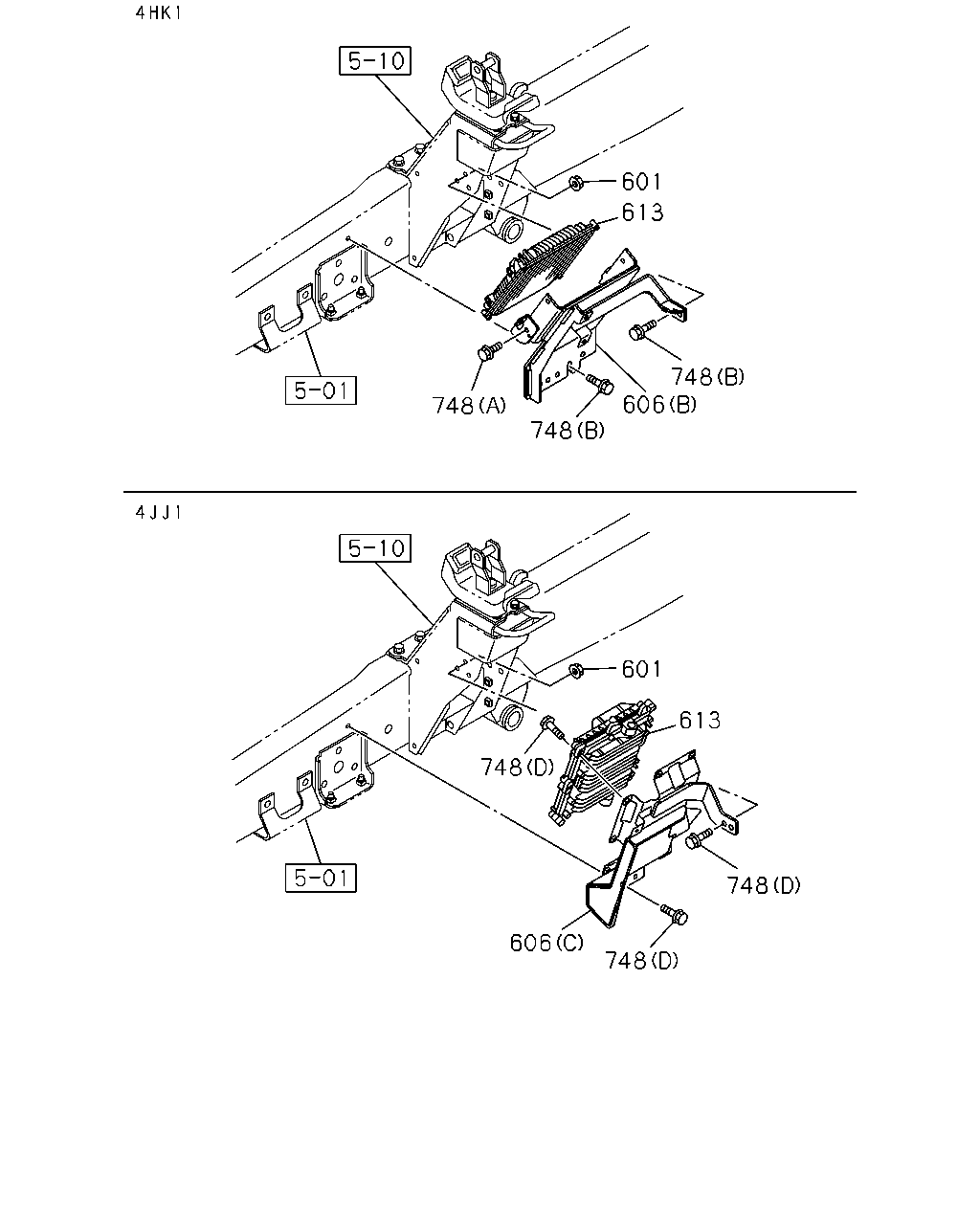

çizim 374508
601 613 748 606 748 748 748 601 613 748 748 606
BalonParca AdiParca NoAdetTipApplied Date A B C
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98207-086-2 01 1 1309- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98206-334-0 01 1 1309- ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-085-1 01 1 1309-1310 ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-085-1 01 1 1311- ● ●
613 03.670 CONTROL UNIT; ENG
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98270-930-2 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) 		8-98247-889-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98247-889-5 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98247-889-5 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) SPEED LIMITER 90KM(NMJ) 		8-98247-888-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) SPEED LIMITER 90KM(NMJ) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98247-888-5 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98247-888-5 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) 		8-98247-895-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98247-895-5 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98247-895-5 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) EXC. SPEED LIMITER 90KM(NMJ) 		8-98247-896-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) EXC. SPEED LIMITER 90KM(NMJ), SMOOTHER-EX(TYPE2)(8NS) 		8-98247-896-5 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-671-3 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG 8-98242-484-4 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) SMOOTHER-EX(TYPE2)(8NS) 		8-98247-893-3 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) SMOOTHER-EX(TYPE2)(8NS) 		8-98247-893-3 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) SPEED LIMITER 90KM(NMJ) SMOOTHER-EX(TYPE2)(8NS) 		8-98247-892-3 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) SMOOTHER-EX(TYPE2)(8NS) 		8-98247-892-3 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) SMOOTHER-EX(TYPE2)(8NS) 		8-98247-899-3 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) SMOOTHER-EX(TYPE2)(8NS) 		8-98247-899-3 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY6S(RST) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) SMOOTHER-EX(TYPE2)(8NS) EXC. SPEED LIMITER 90KM(NMJ) 		8-98247-900-3 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5A(RSL) 		8-98227-670-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
NNR(NP***E) M/T MYY5A(RSL) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98227-670-5 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-532-6 01 1 1309-1401 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-532-6 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-528-6 01 1 1309-1401 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-528-6 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98223-533-6 01 1 1309-1401 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ) 		8-98223-529-6 01 1 1309-1401 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-534-6 01 1 1309- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-530-6 01 1 1309- ●
748 02.500 BOLT; CONT UNIT
03.680 (D) M6X30 FLANGE 		0-28650-630-0 08 1 1309- ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1309-1310 ● ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1311- ● ● ●
748 02.500 BOLT; CONT UNIT
03.403 (C) M8X30 FLANGE 		0-28650-830-0 04 1 1309-1310 ● ●
748 02.500 BOLT; CONT UNIT
03.403 (C) M8X30 FLANGE 		0-28650-830-0 04 1 1311- ●
748 02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1309-1310 ●
748 02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ●

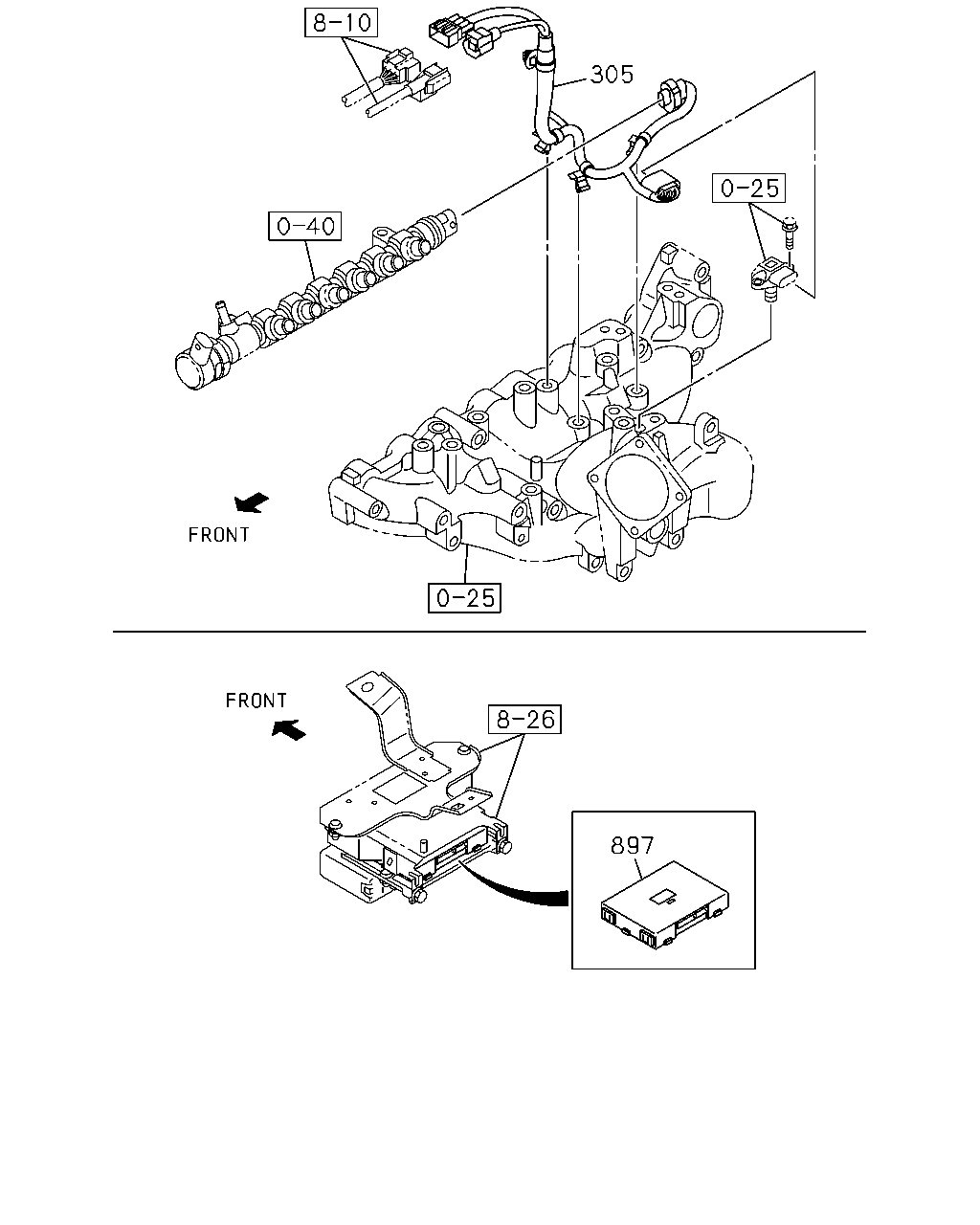

çizim 374592
305 897
BalonParca AdiParca NoAdetTipApplied Date A B C
305 02.480 HARNESS; EXT,GLOW PLUG 8-98209-543-1 01 1 1309- ●
897 02.510 DRM 8-98232-116-1 01 1 1309- ● ● ●
çizim 413656
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1309- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1309- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
