Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#126190) — 281 parça

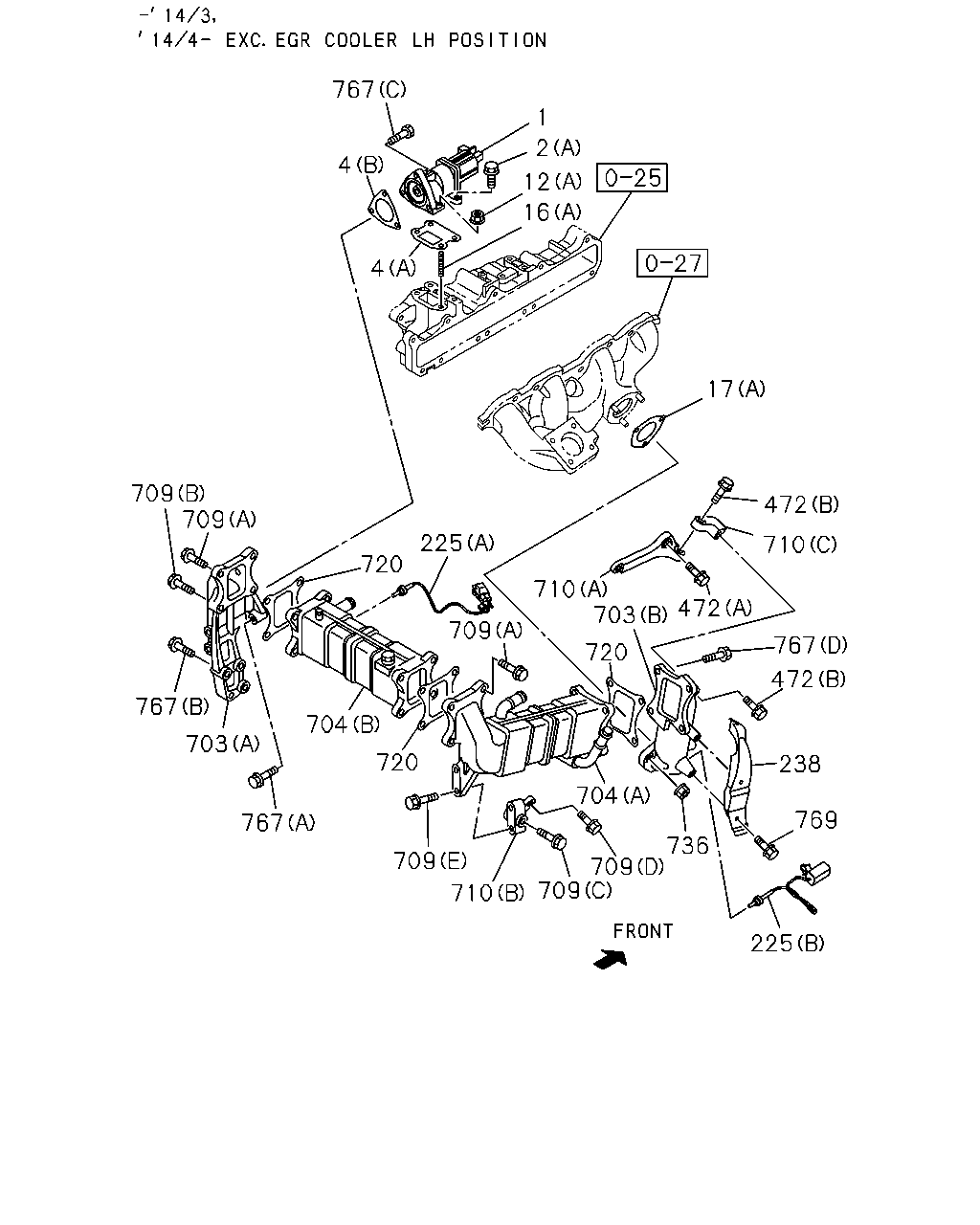

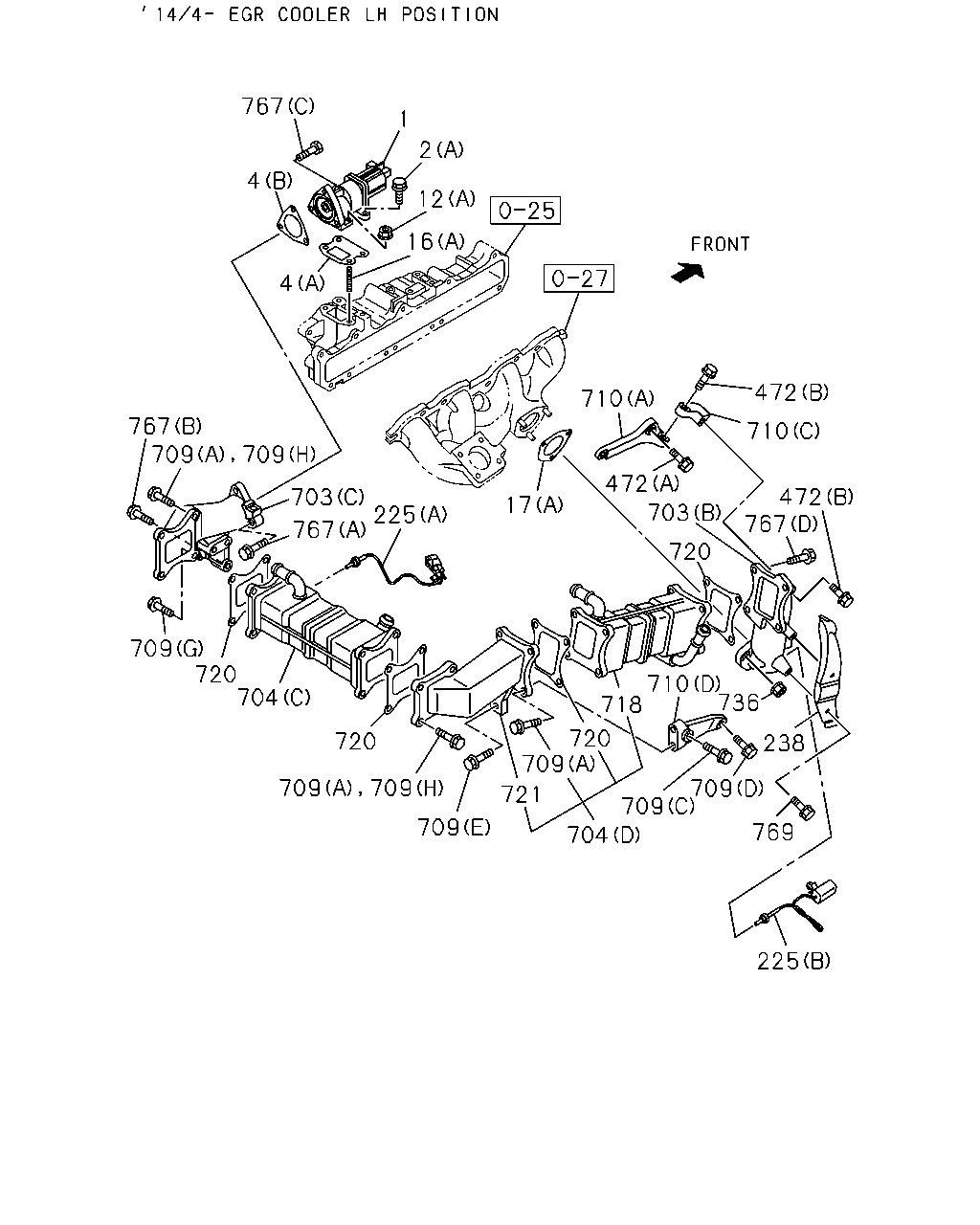

2 1 767 4 12 16 4 472 710 710 472 17 703 720 767 472 710 736 238 709 718 720 709 709 709 767 709 720 704 720 709 709 709 721 704 709 769 225 225 703 767

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1311-	●
1	03.670 VALVE; EGR	8-98211-742-0	01	1	1309-		●
1	03.670 VALVE; EGR	8-98098-257-5	01	1	1309-			●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1311-	●	●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1309-1310		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1309-1310		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1309-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1309-			●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1309-1310		●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1309-1310		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-			●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1309-1310		●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1311-	●	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1309-1310		●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1311-	●	●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1309-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1309-			●
225	03.670 SENSOR; THERMO,EGR (A)	8-98028-398-0	01	1	1309-			●
225	03.670 SENSOR; THERMO,EGR 01.150 (B)	8-98160-440-0	01	1	1309-			●
238	03.330 PROTECTOR; HEAT,EGR	8-98056-572-0	01	1	1309-			●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1309-1310		●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1311-	●	●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1309-			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1309-			●
703	03.675 DUCT; EGR EGR COOLER LH POSITION<KCC> (C)	8-98259-170-0	01	1	1404-			●
703	03.675 DUCT; EGR (A)	8-98025-251-1	01	1	1309-1311			●
703	03.675 DUCT; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-251-1	01	1	1312-			●
703	03.675 DUCT; EGR (B)	8-98055-939-0	01	1	1309-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (C)	8-98186-562-0	01	1	1404-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (D)	8-98200-784-1	01	1	1404-			●
704	03.337 COOLER ASM; EGR (A)	8-98025-248-5	01	1	1309-1311			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-248-5	01	1	1312-			●
704	03.337 COOLER ASM; EGR (B)	8-98212-718-0	01	1	1309-1311			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (B)	8-98212-718-0	01	1	1312-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.162 (G) M8X60 FLANGE	0-28060-860-0	01	1	1404-1409			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1410-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1404-			●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1309-1310		●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1311-	●	●
709	03.670 BOLT; EGR COOLER (B) M8X45 FLANGE	0-28060-845-0	01	1	1309-1311			●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1312-			●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1309-			●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1309-			●
709	03.670 BOLT; EGR COOLER 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1309-			●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1309-			●
710	03.337 BRACKET; EGR COOLER EGR COOLER LH POSITION<KCC> (D)	8-98186-565-0	01	1	1404-			●
710	03.337 BRACKET; EGR COOLER 03.680 (A)	8-98025-253-2	01	1	1309-			●
710	03.337 BRACKET; EGR COOLER (B)	8-98025-254-1	01	1	1309-1311			●
710	03.337 BRACKET; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98025-254-1	01	1	1312-			●
710	03.337 BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1309-			●
718	03.337 COOLER; EGR EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1404-			●
718	03.337 COOLER; EGR	8-98201-683-1	01	1	1309-1310		●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1311-	●	●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EGR COOLER LH POSITION<KCC>	8-98200-753-0	01	1	1404-			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98200-753-0	03	1	1309-			●
721	03.675 DUCT; COOLER EGR COOLER LH POSITION<KCC>	8-98186-563-0	01	1	1404-			●
736	03.675 NUT; DUCT,EGR VLV 03.613 M8 FLANGE	8-97061-401-1	03	1	1309-			●
767	03.670 BOLT; DUCT,EGR 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1309-			●
767	03.670 BOLT; DUCT,EGR 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1309-			●
767	03.670 BOLT; DUCT,EGR 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1309-			●
767	03.670 BOLT; DUCT,EGR 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1309-			●
769	01.750 BOLT; HEAT PROTECTOR 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1309-			●

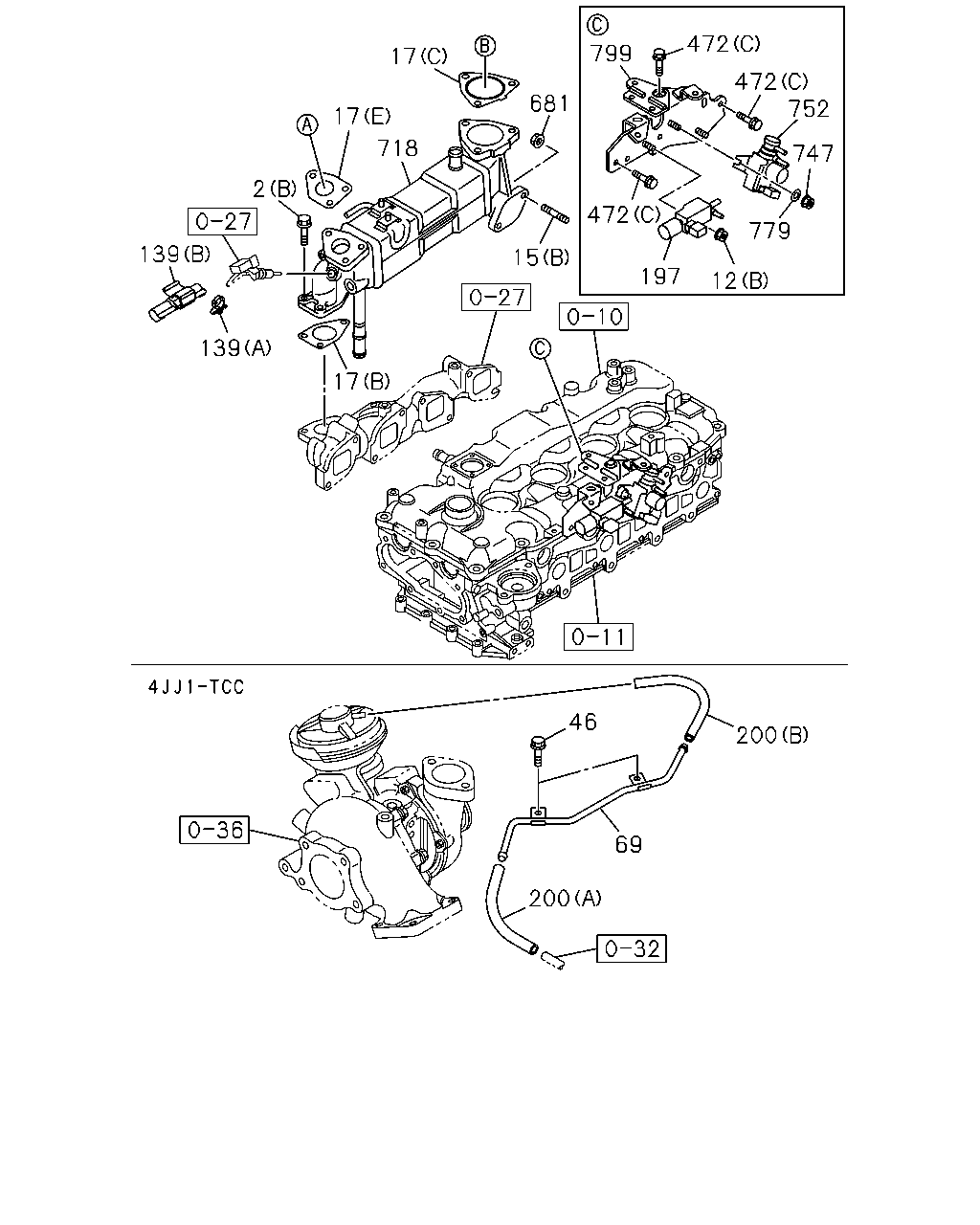

472 799 472 747 752 779 12 197 472 681 17 718 17 2 139 139 17 15 200 46 200 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1311-	●	●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-			●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1309-1310		●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1309-1310		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-			●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1309-1310		●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1311-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1309-1310		●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1309-			●
46	03.680 BOLT; VAC PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1507-	●
69	03.675 PIPE ASM; VAC	8-98287-564-0	01	1	1507-	●
139	02.559 CLIP; HARNESS 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310		●
139	02.559 CLIP; HARNESS 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1311-	●	●
139	02.559 CLIP; HARNESS (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1309-1310		●
139	02.559 CLIP; HARNESS (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1311-	●	●
197	03.670 VALVE; VAC SWITCHING	8-97352-151-0	01	1	1309-1310		●
197	03.670 VALVE; VAC SWITCHING	8-97352-151-0	01	1	1311-	●	●
200	03.675 HOSE; VAC (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1507-	●
200	03.675 HOSE; VAC (A) L=110	0-14140-110-0	01	1	1507-	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1309-1310		●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1311-	●	●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1309-			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1309-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1309-1310		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1311-	●	●
718	03.337 COOLER; EGR EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1404-			●
718	03.337 COOLER; EGR	8-98201-683-1	01	1	1309-1310		●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1311-	●	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1309-1310		●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1311-	●	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1309-1310		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1311-	●	●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1309-1310		●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1311-	●	●

1 2 12 16 767 4 4 709 709 709 709 709 709 704 767 703 720 767 710 736 704 238 769 472 767 710 472 17 710 703 720 225 720 472 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1311-	●
1	03.670 VALVE; EGR	8-98211-742-0	01	1	1309-		●
1	03.670 VALVE; EGR	8-98098-257-5	01	1	1309-			●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1311-	●	●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1309-1310		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1309-1310		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1309-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1309-			●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1309-1310		●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1309-1310		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-			●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1309-1310		●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1311-	●	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1309-1310		●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1311-	●	●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1309-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1309-			●
225	03.670 SENSOR; THERMO,EGR (A)	8-98028-398-0	01	1	1309-			●
225	03.670 SENSOR; THERMO,EGR 01.150 (B)	8-98160-440-0	01	1	1309-			●
238	03.330 PROTECTOR; HEAT,EGR	8-98056-572-0	01	1	1309-			●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1309-1310		●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1311-	●	●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1309-			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1309-			●
703	03.675 DUCT; EGR EGR COOLER LH POSITION<KCC> (C)	8-98259-170-0	01	1	1404-			●
703	03.675 DUCT; EGR (A)	8-98025-251-1	01	1	1309-1311			●
703	03.675 DUCT; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-251-1	01	1	1312-			●
703	03.675 DUCT; EGR (B)	8-98055-939-0	01	1	1309-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (C)	8-98186-562-0	01	1	1404-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (D)	8-98200-784-1	01	1	1404-			●
704	03.337 COOLER ASM; EGR (A)	8-98025-248-5	01	1	1309-1311			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-248-5	01	1	1312-			●
704	03.337 COOLER ASM; EGR (B)	8-98212-718-0	01	1	1309-1311			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (B)	8-98212-718-0	01	1	1312-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.162 (G) M8X60 FLANGE	0-28060-860-0	01	1	1404-1409			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1410-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1404-			●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1309-1310		●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1311-	●	●
709	03.670 BOLT; EGR COOLER (B) M8X45 FLANGE	0-28060-845-0	01	1	1309-1311			●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1312-			●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1309-			●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1309-			●
709	03.670 BOLT; EGR COOLER 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1309-			●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1309-			●
710	03.337 BRACKET; EGR COOLER EGR COOLER LH POSITION<KCC> (D)	8-98186-565-0	01	1	1404-			●
710	03.337 BRACKET; EGR COOLER 03.680 (A)	8-98025-253-2	01	1	1309-			●
710	03.337 BRACKET; EGR COOLER (B)	8-98025-254-1	01	1	1309-1311			●
710	03.337 BRACKET; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98025-254-1	01	1	1312-			●
710	03.337 BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1309-			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EGR COOLER LH POSITION<KCC>	8-98200-753-0	01	1	1404-			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98200-753-0	03	1	1309-			●
736	03.675 NUT; DUCT,EGR VLV 03.613 M8 FLANGE	8-97061-401-1	03	1	1309-			●
767	03.670 BOLT; DUCT,EGR 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1309-			●
767	03.670 BOLT; DUCT,EGR 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1309-			●
767	03.670 BOLT; DUCT,EGR 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1309-			●
767	03.670 BOLT; DUCT,EGR 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1309-			●
769	01.750 BOLT; HEAT PROTECTOR 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1309-			●

149 2 16 12 798 796 8 9 45 7 58 795 709 4 1 4 5 17 17 16 12 58 797 719 58 681 15 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1311-	●
1	03.670 VALVE; EGR	8-98211-742-0	01	1	1309-		●
1	03.670 VALVE; EGR	8-98098-257-5	01	1	1309-			●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1309-1310		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1311-	●	●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1309-1310		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1309-1310		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1309-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1309-			●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1309-1310		●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1311-	●	●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1309-1310		●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1311-	●	●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1309-1310		●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
9	03.670 NUT; EGR ADAPTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1309-1310		●
9	03.670 NUT; EGR ADAPTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1309-1310		●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1309-1310		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-			●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1309-1310		●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1311-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1309-1310		●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1309-1310		●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1311-	●	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1309-1310		●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1311-	●	●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1309-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1309-1310		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1309-			●
45	09.173 STUD; ADAPTER,EGR 01.073 M8X22 L=34	0-41010-822-0	02	1	1309-1310		●
45	09.173 STUD; ADAPTER,EGR 01.073 M8X22 L=34	0-41010-822-0	02	1	1311-	●	●
58	03.417 BOLT; PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310		●
58	03.417 BOLT; PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
58	03.417 BOLT; PIPE 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1309-1310		●
58	03.417 BOLT; PIPE 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1311-	●	●
58	03.417 BOLT; PIPE (C) M8X23 FLANGE	8-97378-077-0	01	1	1309-1310		●
58	03.417 BOLT; PIPE (C) M8X23 FLANGE	8-97378-077-0	01	1	1311-	●	●
149	08.962 HOSE; VAC PIPE	8-98175-025-0	01	1	1311-1506	●
149	08.962 HOSE; VAC PIPE 03.675	8-98107-557-0	01	1	1309-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1309-1310		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1311-	●	●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.162 (G) M8X60 FLANGE	0-28060-860-0	01	1	1404-1409			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1410-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1404-			●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1309-1310		●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1311-	●	●
709	03.670 BOLT; EGR COOLER (B) M8X45 FLANGE	0-28060-845-0	01	1	1309-1311			●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1312-			●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1309-			●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1309-			●
709	03.670 BOLT; EGR COOLER 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1309-			●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1309-			●
719	03.675 PIPE; EGR	8-98136-683-1	01	1	1309-1310		●
719	03.675 PIPE; EGR	8-98136-683-1	01	1	1311-	●	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98240-264-0	01	1	1309-1310		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98240-264-0	01	1	1311-1501	●	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98299-182-0	01	1	1502-	●	●
796	03.670 SENSOR; TEMP,EGR COOLER OUT	8-98238-241-0	01	1	1311-	●
796	03.670 SENSOR; TEMP,EGR COOLER OUT	8-98240-072-0	01	1	1309-		●
797	01.540 PIPE; BYPASS	8-98214-448-1	01	1	1309-1310		●
797	01.540 PIPE; BYPASS	8-98214-448-1	01	1	1311-	●	●
798	03.671 CLIP; TEMP SENSOR 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1309-1310		●
798	03.671 CLIP; TEMP SENSOR 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
