0-41 — FUEL FILTER AND BRACKET (#126185) — 160 parça

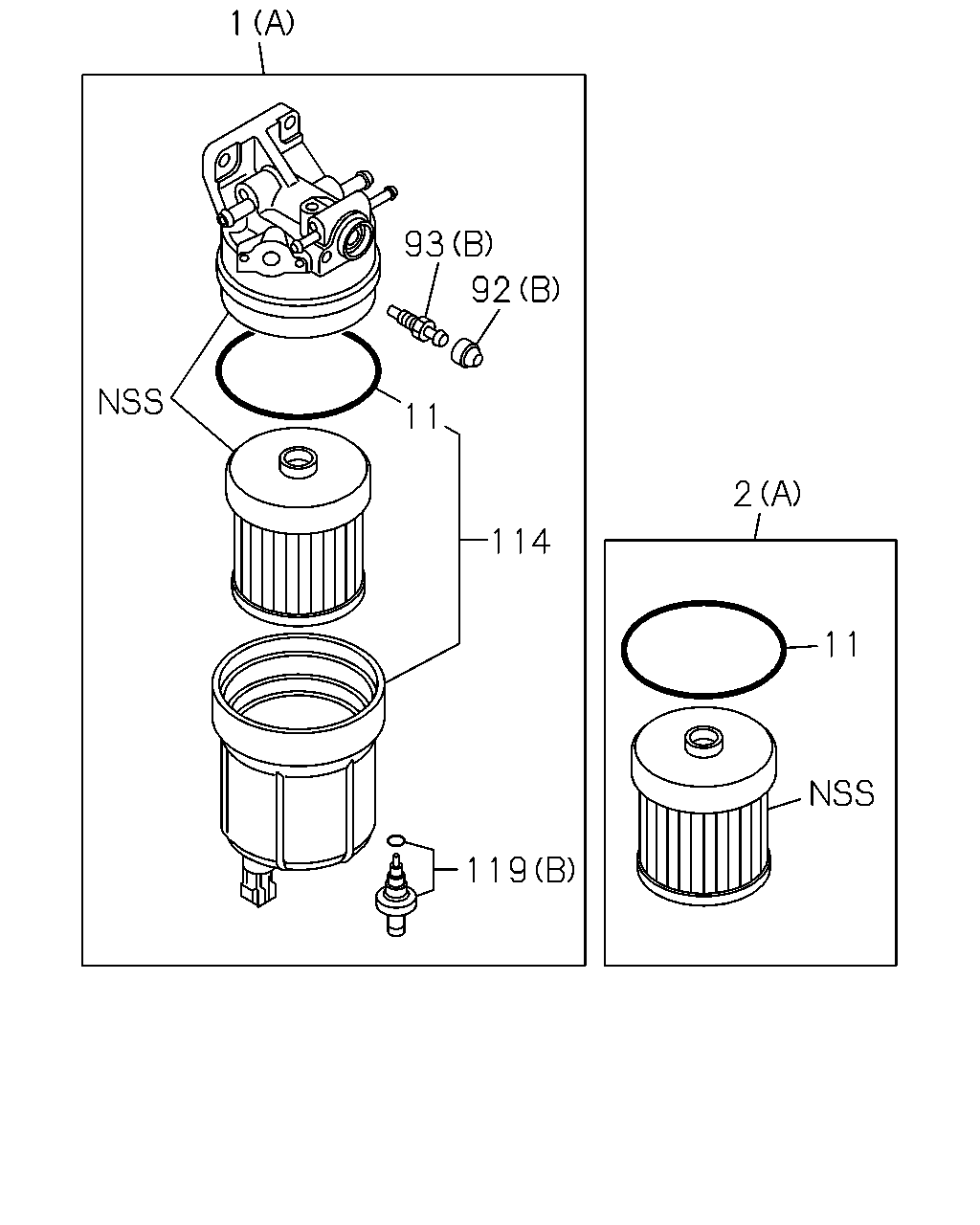

çizim 373123
1 93 92 11 114 119 2 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98124-107-4 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
(C) 		8-98169-738-0 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1311- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1311- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-98037-481-0 01 1 1309- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1309-1310 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1311- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1309-1310 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1311- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1309-1310 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1311- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-157-0 01 1 1309- ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1309-1310 ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1311- ● ● ●
92 03.417 CAP; FUEL FILTER
(A) 		8-97172-548-0 01 1 1309- ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1309-1310 ● ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1311- ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
(A) 		8-97172-546-1 01 1 1309- ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1309-1310 ● ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1311- ● ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1309-1310 ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1311- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(A) 		8-97603-456-0 01 1 1309- ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1309-1310 ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1311- ● ● ●
çizim 373156
112 2 119 7 66 112 93 92 1 5 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98124-107-4 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
(C) 		8-98169-738-0 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1311- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1311- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-98037-481-0 01 1 1309- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1309-1310 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1311- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1309-1310 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1311- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1309-1310 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1311- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-157-0 01 1 1309- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ● ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ● ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
5 03.890 BOLT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
7 03.890 PLUG; SENSOR,FUEL FILTER 8-97123-549-0 01 1 1309- ●
66 03.890 GASKET; PLUG,FUEL FILTER 8-94447-156-0 01 1 1309- ●
92 03.417 CAP; FUEL FILTER
(A) 		8-97172-548-0 01 1 1309- ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1309-1310 ● ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1311- ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
(A) 		8-97172-546-1 01 1 1309- ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1309-1310 ● ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1311- ● ● ●
112 06.605 GASKET; SENSOR TO CASE
03.417 		1-09623-649-0 01 1 1309- ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(A) 		8-97603-456-0 01 1 1309- ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1309-1310 ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1311- ● ● ●

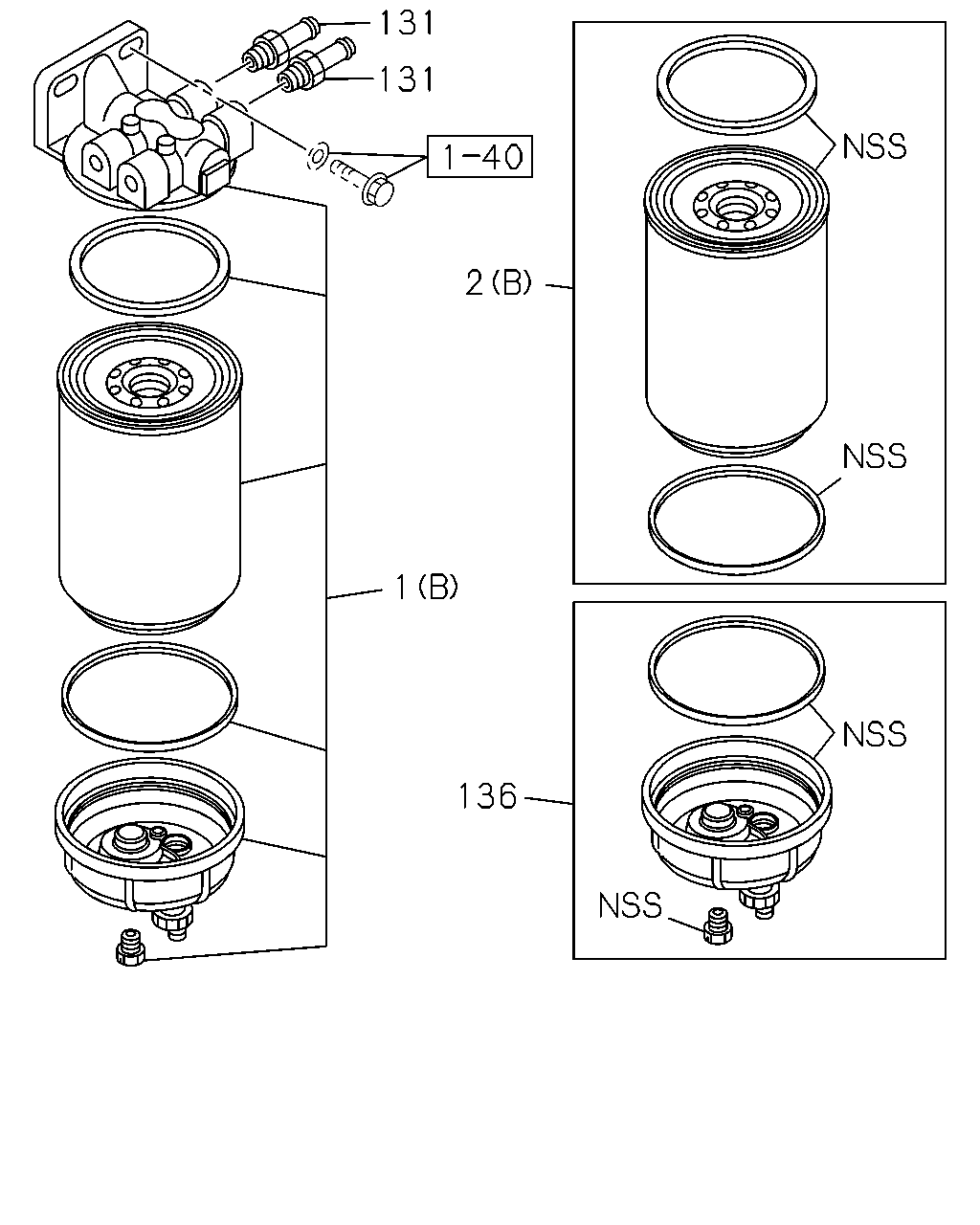

çizim 374296
136 1 2 131 131
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98124-107-4 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
(C) 		8-98169-738-0 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1311- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1311- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-98037-481-0 01 1 1309- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1309-1310 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1311- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1309-1310 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1311- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1309-1310 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1311- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-157-0 01 1 1309- ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1311-1409 ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1410- ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1309-1310 ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1311-1408 ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ● ●

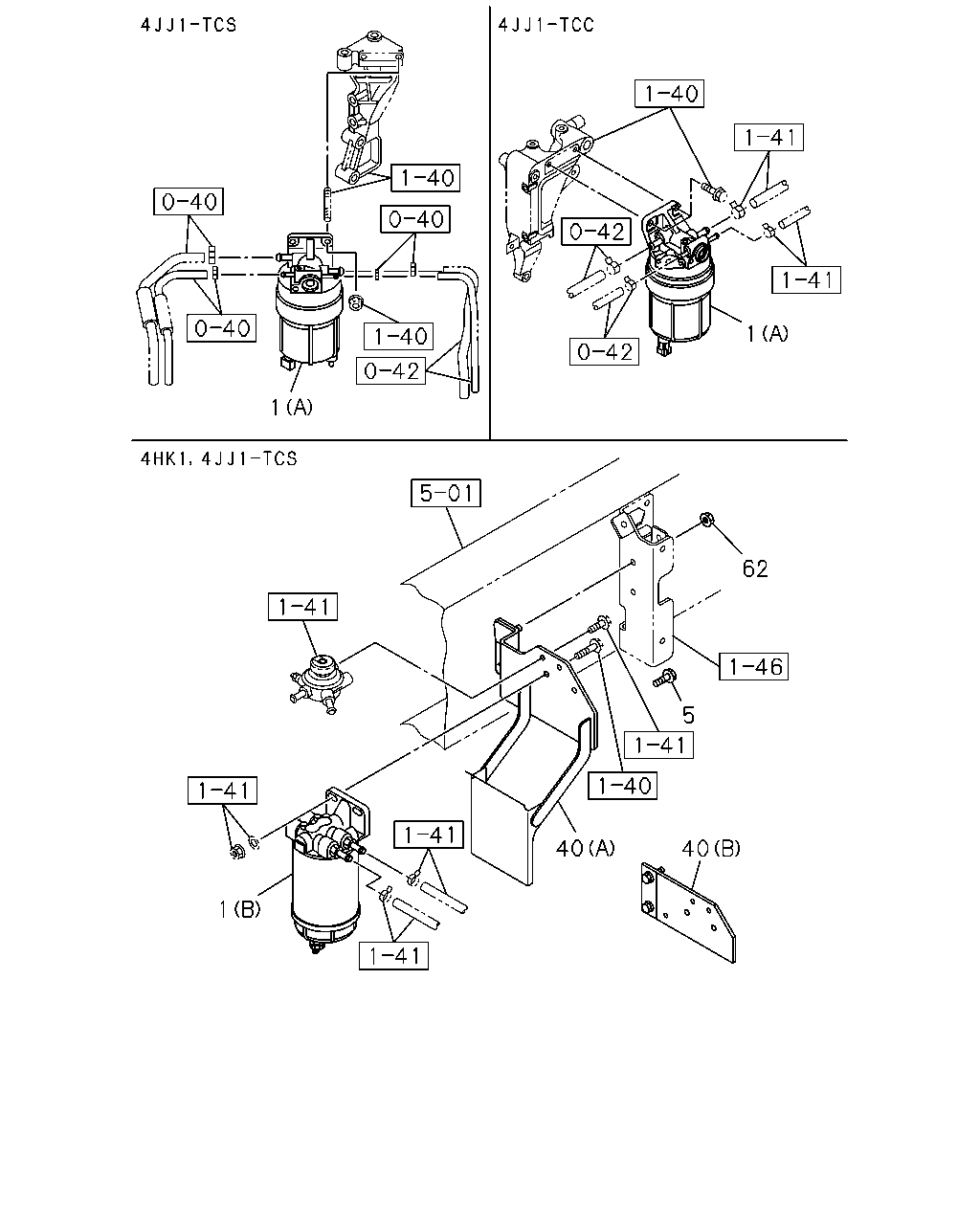

çizim 374668
40 40 5 62 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98124-107-4 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
(C) 		8-98169-738-0 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1311- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1311- ● ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ● ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ● ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
5 03.890 BOLT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98121-708-0 01 1 1311- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98107-354-3 01 1 1311- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1309-1310 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1311-1408 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1311-1408 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-320-2 01 1 1309-1408 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-320-2 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-320-2 01 1 1409- ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
62 03.895 NUT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●

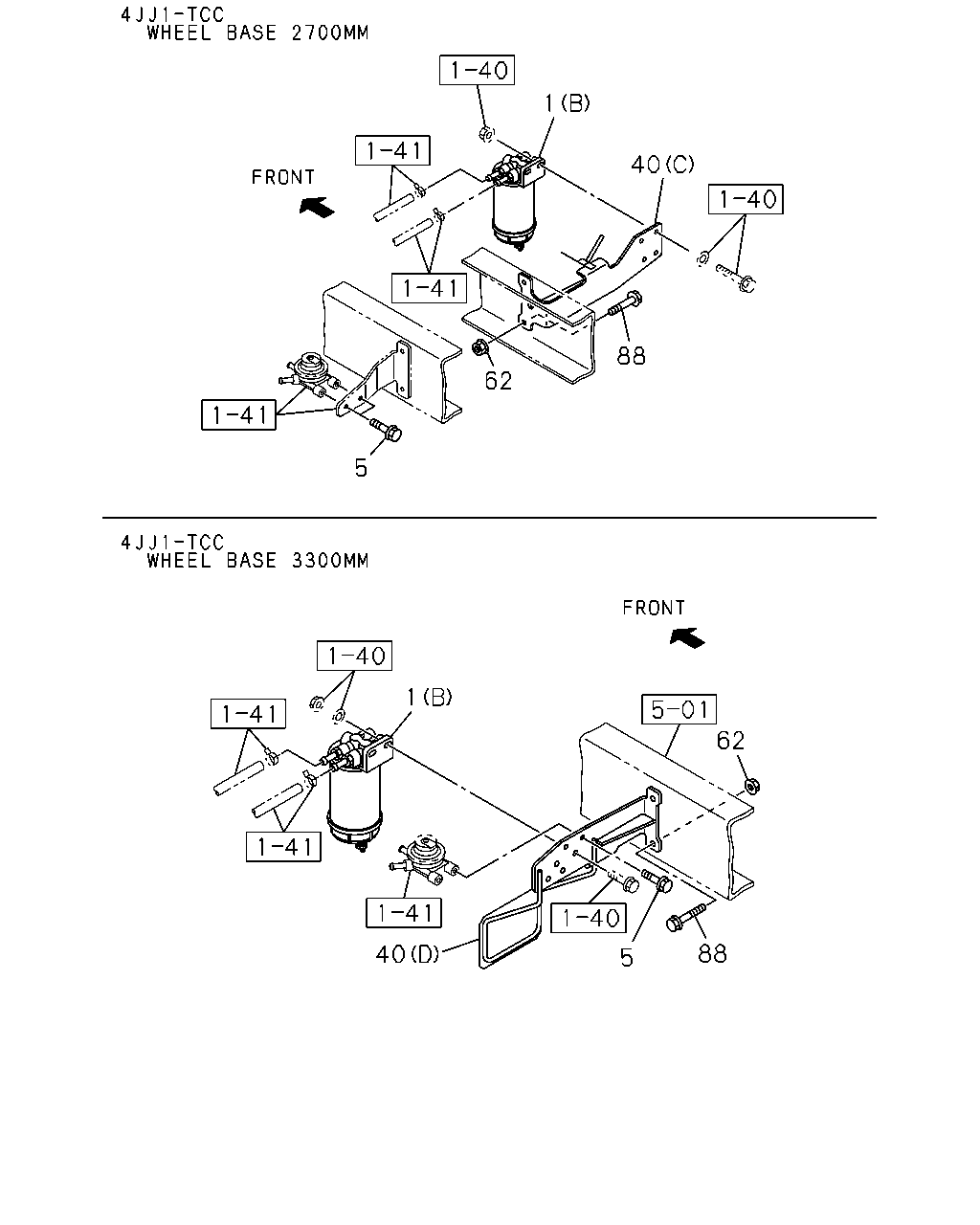

çizim 388861
1 40 88 62 5 1 62 5 88 40
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98124-107-4 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
(C) 		8-98169-738-0 01 1 1309- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1311- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1309-1310 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1311- ● ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ● ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311-1408 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ● ● ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
5 03.890 BOLT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
5 03.890 BOLT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98121-708-0 01 1 1311- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98107-354-3 01 1 1311- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1309-1310 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1311-1408 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1311-1408 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98221-206-0 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-320-2 01 1 1309-1408 ●
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-320-2 01 1 1409- ●
40 03.890 BRACKET; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-320-2 01 1 1409- ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
62 03.895 NUT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
62 03.895 NUT; FUEL FILTER
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1311- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
