Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#126184) — 370 parça

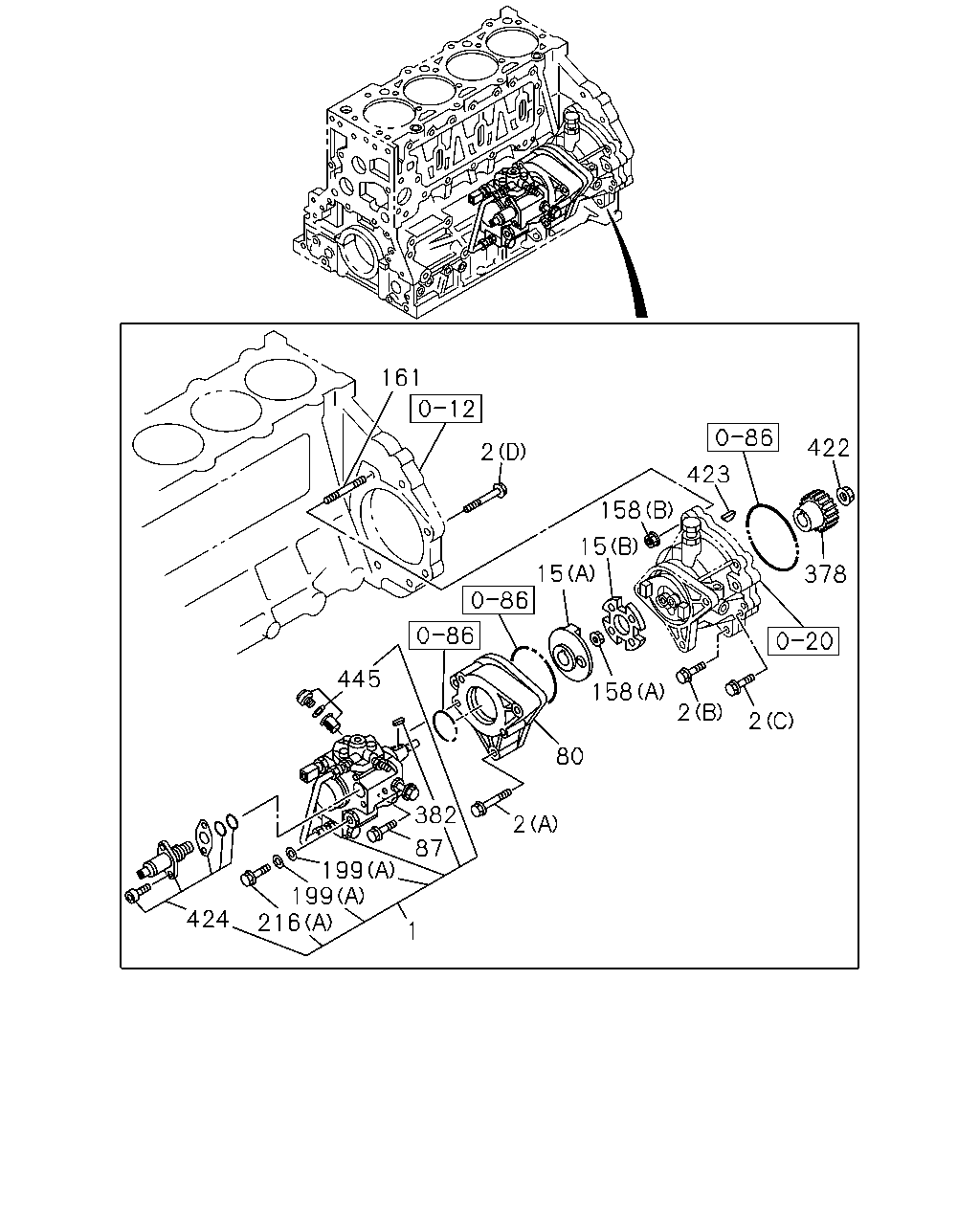

422 378 2 2 158 15 158 423 15 2 161 445 80 2 382 87 1 199 199 216 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1309-	●
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	1309-	●
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	1309-	●
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	1309-	●
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	1309-	●
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1309-	●
15	03.340 COUPLING ASM; INJ PUMP (B)	8-97306-059-1	01	1	1309-	●
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1309-	●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	1309-	●
158	03.330 NUT; INJ PUMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1309-	●
158	03.330 NUT; INJ PUMP 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	1309-	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1311-		●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1309-	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1311-		●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1309-	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1309-	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1309-1310	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1311-	●	●
378	03.330 GEAR; PUMP Z=35	8-98017-915-0	01	1	1309-	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1309-1310	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1311-	●	●
422	03.330 NUT; GEAR 06.172 M18	8-97141-154-0	01	1	1309-	●
423	03.162 KEY; GEAR 08.960	9-08055-519-0	01	1	1309-	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1309-1310	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1311-	●	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1309-1310	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1311-	●	●

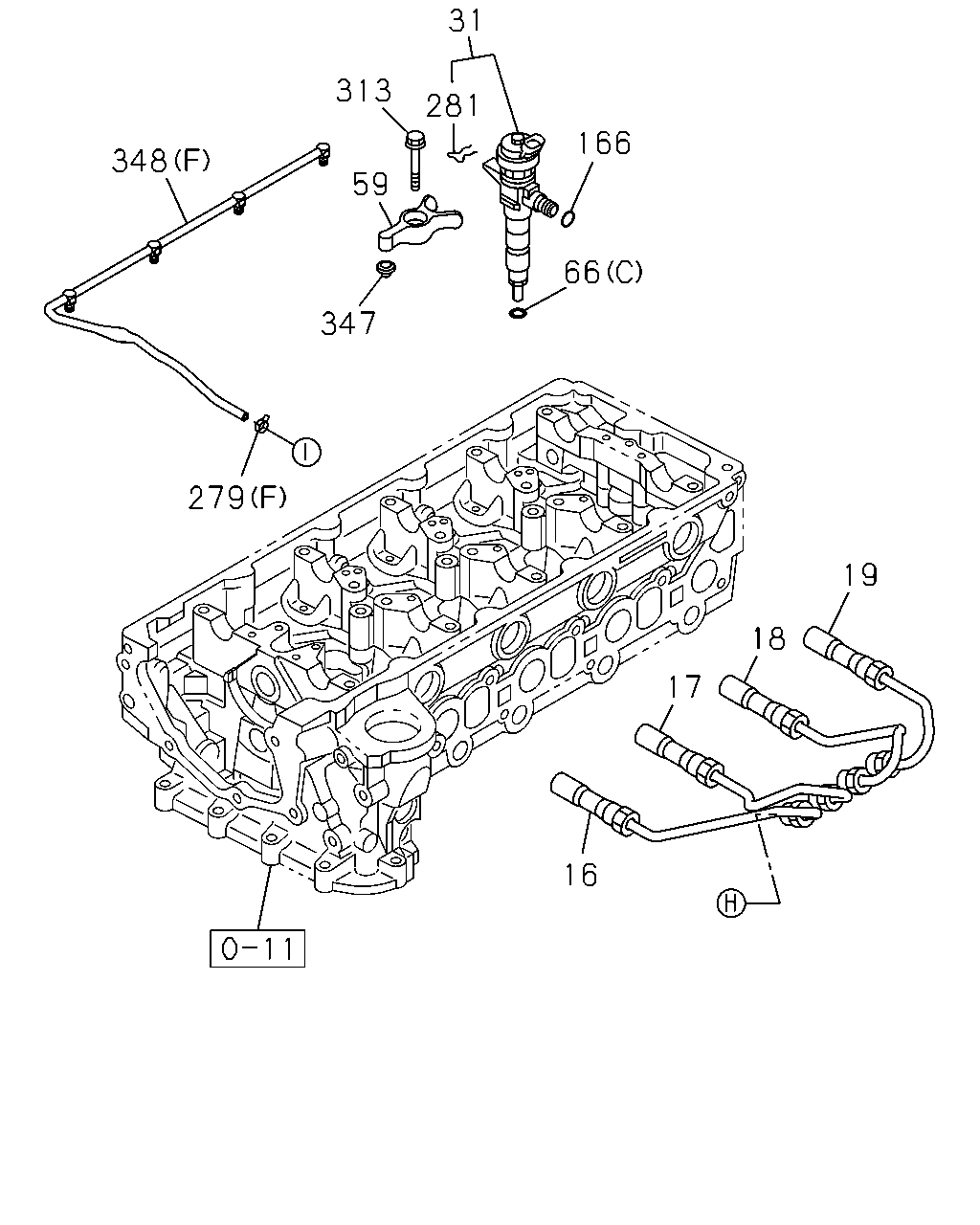

348 279 347 59 313 31 166 66 281 16 17 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1311-		●
16	03.330 PIPE; INJ NO.1	8-98127-062-3	01	1	1309-			●
16	03.330 PIPE; INJ NO.1	8-98200-780-0	01	1	1309-1311	●
16	03.330 PIPE; INJ NO.1 EXC. EGR COOLER LH POSITION<KCC>	8-98200-780-0	01	1	1312-1403	●
16	03.330 PIPE; INJ NO.1	8-98200-780-0	01	1	1404-1404	●
16	03.330 PIPE; INJ NO.1	8-98271-226-0	01	1	1405-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1311-		●
17	03.330 PIPE; INJ NO.2	8-98127-063-3	01	1	1309-			●
17	03.330 PIPE; INJ NO.2	8-98200-781-0	01	1	1309-1311	●
17	03.330 PIPE; INJ NO.2 EXC. EGR COOLER LH POSITION<KCC>	8-98200-781-0	01	1	1312-1403	●
17	03.330 PIPE; INJ NO.2	8-98200-781-0	01	1	1404-1404	●
17	03.330 PIPE; INJ NO.2	8-98271-227-0	01	1	1405-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1311-		●
18	03.330 PIPE; INJ NO.3	8-98127-064-3	01	1	1309-			●
18	03.330 PIPE; INJ NO.3	8-98200-782-1	01	1	1309-1311	●
18	03.330 PIPE; INJ NO.3 EXC. EGR COOLER LH POSITION<KCC>	8-98200-782-1	01	1	1312-1403	●
18	03.330 PIPE; INJ NO.3	8-98200-782-1	01	1	1404-1404	●
18	03.330 PIPE; INJ NO.3	8-98271-228-0	01	1	1405-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1311-		●
19	03.330 PIPE; INJ NO.4	8-98127-065-3	01	1	1309-			●
19	03.330 PIPE; INJ NO.4	8-98200-783-0	01	1	1309-1311	●
19	03.330 PIPE; INJ NO.4 EXC. EGR COOLER LH POSITION<KCC>	8-98200-783-0	01	1	1312-1403	●
19	03.330 PIPE; INJ NO.4	8-98200-783-0	01	1	1404-1404	●
19	03.330 PIPE; INJ NO.4	8-98271-229-0	01	1	1405-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1311-		●
31	03.332 NOZZLE ASM; INJ	8-98087-985-1	04	1	1309-			●
31	03.332 NOZZLE ASM; INJ	8-98207-435-0	04	1	1309-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1309-1310			●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1311-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1309-1310			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1311-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1309-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1309-	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1309-1310			●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1311-		●	●
279	03.162 CLIP; FUEL HOSE 03.680 (F) ID=7	8-94208-596-0	01	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.240 (G) ID=16	8-94392-924-0	04	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.540 (C) ID=18.9	8-94478-875-0	02	1	1309-			●
279	03.162 CLIP; FUEL HOSE 16.065 (D) ID=16	8-97038-800-0	01	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.153 (E) ID=11.5	8-97375-638-0	02	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1309-	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	1309-	●
281	03.162 CLIP	8-98171-622-0	04	1	1309-			●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1309-1310			●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1311-		●	●
347	03.332 PIN	8-98165-035-0	04	1	1309-1310			●
347	03.332 PIN	8-98165-035-0	04	1	1311-		●	●
348	03.163 HOSE; FUEL (F)	8-98089-285-0	01	1	1309-			●
348	03.163 HOSE; FUEL (C)	8-98097-671-0	01	1	1309-			●
348	03.163 HOSE; FUEL (D)	8-98097-672-2	01	1	1309-			●
348	03.163 HOSE; FUEL (E) L=100	8-98240-459-0	01	1	1309-			●
348	03.163 HOSE; FUEL (A)	8-98087-960-0	01	1	1309-	●
348	03.163 HOSE; FUEL (B)	8-98126-629-0	01	1	1309-	●

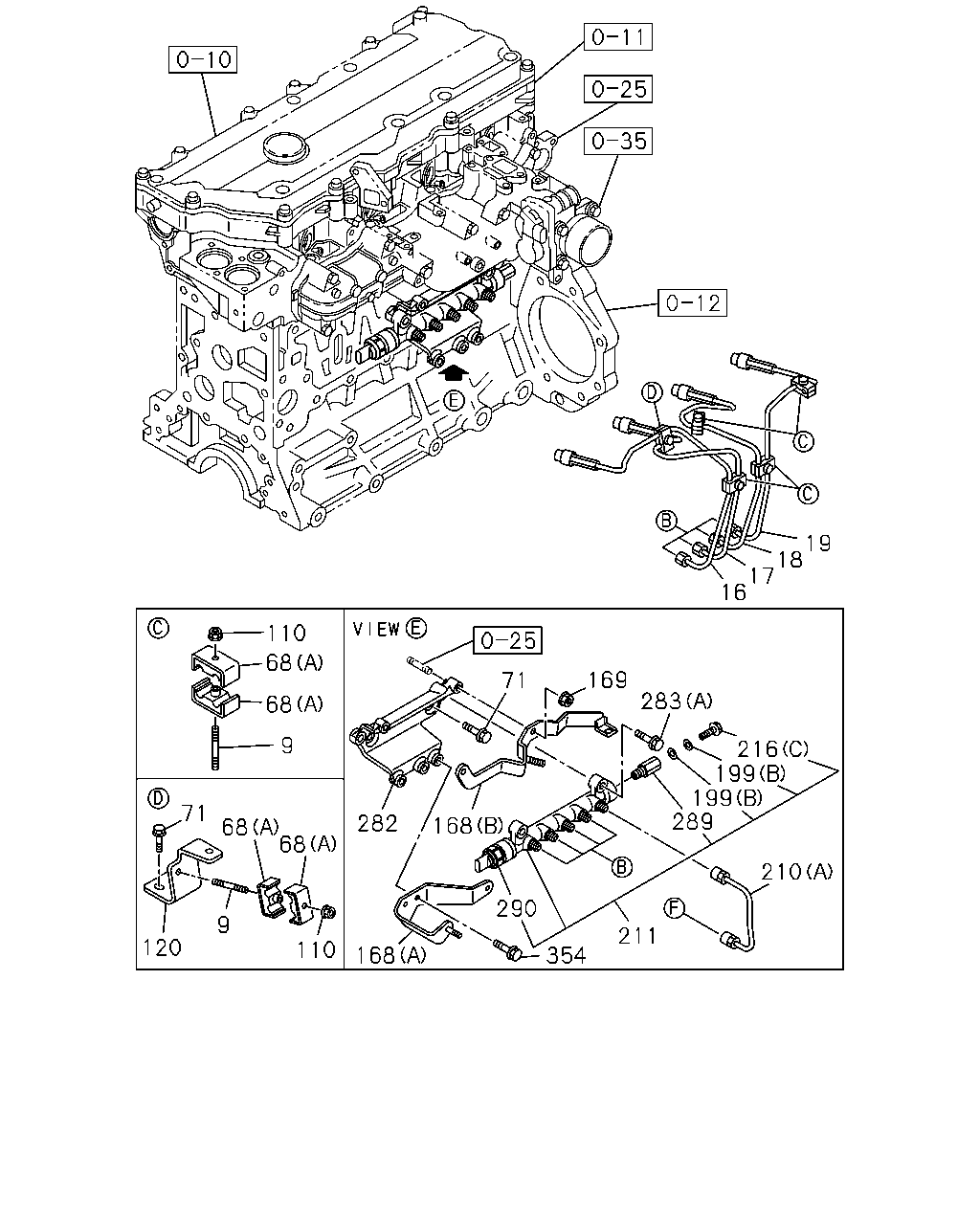

110 68 68 9 68 68 71 120 9 19 18 17 16 283 169 71 199 289 210 199 216 282 168 290 211 354 168 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1311-		●
9	03.340 STUD; CLIP 03.278 M6X40 L=50	0-41010-640-0	03	1	1309-	●
9	03.340 STUD; CLIP 00.413 M6X35 L=43	8-97203-278-0	04	1	1309-	●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1311-		●
16	03.330 PIPE; INJ NO.1	8-98127-062-3	01	1	1309-			●
16	03.330 PIPE; INJ NO.1	8-98200-780-0	01	1	1309-1311	●
16	03.330 PIPE; INJ NO.1 EXC. EGR COOLER LH POSITION<KCC>	8-98200-780-0	01	1	1312-1403	●
16	03.330 PIPE; INJ NO.1	8-98200-780-0	01	1	1404-1404	●
16	03.330 PIPE; INJ NO.1	8-98271-226-0	01	1	1405-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1311-		●
17	03.330 PIPE; INJ NO.2	8-98127-063-3	01	1	1309-			●
17	03.330 PIPE; INJ NO.2	8-98200-781-0	01	1	1309-1311	●
17	03.330 PIPE; INJ NO.2 EXC. EGR COOLER LH POSITION<KCC>	8-98200-781-0	01	1	1312-1403	●
17	03.330 PIPE; INJ NO.2	8-98200-781-0	01	1	1404-1404	●
17	03.330 PIPE; INJ NO.2	8-98271-227-0	01	1	1405-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1311-		●
18	03.330 PIPE; INJ NO.3	8-98127-064-3	01	1	1309-			●
18	03.330 PIPE; INJ NO.3	8-98200-782-1	01	1	1309-1311	●
18	03.330 PIPE; INJ NO.3 EXC. EGR COOLER LH POSITION<KCC>	8-98200-782-1	01	1	1312-1403	●
18	03.330 PIPE; INJ NO.3	8-98200-782-1	01	1	1404-1404	●
18	03.330 PIPE; INJ NO.3	8-98271-228-0	01	1	1405-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1311-		●
19	03.330 PIPE; INJ NO.4	8-98127-065-3	01	1	1309-			●
19	03.330 PIPE; INJ NO.4	8-98200-783-0	01	1	1309-1311	●
19	03.330 PIPE; INJ NO.4 EXC. EGR COOLER LH POSITION<KCC>	8-98200-783-0	01	1	1312-1403	●
19	03.330 PIPE; INJ NO.4	8-98200-783-0	01	1	1404-1404	●
19	03.330 PIPE; INJ NO.4	8-98271-229-0	01	1	1405-	●
68	03.162 CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-118-3	01	1	1309-1310			●
68	03.162 CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-118-3	01	1	1311-		●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1309-1310			●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1311-		●	●
68	03.162 CLIP; INJ PIPE (C) ID=7 L=11	8-98153-873-0	02	1	1309-			●
68	03.162 CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	12	1	1309-1405	●
68	03.162 CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	12	1	1406-	●
71	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1309-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1309-	●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1309-	●
168	03.890 BRACKET; FUEL PIPE EGR COOLER LH POSITION<KCC> (B)	8-98298-595-0	01	1	1411-	●
168	03.890 BRACKET; FUEL PIPE (C)	8-98153-479-2	01	1	1309-			●
168	03.890 BRACKET; FUEL PIPE (A)	8-98096-204-0	01	1	1309-	●
168	03.890 BRACKET; FUEL PIPE (B)	8-98244-043-1	01	1	1309-1410	●
168	03.890 BRACKET; FUEL PIPE EXC. EGR COOLER LH POSITION<KCC> (B)	8-98244-043-1	01	1	1411-	●
169	03.890 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1309-			●
169	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1311-		●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1309-	●
210	03.330 PIPE; INJ,C/R (C)	8-98089-019-2	01	1	1309-			●
210	03.330 PIPE; INJ,C/R (B)	8-98089-020-0	01	1	1309-			●
210	03.330 PIPE; INJ,C/R (A)	8-98200-786-0	01	1	1309-	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1311-		●
211	03.331 RAIL ASM; COMMON	8-98087-987-1	01	1	1309-			●
211	03.331 RAIL ASM; COMMON	8-98203-404-2	01	1	1309-	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1311-		●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1309-	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1309-	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1309-1310	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1311-	●	●
282	03.163 BRACKET; COMMON RAIL	8-98200-778-0	01	1	1309-	●
283	03.330 BOLT; COMMON RAIL 04.510 (C) M10X35 FLANGE	0-28051-035-0	01	1	1410-		●
283	03.330 BOLT; COMMON RAIL 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1309-			●
283	03.330 BOLT; COMMON RAIL 03.670 (A) M10X35 FLANGE	0-28151-035-0	02	1	1309-	●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1311-		●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1309-	●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1311-		●
290	03.331 SENSOR; PRESS	8-98138-738-0	01	1	1309-	●
354	03.163 BOLT; FUEL PIPE 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1311-		●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1309-	●		●

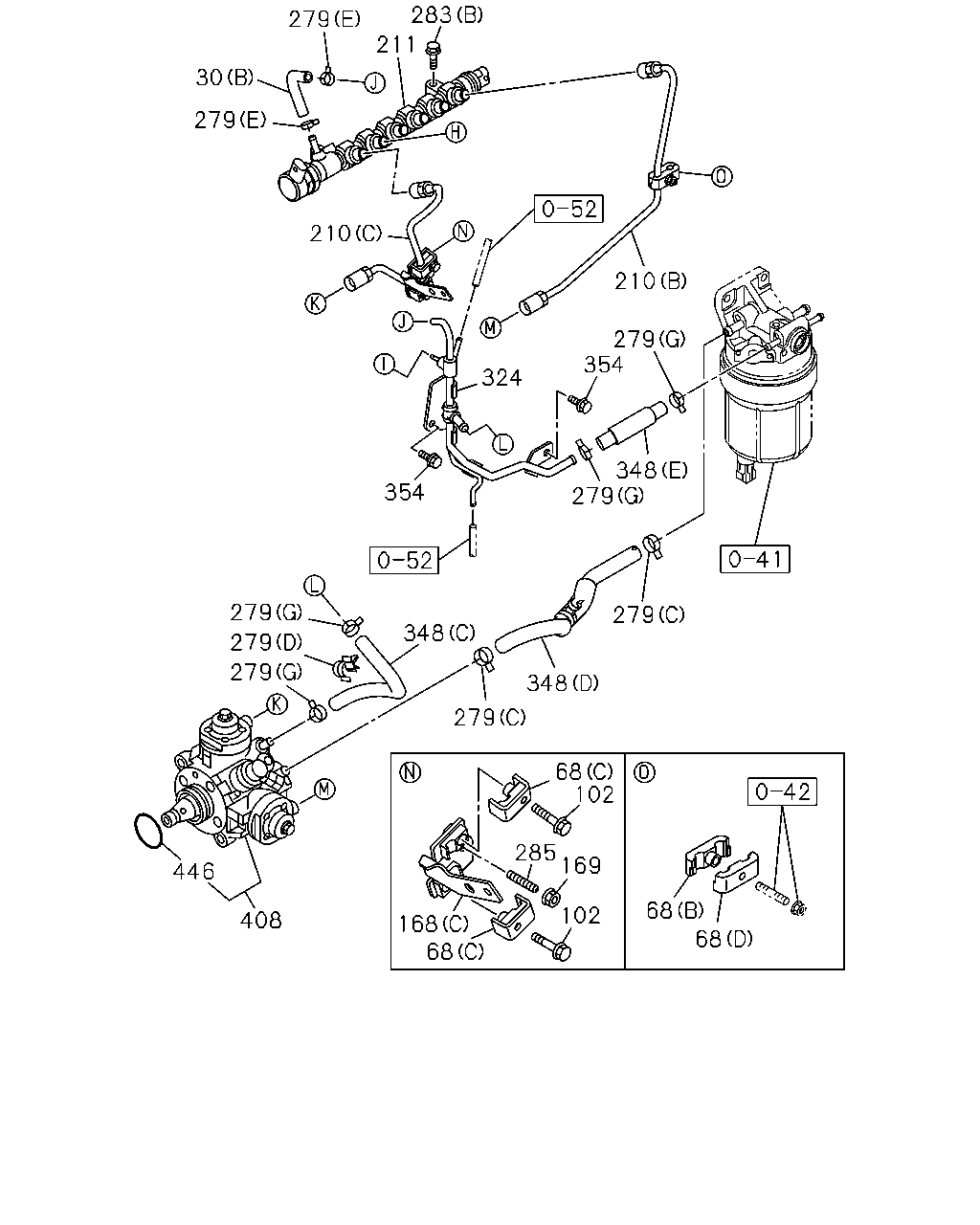

211 279 283 210 279 30 324 354 279 210 279 279 348 279 348 279 279 279 446 408 168 285 169 102 68 102 68 68 68 348 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	03.163 HOSE; RUBBER,FUEL LEAK (E)	8-98162-319-0	01	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98162-623-1	03	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98166-894-0	01	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98142-370-1	01	1	1309-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98209-883-0	01	1	1309-	●
68	03.162 CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-118-3	01	1	1309-1310			●
68	03.162 CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-118-3	01	1	1311-		●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1309-1310			●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1311-		●	●
68	03.162 CLIP; INJ PIPE (C) ID=7 L=11	8-98153-873-0	02	1	1309-			●
68	03.162 CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	12	1	1309-1405	●
68	03.162 CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	12	1	1406-	●
102	03.162 BOLT; INJ PIPE CLIP 01.531 M6X30 FLANGE	0-28050-630-0	02	1	1309-			●
168	03.890 BRACKET; FUEL PIPE EGR COOLER LH POSITION<KCC> (B)	8-98298-595-0	01	1	1411-	●
168	03.890 BRACKET; FUEL PIPE (C)	8-98153-479-2	01	1	1309-			●
168	03.890 BRACKET; FUEL PIPE (A)	8-98096-204-0	01	1	1309-	●
168	03.890 BRACKET; FUEL PIPE (B)	8-98244-043-1	01	1	1309-1410	●
168	03.890 BRACKET; FUEL PIPE EXC. EGR COOLER LH POSITION<KCC> (B)	8-98244-043-1	01	1	1411-	●
169	03.890 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1309-			●
169	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●
210	03.330 PIPE; INJ,C/R (C)	8-98089-019-2	01	1	1309-			●
210	03.330 PIPE; INJ,C/R (B)	8-98089-020-0	01	1	1309-			●
210	03.330 PIPE; INJ,C/R (A)	8-98200-786-0	01	1	1309-	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1311-		●
211	03.331 RAIL ASM; COMMON	8-98087-987-1	01	1	1309-			●
211	03.331 RAIL ASM; COMMON	8-98203-404-2	01	1	1309-	●
279	03.162 CLIP; FUEL HOSE 03.680 (F) ID=7	8-94208-596-0	01	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.240 (G) ID=16	8-94392-924-0	04	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.540 (C) ID=18.9	8-94478-875-0	02	1	1309-			●
279	03.162 CLIP; FUEL HOSE 16.065 (D) ID=16	8-97038-800-0	01	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.153 (E) ID=11.5	8-97375-638-0	02	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1309-	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	1309-	●
283	03.330 BOLT; COMMON RAIL 04.510 (C) M10X35 FLANGE	0-28051-035-0	01	1	1410-		●
283	03.330 BOLT; COMMON RAIL 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1309-			●
283	03.330 BOLT; COMMON RAIL 03.670 (A) M10X35 FLANGE	0-28151-035-0	02	1	1309-	●
285	03.162 STUD; BRKT 01.453 M8X16 L=28	0-41010-816-0	01	1	1309-			●
324	03.330 PIPE; FUEL RETURN	8-98111-476-3	01	1	1311-		●
324	03.330 PIPE; FUEL RETURN	8-98089-221-1	01	1	1309-			●
324	03.330 PIPE; FUEL RETURN	8-98025-858-0	01	1	1309-	●
348	03.163 HOSE; FUEL (F)	8-98089-285-0	01	1	1309-			●
348	03.163 HOSE; FUEL (C)	8-98097-671-0	01	1	1309-			●
348	03.163 HOSE; FUEL (D)	8-98097-672-2	01	1	1309-			●
348	03.163 HOSE; FUEL (E) L=100	8-98240-459-0	01	1	1309-			●
348	03.163 HOSE; FUEL (A)	8-98087-960-0	01	1	1309-	●
348	03.163 HOSE; FUEL (B)	8-98126-629-0	01	1	1309-	●
354	03.163 BOLT; FUEL PIPE 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1311-		●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1309-	●		●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1311-		●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98087-986-2	01	1	1309-			●
446	03.331 GASKET; SUPPLY PUMP	8-98210-203-0	01	1	1309-			●

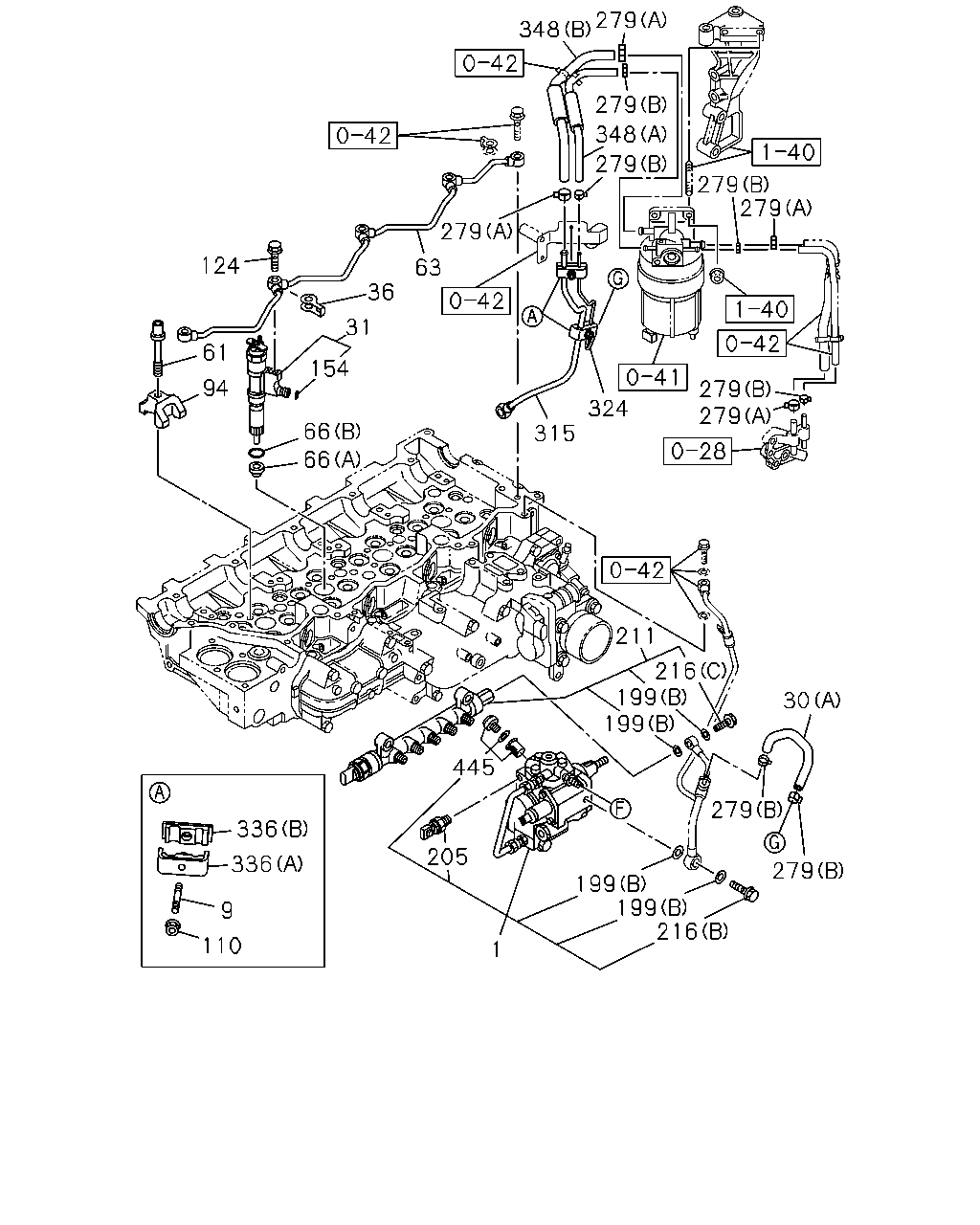

348 279 279 348 279 279 279 279 63 36 31 154 61 94 124 66 66 315 324 279 279 211 216 30 199 199 279 279 199 199 216 1 205 336 336 9 110 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1309-	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1311-		●
9	03.340 STUD; CLIP 03.278 M6X40 L=50	0-41010-640-0	03	1	1309-	●
9	03.340 STUD; CLIP 00.413 M6X35 L=43	8-97203-278-0	04	1	1309-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E)	8-98162-319-0	01	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98162-623-1	03	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98166-894-0	01	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98142-370-1	01	1	1309-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98209-883-0	01	1	1309-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1311-		●
31	03.332 NOZZLE ASM; INJ	8-98087-985-1	04	1	1309-			●
31	03.332 NOZZLE ASM; INJ	8-98207-435-0	04	1	1309-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1309-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1309-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1309-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1309-1310			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1311-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1309-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1309-	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1309-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1309-	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1309-	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1311-		●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1309-	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1309-1310	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1311-	●	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1311-		●
211	03.331 RAIL ASM; COMMON	8-98087-987-1	01	1	1309-			●
211	03.331 RAIL ASM; COMMON	8-98203-404-2	01	1	1309-	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1311-		●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1309-	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1309-	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1309-1310	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1311-	●	●
279	03.162 CLIP; FUEL HOSE 03.680 (F) ID=7	8-94208-596-0	01	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.240 (G) ID=16	8-94392-924-0	04	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.540 (C) ID=18.9	8-94478-875-0	02	1	1309-			●
279	03.162 CLIP; FUEL HOSE 16.065 (D) ID=16	8-97038-800-0	01	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.153 (E) ID=11.5	8-97375-638-0	02	1	1309-			●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1309-	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	1309-	●
315	03.163 PIPE; FUEL,SUCTION	8-98126-334-0	01	1	1309-	●
324	03.330 PIPE; FUEL RETURN	8-98111-476-3	01	1	1311-		●
324	03.330 PIPE; FUEL RETURN	8-98089-221-1	01	1	1309-			●
324	03.330 PIPE; FUEL RETURN	8-98025-858-0	01	1	1309-	●
336	03.163 CLIP; FUEL PIPE 01.531 (A) ID=8 & 9 L=25	8-97603-522-0	02	1	1309-	●
336	03.163 CLIP; FUEL PIPE 01.531 (B) ID=8 & 9 L=25	8-97603-523-0	02	1	1309-	●
348	03.163 HOSE; FUEL (F)	8-98089-285-0	01	1	1309-			●
348	03.163 HOSE; FUEL (C)	8-98097-671-0	01	1	1309-			●
348	03.163 HOSE; FUEL (D)	8-98097-672-2	01	1	1309-			●
348	03.163 HOSE; FUEL (E) L=100	8-98240-459-0	01	1	1309-			●
348	03.163 HOSE; FUEL (A)	8-98087-960-0	01	1	1309-	●
348	03.163 HOSE; FUEL (B)	8-98126-629-0	01	1	1309-	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1309-1310	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1311-	●	●

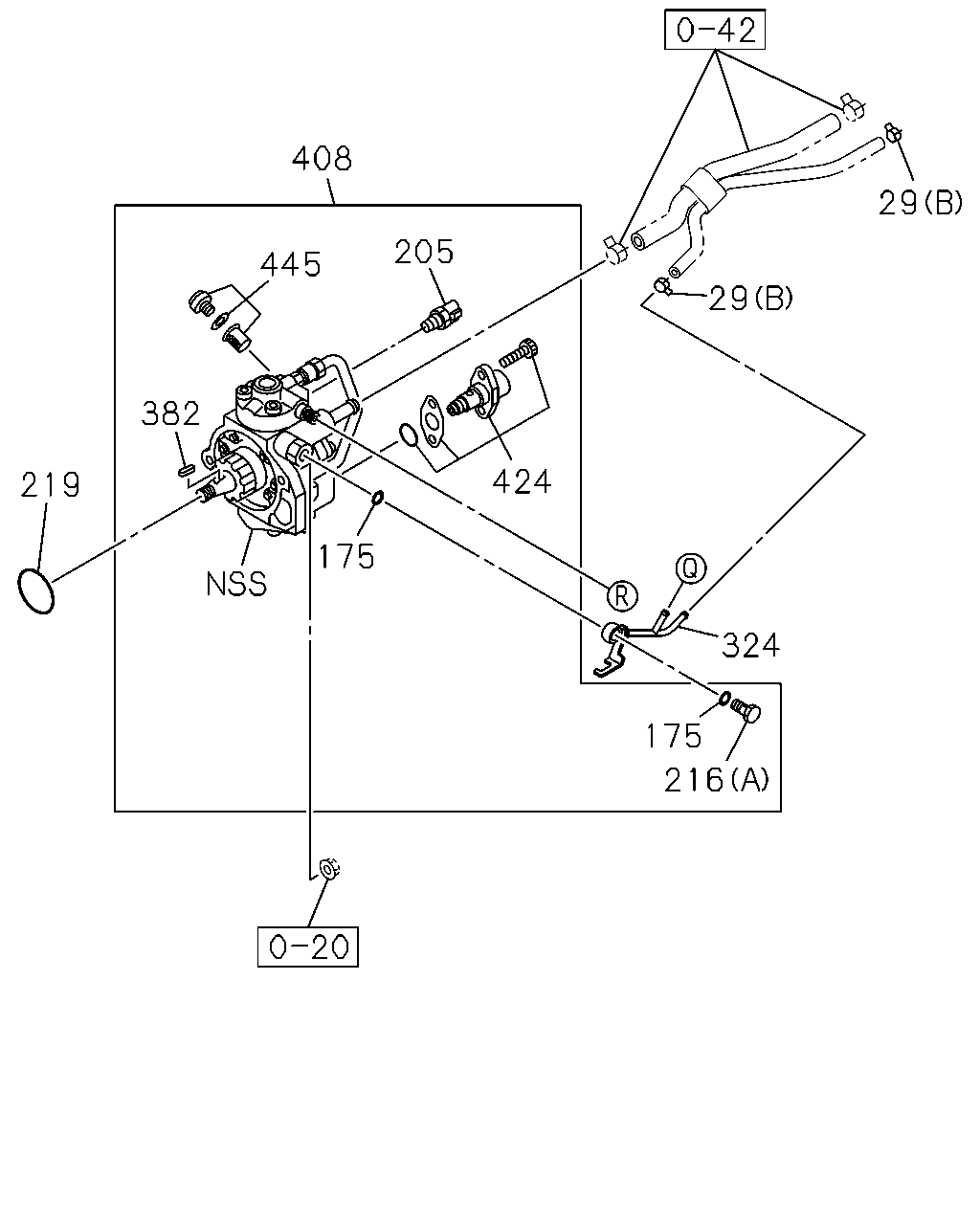

408 445 382 219 175 424 175 216 324 29 29 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1311-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1311-		●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1311-		●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1309-1310	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1311-	●	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1311-		●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1309-	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1309-	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1309-1310	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1311-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1311-		●
324	03.330 PIPE; FUEL RETURN	8-98111-476-3	01	1	1311-		●
324	03.330 PIPE; FUEL RETURN	8-98089-221-1	01	1	1309-			●
324	03.330 PIPE; FUEL RETURN	8-98025-858-0	01	1	1309-	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1309-1310	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1311-	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1311-		●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98087-986-2	01	1	1309-			●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1309-1310	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1311-	●	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1309-1310	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1311-	●	●

122 137 30 29 29 31 166 29 122 137 30 122 137 29 122 137 29 29 30 29 313 59 66 347 30 29 122 137 9 354 122 30 199 199 216 289 388 392 283 68 68 110 290 211 16 17 18 19 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	01	1	1311-		●
9	03.340 STUD; CLIP 03.278 M6X40 L=50	0-41010-640-0	03	1	1309-	●
9	03.340 STUD; CLIP 00.413 M6X35 L=43	8-97203-278-0	04	1	1309-	●
16	03.330 PIPE; INJ NO.1	8-98074-932-1	01	1	1311-		●
16	03.330 PIPE; INJ NO.1	8-98127-062-3	01	1	1309-			●
16	03.330 PIPE; INJ NO.1	8-98200-780-0	01	1	1309-1311	●
16	03.330 PIPE; INJ NO.1 EXC. EGR COOLER LH POSITION<KCC>	8-98200-780-0	01	1	1312-1403	●
16	03.330 PIPE; INJ NO.1	8-98200-780-0	01	1	1404-1404	●
16	03.330 PIPE; INJ NO.1	8-98271-226-0	01	1	1405-	●
17	03.330 PIPE; INJ NO.2	8-98074-933-1	01	1	1311-		●
17	03.330 PIPE; INJ NO.2	8-98127-063-3	01	1	1309-			●
17	03.330 PIPE; INJ NO.2	8-98200-781-0	01	1	1309-1311	●
17	03.330 PIPE; INJ NO.2 EXC. EGR COOLER LH POSITION<KCC>	8-98200-781-0	01	1	1312-1403	●
17	03.330 PIPE; INJ NO.2	8-98200-781-0	01	1	1404-1404	●
17	03.330 PIPE; INJ NO.2	8-98271-227-0	01	1	1405-	●
18	03.330 PIPE; INJ NO.3	8-98074-934-1	01	1	1311-		●
18	03.330 PIPE; INJ NO.3	8-98127-064-3	01	1	1309-			●
18	03.330 PIPE; INJ NO.3	8-98200-782-1	01	1	1309-1311	●
18	03.330 PIPE; INJ NO.3 EXC. EGR COOLER LH POSITION<KCC>	8-98200-782-1	01	1	1312-1403	●
18	03.330 PIPE; INJ NO.3	8-98200-782-1	01	1	1404-1404	●
18	03.330 PIPE; INJ NO.3	8-98271-228-0	01	1	1405-	●
19	03.330 PIPE; INJ NO.4	8-98074-935-1	01	1	1311-		●
19	03.330 PIPE; INJ NO.4	8-98127-065-3	01	1	1309-			●
19	03.330 PIPE; INJ NO.4	8-98200-783-0	01	1	1309-1311	●
19	03.330 PIPE; INJ NO.4 EXC. EGR COOLER LH POSITION<KCC>	8-98200-783-0	01	1	1312-1403	●
19	03.330 PIPE; INJ NO.4	8-98200-783-0	01	1	1404-1404	●
19	03.330 PIPE; INJ NO.4	8-98271-229-0	01	1	1405-	●
29	03.162 CLIP; HOSE 03.374 (A) ID=10.5	8-97019-473-0	08	1	1311-		●
29	03.162 CLIP; HOSE 01.153 (B) ID=11	8-97375-639-0	02	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E)	8-98162-319-0	01	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98162-623-1	03	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98166-894-0	01	1	1311-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98142-370-1	01	1	1309-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98209-883-0	01	1	1309-	●
31	03.332 NOZZLE ASM; INJ	8-98238-318-0	04	1	1311-		●
31	03.332 NOZZLE ASM; INJ	8-98087-985-1	04	1	1309-			●
31	03.332 NOZZLE ASM; INJ	8-98207-435-0	04	1	1309-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1309-1310			●
59	03.332 CLAMP; NOZZLE HOLDER	8-98113-691-0	04	1	1311-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1309-1310			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1311-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1309-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1309-	●
68	03.162 CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-118-3	01	1	1309-1310			●
68	03.162 CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-118-3	01	1	1311-		●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1309-1310			●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1311-		●	●
68	03.162 CLIP; INJ PIPE (C) ID=7 L=11	8-98153-873-0	02	1	1309-			●
68	03.162 CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	12	1	1309-1405	●
68	03.162 CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	12	1	1406-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1309-	●
122	03.162 CLIP; LEAK OFF PIPE (A)	8-97315-286-0	04	1	1311-		●
122	03.162 CLIP; LEAK OFF PIPE 01.153 (B) ID=11	8-97375-639-0	02	1	1311-		●
128	03.162 PIPE ASM; INJ	8-98074-938-1	01	1	1311-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98074-940-3	01	1	1311-		●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1311-		●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98161-062-0	01	1	1311-		●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1309-1310			●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1311-		●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1311-		●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1309-	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1309-	●
211	03.331 RAIL ASM; COMMON	8-98077-001-1	01	1	1311-		●
211	03.331 RAIL ASM; COMMON	8-98087-987-1	01	1	1309-			●
211	03.331 RAIL ASM; COMMON	8-98203-404-2	01	1	1309-	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1311-		●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1309-	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1309-	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1309-1310	●
216	03.162 BOLT; EYE (C)	8-98035-828-0	01	1	1311-	●	●
283	03.330 BOLT; COMMON RAIL 04.510 (C) M10X35 FLANGE	0-28051-035-0	01	1	1410-		●
283	03.330 BOLT; COMMON RAIL 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1309-			●
283	03.330 BOLT; COMMON RAIL 03.670 (A) M10X35 FLANGE	0-28151-035-0	02	1	1309-	●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1311-		●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1309-	●
290	03.331 SENSOR; PRESS	8-98138-736-0	01	1	1311-		●
290	03.331 SENSOR; PRESS	8-98138-738-0	01	1	1309-	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1309-1310			●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98212-021-0	04	1	1311-		●	●
347	03.332 PIN	8-98165-035-0	04	1	1309-1310			●
347	03.332 PIN	8-98165-035-0	04	1	1311-		●	●
354	03.163 BOLT; FUEL PIPE 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1311-		●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1309-	●		●
388	03.332 STUD; RAIL 04.510 M10X28,M10X15 L=50	5-09300-050-0	02	1	1311-1409		●
388	03.332 STUD; RAIL 04.510 M10X28,M10X15 L=50	5-09300-050-0	01	1	1410-		●
392	03.330 NUT; RAIL ASM 04.085 M10 FLANGE	0-91180-210-0	02	1	1311-1409		●
392	03.330 NUT; RAIL ASM 04.085 M10 FLANGE	0-91180-210-0	01	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
