◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#126174) — 124 parça

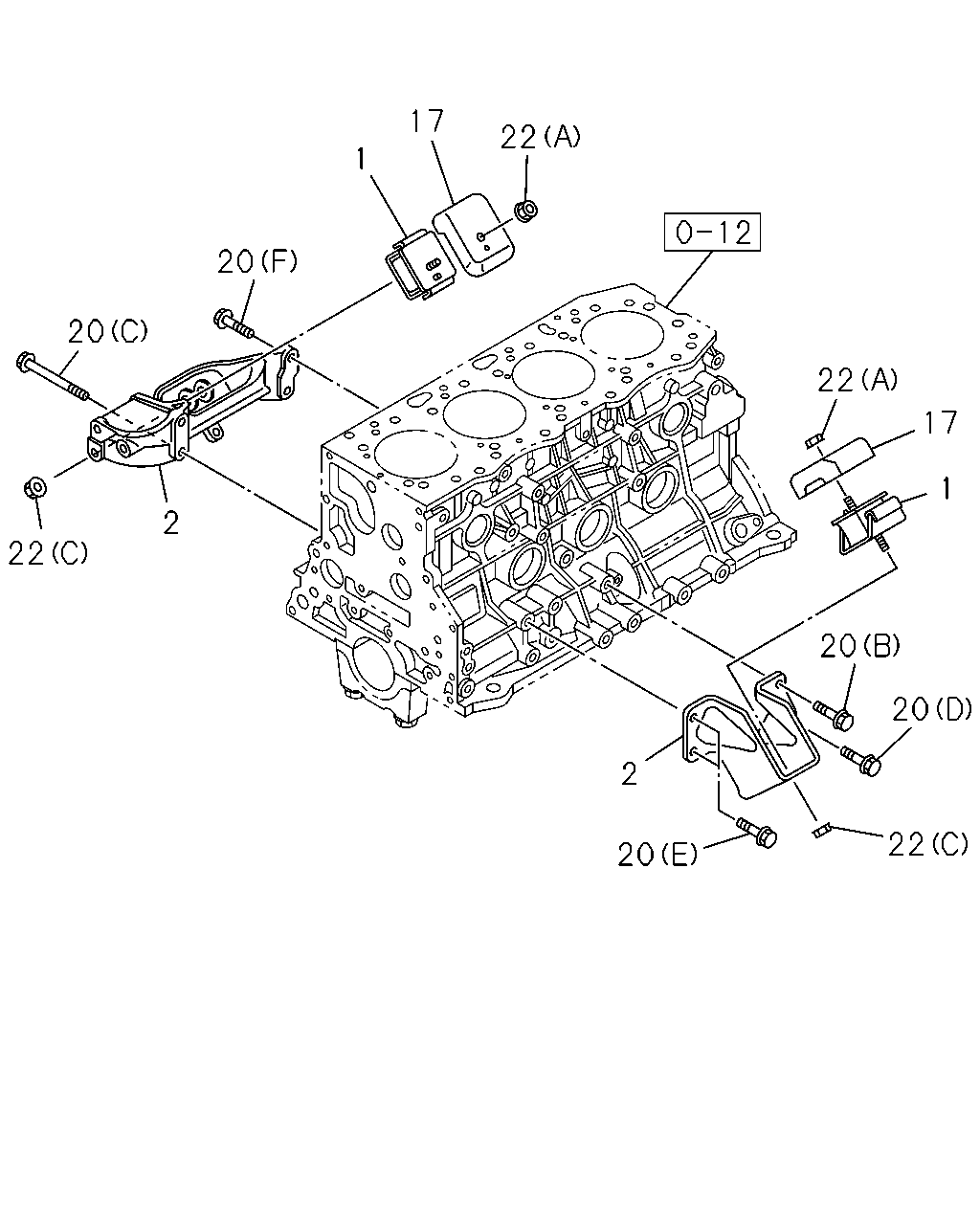

çizim 373074
22 17 1 20 20 22 2 20 22 17 1 20 20 2 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-822-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-822-0 01 1 1311- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-823-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-823-0 01 1 1311- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98043-000-0 01 1 1309-1601 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98303-820-0 01 1 1602- ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98043-001-0 01 1 1309-1601 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98303-821-0 01 1 1602- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-633-0 01 1 1309- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-634-0 01 1 1309- ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1309-1310 ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1311- ● ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1309-1310 ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1311- ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1309- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1309-1310 ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1311- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1309-1310 ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1309- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 1309-1310 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 1311- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1309- ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1309- ●

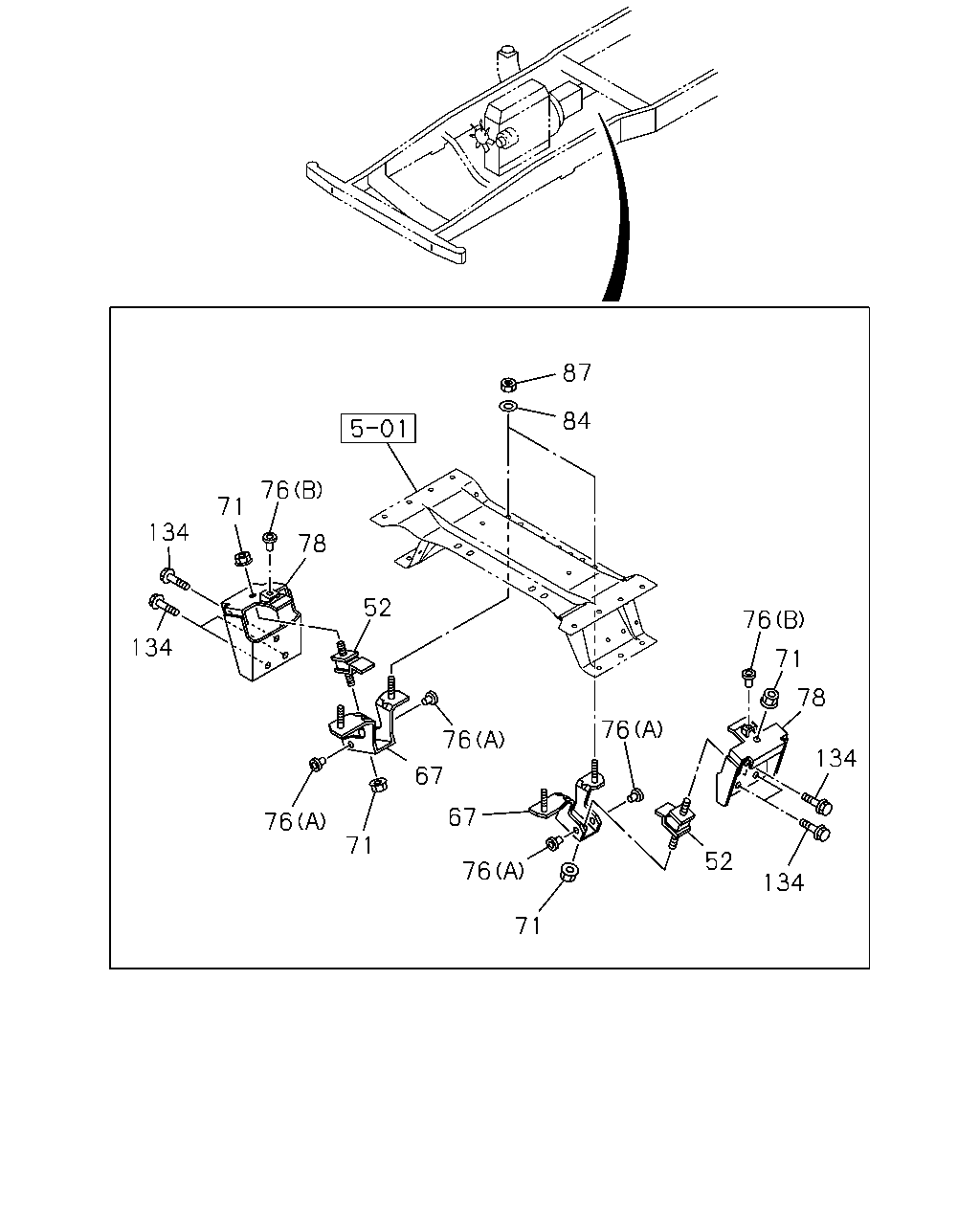

çizim 373081
76 71 78 134 134 52 76 76 67 67 76 71 52 78 87 84 76 71 134 134 76 71
BalonParca AdiParca NoAdetTipApplied Date A B C
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1309-1310 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1311- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1309- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 1309-1310 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 1309-1310 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97180-457-0 01 1 1309- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97180-458-0 01 1 1309- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1310 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1311- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1309-1310 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1311- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1309-1310 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1311- ● ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 1311- ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 1311- ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98053-903-0 01 1 1311-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98220-858-0 01 1 1311-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98220-858-0 02 1 1408- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97211-475-0 01 1 1309- ●
78 00.029 BRACKET; ENG MTG,RR 8-97234-719-0 01 1 1309- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1309- ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1309- ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1309- ● ● ●

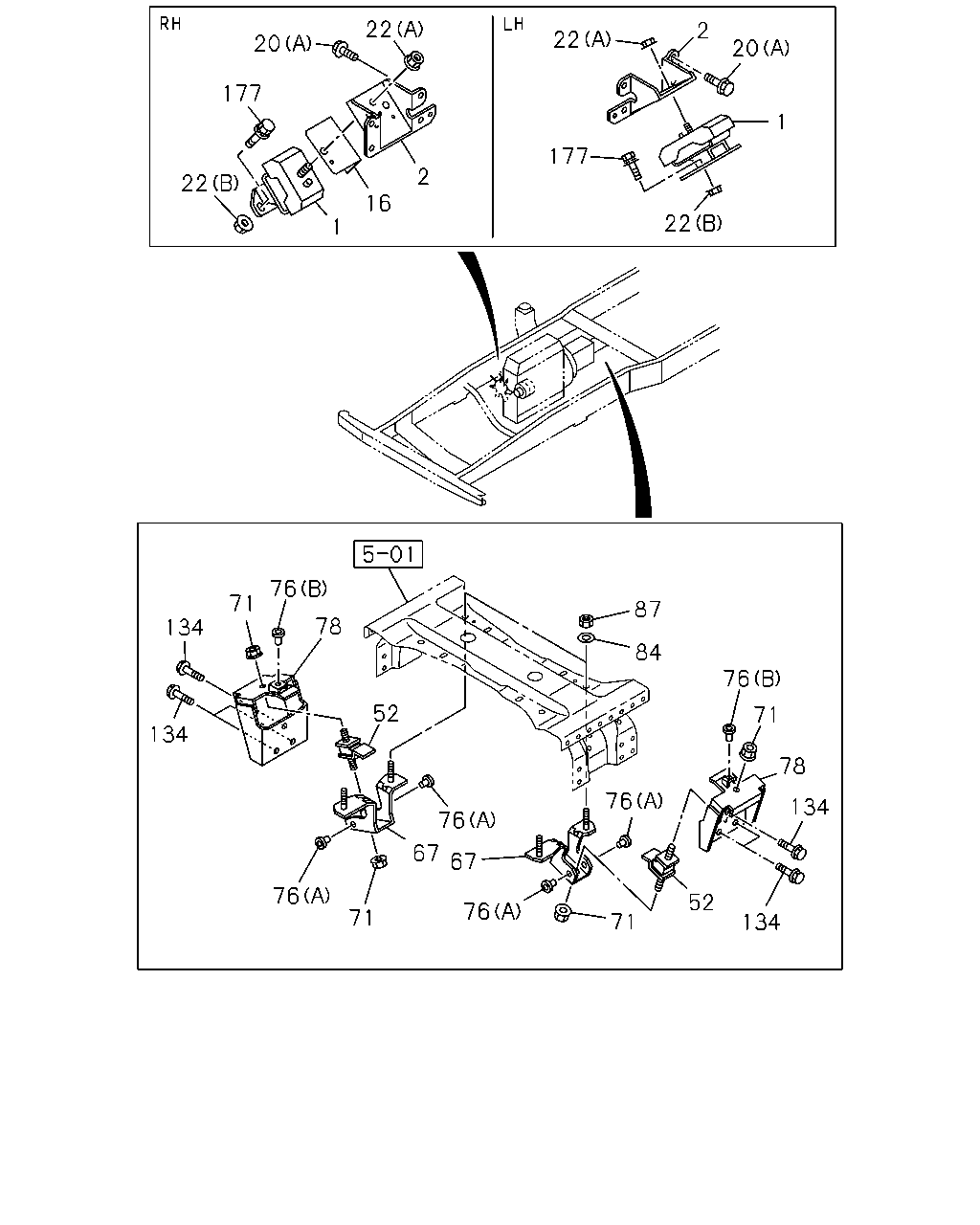

çizim 374747
20 177 22 1 16 2 22 22 177 2 20 1 22 76 71 78 134 134 52 71 76 84 87 76 67 67 76 71 76 52 78 76 71 134 134
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-822-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-822-0 01 1 1311- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-823-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) 		8-97229-823-0 01 1 1311- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98043-000-0 01 1 1309-1601 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98303-820-0 01 1 1602- ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98043-001-0 01 1 1309-1601 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR(NP***N) 		8-98303-821-0 01 1 1602- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-633-0 01 1 1309- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-634-0 01 1 1309- ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1309-1310 ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1311- ● ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1309-1310 ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1311- ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1309- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97209-564-0 01 1 1309- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1309- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 1309-1310 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 1311- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1309- ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1309- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1309-1310 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1311- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1309- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 1309-1310 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 1309-1310 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97180-457-0 01 1 1309- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97180-458-0 01 1 1309- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1310 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1311- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1309-1310 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1311- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1309-1310 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1311- ● ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 1311- ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 1311- ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98053-903-0 01 1 1311-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 01 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98220-858-0 01 1 1311-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98220-858-0 02 1 1408- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97211-475-0 01 1 1309- ●
78 00.029 BRACKET; ENG MTG,RR 8-97234-719-0 01 1 1309- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1309- ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1309- ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1309- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1309- ●
