0-13 — OIL PAN AND LEVEL GAUGE (#126170) — 94 parça

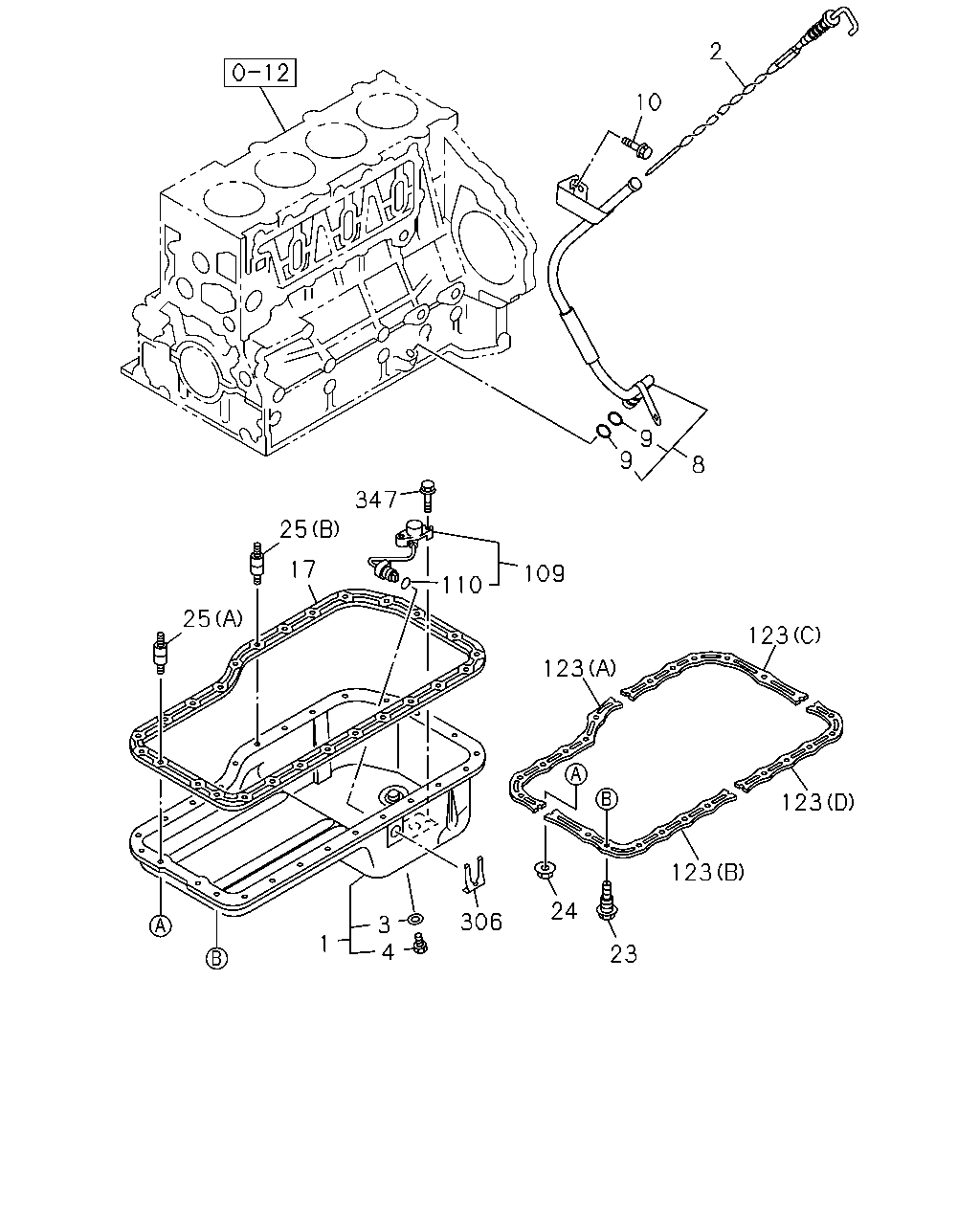

2 10 9 9 8 123 123 123 109 110 123 23 24 306 3 4 1 17 347 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1309-1310	●
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1311-	●	●
1	01.426 PAN ASM; OIL	8-97386-772-0	01	1	1309-			●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1309-1310	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1311-	●	●
2	01.516 GAUGE; OIL LEVEL	8-98175-893-0	01	1	1309-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1309-1310	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1311-	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1309-1310	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1311-	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EGR COOLER LH POSITION<KCC>	8-98297-002-0	01	1	1410-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1309-1310	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1311-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98200-768-1	01	1	1309-1409			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EGR COOLER LH POSITION<KCC>	8-98200-768-1	01	1	1410-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1309-1310	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1311-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=131.5 LINE OD=2.3	1-09623-409-0	02	1	1309-			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1309-1310	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1309-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1309-			●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1309-			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1309-1310	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1311-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1309-			●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	1309-1310	●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	1311-1405	●	●
25	01.453 STUD; OIL PAN 00.349 (C) M8X20 L=31	8-97945-022-0	02	1	1406-	●	●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1309-			●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1309-			●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1309-1310	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1311-	●	●
109	01.516 SWITCH; OIL LEVEL	8-97328-993-1	01	1	1309-			●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1309-1310	●		●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1311-	●	●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1309-			●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1309-			●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1309-			●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1309-			●
306	01.516 CLIP; CONNECTOR	8-97229-219-0	01	1	1309-			●
347	01.516 BOLT; OIL LEVEL SW 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1309-			●

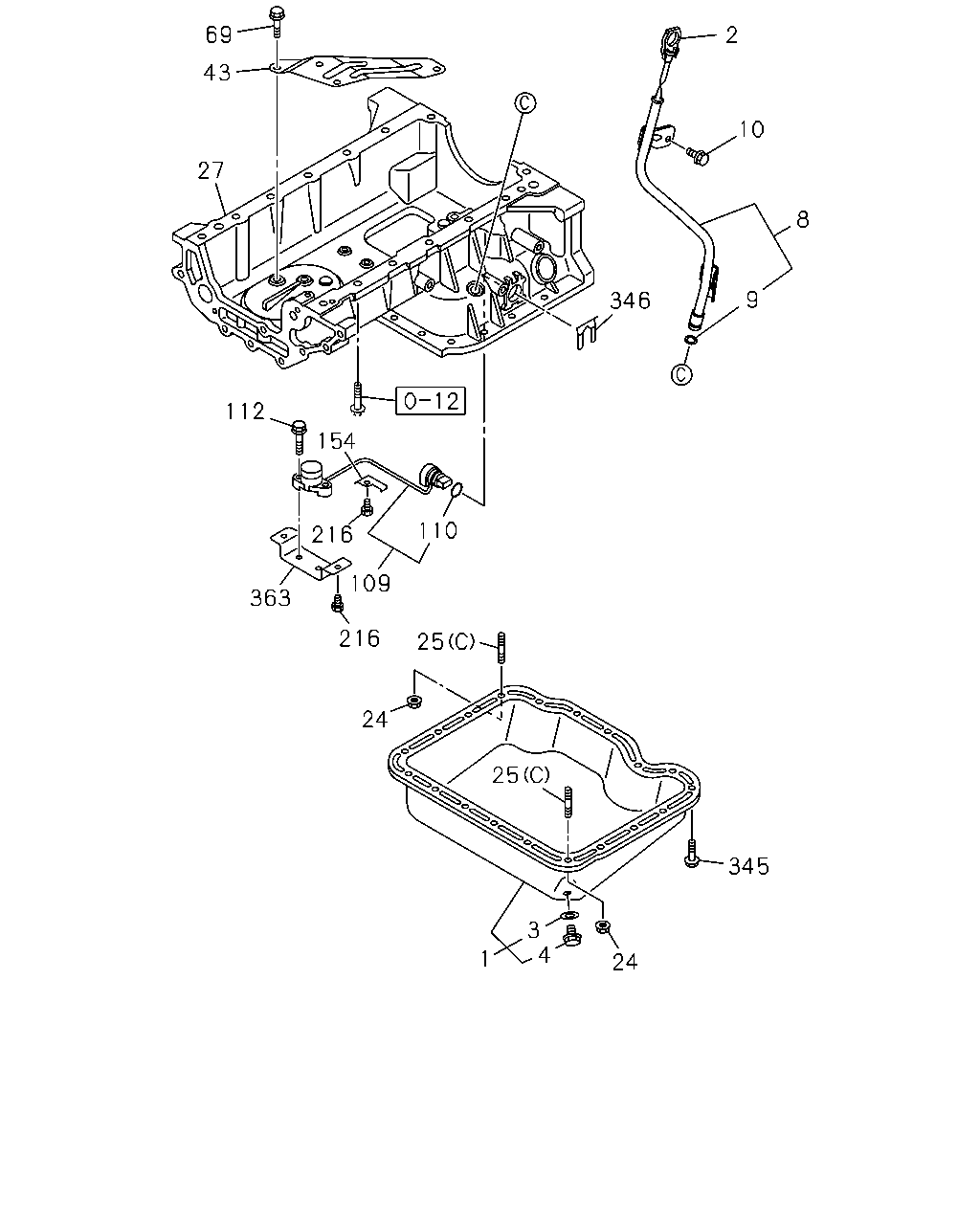

69 27 43 112 216 154 346 110 109 363 216 24 25 25 345 24 4 3 1 9 8 10 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1309-1310	●
1	01.426 PAN ASM; OIL	8-98207-932-0	01	1	1311-	●	●
1	01.426 PAN ASM; OIL	8-97386-772-0	01	1	1309-			●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1309-1310	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1311-	●	●
2	01.516 GAUGE; OIL LEVEL	8-98175-893-0	01	1	1309-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1309-1310	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1311-	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1309-1310	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1311-	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EGR COOLER LH POSITION<KCC>	8-98297-002-0	01	1	1410-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1309-1310	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98117-647-2	01	1	1311-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98200-768-1	01	1	1309-1409			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EGR COOLER LH POSITION<KCC>	8-98200-768-1	01	1	1410-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1309-1310	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1311-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=131.5 LINE OD=2.3	1-09623-409-0	02	1	1309-			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1309-1310	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1309-			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1309-1310	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1311-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1309-			●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	1309-1310	●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	1311-1405	●	●
25	01.453 STUD; OIL PAN 00.349 (C) M8X20 L=31	8-97945-022-0	02	1	1406-	●	●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1309-			●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1309-			●
27	01.426 CRANKCASE	8-98202-045-1	01	1	1309-1310	●
27	01.426 CRANKCASE	8-98202-045-2	01	1	1311-	●	●
43	01.780 PLATE; CRANKCASE 04.642	8-98213-367-0	01	1	1309-1310	●
43	01.780 PLATE; CRANKCASE 04.642	8-98213-367-0	01	1	1311-	●	●
69	01.780 BOLT; PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1309-1310	●
69	01.780 BOLT; PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1311-	●	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1309-1310	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1311-	●	●
109	01.516 SWITCH; OIL LEVEL	8-97328-993-1	01	1	1309-			●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1309-1310	●		●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1311-	●	●	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1309-1310	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1311-	●	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1309-1310	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1311-	●	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1309-1310	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1311-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X16 FLANGE	0-28050-816-0	17	1	1309-1310	●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X16 FLANGE	0-28050-816-0	17	1	1311-	●	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1309-1310	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1311-	●	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1309-1310	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1311-	●	●
