◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶

0-12 — CYLINDER BLOCK (#126169) — 134 parça

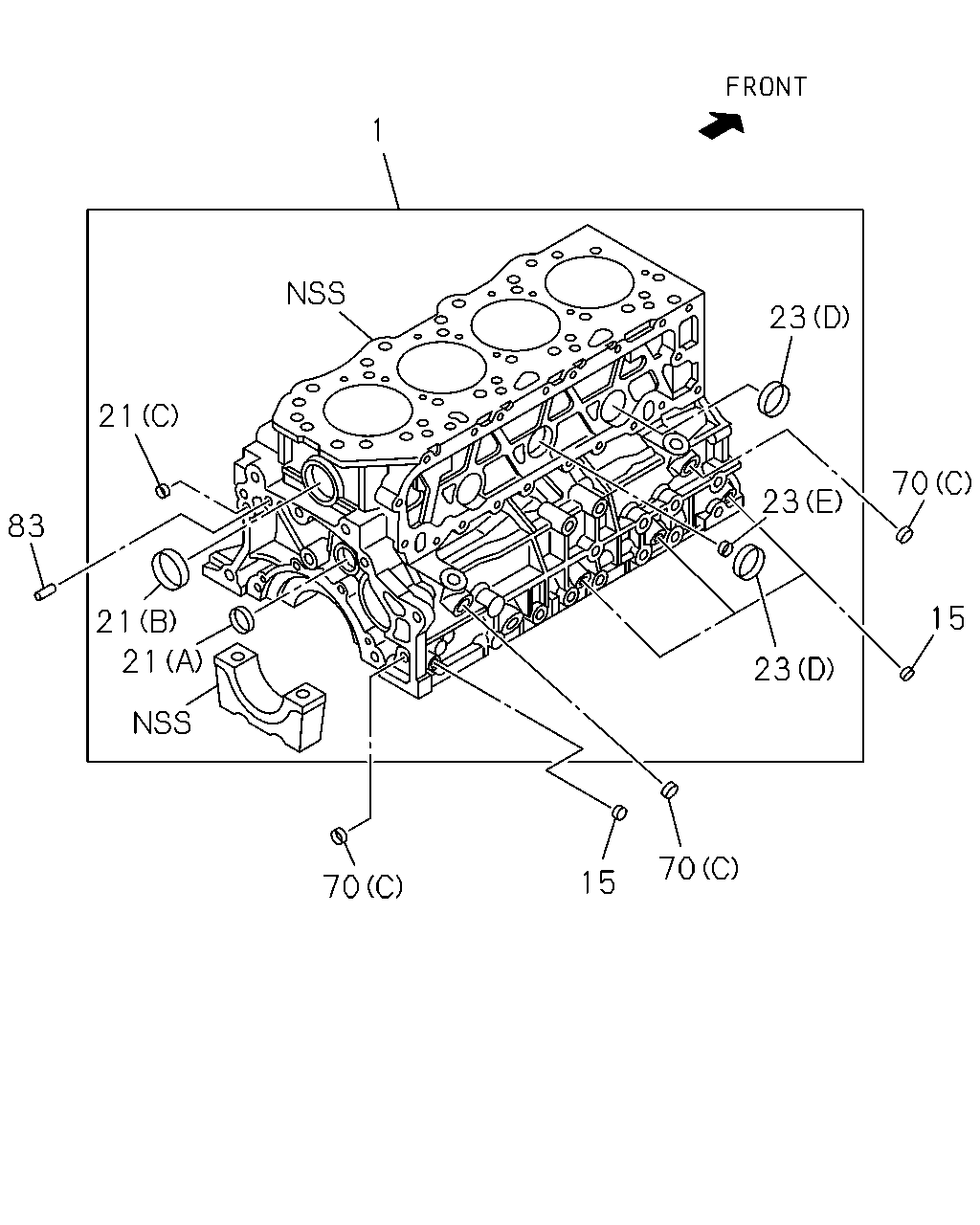

1 21 83 21 21 70 15 70 23 15 70 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-98290-980-0	01	1	1309-	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1309-1405			●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1309-1310	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1311-	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1309-	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1309-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (E) OD=18	5-11219-008-0	02	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1309-1310	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1311-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1309-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1309-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1309-1310	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1311-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1309-			●
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1309-			●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	1309-1310	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	1311-	●	●

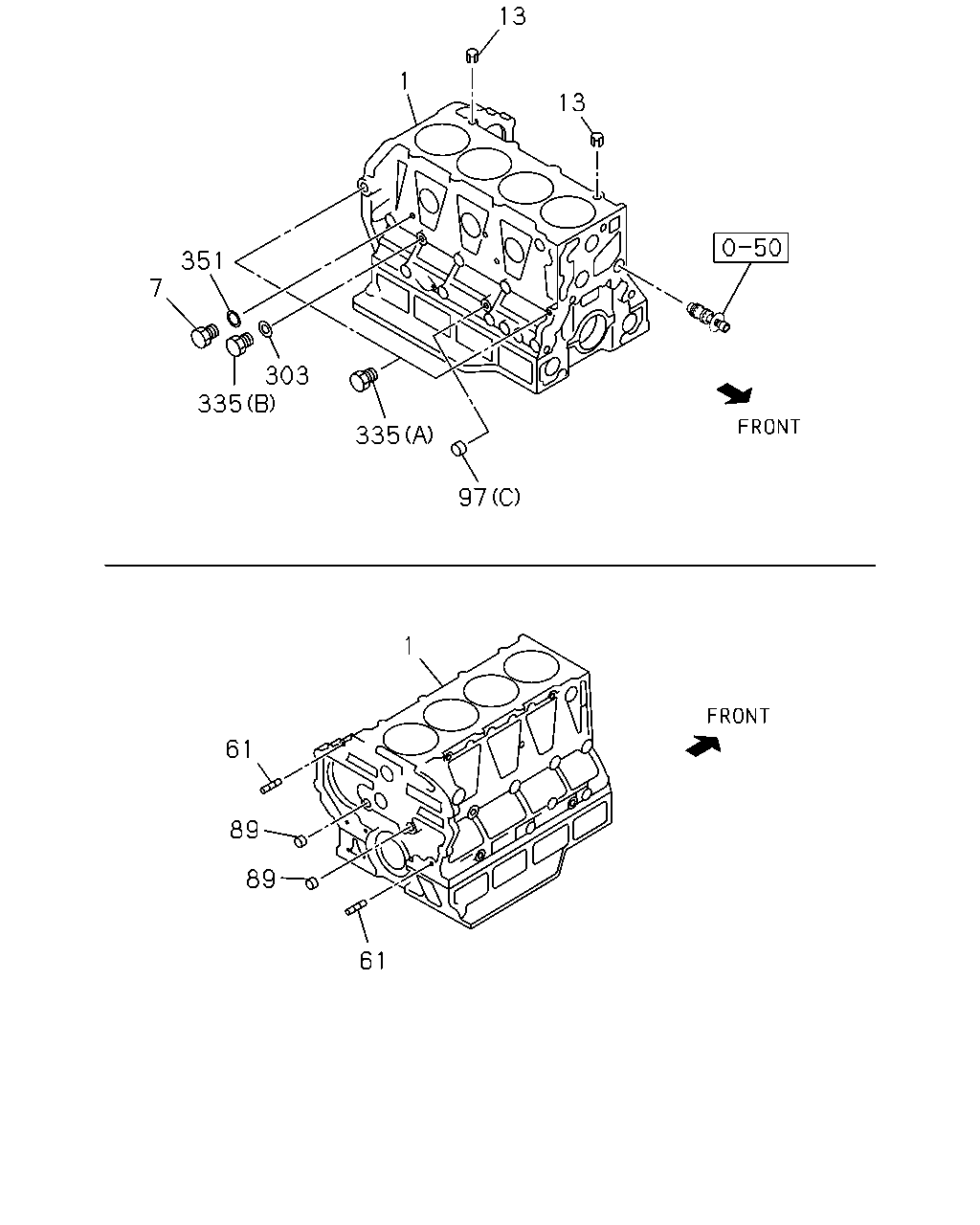

13 13 1 351 7 303 335 335 97 1 61 89 89 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-98290-980-0	01	1	1309-	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1309-1405			●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1309-	●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1309-			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1309-1310	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1311-	●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1309-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1309-1310	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1311-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1309-			●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	1309-			●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	1309-			●
97	00.034 CUP; SEALING 00.253 (C) OD=12	8-97036-335-1	01	1	1309-			●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	1309-			●
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	1309-1312			●
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-			●
335	01.531 PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1309-			●
335	01.531 PLUG; C/BL,SIDE 04.866 (B) M14X18	8-98038-403-0	01	1	1309-			●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1309-			●

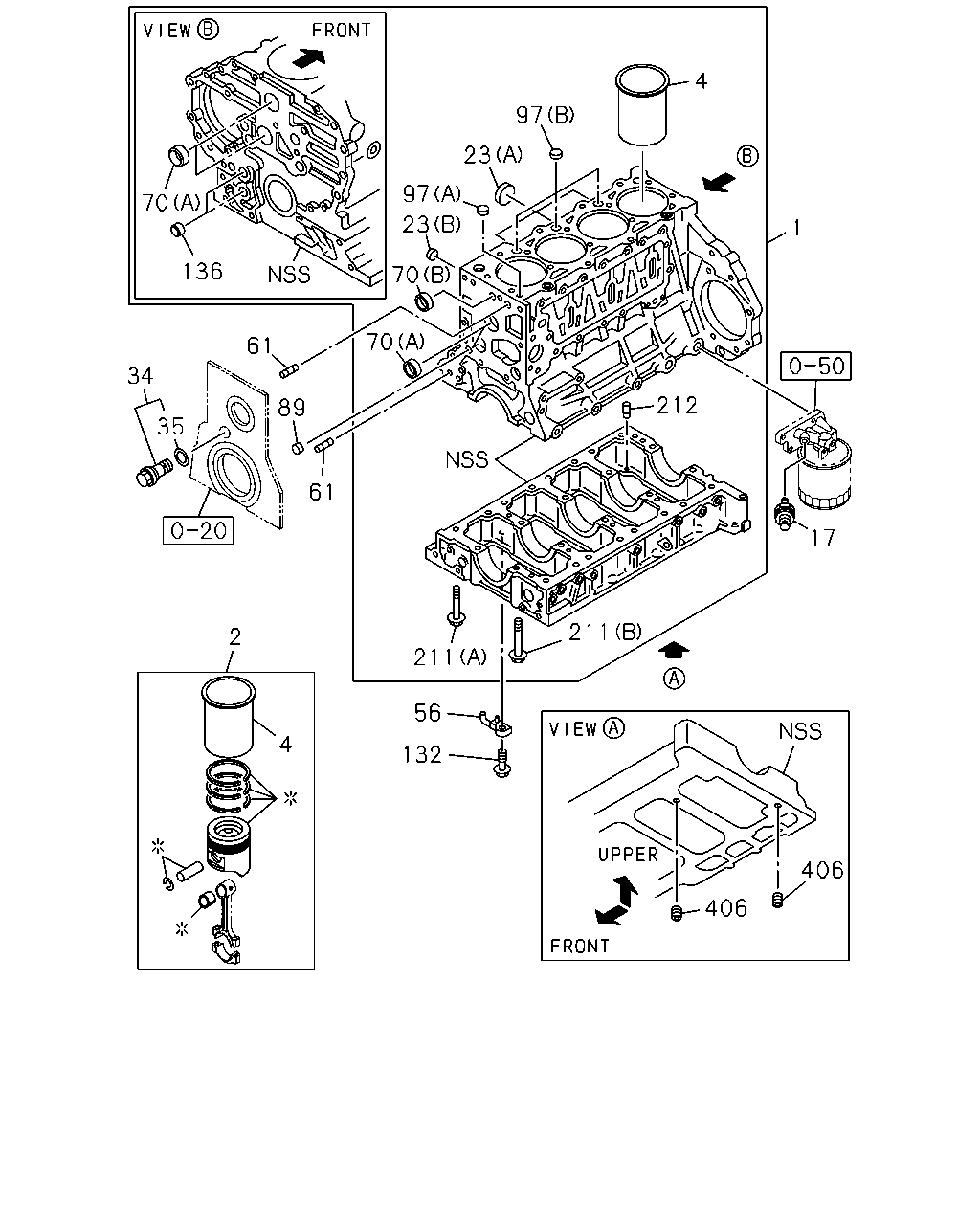

406 406 17 211 211 56 132 4 2 212 61 89 61 35 34 70 70 23 97 23 97 4 1 136 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-98290-980-0	01	1	1309-	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1309-1405			●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87814-897-0	04	1	1309-1405			●
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-			●
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87814-898-0	04	1	1309-1405			●
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1309-1405			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1309-1405			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-			●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1309-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (E) OD=18	5-11219-008-0	02	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1309-1310	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1311-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1309-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1309-			●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	1309-			●
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	1309-			●
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1309-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1309-1310	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1311-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1309-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1309-1310	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1311-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1309-			●
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1309-			●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	1309-			●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	1309-			●
97	00.034 CUP; SEALING 00.253 (C) OD=12	8-97036-335-1	01	1	1309-			●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	1309-			●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1309-			●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1309-			●
211	01.428 BOLT; CRANKCASE 01.252 (C) M8X80 FLANGE	0-28050-880-0	05	1	1309-1310	●
211	01.428 BOLT; CRANKCASE 01.252 (C) M8X80 FLANGE	0-28050-880-0	05	1	1311-	●	●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	09	1	1309-1310	●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	09	1	1311-	●	●
211	01.428 BOLT; CRANKCASE (A) M10X82	8-94399-553-2	17	1	1309-			●
211	01.428 BOLT; CRANKCASE 00.293 (B) M14X115 W/FLANGE	8-97077-638-0	10	1	1309-			●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1309-			●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	1309-			●

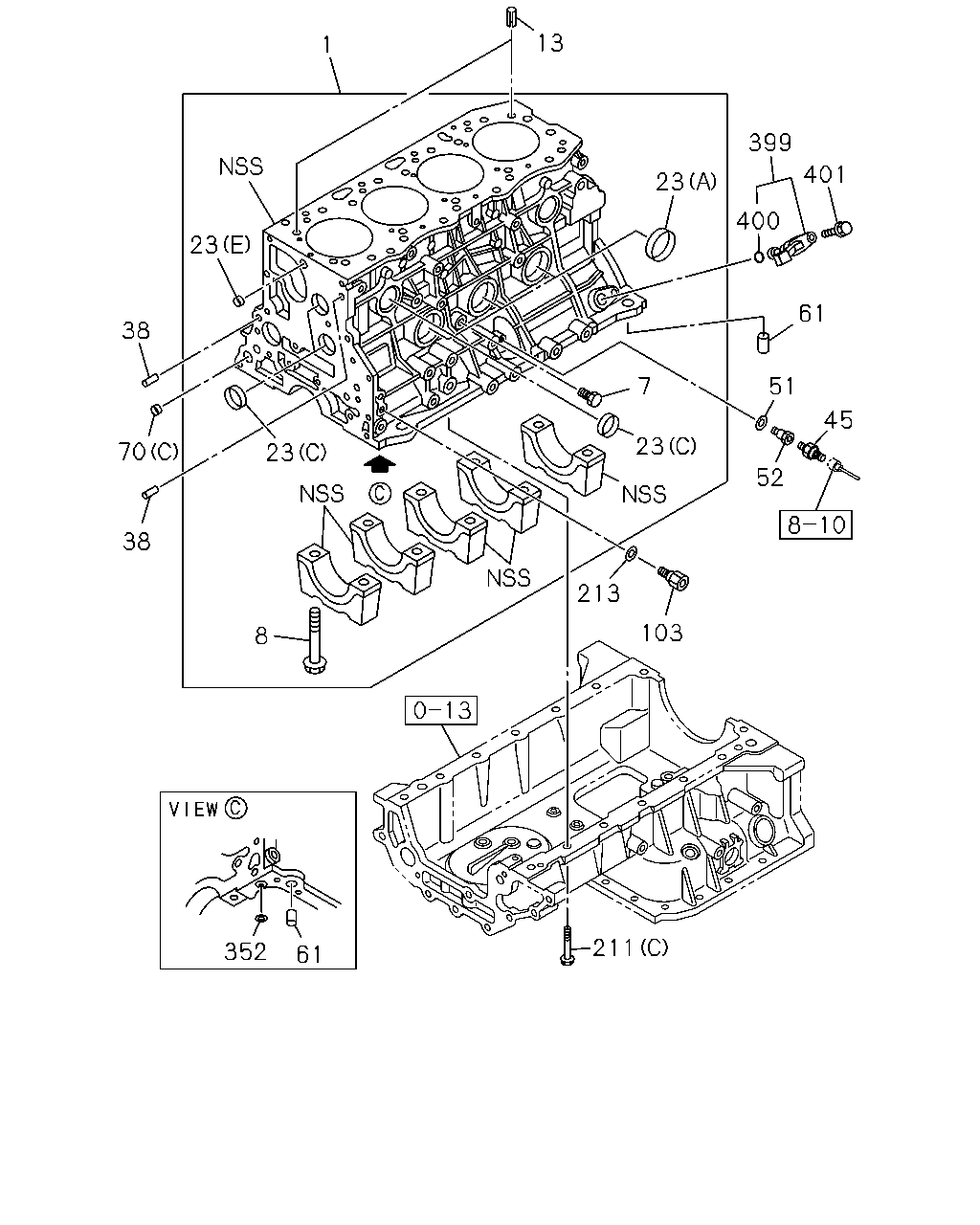

1 13 23 399 400 61 401 51 45 52 23 7 103 213 23 8 61 352 211 38 70 38 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-98290-980-0	01	1	1309-	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1309-1405			●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1309-	●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1309-			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1309-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1309-1310	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1311-	●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1309-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (E) OD=18	5-11219-008-0	02	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1309-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1309-1310	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1311-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1309-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1309-			●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1309-1310	●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1311-	●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1309-1310	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1311-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1309-1310	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1311-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1309-1310	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1311-1501	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-	●	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1309-1310	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1311-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1309-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1309-1310	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1311-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1309-			●
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1309-			●
103	01.531 NIPPLE; OIL FEED 00.293	8-94469-596-0	01	1	1309-1310	●
103	01.531 NIPPLE; OIL FEED 00.293	8-94469-596-0	01	1	1311-	●	●
211	01.428 BOLT; CRANKCASE 01.252 (C) M8X80 FLANGE	0-28050-880-0	05	1	1309-1310	●
211	01.428 BOLT; CRANKCASE 01.252 (C) M8X80 FLANGE	0-28050-880-0	05	1	1311-	●	●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	09	1	1309-1310	●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	09	1	1311-	●	●
211	01.428 BOLT; CRANKCASE (A) M10X82	8-94399-553-2	17	1	1309-			●
211	01.428 BOLT; CRANKCASE 00.293 (B) M14X115 W/FLANGE	8-97077-638-0	10	1	1309-			●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1309-1310	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1311-	●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE). 00.724	9-09566-109-0	01	1	1309-1310	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE). 00.724	9-09566-109-0	01	1	1311-	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1309-1310	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1311-	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1309-1310	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1311-	●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1309-1310	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1311-	●	●
