0-10 — CYLINDER HEAD COVER (#126167) — 64 parça

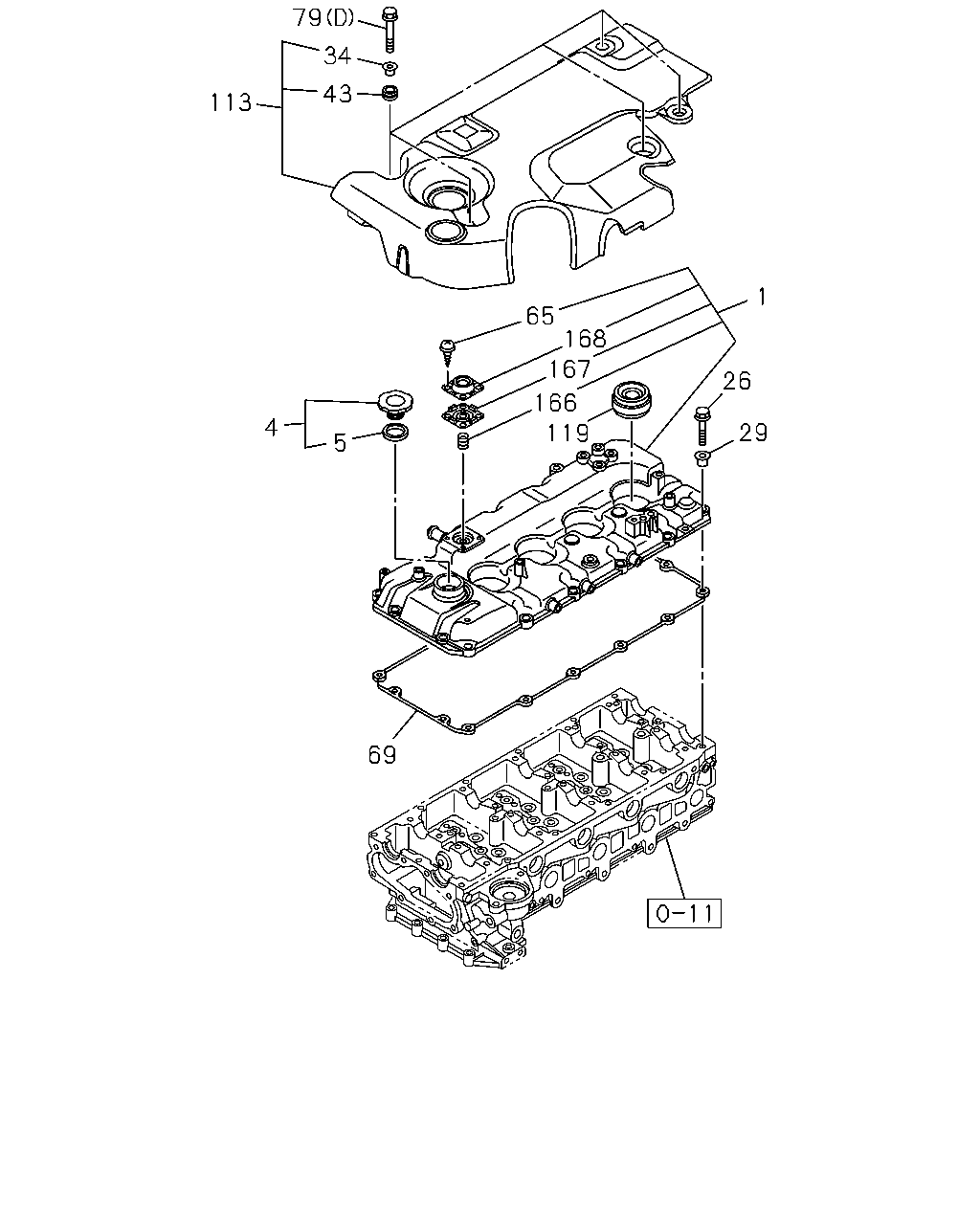

çizim 373024
1 65 167 168 166 5 4 119 26 29 69 113 43 34 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-98245-124-0 01 1 1502-1502 ● ●
1 00.386 COVER; CYL HD 8-98220-002-3 01 1 1502- ● ●
1 00.386 COVER; CYL HD 8-97331-361-2 01 1 1309- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1309-1310 ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1311- ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1309-1310 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1311- ● ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 15 1 1309-1310 ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 15 1 1311- ● ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 15 1 1309-1310 ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 15 1 1311-1408 ● ●
29 00.413 RUBBER; MTG,HD COVER
00.206 		8-97168-200-1 15 1 1409- ● ●
34 00.413 BUSHING; MTG RUBBER,CYL HD COVER 8-98036-120-0 05 1 1309-1310 ●
34 00.413 BUSHING; MTG RUBBER,CYL HD COVER 8-98036-120-0 05 1 1311- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER 8-98036-119-0 05 1 1309-1310 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER 8-98036-119-0 05 1 1311- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 1309- ●
65 00.413 SCREW; ADAPTER
02.361 M5X10 W/LK WASHER 		0-36220-510-0 04 1 1502- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-200-0 01 1 1309-1310 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-200-0 01 1 1311- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-359-1 01 1 1309- ●
79 00.293 BOLT; COVER
04.338 (D) M8X20 FLANGE 		0-28050-820-0 05 1 1309-1310 ●
79 00.293 BOLT; COVER
04.338 (D) M8X20 FLANGE 		0-28050-820-0 05 1 1311- ● ●
79 00.293 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 02 1 1309- ●
79 00.293 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 07 1 1309- ●
79 00.293 BOLT; COVER
00.413 (A) M6X20 		8-97127-607-0 02 1 1309- ●
113 00.386 COVER; CYL HEAD COVER 8-98225-306-0 01 1 1309-1310 ●
113 00.386 COVER; CYL HEAD COVER 8-98225-306-0 01 1 1311- ● ●
113 00.386 COVER; CYL HEAD COVER 8-98245-648-0 01 1 1309- ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 1309-1310 ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 1311- ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1502- ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98226-101-0 01 1 1502-1502 ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1502- ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 1502- ● ●

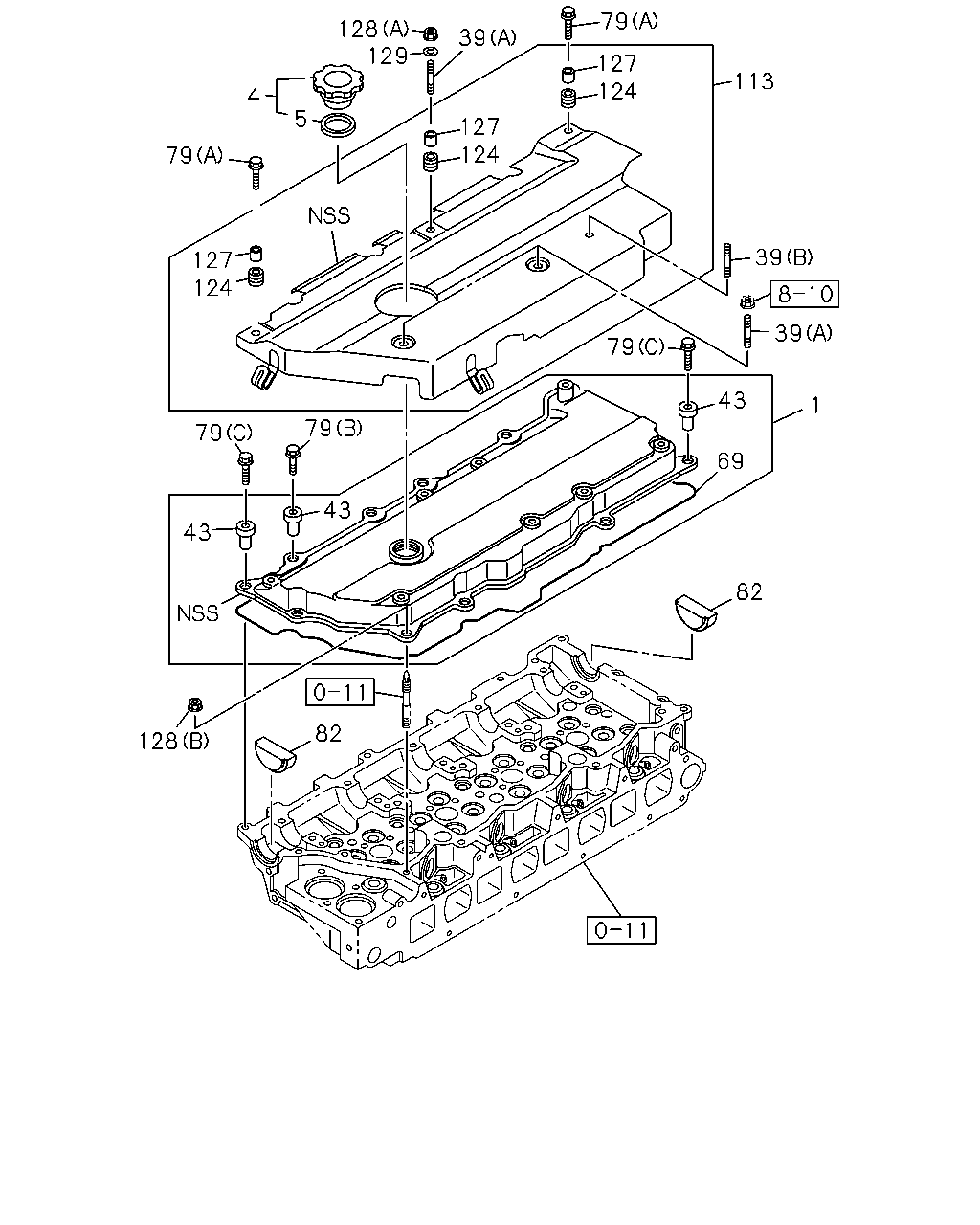

çizim 374174
79 127 124 79 43 128 82 43 79 4 5 128 129 39 127 124 79 127 124 113 79 43 69 82 1 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-98245-124-0 01 1 1502-1502 ● ●
1 00.386 COVER; CYL HD 8-98220-002-3 01 1 1502- ● ●
1 00.386 COVER; CYL HD 8-97331-361-2 01 1 1309- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1309-1310 ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1311- ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1309-1310 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1311- ● ● ●
39 00.413 STUD; COVER,HD
03.275 (A) M6X25 L=34 		0-41010-625-0 03 1 1309- ●
39 00.413 STUD; COVER,HD
(B) M6X35 L=43 		8-97203-278-0 01 1 1309- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER 8-98036-119-0 05 1 1309-1310 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER 8-98036-119-0 05 1 1311- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 1309- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-200-0 01 1 1309-1310 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-200-0 01 1 1311- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-359-1 01 1 1309- ●
79 00.293 BOLT; COVER
04.338 (D) M8X20 FLANGE 		0-28050-820-0 05 1 1309-1310 ●
79 00.293 BOLT; COVER
04.338 (D) M8X20 FLANGE 		0-28050-820-0 05 1 1311- ● ●
79 00.293 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 02 1 1309- ●
79 00.293 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 07 1 1309- ●
79 00.293 BOLT; COVER
00.413 (A) M6X20 		8-97127-607-0 02 1 1309- ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1309- ●
113 00.386 COVER; CYL HEAD COVER 8-98225-306-0 01 1 1309-1310 ●
113 00.386 COVER; CYL HEAD COVER 8-98225-306-0 01 1 1311- ● ●
113 00.386 COVER; CYL HEAD COVER 8-98245-648-0 01 1 1309- ●
124 00.413 RUBBER; MTG,COVER 8-97226-908-0 05 1 1309- ●
127 00.386 RETAINER; COVER 8-97092-314-0 05 1 1309- ●
128 00.413 NUT; COVER,CYL HEAD COVER
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309- ●
128 00.413 NUT; COVER,CYL HEAD COVER
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309- ●
129 00.413 WASHER; COVER,CYL HEAD COVER
ID=6.4 OD=18 		0-91610-706-0 01 1 1309- ●
