◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#126165) — 14 parça

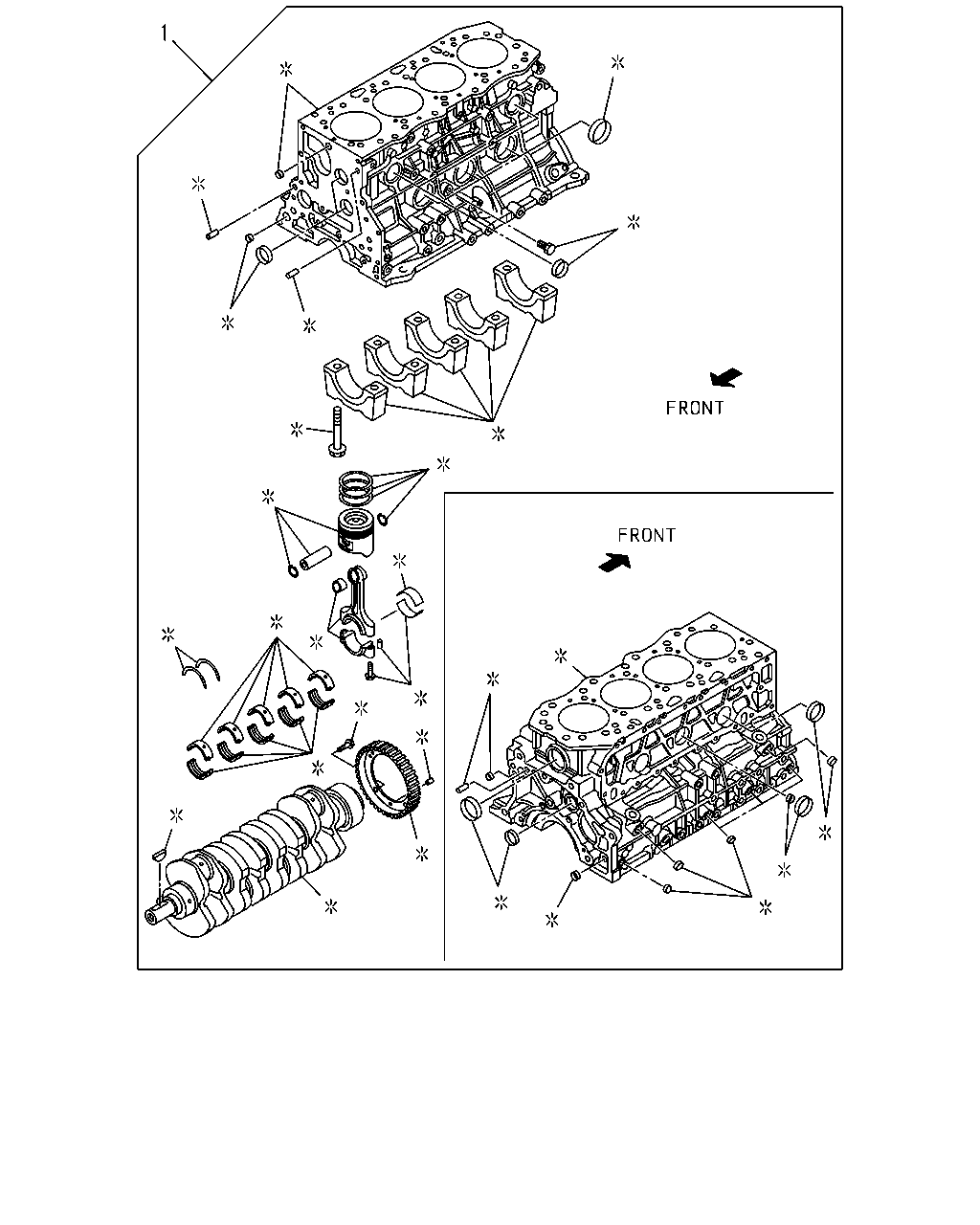

çizim 374332
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL 5-87311-208-0 01 1 1311-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-257-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-209-0 01 1 1309-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-261-0 01 1 1410-1507 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-284-1 01 1 1508- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-201-0 01 1 1309-1312 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-238-2 01 1 1401- ●

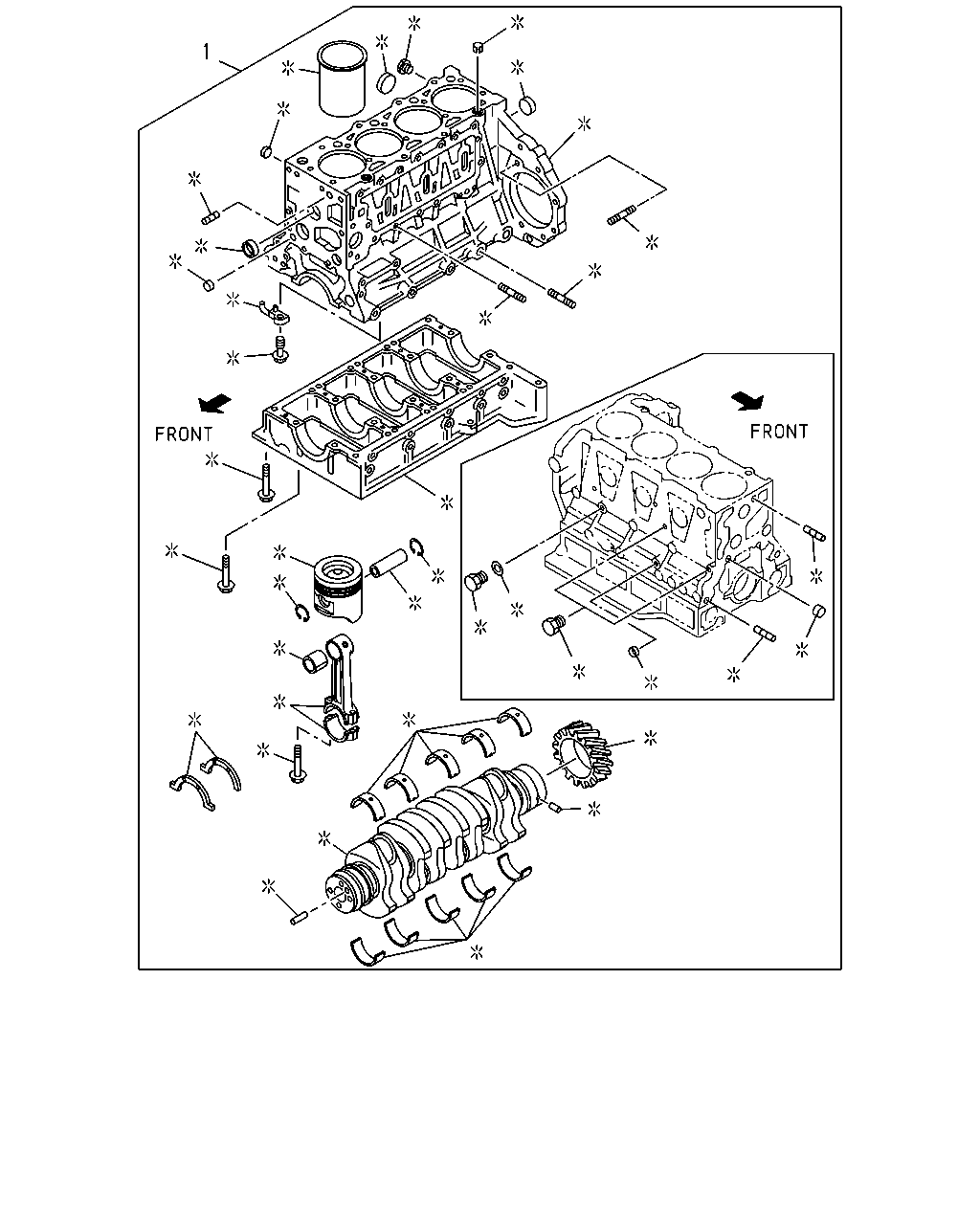

çizim 374527
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL 5-87311-208-0 01 1 1311-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-257-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-209-0 01 1 1309-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-261-0 01 1 1410-1507 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-284-1 01 1 1508- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-201-0 01 1 1309-1312 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-238-2 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
