Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#126154) — 135 parça

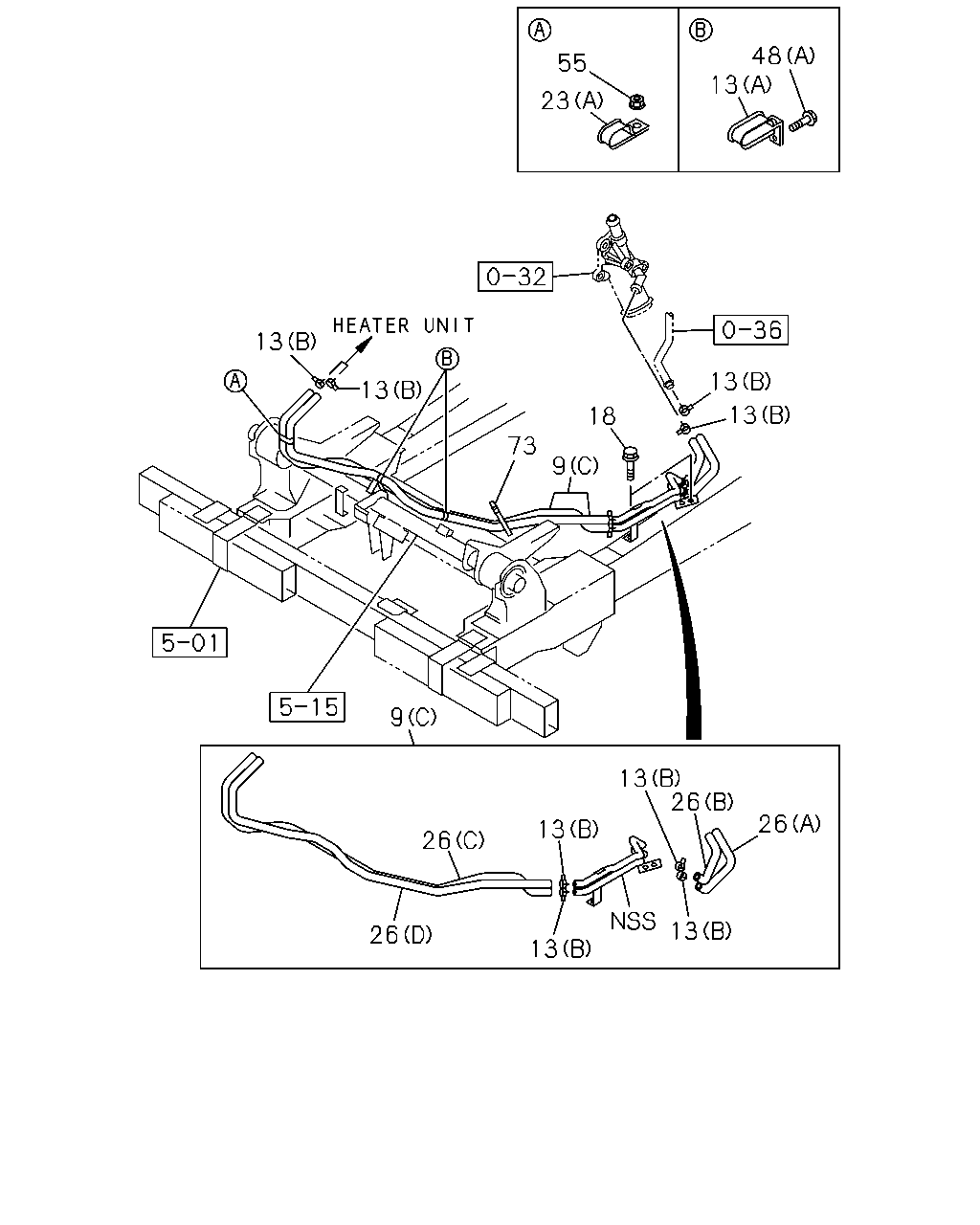

55 23 13 48 13 13 18 9 73 13 13 9 26 26 13 13 13 26 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1311-	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98088-944-1	01	1	1309-1408	●		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98088-944-1	01	1	1409-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1309-1310	●		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98209-291-2	01	1	1311-1408	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98209-291-2	01	1	1409-	●	●	●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98205-051-1	01	1	1309-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1309-1310	●		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1309-1310			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1311-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1311-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1309-1310	●		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1311-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1309-1310	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1311-1408	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1409-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1309-1310	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1409-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1409-			●	●
18	08.866 BOLT; WATER HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-			●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1309-1310	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1311-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1309-1310	●		●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1311-1408	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1409-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1311-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98000-101-2	01	1	1309-1310	●		●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98000-101-2	01	1	1311-1408	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98000-101-2	01	1	1409-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98114-718-0	01	1	1309-1310	●		●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98114-718-0	01	1	1311-1408	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98114-718-0	01	1	1409-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98059-457-1	01	1	1309-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98059-458-1	01	1	1309-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98210-715-0	01	1	1309-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98210-716-0	01	1	1309-			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1309-1310	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●		●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●		●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1309-1310	●		●	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1311-	●	●	●	●

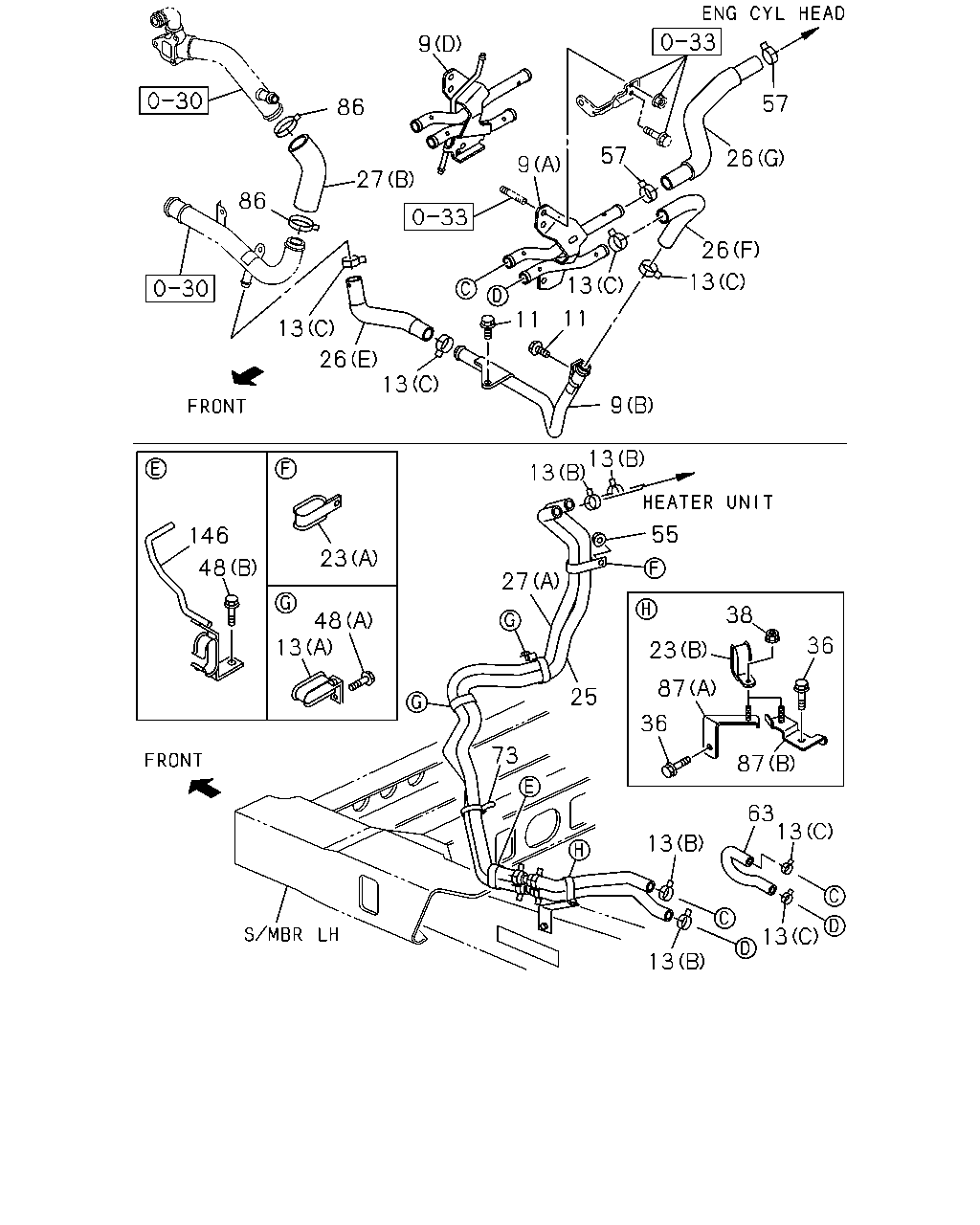

36 38 23 87 36 87 63 13 13 13 13 25 73 27 13 13 55 13 48 23 48 146 13 26 13 86 27 86 9 9 11 11 13 57 13 26 26 57 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1311-	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98088-944-1	01	1	1309-1408	●		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98088-944-1	01	1	1409-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1309-1310	●		●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98209-291-2	01	1	1311-1408	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98209-291-2	01	1	1409-	●	●	●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98205-051-1	01	1	1309-			●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1309-1310	●		●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1311-1408	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1409-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1309-1310	●		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1309-1310			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1311-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1311-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1309-1310	●		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1311-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1309-1310	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1311-1408	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1409-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1309-1310	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1409-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1409-			●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1309-1310	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1311-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1309-1310	●		●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1311-1408	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1409-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-671-2	01	1	1309-1310	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-671-2	01	1	1311-1408	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-671-2	01	1	1409-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1311-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98000-101-2	01	1	1309-1310	●		●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98000-101-2	01	1	1311-1408	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98000-101-2	01	1	1409-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98114-718-0	01	1	1309-1310	●		●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98114-718-0	01	1	1311-1408	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98114-718-0	01	1	1409-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98059-457-1	01	1	1309-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98059-458-1	01	1	1309-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98210-715-0	01	1	1309-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98210-716-0	01	1	1309-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (B)	8-98106-016-0	01	1	1309-1310	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98106-016-0	01	1	1311-1408	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98106-016-0	01	1	1409-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-670-3	01	1	1309-1310	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-670-3	01	1	1311-1408	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-670-3	01	1	1409-	●	●	●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●		●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●	●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●		●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●	●	●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1309-1310	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●		●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●		●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1311-	●	●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1309-1310	●		●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1311-1408	●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1311-1408			●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1311-1408		●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1409-	●	●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1409-			●	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1309-1310	●		●	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1311-	●	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98110-004-0	02	1	1309-1310	●		●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98110-004-0	02	1	1311-1408	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98110-004-0	02	1	1409-	●	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98025-918-4	01	1	1309-1310	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98025-918-4	01	1	1309-1310			●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98025-918-4	01	1	1311-1408	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98025-918-4	01	1	1311-1408			●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98025-918-4	01	1	1311-1408		●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98025-918-4	01	1	1409-	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98025-918-4	01	1	1409-			●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) FRAME STRAIGHT TYPE<7KJ> (B)	8-98211-653-1	01	1	1309-1408			●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) FRAME STRAIGHT TYPE<7KJ> (B)	8-98211-653-1	01	1	1409-			●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98108-314-0	01	1	1309-1310	●		●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98108-314-0	01	1	1311-1408	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98108-314-0	01	1	1409-	●	●	●	●
