8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#126150) — 127 parça

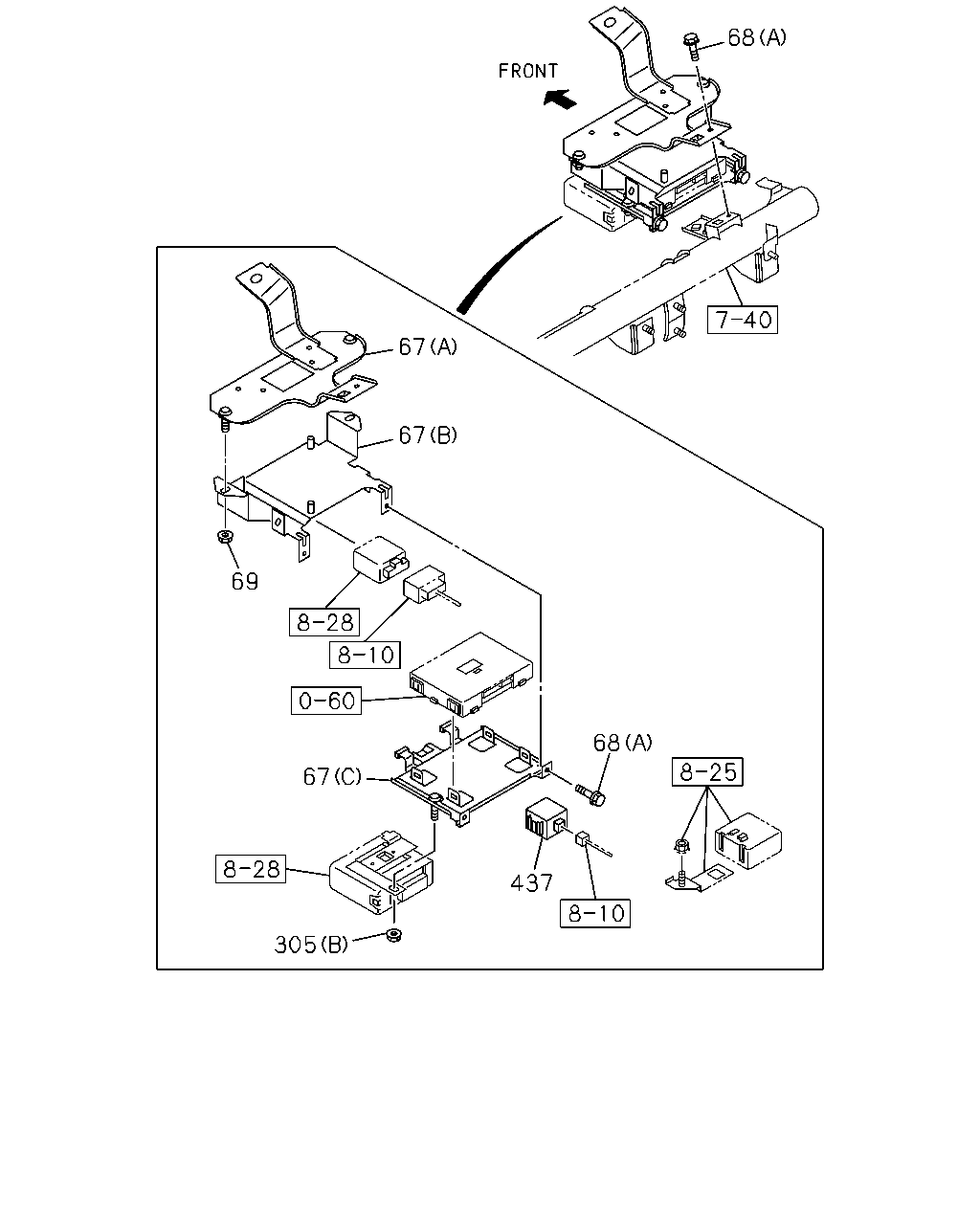

437 68 305 67 69 67 67 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
67	03.887 BRACKET; CONT UNIT CAN INTERFACE FMS STD(8PG) (D)	8-98222-208-0	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT CAN INTERFACE FMS STD(8PG) (D)	8-98222-208-0	01	1	1311-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1311-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98222-391-1	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98222-391-1	01	1	1311-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (C)	8-98222-394-2	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT (C)	8-98222-394-2	01	1	1311-	●	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1309-1310	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1311-	●	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	03	1	1309-1310	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	03	1	1311-	●	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1309-1310	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1311-	●	●	●	●
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1311-	●			●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1311-		●	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310		●	●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401			●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1402-1408	●			●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1402-1408		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1402-1408			●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1409-	●			●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1409-		●	●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	1309-1310	●	●	●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	1311-	●	●	●	●

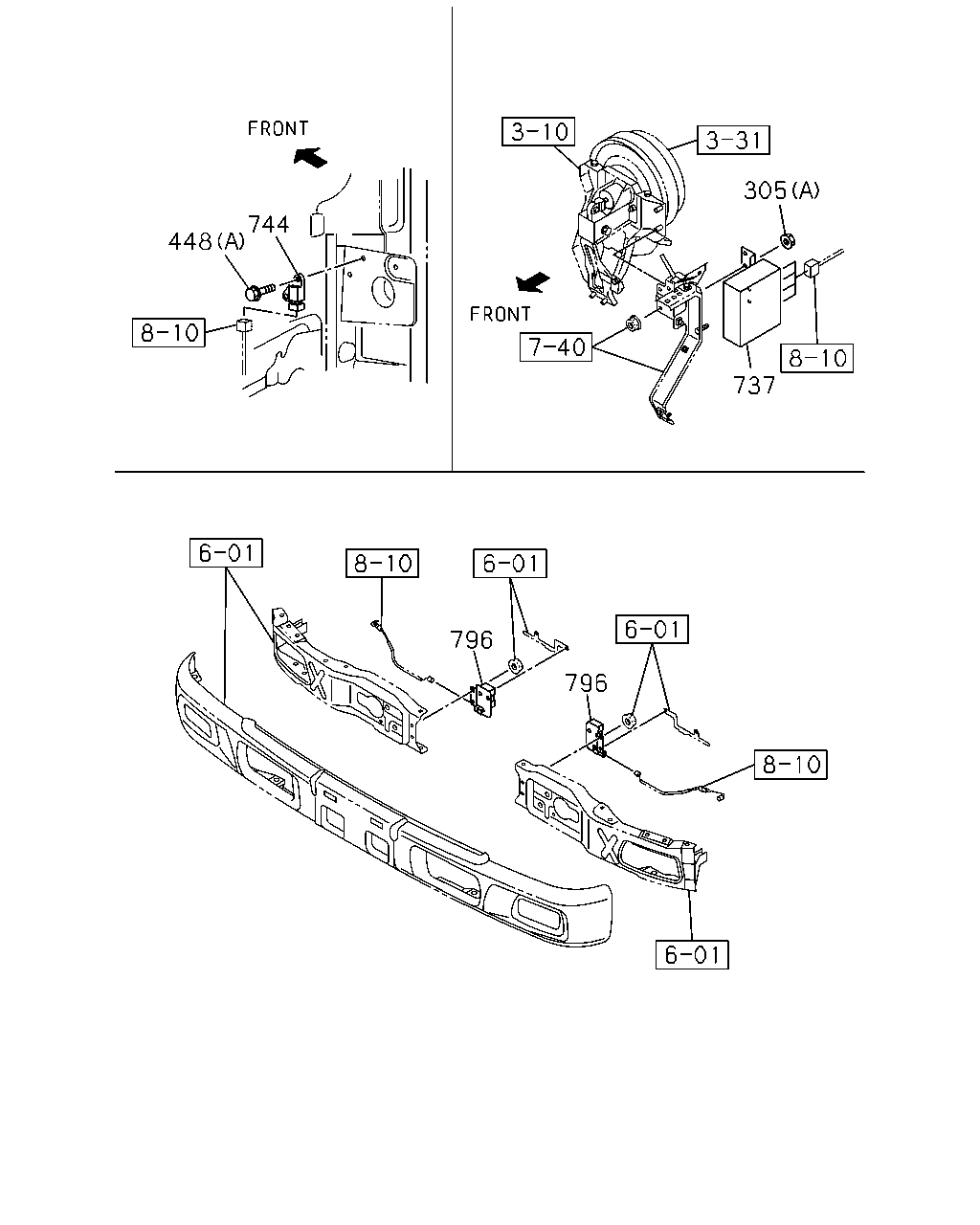

305 737 744 448 796 796

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1311-	●			●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1311-		●	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310		●	●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401			●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1402-1408	●			●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1402-1408		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1402-1408			●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1409-	●			●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1409-		●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1309-1310	●	●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1311-	●	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1309-1311		●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1312-		●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98249-710-1	01	1	1402-1408	●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS)	8-98249-710-1	01	1	1402-1408				●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS)	8-98249-710-1	01	1	1409-	●			●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98239-155-2	01	1	1311-1408	●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS)	8-98239-155-2	01	1	1311-1408		●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98239-155-2	01	1	1409-	●			●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS)	8-98239-155-2	01	1	1409-		●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98239-159-2	01	1	1309-		●	●
744	03.682 SENSOR; AIR BAG AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	1309-1310	●	●	●
744	03.682 SENSOR; AIR BAG AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	1311-	●	●	●	●
796	02.510 RESISTOR; DROPPING 07.247	8-98225-337-1	01	1	1309-1310	●	●	●
796	02.510 RESISTOR; DROPPING 07.247	8-98225-337-1	01	1	1311-	●	●	●	●
796	02.510 RESISTOR; DROPPING 07.247	8-98225-338-1	01	1	1309-1310	●	●	●
796	02.510 RESISTOR; DROPPING 07.247	8-98225-338-1	01	1	1311-	●	●	●	●

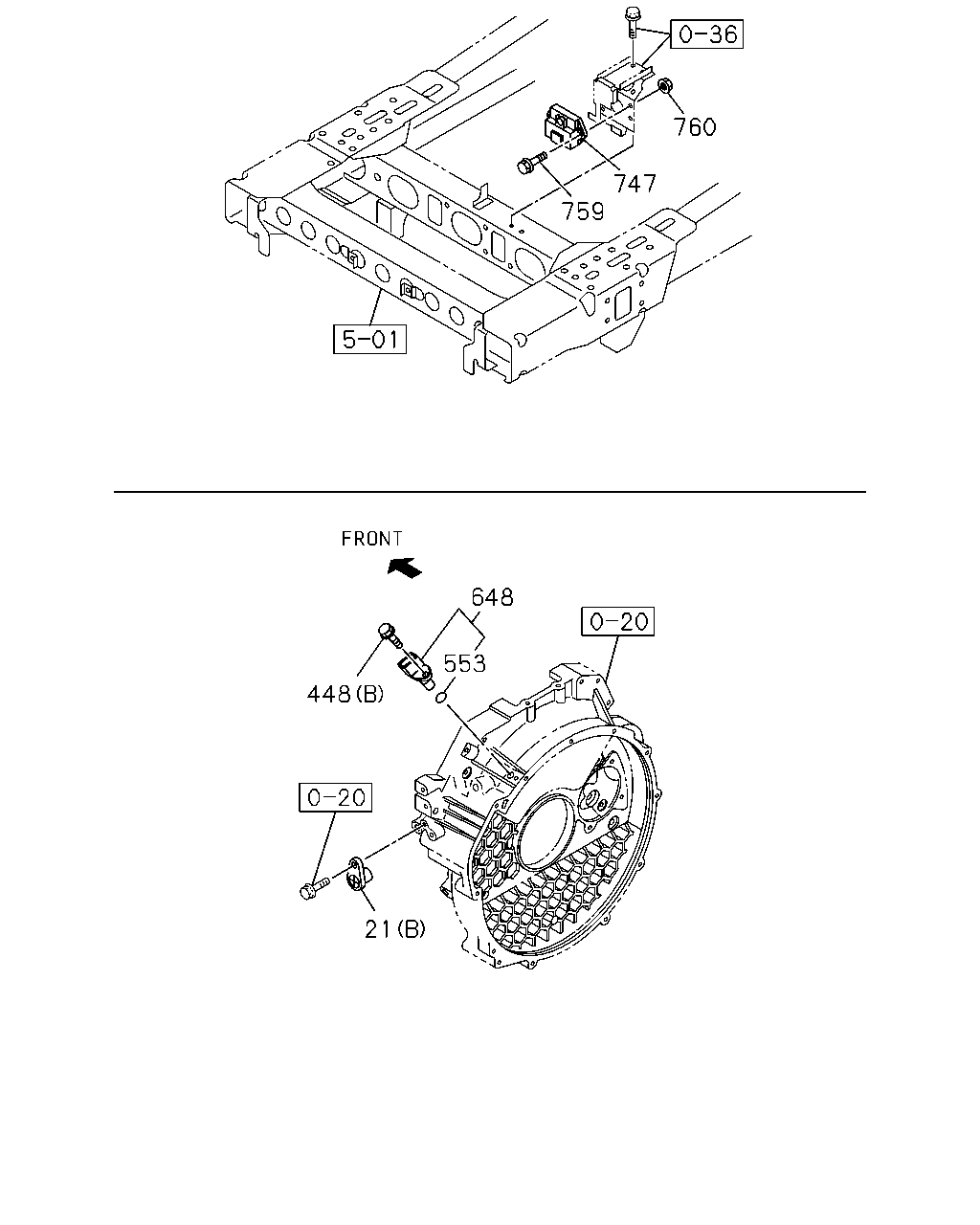

760 747 759 648 553 448 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1309-1310	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) 16.081 (A)	8-98025-954-1	01	1	1309-1310	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1309-1310		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1309-1310		●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1309-1310			●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1311-1408	●	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1311-1408	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1311-1408		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1311-1408		●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1311-1408			●
21	09.744 COVER; HOLE 4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1311-1408				●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1409-	●	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1409-	●			●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1409-		●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1409-		●	●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 09.748 (B)	8-97101-974-0	01	1	1309-1311		●	●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	1312-		●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1309-1310	●	●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1311-	●	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1309-1311		●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1312-		●	●
553	02.500 GASKET 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1309-1311		●	●
553	02.500 GASKET 4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1312-		●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC>	8-97606-943-0	01	1	1309-1311		●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCS ENG(RJS)	8-97606-943-0	01	1	1312-		●	●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS)	8-98162-807-0	01	1	1309-		●	●
759	04.115 BOLT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1309-		●	●
760	04.115 NUT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1309-		●	●

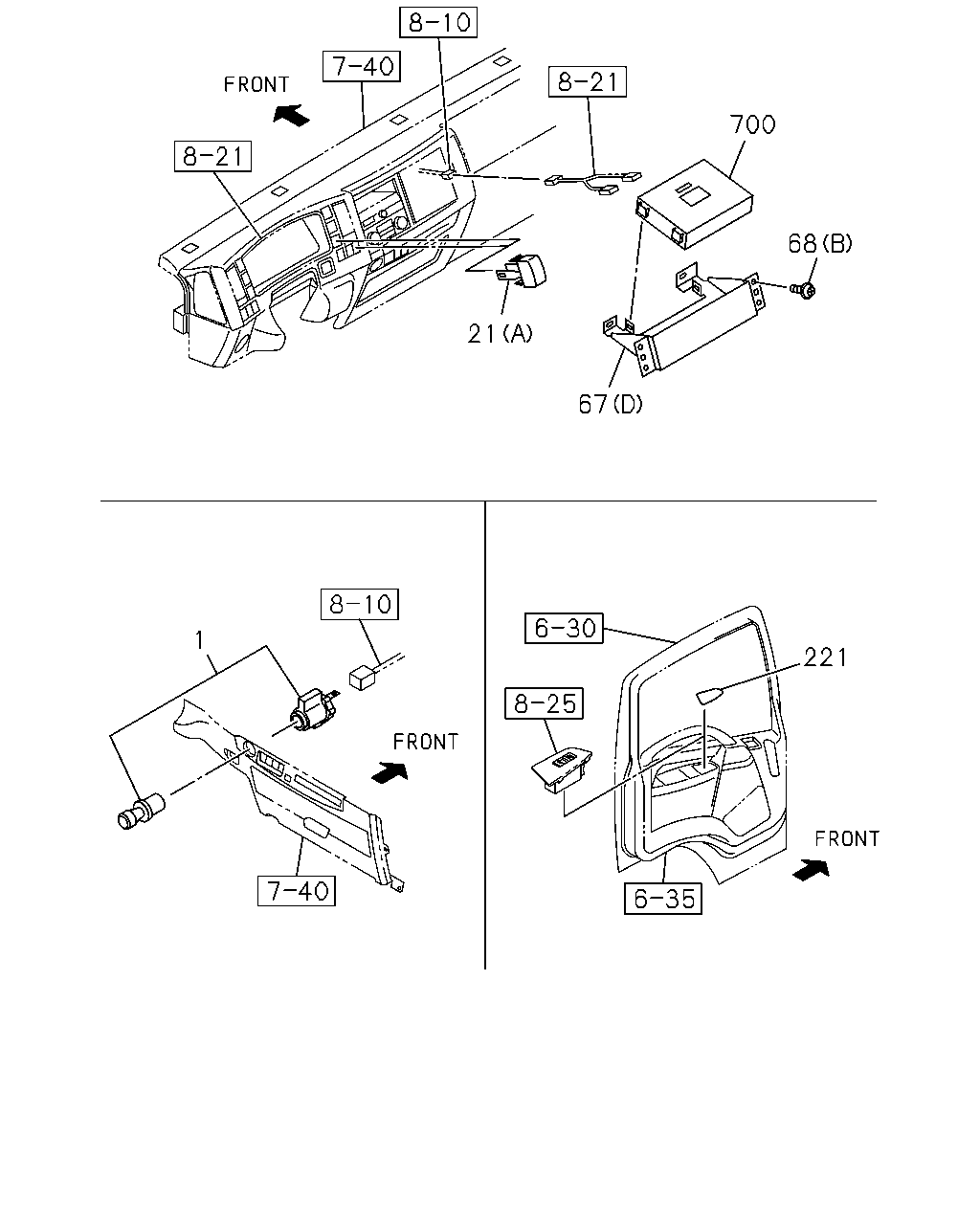

21 67 700 68 1 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	1309-1310	●	●	●
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	1311-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1309-1310	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) 16.081 (A)	8-98025-954-1	01	1	1309-1310	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1309-1310		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1309-1310		●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1309-1310			●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1311-1408	●	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1311-1408	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1311-1408		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1311-1408		●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1311-1408			●
21	09.744 COVER; HOLE 4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1311-1408				●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1409-	●	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1409-	●			●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1409-		●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1409-		●	●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 09.748 (B)	8-97101-974-0	01	1	1309-1311		●	●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	1312-		●	●
67	03.887 BRACKET; CONT UNIT CAN INTERFACE FMS STD(8PG) (D)	8-98222-208-0	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT CAN INTERFACE FMS STD(8PG) (D)	8-98222-208-0	01	1	1311-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1311-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98222-391-1	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98222-391-1	01	1	1311-	●	●	●	●
67	03.887 BRACKET; CONT UNIT (C)	8-98222-394-2	01	1	1309-1310	●	●	●
67	03.887 BRACKET; CONT UNIT (C)	8-98222-394-2	01	1	1311-	●	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1309-1310	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1311-	●	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	03	1	1309-1310	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	03	1	1311-	●	●	●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1309-1310	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1311-	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-915-2	01	1	1311-				●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1309-1310	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1311-	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-916-2	01	1	1311-				●
700	02.510 CONTROL UNIT; CAN CONVERTER CAN INTERFACE FMS STD(8PG)	8-98219-812-0	01	1	1309-1310	●	●	●
700	02.510 CONTROL UNIT; CAN CONVERTER CAN INTERFACE FMS STD(8PG)	8-98219-812-1	01	1	1311-	●	●	●	●
