◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#126149) — 300 parça

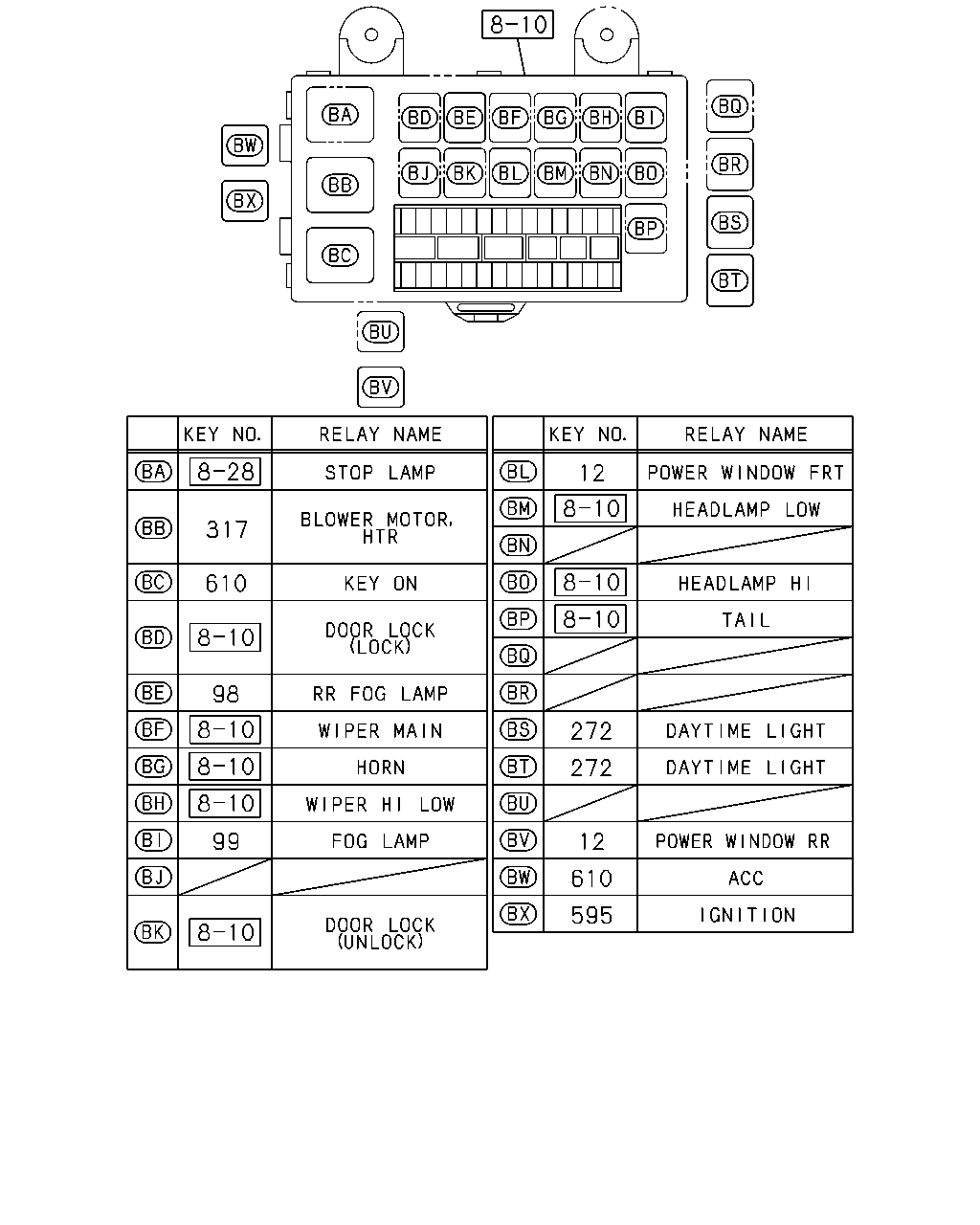

çizim 373251
317 610 98 99 610 595 12 272 12 272
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1309-1310 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1309-1310 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1309-1310 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1309-1310 ● ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ● ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1309-1310 ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ● ● ● ●
272 02.510 RELAY; DAYTIME LIGHT
08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1309-1310 ● ● ●
272 02.510 RELAY; DAYTIME LIGHT
08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1311- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1309-1310 ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1311- ● ● ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1309-1310 ● ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1311- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1309-1310 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1309-1310 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1311- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1311- ● ● ● ●

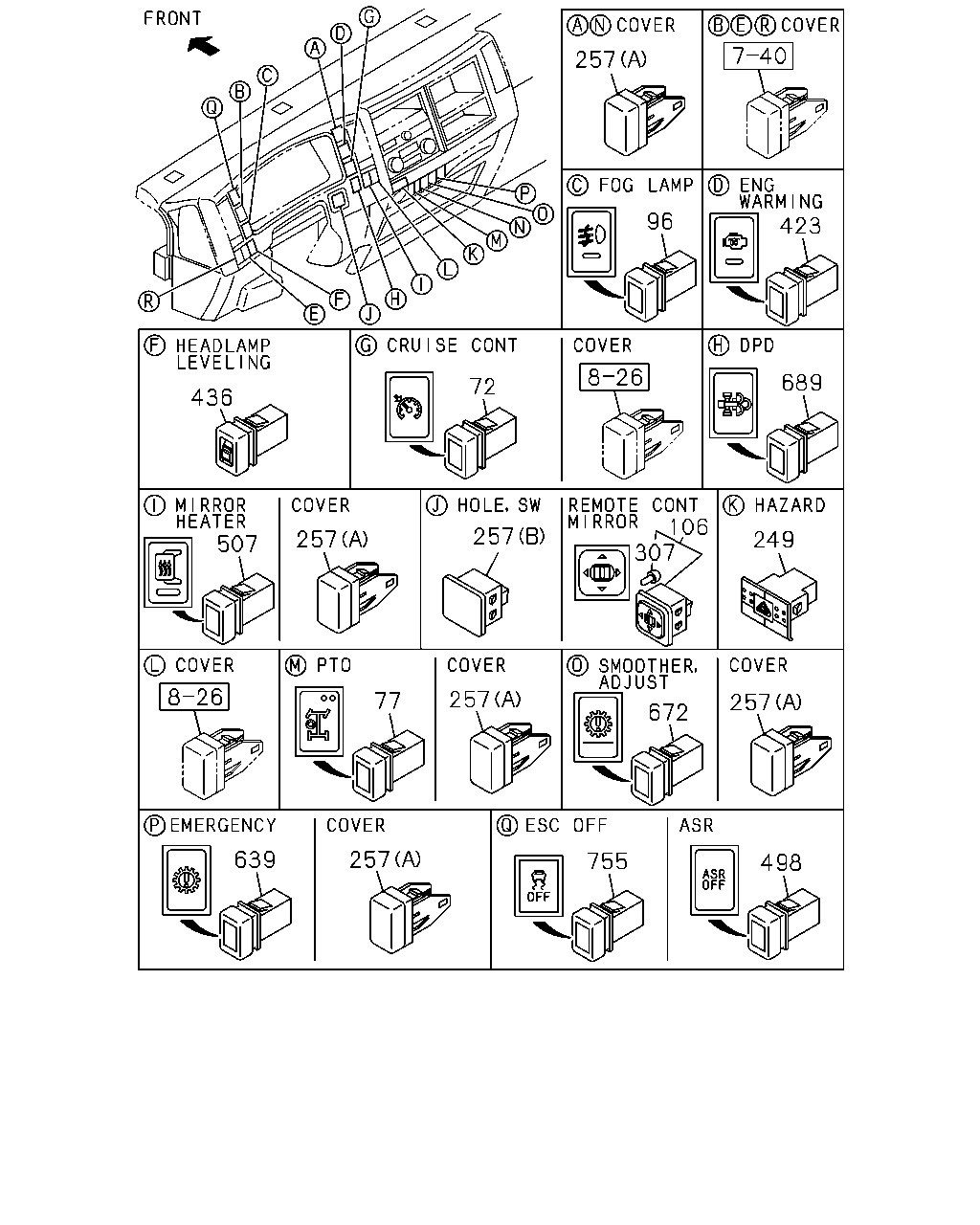

çizim 373283
257 96 423 436 72 689 507 257 257 307 106 249 257 672 257 77 639 257 755 498
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 02.485 SWITCH; CRUISE CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-344-1 01 1 1309- ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1309-1310 ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97386-964-2 01 1 1311-1401 ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97386-964-2 01 1 1402-1408 ● ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97386-964-2 01 1 1409- ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1309-1310 ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1311- ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1309-1310 ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1311- ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1309-1310 ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1311- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1309-1310 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1311-1401 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1404- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1404- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1311- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1309-1310 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98029-917-0 01 1 1311- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1309-1310 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1311-1401 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1311-1401 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1311-1401 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1311-1401 ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1402-1403 ● ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1402-1403 ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1404-1408 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1404-1408 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1404-1408 ● ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1404-1408 ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1409- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1409- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1409- ● ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1409- ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1409- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1409- ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1309-1310 ● ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1311- ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 1309-1310 ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 1311- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1309-1310 ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1311- ● ● ● ●
498 03.883 SWITCH; ASR
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98251-095-2 01 1 1404- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> HEATER 		8-97386-924-3 01 1 1309-1310 ● ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> HEATER 		8-97386-924-3 01 1 1311- ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1309-1310 ● ●
639 16.263 SWITCH; EMERGENCY
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1311-1401 ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1311-1401 ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1311-1401 ●
639 16.263 SWITCH; EMERGENCY
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1402-1408 ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1402-1408 ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1402-1408 ●
639 16.263 SWITCH; EMERGENCY
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1409- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1409- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1309-1310 ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1311-1401 ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1311-1401 ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1311-1401 ●
672 16.263 SWITCH; SMOOTHER,ADJUST
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1402-1408 ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1402-1408 ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1402-1408 ●
672 16.263 SWITCH; SMOOTHER,ADJUST
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1409- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1409- ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1309-1310 ● ● ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 1311-1408 ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1311-1408 ● ● ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 1409- ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1409- ● ●
755 03.883 SWITCH; ESC OFF 8-98190-384-0 01 1 1309-1310 ● ● ●
755 03.883 SWITCH; ESC OFF 8-98190-384-0 01 1 1311-1403 ● ● ● ●
755 03.883 SWITCH; ESC OFF 8-98190-384-1 01 1 1404- ● ●
755 03.883 SWITCH; ESC OFF
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98190-384-1 01 1 1404- ● ●

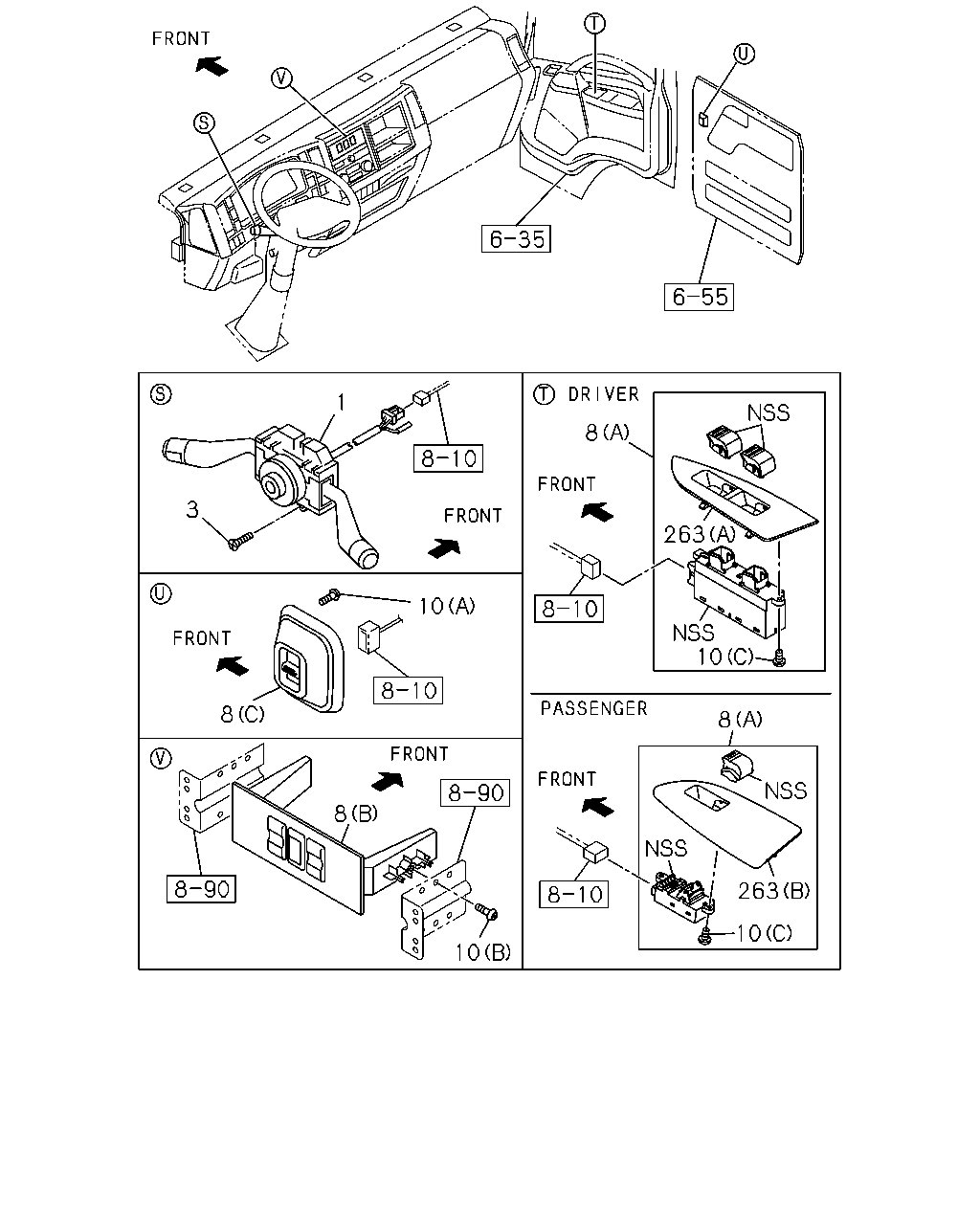

çizim 373309
1 3 10 8 8 10 8 263 10 10 263 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98219-019-0 01 1 1311-1311 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> 		8-98219-019-0 01 1 1311-1311 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-742-0 01 1 1311-1408 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> 		8-98243-742-0 01 1 1311-1408 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-742-0 01 1 1409- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) 		8-98217-812-0 01 1 1309-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-812-0 01 1 1309-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-812-0 01 1 1309-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-812-0 01 1 1309-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98217-812-0 01 1 1311-1311 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-812-0 01 1 1311-1311 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-812-0 01 1 1311-1311 ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-812-0 01 1 1311-1311 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-740-0 01 1 1311-1403 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1311-1403 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1311-1403 ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1311-1403 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-740-0 01 1 1404-1408 ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1404-1408 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) 		8-98243-740-0 01 1 1404-1408 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-740-0 01 1 1409- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) 		8-98243-740-0 01 1 1409- ● ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1409- ● ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98217-814-0 01 1 1309-1310 ● ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-741-0 01 1 1311- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1309-1310 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1311- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1309-1310 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98001-737-2 01 1 1309-1310 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1311-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98001-737-2 01 1 1311-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1311-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1309-1310 ●
8 16.263 SWITCH; POWER WINDOW
06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1309-1310 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1311-1509 ●
8 16.263 SWITCH; POWER WINDOW
06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1311-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1311-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 1309-1310 ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 1311- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1311- ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 1309-1310 ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 1311- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1311- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1309-1310 ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 1309-1310 ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1311- ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 1311- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 1311- ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1309-1310 ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1311- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1311- ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1309-1310 ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1309-1310 ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 1309-1310 ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1311- ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 1311- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98153-838-0 01 1 1311- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1309-1310 ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 1309-1310 ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1311- ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 1311- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98153-843-0 01 1 1311- ●

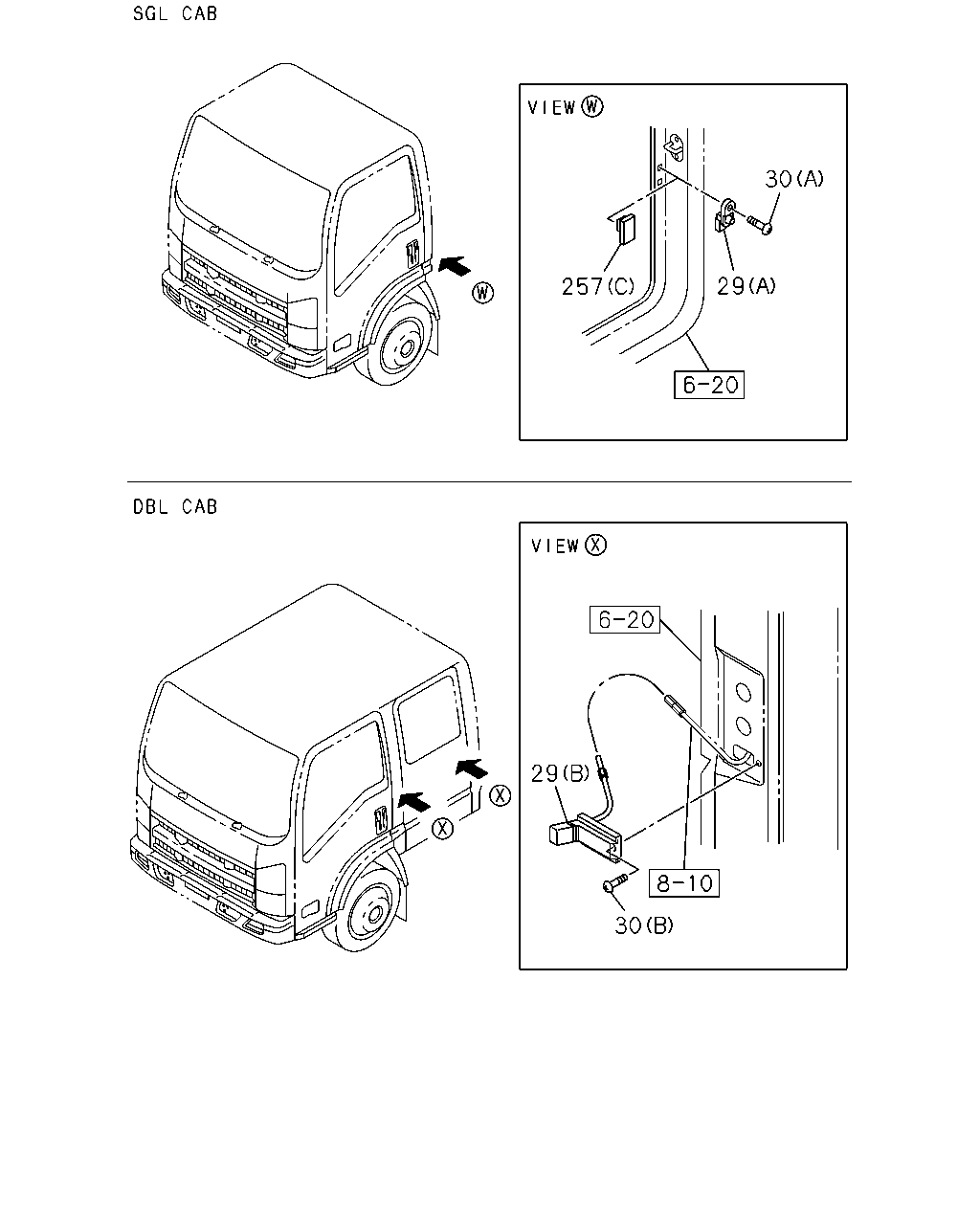

çizim 373356
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1309-1310 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK 		8-98022-211-0 01 1 1309-1310 ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> (A) BLACK 		8-98022-211-0 01 1 1309-1310 ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1311- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) (A) BLACK 		8-98022-211-0 01 1 1311- ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. SMOOTHER-EX(TYPE2)(8NS) (A) BLACK 		8-98022-211-0 01 1 1311- ●
29 16.263 SWITCH; DOOR
SMOOTHER-EX(TYPE2)(8NS) (A) BLACK 		8-98022-211-0 01 1 1311- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1309-1310 ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1309-1310 ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1311- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1311- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1309-1310 ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1309-1310 ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1311- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1311- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> (A) M5X18 		8-98047-201-0 02 1 1309-1310 ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> (A) M5X18 		8-98047-201-0 02 1 1309-1310 ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1309-1310 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) (A) M5X18 		8-98047-201-0 02 1 1311- ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. SMOOTHER-EX(TYPE2)(8NS) (A) M5X18 		8-98047-201-0 02 1 1311- ●
30 16.263 SCREW; DOOR SW
SMOOTHER-EX(TYPE2)(8NS) (A) M5X18 		8-98047-201-0 02 1 1311- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1311- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (A) M5X18 		8-98047-201-0 01 1 1309-1310 ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) (A) M5X18 		8-98047-201-0 01 1 1311- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1309-1310 ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1311- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1309-1310 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1311-1401 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1404- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1404- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1311- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1309-1310 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98029-917-0 01 1 1311- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1309-1310 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1309-1310 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1309-1310 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1311-1401 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1311-1401 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1311-1401 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1311-1401 ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1311-1401 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1402-1403 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1402-1403 ● ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1402-1403 ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1402-1403 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1404-1408 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1404-1408 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1404-1408 ● ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1404-1408 ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1404-1408 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1409- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1409- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1409- ● ●
257 16.081 COVER; HOLE,SW
SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1409- ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1409- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1409- ● ●

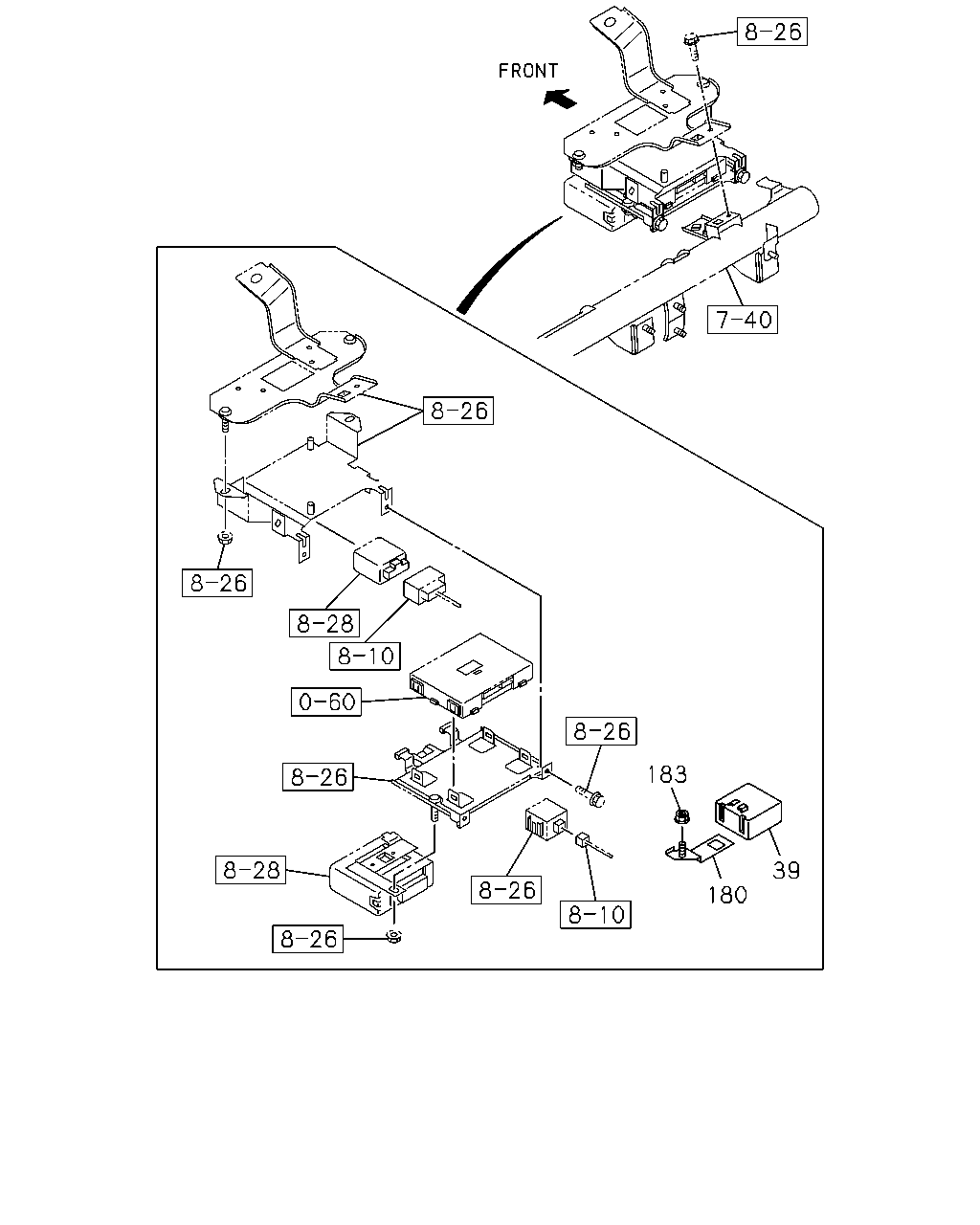

çizim 373357
183 39 180
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1309-1310 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1311- ● ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 1309-1310 ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 1311-1408 ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 1409- ● ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1408 ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ●
çizim 374256
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1309-1310 ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1311- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1309-1310 ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1311- ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1309-1310 ● ●
608 02.485 RELAY; SHIFT
SMOOTHER-EX(TYPE2)(8NS) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1311-1401 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1311-1401 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1311-1401 ●
608 02.485 RELAY; SHIFT
SMOOTHER-EX(TYPE2)(8NS) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1402-1402 ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1402-1402 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1402-1402 ●
608 02.485 RELAY; SHIFT
SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-1408 ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-1408 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-1408 ●
608 02.485 RELAY; SHIFT
SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA 		8-98259-779-0 01 1 1409- ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA 		8-98259-779-0 01 1 1409- ● ●

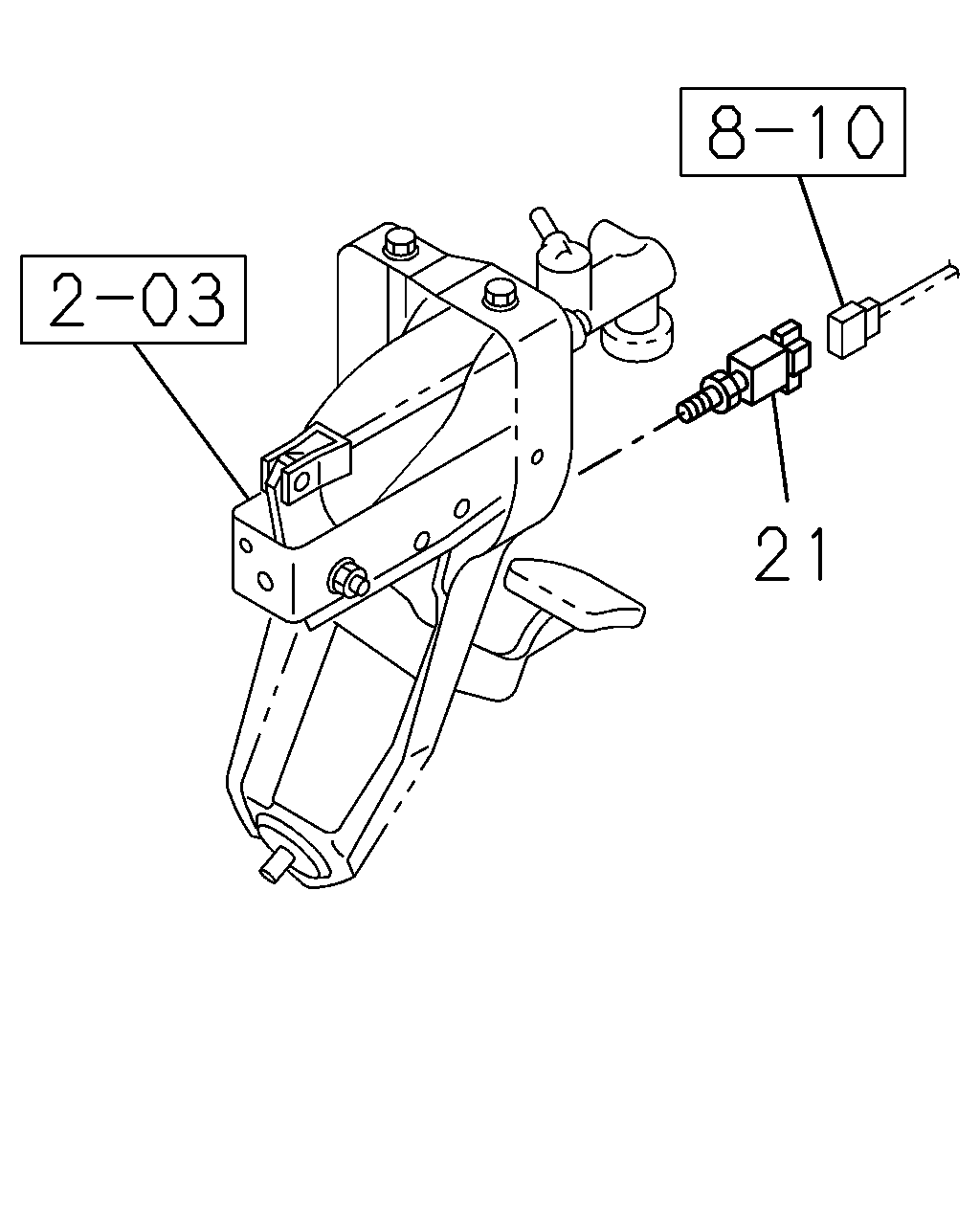

çizim 374518
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1309-1310 ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1309-1310 ● ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1311-1401 ● ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1311-1401 ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1402- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
