◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#126146) — 600 parça

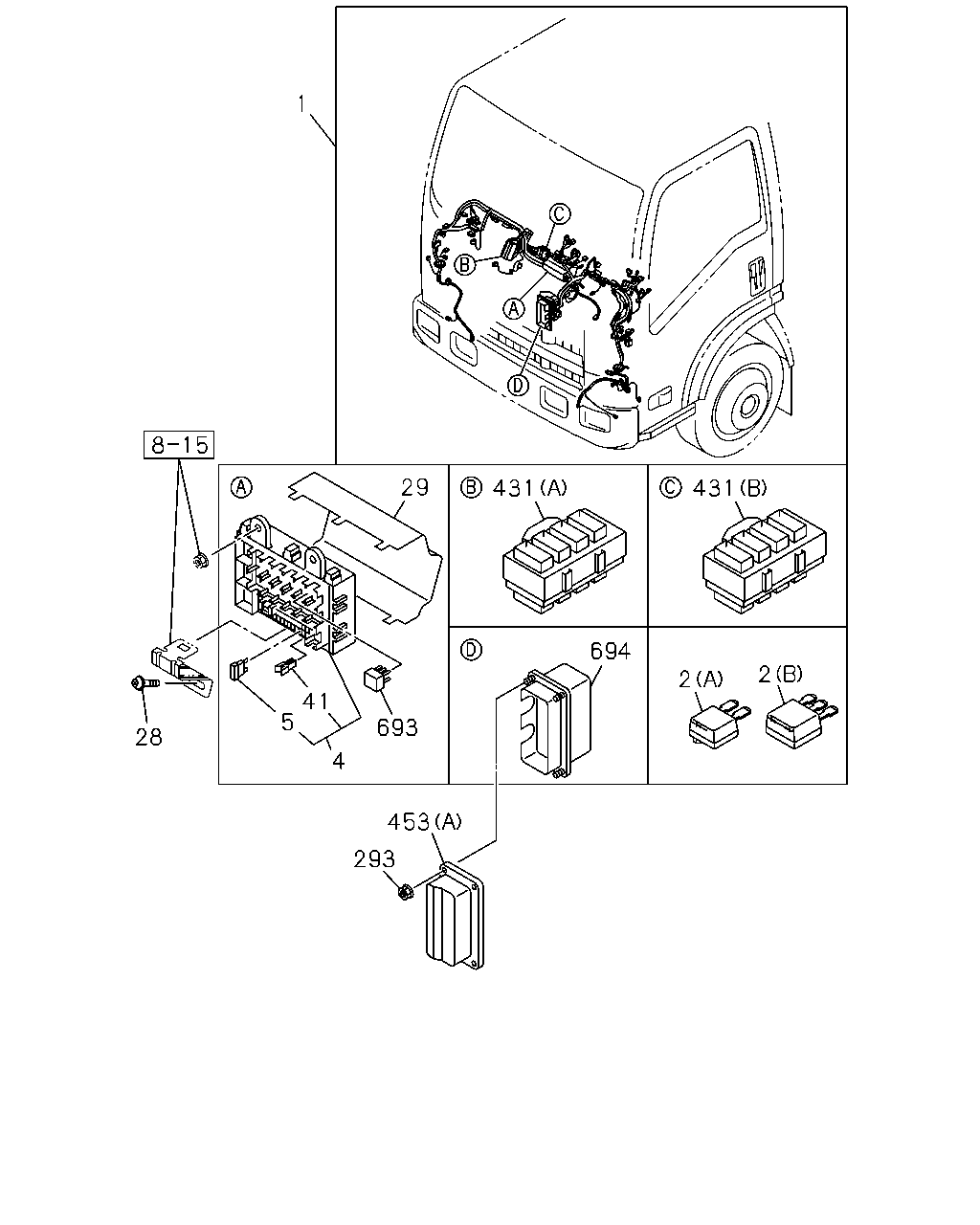

çizim 373380
431 431 694 2 2 693 41 5 4 453 293 28 29 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98326-395-0 01 1 1507- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98326-395-0 01 1 1507- ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-413-3 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-413-3 01 1 1402- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-396-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-396-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-396-2 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-396-2 01 1 1311- ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1402- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-414-3 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-414-3 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98223-414-3 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-415-3 01 1 1309-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-415-3 01 1 1402-1408 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-415-3 01 1 1402-1408 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98223-415-3 01 1 1409- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-415-3 01 1 1409- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-397-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1402- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1402- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1309-1310 ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1311- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1309-1310 ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1311- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1309-1310 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1311- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1309-1310 ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1311- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1309-1310 ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1311- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1309-1310 ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1311- ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1309-1310 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1309-1310 ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1311- ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1309-1310 ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1311- ● ● ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1309-1310 ● ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1311- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1309-1310 ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1311- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1309-1310 ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1311- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1309-1310 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1311- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 03 1 1309-1310 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 03 1 1309-1310 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1309-1310 ●
453 02.483 PROTECTOR; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1311-1408 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 02 1 1311-1408 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) (C) 		8-94417-716-0 02 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-94417-716-0 02 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1309-1310 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1311- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-94417-716-0 02 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1401-1408 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1401-1408 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1401-1408 ●
453 02.483 PROTECTOR; HARNESS
EURO6 SPECIFICATION(NT6) (C) 		8-94417-716-0 03 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1409- ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1309-1310 ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ● ● ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1309-1310 ● ● ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1311- ● ● ● ●

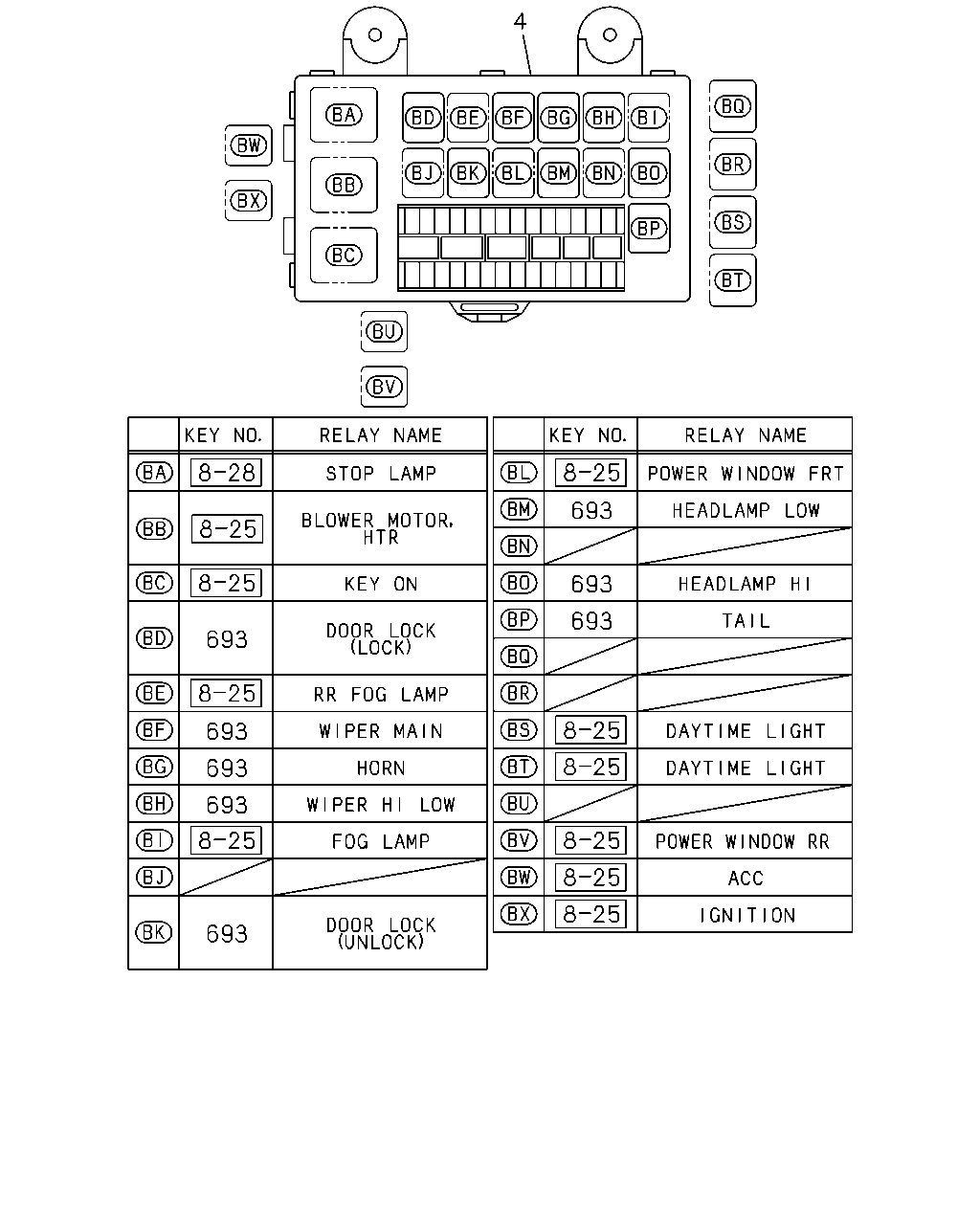

çizim 373429
693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1309-1310 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1311- ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1309-1310 ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ● ● ●

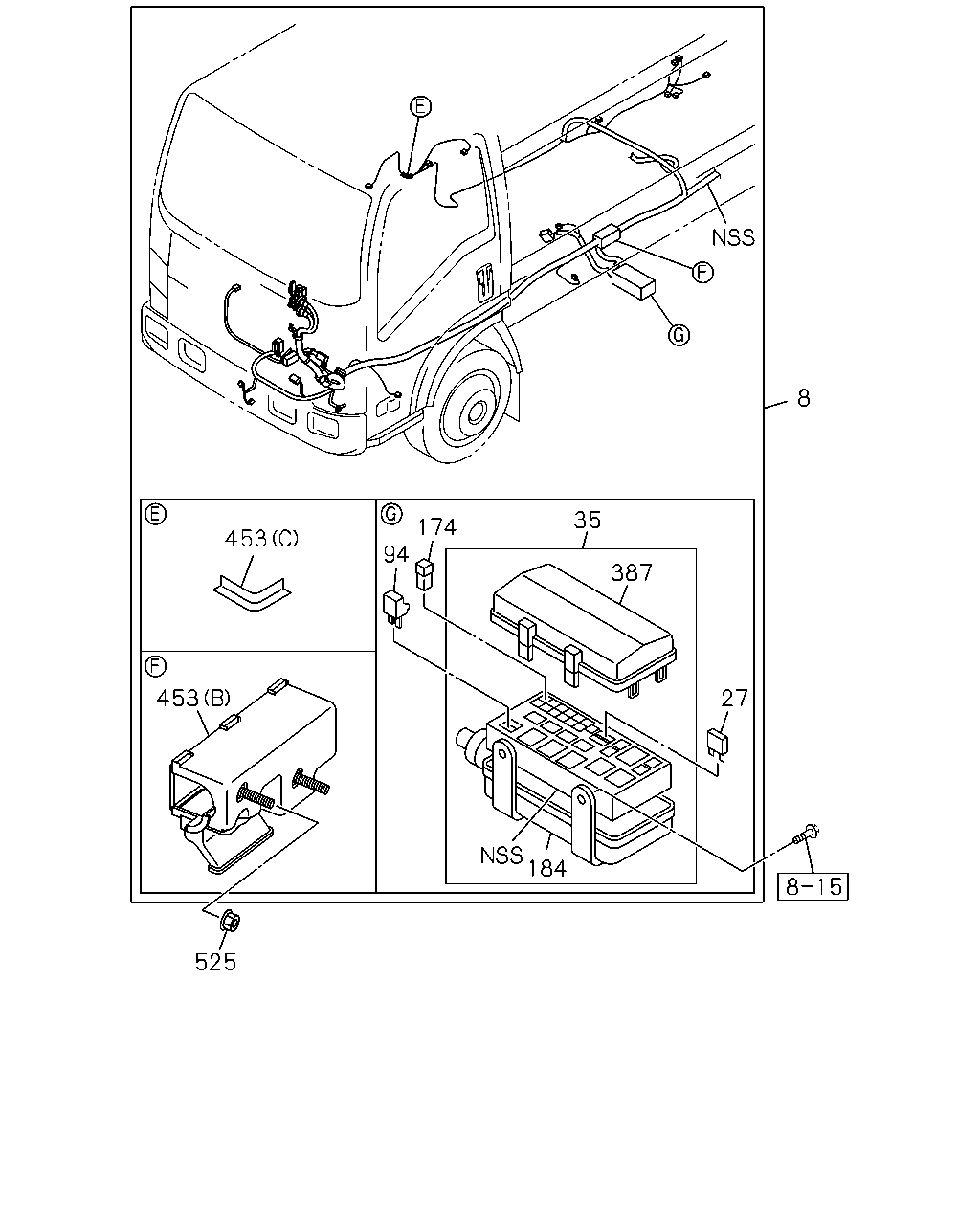

çizim 373444
8 453 453 94 174 35 387 27 184 525
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-876-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-876-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-559-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-559-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-878-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98228-878-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-561-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-561-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98259-898-0 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-566-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98259-899-0 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-567-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-342-4 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-552-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
SMOOTHER-EX(TYPE2)(8NS) 		8-98230-343-4 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-343-4 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-553-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-869-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-869-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-550-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) SMOOTHER-EX(TYPE2)(8NS) 		8-98236-960-3 01 1 1311-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-565-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98228-870-3 01 1 1311-1401 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-870-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-870-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-551-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98228-875-3 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-875-3 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-875-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-875-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-875-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-875-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-558-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-558-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98236-959-3 01 1 1309-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-564-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-854-2 01 1 1309-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98293-545-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-853-2 01 1 1309-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-544-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-877-3 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98228-877-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-877-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98228-877-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-877-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-560-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-560-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-856-2 01 1 1309-1408 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-856-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98293-547-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-855-2 01 1 1309-1408 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-855-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-546-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1309-1310 ● ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1311- ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1309-1310 ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1311- ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1309-1310 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1311- ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1309-1310 ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1311- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1309-1310 ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1311-1312 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 03 1 1401- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1309-1310 ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1311-1312 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1401- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1309-1310 ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1311-1312 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 02 1 1401- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1309-1310 ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1311-1312 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 04 1 1401- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1309-1310 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1311- ● ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1309-1310 ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1311- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1309-1310 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1311- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 03 1 1309-1310 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 03 1 1309-1310 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1309-1310 ●
453 02.483 PROTECTOR; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1311-1408 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 02 1 1311-1408 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) (C) 		8-94417-716-0 02 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-94417-716-0 02 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1309-1310 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1311- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-94417-716-0 02 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1401-1408 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1401-1408 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 03 1 1401-1408 ●
453 02.483 PROTECTOR; HARNESS
EURO6 SPECIFICATION(NT6) (C) 		8-94417-716-0 03 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1409- ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ● ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1311- ● ● ● ●

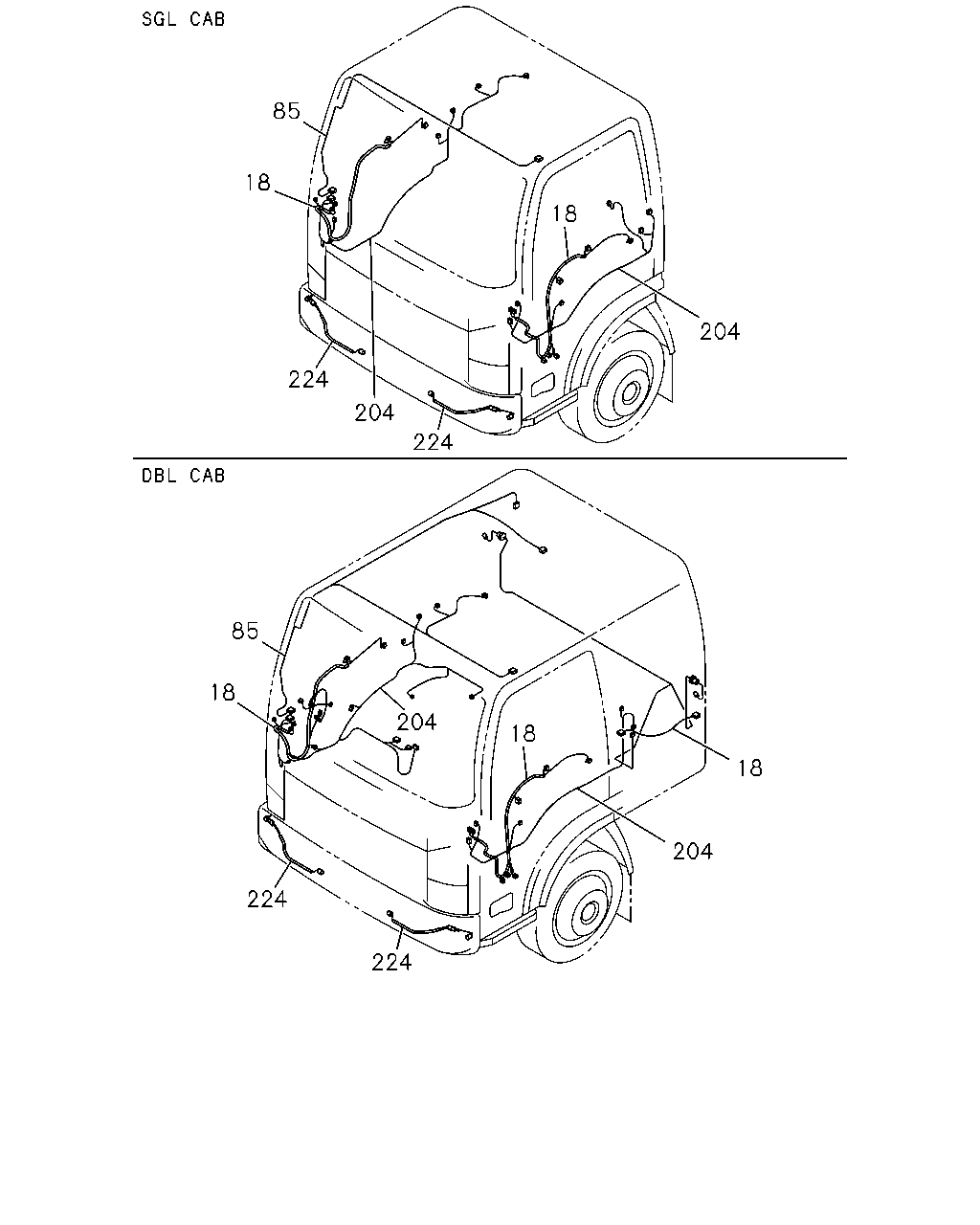

çizim 373465
204 224 204 224 18 85 18 204 18 204 18 85 224 224 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-082-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-082-3 01 1 1309-1310 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-082-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-082-3 01 1 1311- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-082-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-090-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-090-3 01 1 1309-1310 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-090-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-090-3 01 1 1311- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-090-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-080-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-080-3 01 1 1309-1310 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-080-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-080-3 01 1 1311- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-080-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-088-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-088-3 01 1 1309-1310 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-088-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-088-3 01 1 1311- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-088-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-081-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-081-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-081-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-089-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-089-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-089-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-079-2 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-079-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-079-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-087-2 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-087-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-087-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
REAR 		8-98202-555-0 02 1 1309-1310 ●
18 02.480 HARNESS; DOOR
REAR 		8-98202-555-0 02 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1311- ●
85 06.495 HARNESS; ROOM LAMP 8-98071-096-2 01 1 1309- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98071-098-2 01 1 1309-1310 ●
85 06.495 HARNESS; ROOM LAMP 8-98071-098-2 01 1 1311- ● ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-500-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98240-893-0 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-891-0 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98240-898-0 01 1 1402-1408 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98240-898-0 01 1 1409- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-896-0 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-498-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-498-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-072-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-506-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1311-1401 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98206-506-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98074-595-3 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98074-595-3 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98206-505-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98206-505-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98206-505-1 01 1 1311-1401 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98206-505-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VEHICLE LOW COST PACK AGE VARIANT 1<6NX> 		8-98206-505-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-335-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98207-335-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98207-334-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98207-334-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98207-334-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98207-334-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VEHICLE LOW COST PACK AGE VARIANT 1<6NX> 		8-98207-334-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-501-1 01 1 1309-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-501-1 01 1 1402-1402 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-501-1 01 1 1402-1402 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98207-501-1 01 1 1402-1408 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-501-1 01 1 1402-1408 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98207-501-1 01 1 1409- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-501-1 01 1 1409- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-499-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1402-1402 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1402-1402 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98207-499-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-074-3 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-074-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-074-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-073-3 01 1 1309-1310 ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-073-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-073-3 01 1 1311- ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1309-1310 ● ● ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1311- ● ● ● ●

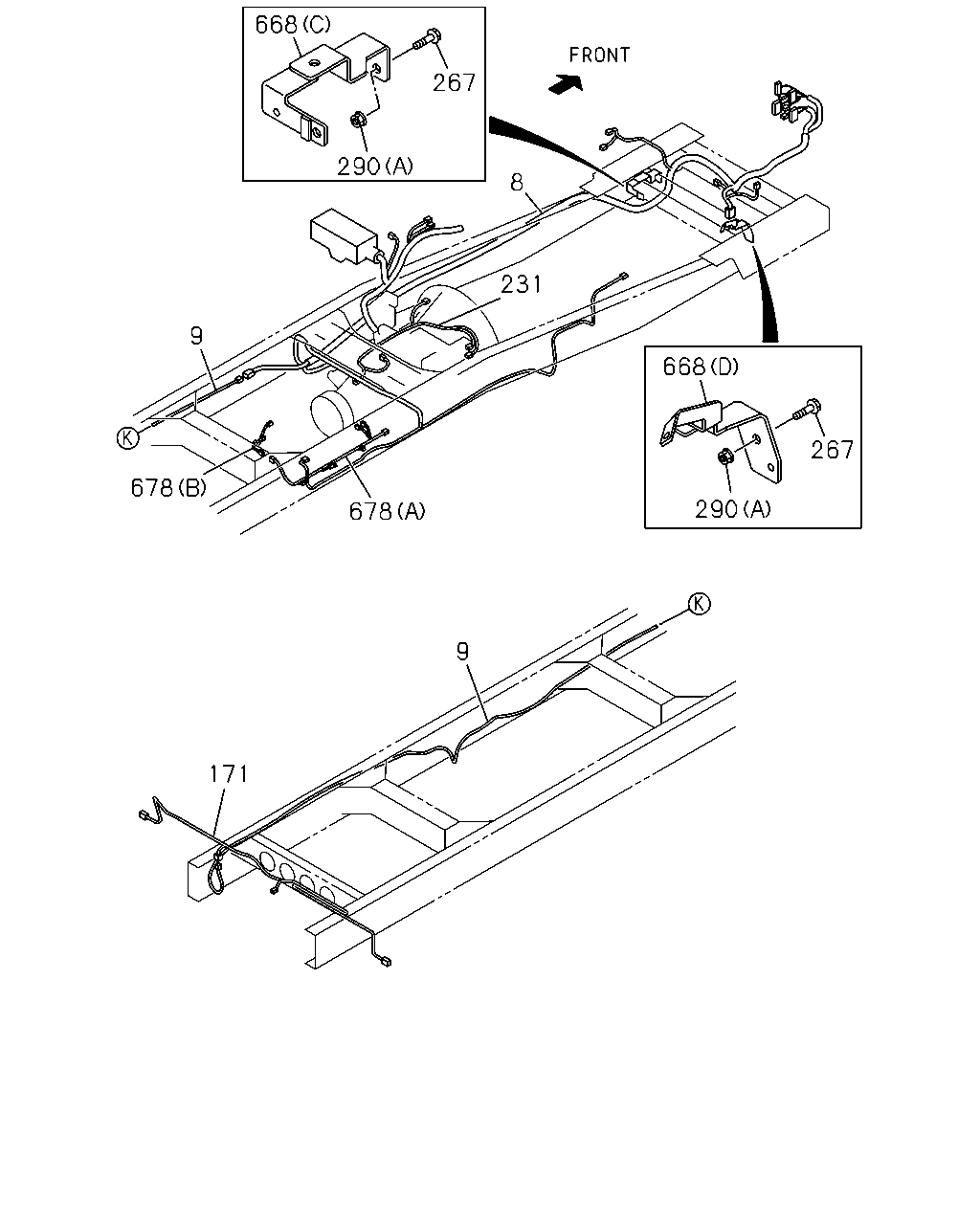

çizim 373521
668 267 290 8 231 668 267 290 678 678 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-876-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-876-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-559-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-559-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-878-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98228-878-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-561-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-561-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98259-898-0 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-566-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98259-899-0 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-567-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-342-4 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-552-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
SMOOTHER-EX(TYPE2)(8NS) 		8-98230-343-4 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-343-4 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-553-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-869-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-869-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-550-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) SMOOTHER-EX(TYPE2)(8NS) 		8-98236-960-3 01 1 1311-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-565-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98228-870-3 01 1 1311-1401 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-870-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-870-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-551-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98228-875-3 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-875-3 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-875-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-875-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-875-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-875-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-558-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-558-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98236-959-3 01 1 1309-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-564-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-854-2 01 1 1309-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98293-545-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-853-2 01 1 1309-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-544-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-877-3 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98228-877-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-877-3 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98228-877-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-877-3 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-560-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98293-560-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-856-2 01 1 1309-1408 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-856-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98293-547-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-855-2 01 1 1309-1408 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-855-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-546-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-340-1 01 1 1409- ●
9 02.480 HARNESS; FRAME,RR
EURO6 SPECIFICATION(NT6) 		8-98228-340-1 01 1 1409- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 		8-98046-995-1 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98047-002-1 01 1 1311-1408 ●
9 02.480 HARNESS; FRAME,RR 8-98047-002-1 01 1 1311-1408 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98047-002-1 01 1 1409- ●
9 02.480 HARNESS; FRAME,RR
EURO5B+ SPECIFICATION(NT5) 		8-98047-002-1 01 1 1409- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98228-338-0 01 1 1309-1310 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) 		8-98228-338-0 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98228-339-1 01 1 1309-1310 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-339-1 01 1 1309-1310 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98228-339-1 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-339-1 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-935-0 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-936-0 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-937-0 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-341-1 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) 		8-98223-199-0 01 1 1309-1408 ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-199-0 01 1 1409- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
ROAD SWEEPER TRUCK(Y23) 		8-98156-026-0 01 1 1312- ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-025-0 01 1 1309-1310 ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-025-0 01 1 1311-1311 ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98156-025-0 01 1 1312- ● ● ● ●
231 02.480 HARNESS; TRANS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-158-1 01 1 1309-1408 ●
231 02.480 HARNESS; TRANS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-158-1 01 1 1309-1408 ●
231 02.480 HARNESS; TRANS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-158-1 01 1 1409- ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1309-1310 ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1311-1312 ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1311-1312 ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1311-1312 ●
231 02.480 HARNESS; TRANS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1401-1401 ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1401-1401 ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1401-1401 ●
231 02.480 HARNESS; TRANS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1402-1408 ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1402-1408 ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1402-1408 ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1402-1408 ●
231 02.480 HARNESS; TRANS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1409- ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1409- ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1409- ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1409- ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1409- ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309-1310 ● ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1309-1311 ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1312- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1309- ● ●

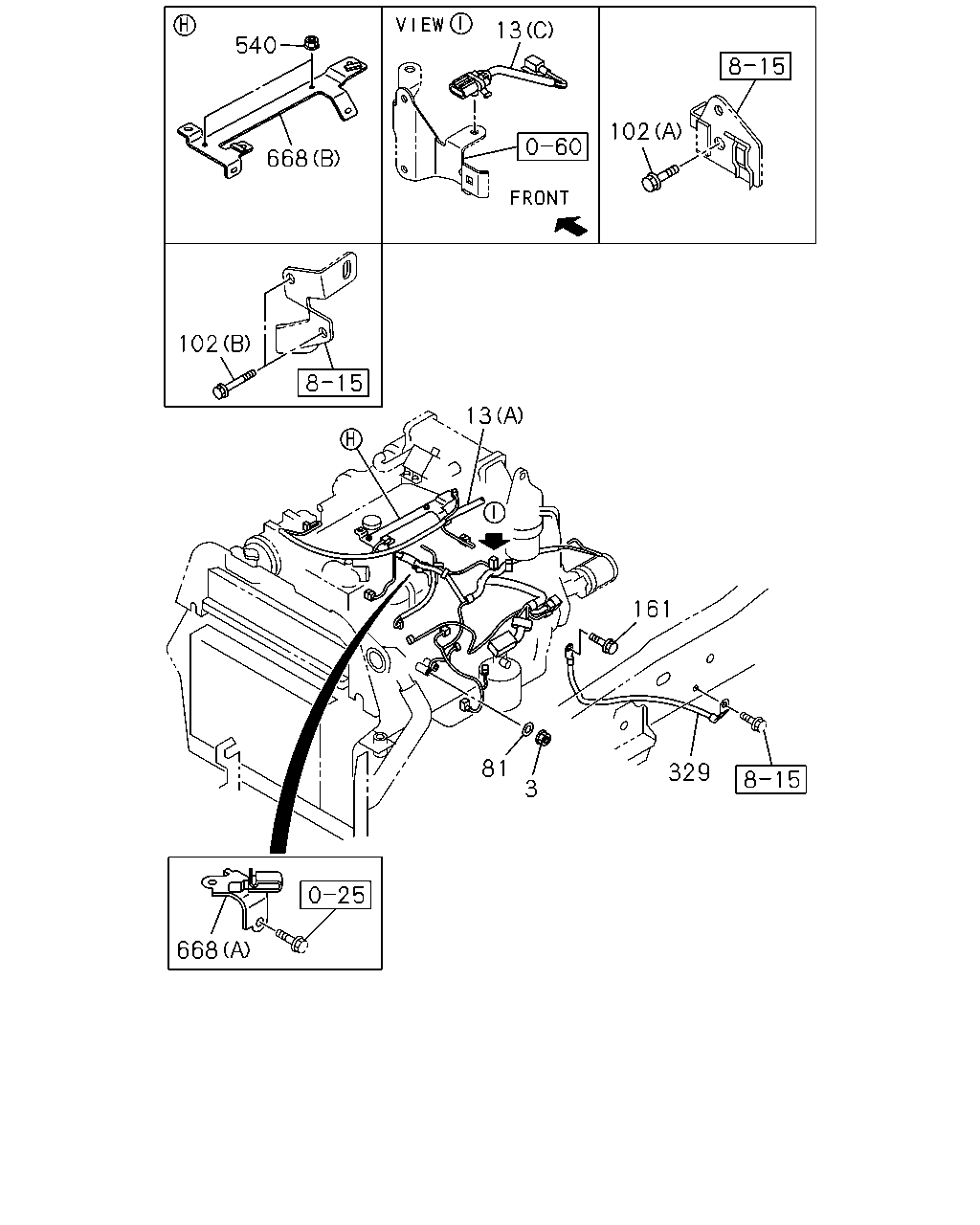

668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98061-780-0 01 1 1309-1311 ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1312- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98200-797-3 01 1 1309-1311 ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1312- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) 06.672 (C) 		8-98207-479-1 01 1 1309- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98226-452-1 01 1 1309- ● ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-426-2 01 1 1309- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) (B) 		8-98145-581-1 01 1 1309- ● ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-427-2 01 1 1309- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) (A) 		8-98161-430-3 01 1 1309-1408 ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-430-3 01 1 1409- ●

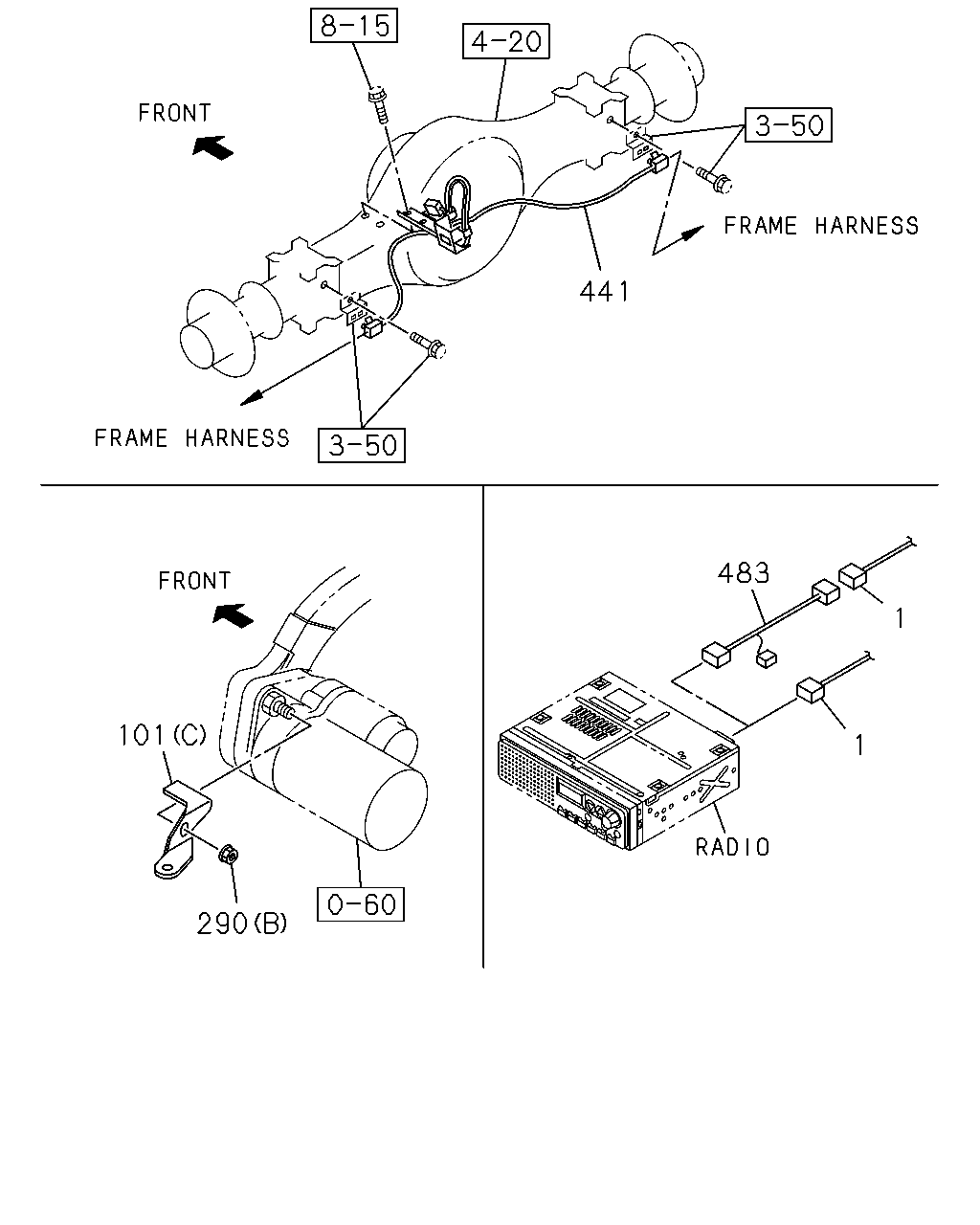

çizim 373552
441 1 483 290 101 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98326-395-0 01 1 1507- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98326-395-0 01 1 1507- ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-413-3 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-413-3 01 1 1402- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-396-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-396-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-396-2 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-396-2 01 1 1311- ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF> 		8-98223-395-2 01 1 1402- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-414-3 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-414-3 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98223-414-3 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-415-3 01 1 1309-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-415-3 01 1 1402-1408 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-415-3 01 1 1402-1408 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98223-415-3 01 1 1409- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-415-3 01 1 1409- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-397-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1402- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-397-2 01 1 1402- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (C) 		8-98030-725-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (C) 		8-98030-725-1 01 1 1311-1408 ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (C) 		8-98030-725-1 01 1 1409- ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) (D) 		8-98228-912-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1309- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1309- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1309- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-98080-697-1 01 1 1309-1310 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98080-697-1 01 1 1309-1310 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-98080-697-1 01 1 1311-1408 ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98080-697-1 01 1 1311-1408 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-98080-697-1 01 1 1409- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98080-697-1 01 1 1409- ● ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1309-1310 ● ● ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1311- ● ● ● ●

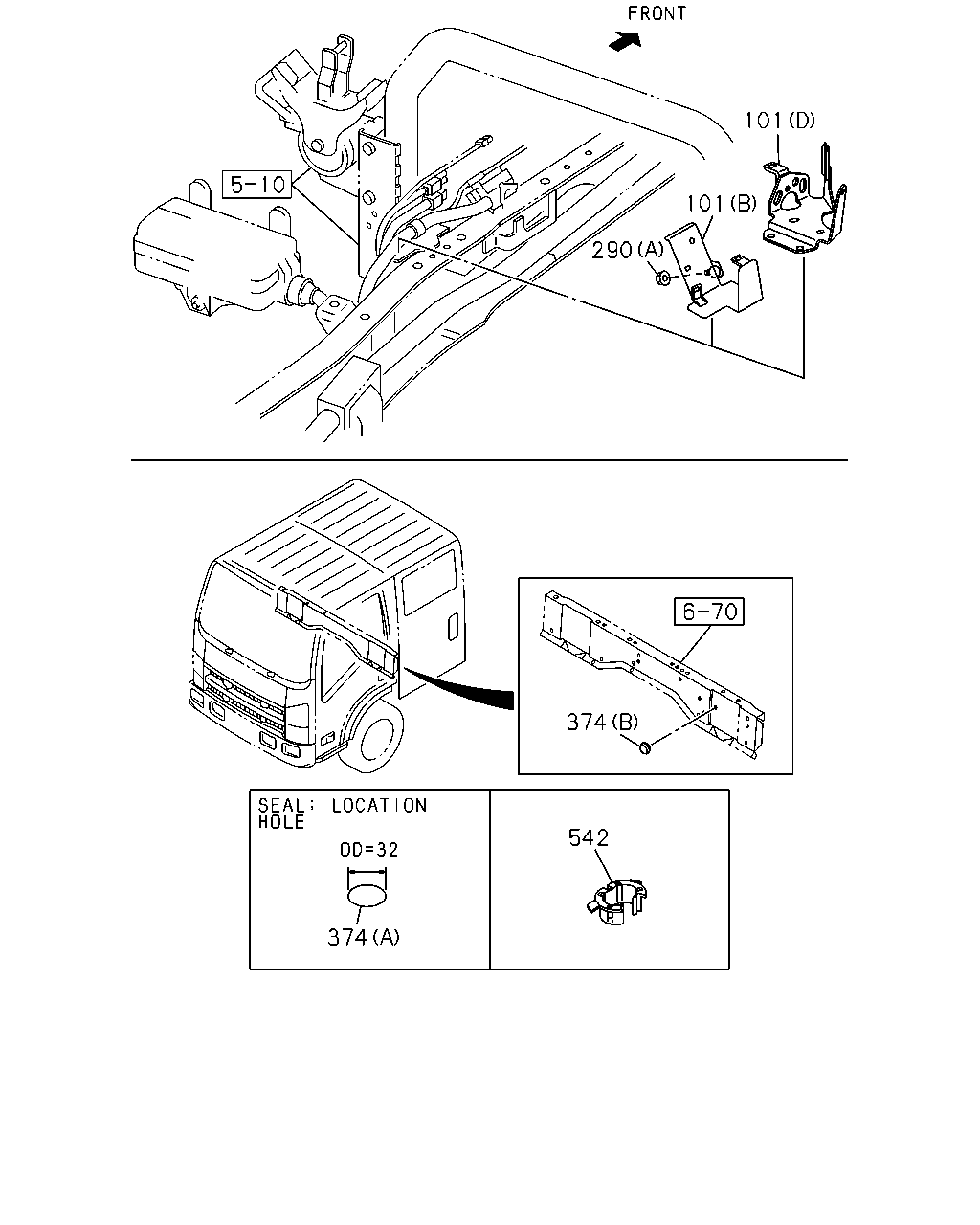

çizim 373573
101 374 542 374 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C D
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (C) 		8-98030-725-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (C) 		8-98030-725-1 01 1 1311-1408 ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (C) 		8-98030-725-1 01 1 1409- ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) (D) 		8-98228-912-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1309- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1309- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1309- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONTDOOR LOCK<6NF> 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 1309-1401 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 1402- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (B) OD=24.5 T=7.5 		8-97224-683-0 01 1 1309-1310 ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (B) OD=24.5 T=7.5 		8-97224-683-0 01 1 1311- ● ●
542 02.483 GROMMET; HARNESS
02.343 ID=17 		8-94128-319-2 01 1 1309-1310 ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1309-1310 ●
542 02.483 GROMMET; HARNESS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.343 ID=17 		8-94128-319-2 01 1 1311-1312 ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1311-1312 ●
542 02.483 GROMMET; HARNESS
02.343 ID=17 		8-94128-319-2 01 1 1311-1312 ●
542 02.483 GROMMET; HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.343 ID=17 		8-94128-319-2 01 1 1401-1408 ●
542 02.483 GROMMET; HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1401-1408 ●
542 02.483 GROMMET; HARNESS
02.343 ID=17 		8-94128-319-2 01 1 1401-1408 ●
542 02.483 GROMMET; HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.343 ID=17 		8-94128-319-2 01 1 1409- ●
542 02.483 GROMMET; HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1409- ●
542 02.483 GROMMET; HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1409- ●
542 02.483 GROMMET; HARNESS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.343 ID=17 		8-94128-319-2 01 1 1409- ●
çizim 374634
13 540 668 102 102 13 161 329 3 81 668
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.559 NUT; GRAND
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1311 ● ●
3 02.559 NUT; GRAND
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1312- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (A) 		8-98259-177-0 01 1 1404-1407 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (A) 		8-98269-572-2 01 1 1408- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1311- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1311- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1309-1408 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1409- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98200-793-6 01 1 1309- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98203-297-0 01 1 1309-1311 ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1312- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98200-794-6 01 1 1309- ● ●
81 00.010 WASHER; PL,EARTH
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1309-1311 ● ●
81 00.010 WASHER; PL,EARTH
4HK1-TCS ENG(RJS) 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1312- ● ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1502- ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1404- ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ● ● ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-98228-810-1 01 1 1309-1310 ●
329 02.480 CABLE; ENG TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1309-1310 ●
329 02.480 CABLE; ENG TO FRAME
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98228-810-1 01 1 1311-1312 ●
329 02.480 CABLE; ENG TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1311-1312 ●
329 02.480 CABLE; ENG TO FRAME 8-98228-810-1 01 1 1311-1312 ●
329 02.480 CABLE; ENG TO FRAME
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98228-810-1 01 1 1401-1408 ●
329 02.480 CABLE; ENG TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1401-1408 ●
329 02.480 CABLE; ENG TO FRAME 8-98228-810-1 01 1 1401-1408 ●
329 02.480 CABLE; ENG TO FRAME
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98228-810-1 01 1 1409- ●
329 02.480 CABLE; ENG TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1409- ●
329 02.480 CABLE; ENG TO FRAME
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1409- ●
329 02.480 CABLE; ENG TO FRAME
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98228-810-1 01 1 1409- ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1309-1408 ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1409- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1309-1408 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 1309-1408 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1409- ● ●
540 02.483 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 M6 FLANGE 		0-91180-106-0 03 1 1309-1311 ● ●
540 02.483 NUT; BRKT FIX
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1312- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98061-780-0 01 1 1309-1311 ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1312- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98200-797-3 01 1 1309-1311 ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1312- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) 06.672 (C) 		8-98207-479-1 01 1 1309- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98226-452-1 01 1 1309- ● ●
çizim 374643
534 13 101 267 700
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (A) 		8-98259-177-0 01 1 1404-1407 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (A) 		8-98269-572-2 01 1 1408- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1311- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1311- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1309-1408 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1409- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98200-793-6 01 1 1309- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98203-297-0 01 1 1309-1311 ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1312- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98200-794-6 01 1 1309- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (C) 		8-98030-725-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (C) 		8-98030-725-1 01 1 1311-1408 ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (C) 		8-98030-725-1 01 1 1409- ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) (D) 		8-98228-912-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1311-1312 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1401-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1409- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1309- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1309- ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309-1310 ● ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1309-1311 ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1312- ● ●
534 02.483 BOLT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1309-1311 ● ●
534 02.483 BOLT
4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1312- ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) L=105 		8-98084-726-0 01 1 1309-1311 ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1312- ● ●
çizim 374729
729 728
BalonParca AdiParca NoAdetTipApplied Date A B C D
728 02.480 HARNESS; DEF DCM SPLY 8-98230-159-1 01 1 1309-1310 ●
728 02.480 HARNESS; DEF DCM SPLY
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1309-1310 ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1309-1310 ●
728 02.480 HARNESS; DEF DCM SPLY
EURO6 SPECIFICATION(NT6) 		8-98230-159-1 01 1 1311-1312 ●
728 02.480 HARNESS; DEF DCM SPLY
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1311-1312 ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1311-1312 ●
728 02.480 HARNESS; DEF DCM SPLY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98230-159-1 01 1 1401-1408 ●
728 02.480 HARNESS; DEF DCM SPLY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1401-1408 ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1401-1408 ●
728 02.480 HARNESS; DEF DCM SPLY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98230-159-1 01 1 1409- ●
728 02.480 HARNESS; DEF DCM SPLY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1409- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1409- ●
728 02.480 HARNESS; DEF DCM SPLY
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1409- ●
728 02.480 HARNESS; DEF DCM SPLY
EURO6 SPECIFICATION(NT6) 		8-98230-159-1 01 1 1409- ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1309-1408 ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) 		8-98223-198-1 01 1 1309-1408 ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1409- ● ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1402-1408 ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1409- ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1409- ●
729 02.480 HARNESS; DEF DCM
EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1409- ●
729 02.480 HARNESS; DEF DCM 8-98227-644-1 01 1 1309-1310 ●
729 02.480 HARNESS; DEF DCM
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98227-644-1 01 1 1309-1310 ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-644-1 01 1 1309-1310 ●
729 02.480 HARNESS; DEF DCM
EURO6 SPECIFICATION(NT6) 		8-98227-644-1 01 1 1311-1312 ●
729 02.480 HARNESS; DEF DCM
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98227-644-1 01 1 1311-1312 ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 		8-98227-644-1 01 1 1311-1312 ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-644-1 01 1 1401-1401 ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 		8-98227-644-1 01 1 1401-1401 ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98227-644-1 01 1 1401-1401 ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-644-1 01 1 1402- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 		8-98227-644-1 01 1 1402- ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98227-644-1 01 1 1402- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-200-2 01 1 1309- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-201-2 01 1 1309- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) 		8-98223-202-0 01 1 1309-1408 ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-202-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
