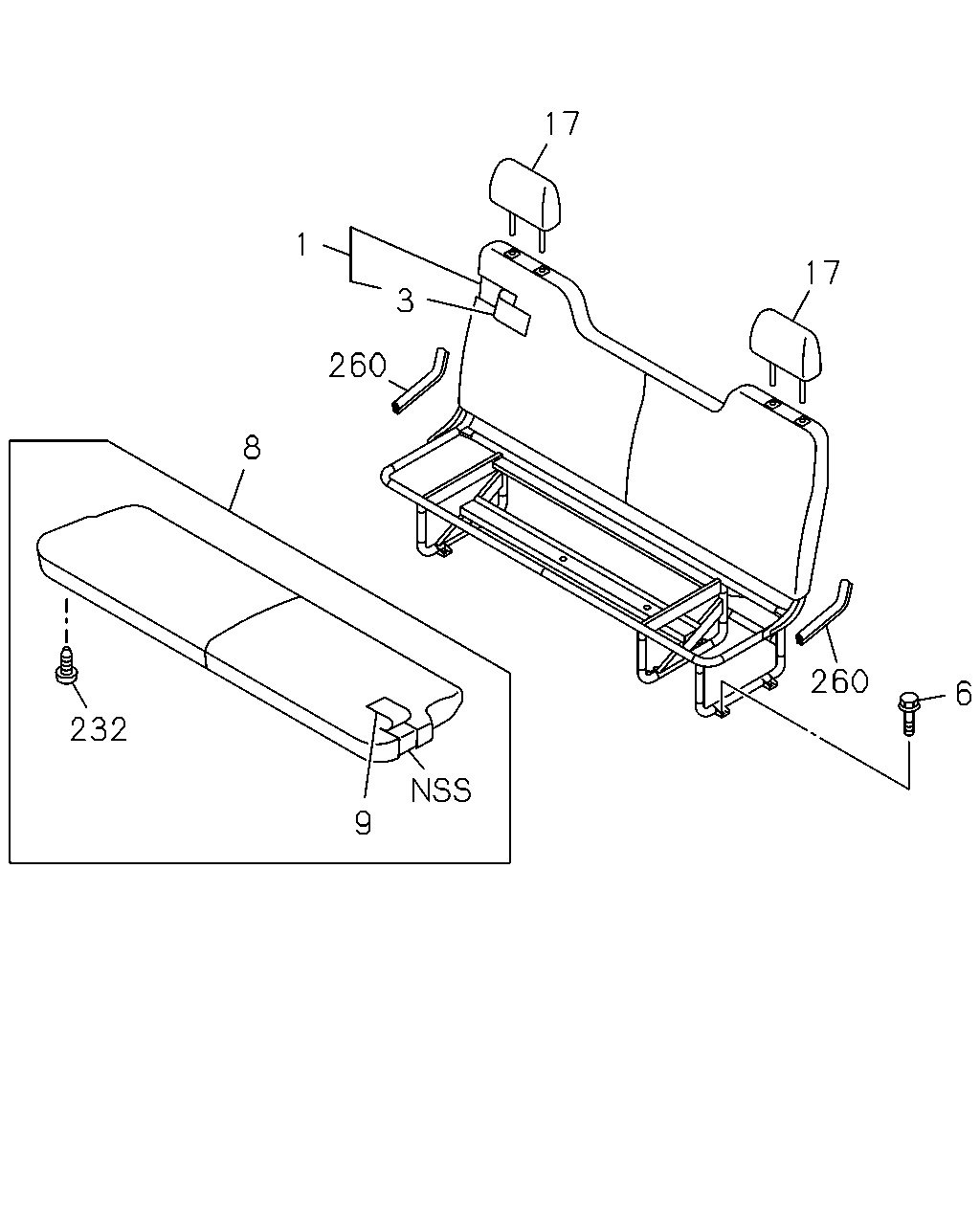

7-55 — REAR SEAT (#126141) — 28 parça

1 17 3 17 8 232 9 260 6 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; RR SEAT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-058-0	01	1	1409-	●	●
1	16.720 BACK ASM; RR SEAT DARK GRAY	8-97421-358-0	01	1	1309-1310		●
1	16.720 BACK ASM; RR SEAT DARK GRAY	8-97421-358-0	01	1	1311-1408	●	●
1	16.720 BACK ASM; RR SEAT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-358-0	01	1	1409-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK FACE LIFT MODEL<TX7> DARK GRAY	8-97465-060-0	01	1	1409-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK DARK GRAY	8-97421-369-0	01	1	1309-1310		●
3	16.714 COVER; TRIM,RR SEAT BACK DARK GRAY	8-97421-369-0	01	1	1311-1408	●	●
3	16.714 COVER; TRIM,RR SEAT BACK EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-369-0	01	1	1409-	●	●
6	16.679 BOLT; RR SEAT M8X25 W/WASHER	0-51640-825-0	06	1	1309-1310		●
6	16.679 BOLT; RR SEAT M8X25 W/WASHER	0-51640-825-0	06	1	1311-	●	●
8	16.715 CUSHION ASM; RR SEAT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-061-0	01	1	1409-	●	●
8	16.715 CUSHION ASM; RR SEAT DARK GRAY	8-97421-364-0	01	1	1309-1310		●
8	16.715 CUSHION ASM; RR SEAT DARK GRAY	8-97421-364-0	01	1	1311-1408	●	●
8	16.715 CUSHION ASM; RR SEAT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-364-0	01	1	1409-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION FACE LIFT MODEL<TX7> DARK GRAY	8-97465-062-0	01	1	1409-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION DARK GRAY	8-97421-372-0	01	1	1309-1310		●
9	16.717 COVER ASM; TRIM,RR,CUSHION DARK GRAY	8-97421-372-0	01	1	1311-1408	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-372-0	01	1	1409-	●	●
17	16.718 REST; HD,RR SEAT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-063-0	02	1	1409-	●	●
17	16.718 REST; HD,RR SEAT DARK GRAY	8-97421-366-0	02	1	1309-1310		●
17	16.718 REST; HD,RR SEAT DARK GRAY	8-97421-366-0	02	1	1311-1408	●	●
17	16.718 REST; HD,RR SEAT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-366-0	02	1	1409-	●	●
232	16.680 SCREW; RR SEAT 05.812 M6X16 CK-HEAD	9-03090-616-0	12	1	1309-1310		●
232	16.680 SCREW; RR SEAT 05.812 M6X16 CK-HEAD	9-03090-616-0	12	1	1311-1408	●	●
232	16.680 SCREW; RR SEAT 05.812 M6X16 CK-HEAD	9-03090-616-0	12	1	1409-	●	●
260	16.715 FINISHER; RR SEAT 03.417 L=250 SERVICED BY L=314	8-94262-845-0	02	1	1309-1310		●
260	16.715 FINISHER; RR SEAT 03.417 L=250 SERVICED BY L=314	8-94262-845-0	02	1	1311-1408	●	●
260	16.715 FINISHER; RR SEAT 03.417 L=250 SERVICED BY L=314	8-94262-845-0	02	1	1409-	●	●
