◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#126136) — 326 parça

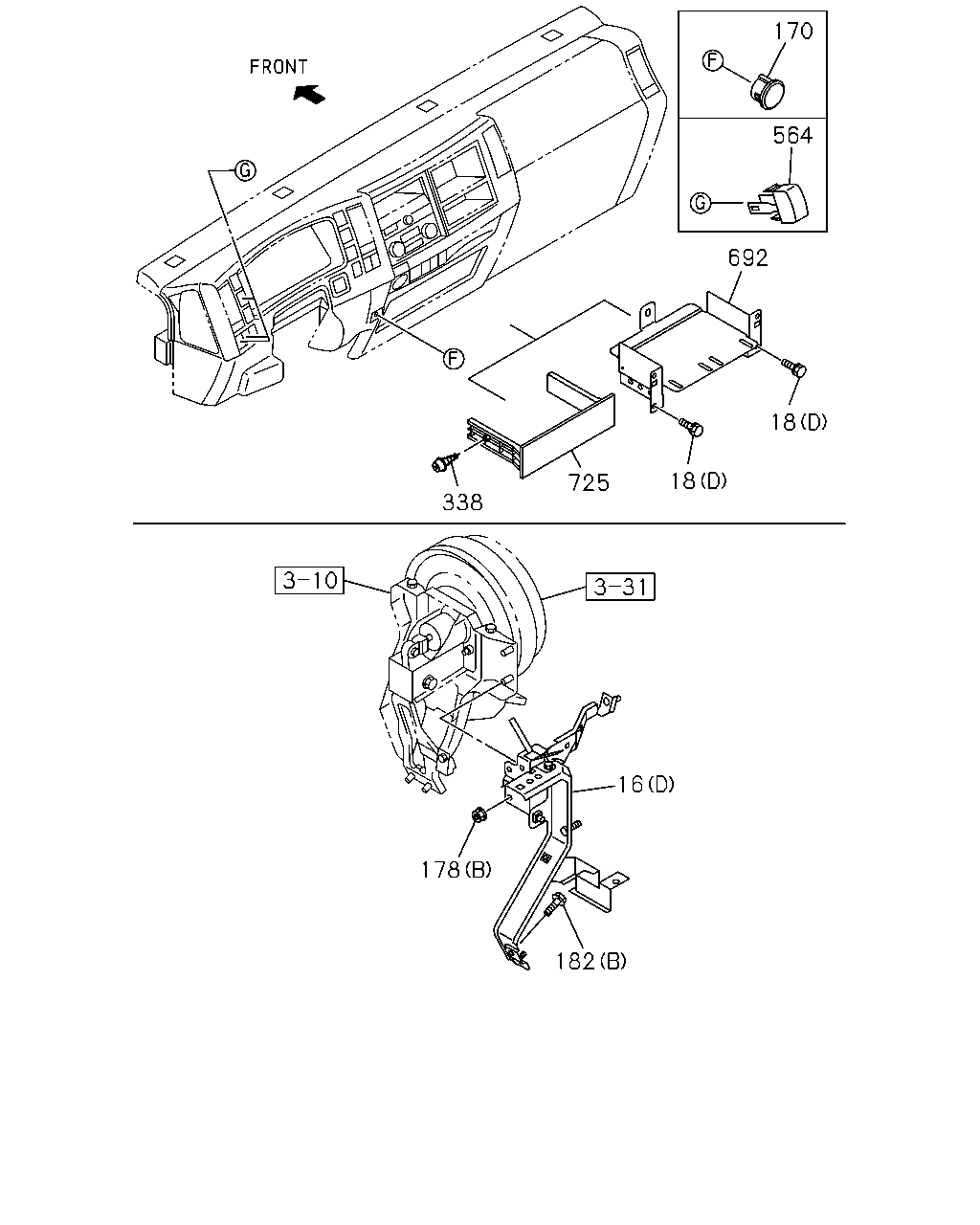

çizim 373376
338 725 18 18 692 564 170 178 182 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1309-1310 ● ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1402-1408 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1402-1408 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1402-1408 ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1409-1503 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1409-1503 ● ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98278-076-0 01 1 1504- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98278-076-0 01 1 1504- ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1311- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1311- ● ● ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1309-1310 ● ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1311- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1309-1310 ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1311- ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1309-1310 ● ●
178 16.085 NUT; INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
178 16.085 NUT; INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ●
178 16.085 NUT; INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1409- ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1409- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) SCREW M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) SCREW M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1309-1310 ● ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ●
338 16.081 SCREW; COVER
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1309-1310 ● ● ●
338 16.081 SCREW; COVER
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ● ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1309-1310 ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1311- ● ● ● ●
692 16.085 BRACKET; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1309-1310 ● ● ●
692 16.085 BRACKET; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1311- ● ● ● ●
725 16.081 COVER; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK 		8-97407-896-2 01 1 1309-1310 ● ● ●
725 16.081 COVER; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK 		8-97407-896-2 01 1 1311- ● ● ● ●

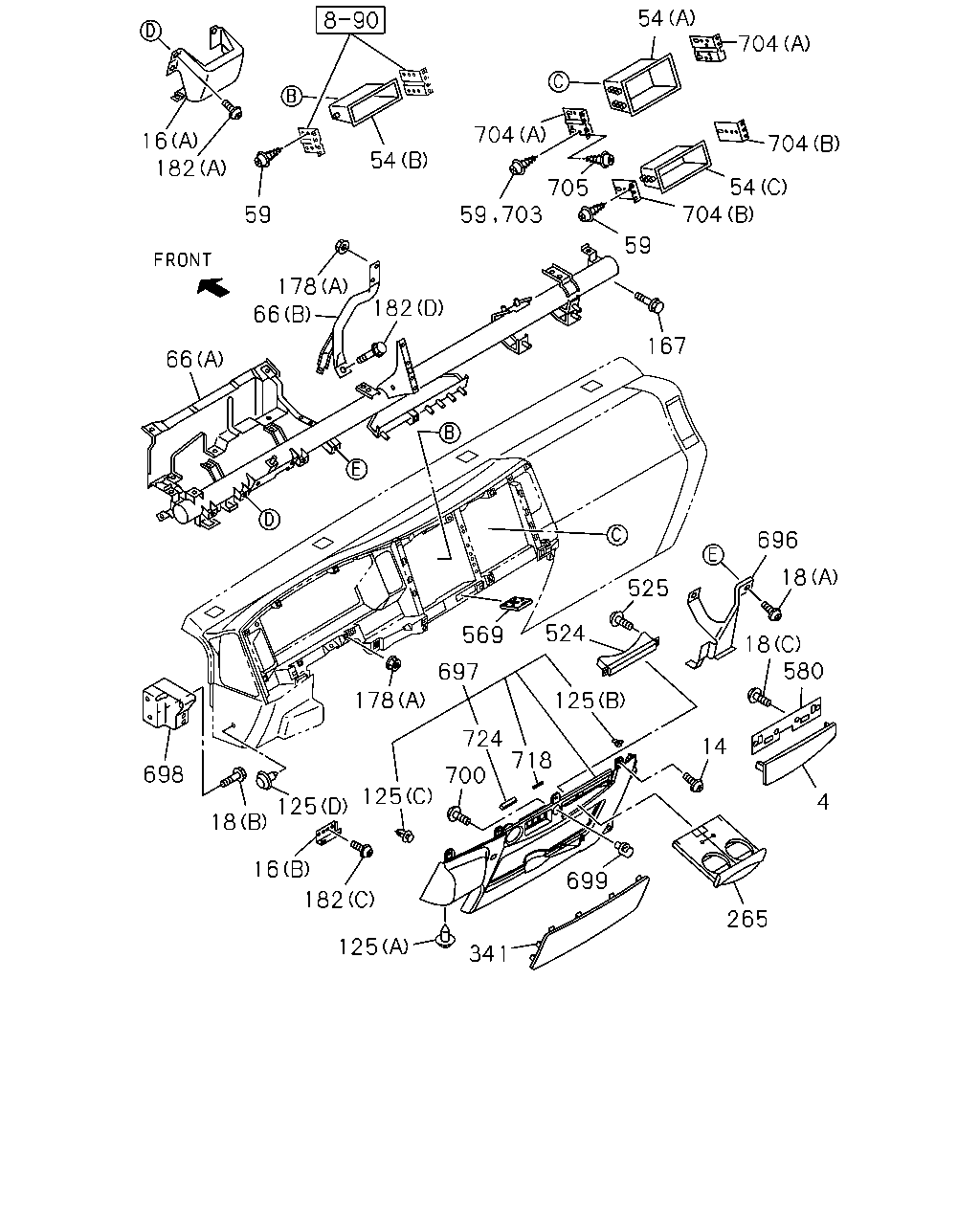

çizim 374599
696 525 524 125 14 4 580 18 18 167 59 54 704 704 54 704 54 59 705 703 182 178 66 66 182 16 59 698 18 16 125 178 569 724 700 125 182 125 341 265 699 718 704 697
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1309-1310 ● ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1311- ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1309-1310 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1309-1310 ● ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1402-1408 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1402-1408 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1402-1408 ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1409-1503 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1409-1503 ● ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98278-076-0 01 1 1504- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98278-076-0 01 1 1504- ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1311- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1309-1310 ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1311- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1309-1310 ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1311- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1311- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD(8PG) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1309-1310 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD(8PG) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1311- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1309-1310 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1311- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1309-1310 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1309-1310 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98192-945-0 01 1 1309-1310 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98192-945-0 01 1 1311- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1309-1310 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1311- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98192-944-0 01 1 1309-1310 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98192-944-0 01 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-817-0 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-817-0 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1311- ● ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1309-1310 ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1311- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1309-1310 ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1311- ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1309-1310 ● ●
178 16.085 NUT; INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
178 16.085 NUT; INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ●
178 16.085 NUT; INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1409- ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1409- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) SCREW M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) SCREW M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1309-1310 ● ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1309-1310 ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1311- ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1309-1310 ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1311- ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1309-1310 ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1311- ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1309-1310 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1311- ● ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1309-1310 ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1311- ● ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1309-1310 ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1311- ● ● ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1309-1310 ● ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1311- ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1309-1310 ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1311- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1309-1310 ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1311- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1309-1310 ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1311- ● ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1309-1310 ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1311- ● ● ● ●
700 16.090 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1309-1310 ● ● ●
700 16.090 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ● ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1309-1310 ● ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1311- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) (B) 		8-97585-616-2 02 1 1309-1310 ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) (B) 		8-97585-616-2 02 1 1311- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> (A) 		8-97585-618-2 02 1 1309-1310 ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> (A) 		8-97585-618-2 02 1 1311- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1309-1310 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1309-1310 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS <8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ● ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1309-1310 ● ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1311- ● ● ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1309-1310 ● ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1311- ● ● ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1309-1310 ● ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1311- ● ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1309-1310 ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1311- ● ● ● ●

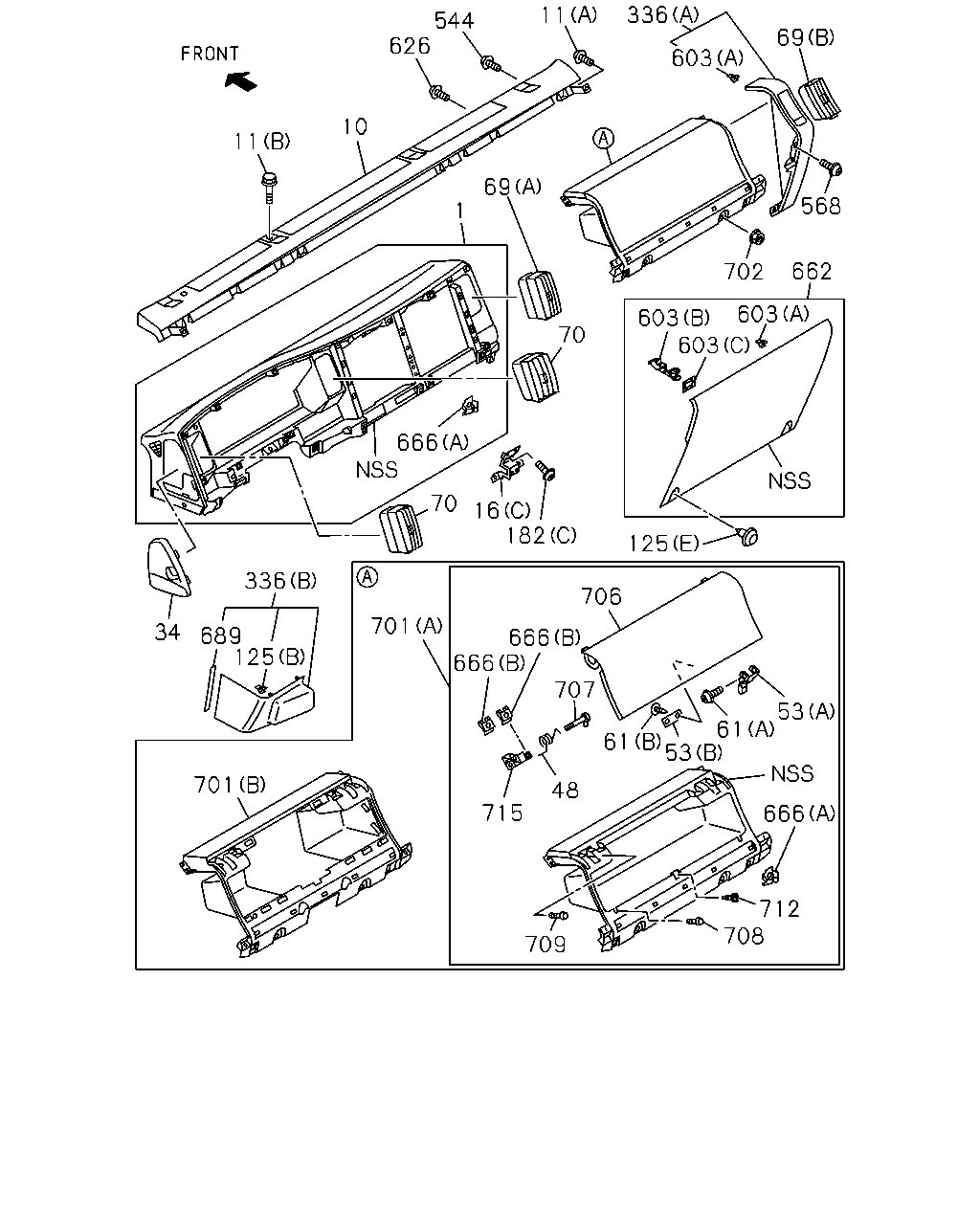

çizim 374687
11 10 626 544 11 336 603 69 69 70 603 702 662 568 603 603 125 182 70 16 666 336 34 689 125 701 701 666 666 706 53 61 53 61 48 707 715 709 708 666 712 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1309-1310 ● ● ●
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1311- ● ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1309-1310 ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1311- ● ● ● ●
11 16.090 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1309-1310 ● ● ●
11 16.090 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1311- ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1309-1310 ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1309-1310 ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1311- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1309-1310 ● ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1311-1401 ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1402-1408 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1402-1408 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1402-1408 ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1409-1503 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98093-380-3 01 1 1409-1503 ● ●
16 16.085 BRACKET; INST PNL
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98278-076-0 01 1 1504- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98278-076-0 01 1 1504- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1309-1310 ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1311- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1309-1310 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1311-1311 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1309-1310 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1311-1311 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1309-1310 ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1311-1405 ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1309-1310 ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1311-1405 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1309-1310 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1311- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1309-1310 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1311- ● ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1309-1310 ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-817-0 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-817-0 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1311- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1309-1310 ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) SCREW M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1309-1310 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) SCREW M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1311- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1309-1310 ● ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
182 16.085 BOLT; BRKT,INST PANEL
SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1309-1310 ● ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1311- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1309-1310 ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1311- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1309-1310 ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1311- ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1309-1310 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1311- ● ● ● ●
568 09.744 BOLT; COVER
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1309-1310 ● ● ●
568 09.744 BOLT; COVER
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 01 1 1309-1310 ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 01 1 1311- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 03 1 1309-1310 ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 03 1 1311- ● ● ● ●
603 16.090 CLIP; COVER
(B) 		8-98152-030-0 02 1 1309-1310 ● ● ●
603 16.090 CLIP; COVER
(B) 		8-98152-030-0 02 1 1311- ● ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-031-0 02 1 1309-1310 ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-031-0 02 1 1311- ● ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1309-1310 ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1311- ● ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-2 01 1 1309-1310 ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-2 01 1 1311- ● ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1309-1310 ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1311- ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1309-1310 ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1311- ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1309-1310 ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1311-1311 ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1309-1310 ● ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1311- ● ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 1309-1310 ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 1311- ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1309-1310 ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1311-1405 ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1309-1310 ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1311-1405 ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1309-1310 ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1311-1311 ● ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1309-1310 ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1311- ● ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1309-1310 ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1311- ● ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1309-1310 ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1311- ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1309-1310 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1311-1311 ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1309-1310 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1311-1311 ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
