6-78 — FLOOR HOLE PLUG (#126127) — 49 parça

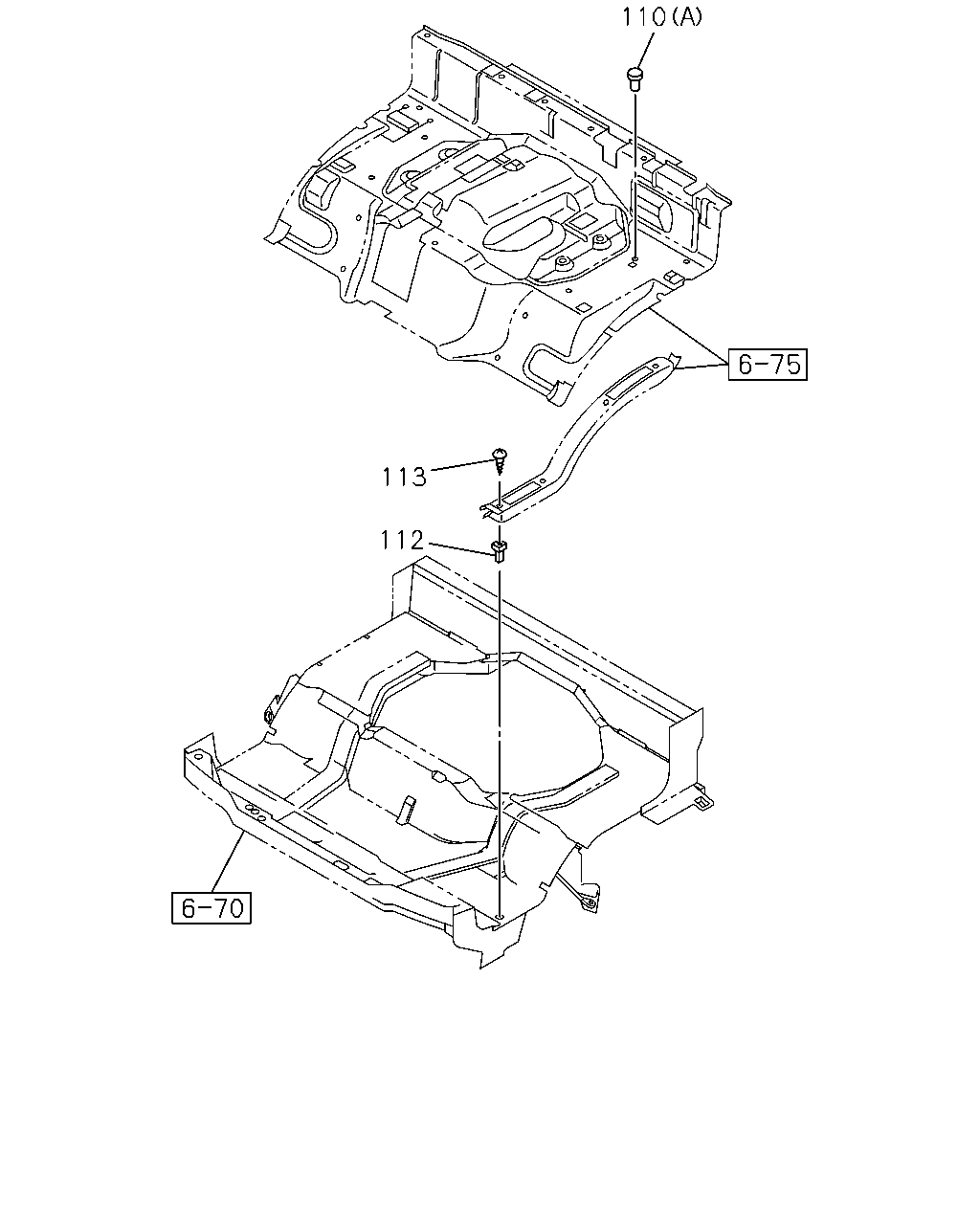

110 113 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-94279-089-0	04	1	1402-1408	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-94279-089-0	04	1	1409-		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-94279-089-0	04	1	1409-	●
110	16.802 FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	12	1	1309-			●	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1311-1401		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) (A) BLACK	8-94279-089-0	02	1	1311-1401	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1402-1408		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	1402-1408	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1409-		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	1409-		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	1409-	●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	1311-	●	●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	1311-	●	●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	1311-	●	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	1309-1310		●	●	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	1311-	●	●	●	●
113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1309-1310		●	●	●
113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1311-	●	●	●	●

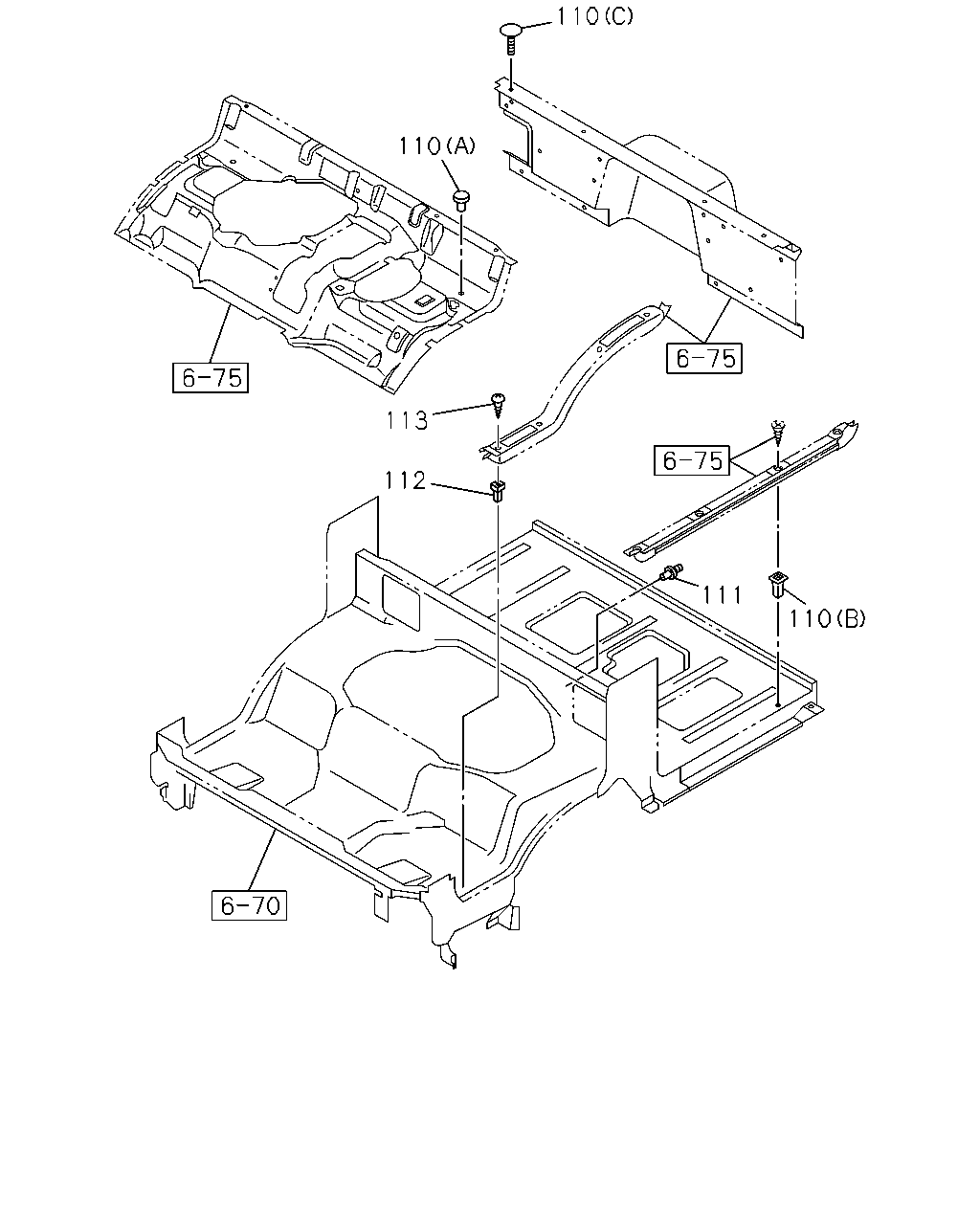

110 110 113 112 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-94279-089-0	04	1	1402-1408	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-94279-089-0	04	1	1409-		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-94279-089-0	04	1	1409-	●
110	16.802 FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	12	1	1309-			●	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1311-1401		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) (A) BLACK	8-94279-089-0	02	1	1311-1401	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1402-1408		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	1402-1408	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	1409-		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	1409-		●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	1409-	●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	1311-	●	●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	1311-	●	●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	1309-1310		●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	1311-	●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCC ENG(RDU) 16.802 BLACK	8-94279-089-0	09	1	1311-1401	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 16.802 BLACK	8-94279-089-0	09	1	1402-1408	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 16.802 BLACK	8-94279-089-0	09	1	1409-		●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 16.802 BLACK	8-94279-089-0	09	1	1409-	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCS ENG(RJS) 16.802 BLACK	8-94279-089-0	11	1	1309-		●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	1309-1310		●	●	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	1311-	●	●	●	●
113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1309-1310		●	●	●
113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1311-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
