◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#126124) — 265 parça

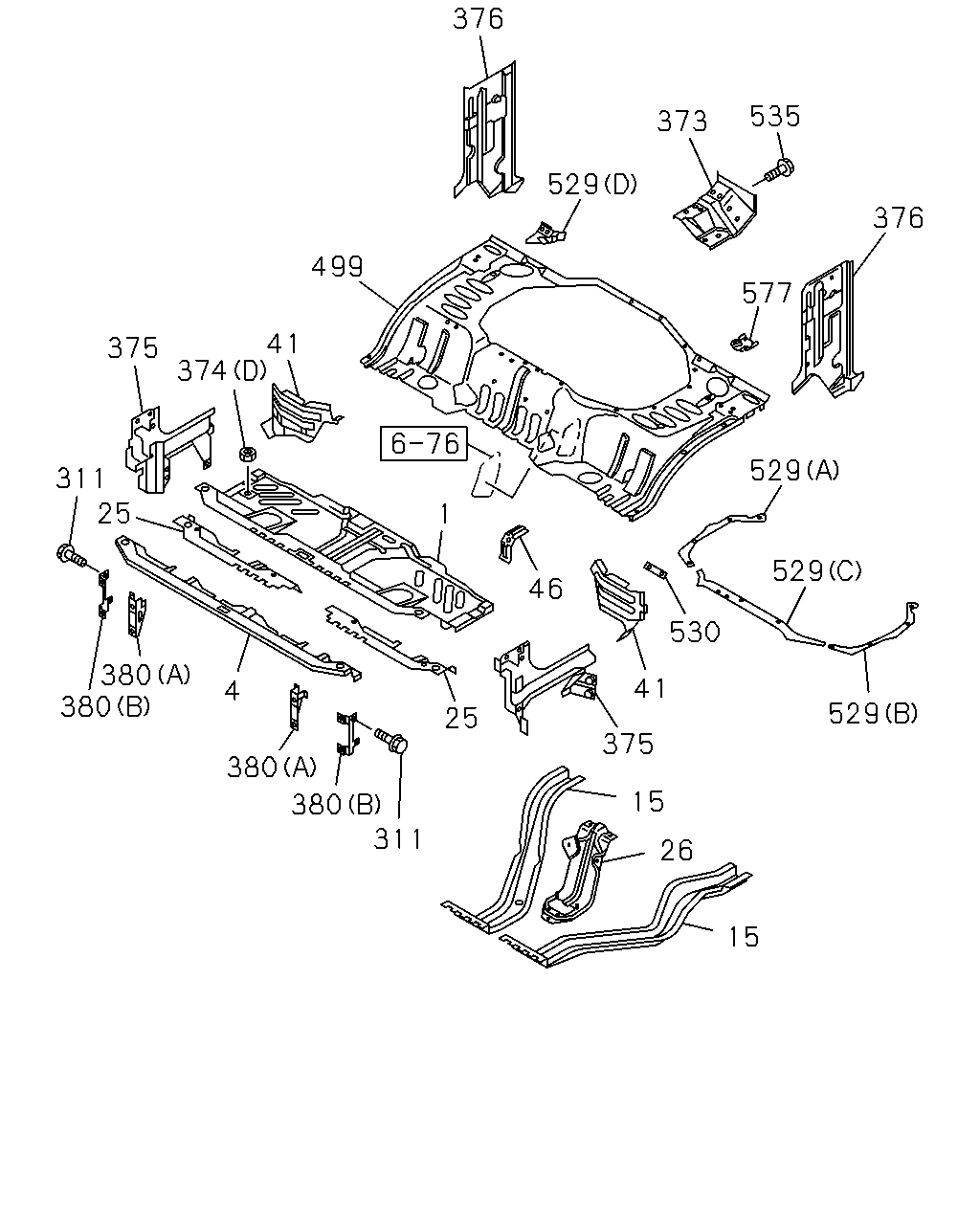

çizim 374119
376 373 535 376 577 529 529 529 529 530 41 375 15 26 15 46 25 311 380 380 380 380 4 25 311 375 41 499 1 374
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 1309-1310 ● ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1309-1310 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 1311- ● ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1311- ● ●
4 16.545 FRAME; FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 1309-1310 ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1309-1310 ●
4 16.545 FRAME; FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 1311- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1311- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-497-1 01 1 1309-1310 ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1309-1310 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-497-1 01 1 1311- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1311- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 1309-1310 ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1309-1310 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 1311- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 1309-1310 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1309-1310 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 1309-1310 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1309-1310 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1311- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 1309-1310 ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1309-1310 ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 1311- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 1309-1310 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1309-1310 ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 1309-1310 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1309-1310 ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1311- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1309-1310 ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1309-1310 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1311- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1311- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1309-1310 ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1311- ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1309- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1309- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98017-005-2 01 1 1309-1310 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98017-005-2 01 1 1311- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1309- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1309-1310 ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1309-1310 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1311- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1311- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1309-1310 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1311- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1309-1310 ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1311- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 03 1 1309- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1309-1310 ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1309-1310 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1311- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1311- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1309-1310 ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1309-1310 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1311- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1311- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 1309- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 1309- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-544-7 01 1 1309-1310 ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-544-7 01 1 1311- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-545-6 01 1 1309-1310 ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-545-6 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 1309-1310 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1309-1310 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 1309-1310 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1309-1310 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1309-1310 ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1311- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1309-1310 ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1311- ● ● ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1309- ● ●
499 16.545 PANEL; FLOOR,RR 8-98207-188-0 01 1 1309-1310 ●
499 16.545 PANEL; FLOOR,RR 8-98207-188-0 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1311- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1309-1310 ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1311- ● ●
535 16.549 BOLT; REINFORCEMENT
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 1309-1310 ●
535 16.549 BOLT; REINFORCEMENT
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 1311- ● ●
577 16.545 BRACKET; SENSOR,YAW
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-802-0 01 1 1309-1310 ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1309-1310 ●
577 16.545 BRACKET; SENSOR,YAW
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-802-0 01 1 1311-1401 ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1311-1401 ● ●
577 16.545 BRACKET; SENSOR,YAW
MANUAL TILT CAB<RWZ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,INSPECTION ENGINE COVER<8GA> 		8-98204-802-0 01 1 1402- ● ●
577 16.545 BRACKET; SENSOR,YAW
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98204-802-0 01 1 1402- ● ●

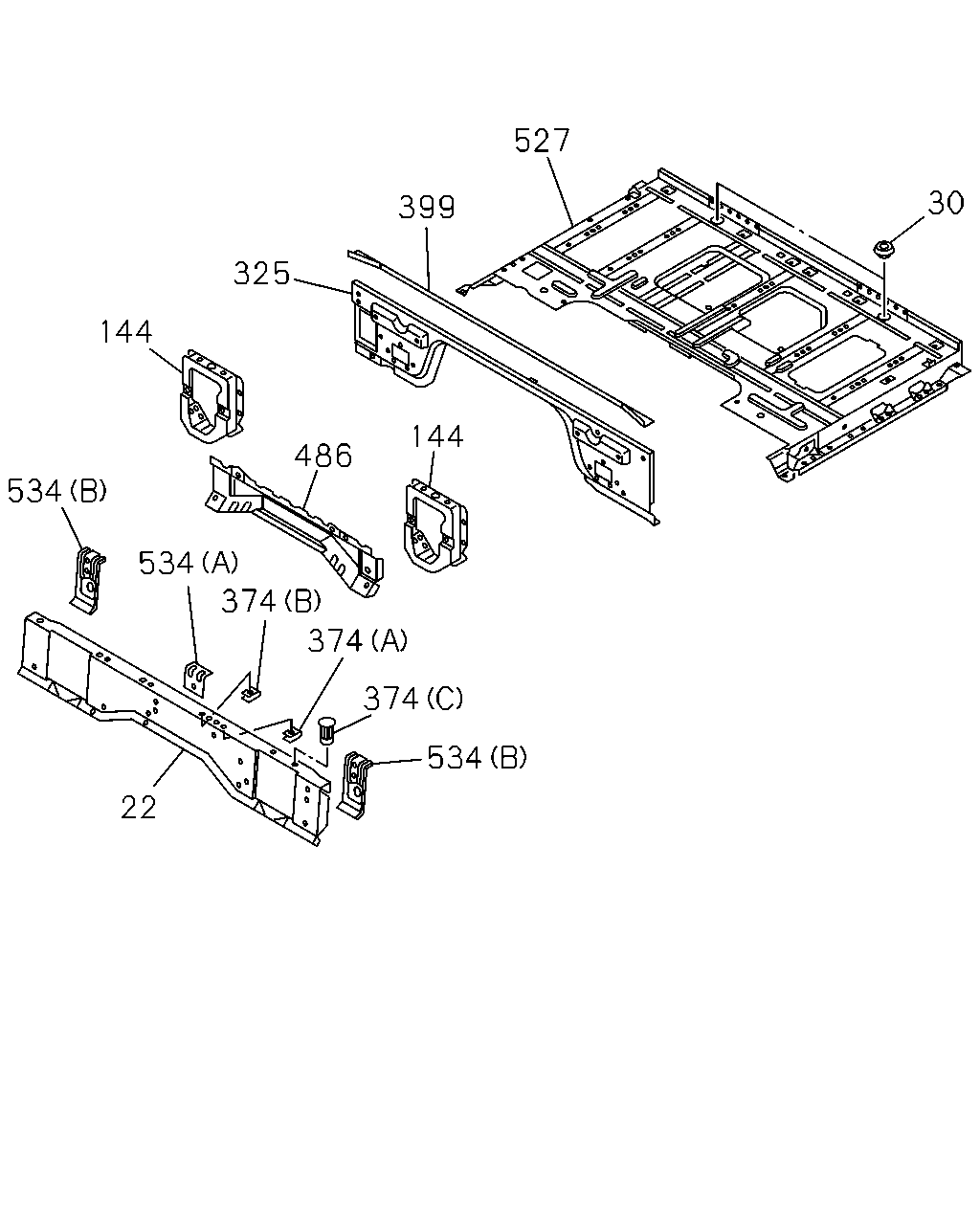

çizim 374122
30 527 399 325 144 486 144 534 534 374 374 374 534 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1309- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1309-1310 ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1311- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 1309-1310 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 1311- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1309- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-1 02 1 1309-1310 ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1311- ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-98006-699-3 01 1 1309-1310 ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-98006-699-3 01 1 1311- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1309- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1309-1310 ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1309-1310 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1311- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1311- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1309-1310 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1311- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1309-1310 ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1311- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 03 1 1309- ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97587-702-1 01 1 1309-1310 ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97587-702-1 01 1 1311- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1309- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1309-1310 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1311- ● ●
527 16.545 FLOOR; RR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-192-0 01 1 1409- ● ●
527 16.545 FLOOR; RR
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 		8-98207-195-0 01 1 1409- ● ●
527 16.545 FLOOR; RR
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-407-0 01 1 1402- ●
527 16.545 FLOOR; RR
4JJ1-TCC ENG(RDU) 		8-98232-648-1 01 1 1311-1401 ●
527 16.545 FLOOR; RR
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-648-1 01 1 1402- ●
527 16.545 FLOOR; RR
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-241-1 01 1 1309- ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 1309-1310 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1309-1310 ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1309-1310 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1309-1310 ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1311- ● ●

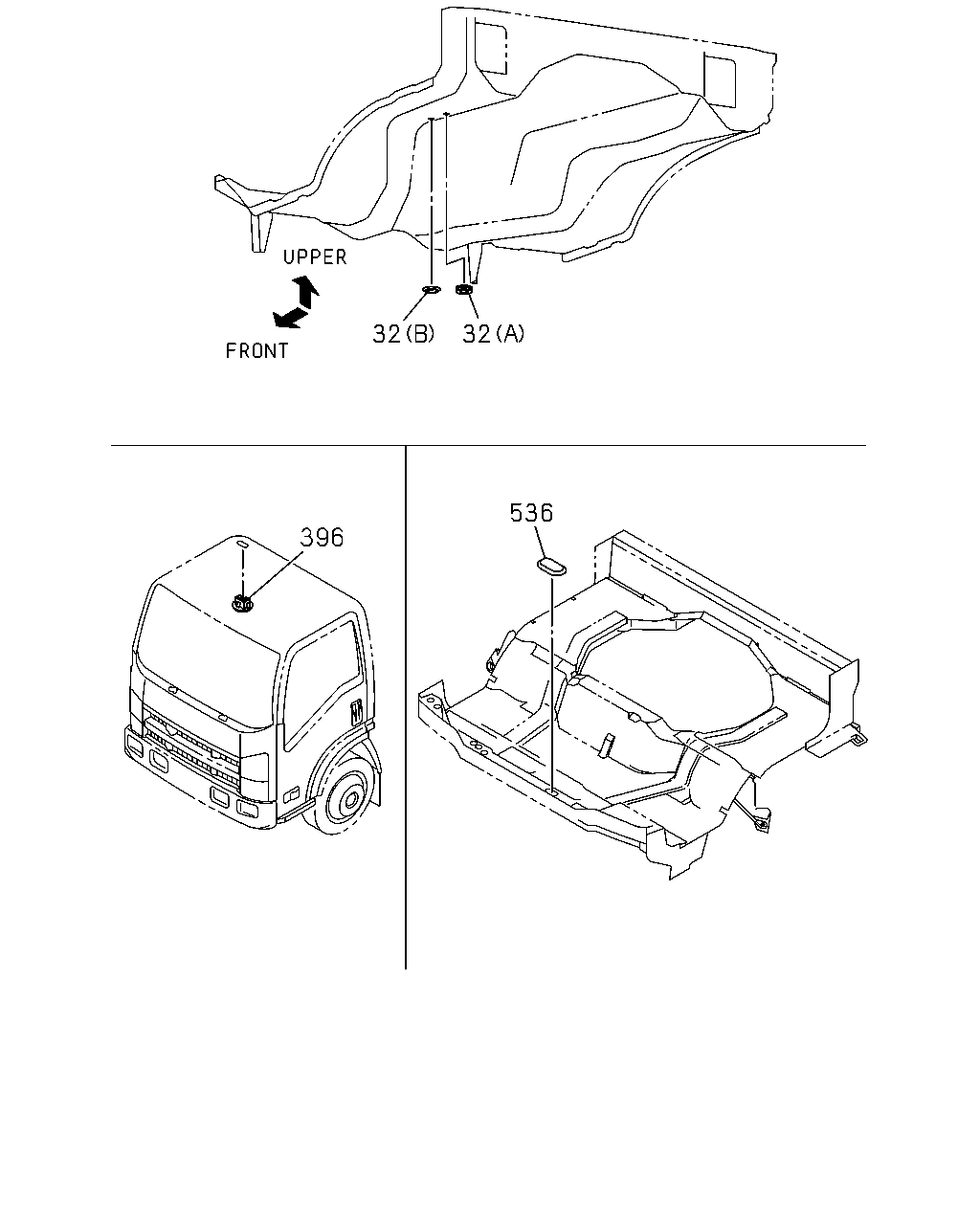

çizim 374497
32 32 396 536
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1309-1310 ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1311- ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1309-1310 ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1311- ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE
INTERIOR TRIM-SEMI TRIMMING<SEV> 		8-98054-990-0 02 1 1309- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1309-1310 ● ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1311- ● ● ● ●

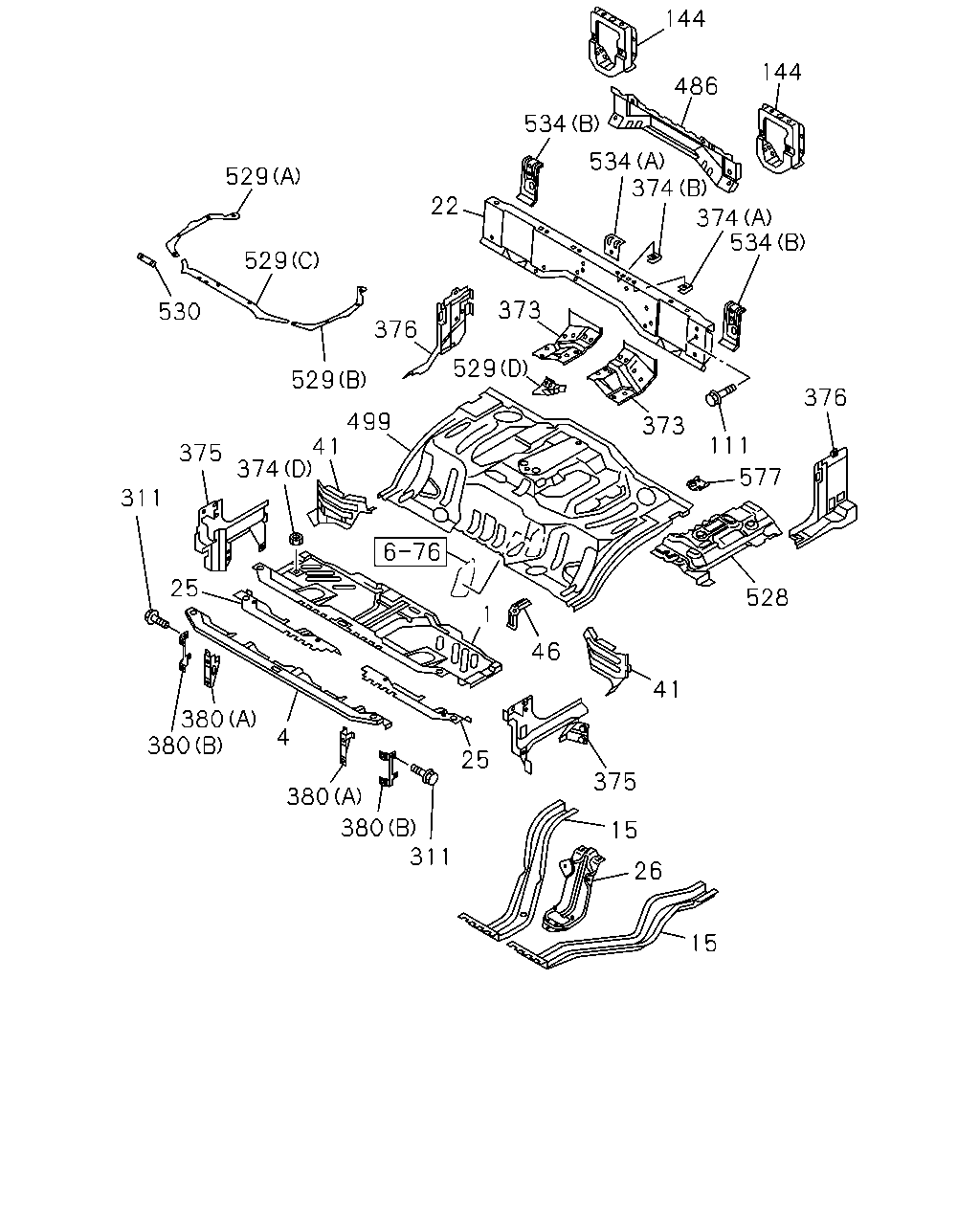

çizim 374526
144 144 486 534 534 374 374 534 22 373 373 376 111 577 528 41 375 15 26 15 529 376 529 529 530 529 499 41 374 375 311 25 1 46 25 380 380 380 380 311
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 1309-1310 ● ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1309-1310 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 1311- ● ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1311- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-497-1 01 1 1309-1310 ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1309-1310 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-497-1 01 1 1311- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1311- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 1309-1310 ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1309-1310 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 1311- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1311- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1309- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1309-1310 ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 1309-1310 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1309-1310 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 1309-1310 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1309-1310 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 1311- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1311- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 1309-1310 ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1309-1310 ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 1311- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 1309-1310 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1309-1310 ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 1309-1310 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1309-1310 ●
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 1311- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1311- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1309-1310 ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1309-1310 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1311- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1311- ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1309- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-1 02 1 1309-1310 ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1311- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1309-1310 ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1311- ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1309- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1309- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98017-005-2 01 1 1309-1310 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98017-005-2 01 1 1311- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1309- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1309-1310 ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1309-1310 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1311- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1311- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1309-1310 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1311- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1309-1310 ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1311- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 03 1 1309- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1309-1310 ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1309-1310 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1311- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1311- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1309-1310 ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1309-1310 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1311- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1311- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 1309- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 1309- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-544-7 01 1 1309-1310 ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-544-7 01 1 1311- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-545-6 01 1 1309-1310 ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-545-6 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 1309-1310 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1309-1310 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 1309-1310 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1309-1310 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1311- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1309-1310 ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1311- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1309-1310 ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1311- ● ● ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1309- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1309-1310 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1311- ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1309- ● ●
499 16.545 PANEL; FLOOR,RR 8-98207-188-0 01 1 1309-1310 ●
499 16.545 PANEL; FLOOR,RR 8-98207-188-0 01 1 1311- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1309- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1311- ● ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1309-1310 ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1311- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1309-1310 ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 1309-1310 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1309-1310 ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1309-1310 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1309-1310 ●
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1311- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1311- ● ●
577 16.545 BRACKET; SENSOR,YAW
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-802-0 01 1 1309-1310 ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1309-1310 ●
577 16.545 BRACKET; SENSOR,YAW
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-802-0 01 1 1311-1401 ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1311-1401 ● ●
577 16.545 BRACKET; SENSOR,YAW
MANUAL TILT CAB<RWZ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,INSPECTION ENGINE COVER<8GA> 		8-98204-802-0 01 1 1402- ● ●
577 16.545 BRACKET; SENSOR,YAW
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98204-802-0 01 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
