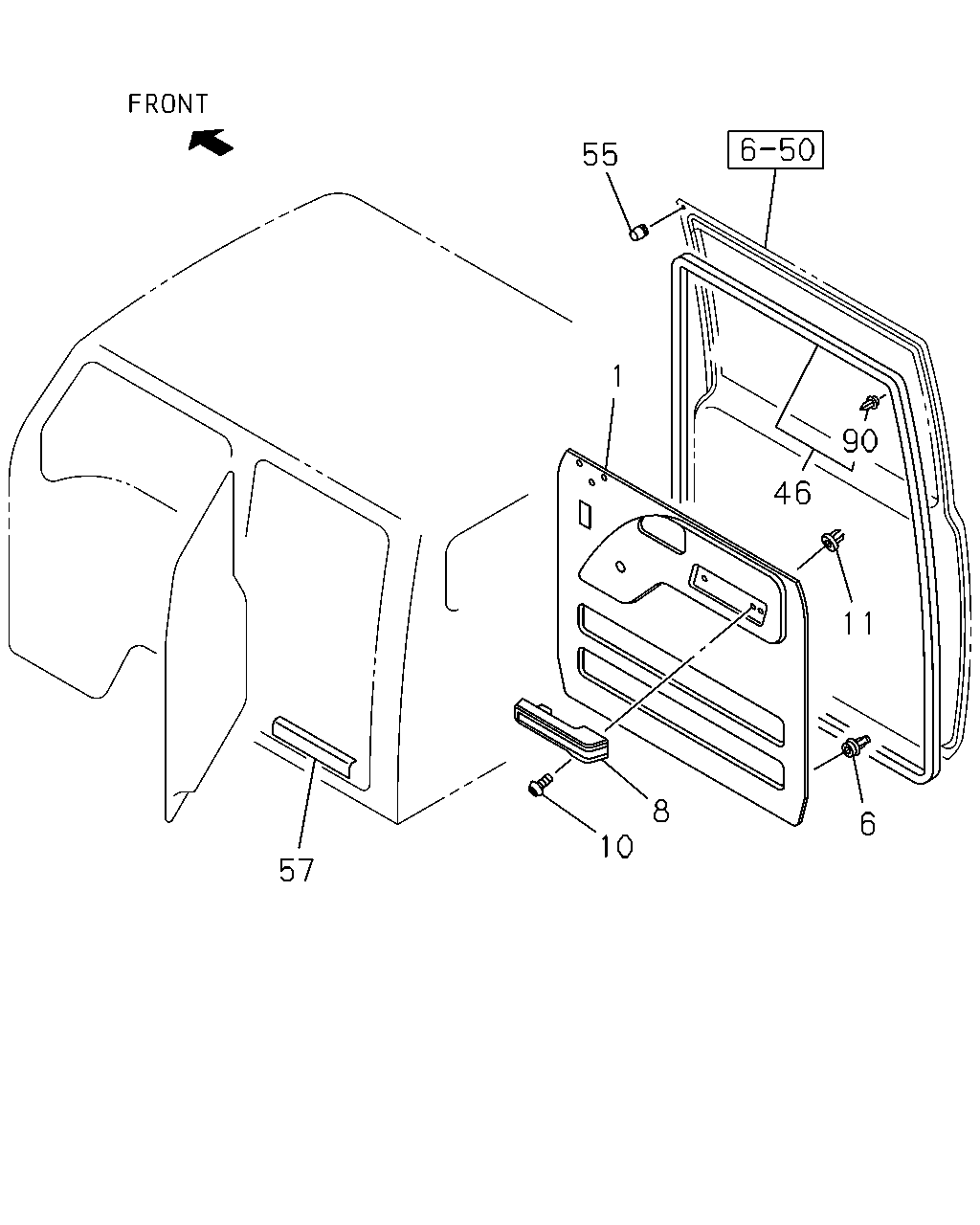

6-55 — REAR DOOR TRIM (#126121) — 26 parça

55 1 57 10 8 6 11 46 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.165 PAD; TRIM,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97405-322-5	01	1	1311-	●
1	16.165 PAD; TRIM,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97405-323-5	01	1	1311-	●
1	16.165 PAD; TRIM,RR DOOR GRAY	8-97407-840-4	01	1	1309-1310		●
1	16.165 PAD; TRIM,RR DOOR GRAY	8-97407-840-4	01	1	1311-		●
1	16.165 PAD; TRIM,RR DOOR POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97407-840-4	01	1	1311-	●
1	16.165 PAD; TRIM,RR DOOR GRAY	8-97407-841-4	01	1	1309-1310		●
1	16.165 PAD; TRIM,RR DOOR GRAY	8-97407-841-4	01	1	1311-		●
1	16.165 PAD; TRIM,RR DOOR POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97407-841-4	01	1	1311-	●
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	22	1	1309-1310		●
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	22	1	1311-	●	●
8	16.155 REST; ARM,RR DOOR GRAY	8-97405-328-1	01	1	1309-1310		●
8	16.155 REST; ARM,RR DOOR GRAY	8-97405-328-2	01	1	1311-	●	●
8	16.155 REST; ARM,RR DOOR GRAY	8-97405-329-1	01	1	1309-1310		●
8	16.155 REST; ARM,RR DOOR GRAY	8-97405-329-2	01	1	1311-	●	●
10	16.155 SCREW; ARM REST M6X30 TAPPING	8-98059-872-0	04	1	1309-1310		●
10	16.155 SCREW; ARM REST M6X30 TAPPING	8-98059-872-0	04	1	1311-	●	●
11	16.155 NUT; ARM REST 14.686 SCREW GROMMET	8-06698-938-1	04	1	1309-1310		●
11	16.155 NUT; ARM REST 14.686 SCREW GROMMET	8-06698-938-1	04	1	1311-	●	●
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-97587-656-1	02	1	1309-1310		●
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-97587-656-1	02	1	1311-	●	●
55	16.165 RUBBER; STOPPER,DOOR INNER 16.400	8-94358-581-0	04	1	1309-1310		●
55	16.165 RUBBER; STOPPER,DOOR INNER 16.400	8-94358-581-0	04	1	1311-	●	●
57	16.445 PROTECTOR; STEP RR	8-98027-817-0	02	1	1309-1310		●
57	16.445 PROTECTOR; STEP RR	8-98027-817-0	02	1	1311-	●	●
90	16.165 CLIP; SEAL NATURAL	8-98062-270-0	78	1	1309-1310		●
90	16.165 CLIP; SEAL NATURAL	8-98062-270-0	78	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
