Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#12611) — 210 parça

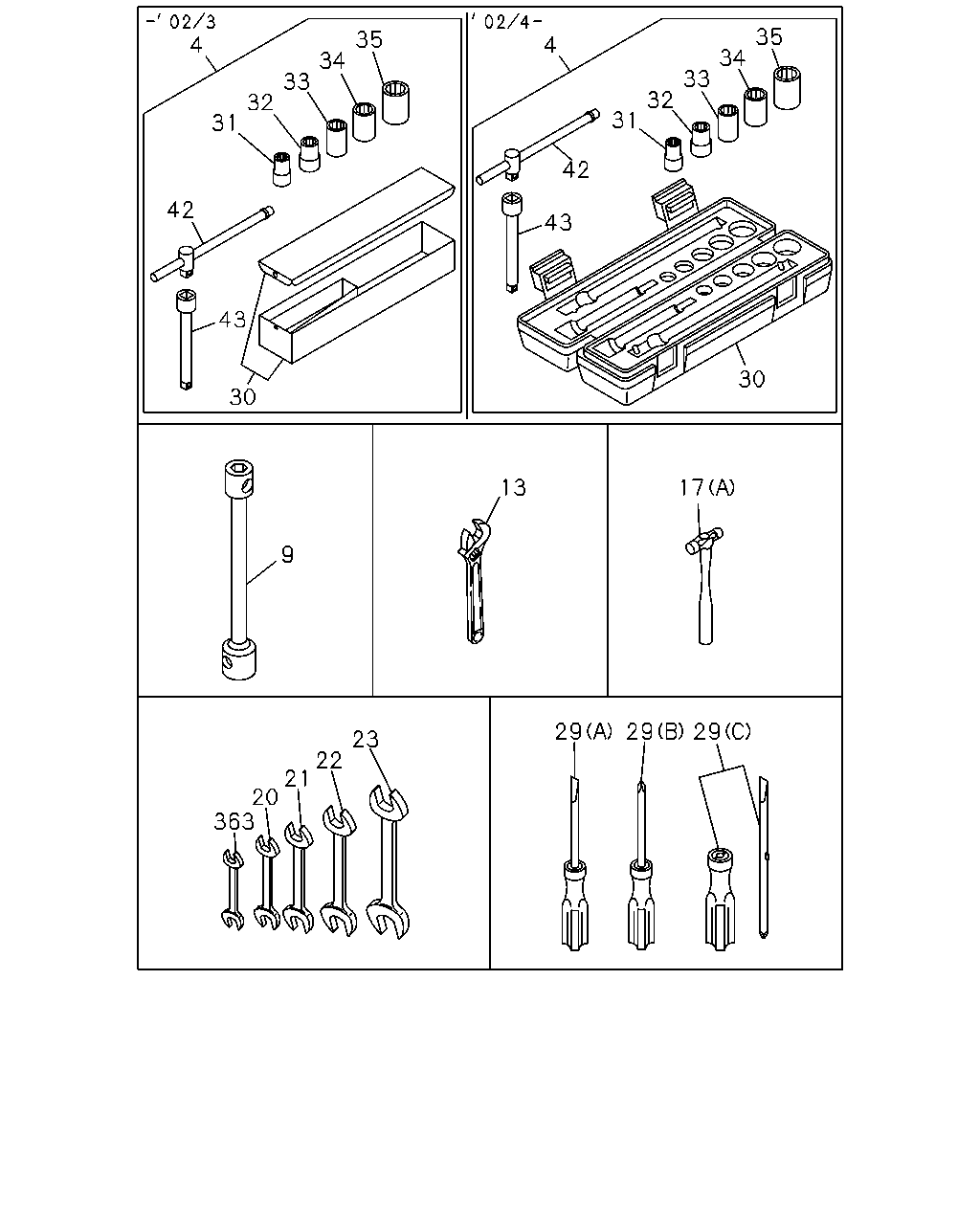

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	0105-0203	●	●
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-	●	●
9	WRENCH; WHEEL PIN WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) B=41X21 L=440	1-85113-015-1	01	1	0105-0204	●	●
9	WRENCH; WHEEL PIN WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=41X21 L=440	1-85113-015-1	01	1	0205-	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) B=33X30 L=450	1-85111-033-1	01	1	0105-0204	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=33X30 L=450	1-85111-033-1	01	1	0205-	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0105-	●	●
17	HAMMER (A)	9-85121-406-0	01	1	0105-	●	●
17	HAMMER PE-SERIES ENG<1A0> (B)	1-85220-021-0	01	1	0105-	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0105-	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0105-	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0105-	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0105-	●	●
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0105-	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0105-	●	●
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0105-	●	●
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	0105-0203	●	●
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-	●	●
31	WRENCH; 12	9-09590-012-0	01	1	0105-0203	●	●
31	WRENCH; 12	1-85000-495-0	01	1	0204-	●	●
32	WRENCH; 14	9-09590-014-0	01	1	0105-0203	●	●
32	WRENCH; 14	1-85000-496-0	01	1	0204-	●	●
33	WRENCH; 17	9-09590-017-0	01	1	0105-0203	●	●
33	WRENCH; 17	1-85000-497-0	01	1	0204-	●	●
34	WRENCH; 19	9-09590-019-0	01	1	0105-0203	●	●
34	WRENCH; 19	1-85000-498-0	01	1	0204-	●	●
35	WRENCH; 22	9-09590-022-0	01	1	0105-0203	●	●
35	WRENCH; 22	1-85000-499-0	01	1	0204-	●	●
42	HANDLE; SLIDING	9-09590-512-0	01	1	0105-0203	●	●
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-	●	●
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	0105-0203	●	●
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-	●	●
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0105-	●	●

127 125 1 124 129 130 128 135 146 141 143 144 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0105-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0105-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0105-	●	●
127	WRENCH ASM; HUB BRG NUT REARWARD REAR	9-85113-509-0	01	1	0105-	●	●
127	WRENCH ASM; HUB BRG NUT FORWARD REAR	9-85113-524-0	01	1	0105-	●	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0105-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0105-	●	●
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0105-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0105-	●	●
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0105-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0105-	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0105-	●	●
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0105-	●	●
146	REPLACER KIT; LEAF SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85237-016-0	01	1	0105-	●	●
146	REPLACER KIT; LEAF SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85237-017-0	01	1	0105-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0105-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0105-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0105-	●	●

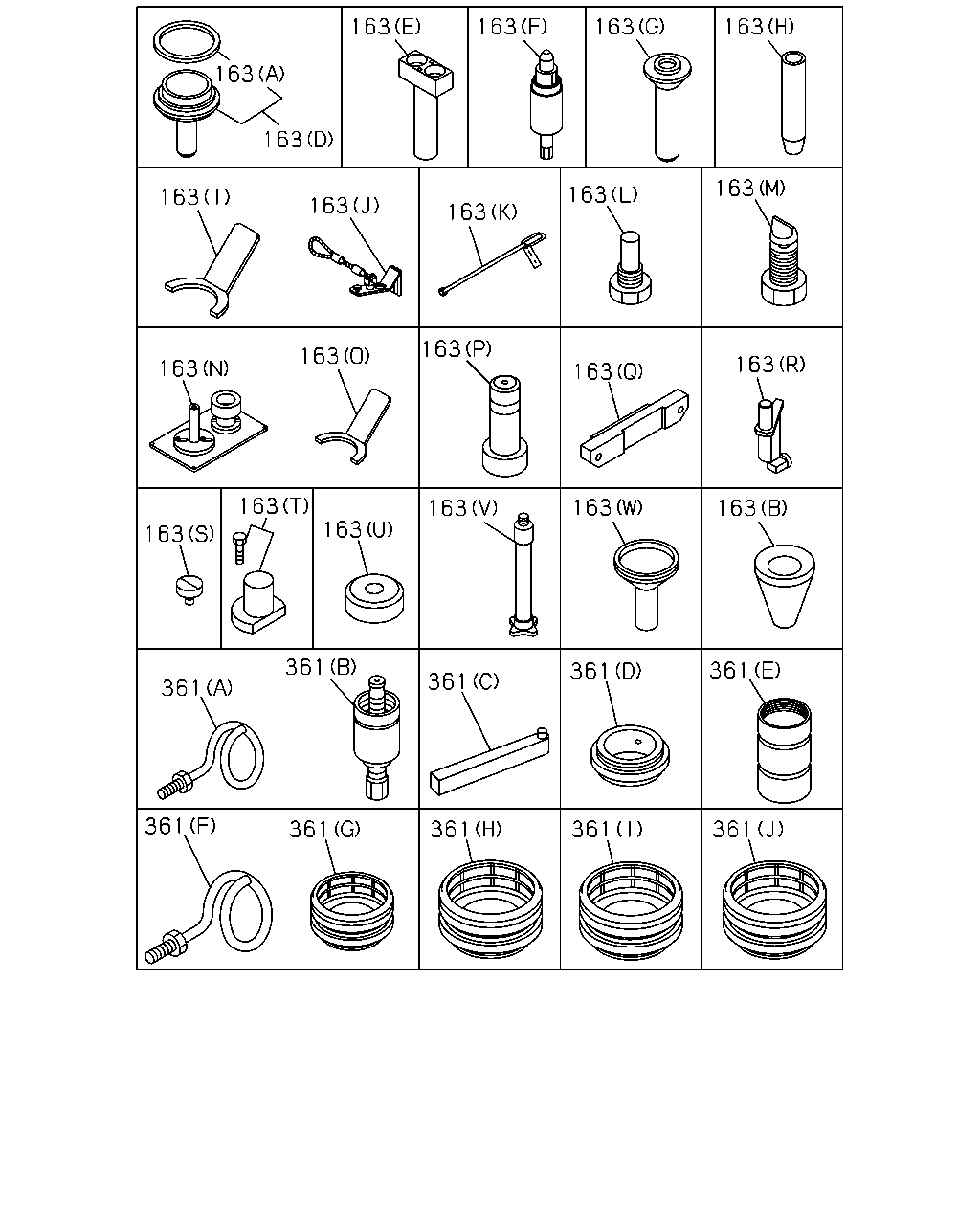

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
163	TOOL; SETTING MJD7 M/T<X9J> (C) OD=150	1-85221-167-0	01	1	0105-	●
163	TOOL; SETTING MJD7 M/T<X9J>,MAP5 M/T<Y9F> (C) OD=150	1-85221-167-0	01	1	0105-		●
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U) (S)	1-85221-249-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT	1-85219-023-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U) (I) COUNTER BRG FRT	1-85219-025-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0105-	●	●
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) TOP BRG,MAIN SHAFT SIDE	1-85219-024-0	01	1	0105-	●	●

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	WRENCH; 24	9-85111-377-0	01	1	0105-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	0105-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	0105-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	0105-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	0105-	●	●
115	PLIER	5-85171-001-0	01	1	0105-0212	●	●
115	PLIER	5-85171-002-0	01	1	0301-	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0105-	●	●
193	JACK ASM 15TON	1-85510-019-1	01	1	0105-	●	●
230	PUMP; GREASE	1-85556-007-3	01	1	0105-	●	●
237	BAG; TOOL	8-97130-902-0	01	1	0105-	●	●

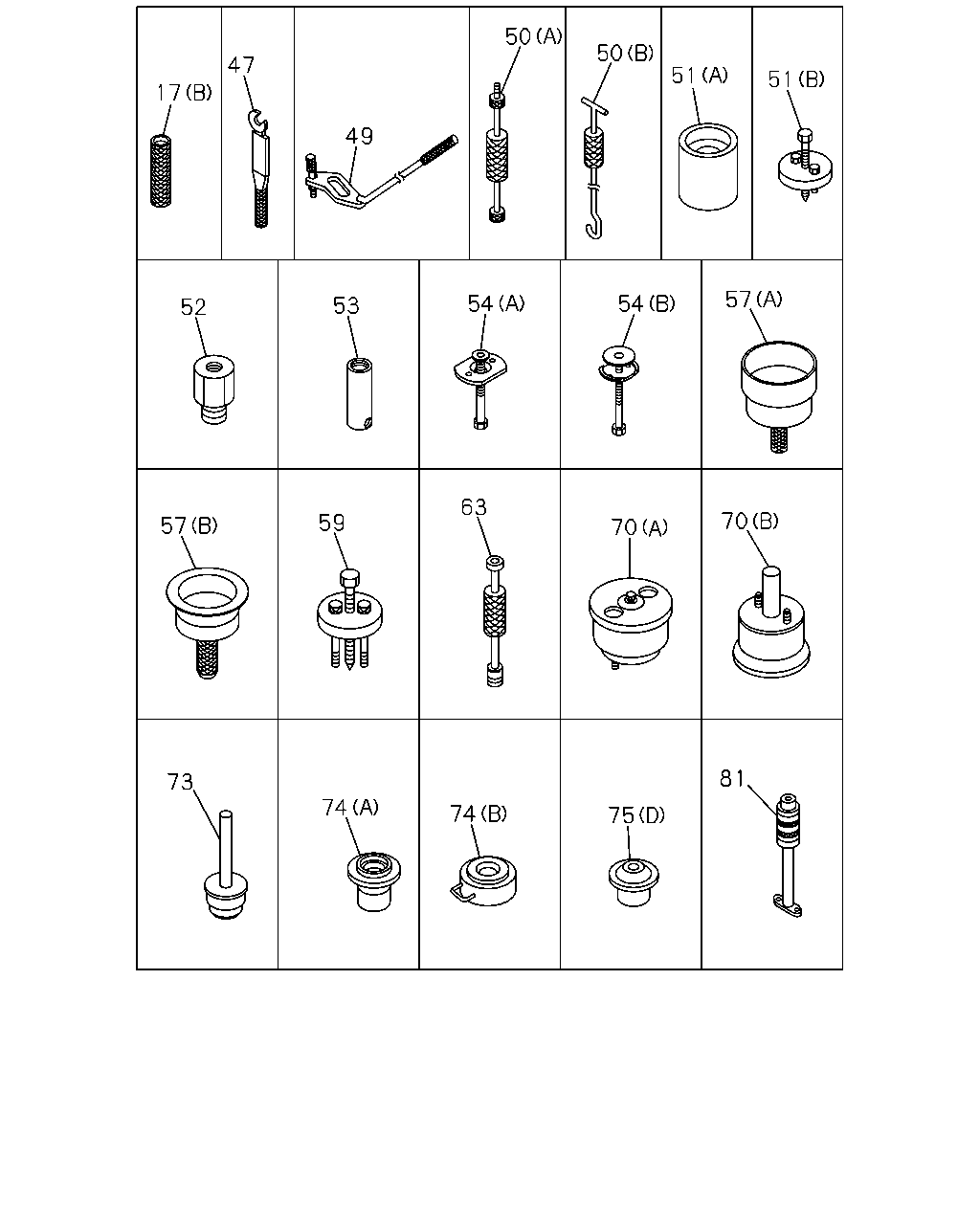

50 50 47 51 51 17 49 57 54 54 53 52 63 70 59 57 70 81 73 74 74 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HAMMER (A)	9-85121-406-0	01	1	0105-	●	●
17	HAMMER PE-SERIES ENG<1A0> (B)	1-85220-021-0	01	1	0105-	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP PE-SERIES ENG<1A0>	1-85220-018-0	01	1	0105-	●	●
49	REPLACER ASM; VALVE PE-SERIES ENG<1A0>	1-85235-001-0	01	1	0105-	●	●
50	REPLACER; NOZZLE HOLDER PE-SERIES ENG<1A0> (B) L=500	1-85230-007-0	01	1	0105-	●	●
50	REPLACER; NOZZLE HOLDER W-SERIES ENG<1A2> (A) L=300	1-85230-013-0	01	1	0105-	●	●
51	PULLER ASM; WATER PUMP PE-SERIES ENG<1A0> (B)	1-85210-028-0	01	1	0105-	●	●
51	PULLER ASM; WATER PUMP W-SERIES ENG<1A2> (A)	1-85220-047-0	01	1	0105-	●	●
52	REMOVER; WATER PUMP W-SERIES ENG<1A2>	1-85210-062-0	01	1	0105-	●	●
53	PULLER; TAPER BUSHING W-SERIES ENG<1A2>	1-85210-063-0	01	1	0105-	●	●
54	PULLER; THERMOSTAT SEAL PE-SERIES ENG<1A0> (A)	1-85210-029-0	01	1	0105-	●	●
54	PULLER; THERMOSTAT SEAL W-SERIES ENG<1A2> (B)	1-85210-067-0	01	1	0105-	●	●
57	TOOL; SETTING CRANK GEAR PE-SERIES ENG<1A0> (B) OD=175	1-85221-028-0	01	1	0105-	●	●
57	TOOL; SETTING CRANK GEAR W-SERIES ENG<1A2> (A) OD=162	1-85220-045-0	01	1	0105-	●	●
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	0105-	●	●
63	PULLER; NOZZLE SLEEVE PE-SERIES ENG<1A0>	1-85210-026-0	01	1	0105-	●	●
70	TOOL; SETTING,OIL SEAL PE-SERIES ENG<1A0> (B) FOR OIL SEAL	1-85220-051-0	01	1	0105-	●	●
70	TOOL; SETTING,OIL SEAL PE-SERIES ENG<1A0> (B) FOR OIL THROWER	1-85220-053-0	01	1	0105-	●	●
70	TOOL; SETTING,OIL SEAL W-SERIES ENG<1A2> (A)	1-85220-043-0	01	1	0105-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL PE-SERIES ENG<1A0>	1-85221-034-0	01	1	0105-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL W-SERIES ENG<1A2>	1-85221-034-0	01	1	0105-	●	●
74	TOOL; SETTING,INJ PUMP BRG PE-SERIES ENG<1A0> (A)	1-85220-019-0	01	1	0105-	●	●
74	TOOL; SETTING,INJ PUMP BRG PE-SERIES ENG<1A0> (B)	1-85220-020-1	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL (C)	1-85221-096-0	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (A)	1-85221-168-0	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (B)	1-85221-169-0	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL W-SERIES ENG<1A2> (D)	1-85220-049-0	01	1	0105-	●	●
81	PULLER; BRG CAP PE-SERIES ENG<1A0>	1-85210-015-0	01	1	0105-	●	●

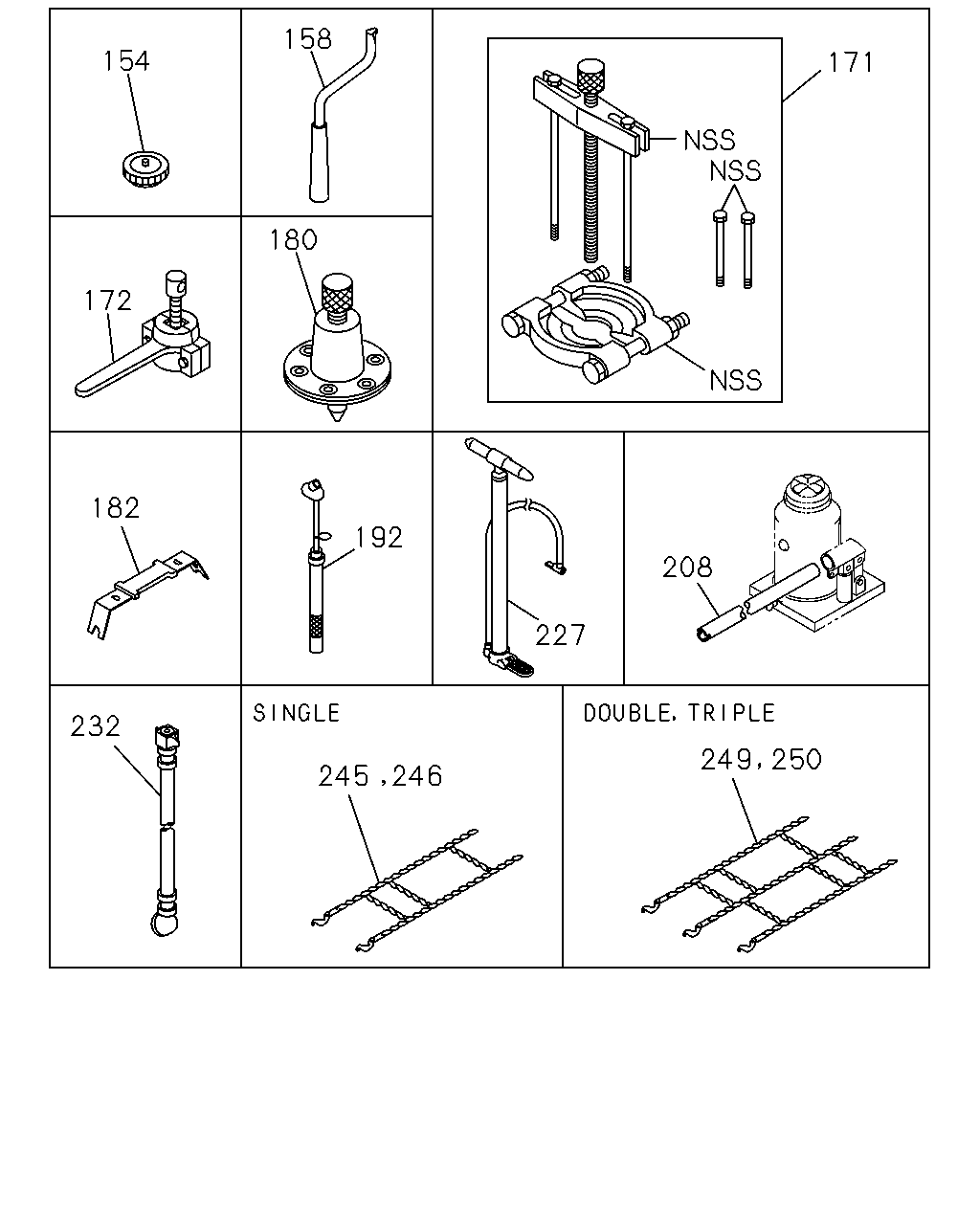

158 154 171 180 172 182 192 208 227 232 245 246 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0105-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0105-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0105-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0105-	●	●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0105-	●	●
182	REMOVER ASM	1-85239-008-0	01	1	0105-	●	●
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0105-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0105-	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0105-0105	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0105-	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0105-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0105-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0105-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0105-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0105-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0105-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0105-	●	●

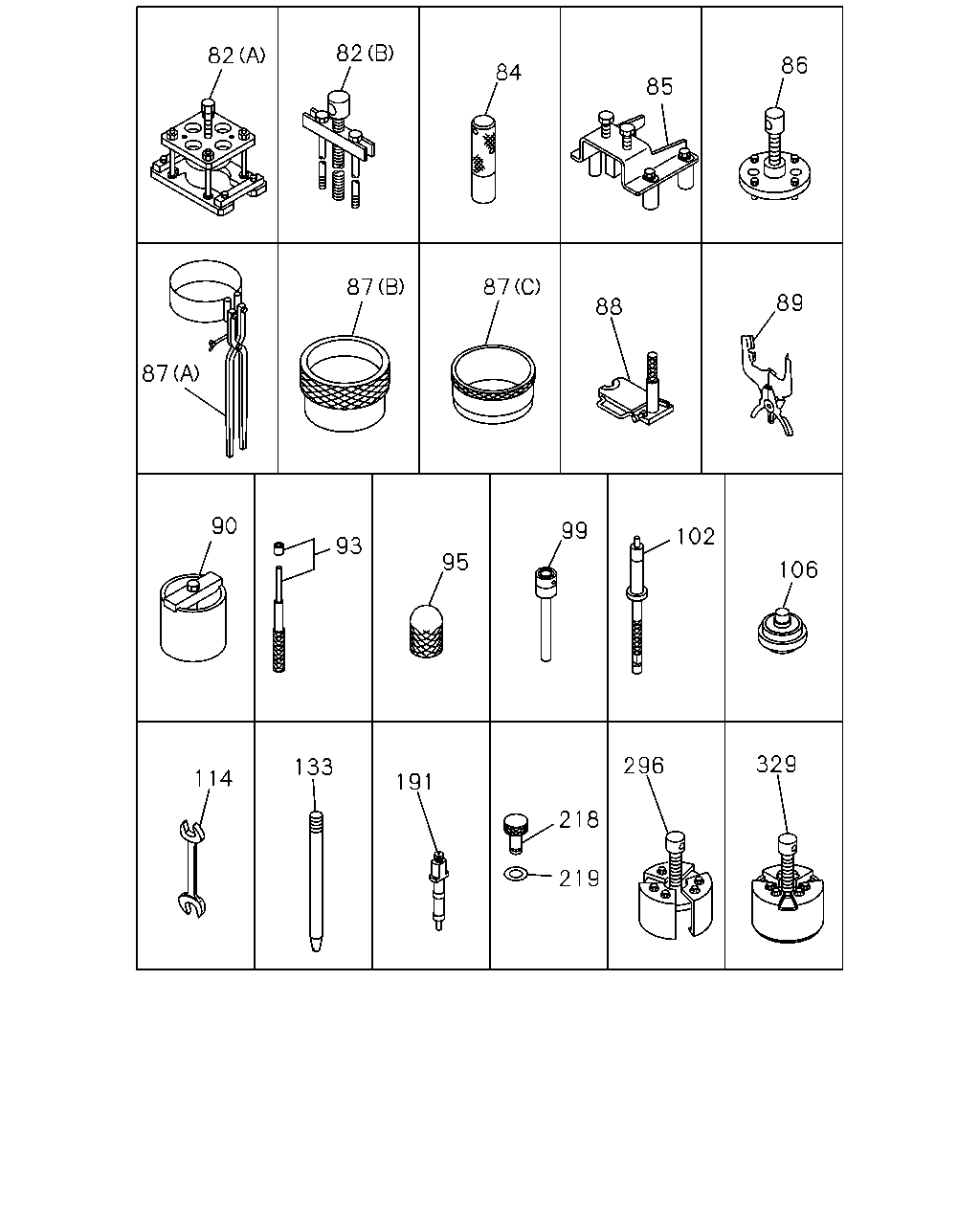

82 82 86 84 85 87 87 89 88 87 90 99 102 93 95 106 329 296 133 114 191 218 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	PULLER ASM; CR/SHF GEAR PE-SERIES ENG<1A0> (B)	9-85211-139-0	01	1	0105-	●	●
82	PULLER ASM; CR/SHF GEAR W-SERIES ENG<1A2> (A)	1-85210-064-0	01	1	0105-	●	●
84	REPLACER; VALVE SEAL W-SERIES ENG<1A2> EXHAUST	1-85221-184-0	01	1	0105-	●	●
84	REPLACER; VALVE SEAL W-SERIES ENG<1A2> INLET	1-85221-187-0	01	1	0105-	●	●
85	REPLACER ASM; VALVE SPR W-SERIES ENG<1A2>	1-85235-013-0	01	1	0105-	●	●
86	REPLACER; FLYWHEEL PE-SERIES ENG<1A0>	1-85230-006-0	01	1	0105-	●	●
87	TOOL; PISTON PE-SERIES ENG<1A0> (A)	1-85220-082-0	01	1	0105-	●	●
87	TOOL; PISTON 6WA1 TC-C(55L) (B)	1-85220-046-0	01	1	0105-	●	●
87	TOOL; PISTON 6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) (C)	1-85220-059-0	01	1	0105-	●	●
88	TOOL; CONNROD BUSHING PE-SERIES ENG<1A0>	1-85220-002-0	01	1	0105-	●	●
89	TOOL; PISTON RING 6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L)	1-85221-025-0	01	1	0105-	●	●
90	PULLER; INJ PUMP BRG PE-SERIES ENG<1A0>	1-85210-039-0	01	1	0105-	●	●
93	SETTING KIT; VALVE GUIDE PE-SERIES ENG<1A0> L=260	9-85231-202-0	01	1	0105-	●	●
93	SETTING KIT; VALVE GUIDE W-SERIES ENG<1A2> L=260	9-85231-202-0	01	1	0105-	●	●
95	SETTING TOOL; BRIDGE GUIDE W-SERIES ENG<1A2>	9-85221-324-0	01	1	0105-	●	●
99	WRENCH; CYL HD BOLT PE-SERIES ENG<1A0>	1-85115-013-0	01	1	0105-	●	●
102	ADAPTER; COMP GAGE W-SERIES ENG<1A2>	1-85317-019-0	01	1	0105-	●	●
106	TOOL; SETTING PILOT BRG PE-SERIES ENG<1A0>	1-85221-057-0	01	1	0105-	●	●
106	TOOL; SETTING PILOT BRG W-SERIES ENG<1A2>	1-85221-057-0	01	1	0105-	●	●
114	WRENCH; INJ PUMP PE-SERIES ENG<1A0>	1-85220-027-0	01	1	0105-	●	●
133	WRENCH; NUT STARTER PE-SERIES ENG<1A0>	1-85221-030-0	02	1	0105-	●	●
191	ADAPTER PE-SERIES ENG<1A0>	1-85317-002-0	01	1	0105-	●	●
218	PLUG PE-SERIES ENG<1A0>	1-15629-043-0	01	1	0105-	●	●
219	GASKET PE-SERIES ENG<1A0>	9-09720-555-0	01	1	0105-	●	●
296	REPLACER; SLINGER W-SERIES ENG<1A2>	1-85210-027-0	01	1	0105-	●	●
329	PULLER ASM; SLINGER PE-SERIES ENG<1A0> ID=124	1-85220-052-0	01	1	0105-	●	●

119 75 75 75 121 120 121 123 166 165 163 408 408 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	TOOL; SETTING,OIL SEAL (C)	1-85221-096-0	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (A)	1-85221-168-0	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (B)	1-85221-169-0	01	1	0105-	●	●
75	TOOL; SETTING,OIL SEAL W-SERIES ENG<1A2> (D)	1-85220-049-0	01	1	0105-	●	●
119	PULLER ASM; TOP GEAR BRG MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> L=235	9-85210-190-0	01	1	0105-	●	●
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	0105-	●	●
121	PULLER ASM; COUNTER REAR MJD7 M/T<X9J> (B)	1-85210-069-0	01	1	0105-	●	●
121	PULLER ASM; COUNTER REAR MJD7 M/T<X9J> (A) OD=146	1-85210-074-0	01	1	0105-	●	●
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	0105-	●	●
163	TOOL; SETTING MJD7 M/T<X9J> (C) OD=150	1-85221-167-0	01	1	0105-	●
163	TOOL; SETTING MJD7 M/T<X9J>,MAP5 M/T<Y9F> (C) OD=150	1-85221-167-0	01	1	0105-		●
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U) (S)	1-85221-249-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0105-	●	●
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0105-	●	●
165	SETTING TOOL; PTO MJD7 M/T<X9J>	1-85221-177-0	01	1	0105-	●	●
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-85253-015-0	01	1	0105-	●	●
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-85253-010-0	01	1	0105-	●	●
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0105-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0105-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
