◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#126100) — 187 parça

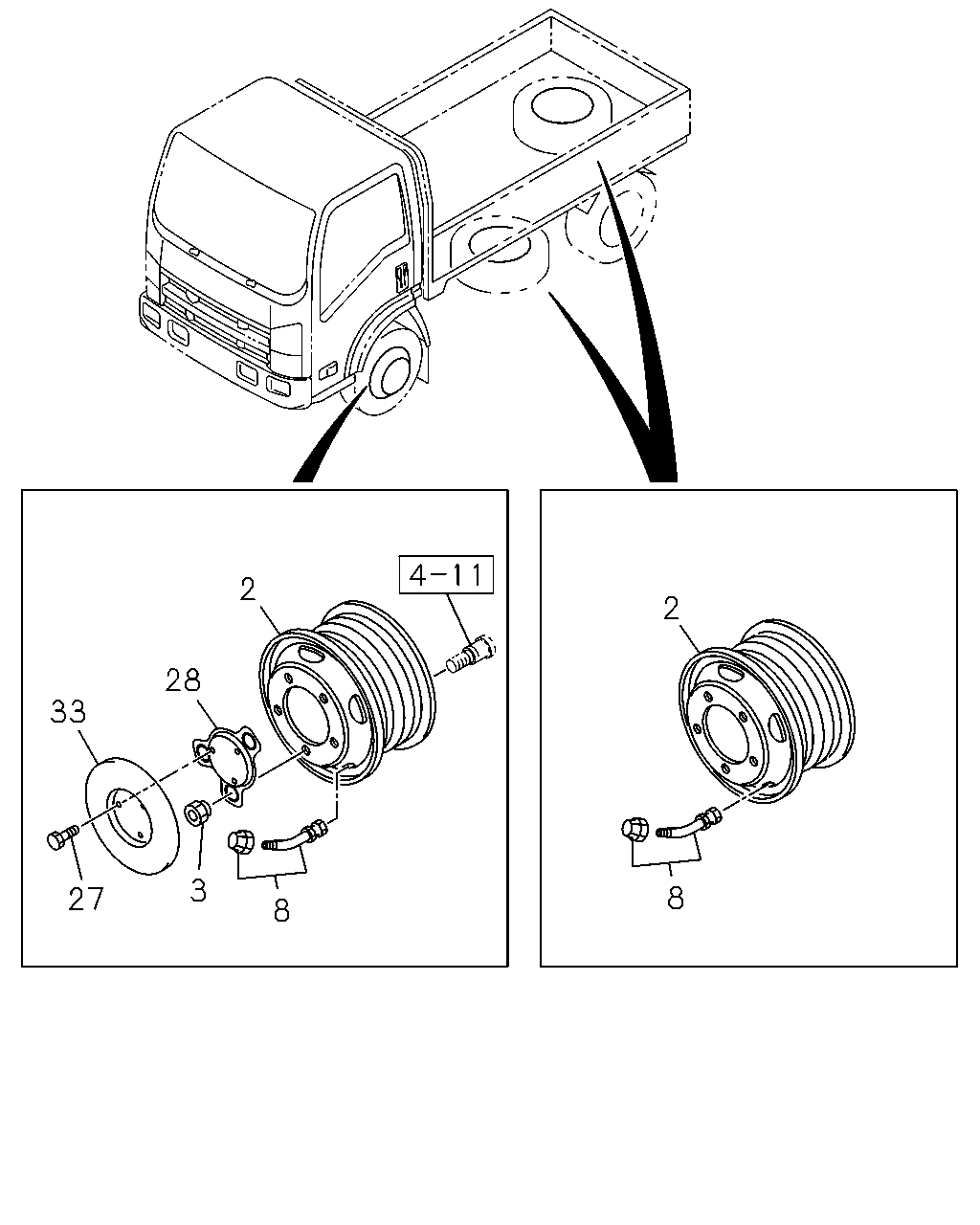

çizim 373345
2 8 8 2 28 33 27 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RI B 16X5.5J-116.5 SILVER(CYS) 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RI B 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R. R RIB 16X5.5J-116.5 WHITE(CYT) 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R. R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK (CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 01 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK (CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 06 1 1309- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD 		8-98007-907-0 05 1 1309-1310 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD 		8-98007-907-0 05 1 1309-1310 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD 		8-98007-907-0 05 1 1311-1401 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD 		8-98007-907-0 05 1 1311-1401 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 RH THREAD 		8-98007-907-0 05 1 1402- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD 		8-98007-907-0 05 1 1402- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD 		8-98007-908-0 05 1 1309-1310 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD 		8-98007-908-0 05 1 1309-1310 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD 		8-98007-908-0 05 1 1311-1401 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD 		8-98007-908-0 05 1 1311-1401 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 LH THREAD 		8-98007-908-0 05 1 1402- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD 		8-98007-908-0 05 1 1402- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD 		8-97359-807-0 06 1 1309-1408 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD 		8-97359-807-0 06 1 1309-1408 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD 		8-97359-807-0 06 1 1409- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD 		8-97359-808-0 06 1 1309-1408 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD 		8-97359-808-0 06 1 1309-1408 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD 		8-97359-808-0 06 1 1409- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) 		8-98221-106-0 06 1 1402-1408 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 06 1 1402-1408 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) 		8-98221-106-0 06 1 1409- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 06 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT) 		8-98221-106-0 06 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 		8-98221-106-0 01 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 		8-98221-106-0 01 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 		8-98221-106-0 01 1 1402-1408 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 01 1 1402-1408 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 		8-98221-106-0 01 1 1409- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 01 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT) 		8-98221-106-0 01 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 		8-98221-112-0 01 1 1309- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 		8-98221-112-0 02 1 1309- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 		8-98221-112-0 04 1 1309- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 		8-98221-112-0 06 1 1309- ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1309-1310 ● ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1311- ● ● ● ●
28 05.864 BRACKET; COVER 8-97169-249-0 02 1 1309-1310 ●
28 05.864 BRACKET; COVER
G.V.W. 5.5-6.0TON(RPU) 		8-97169-249-0 02 1 1309-1310 ●
28 05.864 BRACKET; COVER 8-97169-249-0 02 1 1311- ● ●
28 05.864 BRACKET; COVER
G.V.W. 5.5-6.0TON(RPU) 		8-97169-249-0 02 1 1311- ●
28 05.864 BRACKET; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97169-250-0 02 1 1309-1408 ●
28 05.864 BRACKET; COVER 8-97169-250-0 02 1 1309-1408 ●
28 05.864 BRACKET; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97169-250-0 02 1 1409- ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 1309-1310 ● ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 1311- ● ● ● ●

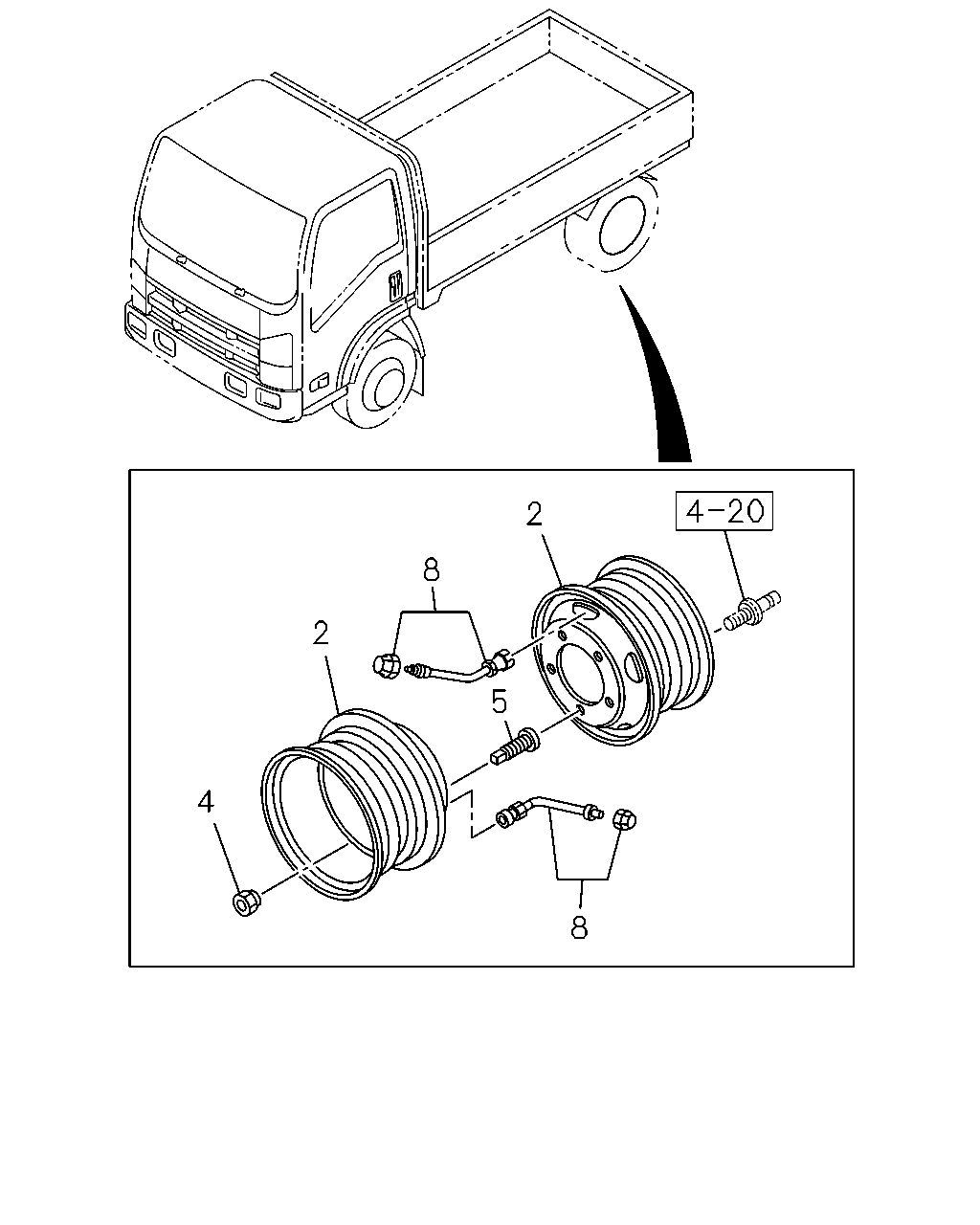

çizim 374524
2 8 2 4 8 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RI B 16X5.5J-116.5 SILVER(CYS) 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RI B 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R. R RIB 16X5.5J-116.5 WHITE(CYT) 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 W HITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R. R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 W HITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS) 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 1309-1408 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 SILVER(CQT) 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 1409- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK (CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 01 1 1309- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK (CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 06 1 1309- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD 		8-98007-824-0 05 1 1309-1310 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD 		8-98007-824-0 05 1 1309-1310 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD 		8-98007-824-0 05 1 1311-1401 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD 		8-98007-824-0 05 1 1311-1401 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 RH THREAD 		8-98007-824-0 05 1 1402- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD 		8-98007-824-0 05 1 1402- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD 		8-98007-825-0 05 1 1309-1310 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD 		8-98007-825-0 05 1 1309-1310 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD 		8-98007-825-0 05 1 1311-1401 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD 		8-98007-825-0 05 1 1311-1401 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 LH THREAD 		8-98007-825-0 05 1 1402- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD 		8-98007-825-0 05 1 1402- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD 		8-97359-809-0 06 1 1309-1408 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD 		8-97359-809-0 06 1 1309-1408 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD 		8-97359-809-0 06 1 1409- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD 		8-97359-810-0 06 1 1309-1408 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD 		8-97359-810-0 06 1 1309-1408 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD 		8-97359-810-0 06 1 1409- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1309-1310 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1309-1310 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1311-1401 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1311-1401 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1402- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1402- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1309-1310 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1309-1310 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1311-1401 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1311-1401 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1402- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1402- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1309-1408 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1309-1408 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1409- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1309-1408 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1309-1408 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT &RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1409- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) 		8-98221-106-0 06 1 1402-1408 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 06 1 1402-1408 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) 		8-98221-106-0 06 1 1409- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 06 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT) 		8-98221-106-0 06 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 		8-98221-106-0 01 1 1309-1310 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 		8-98221-106-0 01 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 		8-98221-106-0 01 1 1402-1408 ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 01 1 1402-1408 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SIL VER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 		8-98221-106-0 01 1 1409- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT),FRT&RR 205-16C-75R DI SC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-98221-106-0 01 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R16C DISC 16-5.5J-127 (AYS),FRT&RR TIRE 215-75R16C DISC 16-5.5J-127SILVER(CQT) 		8-98221-106-0 01 1 1409- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 		8-98221-112-0 01 1 1309- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 		8-98221-112-0 02 1 1309- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 		8-98221-112-0 04 1 1309- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 		8-98221-112-0 06 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
