3-75 — BRAKE PIPING; AIR,FRONT (#1261) — 196 parça

87 76 5 1 70 81 62 3 4 2 2 3 80 73 94 74 75 48 72 2 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=626 SERVICED BY L=660	1-47437-964-0	01	1	9202-9208	●
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=544 SERVICED BY L=550	1-47426-407-0	01	1	9209-9212	●
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=544 SERVICED BY L=550	1-47426-407-0	01	1	9301-9305	●
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=541 SERVICED BY L=550	1-47426-407-0	01	1	9306-	●
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 ELBOW	9-09235-210-1	03	1	9202-9208	●
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 ELBOW	9-09235-210-1	02	1	9209-	●
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 L=42	9-09233-010-1	01	1	9209-	●
3	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9202-	●
4	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9202-9312	●
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2100	1-47437-972-0	01	1	9202-9208	●
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1870 SERVICED BY L=2100	1-47437-972-0	01	1	9209-9212	●
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1870 SERVICED BY L=1900	1-47426-421-0	01	1	9301-9311	●
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1820 SERVICED BY L=1900	1-47426-421-0	01	1	9312-	●
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-	●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9202-	●
62	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1289 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212	●
62	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1289 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
70	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1293 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212	●
70	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1293 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
72	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 L=74	9-09233-310-1	01	1	9202-	●
73	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9202-	●
74	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	01	1	9202-9312	●
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-613-2	01	1	9202-	●
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2044 SERVICED BY L=2500	1-47434-479-0	01	1	9202-9208	●
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1305 SERVICED BY L=1550	1-47437-970-0	01	1	9209-9212	●
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1305 SERVICED BY L=1550	1-47426-419-0	01	1	9301-9311	●
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1328 SERVICED BY L=1400	1-47426-418-0	01	1	9312-	●
80	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	01	1	9209-9312	●
81	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1319 SERVICED BY L=1550	1-47437-970-0	01	1	9209-9212	●
81	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1319 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
81	PIPE; AIR,UNION TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1319 SERVICED BY L=1400	1-47426-418-0	01	1	9306-	●
82	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 ELBOW	9-09235-210-1	01	1	9209-	●
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=715 SERVICED BY L=800	1-47434-475-0	01	1	9202-9208	●
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=469 SERVICED BY L=500	1-47426-406-0	01	1	9209-9212	●
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=469 SERVICED BY L=500	1-47426-406-0	01	1	9301-	●
94	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
94	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●

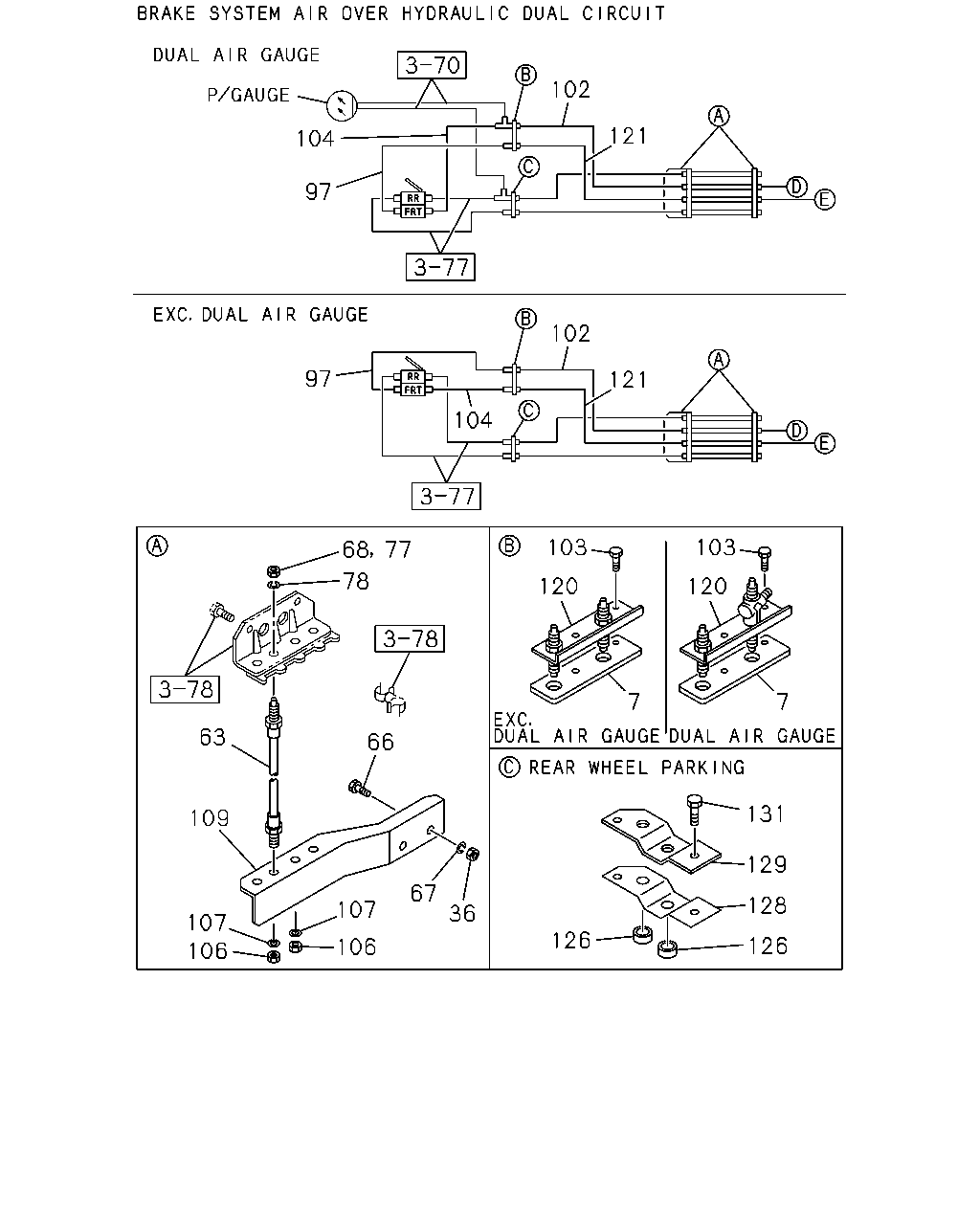

102 121 104 97 102 97 121 104 103 103 68 77 78 120 120 7 7 63 66 131 109 129 67 128 107 36 107 126 126 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	SEAL; PLATE UNION	1-79998-232-0	01	1	9202-	●	●
36	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	02	1	9202-	●
63	HOSE; FLEX,BRK LINE,CAB SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=630	0-07424-630-0	01	1	9202-	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9205-	●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 L=40	9-04411-025-0	02	1	9202-	●
67	WASHER; LK,HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	02	1	9202-	●
68	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9209-	●
77	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9202-9208	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	01	1	9202-9208	●
97	PIPE; AIR,BRK VLV TO UNION L=454	1-47482-292-0	01	1	9202-9212	●	●
97	PIPE; AIR,BRK VLV TO UNION L=455	1-47497-060-0	01	1	9301-	●	●
102	PIPE; AIR,FLEX HOSE TO UNION L=495 SERVICED BY L=500	1-47426-406-0	01	1	9202-9212		●
102	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=495 SERVICED BY L=500	1-47426-406-0	01	1	9202-9212	●
102	PIPE; AIR,FLEX HOSE TO UNION L=495	1-47499-740-0	01	1	9301-		●
102	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=495	1-47499-740-0	01	1	9301-	●
102	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=495 SERVICED BY L=500	1-47426-406-0	01	1	9202-9212	●
102	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=495 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●
103	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●	●
104	PIPE; AIR,UNION TO BRK VLV L=492 SERVICED BY L=500	1-47434-472-0	01	1	9202-9212		●
104	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500	1-47434-472-0	01	1	9202-9212	●
104	PIPE; AIR,UNION TO BRK VLV L=492 SERVICED BY L=500	1-47426-406-0	01	1	9301-		●
104	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500	1-47426-406-0	01	1	9301-	●
104	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550	1-47437-963-0	01	1	9202-9212	●
104	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9202-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9202-	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9202-9312	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9202-9312	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9401-	●
109	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-866-0	01	1	9202-	●
120	UNION; AIR PIPE	1-47470-220-1	01	1	9202-		●
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-220-1	01	1	9202-	●
120	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-218-1	01	1	9202-	●
121	PIPE; AIR,UNION TO FLEX HOSE L=489 SERVICED BY L=3500 WO/FLARE NUT	1-47447-288-0	01	1	9202-9212		●
121	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=489 SERVICED BY L=3500 WO/FLARE NUT	1-47447-288-0	01	1	9202-9212	●
121	PIPE; AIR,UNION TO FLEX HOSE L=489	1-47497-896-1	01	1	9301-		●
121	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=489	1-47497-896-1	01	1	9301-	●
121	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=489	1-47482-997-0	01	1	9202-9212	●
121	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=489	1-47497-061-0	01	1	9301-	●
126	SPACER; PIPE UNION	1-09503-191-0	02	1	9202-		●
126	SPACER; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09503-191-0	02	1	9202-	●
128	PLATE; 2 WAY UNION	1-71998-397-0	01	1	9202-		●
128	PLATE; 2 WAY UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-397-0	01	1	9202-	●
129	SEAL; UNION PLATE	1-79998-237-0	01	1	9202-		●
129	SEAL; UNION PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79998-237-0	01	1	9202-	●
131	BOLT; PLATE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-		●
131	BOLT; PLATE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●

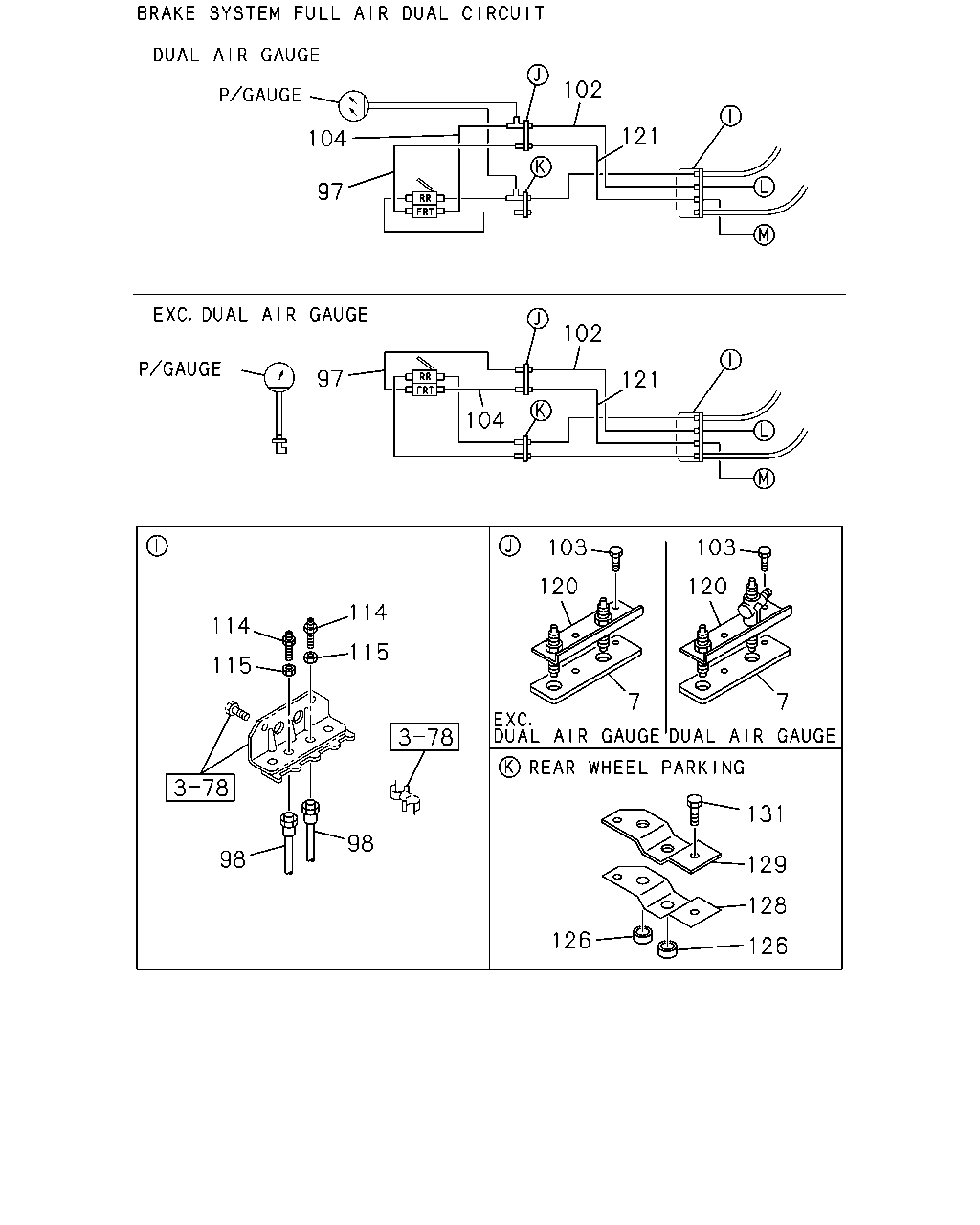

102 121 104 97 102 97 121 104 103 103 120 120 114 114 115 115 7 7 131 98 98 129 128 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	SEAL; PLATE UNION	1-79998-232-0	01	1	9202-	●	●
97	PIPE; AIR,BRK VLV TO UNION L=454	1-47482-292-0	01	1	9202-9212	●	●
97	PIPE; AIR,BRK VLV TO UNION L=455	1-47497-060-0	01	1	9301-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GREEN 3/8" L=30000	1-09368-248-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RED 3/8" L=30000	1-09368-249-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GREEN 1/2" L=30000	1-09368-251-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RED 1/2" L=30000	1-09368-252-0	AR	1	9202-	●	●
102	PIPE; AIR,FLEX HOSE TO UNION L=495 SERVICED BY L=500	1-47426-406-0	01	1	9202-9212		●
102	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=495 SERVICED BY L=500	1-47426-406-0	01	1	9202-9212	●
102	PIPE; AIR,FLEX HOSE TO UNION L=495	1-47499-740-0	01	1	9301-		●
102	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=495	1-47499-740-0	01	1	9301-	●
102	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=495 SERVICED BY L=500	1-47426-406-0	01	1	9202-9212	●
102	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=495 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●
103	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●	●
104	PIPE; AIR,UNION TO BRK VLV L=492 SERVICED BY L=500	1-47434-472-0	01	1	9202-9212		●
104	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500	1-47434-472-0	01	1	9202-9212	●
104	PIPE; AIR,UNION TO BRK VLV L=492 SERVICED BY L=500	1-47426-406-0	01	1	9301-		●
104	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500	1-47426-406-0	01	1	9301-	●
104	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550	1-47437-963-0	01	1	9202-9212	●
104	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●
114	UNION; NYLON TUBE L=61 UNS-2A THD 17/32-14	1-09650-371-0	01	1	9202-9308		●
114	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=61 UNS-2A THD 17/32-14	1-09650-371-0	01	1	9202-9308	●
114	UNION; NYLON TUBE L=59 UN 11/16-20	1-09654-295-0	01	1	9309-		●
114	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=59 UN 11/16-20	1-09654-295-0	01	1	9309-	●
114	UNION; NYLON TUBE L=59 UNS-2A THD 17/32-14	1-09654-282-0	01	1	9202-		●
114	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=59 UNS-2A THD 17/32-14	1-09654-282-0	01	1	9202-	●
115	NUT; TUBE UNION M16	9-99111-316-0	01	1	9202-		●
115	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-316-0	01	1	9202-	●
120	UNION; AIR PIPE	1-47470-220-1	01	1	9202-		●
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-220-1	01	1	9202-	●
120	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-218-1	01	1	9202-	●
121	PIPE; AIR,UNION TO FLEX HOSE L=489 SERVICED BY L=3500 WO/FLARE NUT	1-47447-288-0	01	1	9202-9212		●
121	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=489 SERVICED BY L=3500 WO/FLARE NUT	1-47447-288-0	01	1	9202-9212	●
121	PIPE; AIR,UNION TO FLEX HOSE L=489	1-47497-896-1	01	1	9301-		●
121	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=489	1-47497-896-1	01	1	9301-	●
121	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=489	1-47482-997-0	01	1	9202-9212	●
121	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=489	1-47497-061-0	01	1	9301-	●
126	SPACER; PIPE UNION	1-09503-191-0	02	1	9202-		●
126	SPACER; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09503-191-0	02	1	9202-	●
128	PLATE; 2 WAY UNION	1-71998-397-0	01	1	9202-		●
128	PLATE; 2 WAY UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-397-0	01	1	9202-	●
129	SEAL; UNION PLATE	1-79998-237-0	01	1	9202-		●
129	SEAL; UNION PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79998-237-0	01	1	9202-	●
131	BOLT; PLATE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-		●
131	BOLT; PLATE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●

26 25 98 24 37 25 24 98 66 41 50 32 122 65 35 107 106 98 48 55 99 100 101 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE; AIR,RELAY VLV TO UNION (A) L=884 SERVICED BY L=900	1-47437-966-0	01	1	9202-9212		●
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=884 SERVICED BY L=900	1-47437-966-0	01	1	9202-9212	●
24	PIPE; AIR,RELAY VLV TO UNION (A) L=884 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=884 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●
24	PIPE; AIR,RELAY VLV TO UNION (B) L=879 SERVICED BY L=900	1-47437-966-0	01	1	9202-9212		●
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=879 SERVICED BY L=900	1-47437-966-0	01	1	9202-9212	●
24	PIPE; AIR,RELAY VLV TO UNION (B) L=879 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=879 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	9202-		●
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=42	9-09233-010-1	02	1	9202-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=329 SERVICED BY L=350	1-47426-403-0	01	1	9202-9302		●
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=329 SERVICED BY L=350	1-47426-403-0	01	1	9202-9302	●
26	PIPE; AIR,UNION TO FLEX HOSE L=331 SERVICED BY L=400	1-49111-434-0	01	1	9303-		●
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=331 SERVICED BY L=400	1-49111-434-0	01	1	9303-	●
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	9202-		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-07475-630-1	02	1	9202-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9202-		●
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9202-	●
37	PIPE; AIR,UNION TO FLEX HOSE L=329 SERVICED BY L=350	1-47426-403-0	01	1	9202-9302		●
37	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=329 SERVICED BY L=350	1-47426-403-0	01	1	9202-9302	●
37	PIPE; AIR,UNION TO FLEX HOSE L=331 SERVICED BY L=350	1-47426-403-0	01	1	9303-		●
37	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=331 SERVICED BY L=350	1-47426-403-0	01	1	9303-	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9202-		●
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9202-	●
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-	●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9202-	●
50	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-	●	●
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-	●
55	BRACKET; TUBE UNION WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-200-0	02	1	9202-	●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9202-		●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	9202-	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9202-		●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	9202-	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9205-	●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 L=40	9-04411-025-0	02	1	9202-	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GREEN 3/8" L=30000	1-09368-248-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RED 3/8" L=30000	1-09368-249-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GREEN 1/2" L=30000	1-09368-251-0	AR	1	9202-	●	●
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RED 1/2" L=30000	1-09368-252-0	AR	1	9202-	●	●
99	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9202-	●	●
99	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	AR	1	9202-	●	●
100	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9202-	●	●
100	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●	●
101	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	AR	1	9202-	●	●
101	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9202-	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9202-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9202-	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9202-9312	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9202-9312	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9401-	●
122	CONNECTOR; FLEX HOSE L=35	1-09660-039-0	02	1	9202-9209		●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=35	1-09660-039-0	02	1	9202-9209	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=35	1-09660-039-0	02	1	9202-9209	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=35	1-09660-039-0	02	1	9210-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
