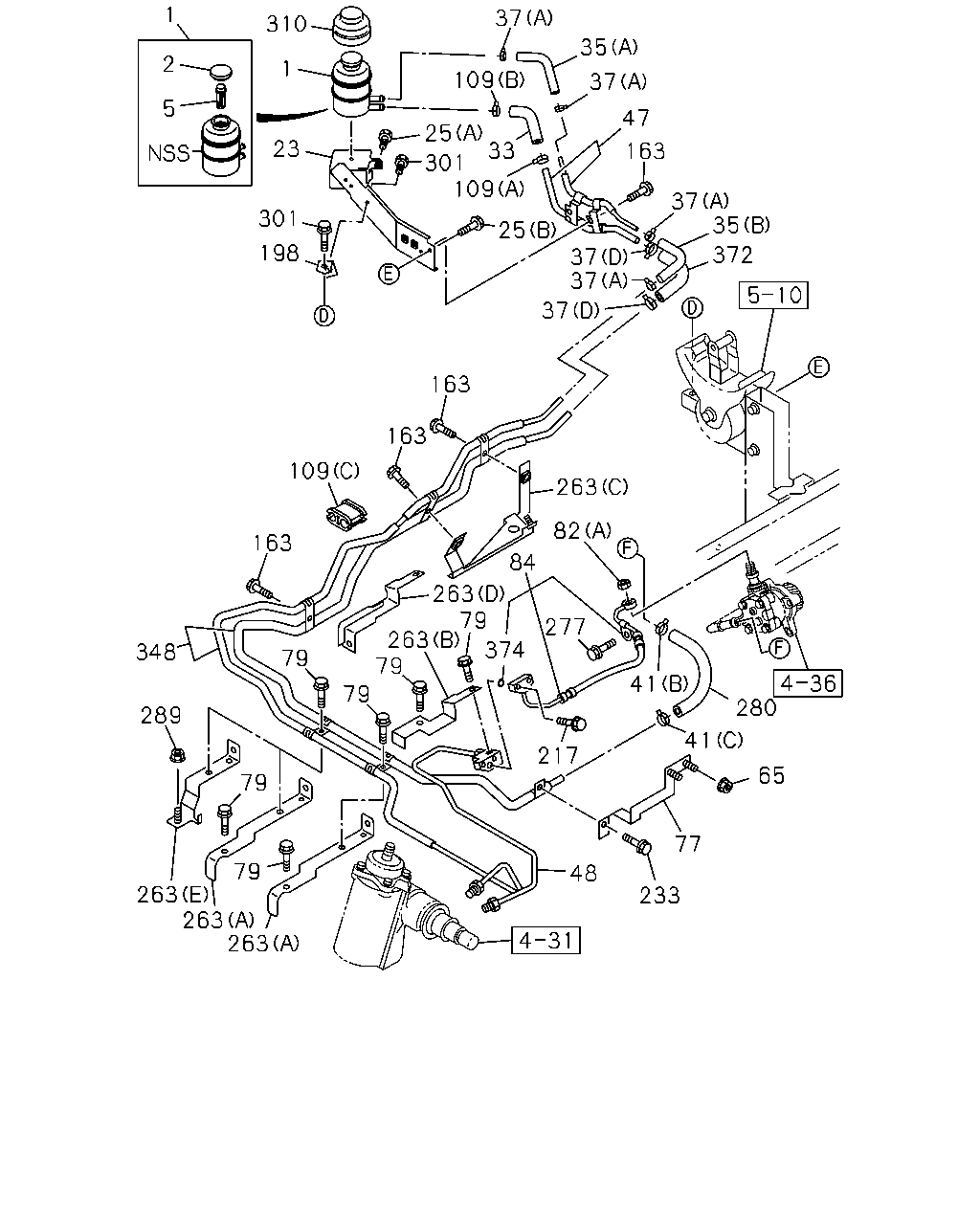

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#126087) — 371 parça

1 2 5 310 1 23 310 198 25 301 109 25 37 37 37 109 37 35 37 47 163 37 35 372 33 163 163 109 163 348 79 79 79 263 263 84 263 82 79 374 289 79 277 217 41 79 263 263 263 48 233 77 65 41 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1309-1310	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1311-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1309-1310	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1311-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1309-1310	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1311-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1309-1310	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1311-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1309-1310	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1311-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1309-1310	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1311-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1309-1310	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1311-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1309-1310	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1311-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1309-1408		●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1309-1408			●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1309-1310	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1309-1310		●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1311-1408	●			●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1311-1408		●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1409-	●			●
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (D) ID=21	8-98150-355-0	02	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 04.681 (D) ID=21	8-98150-355-0	02	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1309-1310	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1311-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1309-1408		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1309-1408			●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1309-1408		●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1309-1408			●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1309-1310	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1309-1310		●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1311-1408	●			●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1311-1408		●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1409-	●			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310		●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1311-1408	●			●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1311-1408		●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1409-	●			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1309-1408		●
41	06.672 CLIP; HOSE,P/S (A)	8-98074-004-0	01	1	1309-1408			●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1409-		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1309-1310	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1309-1310		●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1311-1408	●			●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1311-1408		●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1409-	●			●
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1409-		●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1409-		●	●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1309-1408		●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1309-1408			●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1409-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1309-1310	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1309-1310		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1311-1408	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1311-1408		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1409-	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1409-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1409-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) L=2794	8-98207-475-1	01	1	1309-1408		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT L=2794	8-98207-475-1	01	1	1309-1408			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) L=2794	8-98207-475-1	01	1	1409-		●	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310		●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●	●		●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408		●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●	●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-		●	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1309-1310	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1309-1310		●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1311-1408	●			●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1311-1408		●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1409-	●			●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1409-		●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1309-1310	●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1309-1310		●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1311-1408	●			●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1311-1408		●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1409-	●			●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1409-		●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1309-1310	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1311-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1309-1408		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1309-1408			●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1409-		●	●
84	06.670 HOSE; FLEX,P/S	8-98175-560-0	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98175-560-0	01	1	1309-1310		●
84	06.670 HOSE; FLEX,P/S	8-98175-560-0	01	1	1311-1408	●			●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98175-560-0	01	1	1311-1408		●
84	06.670 HOSE; FLEX,P/S	8-98175-560-0	01	1	1409-	●			●
84	06.670 HOSE; FLEX,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98175-560-0	01	1	1409-		●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98175-560-0	01	1	1409-		●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1309-1310	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (C) ID=10X2 H=22	8-94252-455-2	01	1	1309-1310		●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1311-1408	●			●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (C) ID=10X2 H=22	8-94252-455-2	01	1	1311-1408		●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1409-	●			●
109	06.672 CLIP; RUBBER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=22	8-94252-455-2	01	1	1409-		●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=22	8-94252-455-2	01	1	1409-		●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1309-1310	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1311-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1309-1310	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1311-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1309-1408		●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1309-1408			●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1309-1310	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1309-1310		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1311-1408	●			●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1311-1408		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1409-	●			●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408			●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1309-1310	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1311-	●	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1309-1310	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1309-1310		●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1311-1408	●			●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1311-1408		●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1409-	●			●
217	06.672 BOLT; FLEX HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1409-		●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1409-		●	●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310		●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●			●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408		●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●			●
233	06.672 BOLT; PIPE CLIP,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98006-233-1	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-233-1	01	1	1309-1310		●
263	06.672 BRACKET; P/S PIPE (C)	8-98006-233-1	01	1	1311-1408	●			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-233-1	01	1	1311-1408		●
263	06.672 BRACKET; P/S PIPE (C)	8-98006-233-1	01	1	1409-	●			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-233-1	01	1	1409-		●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1309-1310		●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1311-1408	●			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1311-1408		●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1409-	●			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1409-		●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98117-646-1	02	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98117-646-1	02	1	1309-1310		●
263	06.672 BRACKET; P/S PIPE (A)	8-98117-646-1	02	1	1311-1408	●			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98117-646-1	02	1	1311-1408		●
263	06.672 BRACKET; P/S PIPE (A)	8-98117-646-1	02	1	1409-	●			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98117-646-1	02	1	1409-		●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D)	8-98212-882-0	01	1	1309-1408		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D)	8-98212-882-0	01	1	1409-		●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E)	8-98212-883-1	02	1	1309-1408		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E)	8-98212-883-1	02	1	1409-		●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1309-1310		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1311-1408	●			●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1311-1408		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-	●			●
277	06.672 BOLT; HOSE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-		●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1309-1310		●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1311-1408	●			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1311-1408		●
280	06.672 HOSE; P/S OIL PUMP,INL L=260 L=400	0-09814-400-0	01	1	1409-	●			●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260 L=400	0-09814-400-0	01	1	1409-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> L=260 L=400	0-09814-400-0	01	1	1409-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS)	8-98052-248-1	01	1	1309-1408		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	1309-1408			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS)	8-98052-248-1	01	1	1409-		●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1408		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1309-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-609-1	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-1	01	1	1309-1310		●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-609-1	01	1	1311-1408	●			●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-1	01	1	1311-1408		●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-609-1	01	1	1409-	●			●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-1	01	1	1409-		●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98212-885-3	01	1	1309-1408		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98212-885-3	01	1	1409-		●	●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1309-1310	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB) 06.672	8-98171-278-0	01	1	1309-1310		●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1311-1408	●			●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB) 06.672	8-98171-278-0	01	1	1311-1408		●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1409-	●			●
372	06.673 HOSE; RUBBER EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-98171-278-0	01	1	1409-		●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.672	8-98171-278-0	01	1	1409-		●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1309-1310	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	1309-1310		●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1311-1408	●			●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	1311-1408		●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1409-	●			●
374	06.673 GASKET; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	1409-		●	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	1409-		●	●

1 2 5 54 54 46 54 48 310 1 23 301 198 284 37 109 25 301 33 25 109 47 163 37 35 109 58 35 37 41 166 280 229 278 37 109 35 81 232 82 163 37 82 229 157 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1309-1310	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1311-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1309-1310	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1311-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1309-1310	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1311-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1309-1310	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1311-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1309-1310	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1311-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1309-1310	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1311-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1309-1310	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1311-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1309-1310	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1311-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1309-1408		●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1309-1408			●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1309-1310	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1309-1310		●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1311-1408	●			●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1311-1408		●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1409-	●			●
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (D) ID=21	8-98150-355-0	02	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 04.681 (D) ID=21	8-98150-355-0	02	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1309-1310	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1311-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1309-1408		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1309-1408			●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1409-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1309-1408		●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1309-1408			●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1309-1310	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1309-1310		●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1311-1408	●			●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1311-1408		●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1409-	●			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310		●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1311-1408	●			●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1311-1408		●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1409-	●			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1409-		●	●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1309-1408		●
41	06.672 CLIP; HOSE,P/S (A)	8-98074-004-0	01	1	1309-1408			●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1409-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) L=2597	8-98207-478-1	01	1	1309-1408		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK L=2597	8-98207-478-1	01	1	1309-1408			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) L=2597	8-98207-478-1	01	1	1409-		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1309-1310	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1309-1310		●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1311-1408	●			●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1311-1408		●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1409-	●			●
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1409-		●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1409-		●	●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1309-1408		●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1309-1408			●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1409-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1309-1310	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1309-1310		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1311-1408	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1311-1408		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1409-	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1409-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1409-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) L=2794	8-98207-475-1	01	1	1309-1408		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT L=2794	8-98207-475-1	01	1	1309-1408			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) L=2794	8-98207-475-1	01	1	1409-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=10X2 H=22	8-94252-455-2	01	1	1309-1408		●
54	06.672 CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	1309-1408			●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=10X2 H=22	8-94252-455-2	01	1	1409-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1309-1408		●
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1309-1408			●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1409-		●	●
58	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408			●
58	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCS ENG(RJS) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1309-1408		●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1309-1408			●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCS ENG(RJS) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1409-		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1309-1310	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1311-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1309-1408		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1309-1408			●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1409-		●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1309-1310	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (C) ID=10X2 H=22	8-94252-455-2	01	1	1309-1310		●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1311-1408	●			●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (C) ID=10X2 H=22	8-94252-455-2	01	1	1311-1408		●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1409-	●			●
109	06.672 CLIP; RUBBER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=22	8-94252-455-2	01	1	1409-		●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=22	8-94252-455-2	01	1	1409-		●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1309-1310	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1311-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1309-1310	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1311-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1309-1408		●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1309-1408			●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1409-		●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97101-875-2	01	1	1309-		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1309-1310	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1309-1310		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1311-1408	●			●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1311-1408		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1409-	●			●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408			●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
166	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408		●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408			●
166	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1309-1310	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1311-	●	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1309-1310		●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B)	8-98011-639-1	01	1	1311-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) (A)	8-98079-341-0	01	1	1309-1408		●
229	06.606 BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	1309-1408			●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) (A)	8-98079-341-0	01	1	1409-		●	●
232	06.672 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408			●
232	06.672 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-		●	●
278	06.670 NUT; HOSE CLIP 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1408		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1408			●
278	06.670 NUT; HOSE CLIP 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1309-1310		●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1311-1408	●			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1311-1408		●
280	06.672 HOSE; P/S OIL PUMP,INL L=260 L=400	0-09814-400-0	01	1	1409-	●			●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260 L=400	0-09814-400-0	01	1	1409-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> L=260 L=400	0-09814-400-0	01	1	1409-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS)	8-98052-248-1	01	1	1309-1408		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	1309-1408			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS)	8-98052-248-1	01	1	1409-		●	●
284	06.670 NUT; PIPE 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1408		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1408			●
284	06.670 NUT; PIPE 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
