Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#12608) — 146 parça

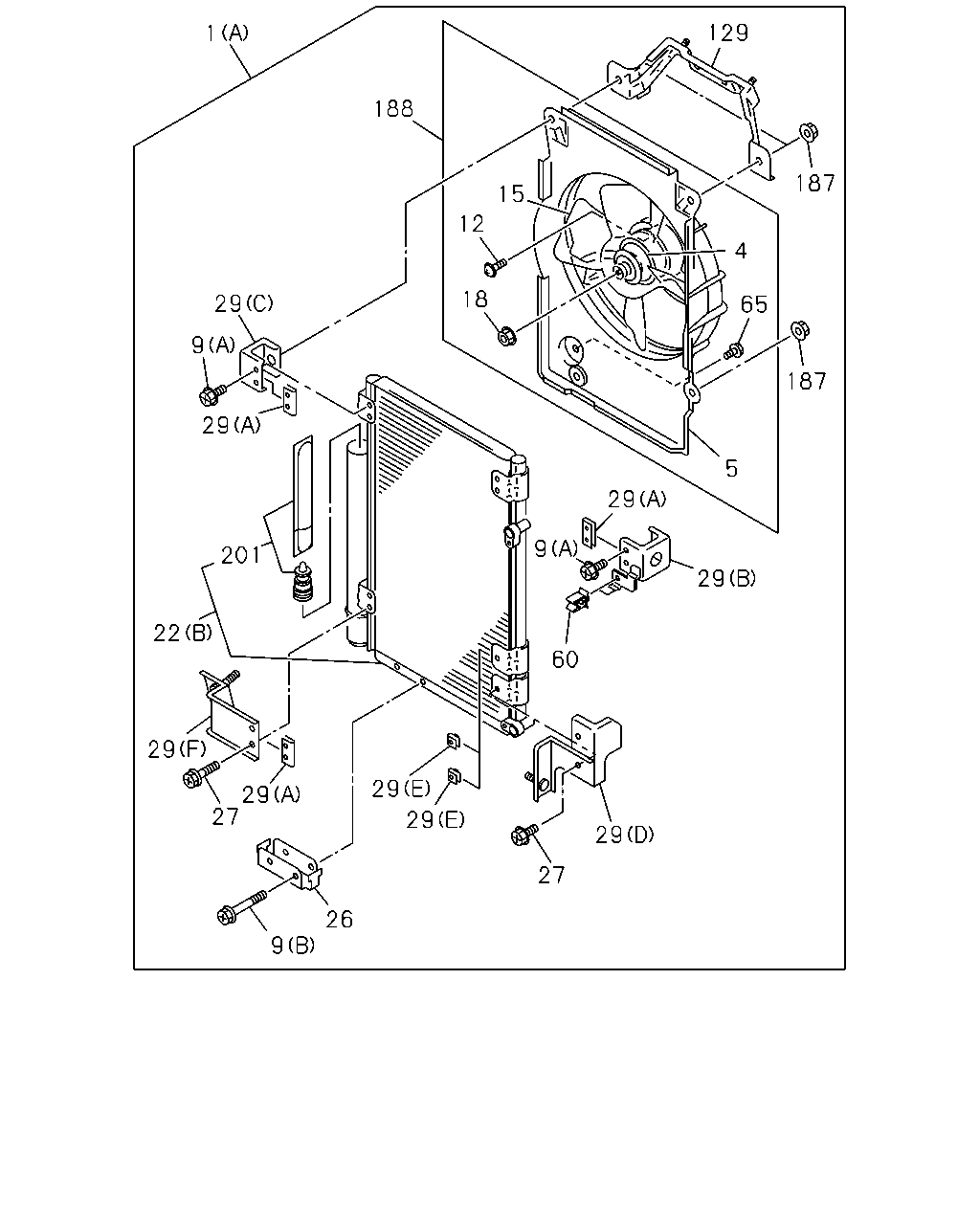

129 1 188 187 15 12 4 18 29 65 9 187 29 5 29 9 201 29 22 60 29 29 29 27 29 29 27 26 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83534-223-2	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83534-237-0	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-237-2	01	1	0210-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83561-139-0	01	1	0105-0209	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0210-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-231-0	01	1	0105-0209	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83539-362-0	01	1	0105-0209	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0210-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-230-2	01	1	0105-0209	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X16	1-83539-315-0	04	1	0105-0209	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	1-83539-315-0	04	1	0210-0512	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	8-97096-525-0	04	1	0601-	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M5X25	8-97178-770-0	02	1	0105-0209	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25	8-97178-770-0	02	1	0210-	●	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83539-314-0	03	1	0105-0209	●	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-314-0	03	1	0210-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83561-140-0	01	1	0105-0209	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0210-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-232-0	01	1	0105-0209	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83539-313-0	01	1	0105-0209	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0210-	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-97018-672-0	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83534-226-1	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83534-245-0	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83534-245-1	01	1	0210-	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83573-205-0	01	1	0105-0209	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-205-0	01	1	0210-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X16	1-83539-315-0	04	1	0105-0209	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M6X16	1-83539-315-0	04	1	0210-0512	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0601-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83539-227-1	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83539-236-0	04	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83539-262-1	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83573-010-0	03	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	03	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83573-125-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-126-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (D)	1-83573-204-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-204-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (F)	1-83573-213-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83573-213-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	8-97180-263-0	02	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0210-	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83574-266-0	01	1	0105-0209	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0210-	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-234-0	01	1	0105-0209	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X16	8-97096-525-0	01	1	0105-0209	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0210-	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-242-0	03	1	0105-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-237-1	01	1	0105-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83573-129-0	01	1	0105-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-0	01	1	0210-	●	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6	1-83539-354-0	04	1	0105-0209	●	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	0210-	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83561-162-0	01	1	0105-0209	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-162-1	01	1	0210-	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83535-098-0	01	1	0105-0209	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-098-0	01	1	0210-	●	●

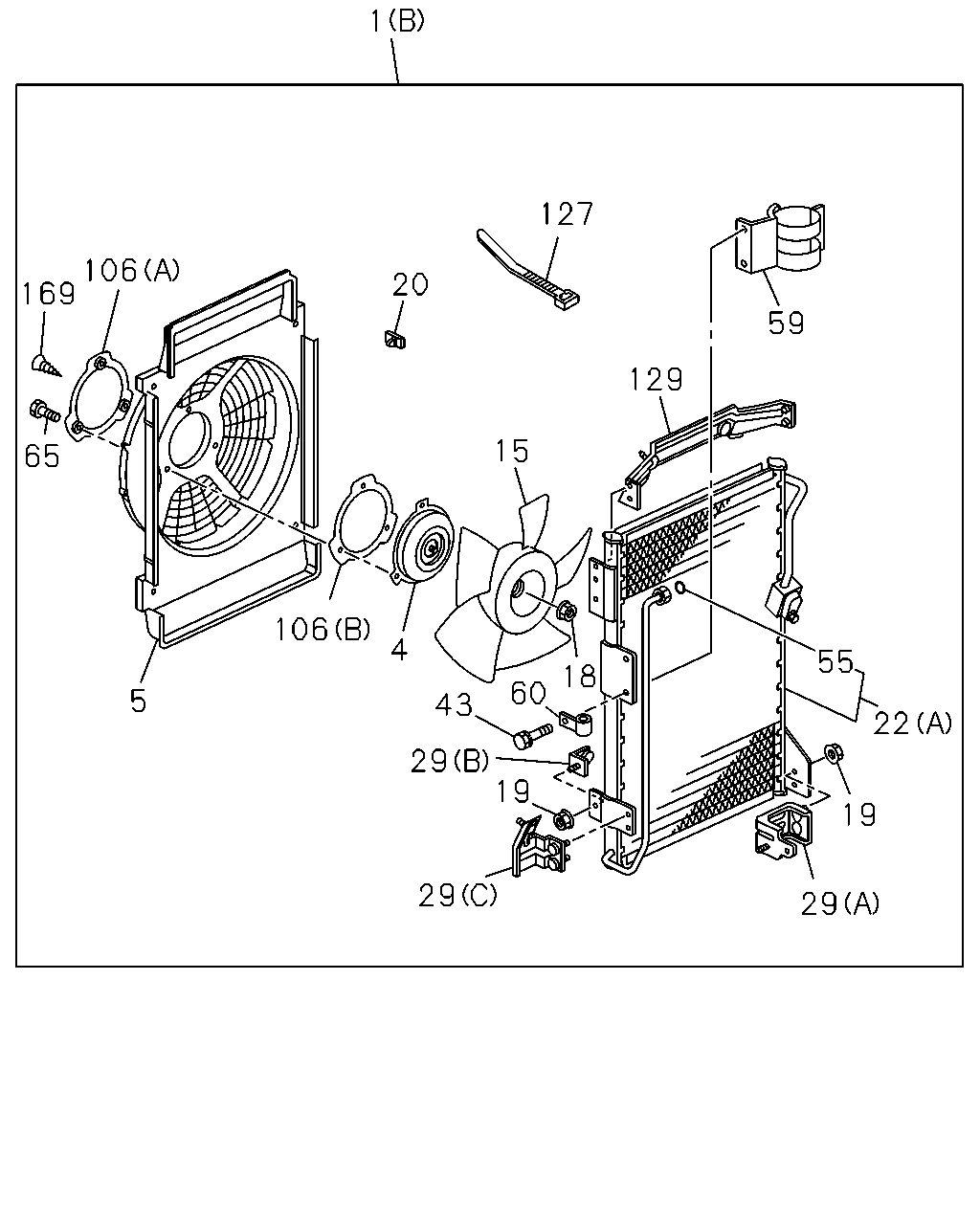

127 106 169 20 59 129 15 65 106 4 55 18 60 5 43 22 29 19 19 29 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83534-223-2	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83534-237-0	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-237-2	01	1	0210-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83561-139-0	01	1	0105-0209	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0210-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-231-0	01	1	0105-0209	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83539-362-0	01	1	0105-0209	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0210-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-230-2	01	1	0105-0209	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83561-140-0	01	1	0105-0209	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0210-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-232-0	01	1	0105-0209	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83539-313-0	01	1	0105-0209	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0210-	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-97018-672-0	01	1	0105-0209	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-235-0	12	1	0105-0209	●	●
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-94364-751-0	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83534-226-1	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83534-245-0	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83534-245-1	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83539-227-1	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83539-236-0	04	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83539-262-1	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83573-010-0	03	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	03	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83573-125-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-126-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (D)	1-83573-204-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-204-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (F)	1-83573-213-0	01	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83573-213-0	01	1	0210-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	8-97180-263-0	02	1	0105-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0210-	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> M6X16 W/FLANGE	1-83539-260-0	06	1	0105-0209	●	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-97161-776-0	01	1	0105-0209	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-228-2	01	1	0105-0209	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83574-266-0	01	1	0105-0209	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0210-	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-234-0	01	1	0105-0209	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X16	8-97096-525-0	01	1	0105-0209	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0210-	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-242-0	03	1	0105-0209	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83539-243-0	01	1	0105-0209	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83539-244-0	01	1	0105-0209	●	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> L=140	5-09707-008-0	01	1	0105-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83539-237-1	01	1	0105-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83573-129-0	01	1	0105-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-0	01	1	0210-	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-94248-807-0	01	1	0105-0209	●	●

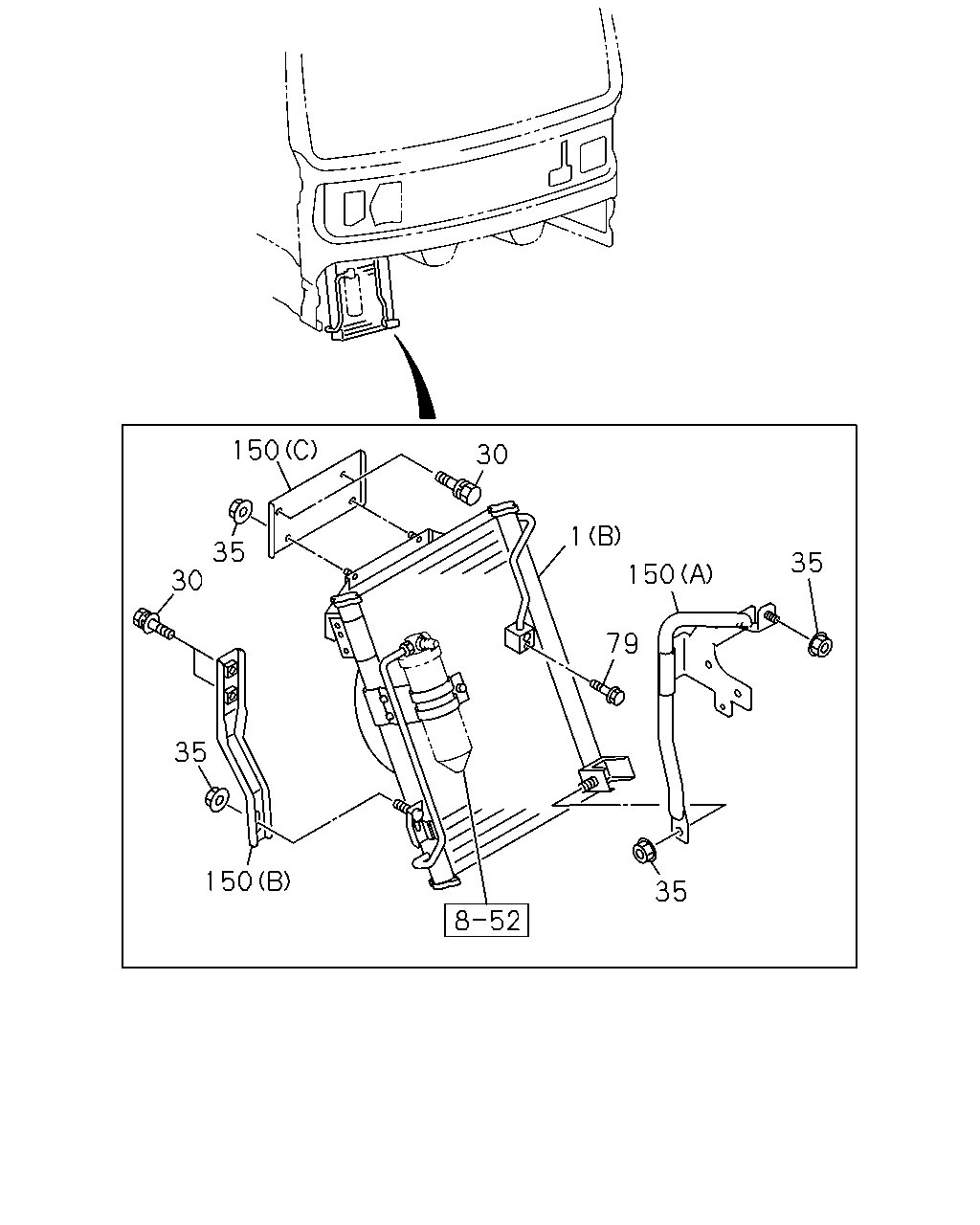

150 30 1 35 30 35 150 79 35 150 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83534-223-2	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83534-237-0	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-237-2	01	1	0210-	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0105-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> M8X35	8-97103-452-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83573-137-0	01	1	0109-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-137-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-138-0	01	1	0109-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-138-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83571-914-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83571-915-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83571-918-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83573-136-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-136-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-137-0	01	1	0105-0108	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-138-0	01	1	0105-0108	●	●

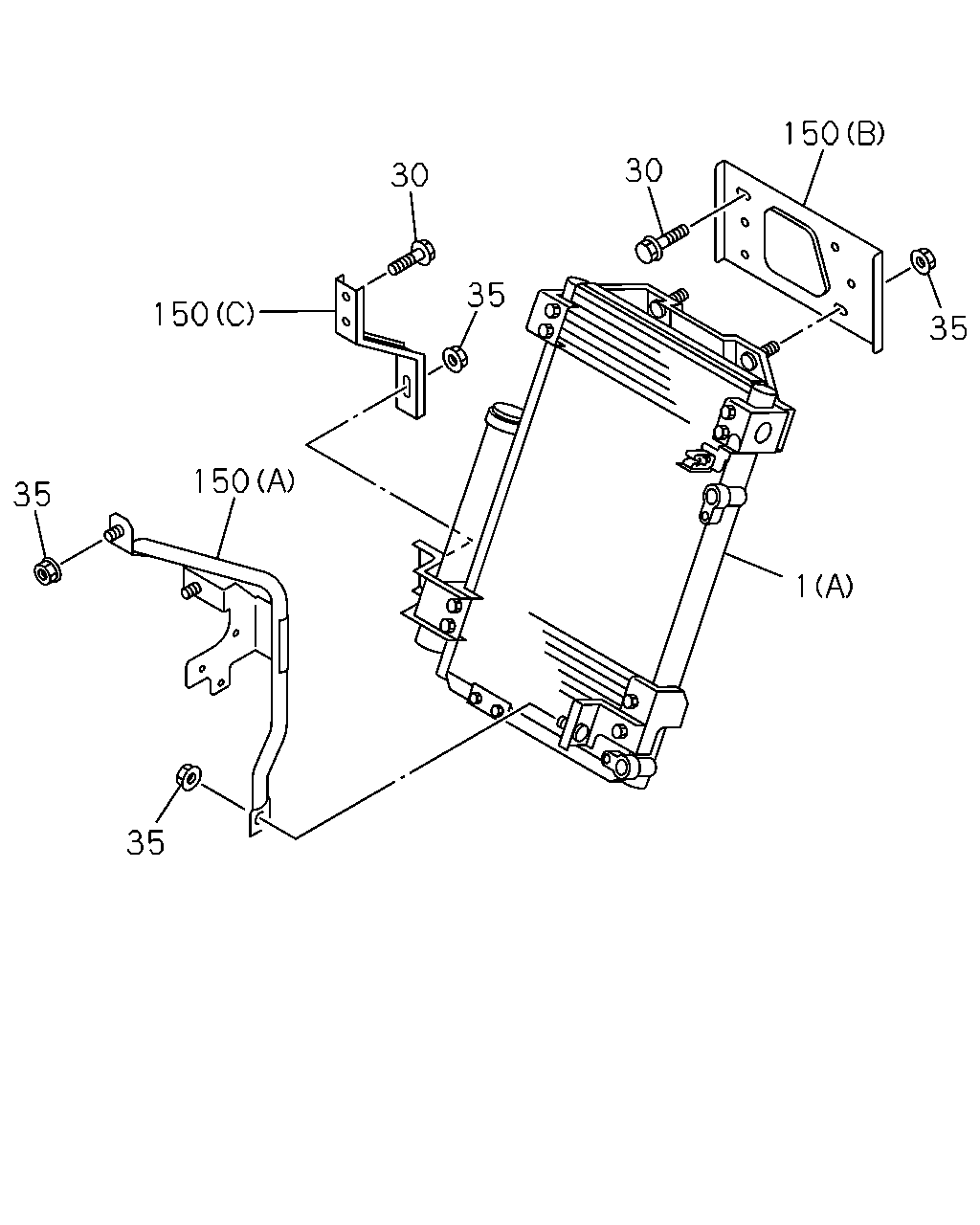

150 30 30 35 150 35 150 35 1 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83534-223-2	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83534-237-0	01	1	0105-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-237-2	01	1	0210-	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0105-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83573-137-0	01	1	0109-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-137-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-138-0	01	1	0109-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-138-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A)	1-83571-914-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	1-83571-915-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83571-918-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83573-136-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-136-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-137-0	01	1	0105-0108	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-138-0	01	1	0105-0108	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
