◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#126078) — 1072 parça

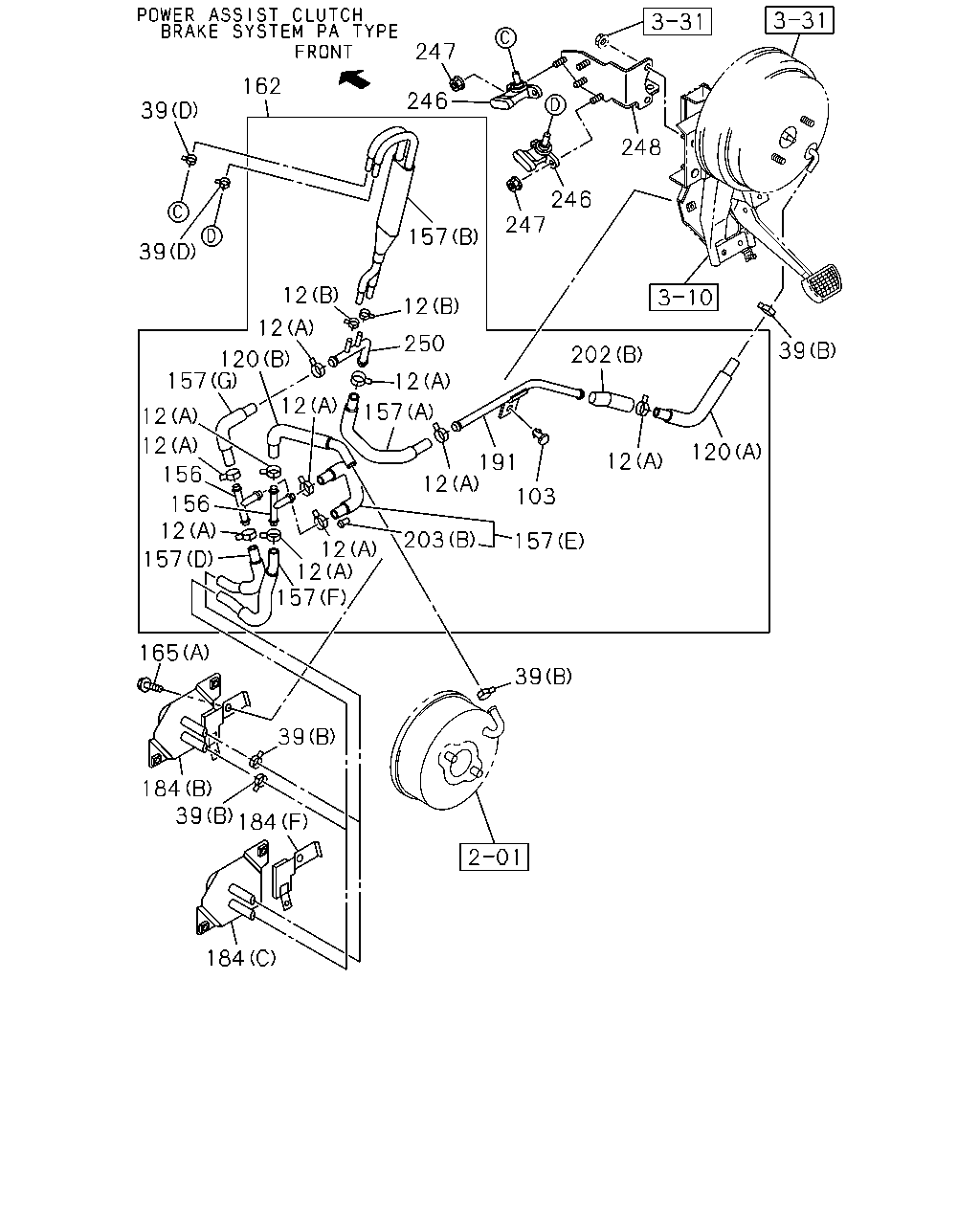

çizim 373391
39 162 39 12 12 120 157 12 12 12 250 12 157 247 246 248 247 246 202 12 120 39 191 12 157 203 157 12 12 157 157 12 156 156 12 39 165 184 39 184 184 39 103
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) 		8-98060-842-0 02 1 1309- ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1309-1310 ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1311- ● ● ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 02 1 1309-1310 ● ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 02 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1311- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1311- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1311- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1311- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1311- ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1311- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1311- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1309-1310 ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1309-1310 ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1309-1310 ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1311- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1309-1310 ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1311- ● ● ● ●
203 04.690 VALVE; CHECK
(B) 		8-94386-540-0 01 1 1309-1310 ● ● ●
203 04.690 VALVE; CHECK
(B) 		8-94386-540-0 01 1 1311- ● ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98111-750-1 02 1 1309- ●
246 01.150 SENSOR; VAC 8-98111-750-1 02 1 1309- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98212-445-0 01 1 1309- ●
248 06.672 BRACKET; SENSOR VAC 8-98212-445-0 01 1 1309- ●
250 04.931 JOINT; 4 WAY
BRAKE SYSTEM PA TYPE(8BX) 		8-98119-530-0 01 1 1309- ●
250 04.931 JOINT; 4 WAY 8-98119-530-0 01 1 1309- ●
çizim 373393
80 66 116 66 66 85 66 33 33 80 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1309-1310 ● ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1311- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1311-1408 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1311-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1409- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1409- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98056-499-0 01 1 1309-1310 ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98056-499-0 01 1 1309-1310 ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98056-499-0 01 1 1311-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98056-499-0 01 1 1311-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98056-499-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98056-499-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98103-509-0 01 1 1309-1310 ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98103-509-0 01 1 1309-1310 ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98103-509-0 01 1 1311-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98103-509-0 01 1 1311-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98103-509-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98103-509-0 01 1 1409- ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1309-1310 ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1309-1310 ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1311-1408 ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1311-1408 ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1409- ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1409- ● ●
108 04.931 GROMMET; PIPE
02.343 ID=17 		8-94128-319-2 01 1 1309-1310 ● ● ●
108 04.931 GROMMET; PIPE
02.343 ID=17 		8-94128-319-2 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1408 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1309-1310 ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1309-1310 ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 1409- ● ●

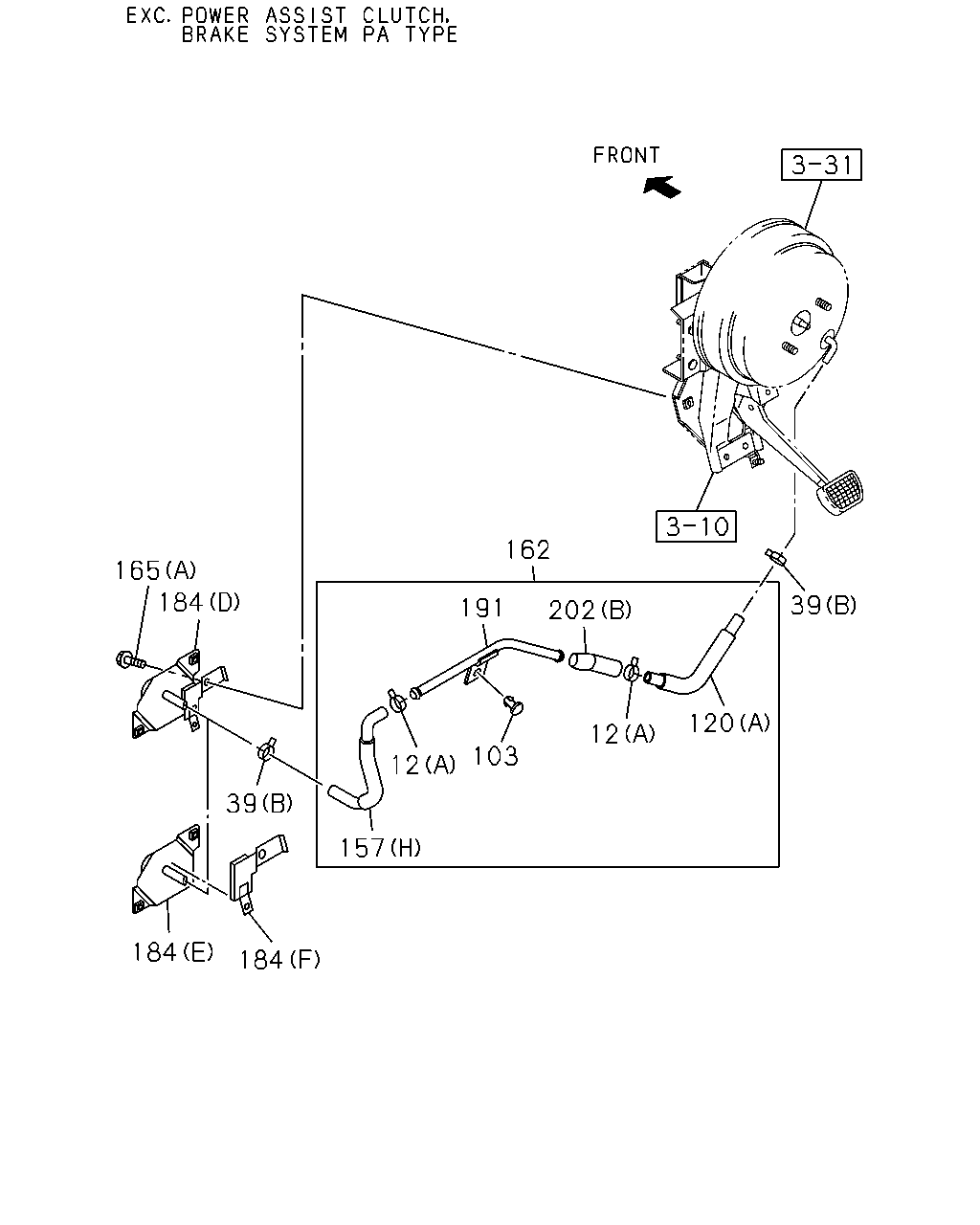

çizim 373727
162 191 12 103 12 120 39 202 184 165 39 184 184 157
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) 		8-98060-842-0 02 1 1309- ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1309-1310 ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1311- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1311- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1311- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1311- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1311- ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1311- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1311- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1309-1310 ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1309-1310 ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1309-1310 ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1311- ● ● ● ●

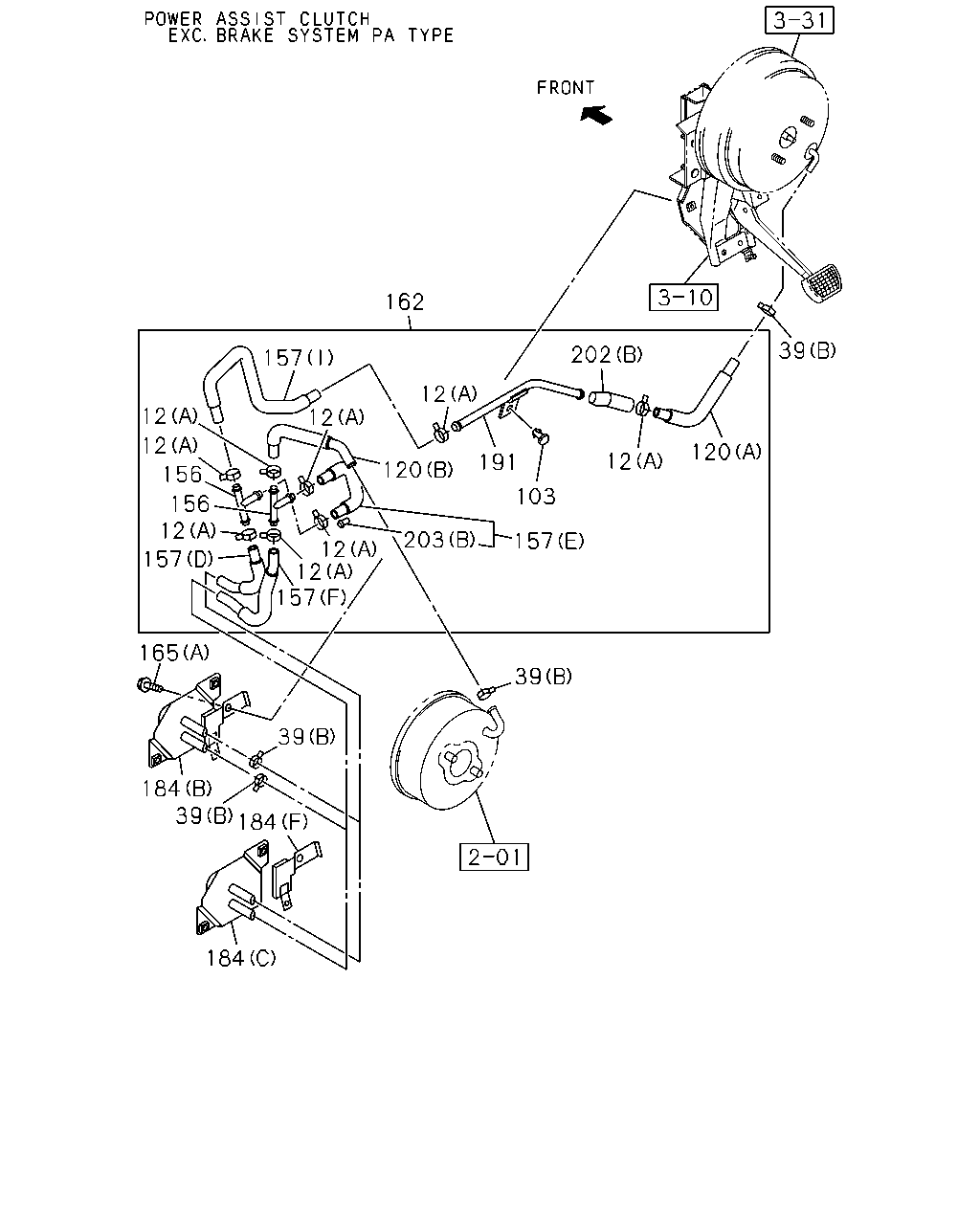

çizim 373773
39 120 12 202 191 157 103 12 162 157 12 120 203 12 12 157 157 12 156 156 12 12 39 165 184 39 184 184 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) 		8-98060-842-0 02 1 1309- ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1309-1310 ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1311- ● ● ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 02 1 1309-1310 ● ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 02 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1311- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1311- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1311- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1311- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1311- ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1311- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1311- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1309-1310 ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1309-1310 ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1309-1310 ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1311- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1309-1310 ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1311- ● ● ● ●
203 04.690 VALVE; CHECK
(B) 		8-94386-540-0 01 1 1309-1310 ● ● ●
203 04.690 VALVE; CHECK
(B) 		8-94386-540-0 01 1 1311- ● ● ● ●

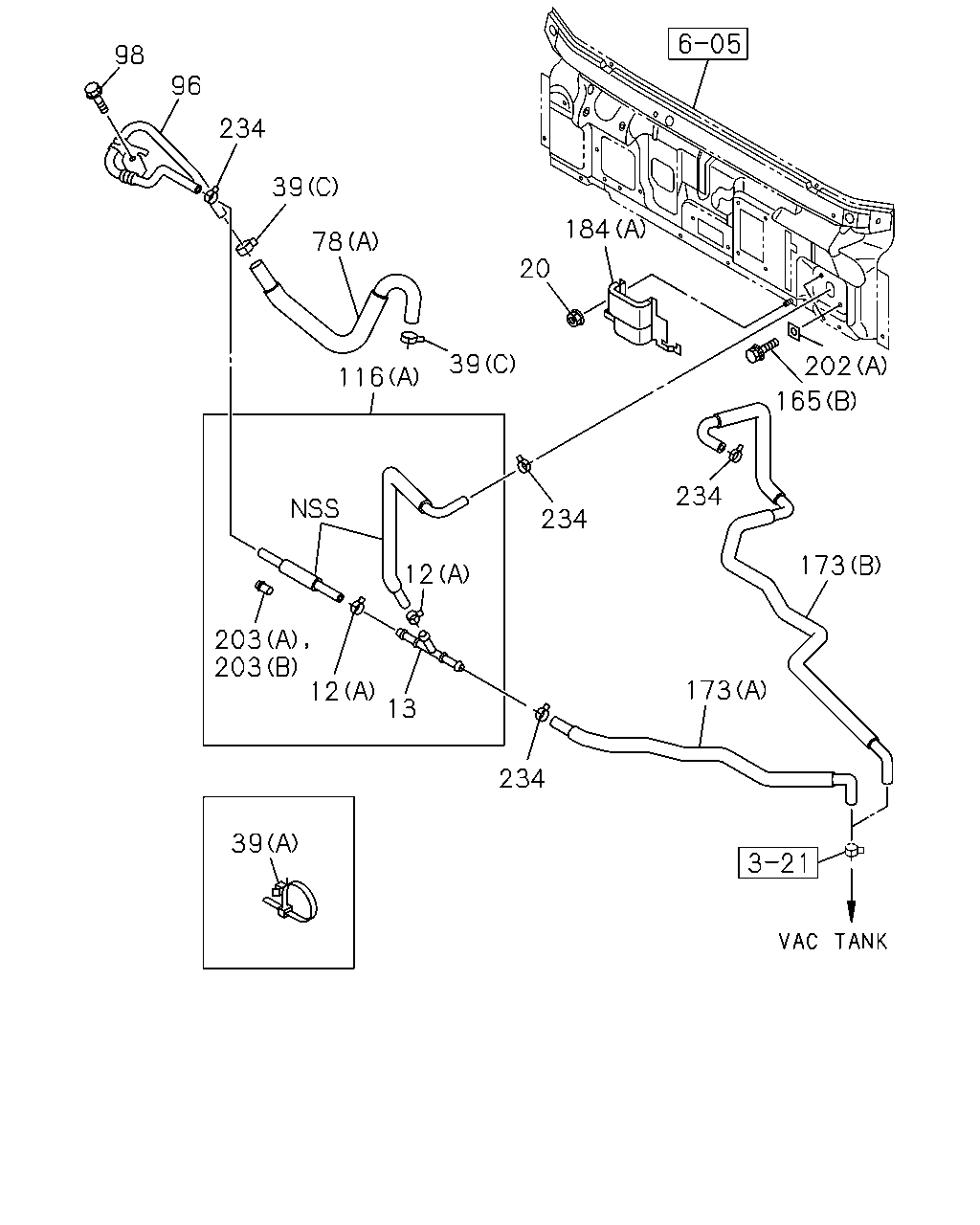

çizim 373811
98 234 39 96 78 116 39 234 12 13 12 203 203 234 173 173 165 202 184 20 39 234
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
13 04.681 JOINT; HOSE,VAC 8-98035-106-0 01 1 1309-1310 ● ● ●
13 04.681 JOINT; HOSE,VAC 8-98035-106-0 01 1 1311- ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) 		8-98060-842-0 02 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1309-1310 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1311- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98109-825-2 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1409- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98082-322-0 01 1 1309-1310 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98082-322-0 01 1 1311- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1408 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1309-1310 ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1309-1310 ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 1409- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98047-184-2 01 1 1309-1310 ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98047-184-2 01 1 1311- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98031-774-1 01 1 1309-1310 ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98031-774-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1309-1310 ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1309-1310 ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1311- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1309-1310 ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94104-021-0 01 1 1311- ● ● ● ●
203 04.690 VALVE; CHECK
(B) 		8-94386-540-0 01 1 1309-1310 ● ● ●
203 04.690 VALVE; CHECK
(B) 		8-94386-540-0 01 1 1311- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1309-1310 ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1311- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1309-1310 ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1311- ● ● ● ●
çizim 373831
66 66 116 116 169 66 66 169 108 235 66 66 236 116 169 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1309-1310 ● ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1311- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1311-1408 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1311-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1409- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1409- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1409- ● ●
108 04.931 GROMMET; PIPE
02.343 ID=17 		8-94128-319-2 01 1 1309-1310 ● ● ●
108 04.931 GROMMET; PIPE
02.343 ID=17 		8-94128-319-2 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1408 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
(D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1309-1310 ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1309-1310 ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 1311- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98212-871-0 01 1 1309-1310 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98212-871-0 01 1 1311-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98212-871-0 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98048-903-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98048-903-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98048-903-0 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98210-358-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98210-358-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98210-358-0 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98222-220-0 01 1 1309- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98222-219-0 01 1 1309- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1309-1310 ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1311- ● ● ● ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311-1312 ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
236 04.930 BOLT; PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
çizim 373869
122 136 136 136 44 136 136 78 106 106 106 78 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (F) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98227-114-0 01 1 1311-1408 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98227-114-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1309-1310 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98081-681-2 01 1 1311- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98109-825-2 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1409- ● ●
106 04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1309- ●
106 04.930 CLIP; PIPE
ID=10 H=40 		8-94462-219-0 03 1 1309- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1309- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98155-961-1 01 1 1309- ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1309- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1309- ●
çizim 374011
247 246 248 39 246 247 202 120 12 103 250 191 12 12 12 157 157 184 184 39 165 39 39 162 157 12 184 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) 		8-98060-842-0 02 1 1309- ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1309-1310 ● ● ●
103 04.930 CLIP; VAC PIPE 8-98194-958-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98194-488-0 01 1 1311- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1309-1310 ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
(A) 		8-98191-454-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98191-452-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98191-453-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1309-1310 ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98194-489-0 01 1 1311- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (I) 		8-98191-458-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98191-458-0 01 1 1311- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1309-1310 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98191-466-0 01 1 1311- ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98191-466-0 01 1 1311- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98212-861-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(A) 		8-98213-216-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(B) 		8-98239-286-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98213-217-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1309-1310 ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98191-457-0 01 1 1311- ● ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98191-457-0 01 1 1311- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1309-1310 ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98191-465-1 01 1 1311- ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 		8-98191-465-1 01 1 1311- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-98239-512-0 01 1 1309- ●
162 04.931 HOSE; VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98239-513-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-468-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-536-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1311- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1311-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1309-1310 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1311- ● ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1309-1310 ● ● ●
191 04.685 PIPE; VAC 8-98192-099-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1309-1310 ● ● ●
202 04.686 SEAL
(B) 		1-72447-923-0 01 1 1311- ● ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1309-1310 ● ● ●
202 04.686 SEAL
08.845 (A) 		8-97856-616-0 02 1 1311- ● ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98111-750-1 02 1 1309- ●
246 01.150 SENSOR; VAC 8-98111-750-1 02 1 1309- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98212-445-0 01 1 1309- ●
248 06.672 BRACKET; SENSOR VAC 8-98212-445-0 01 1 1309- ●
250 04.931 JOINT; 4 WAY
BRAKE SYSTEM PA TYPE(8BX) 		8-98119-530-0 01 1 1309- ●
250 04.931 JOINT; 4 WAY 8-98119-530-0 01 1 1309- ●
çizim 374408
236 12 198 12 12 237 12 12 237 12 44 44 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (F) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98227-114-0 01 1 1311-1408 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98227-114-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-97389-721-1 01 1 1311-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) 		8-97389-721-1 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98092-677-0 01 1 1409- ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311-1312 ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
236 04.930 BOLT; PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98260-531-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(E) 		8-98207-021-0 01 1 1311-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98207-021-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(F) 		8-98227-131-0 01 1 1311-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98227-131-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98171-288-0 01 1 1409- ●
çizim 388565
236 12 12 12 12 198 44 12 237 12 237 12 228 236 12 237 44 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (F) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98227-114-0 01 1 1311-1408 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98227-114-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-97389-721-1 01 1 1311-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) 		8-97389-721-1 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98092-677-0 01 1 1409- ●
228 04.930 NUT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1312 ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1312 ●
228 04.930 NUT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1401-1408 ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1401-1408 ●
228 04.930 NUT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
228 04.930 NUT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311-1312 ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
236 04.930 BOLT; PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98260-531-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(E) 		8-98207-021-0 01 1 1311-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98207-021-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(F) 		8-98227-131-0 01 1 1311-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98227-131-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98171-288-0 01 1 1409- ●
çizim 388574
12 237 12 12 12 198 12 237 12 228 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1401- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309-1310 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1311- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309-1310 ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1311- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 02 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (F) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98227-114-0 01 1 1311-1408 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98227-114-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-97389-721-1 01 1 1311-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) 		8-97389-721-1 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98092-677-0 01 1 1409- ●
228 04.930 NUT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1312 ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1312 ●
228 04.930 NUT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1401-1408 ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1401-1408 ●
228 04.930 NUT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
228 04.930 NUT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98260-531-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(E) 		8-98207-021-0 01 1 1311-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98207-021-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(F) 		8-98227-131-0 01 1 1311-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98227-131-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98171-288-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
