◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#126074) — 178 parça

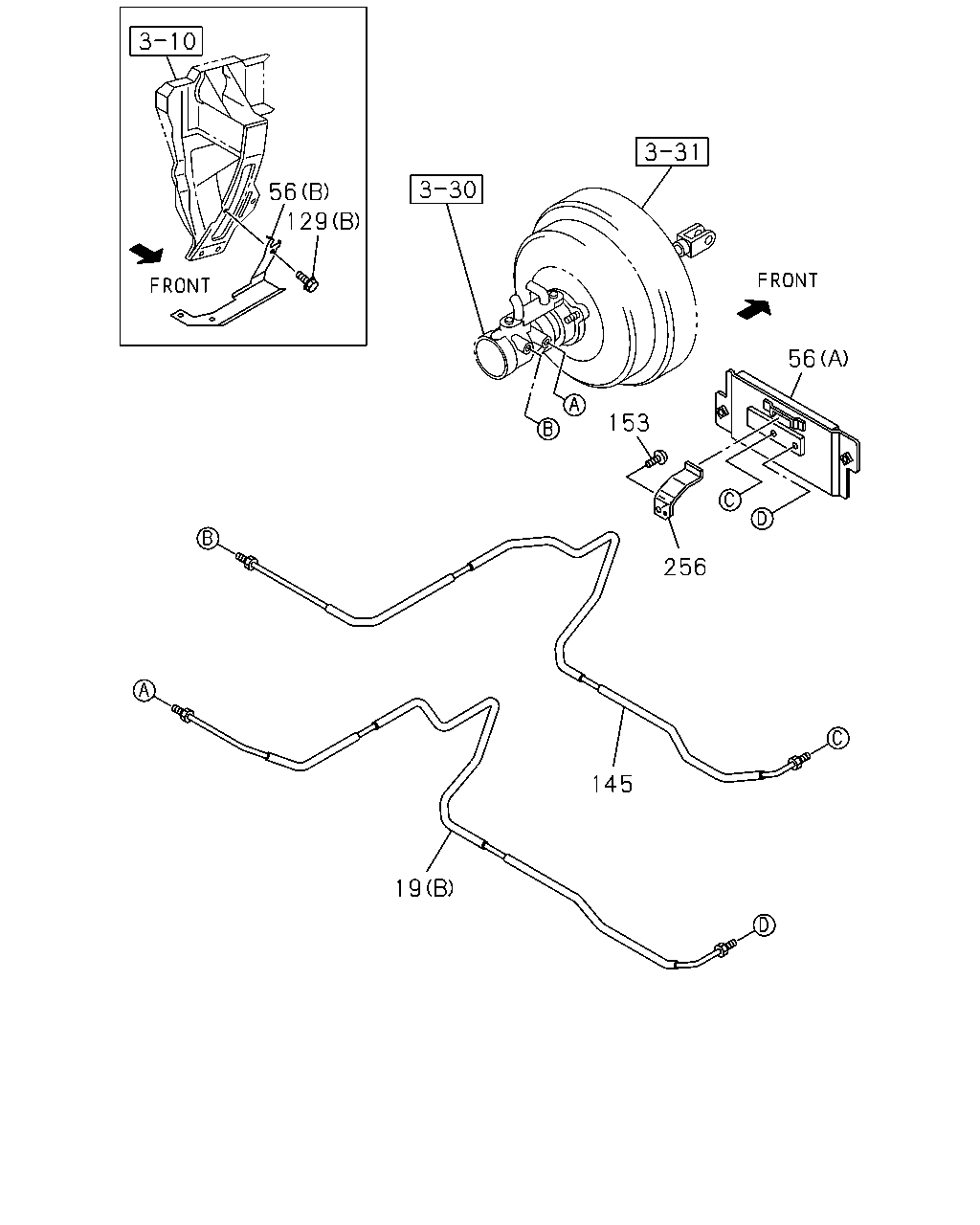

çizim 373236
56 129 153 256 56 145 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98056-155-1 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98197-655-2 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1309-1310 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1311-1401 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (B) 		8-98191-449-0 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98192-391-1 02 1 1309-1310 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98192-391-1 02 1 1311-1401 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98192-391-1 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98192-391-1 02 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98154-269-1 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-269-1 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98154-269-1 01 1 1409- ● ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-268-1 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1309-1310 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1311-1401 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402-1402 ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-284-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1309-1310 ● ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1311- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98196-285-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98196-285-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1402 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1402 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98196-285-0 01 1 1402-1402 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1408 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-285-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-285-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1409- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-285-0 01 1 1409- ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1309-1310 ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1311- ● ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98197-658-1 01 1 1402- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1309-1310 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1311-1401 ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1402- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-450-0 01 1 1402- ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1309-1310 ● ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1311- ● ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1309-1310 ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1311- ● ● ● ●
çizim 373314
89 103 72 184 197 179 72 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1309-1310 ● ● ●
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1311- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98270-235-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) BRAKE SYSTEM PA TYPE(8BX) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-236-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) BRAKE SYSTEM PA TYPE(8BX) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-236-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-236-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) BRAKE SYSTEM PA TYPE(8BX) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-237-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-237-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 		8-98252-587-0 01 1 1309- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98252-583-0 01 1 1309-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98252-583-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) 		8-98252-583-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ>,BRAKE SYSTEM PA TYPE(8BX) 		8-98252-580-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,FRAME STRAIGHT TYPE<7KJ>,BRAKE SYSTEM PA TYPE(8BX) 		8-98252-580-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 6.5-7.0TON(RPW) BRAKE SYSTEM PA TYPE(8BX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98252-598-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-598-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-598-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-598-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98252-594-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-594-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-594-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-594-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) BRAKE SYSTEM PA TYPE(8BX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98252-596-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX>,FRAME STRAIGHT TYPE<7KJ> 		8-98252-596-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98252-592-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-592-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98252-590-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-590-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-590-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98252-590-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 		8-98252-586-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98252-582-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) 		8-98252-582-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98250-186-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-186-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-186-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-186-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98250-182-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-182-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 		8-98250-178-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) 		8-98250-178-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-178-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-178-0 01 1 1402-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-178-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98250-178-0 01 1 1409- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-875-2 01 1 1309-1310 ● ● ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-875-2 01 1 1311- ● ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> BRAKE SYSTEM PA TYPE(8BX) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1401 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1401 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1309-1310 ● ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1311- ● ● ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1309-1310 ● ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1311- ● ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1309-1310 ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1311- ● ● ● ●

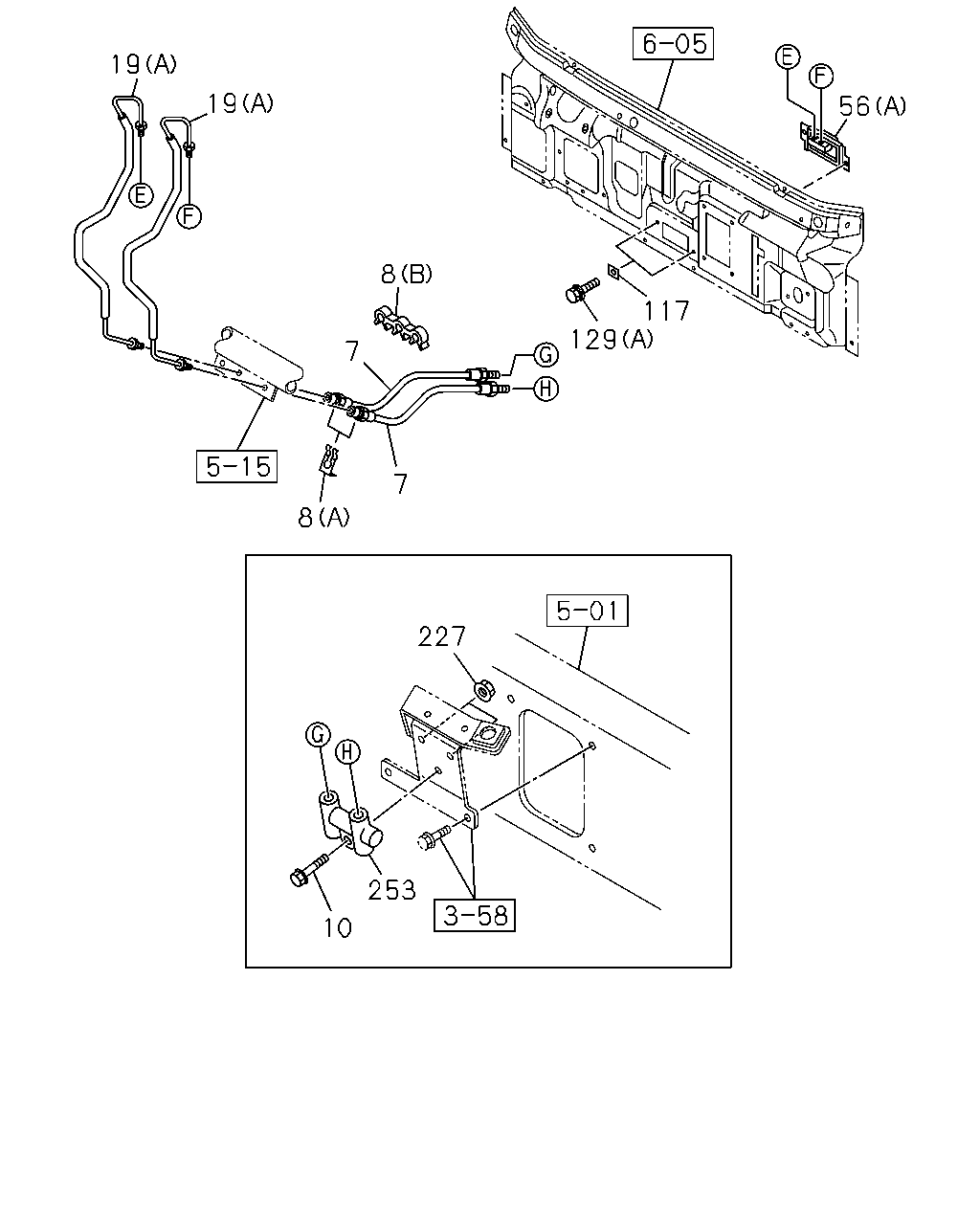

çizim 373847
19 19 8 7 7 8 117 129 227 253 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98029-865-0 02 1 1402- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98191-785-0 02 1 1309-1310 ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98191-785-0 02 1 1311-1401 ● ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98191-785-0 02 1 1402- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-785-0 02 1 1402- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1309-1310 ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1311- ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1309-1310 ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1311- ● ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1309-1310 ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1311- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98056-155-1 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98197-655-2 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1309-1310 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1311-1401 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (B) 		8-98191-449-0 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98192-391-1 02 1 1309-1310 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98192-391-1 02 1 1311-1401 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98192-391-1 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98192-391-1 02 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98154-269-1 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-269-1 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98154-269-1 01 1 1409- ● ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-268-1 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1309-1310 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1311-1401 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402-1402 ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-284-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1309-1310 ● ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1311- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98196-285-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98196-285-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1402 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1402 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98196-285-0 01 1 1402-1402 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1408 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-285-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-285-0 01 1 1402-1408 ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1409- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> (A) 		8-98196-285-0 01 1 1409- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1309-1310 ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1311- ● ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1309-1310 ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1311- ● ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311-1401 ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311-1401 ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VEHICLE LOW COST PACK AGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1402-1408 ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1402-1408 ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VEHICLE LOW COST PACK AGE VARIANT 1<6NX>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
253 04.840 JOINT
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-97038-940-1 01 1 1402- ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1309-1310 ● ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1311-1401 ● ● ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1402- ● ●
253 04.840 JOINT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98192-436-0 01 1 1402- ● ●

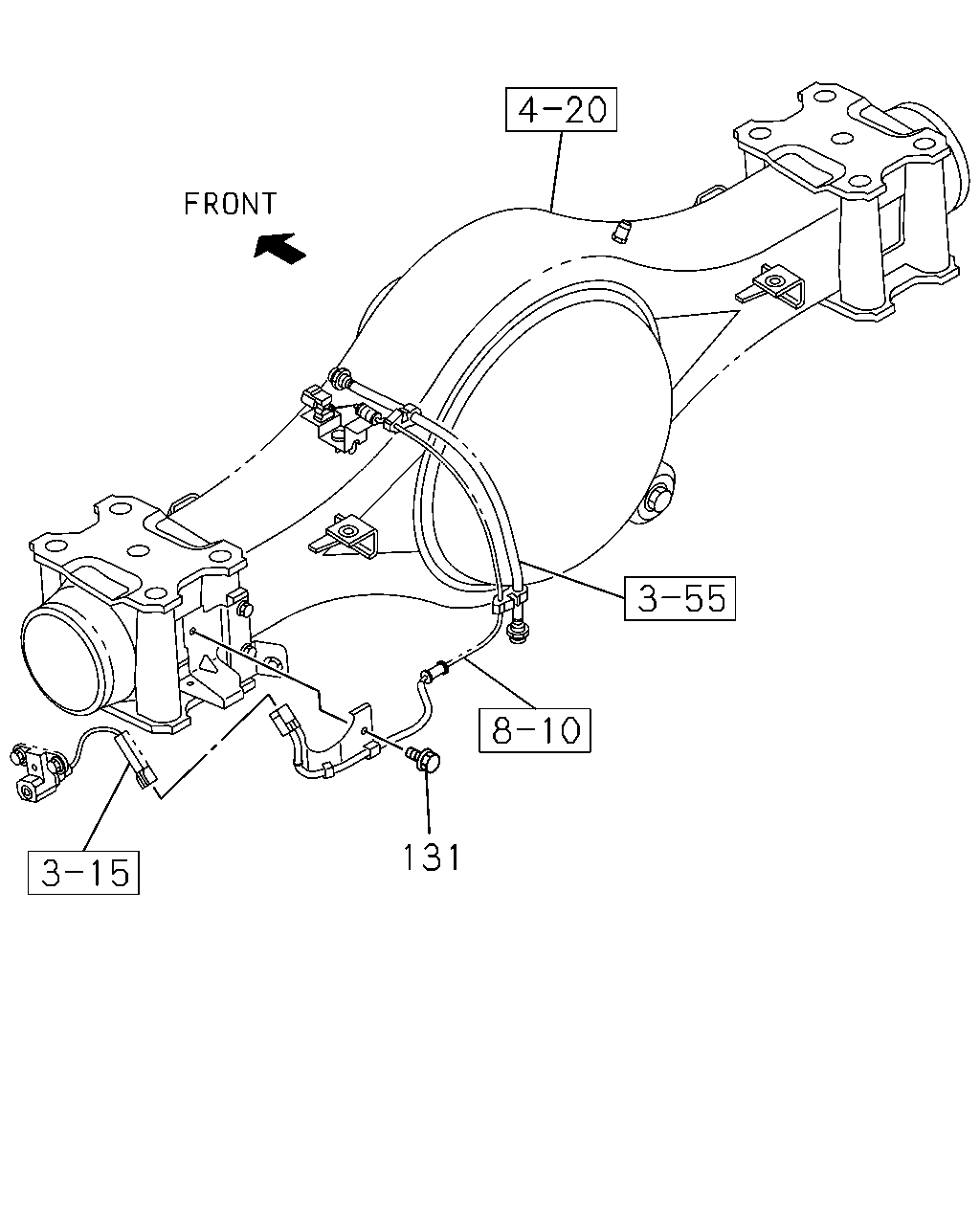

çizim 374350
131
BalonParca AdiParca NoAdetTipApplied Date A B C D
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1309-1310 ● ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1311- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
