◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#126072) — 17 parça

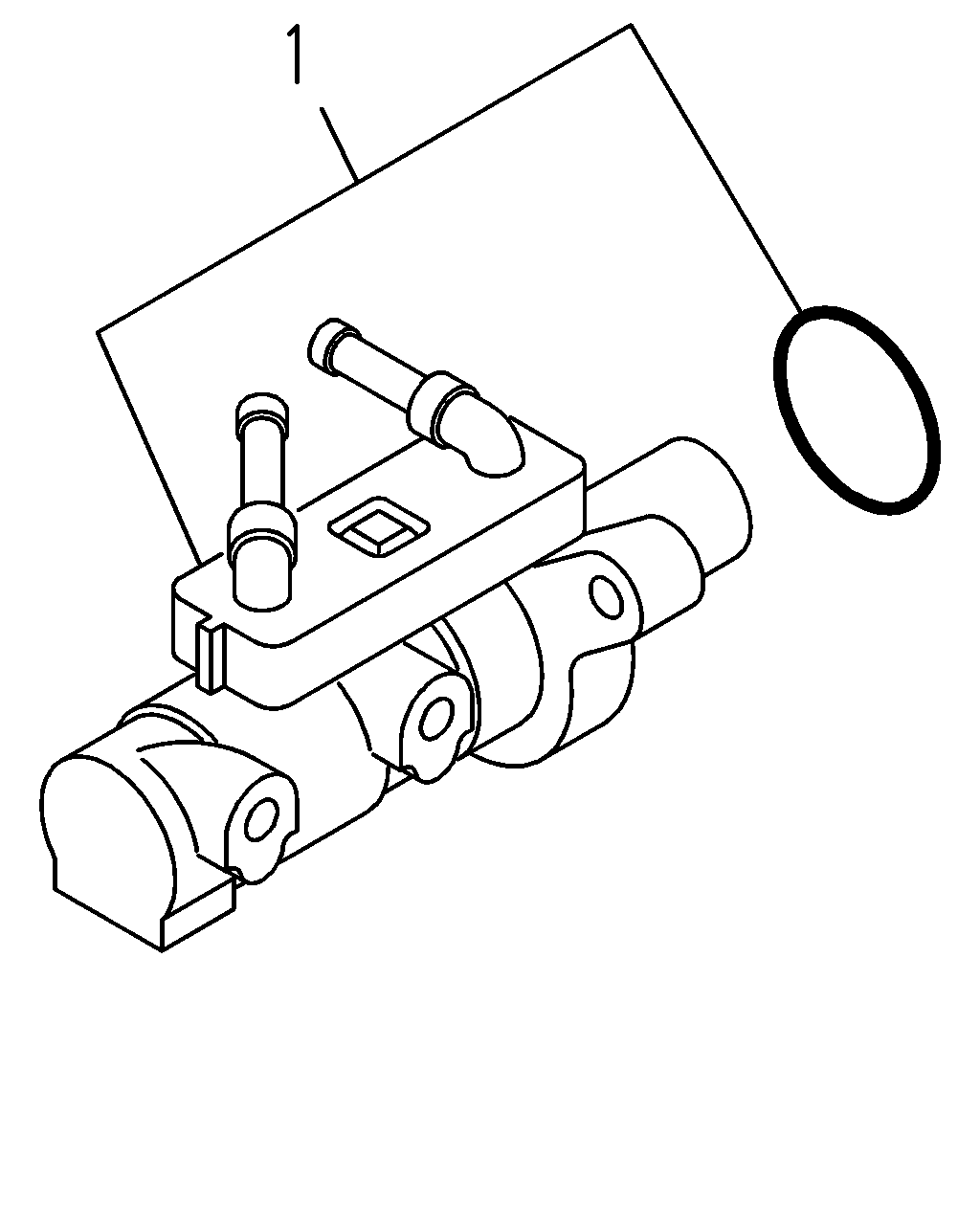

çizim 374193
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98201-096-3 01 1 1402- ●
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98201-097-3 01 1 1402-1408 ●
1 04.650 CYLINDER ASM; BRK MASTER
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98201-097-3 01 1 1402-1408 ●
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98201-097-3 01 1 1409- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98201-097-3 01 1 1409- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-2 01 1 1309-1310 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) 		8-98191-786-2 01 1 1309-1310 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-2 01 1 1311-1401 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) 		8-98191-786-2 01 1 1311-1401 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-3 01 1 1402- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-786-3 01 1 1402- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-98191-787-2 01 1 1309-1401 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-787-2 01 1 1309-1401 ●
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-787-3 01 1 1402-1408 ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-787-3 01 1 1402-1408 ●
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-787-3 01 1 1409- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. VEHICLE LOW COST PACKAGE VARIANT 1 <6NX> 		8-98191-787-3 01 1 1409- ●
