◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#126069) — 576 parça

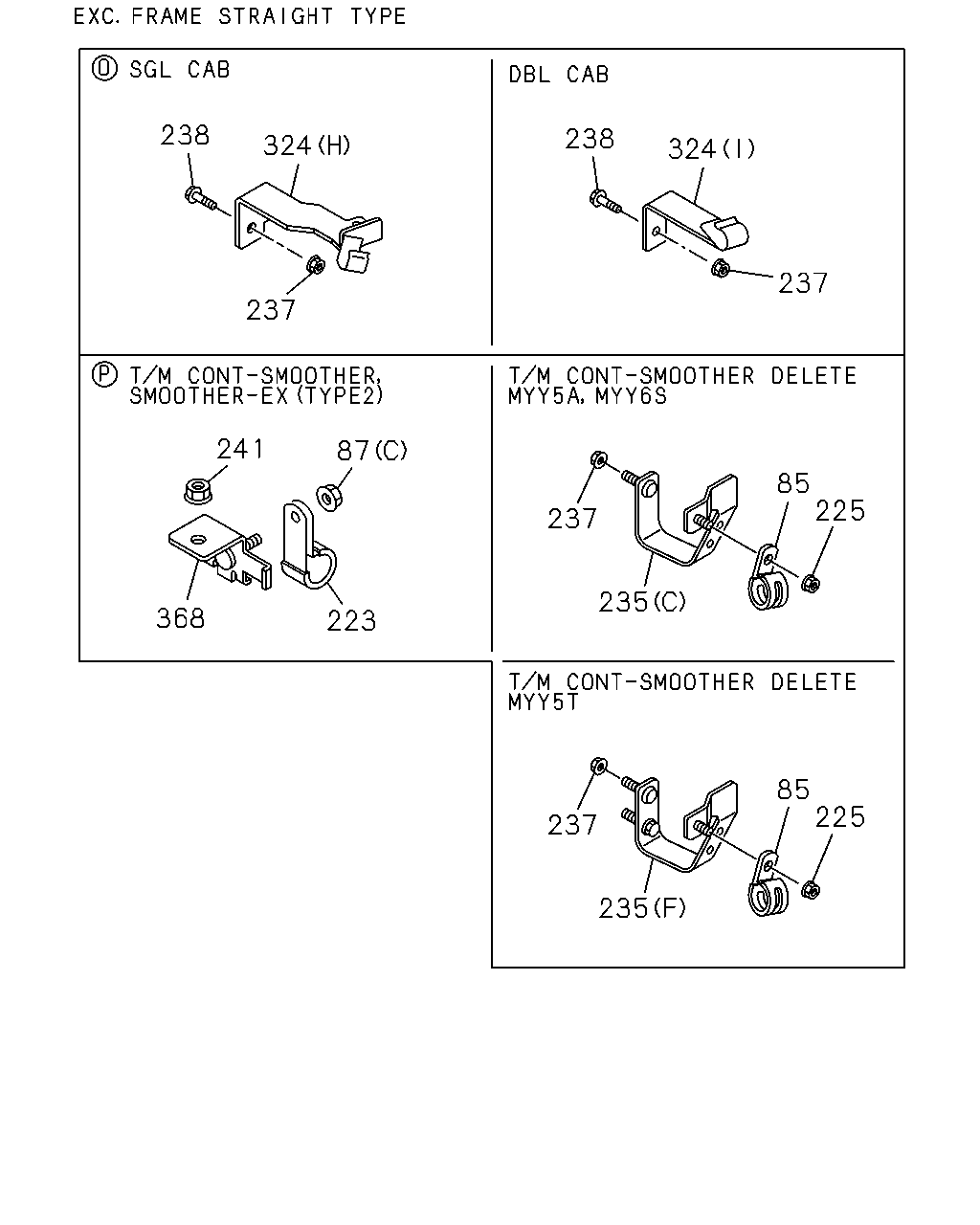

çizim 373500
238 324 237 241 368 223 87 238 324 237 237 235 85 225 237 235 85 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1309-1310 ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1309-1310 ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1311-1401 ● ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1311-1401 ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1402-1408 ● ● ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1409- ● ● ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1309- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1311- ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1309-1310 ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1311- ● ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
87 04.785 NUT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
87 04.785 NUT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ● ●
87 04.785 NUT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1309-1310 ●
223 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1311-1401 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1402-1408 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1311-1312 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1311-1312 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1401-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1401-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1402- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1309-1408 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1409- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1309-1408 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1309-1408 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (A) 		8-98074-995-0 01 1 1309- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (B) 		8-98241-559-2 01 1 1309- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309- ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
241 04.785 NUT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
241 04.785 NUT; BRKT
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
241 04.785 NUT; BRKT
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (I) 		8-98285-817-0 01 1 1408- ●
324 04.785 BRACKET
(I) 		8-98014-921-0 01 1 1311-1407 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98014-921-0 01 1 1408- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1309-1310 ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1311-1408 ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1409- ● ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1309-1310 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1311-1408 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1409- ● ●
324 04.785 BRACKET
(H) 		8-98207-274-1 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1409- ● ● ● ●
324 04.785 BRACKET
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1309-1408 ●
324 04.785 BRACKET
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1409- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1309- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1309-1408 ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1309-1408 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1309- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR) 04.047 (B) 		8-98061-626-1 01 1 1309- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR) (E) 		8-98222-356-1 01 1 1309- ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 1309-1310 ●
368 04.785 BRACKET; T/M SIDE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 1311-1401 ● ●
368 04.785 BRACKET; T/M SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 1402-1408 ● ● ●
368 04.785 BRACKET; T/M SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 1409- ● ● ● ●

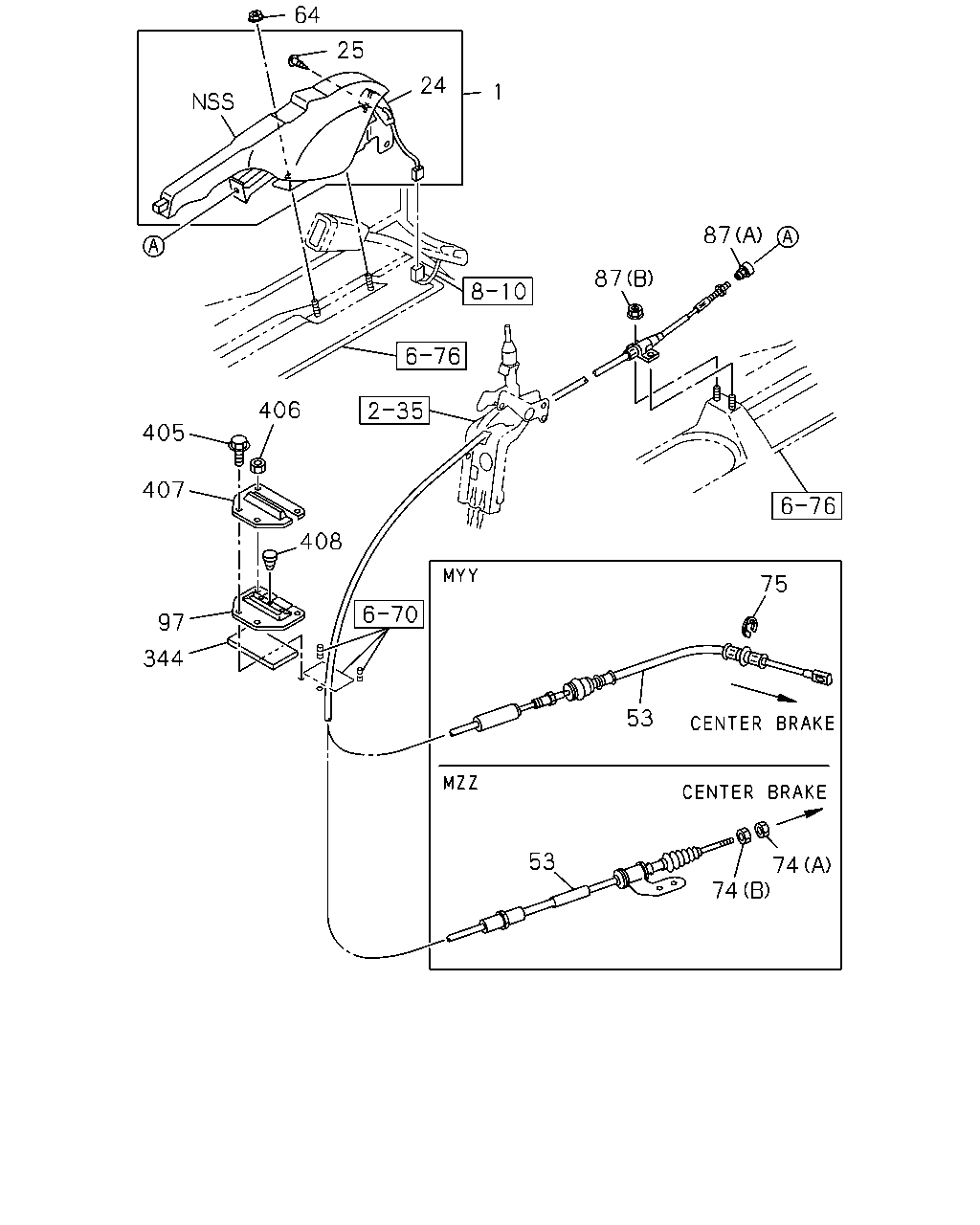

çizim 373752
64 24 1 406 405 407 97 344 408 53 75 74 53 87 87 25 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1309-1310 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1311- ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1309-1310 ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1311- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1309-1310 ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1311- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1409- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1309-1310 ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1311- ● ● ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1309- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1309- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1309-1310 ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5A(RSL),M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 1309-1310 ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1311-1408 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5A(RSL),M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 1311-1408 ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1409- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5A(RSL),M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 1409- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1311- ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1309-1310 ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1311- ● ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
87 04.785 NUT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
87 04.785 NUT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ● ●
87 04.785 NUT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1309-1310 ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1311- ● ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1309- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1309-1310 ● ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1311- ● ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1309-1310 ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1311- ● ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 1309-1310 ● ●
408 04.785 CAP; GROMMET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.010 		8-97371-108-0 02 1 1311-1401 ● ●
408 04.785 CAP; GROMMET
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1311-1401 ● ●
408 04.785 CAP; GROMMET
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.010 		8-97371-108-0 02 1 1402-1408 ● ● ●
408 04.785 CAP; GROMMET
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1402-1408 ● ●
408 04.785 CAP; GROMMET
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.010 		8-97371-108-0 02 1 1409- ● ● ● ●
408 04.785 CAP; GROMMET
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1409- ● ●

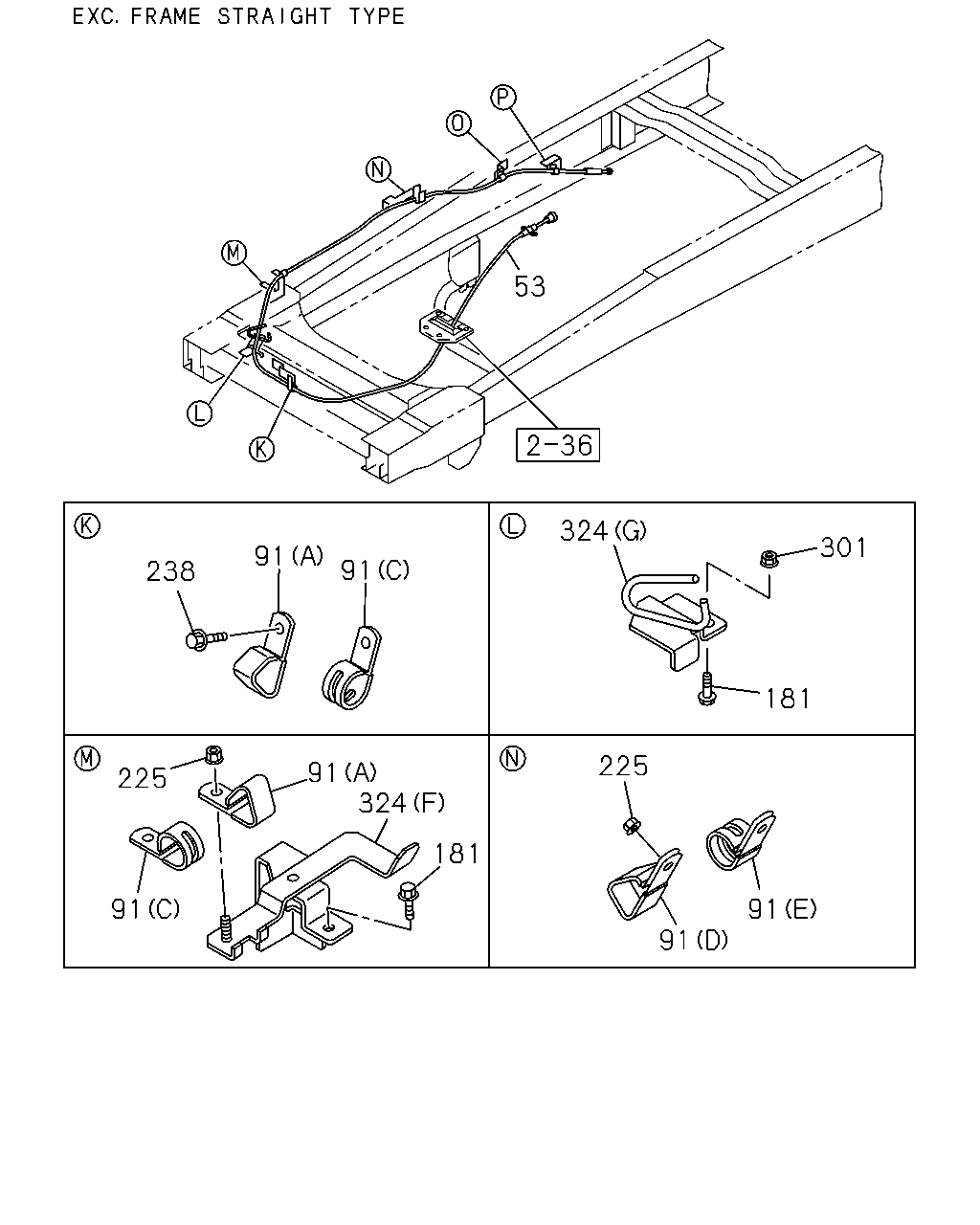

çizim 373828
53 238 91 91 225 91 91 324 181 225 91 91 181 301 324
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1409- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (D) 		8-97036-332-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (D) 		8-97036-332-1 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1402-1408 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1409- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1402-1408 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1409- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) FRAME STRAIGHT TYPE<7KJ> 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1402- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1402- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
181 04.785 BOLT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ● ● ●
181 04.785 BOLT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ● ●
181 04.785 BOLT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
181 04.785 BOLT; BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1309- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (I) 		8-98285-817-0 01 1 1408- ●
324 04.785 BRACKET
(I) 		8-98014-921-0 01 1 1311-1407 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98014-921-0 01 1 1408- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1309-1310 ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1311-1408 ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1409- ● ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1309-1310 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1311-1408 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1409- ● ●
324 04.785 BRACKET
(H) 		8-98207-274-1 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1409- ● ● ● ●
324 04.785 BRACKET
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1309-1408 ●
324 04.785 BRACKET
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1409- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1309- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1309-1408 ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1309-1408 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1309- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR) 04.047 (B) 		8-98061-626-1 01 1 1309- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR) (E) 		8-98222-356-1 01 1 1309- ● ●
çizim 374483
237 235 237 235 53 236 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1409- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1309- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1309- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1311-1312 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1311-1312 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1401-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1401-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1402- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1309-1408 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1409- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1309-1408 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1309-1408 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (A) 		8-98074-995-0 01 1 1309- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (B) 		8-98241-559-2 01 1 1309- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1309- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1309- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ●

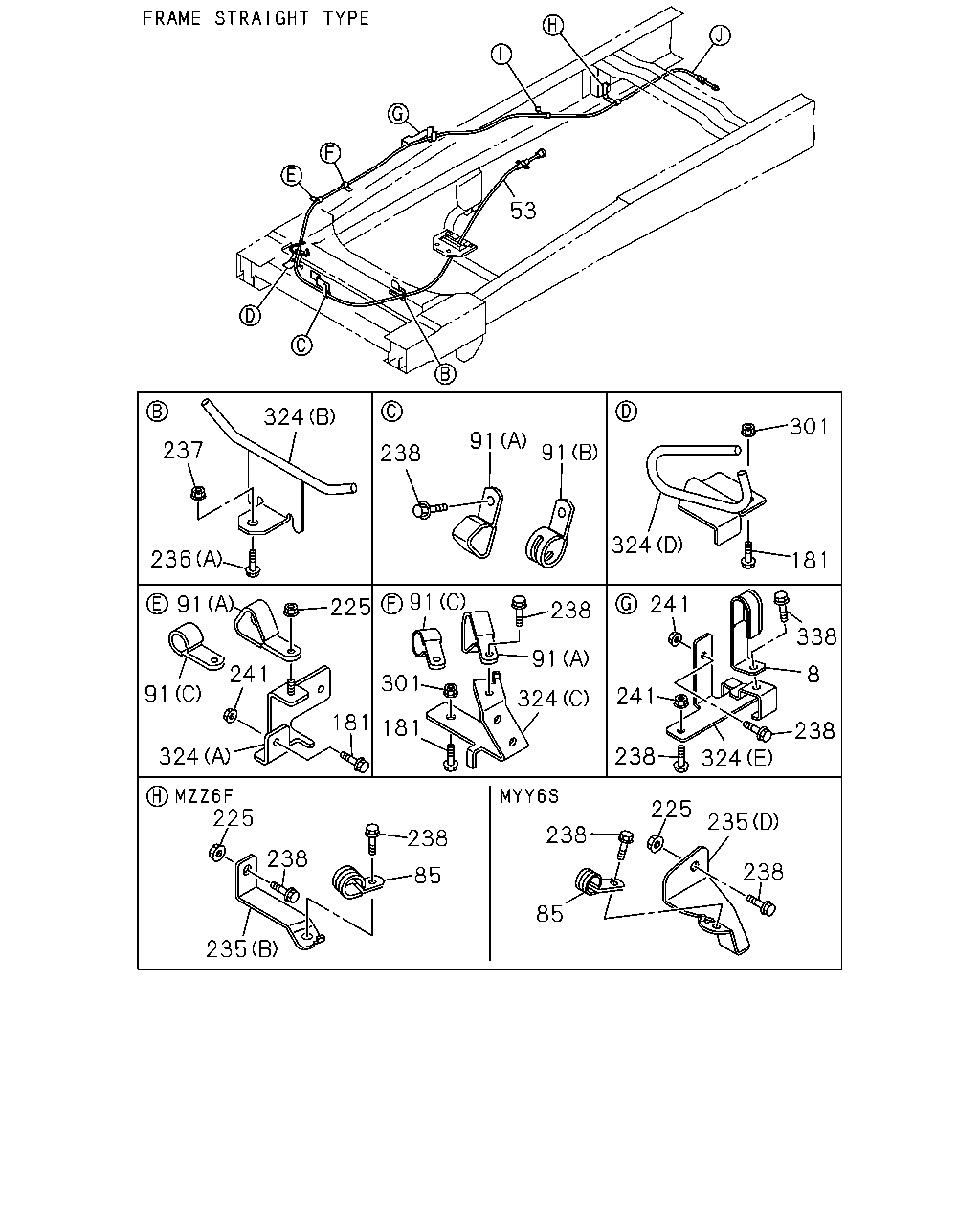

çizim 374541
324 237 236 238 91 91 324 301 181 241 91 91 241 225 324 181 181 301 91 238 91 324 241 8 238 238 324 235 225 238 85 238 85 238 225 238 235 53 338
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 04.592 GUIDE; PARKING BRK
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98222-357-0 01 1 1309- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98209-951-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-951-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-643-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1409- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98211-617-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1309-1310 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1311-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98221-555-3 01 1 1409- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1309-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1409- ● ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1309-1310 ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1309-1310 ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1311-1401 ● ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1311-1401 ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1402-1408 ● ● ●
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1409- ● ● ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1309- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (D) 		8-97036-332-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (D) 		8-97036-332-1 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1402-1408 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (D) 		8-97036-332-1 01 1 1409- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1402-1408 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1409- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) FRAME STRAIGHT TYPE<7KJ> 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1402- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1309-1310 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1311-1401 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1402- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1402- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
181 04.785 BOLT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ● ● ●
181 04.785 BOLT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1408 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ● ●
181 04.785 BOLT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
181 04.785 BOLT; BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1309- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1311-1312 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1311-1312 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1401-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1401-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1402- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1309-1408 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1409- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1309-1408 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1309-1408 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1409- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (A) 		8-98074-995-0 01 1 1309- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (B) 		8-98241-559-2 01 1 1309- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1309- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1309- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309- ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
241 04.785 NUT; BRKT
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
241 04.785 NUT; BRKT
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
241 04.785 NUT; BRKT
M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (I) 		8-98285-817-0 01 1 1408- ●
324 04.785 BRACKET
(I) 		8-98014-921-0 01 1 1311-1407 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98014-921-0 01 1 1408- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1309-1310 ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1311-1408 ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1409- ● ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1309-1310 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1311-1408 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1409- ● ●
324 04.785 BRACKET
(H) 		8-98207-274-1 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1309-1310 ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1311-1408 ● ●
324 04.785 BRACKET
M/T MYY5A(RSL),M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1409- ● ● ● ●
324 04.785 BRACKET
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1309-1408 ●
324 04.785 BRACKET
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1409- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1309- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1309-1408 ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1309-1408 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1409- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1309- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR) 04.047 (B) 		8-98061-626-1 01 1 1309- ● ●
324 04.785 BRACKET
M/T MZZ6F(RSR) (E) 		8-98222-356-1 01 1 1309- ● ●
338 04.785 SCREW; GUIDE
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
