Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#126063) — 181 parça

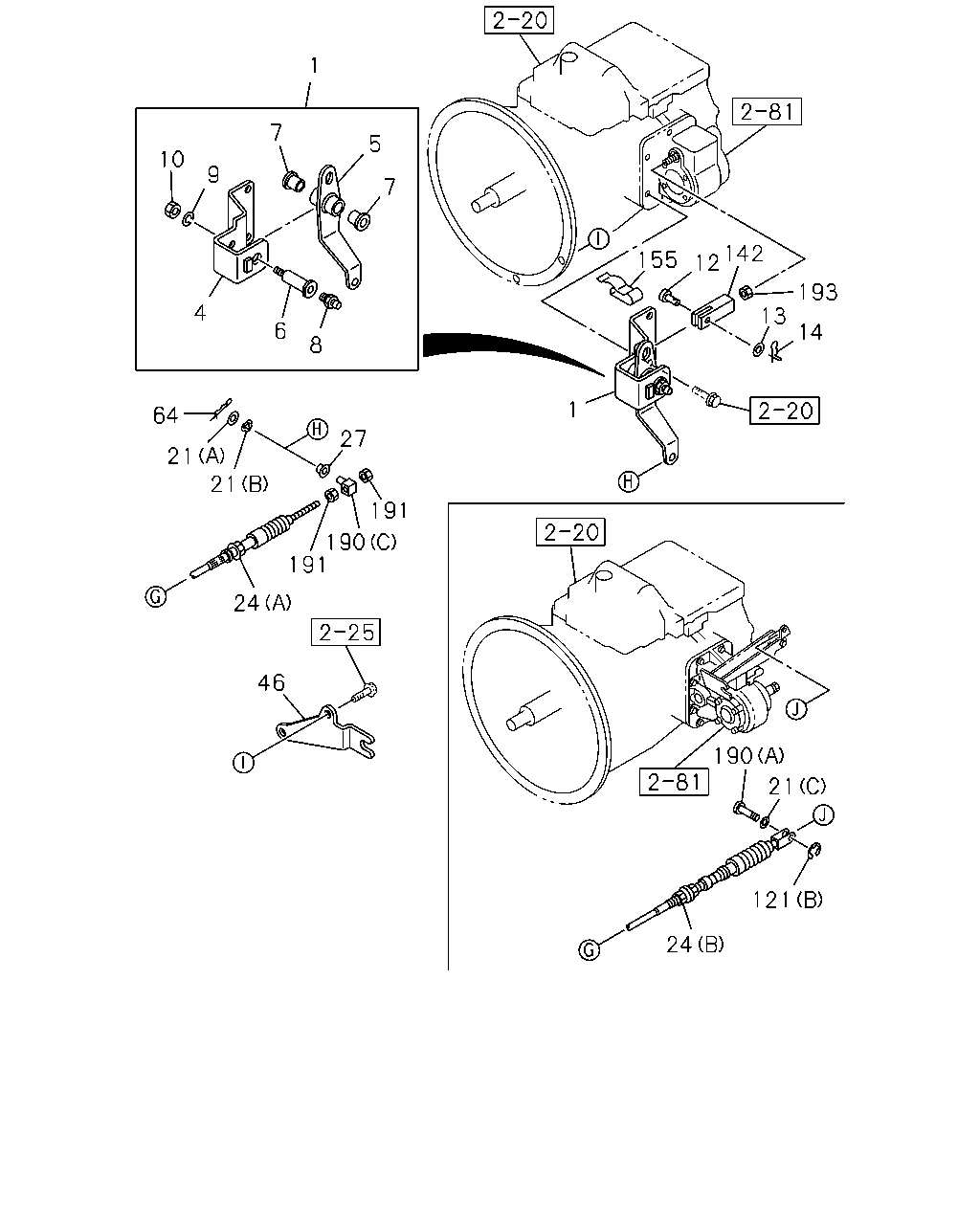

1 7 5 7 10 9 6 4 8 64 21 21 27 191 190 191 24 46 1 155 12 142 193 13 14 21 190 121 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1309-1310	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1311-	●	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1309-1310	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1311-	●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1309-1310	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1311-	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1309-1310	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1311-	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1309-1310	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1311-	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1309-1310	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1311-	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1309-1310	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1311-	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1309-1310	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1311-	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1309-1310	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1311-	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1309-1310	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1311-	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1309-1310	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1311-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1309-1310	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1311-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1309-1310	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1311-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 17.198 (C) ID=10.5	0-91610-510-0	01	1	1309-1310				●
21	04.439 WASHER; PL,CONT LEVER 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1311-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3309	8-98223-348-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3309	8-98223-348-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=3385	8-98211-649-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) L=3385	8-98211-649-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3311	8-98211-648-1	01	1	1309-1408	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3311	8-98211-648-1	01	1	1409-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3387	8-98223-349-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3387	8-98223-349-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=3695	8-98223-359-1	01	1	1309-1310				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) L=3695	8-98223-359-1	01	1	1311-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=3630	8-98223-358-1	01	1	1309-				●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1309-1310	●	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1311-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-829-2	01	1	1309-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-815-0	01	1	1309-1310	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98081-815-0	01	1	1311-	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1309-1310	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1311-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1309-1310	●	●		●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1311-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (B) ID=8	0-91805-508-0	01	1	1309-1310				●
121	04.439 RING; SNAP 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1311-				●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1309-1310	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1311-	●	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 01.240 T=5.5	5-09709-047-0	01	1	1311-1401	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 01.240 T=5.5	5-09709-047-0	01	1	1402-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (C)	8-94366-842-2	01	1	1309-1310	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (C)	8-94366-842-2	01	1	1311-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1309-1310	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1311-	●	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (A)	0-82154-025-0	01	1	1309-1310				●
190	04.439 BOSS; LEVER,PTO 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (A)	0-82154-025-0	01	1	1311-				●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1309-1310	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1311-	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1309-1310	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1311-	●	●	●

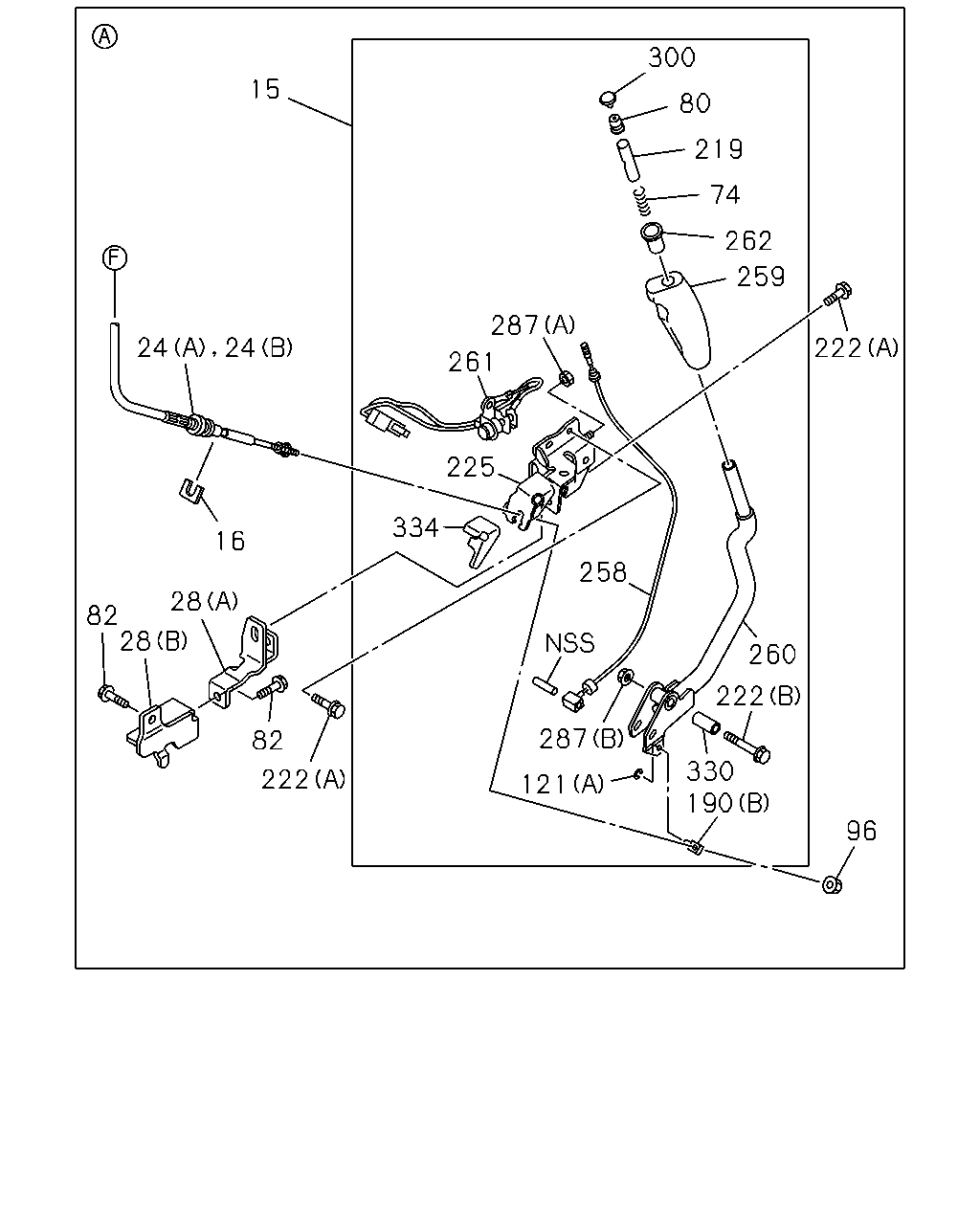

15 24 24 16 28 28 82 82 222 121 287 260 222 330 190 96 258 334 225 261 287 300 80 219 74 262 259 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	1309-1310	●	●		●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	1311-	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ>	8-98050-126-0	01	1	1309-1310				●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1309-1310	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1311-	●	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3309	8-98223-348-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3309	8-98223-348-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=3385	8-98211-649-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) L=3385	8-98211-649-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3311	8-98211-648-1	01	1	1309-1408	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3311	8-98211-648-1	01	1	1409-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3387	8-98223-349-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3387	8-98223-349-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=3695	8-98223-359-1	01	1	1309-1310				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) L=3695	8-98223-359-1	01	1	1311-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=3630	8-98223-358-1	01	1	1309-				●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1309-1310	●	●		●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1311-	●	●	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1309-1310	●	●		●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1311-	●	●	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1309-1310	●	●		●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1311-	●	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1309-1310	●	●		●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1311-	●	●	●	●
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1309-1310	●	●		●
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 03.330 M6	0-91110-506-0	01	1	1309-1310				●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1309-1310	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1311-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1309-1310	●	●		●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1311-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (B) ID=8	0-91805-508-0	01	1	1309-1310				●
121	04.439 RING; SNAP 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1311-				●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (C)	8-94366-842-2	01	1	1309-1310	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (C)	8-94366-842-2	01	1	1311-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1309-1310	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1311-	●	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (A)	0-82154-025-0	01	1	1309-1310				●
190	04.439 BOSS; LEVER,PTO 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (A)	0-82154-025-0	01	1	1311-				●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1309-1310	●	●		●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1311-	●	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1309-1310	●	●		●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1311-	●	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1309-1310	●	●		●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1311-	●	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	1309-1310	●	●		●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	1311-	●	●	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	1309-1310	●	●		●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	1311-	●	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1309-1310	●	●		●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1311-	●	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	1309-1310	●	●		●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	1311-	●	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	1309-1310	●	●		●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	1311-	●	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1309-1310	●	●		●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1311-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1309-1310	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1311-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1309-1310	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1311-	●	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1309-1310	●	●		●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1311-	●	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1309-1310	●	●		●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1311-	●	●	●	●
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	1309-1310	●	●		●
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	1311-	●	●	●	●

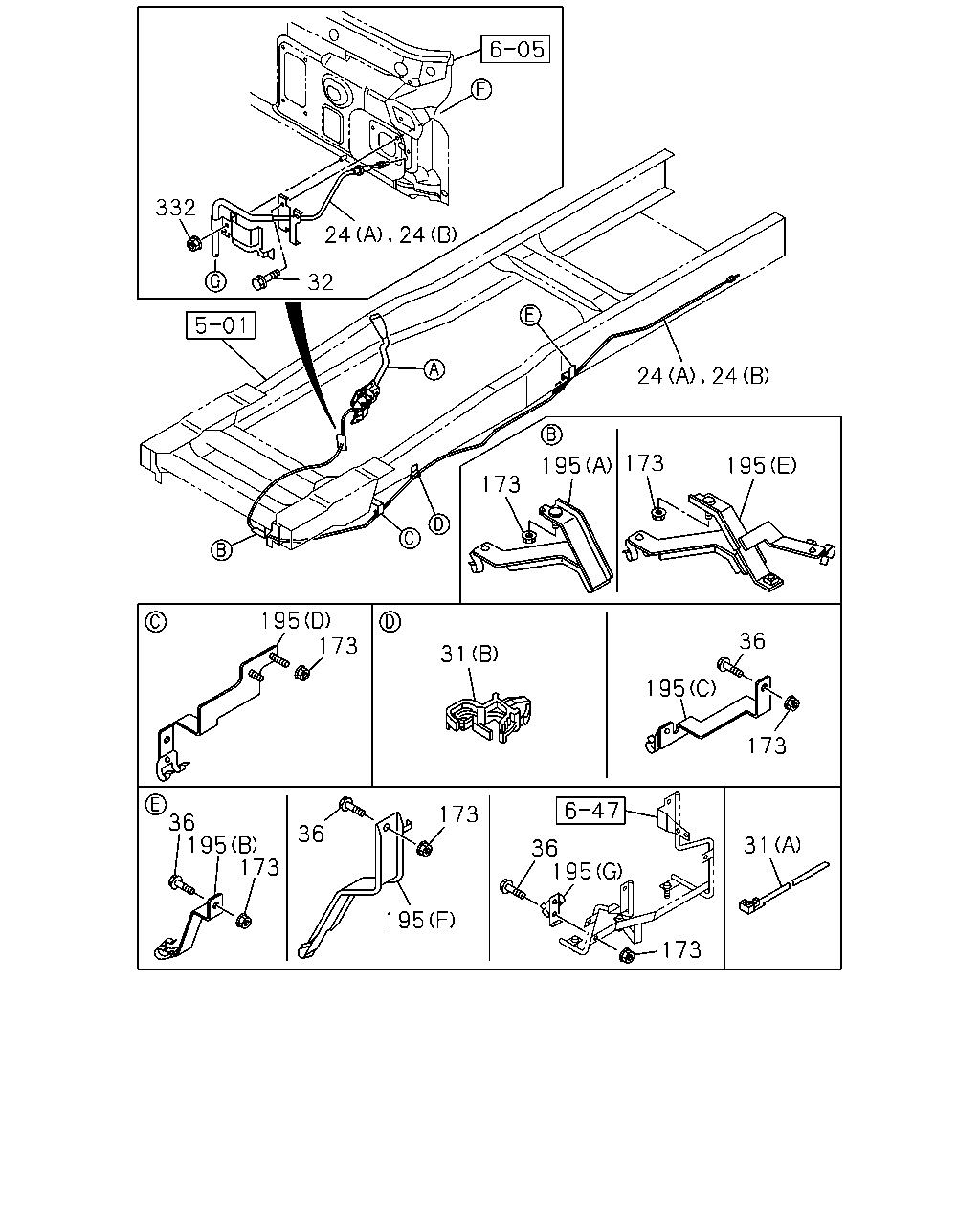

332 24 24 32 195 173 36 195 24 24 195 173 195 173 31 36 195 173 31 36 195 173 195 173 36 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3309	8-98223-348-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3309	8-98223-348-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=3385	8-98211-649-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) L=3385	8-98211-649-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3311	8-98211-648-1	01	1	1309-1408	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3311	8-98211-648-1	01	1	1409-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3387	8-98223-349-1	01	1	1309-1310	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3387	8-98223-349-1	01	1	1311-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=3695	8-98223-359-1	01	1	1309-1310				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) L=3695	8-98223-359-1	01	1	1311-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=3630	8-98223-358-1	01	1	1309-				●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	1309-1310	●	●		●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	1309-1310				●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	1311-	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	1311-				●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=16	8-97040-812-0	01	1	1309-1310	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=16	8-97040-812-0	01	1	1311-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1309-1310	●	●		●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1311-	●	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●	●		●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1309-				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1310	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310				●
173	04.439 NUT; BRKT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-				●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (E)	8-98203-716-0	01	1	1309-1310	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (E)	8-98203-716-0	01	1	1311-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98101-144-0	01	1	1309-1310	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98101-144-0	01	1	1311-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98101-145-0	01	1	1309-1310	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98101-145-0	01	1	1311-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (F)	8-98223-087-1	01	1	1309-1310	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (F)	8-98223-087-1	01	1	1311-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-494-0	01	1	1309-1310				●
195	04.439 BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (C)	8-98102-494-0	01	1	1311-				●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (A)	8-98203-717-0	01	1	1309-1310				●
195	04.439 BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (A)	8-98203-717-0	01	1	1311-				●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98086-271-2	01	1	1309-				●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310				●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
