Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#126045) — 149 parça

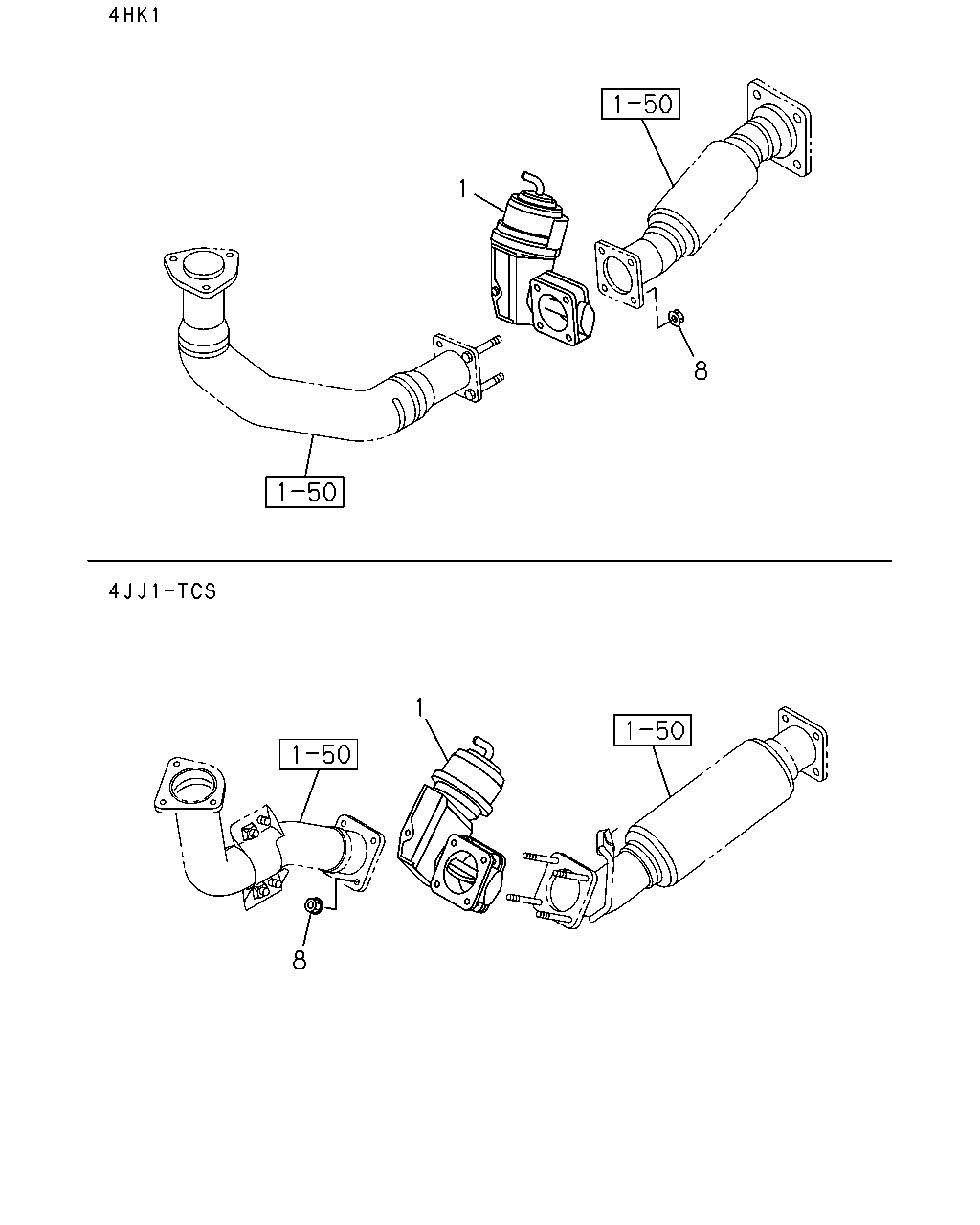

1 8 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU)	8-98228-983-0	01	1	1311-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1309-1408	●		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1409-1510	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98321-773-0	01	1	1511-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98227-165-0	01	1	1309-1510			●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98321-772-0	01	1	1511-			●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1309-1408	●		●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1409-	●	●	●	●

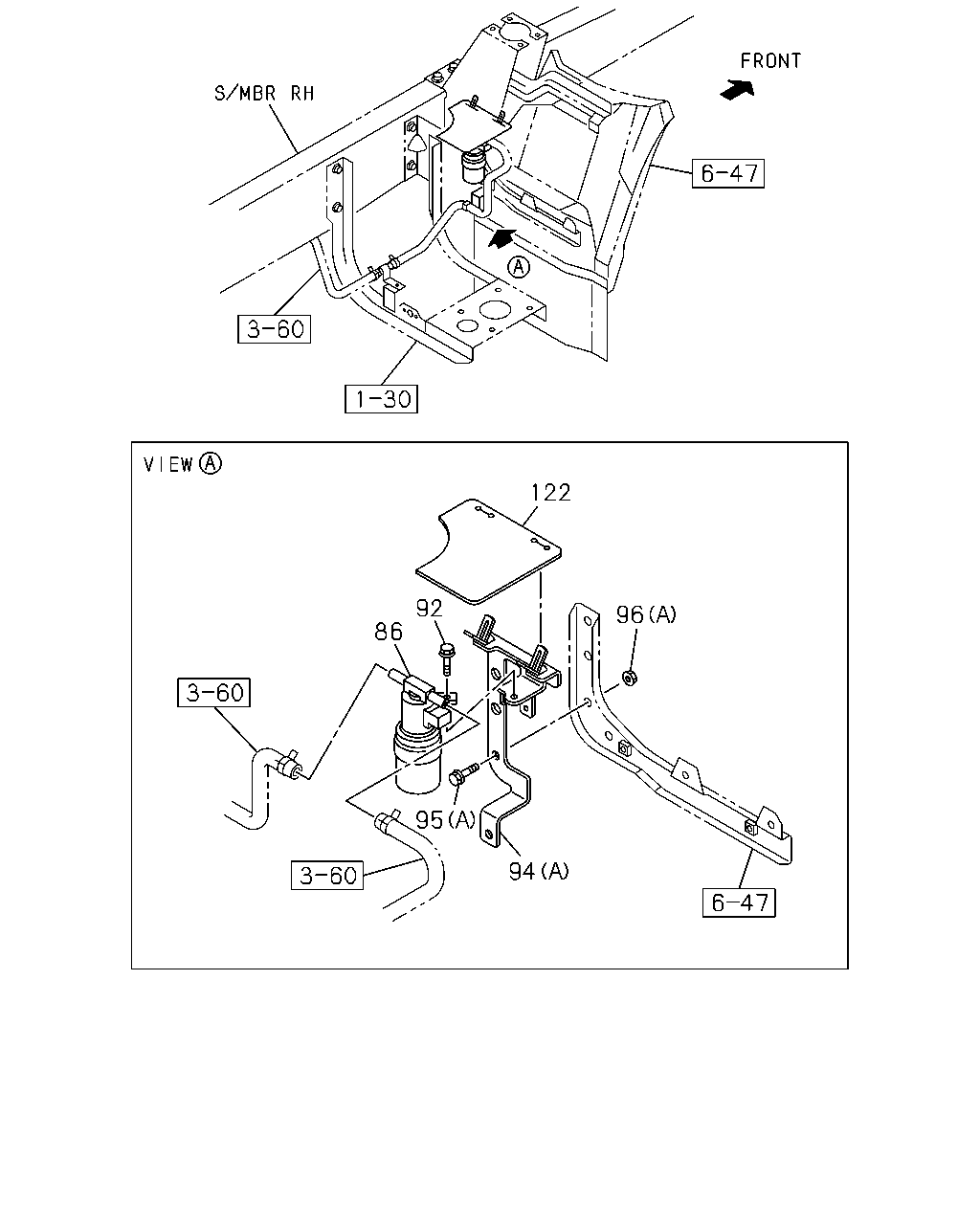

122 92 86 96 95 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1309-1310	●		●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1311-1408	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1409-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1409-			●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●		●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-97387-681-1	01	1	1311-1408		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97387-681-1	01	1	1409-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (D)	8-98089-211-0	01	1	1311-1408		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98089-211-0	01	1	1409-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1309-1310	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1309-1310			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98092-656-0	01	1	1311-1408	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1311-1408			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1409-	●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1409-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1309-			●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-1408		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1409-		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1409-		●		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1311-1408		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1409-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1309-1310	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1309-1310			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1311-1408	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1311-1408			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1309-	●		●

92 86 95 94 96 94 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1309-1310	●		●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1311-1408	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1409-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1409-			●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●		●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-97387-681-1	01	1	1311-1408		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97387-681-1	01	1	1409-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (D)	8-98089-211-0	01	1	1311-1408		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98089-211-0	01	1	1409-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1309-1310	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1309-1310			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98092-656-0	01	1	1311-1408	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1311-1408			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1409-	●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1409-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1309-			●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-1408		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1409-		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1409-		●		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1311-1408		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1409-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1309-1310	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1309-1310			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1311-1408	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1311-1408			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●	●

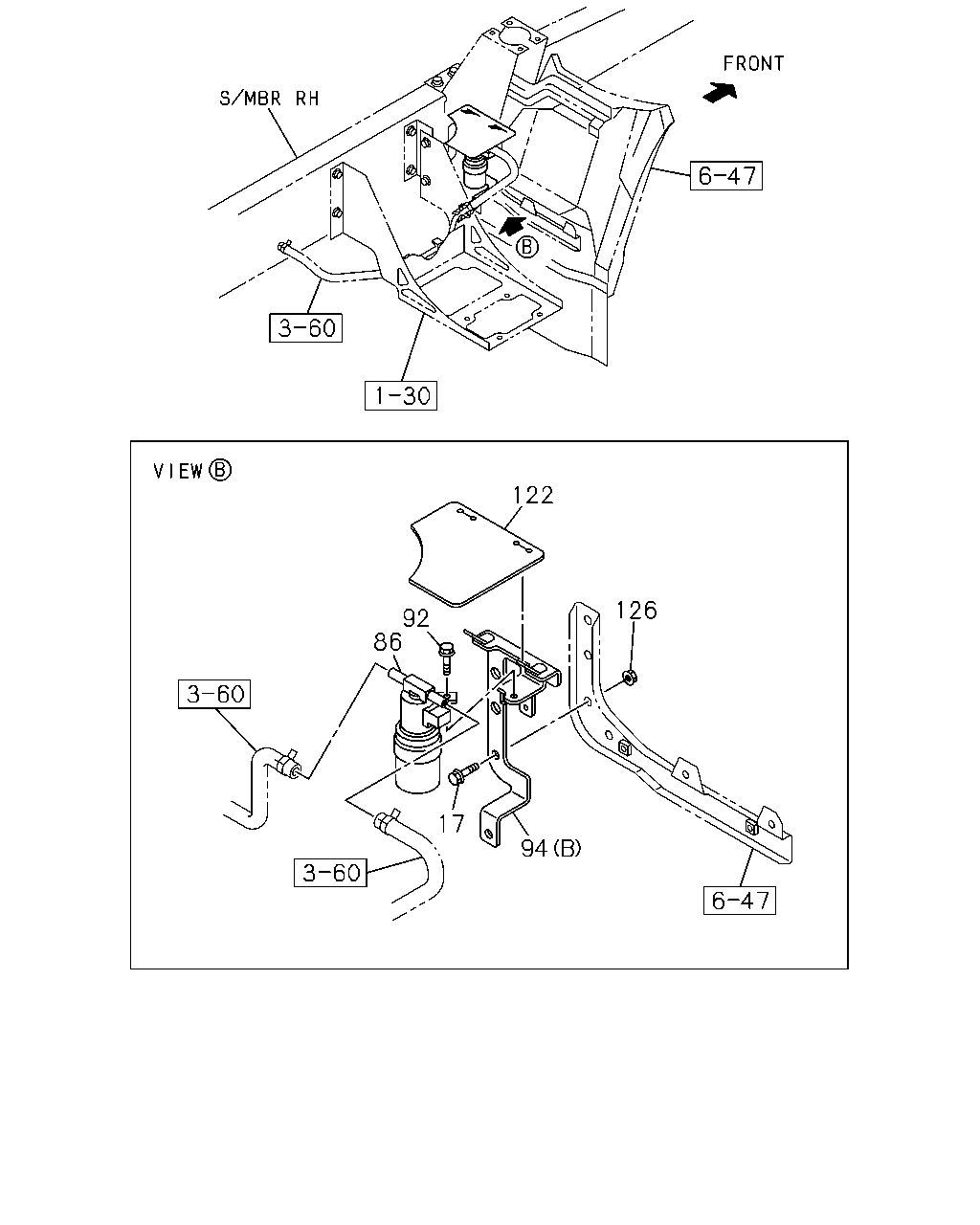

122 126 92 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-			●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1309-1310	●		●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1311-1408	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1409-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1409-			●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●		●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-97387-681-1	01	1	1311-1408		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97387-681-1	01	1	1409-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (D)	8-98089-211-0	01	1	1311-1408		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98089-211-0	01	1	1409-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1309-1310	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1309-1310			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98092-656-0	01	1	1311-1408	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1311-1408			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1409-	●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1409-		●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1309-			●	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1309-	●		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-			●	●

5 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU)	8-98228-983-0	01	1	1311-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1309-1408	●		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1409-1510	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98321-773-0	01	1	1511-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98227-165-0	01	1	1309-1510			●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS)	8-98321-772-0	01	1	1511-			●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU)	8-98228-984-1	01	1	1311-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCC ENG(RDU) 03.613 M10 FLANGE	8-97096-192-1	04	1	1311-	●	●

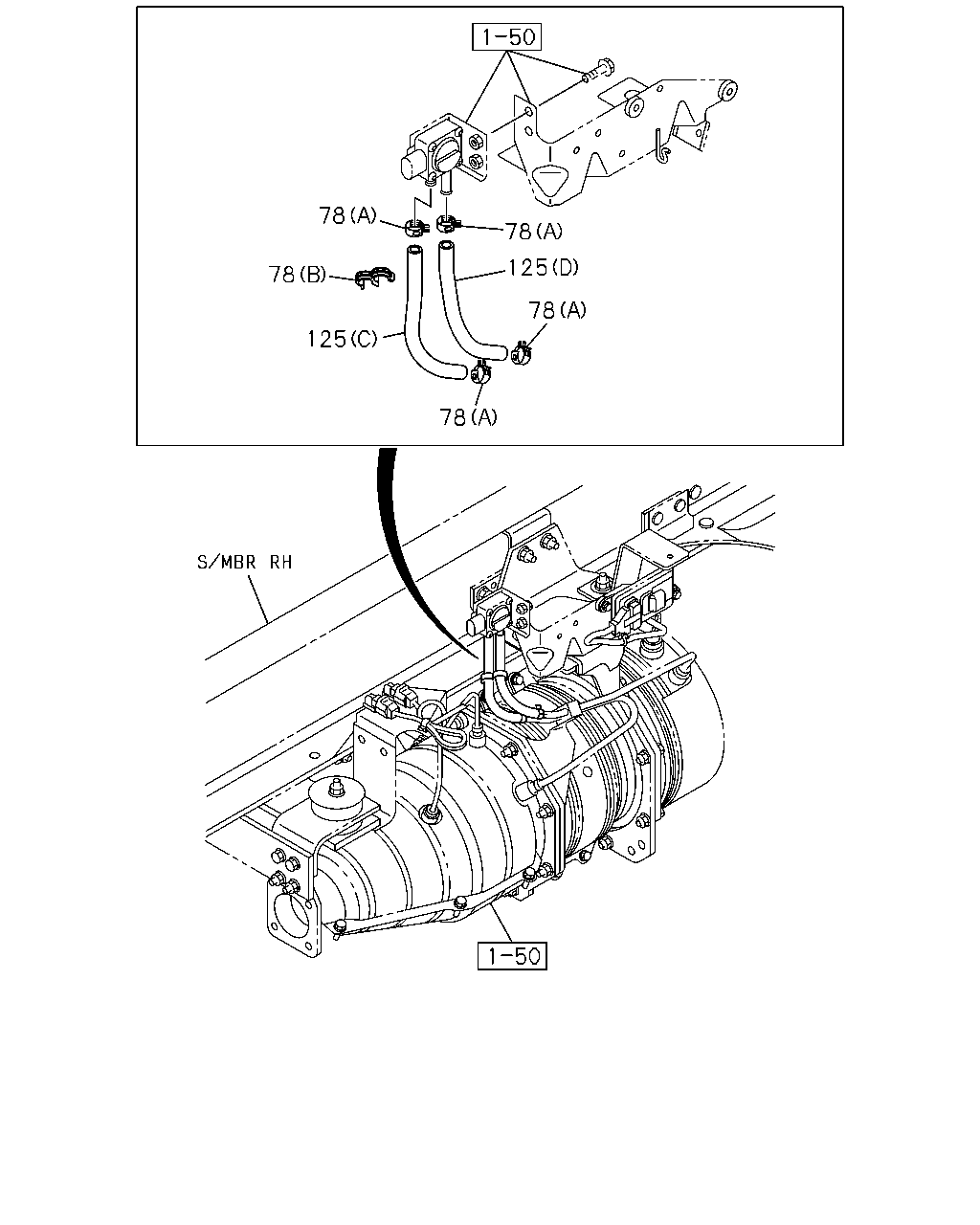

78 125 78 78 78 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1309-1310	●		●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1311-	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1309-1310	●		●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1311-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-430-1	01	1	1311-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-432-1	01	1	1311-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-434-1	01	1	1311-		●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-435-0	01	1	1311-		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1309-1408	●		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1409-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1309-1408	●		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1409-	●	●	●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1309-			●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1309-			●	●

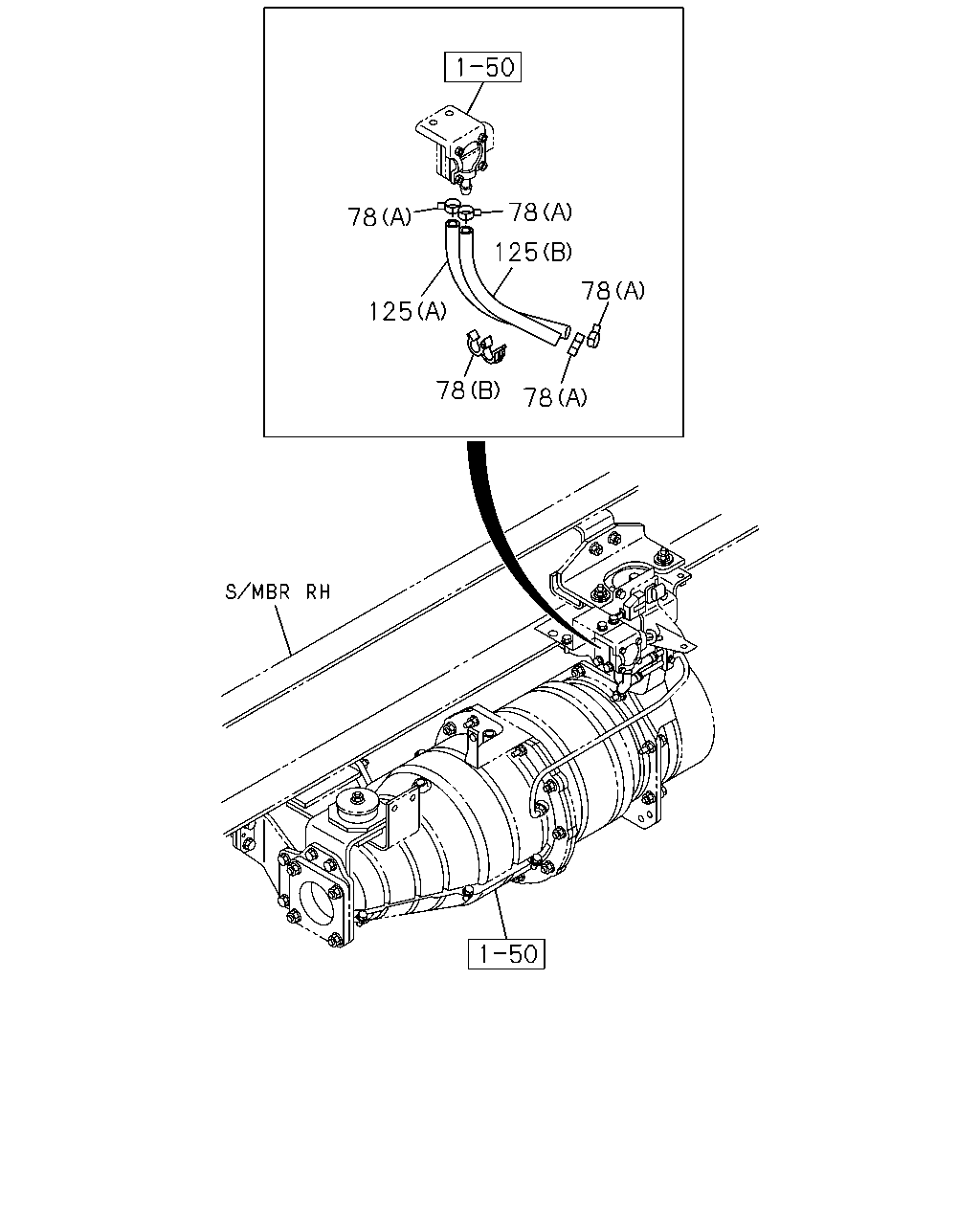

78 125 78 78 78 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1309-1310	●		●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1311-	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1309-1310	●		●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1311-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-430-1	01	1	1311-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-432-1	01	1	1311-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-434-1	01	1	1311-		●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-435-0	01	1	1311-		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1309-1408	●		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1409-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1309-1408	●		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1409-	●	●	●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1309-			●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1309-			●	●

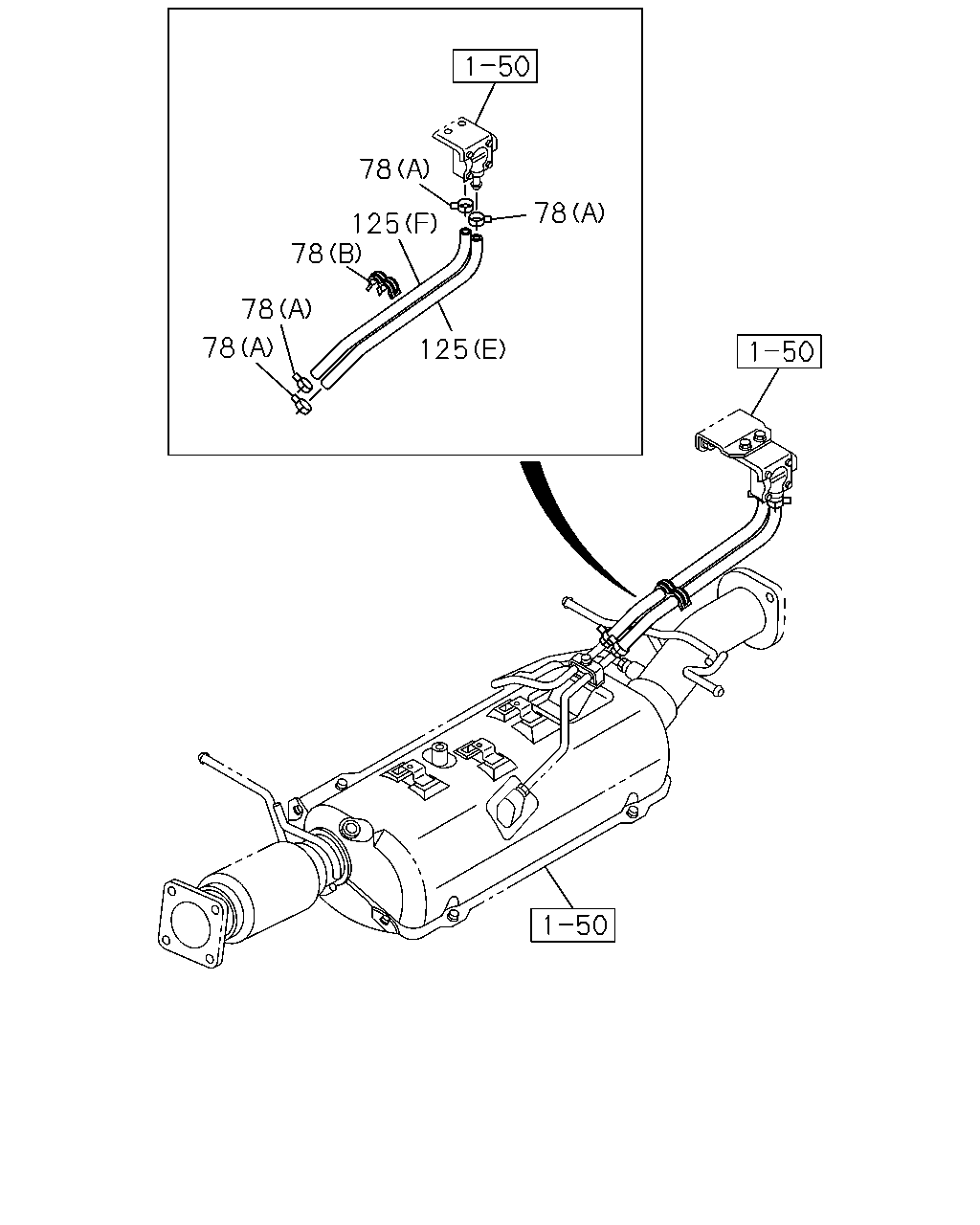

78 78 125 78 78 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1309-1310	●		●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1311-	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1309-1310	●		●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1311-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-430-1	01	1	1311-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-432-1	01	1	1311-	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (E)	8-98236-434-1	01	1	1311-		●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (F)	8-98236-435-0	01	1	1311-		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1309-1408	●		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1409-	●	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1309-1408	●		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1409-	●	●	●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1309-			●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1309-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
