◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

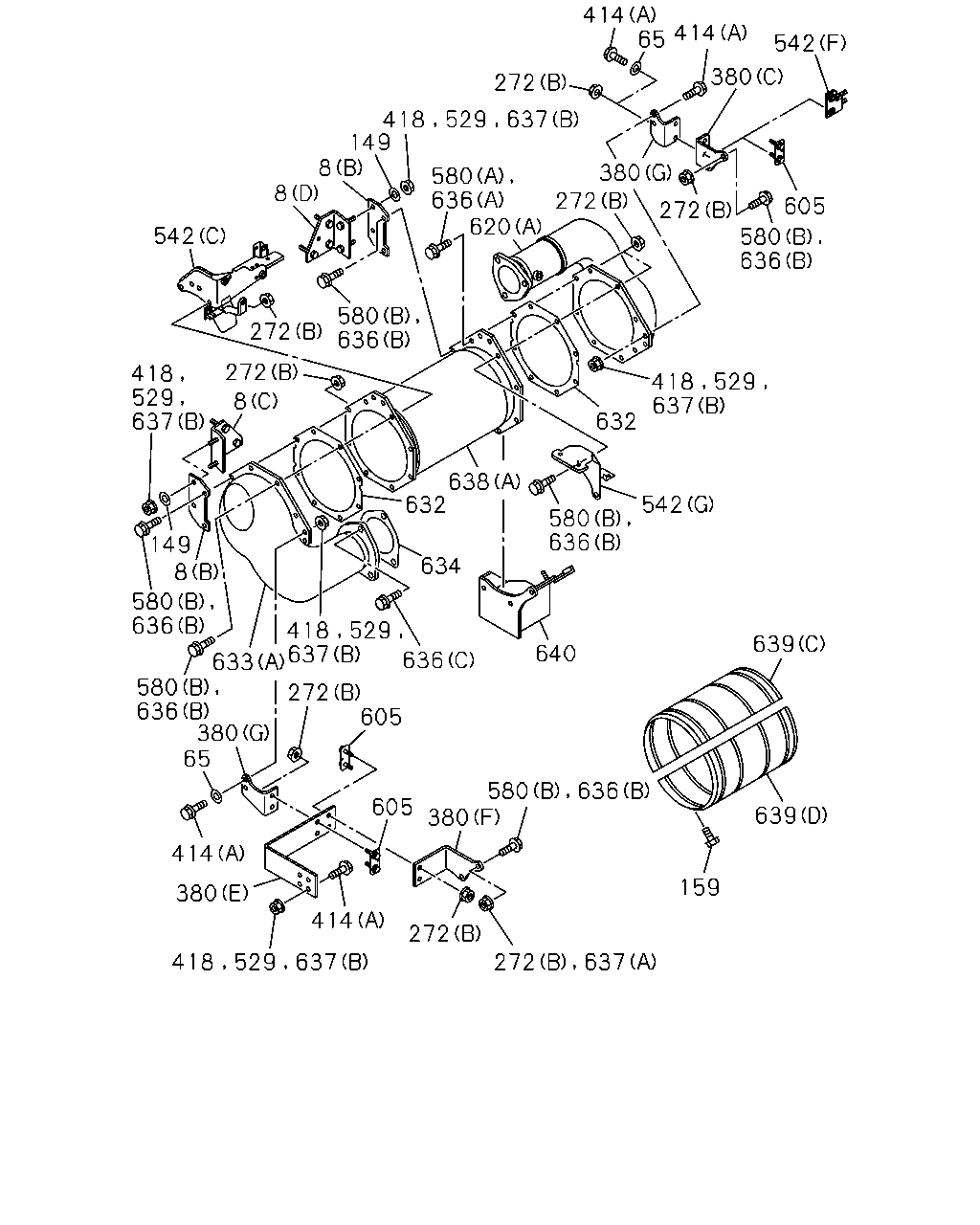

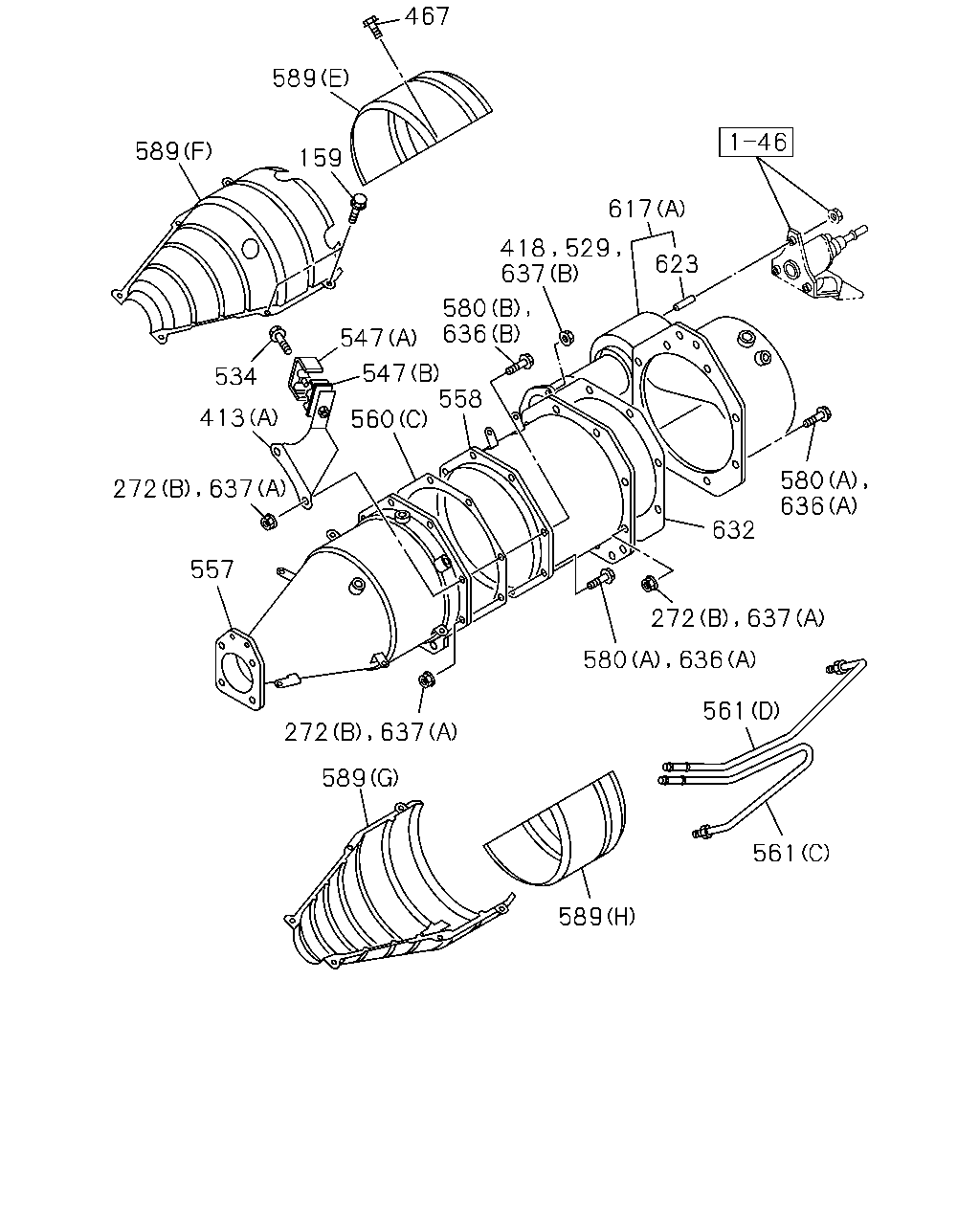

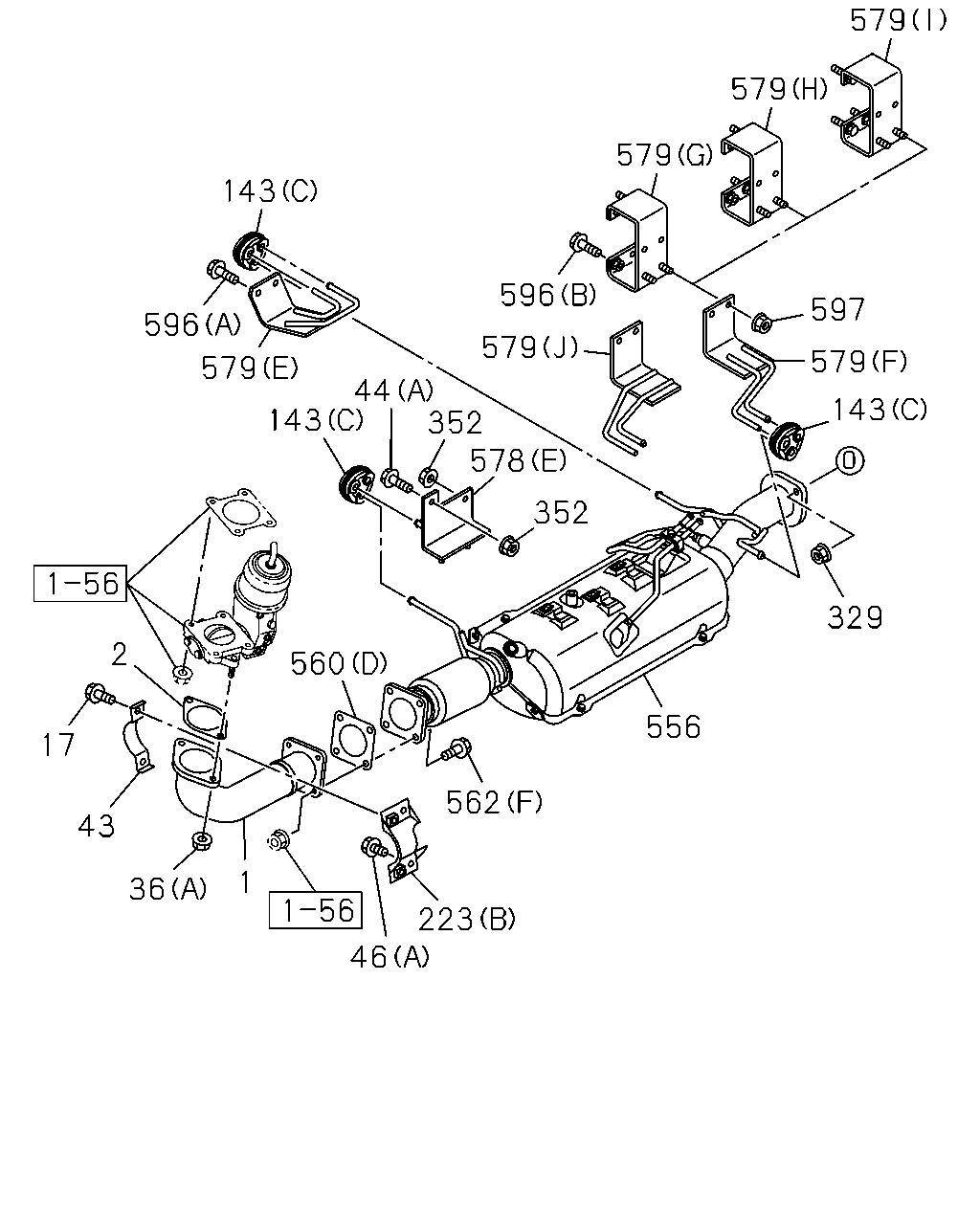

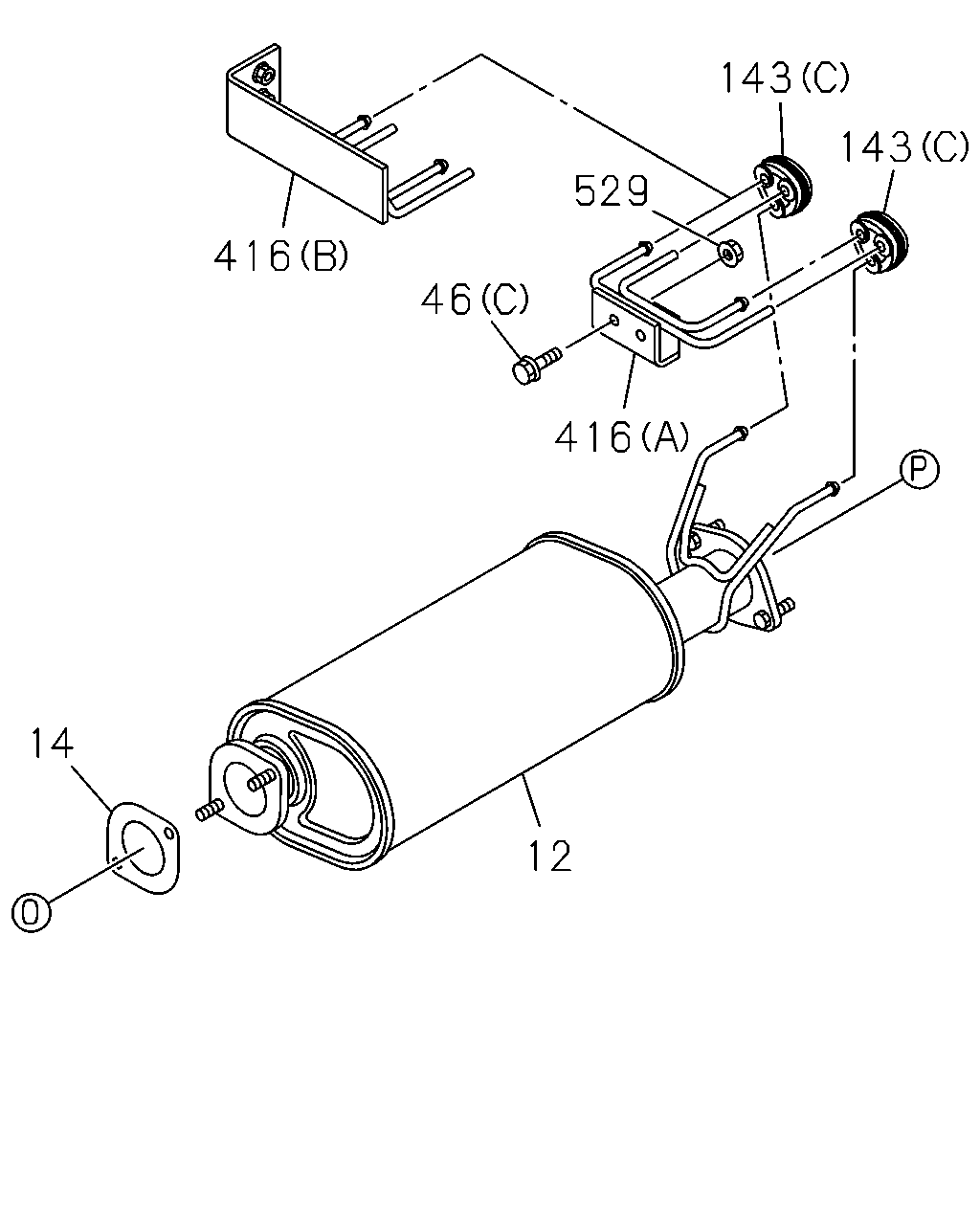

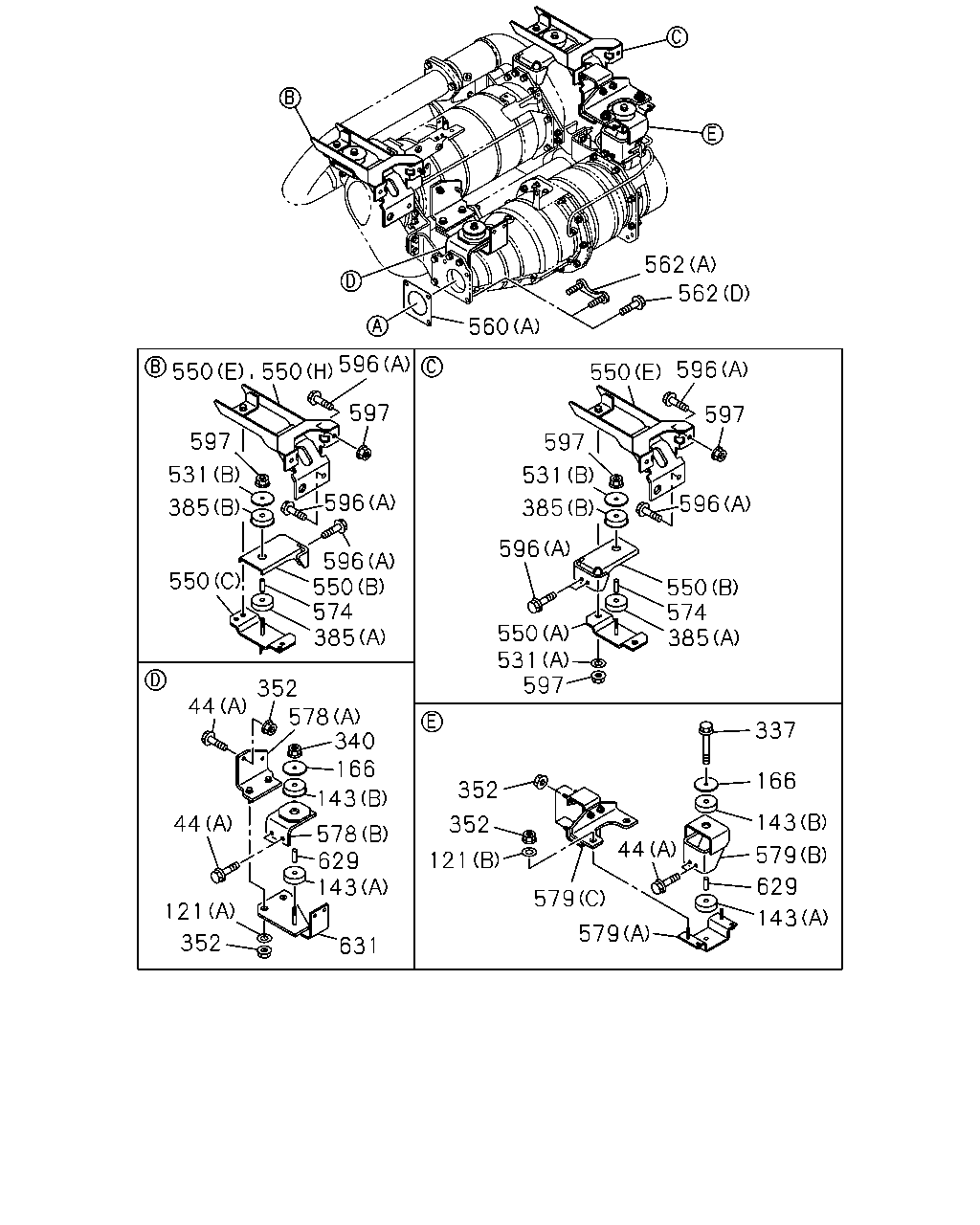

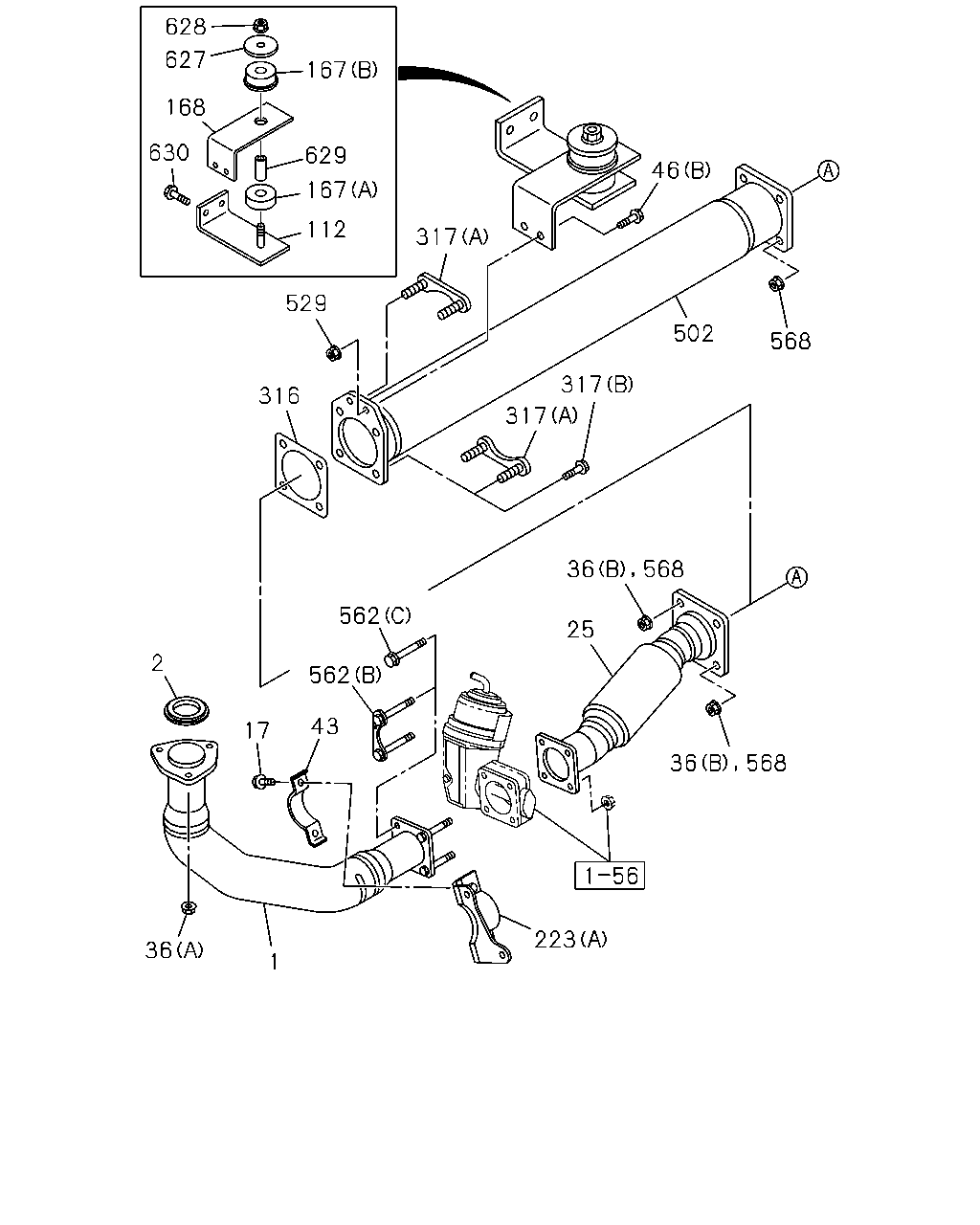

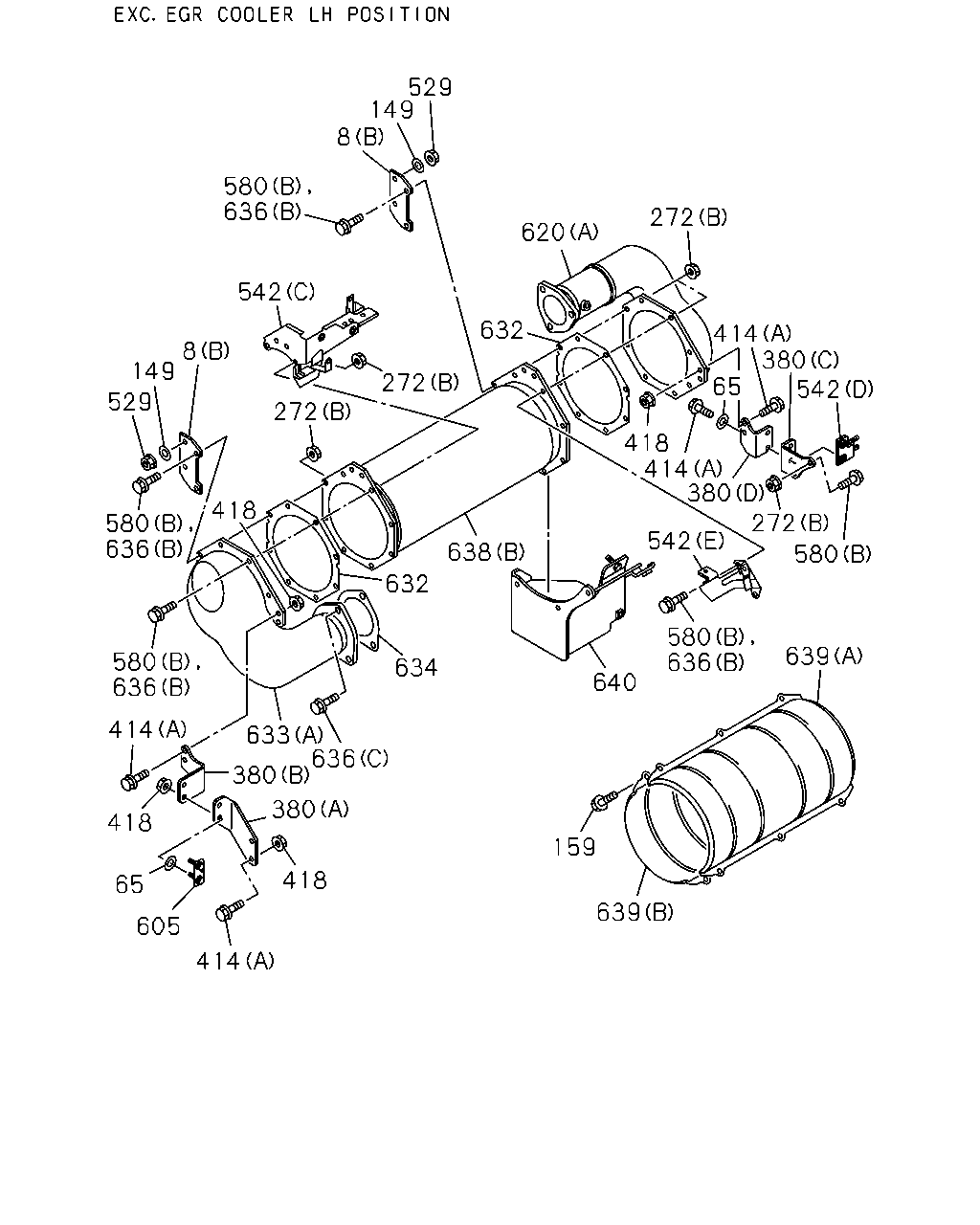

1-50 — EXHAUST PIPE AND SILENCER (#126043) — 1875 parça

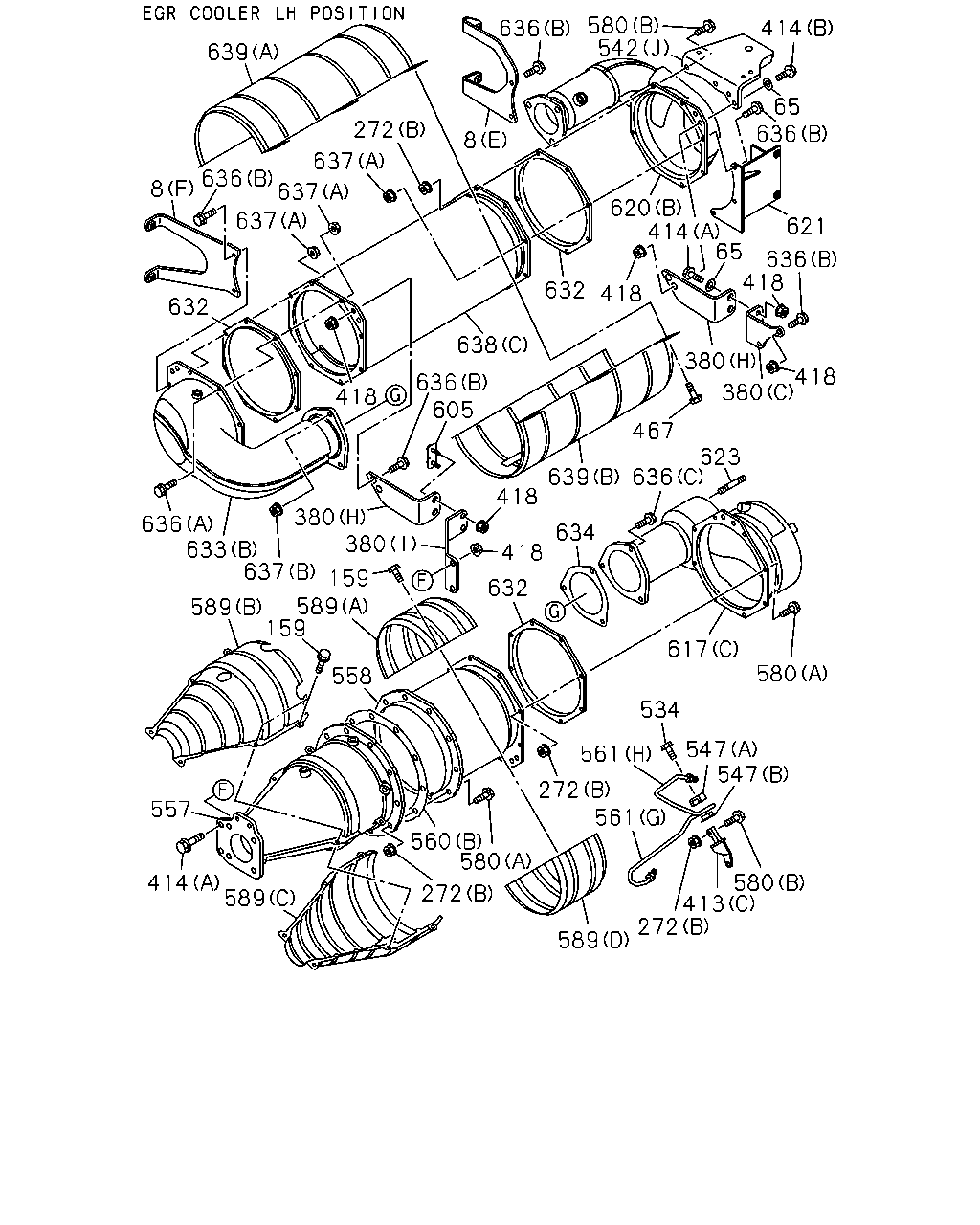

çizim 373744
580 547 547 561 272 561 534 580 413 272 589 272 560 580 617 623 636 467 639 418 418 632 380 159 589 159 589 633 636 637 557 414 589 636 418 380 638 632 620 418 65 414 380 418 380 621 636 65 414 636 418 636 580 542 639 636 8 632 637 637 637 272 8 634 605 558
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1309-1311 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1312-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1409- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1309-1311 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1312- ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 06 1 1312- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1309-1311 ● ● ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ● ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1311- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1309-1408 ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-457-1 02 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (I) 		8-98205-012-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (G) 		8-98118-880-0 02 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (G) 		8-98118-880-0 02 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98118-879-0 01 1 1309-1408 ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98118-879-0 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-877-1 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98118-878-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98118-880-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98138-485-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1309-1408 ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1409- ● ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1309-1311 ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-407-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1312- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 06 1 1312- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1312- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1309-1311 ● ● ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ● ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 06 1 1309-1408 ● ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 06 1 1409- ● ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1311- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1309-1408 ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1311- ● ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1311- ● ● ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1309-1408 ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1409- ● ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1309- ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-619-1 01 1 1311- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1309-1408 ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1409- ● ● ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1309-1408 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1309-1310 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1311-1408 ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1309- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1312- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (E) 		8-98233-520-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (F) 		8-98233-521-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1309-1408 ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1409- ● ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1309-1311 ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1309-1311 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1312- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (I) 		8-98233-517-1 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (J) 		8-98233-518-0 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1309- ● ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1309-1408 ● ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1409- ● ● ● ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) 		8-98148-511-0 01 1 1309- ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98204-944-1 01 1 1312- ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1309-1408 ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1409- ● ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-1 01 1 1309-1311 ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98156-630-2 01 1 1312- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-2 01 1 1312- ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B) 		8-98205-011-0 01 1 1312- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1309-1311 ● ● ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1312-1408 ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1312-1408 ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1312-1408 ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1409- ● ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1409- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1409- ●
621 03.704 BRACKET; PROTECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 		8-98159-190-1 01 1 1312- ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6 		8-98141-351-0 03 1 1309-1408 ● ● ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6 		8-98141-351-0 03 1 1409- ● ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1309-1408 ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1409- ● ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B) 		8-98138-451-0 01 1 1312- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1309-1311 ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1312-1408 ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1312-1408 ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1312-1408 ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1409- ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1409- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1409- ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98118-422-1 01 1 1309-1408 ● ● ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98118-422-1 01 1 1409- ● ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1309-1408 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1409- ● ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1312- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1309-1311 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98205-010-0 01 1 1312- ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1309-1408 ● ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1409- ● ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1309-1311 ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98205-048-0 01 1 1312- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1312- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1309-1408 ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1409- ● ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1309-1408 ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1409- ● ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (A) 		8-98136-188-0 01 1 1309- ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (B) 		8-98136-189-1 01 1 1309- ● ●

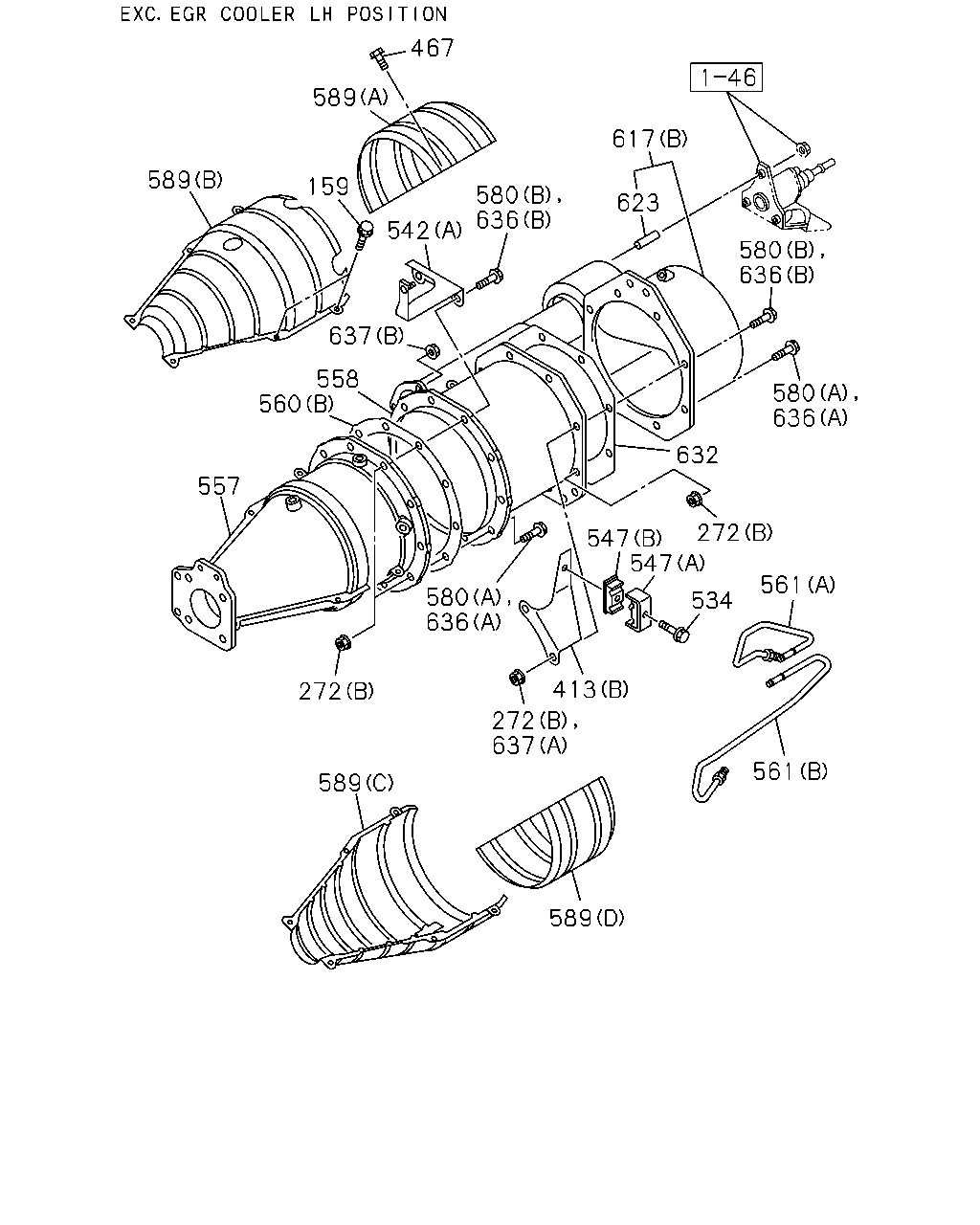

çizim 373765
589 467 589 637 560 557 558 542 580 636 623 617 580 636 580 636 632 547 547 534 561 561 589 589 272 636 580 272 637 413 159 272
BalonParca AdiParca NoAdetTipApplied Date A B C D
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1311- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1309-1408 ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98138-485-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1309-1408 ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1409- ● ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1309-1311 ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-407-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1312- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 06 1 1309-1408 ● ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 06 1 1409- ● ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1311- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1309-1408 ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1409- ● ● ● ●

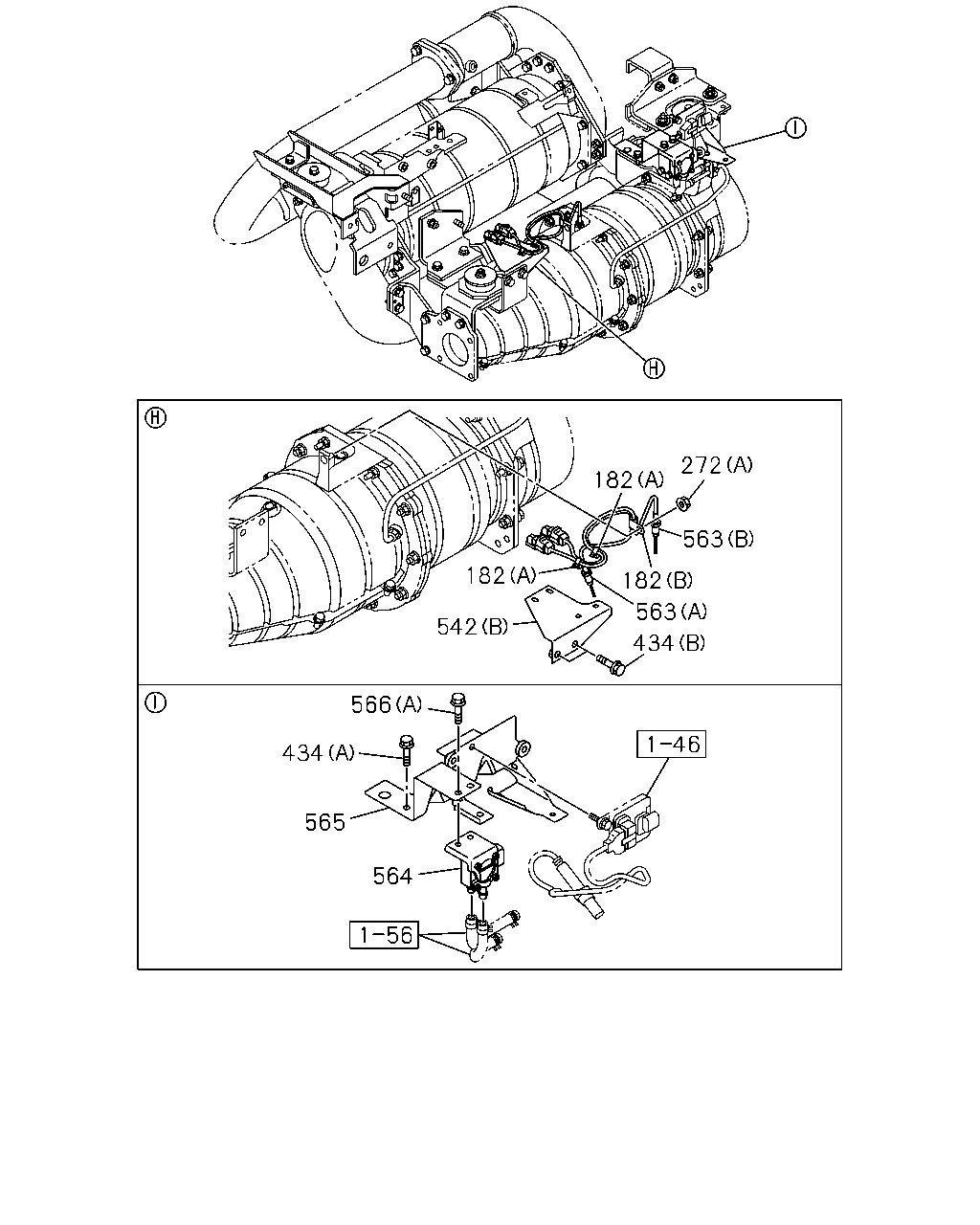

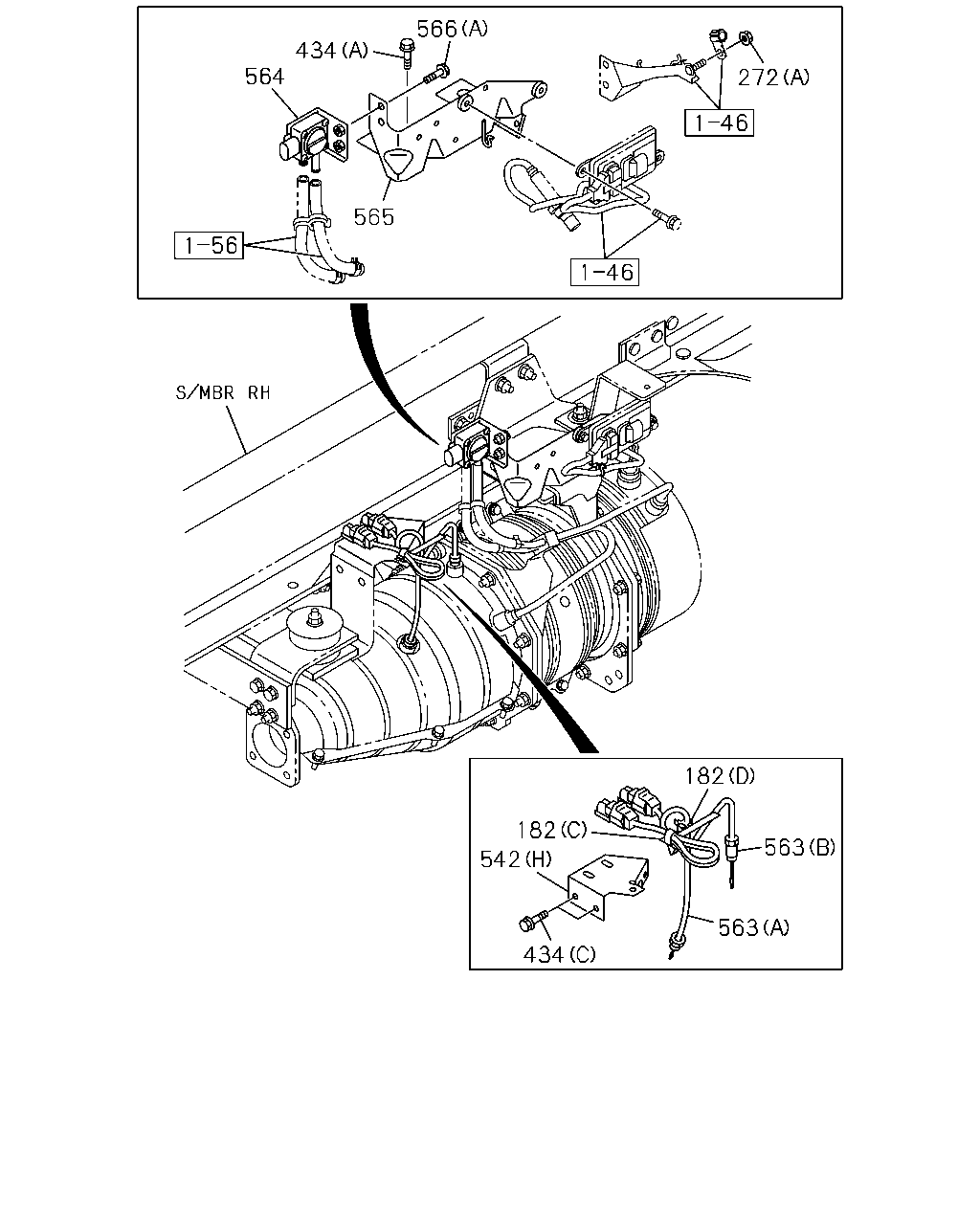

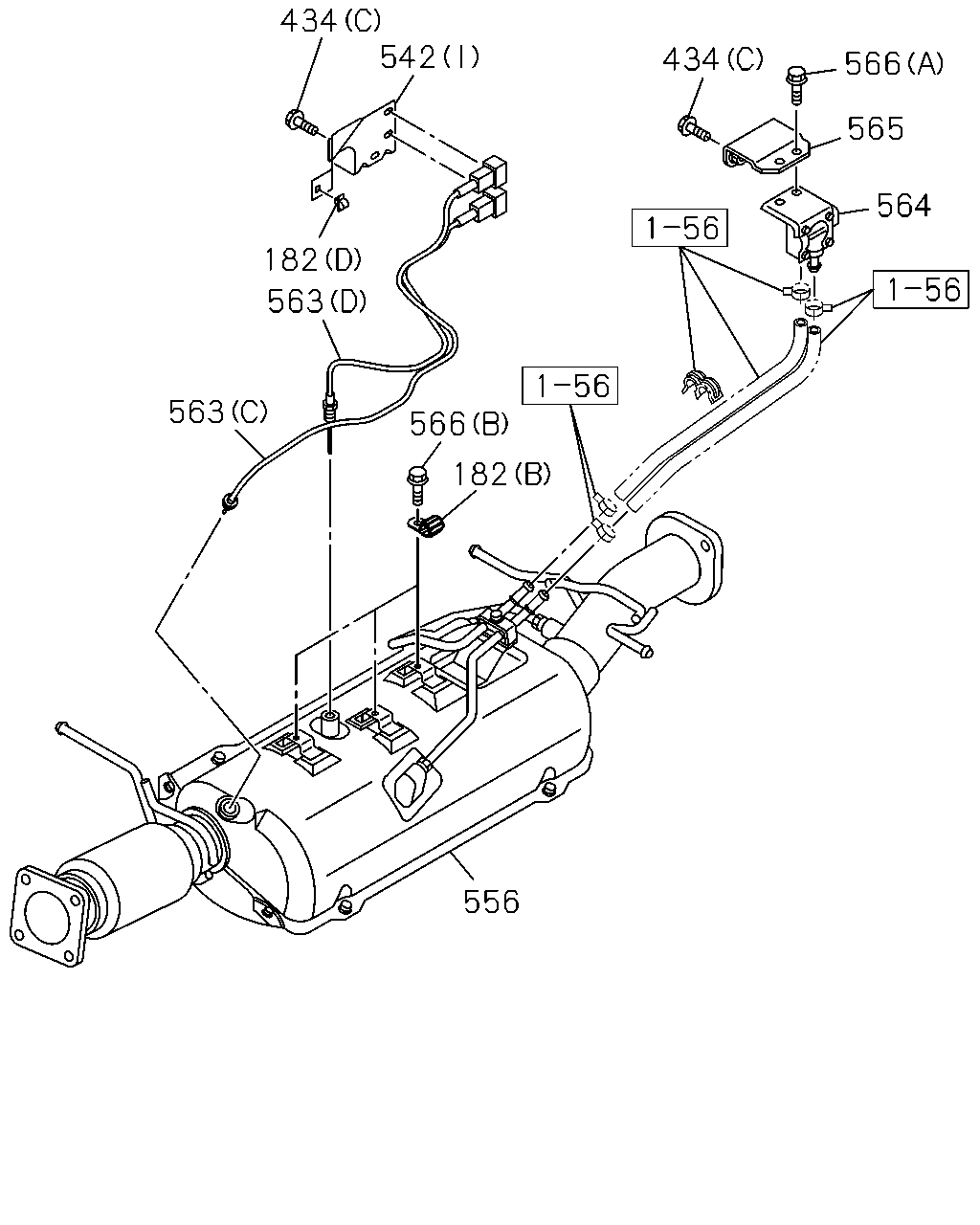

542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1311- ● ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1311- ● ● ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1309-1408 ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1409- ● ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1309- ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-619-1 01 1 1311- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1309-1408 ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1409- ● ● ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1309-1408 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1309-1310 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1311-1408 ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1309- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1312- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (E) 		8-98233-520-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (F) 		8-98233-521-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1309-1408 ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1409- ● ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1309-1311 ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1309-1311 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1312- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (I) 		8-98233-517-1 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (J) 		8-98233-518-0 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1309- ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98204-944-1 01 1 1312- ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1309-1408 ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1409- ● ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-1 01 1 1309-1311 ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98156-630-2 01 1 1312- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-2 01 1 1312- ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6 		8-98141-351-0 03 1 1309-1408 ● ● ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6 		8-98141-351-0 03 1 1409- ● ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1309-1408 ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1409- ● ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1309-1408 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1409- ● ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1312- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1309-1311 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
çizim 373783
272 182 182 563 182 563 434 542 566 434 565 564
BalonParca AdiParca NoAdetTipApplied Date A B C D
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) (B) ID=7 		8-98002-767-0 03 1 1311- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 02 1 1309-1310 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 01 1 1311-1408 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 01 1 1409- ● ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1309-1310 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1311-1408 ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1409- ● ● ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 1309-1310 ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 		8-98002-767-0 01 1 1311- ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1309- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 04 1 1311- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 04 1 1309-1310 ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1309-1408 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1408 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98002-572-4 01 1 1406- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) 03.337 (C) 		8-98031-605-1 01 1 1311-1405 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C) 		8-98031-605-1 01 1 1406- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) (D) 		8-98186-762-1 01 1 1311- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 1309-1408 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 1409-1501 ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98299-541-0 01 1 1502- ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 1309-1408 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 1409-1501 ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98299-542-0 01 1 1502- ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97360-368-2 01 1 1309-1408 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97360-368-2 01 1 1409- ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1309-1310 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) 		8-97359-985-2 01 1 1311- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1311- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) 		8-98029-347-0 01 1 1311- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) 		8-98209-756-1 01 1 1309-1408 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) 		8-98209-756-1 01 1 1409- ● ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) 		8-98206-911-1 01 1 1309- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1311- ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1309-1310 ● ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1311- ● ● ● ●
çizim 373804
272 566 434 564 565 182 182 542 563 563 434
BalonParca AdiParca NoAdetTipApplied Date A B C D
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) (B) ID=7 		8-98002-767-0 03 1 1311- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 02 1 1309-1310 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 01 1 1311-1408 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 01 1 1409- ● ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1309-1310 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1311-1408 ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1409- ● ● ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 1309-1310 ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 		8-98002-767-0 01 1 1311- ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1309- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 04 1 1311- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 04 1 1309-1310 ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1309-1408 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1408 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98002-572-4 01 1 1406- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) 03.337 (C) 		8-98031-605-1 01 1 1311-1405 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C) 		8-98031-605-1 01 1 1406- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) (D) 		8-98186-762-1 01 1 1311- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 1309-1408 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 1409-1501 ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98299-541-0 01 1 1502- ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 1309-1408 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 1409-1501 ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98299-542-0 01 1 1502- ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97360-368-2 01 1 1309-1408 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97360-368-2 01 1 1409- ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1309-1310 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) 		8-97359-985-2 01 1 1311- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1311- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) 		8-98029-347-0 01 1 1311- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) 		8-98209-756-1 01 1 1309-1408 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) 		8-98209-756-1 01 1 1409- ● ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) 		8-98206-911-1 01 1 1309- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1311- ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1309-1310 ● ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1311- ● ● ● ●
çizim 374001
628 167 629 112 630 168 627 167 317 529 316 317 317 502 568 46 36 568 25 562 562 17 2 43 36 1 223 36 568
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) 		8-98228-986-1 01 1 1311- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) 		8-98026-060-0 01 1 1309-1408 ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) 		8-98026-060-0 01 1 1409- ● ● ● ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) 		8-98235-053-0 01 1 1309- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) 		8-98228-985-0 01 1 1311- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1309-1408 ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1409- ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 1309- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1309-1310 ● ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1311-1408 ● ● ● ●
17 03.613 BOLT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1409- ● ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98173-615-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-615-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98173-615-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-615-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98207-607-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98207-607-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 		8-98207-608-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 		8-98207-608-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98207-609-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) 		8-98207-609-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98207-609-0 01 1 1409- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98207-609-0 01 1 1409- ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) (A) M10 FLANGE 		8-97096-192-1 02 1 1311- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 1309-1408 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 1409- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1309-1408 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1409- ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1309-1310 ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1311-1408 ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97351-200-1 01 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1309-1310 ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1311-1408 ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1408 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ●
112 03.706 BRACKET; HANGER
4HK1-TCS ENG(RJS) 		8-98144-954-0 01 1 1309-1408 ●
112 03.706 BRACKET; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98144-954-0 01 1 1409- ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) 03.704 (C) 		8-97080-694-0 01 1 1311- ● ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-97625-670-0 01 1 1309-1408 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (A) 		8-97625-670-0 01 1 1409- ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98149-202-0 01 1 1309-1408 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B) 		8-98149-202-0 01 1 1409- ●
168 03.613 BRACKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) 		8-98144-955-0 01 1 1309-1408 ●
168 03.613 BRACKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98144-955-0 01 1 1409- ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (B) 		8-98026-063-0 01 1 1309-1310 ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) 		8-98026-063-0 01 1 1311-1408 ● ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) 		8-98026-063-0 01 1 1409- ● ● ● ●
223 03.706 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.613 (A) 		8-98020-555-0 01 1 1309- ● ●
316 03.613 GASKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) 03.611 		1-22116-040-0 01 1 1309-1408 ●
316 03.613 GASKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.611 		1-22116-040-0 01 1 1409- ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (B) M12X35 FLANGE 		0-28051-235-0 04 1 1309-1408 ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (B) M12X35 FLANGE 		0-28051-235-0 04 1 1409- ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		1-22131-962-0 02 1 1309-1408 ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		1-22131-962-0 02 1 1409- ●
502 03.609 PIPE; EXH,FRT
4HK1-TCS ENG(RJS) 		8-98109-475-0 01 1 1309-1408 ●
502 03.609 PIPE; EXH,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98109-475-0 01 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1311 ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1309-1310 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1309-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1309- ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1309-1310 ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ● ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ● ● ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1309- ● ●
627 03.706 WASHER; HANGER
4HK1-TCS ENG(RJS) ID=10.5 OD=70 		8-97625-671-0 01 1 1309-1408 ●
627 03.706 WASHER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) ID=10.5 OD=70 		8-97625-671-0 01 1 1409- ●
628 03.275 NUT; HANGER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1408 ●
628 03.275 NUT; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1309-1408 ● ● ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1409- ● ● ● ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 01 1 1309-1408 ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) L=39 		8-98060-852-0 01 1 1409- ●
630 00.010 BOLT; BRKT,HANGER
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 1309-1408 ●
630 00.010 BOLT; BRKT,HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 1409- ●
çizim 374299
25 568 560 212 548 543 548 43 17 2 36 46 223 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) 		8-98228-986-1 01 1 1311- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) 		8-98026-060-0 01 1 1309-1408 ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) 		8-98026-060-0 01 1 1409- ● ● ● ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) 		8-98235-053-0 01 1 1309- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) 		8-98228-985-0 01 1 1311- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1309-1408 ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1409- ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 1309- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1309-1310 ● ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1311-1408 ● ● ● ●
17 03.613 BOLT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1409- ● ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98173-615-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-615-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98173-615-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-615-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98207-607-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98207-607-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 		8-98207-608-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 		8-98207-608-0 01 1 1409- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98207-609-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) 		8-98207-609-0 01 1 1309-1408 ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98207-609-0 01 1 1409- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98207-609-0 01 1 1409- ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) (A) M10 FLANGE 		8-97096-192-1 02 1 1311- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 1309-1408 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 1409- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1309-1408 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1409- ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1309-1310 ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1311-1408 ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97351-200-1 01 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1309-1310 ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1311-1408 ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1408 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1311-1408 ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1409- ● ● ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1309-1310 ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1311-1408 ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1409- ● ● ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (B) 		8-98026-063-0 01 1 1309-1310 ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) 		8-98026-063-0 01 1 1311-1408 ● ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) 		8-98026-063-0 01 1 1409- ● ● ● ●
223 03.706 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.613 (A) 		8-98020-555-0 01 1 1309- ● ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) 		8-98088-472-1 01 1 1309-1408 ● ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) 		8-98088-472-1 01 1 1409- ● ● ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98224-056-1 01 1 1311-1408 ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98224-056-1 01 1 1409- ● ● ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) (A) 		8-98224-055-1 01 1 1309-1310 ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98224-055-1 01 1 1311-1408 ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98224-055-1 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1309-1408 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1309-1310 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1311-1408 ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1309- ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1309-1310 ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ● ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ● ● ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1309- ● ●
çizim 374351
560 562 562 550 550 596 597 596 596 550 574 385 550 385 597 531 550 596 597 596 550 574 385 550 597 531 596 385 531 597 352 578 340 166 578 629 143 143 631 121 352 44 44 352 352 121 579 579 337 166 143 579 629 143 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1402- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1309- ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1309-1408 ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1409- ● ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) ID=10.5 		8-98073-091-0 02 1 1309-1408 ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) ID=10.5 		8-98073-091-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 05 1 1311- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) ID=10.5 OD=70 		8-97625-671-0 02 1 1309-1408 ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) ID=10.5 OD=70 		8-97625-671-0 02 1 1409- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 1309-1408 ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 1409- ● ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1408 ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1309-1408 ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1409- ● ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1309-1408 ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 02 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 02 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98148-477-1 02 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98148-477-1 02 1 1409-1502 ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 02 1 1503- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D) 		8-98113-038-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D) 		8-98113-038-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98144-205-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98144-205-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-207-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-207-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1409- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98144-930-1 02 1 1309-1502 ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 02 1 1503- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98207-620-0 01 1 1309- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1309-1408 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1309-1310 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1311-1408 ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1309-1310 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1309-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1309- ● ●
574 03.706 SPACER; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1309-1408 ● ● ●
574 03.706 SPACER; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) (E) 		8-98228-998-1 01 1 1311- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1309-1408 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1309-1408 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98109-484-0 01 1 1309- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (B) 		8-98109-485-3 01 1 1309- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (E) 		8-98232-385-1 01 1 1311- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (G) 		8-98232-083-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (G) 		8-98232-083-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> (H) 		8-98232-081-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (F) 		8-98232-085-1 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (I) 		8-98232-080-2 01 1 1311- ●
579 03.704 BRACKET; DPD RR
(J) 		8-98229-001-1 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1309-1408 ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1309-1408 ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-196-0 01 1 1309-1408 ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-196-0 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98144-925-2 01 1 1309-1502 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98300-829-0 01 1 1503- ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98144-927-0 01 1 1309- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 10 1 1309-1408 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 10 1 1409- ● ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 08 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1408 ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1309-1408 ● ● ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1409- ● ● ● ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 01 1 1309-1408 ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) L=39 		8-98060-852-0 01 1 1409- ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) 		8-98144-193-0 01 1 1309-1408 ● ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) 		8-98144-193-0 01 1 1409- ● ● ● ●
631 03.706 BRACKET; DPD CENTER
4HK1-TCS ENG(RJS) 		8-98144-920-0 01 1 1309- ● ●
çizim 374507
550 596 597 597 597 531 550 385 596 596 550 385 574 531 597 352 340 352 121 337 166 143 629 579 579 352 143 579 631 121 352 629 578 143 44 352 578 44 597 166 143 562 562 550 596 597 597 531 385 596 550 550 596 597 385 574 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1402- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1309- ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1309-1408 ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1409- ● ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) ID=10.5 		8-98073-091-0 02 1 1309-1408 ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) ID=10.5 		8-98073-091-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 05 1 1311- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) ID=10.5 OD=70 		8-97625-671-0 02 1 1309-1408 ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) ID=10.5 OD=70 		8-97625-671-0 02 1 1409- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 1309-1408 ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 1409- ● ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1408 ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1309-1408 ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1409- ● ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1309-1408 ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 02 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 02 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98148-477-1 02 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98148-477-1 02 1 1409-1502 ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 02 1 1503- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D) 		8-98113-038-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D) 		8-98113-038-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98144-205-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98144-205-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-207-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-207-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1409- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98144-930-1 02 1 1309-1502 ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 02 1 1503- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98207-620-0 01 1 1309- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1309-1310 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1309-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1309- ● ●
574 03.706 SPACER; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1309-1408 ● ● ●
574 03.706 SPACER; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) (E) 		8-98228-998-1 01 1 1311- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1309-1408 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1309-1408 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98109-484-0 01 1 1309- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (B) 		8-98109-485-3 01 1 1309- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (E) 		8-98232-385-1 01 1 1311- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (G) 		8-98232-083-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (G) 		8-98232-083-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> (H) 		8-98232-081-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (F) 		8-98232-085-1 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (I) 		8-98232-080-2 01 1 1311- ●
579 03.704 BRACKET; DPD RR
(J) 		8-98229-001-1 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1309-1408 ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1309-1408 ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-196-0 01 1 1309-1408 ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-196-0 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98144-925-2 01 1 1309-1502 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98300-829-0 01 1 1503- ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98144-927-0 01 1 1309- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 10 1 1309-1408 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 10 1 1409- ● ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 08 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1408 ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1309-1408 ● ● ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 02 1 1409- ● ● ● ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 01 1 1309-1408 ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) L=39 		8-98060-852-0 01 1 1409- ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) 		8-98144-193-0 01 1 1309-1408 ● ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) 		8-98144-193-0 01 1 1409- ● ● ● ●
631 03.706 BRACKET; DPD CENTER
4HK1-TCS ENG(RJS) 		8-98144-920-0 01 1 1309- ● ●
çizim 374536
639 639 159 637 272 272 637 529 418 380 414 414 605 380 636 580 640 636 605 272 633 580 636 65 580 636 149 8 637 529 418 542 272 272 8 580 636 8 8 149 418 272 529 580 636 418 529 637 634 632 638 632 637 418 529 542 580 636 636 580 605 620 272 380 380 542 414 65 414 637 380 272
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1309-1311 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1312-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1409- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1309-1311 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1312- ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 06 1 1312- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1309-1311 ● ● ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ● ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1309-1311 ● ● ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1312-1408 ● ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1312-1408 ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1312-1408 ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1409- ● ● ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1409- ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1409- ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1311- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1309-1408 ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-457-1 02 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (I) 		8-98205-012-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (G) 		8-98118-880-0 02 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (G) 		8-98118-880-0 02 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98118-879-0 01 1 1309-1408 ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98118-879-0 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-877-1 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98118-878-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98118-880-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1312- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 06 1 1312- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1312- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1309-1311 ● ● ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ● ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1311 ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1309-1408 ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1409- ● ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1309-1311 ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1309-1311 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1312- ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1309-1408 ● ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1409- ● ● ● ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) 		8-98148-511-0 01 1 1309- ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B) 		8-98205-011-0 01 1 1312- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1309-1311 ● ● ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1312-1408 ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1312-1408 ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1312-1408 ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1409- ● ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1409- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1409- ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1309-1408 ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1409- ● ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B) 		8-98138-451-0 01 1 1312- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1309-1311 ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1312-1408 ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1312-1408 ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1312-1408 ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1409- ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1409- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1409- ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98118-422-1 01 1 1309-1408 ● ● ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98118-422-1 01 1 1409- ● ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1309-1408 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1409- ● ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1312- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1309-1311 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98205-010-0 01 1 1312- ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1309-1408 ● ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1409- ● ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1309-1311 ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98205-048-0 01 1 1312- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1312- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1309-1408 ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1409- ● ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1309-1408 ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1409- ● ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (A) 		8-98136-188-0 01 1 1309- ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (B) 		8-98136-189-1 01 1 1309- ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98159-189-2 01 1 1309-1311 ● ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1312-1408 ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 		8-98159-189-2 01 1 1312-1408 ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) 		8-98159-189-2 01 1 1312-1408 ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1409- ● ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 		8-98159-189-2 01 1 1409- ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98159-189-2 01 1 1409- ●
çizim 374623
639 636 640 159 639 414 605 65 418 380 380 636 414 418 636 580 634 633 632 418 580 636 529 149 8 272 272 632 620 272 414 65 418 380 414 542 580 580 272 542 380 529 149 8 580 636 542 638
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1309-1311 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1312-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1409- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1309-1311 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1312- ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 06 1 1312- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1309-1311 ● ● ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1408 ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ● ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1409- ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1309-1311 ● ● ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1312-1408 ● ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1312-1408 ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1312-1408 ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1409- ● ● ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1409- ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1409- ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1311- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1309-1408 ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-457-1 02 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (I) 		8-98205-012-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (G) 		8-98118-880-0 02 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (G) 		8-98118-880-0 02 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1309-1408 ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98118-879-0 01 1 1309-1408 ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98118-879-0 01 1 1409- ● ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-877-1 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98118-878-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1309-1311 ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98118-880-0 01 1 1312- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1312- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 06 1 1312- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1312- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1309-1311 ● ● ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1312-1408 ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ● ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1409- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1311 ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1309-1408 ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1409- ● ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1309-1311 ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1309-1311 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1312- ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1309-1408 ● ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1409- ● ● ● ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) 		8-98148-511-0 01 1 1309- ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B) 		8-98205-011-0 01 1 1312- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1309-1311 ● ● ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1312-1408 ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1312-1408 ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1312-1408 ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1409- ● ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1409- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98118-876-1 01 1 1409- ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1309-1408 ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1409- ● ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (B) 		8-98138-451-0 01 1 1312- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1309-1311 ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1312-1408 ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1312-1408 ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1312-1408 ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1409- ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1409- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98127-327-1 01 1 1409- ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98118-422-1 01 1 1309-1408 ● ● ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98118-422-1 01 1 1409- ● ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1309-1408 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1409- ● ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98205-010-0 01 1 1312- ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1309-1408 ● ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1409- ● ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1309-1311 ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98205-048-0 01 1 1312- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1312- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1309-1408 ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1409- ● ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1309-1408 ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1409- ● ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (A) 		8-98136-188-0 01 1 1309- ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (B) 		8-98136-189-1 01 1 1309- ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98159-189-2 01 1 1309-1311 ● ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1312-1408 ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 		8-98159-189-2 01 1 1312-1408 ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) 		8-98159-189-2 01 1 1312-1408 ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1409- ● ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 		8-98159-189-2 01 1 1409- ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98159-189-2 01 1 1409- ●
çizim 374761
561 589 589 272 637 557 272 637 413 534 547 560 547 636 418 617 529 637 589 589 467 623 580 558 632 580 636 637 636 561 580 272 159
BalonParca AdiParca NoAdetTipApplied Date A B C D
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1311- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1309-1408 ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1309-1408 ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1409- ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1309- ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98138-485-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1309-1408 ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1409- ● ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1309-1311 ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-407-0 01 1 1312- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1312- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1312-1408 ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1309-1311 ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1312- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 06 1 1309-1408 ● ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 06 1 1409- ● ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1311 ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1311- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1309-1408 ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1409- ● ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1311- ● ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1311- ● ● ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1309-1408 ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1409- ● ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1309- ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-619-1 01 1 1311- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1309-1408 ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1409- ● ● ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1309-1408 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1309-1310 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1311-1408 ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1309- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1312- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (E) 		8-98233-520-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (F) 		8-98233-521-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1312- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1309-1408 ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1409- ● ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1309-1311 ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1312-1408 ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1409- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1309-1311 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1312- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (I) 		8-98233-517-1 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (J) 		8-98233-518-0 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1309- ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (C) 		8-98204-944-1 01 1 1312- ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1309-1408 ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1409- ● ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-1 01 1 1309-1311 ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98156-630-2 01 1 1312- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-2 01 1 1312- ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6 		8-98141-351-0 03 1 1309-1408 ● ● ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) M6 		8-98141-351-0 03 1 1409- ● ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1309-1408 ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97628-257-0 03 1 1409- ● ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1312- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1309-1311 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1312-1408 ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1409- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1309-1408 ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1409- ● ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1312- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1309-1311 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1312-1408 ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1409- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
çizim 388300
561 547 547 534 589 556 159 561 558 589
BalonParca AdiParca NoAdetTipApplied Date A B C D
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1311- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1309-1408 ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.685 M6X16 		8-98019-179-0 10 1 1409- ● ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1311- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1309-1408 ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1409- ● ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1311- ● ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1309-1310 ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1311- ● ● ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98225-173-3 01 1 1311- ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-619-1 01 1 1311- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1309-1408 ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1409- ● ● ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1309- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1312- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (E) 		8-98233-520-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (F) 		8-98233-521-1 01 1 1311- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1309-1408 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1409- ● ● ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1309-1311 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1312- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1312- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (I) 		8-98233-517-1 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (J) 		8-98233-518-0 01 1 1311- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1309-1408 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1409- ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1309- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1309- ● ●
çizim 388311
44 156 575 597 8 126 550 8 361 14 361 126 14 597
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1309-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1409- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1309-1311 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1312-1408 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1312-1408 ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1409- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98162-855-0 02 1 1409- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1309-1311 ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1312- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1312- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 ID=65 		8-97148-757-1 01 1 1311- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.611 ID=81 		8-98043-481-0 01 1 1309-1408 ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.611 ID=81 		8-98043-481-0 01 1 1409- ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1402- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1309- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) 		8-98228-992-1 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98228-993-1 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) (D) 		8-98228-993-1 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) (A) 		8-98207-611-0 01 1 1309-1408 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) (A) 		8-98207-611-0 01 1 1409- ● ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) (B) 		8-98207-612-1 01 1 1309- ● ●
156 03.706 INSULATOR; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98148-541-1 01 1 1309-1408 ● ● ●
156 03.706 INSULATOR; HEAT PROTECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98148-541-1 01 1 1409- ● ● ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.003 M12X40 FLANGE 		0-28651-240-0 03 1 1309-1408 ● ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.003 M12X40 FLANGE 		0-28651-240-0 03 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 02 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 02 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98148-477-1 02 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98148-477-1 02 1 1409-1502 ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 02 1 1503- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D) 		8-98113-038-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (D) 		8-98113-038-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98144-205-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98144-205-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-207-0 01 1 1309-1408 ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-207-0 01 1 1409- ● ● ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1309-1408 ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1309-1408 ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (E) 		8-98144-929-1 01 1 1409- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (E) 		8-98144-929-1 01 1 1409- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98144-930-1 02 1 1309-1502 ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 02 1 1503- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98207-620-0 01 1 1309- ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) 		8-98290-055-0 01 1 1409- ● ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98109-502-1 01 1 1309- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1408 ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
çizim 388332
579 579 579 596 579 597 579 143 329 556 352 578 352 44 143 579 596 2 17 43 36 562 560 223 46 1 143
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) 		8-98228-986-1 01 1 1311- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) 		8-98026-060-0 01 1 1309-1408 ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) 		8-98026-060-0 01 1 1409- ● ● ● ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) 		8-98235-053-0 01 1 1309- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) 		8-98228-985-0 01 1 1311- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1309-1408 ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1409- ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 1309- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1309-1310 ● ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1311-1408 ● ● ● ●
17 03.613 BOLT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1409- ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) (A) M10 FLANGE 		8-97096-192-1 02 1 1311- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 1309-1408 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 1409- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1309-1408 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1409- ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1309-1310 ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1311-1408 ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-97351-200-1 01 1 1409- ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1402- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1401 ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1402-1408 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1309- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1309-1310 ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1311-1408 ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1408 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 05 1 1311- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (B) 		8-98026-063-0 01 1 1309-1310 ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) 		8-98026-063-0 01 1 1311-1408 ● ● ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) 		8-98026-063-0 01 1 1409- ● ● ● ●
223 03.706 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.613 (A) 		8-98020-555-0 01 1 1309- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309- ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98225-173-3 01 1 1311- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1309-1408 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1309-1310 ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1311-1408 ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=64 		8-97373-108-0 01 1 1409- ● ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1309- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1309-1310 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1311-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (F) M8X35 FLANGE 		0-28050-835-0 04 1 1409- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1309-1408 ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1409- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1309- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1309- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) (E) 		8-98228-998-1 01 1 1311- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1309-1408 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1309-1408 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1409- ● ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98109-484-0 01 1 1309- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (B) 		8-98109-485-3 01 1 1309- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (E) 		8-98232-385-1 01 1 1311- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (G) 		8-98232-083-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (G) 		8-98232-083-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> (H) 		8-98232-081-3 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (F) 		8-98232-085-1 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (I) 		8-98232-080-2 01 1 1311- ●
579 03.704 BRACKET; DPD RR
(J) 		8-98229-001-1 01 1 1311- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1309-1408 ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1309-1408 ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-196-0 01 1 1309-1408 ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98144-196-0 01 1 1409- ● ● ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98144-925-2 01 1 1309-1502 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98300-829-0 01 1 1503- ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98144-927-0 01 1 1309- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1311- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 10 1 1309-1408 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 10 1 1409- ● ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1309-1408 ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1409- ● ● ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 08 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1408 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1309-1408 ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1409- ● ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
çizim 388334
143 143 529 46 416 416 12 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) 		8-98228-995-1 01 1 1311- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 ID=65 		8-97148-757-1 01 1 1311- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.611 ID=81 		8-98043-481-0 01 1 1309-1408 ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.611 ID=81 		8-98043-481-0 01 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1309-1310 ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1311-1408 ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1409- ● ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1408 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 05 1 1311- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) 		8-98229-006-1 01 1 1311- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98229-007-1 01 1 1311- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) (B) 		8-98229-007-1 01 1 1311- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1311 ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1312-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311-1408 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1409- ●
çizim 388942
104 137 95 167 126 84 38 167 137 95 104 125 81 137 70 126 97 94 143 144 554 84 363 84 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1311- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1311- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) ID=65 		8-97148-757-1 01 1 1311- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=65 		8-97148-757-1 01 1 1311- ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) ID=65 		8-97148-757-1 01 1 1311- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1311- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1311- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1311- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1311- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1311- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1311- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.833 M10 		0-91110-510-0 01 1 1311- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) 00.833 M10 		0-91110-510-0 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) 		8-98228-992-1 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98228-993-1 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) (D) 		8-98228-993-1 01 1 1311- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) (A) 		8-98207-611-0 01 1 1309-1408 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) (A) 		8-98207-611-0 01 1 1409- ● ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) (B) 		8-98207-612-1 01 1 1309- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) 		8-98229-011-1 01 1 1311- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98019-904-2 01 1 1311- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) (B) 		8-98019-904-2 01 1 1311- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) 		8-98229-010-1 01 1 1311- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) (C) 		8-98229-010-1 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 05 1 1311- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1311- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (A) 		8-97625-670-0 02 1 1409- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1309-1408 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 (B) 		8-98149-202-0 02 1 1409- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) 03.704 (C) 		8-97080-694-0 01 1 1311- ● ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-97625-670-0 01 1 1309-1408 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (A) 		8-97625-670-0 01 1 1409- ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98149-202-0 01 1 1309-1408 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B) 		8-98149-202-0 01 1 1409- ●
363 03.704 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ●
363 03.704 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ●
554 03.705 PIPE; EXH,SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98228-988-0 01 1 1311- ●
554 03.705 PIPE; EXH,SILENCER
4JJ1-TCC ENG(RDU) 		8-98228-988-0 01 1 1311- ●
çizim 413185
434 434 566 565 564 542 182 563 566 182 563 556
BalonParca AdiParca NoAdetTipApplied Date A B C D
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) (B) ID=7 		8-98002-767-0 03 1 1311- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 02 1 1309-1310 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 01 1 1311-1408 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (C) L=112 		8-94232-618-0 01 1 1409- ● ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1309-1310 ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1311-1408 ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=7 L=7.5 		8-97369-561-0 01 1 1409- ● ● ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 1309-1310 ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 		8-98002-767-0 01 1 1311- ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1309- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 04 1 1311- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 04 1 1309-1310 ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1309-1408 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1311-1408 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1409- ● ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1312- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) (I) 		8-98236-438-1 01 1 1311- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1309-1408 ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98242-537-0 01 1 1409- ● ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1309-1311 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1312-1408 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1312-1408 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1409- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (C) 		8-98205-049-1 01 1 1409- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1309- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1309-1311 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1312- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1312- ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98225-173-3 01 1 1311- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98002-572-4 01 1 1406- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) 03.337 (C) 		8-98031-605-1 01 1 1311-1405 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C) 		8-98031-605-1 01 1 1406- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) (D) 		8-98186-762-1 01 1 1311- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 1309-1408 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 1409-1501 ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (A) 		8-98299-541-0 01 1 1502- ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 1309-1408 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 1409-1501 ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) (B) 		8-98299-542-0 01 1 1502- ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97360-368-2 01 1 1309-1408 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97360-368-2 01 1 1409- ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1309-1310 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) 		8-97359-985-2 01 1 1311- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1311- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) 		8-98029-347-0 01 1 1311- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) 		8-98209-756-1 01 1 1309-1408 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) 		8-98209-756-1 01 1 1409- ● ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) 		8-98206-911-1 01 1 1309- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1311- ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1309-1310 ● ● ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1311- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
