◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51481 - NNR/NPR LHD EUROPE ERURO5B+/6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

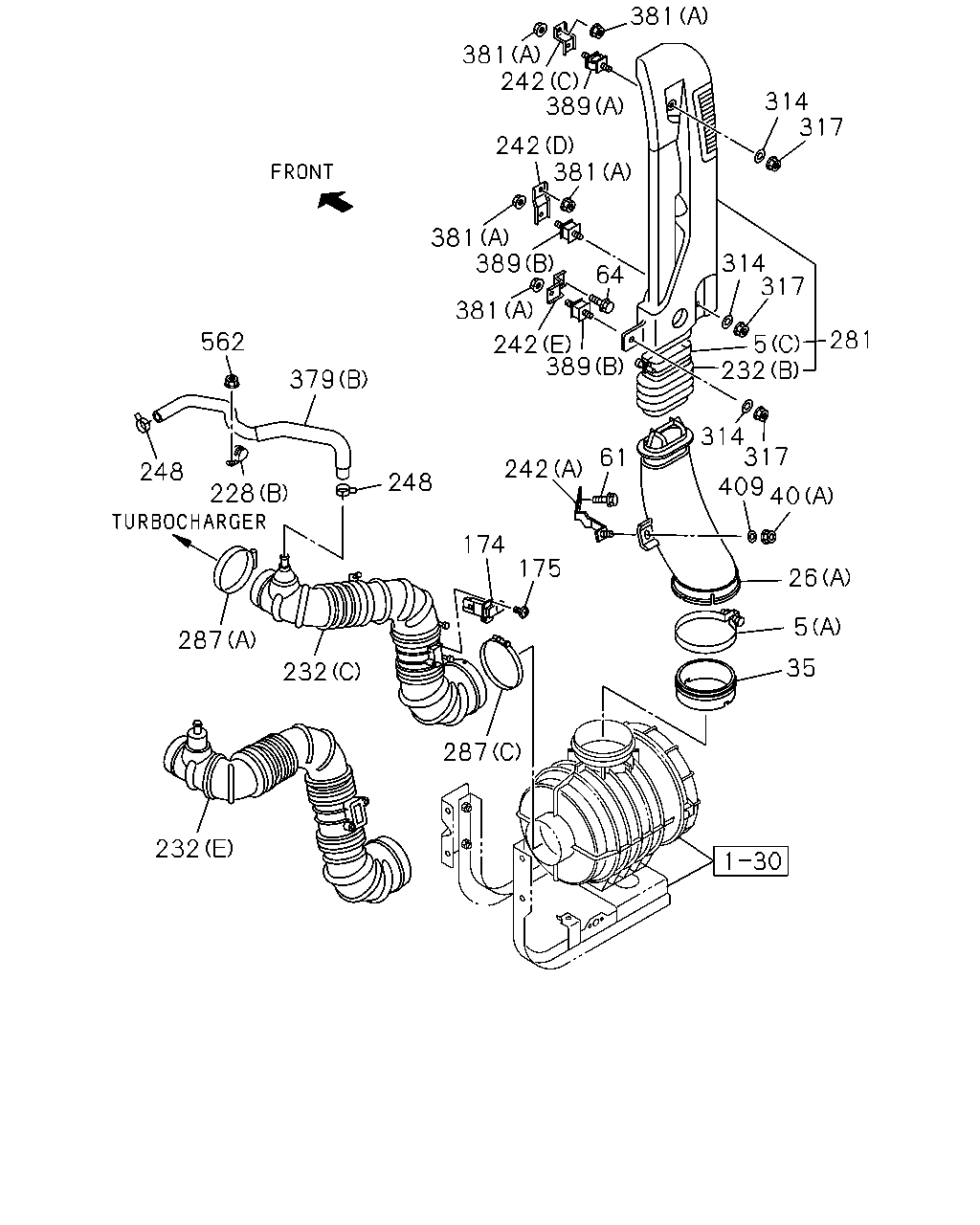

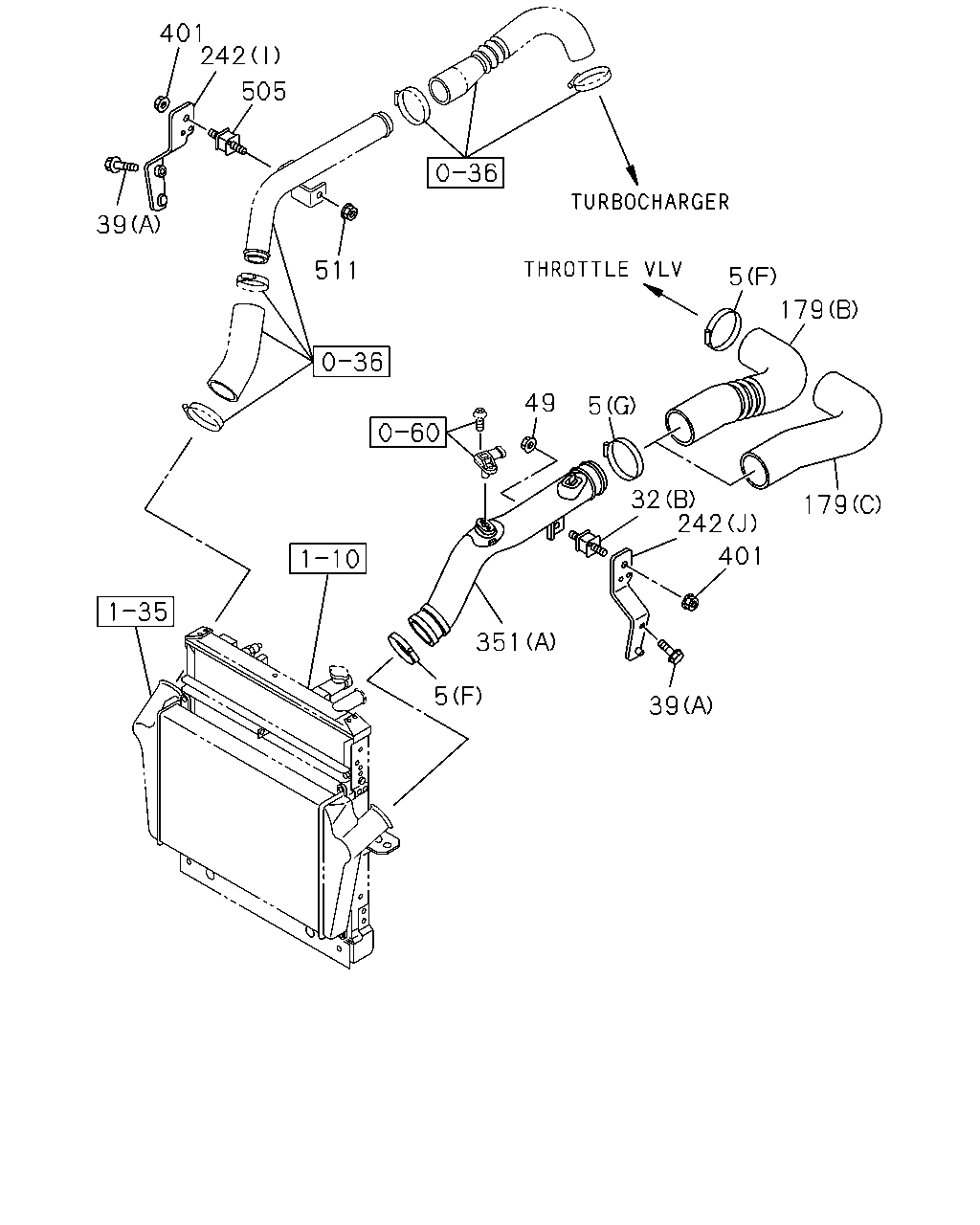

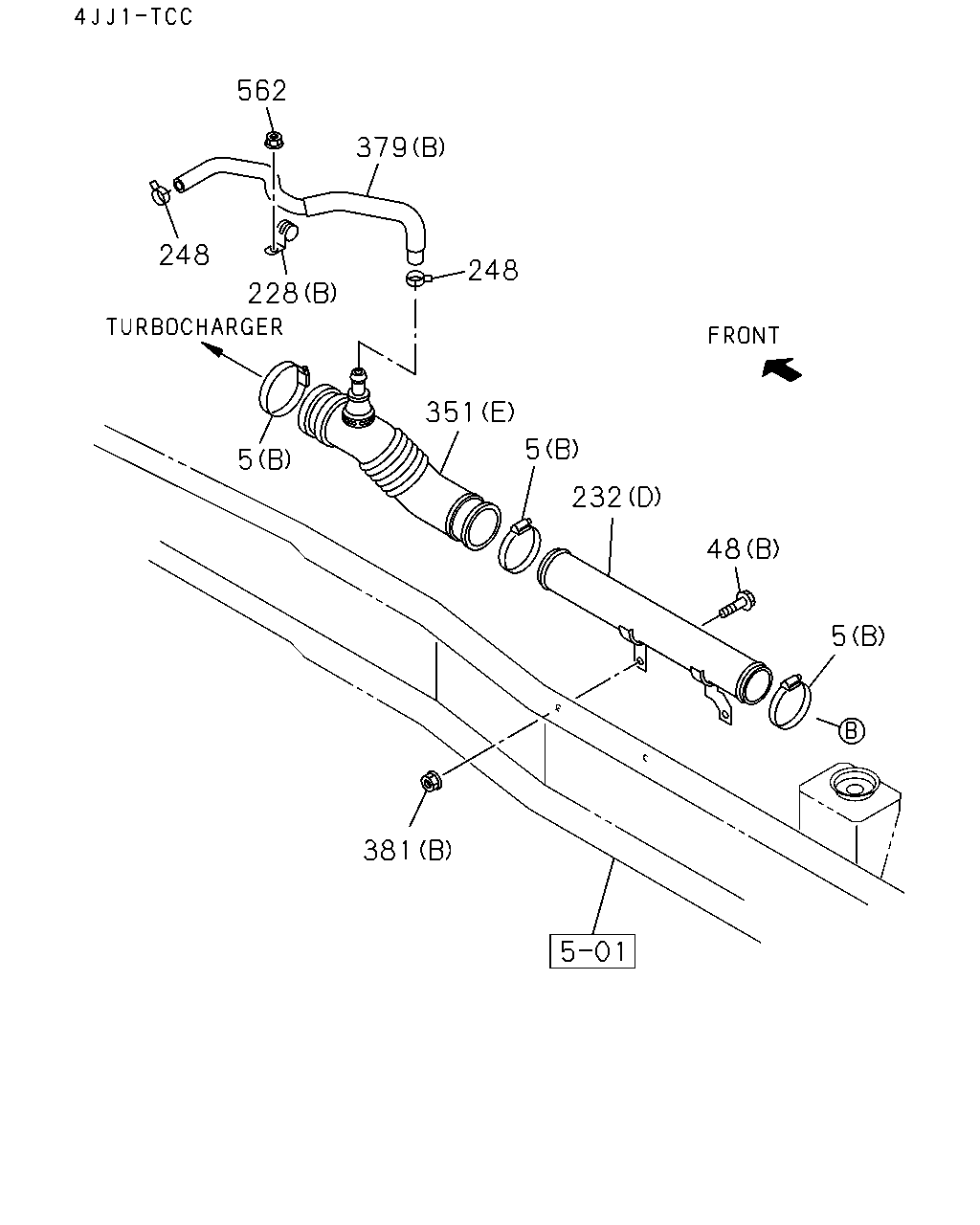

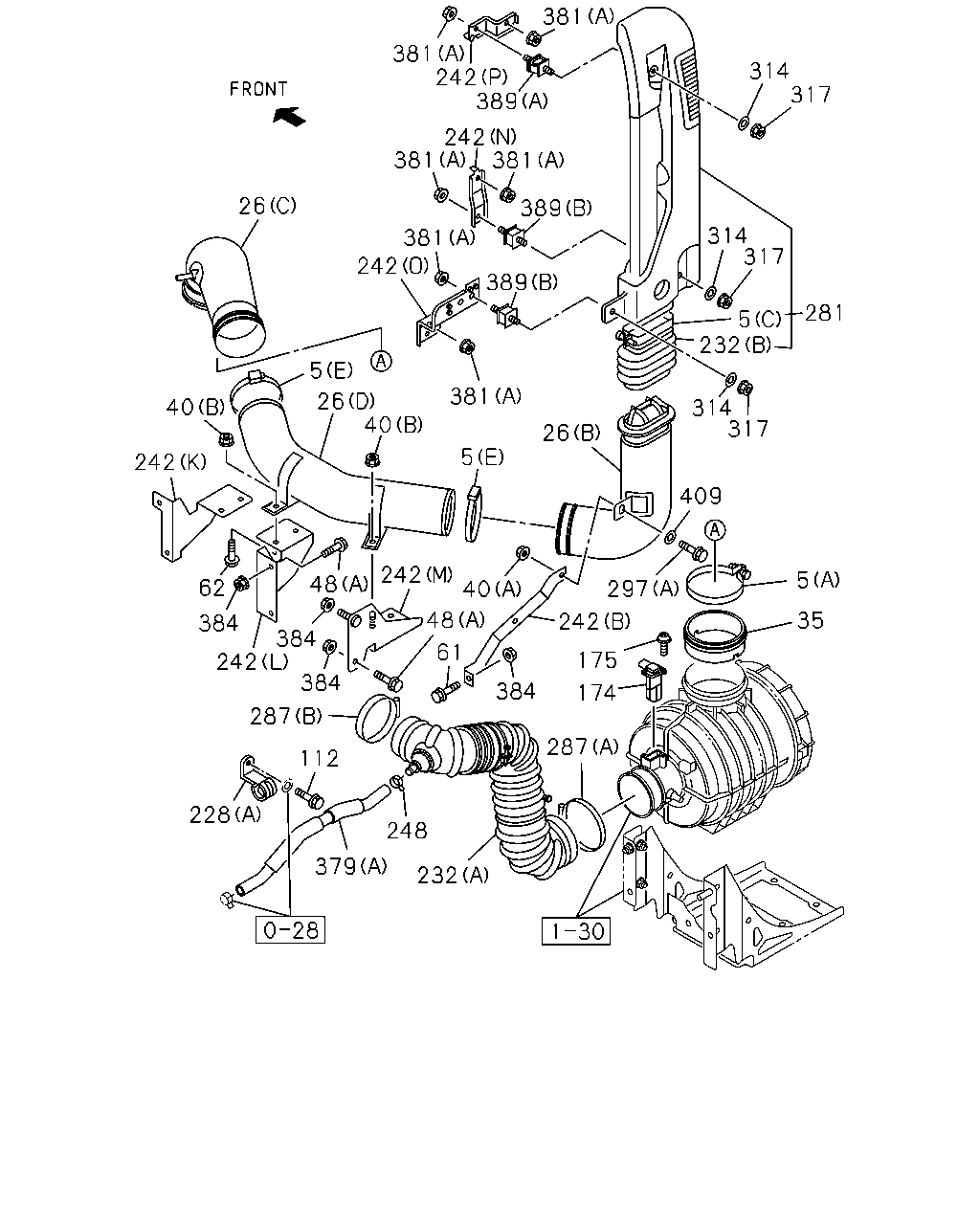

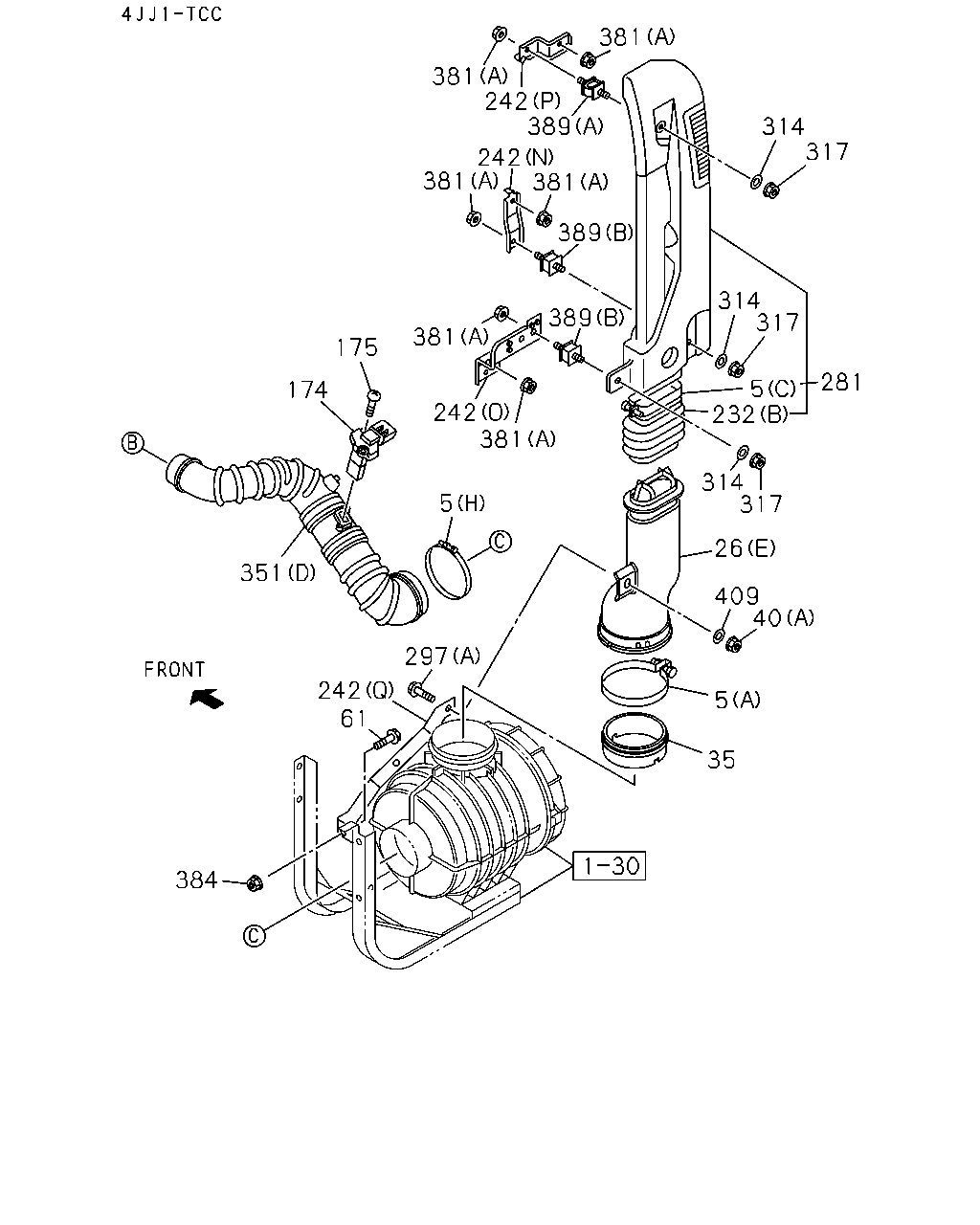

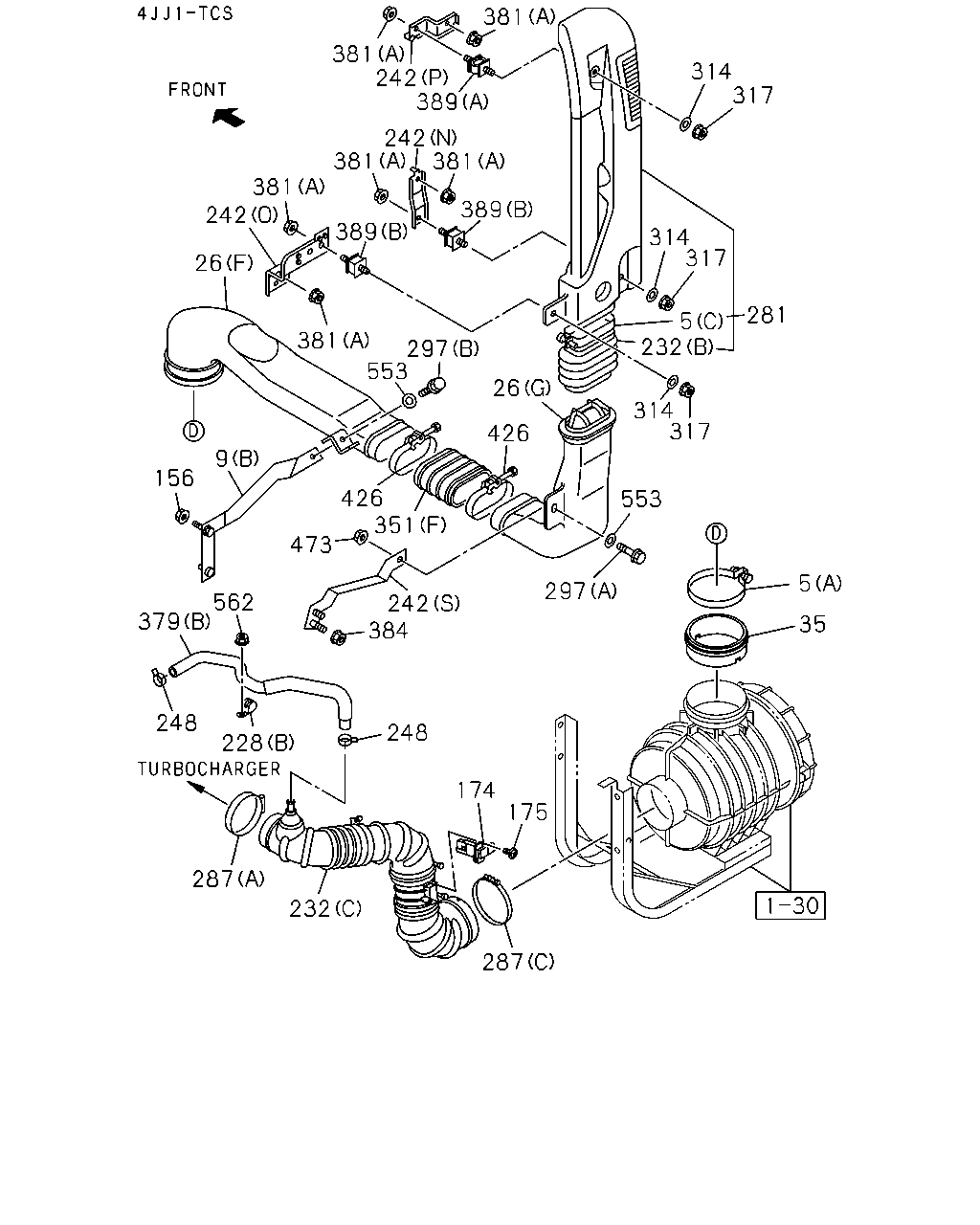

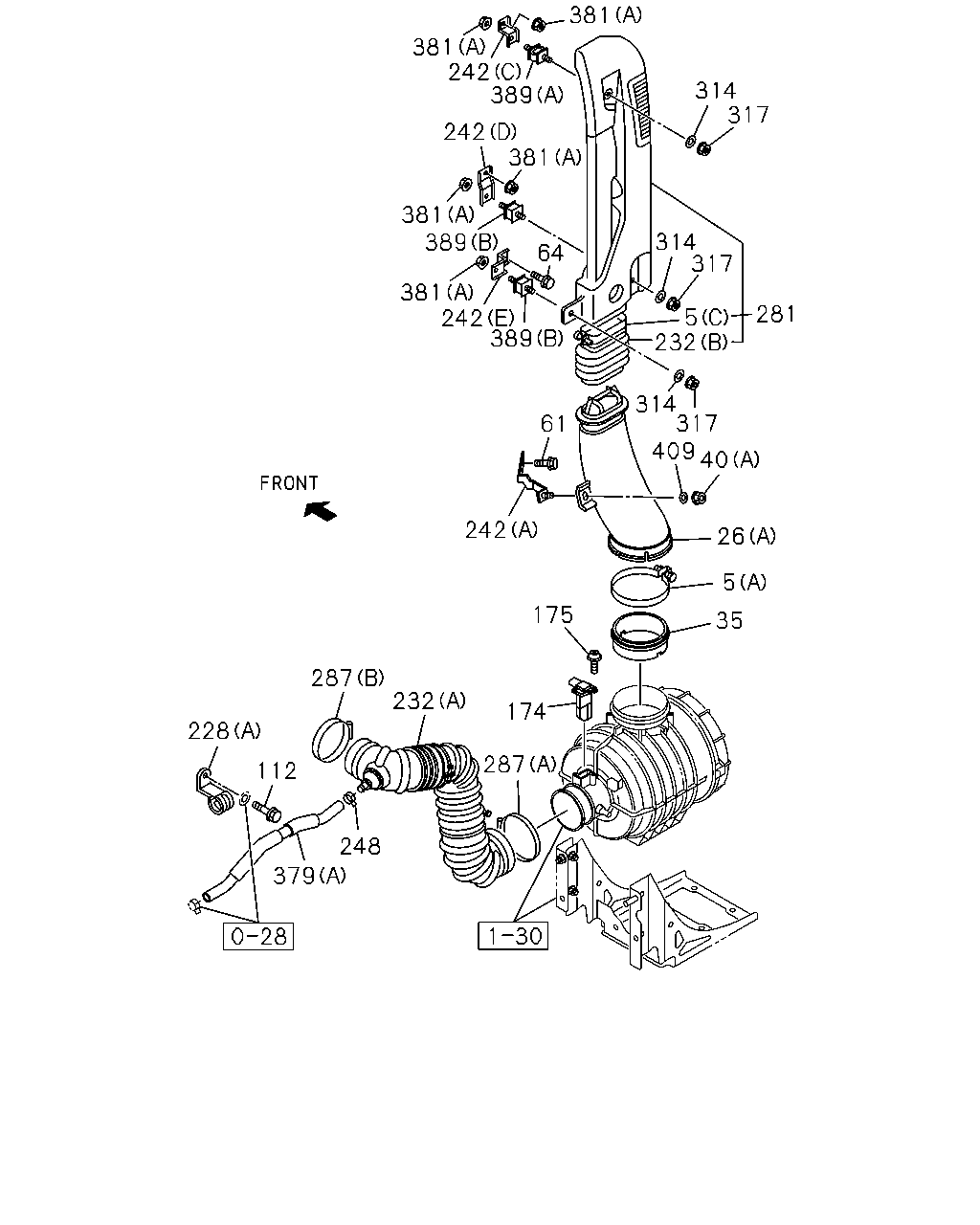

1-31 — AIR DUCT (#126038) — 1156 parça
çizim 373764
49 351 511 242 39 401 242 505 39 474 532 9 474 474 225 32 351 5 242 242 5 32 297 39 179 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98278-820-1 01 1 1409- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98278-820-1 01 1 1409- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98009-086-0 01 1 1309-1408 ● ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98009-086-0 01 1 1409- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (C) OD=32 		8-94395-766-0 01 1 1309-1310 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32 		8-94395-766-0 01 1 1311-1408 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32 		8-94395-766-0 01 1 1409- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 1309-1310 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23 		8-97105-689-6 01 1 1311-1408 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23 		8-97105-689-6 01 1 1409- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (B) 		8-97081-886-0 01 1 1309- ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1309-1408 ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1409- ● ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1309-1310 ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98111-374-1 01 1 1309-1310 ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98111-374-1 01 1 1311-1408 ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98111-374-1 01 1 1409- ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98117-928-2 01 1 1309- ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98245-722-0 01 1 1309- ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 ID=47 		8-97202-328-1 01 1 1309-1408 ● ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 ID=47 		8-97202-328-1 01 1 1409- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1309-1310 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1311-1408 ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1409- ● ● ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1408 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1311-1408 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1409- ● ●
351 03.407 DUCT; AIR
(D) 		8-98070-864-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98070-864-0 01 1 1409- ●
351 03.407 DUCT; AIR
(E) 		8-98206-266-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98206-266-0 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1309-1310 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1309- ● ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 1309-1408 ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 1409- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1309-1408 ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1409- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1309-1408 ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1409- ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1309-1310 ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1311- ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-98237-771-1 01 1 1309-1408 ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-98237-771-1 01 1 1409- ● ● ● ●
çizim 373999
401 505 242 39 511 49 5 32 242 401 351 5 5 179 179 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (C) OD=32 		8-94395-766-0 01 1 1309-1310 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32 		8-94395-766-0 01 1 1311-1408 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32 		8-94395-766-0 01 1 1409- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 1309-1310 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23 		8-97105-689-6 01 1 1311-1408 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23 		8-97105-689-6 01 1 1409- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (B) 		8-97081-886-0 01 1 1309- ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1309-1408 ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1409- ● ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1309-1310 ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98111-374-1 01 1 1309-1310 ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98111-374-1 01 1 1311-1408 ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98111-374-1 01 1 1409- ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98117-928-2 01 1 1309- ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98245-722-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1311-1408 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1409- ● ●
351 03.407 DUCT; AIR
(D) 		8-98070-864-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98070-864-0 01 1 1409- ●
351 03.407 DUCT; AIR
(E) 		8-98206-266-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98206-266-0 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1309-1310 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1309- ● ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1309-1310 ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1311- ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ●
çizim 374264
381 381 242 389 242 314 317 381 381 389 381 242 389 314 317 281 5 232 314 317 409 61 242 175 40 26 5 35 174 232 287 228 112 248 379 287 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(E) 		8-98025-627-0 01 1 1311-1408 ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98025-627-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1309- ● ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98092-890-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98109-389-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (D) 		8-98177-457-0 01 1 1309- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1309-1310 ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1309- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1309- ● ●
112 03.417 BOLT; CLIP
4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33 		1-09300-058-1 01 1 1309- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1309-1310 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1311- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1309-1310 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1311-1408 ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1409- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98242-344-0 01 1 1311- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98021-072-2 01 1 1409- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1309-1310 ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1309-1309 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310-1310 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1311- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1309-1310 ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1311-1408 ● ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1409- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCS ENG(RJS) 08.846 ID=21.7 		8-97203-074-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1309-1310 ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1311- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1309-1408 ● ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99 		1-09707-141-0 01 1 1309- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309-1310 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1311- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1311-1408 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1309-1310 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1311- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1309-1310 ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1311- ● ● ● ●
çizim 374416
381 381 242 389 314 242 381 317 381 389 381 242 64 314 5 281 232 389 317 61 314 317 409 40 26 5 35 242 562 379 248 174 175 287 232 287 248 228 232
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(E) 		8-98025-627-0 01 1 1311-1408 ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98025-627-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1309- ● ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98092-890-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98109-389-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (D) 		8-98177-457-0 01 1 1309- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1309-1310 ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1309- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1309- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1309-1310 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1311- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1309-1310 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1311-1408 ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1409- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98242-344-0 01 1 1311- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98021-072-2 01 1 1409- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1309-1310 ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1309-1309 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310-1310 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1311- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1309-1310 ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1311-1408 ● ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1409- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCS ENG(RJS) 08.846 ID=21.7 		8-97203-074-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1309-1310 ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1311- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1309-1408 ● ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99 		1-09707-141-0 01 1 1309- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309-1310 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1311- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1311-1408 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1309-1310 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1311- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1309-1310 ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1311- ● ● ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1408 ● ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ● ● ●
çizim 374664
26 40 242 62 384 242 384 287 228 112 379 232 248 384 48 242 40 48 61 384 287 174 175 242 297 409 5 35 317 314 232 5 281 317 314 317 314 381 242 381 389 242 381 381 389 389 381 242 5 26 40 5 381 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(E) 		8-98025-627-0 01 1 1311-1408 ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98025-627-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1309- ● ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98092-890-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98109-389-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (D) 		8-98177-457-0 01 1 1309- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1309-1310 ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309- ●
48 03.417 BOLT; AIR DUCT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1311-1408 ●
48 03.417 BOLT; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1409- ●
48 03.417 BOLT; AIR DUCT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1309- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1309- ●
62 03.417 BOLT; AIR INT DUCT
4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ●
112 03.417 BOLT; CLIP
4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33 		1-09300-058-1 01 1 1309- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1309-1310 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1311- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1309-1310 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1311-1408 ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1409- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98242-344-0 01 1 1311- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98021-072-2 01 1 1409- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1309-1310 ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1309-1309 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310-1310 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1311- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1309-1310 ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1311-1408 ● ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1409- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCS ENG(RJS) 08.846 ID=21.7 		8-97203-074-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1309-1310 ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1311- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1309-1408 ● ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99 		1-09707-141-0 01 1 1309- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1309-1310 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1311-1408 ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1409- ● ● ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1408 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309-1310 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1311- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1311-1408 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1309-1310 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ● ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1311- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1309-1310 ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1311- ● ● ● ●
çizim 389112
381 381 381 381 381 242 242 242 242 314 314 314 389 389 389 281 232 317 26 409 40 5 35 317 317 381 175 174 5 297 351 384 61 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(E) 		8-98025-627-0 01 1 1311-1408 ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98025-627-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1309- ● ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98092-890-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98109-389-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (D) 		8-98177-457-0 01 1 1309- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1309-1310 ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1311- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1309- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1309-1310 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1311- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98242-344-0 01 1 1311- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98021-072-2 01 1 1409- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1309-1310 ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1309-1309 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310-1310 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1311- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1309-1310 ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1311- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1309-1310 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1311-1408 ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1409- ● ● ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1408 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309-1310 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1311- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1311-1408 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1409- ● ●
351 03.407 DUCT; AIR
(D) 		8-98070-864-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98070-864-0 01 1 1409- ●
351 03.407 DUCT; AIR
(E) 		8-98206-266-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98206-266-0 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1309-1310 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ● ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1311- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1309-1310 ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1311- ● ● ● ●
çizim 389119
562 379 248 228 248 5 351 232 48 5 381 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
48 03.417 BOLT; AIR DUCT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1311-1408 ●
48 03.417 BOLT; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1409- ●
48 03.417 BOLT; AIR DUCT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1309- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1309-1310 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1311-1408 ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1409- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98242-344-0 01 1 1311- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98021-072-2 01 1 1409- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1309-1310 ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1309-1309 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310-1310 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1311- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1309-1310 ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1311-1408 ● ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1409- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCS ENG(RJS) 08.846 ID=21.7 		8-97203-074-0 01 1 1309- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1311-1408 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1409- ● ●
351 03.407 DUCT; AIR
(D) 		8-98070-864-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98070-864-0 01 1 1409- ●
351 03.407 DUCT; AIR
(E) 		8-98206-266-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98206-266-0 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1309-1310 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1309- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1311-1408 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1309-1310 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1408 ● ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ● ● ●
çizim 443709
314 317 314 317 281 232 314 317 553 5 35 297 242 384 248 174 175 232 287 228 248 379 562 473 426 156 9 351 426 26 5 297 553 381 26 242 381 381 389 381 389 242 389 242 381 381 287
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(H) ID=117 		9-09915-075-1 01 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (H) ID=117 		9-09915-075-1 01 1 1409- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1311-1408 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 03 1 1409- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85 		8-98133-350-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1309-1310 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1311-1408 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1409- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90 		8-98122-372-0 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1309-1310 ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=100-120 		8-98133-366-0 02 1 1309- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98278-820-1 01 1 1409- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98278-820-1 01 1 1409- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98009-086-0 01 1 1309-1408 ● ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98009-086-0 01 1 1409- ● ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-807-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (G) 		8-98278-810-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(E) 		8-98025-627-0 01 1 1311-1408 ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98025-627-0 01 1 1409- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1309- ● ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98092-890-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (C) 		8-98109-389-1 01 1 1309- ●
26 03.417 DUCT; AIR INT
4HK1-TCS ENG(RJS) (D) 		8-98177-457-0 01 1 1309- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1309-1310 ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1311- ● ● ● ●
156 03.417 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
156 03.417 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1309-1310 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1311- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1309-1310 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1309-1310 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1311-1408 ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1409- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98242-344-0 01 1 1311- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98021-072-2 01 1 1409- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1309-1310 ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1311-1408 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1409- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1309- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1309-1309 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310-1310 ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1311- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (S) 		8-98278-821-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1311-1408 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (R) 		8-98245-307-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(Q) 		8-98029-819-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (Q) 		8-98029-819-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1311-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1311-1408 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1409- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (M) 		8-98109-391-1 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98205-667-0 01 1 1309-1408 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K) 		8-98205-667-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) 		8-98205-666-0 01 1 1309- ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(N) 		8-98055-243-1 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(O) 		8-98055-246-2 01 1 1311- ● ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1309-1310 ●
242 03.417 BRACKET; AIR DUCT
(P) 		8-98055-247-1 01 1 1311- ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1309-1310 ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1311-1408 ● ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1409- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCS ENG(RJS) 08.846 ID=21.7 		8-97203-074-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1309-1310 ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1311- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1311- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1309-1408 ● ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 03.407 (A) ID=117 		9-09915-075-1 01 1 1409- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1309-1310 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1311-1408 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90 		8-98122-372-0 01 1 1409- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99 		1-09707-141-0 01 1 1309- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1309-1310 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1311-1408 ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1409- ● ● ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1311-1408 ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1409- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309-1310 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1311- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (F) 		8-98278-809-1 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1311-1408 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.417 (C) 		8-98051-032-1 01 1 1409- ● ●
351 03.407 DUCT; AIR
(D) 		8-98070-864-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98070-864-0 01 1 1409- ●
351 03.407 DUCT; AIR
(E) 		8-98206-266-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98206-266-0 01 1 1409- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1309-1310 ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1311-1408 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1409- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1309- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1311-1408 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) 		8-98205-932-2 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1309-1310 ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1311-1408 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1409- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1409- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1309- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1309-1310 ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1311- ● ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1408 ● ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1408 ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
384 03.417 NUT; AIR INT DUCT BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1309-1310 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1311- ● ● ● ●
426 03.417 CLIP; DUCT
4JJ1-TCS ENG(LFB) 03.407 ID=127 		1-14239-263-0 02 1 1409- ●
426 03.417 CLIP; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 03.407 ID=127 		1-14239-263-0 02 1 1409- ●
473 03.417 NUT; DUCT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409-1409 ●
473 03.417 NUT; DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409-1409 ●
553 03.417 WASHER; AIR DUCT
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1409- ●
553 03.417 WASHER; AIR DUCT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1409- ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1408 ● ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
