Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#12603) — 418 parça

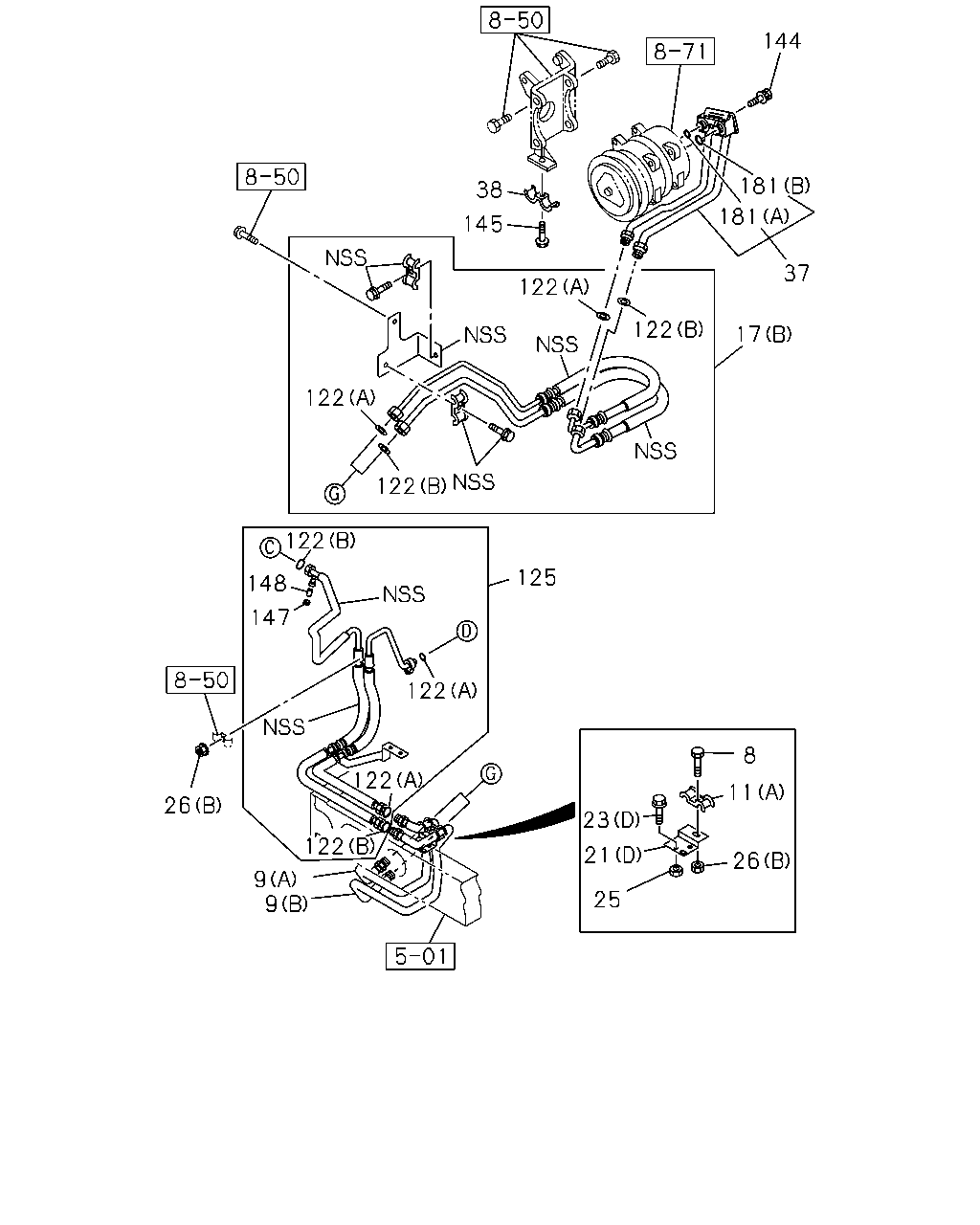

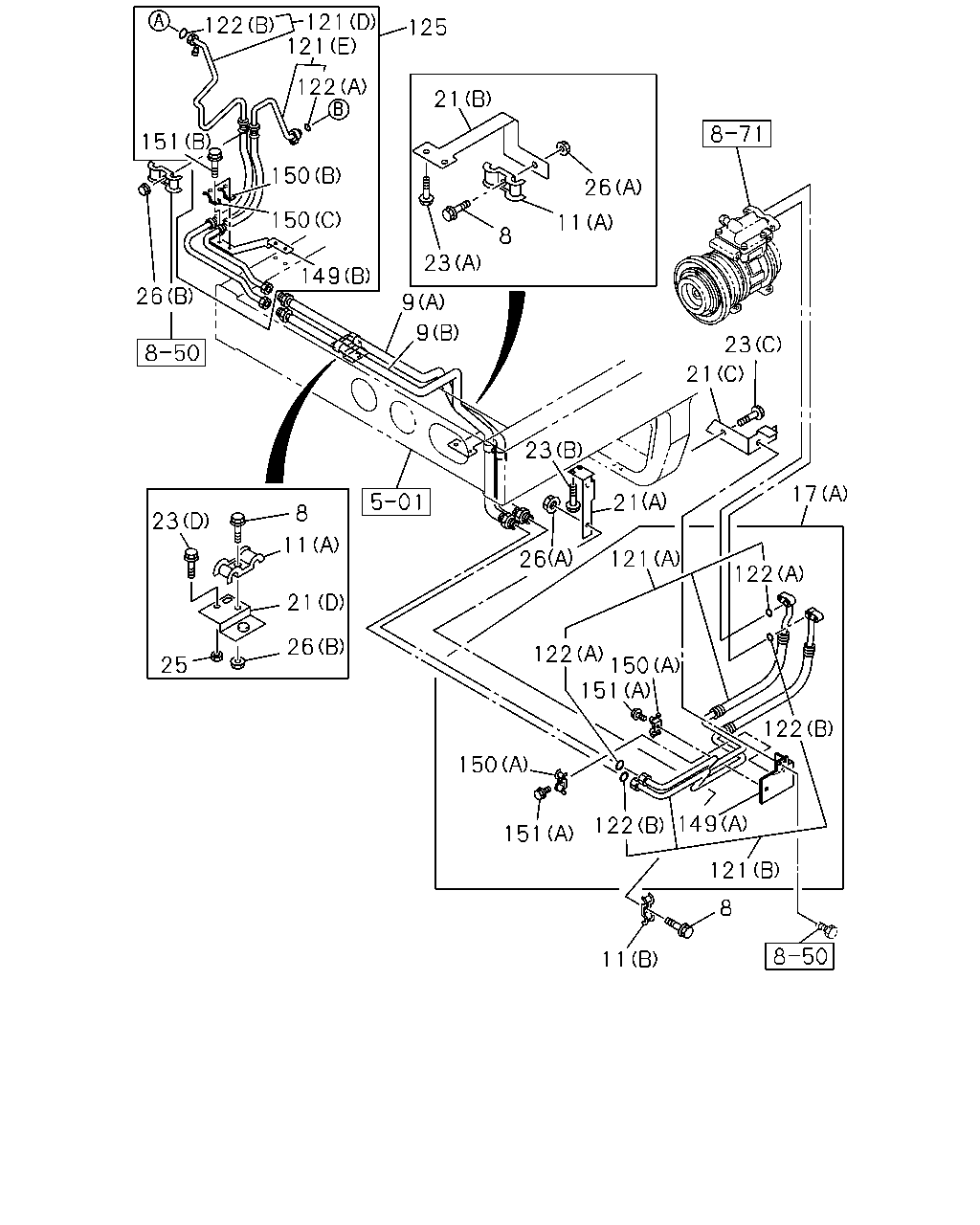

151 122 121 125 122 121 21 150 150 149 26 23 8 21 11 26 25 122 26 23 9 9 23 8 11 26 23 21 17 122 121 21 150 151 150 151 11 122 121 8 149 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83567-785-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B)	1-83567-786-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (A)	1-83567-796-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (C)	1-83572-923-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (B)	1-83567-797-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (D)	1-83572-924-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (C)	1-83572-921-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (D)	1-83572-922-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83567-793-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B)	1-83567-794-0	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) ID=12.2 & 16.2	1-83574-190-0	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-850-0	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-616-1	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-646-0	01	1	0105-0209	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83572-695-0	01	1	0210-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83571-998-0	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83571-930-1	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83571-777-1	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-018-0	01	1	0105-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	9-09110-408-0	02	1	0105-0512	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	0-91110-508-0	02	1	0601-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83572-880-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83577-043-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83572-881-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83577-044-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (F)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (G)	1-83572-836-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-859-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-686-1	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83572-687-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83567-795-0	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (D)	1-83572-801-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83572-801-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	1-83572-802-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (E)	1-83572-802-1	01	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> PE-SERIES ENG<1A0> (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=11.7	1-83539-317-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) ID=11.7	1-83539-317-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=11.7	1-83539-317-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> PE-SERIES ENG<1A0> (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=14.5	1-83539-324-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=14.5	1-83539-324-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=14.5	1-83539-324-0	02	1	0210-	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) ID=11.7	8-97095-907-0	02	1	0210-	●	●
125	HOSE; FLEX,UNIT TO CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-541-0	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-545-0	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-870-1	01	1	0210-0302	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-969-0	01	1	0303-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83572-704-1	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-704-1	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B)	1-83573-227-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83573-023-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83573-025-0	01	1	0105-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83573-206-0	01	1	0105-0209	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83573-206-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83574-246-0	02	1	0105-0209	●	●
150	CLIP; HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-246-0	02	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83574-246-0	02	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83574-254-0	01	1	0105-0209	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-254-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83574-255-0	01	1	0105-0209	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-255-0	01	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83539-328-0	02	1	0105-0209	●	●
151	BOLT; CLIP FIX,COOLER HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-328-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83539-328-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83539-336-0	02	1	0105-0209	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0210-	●	●

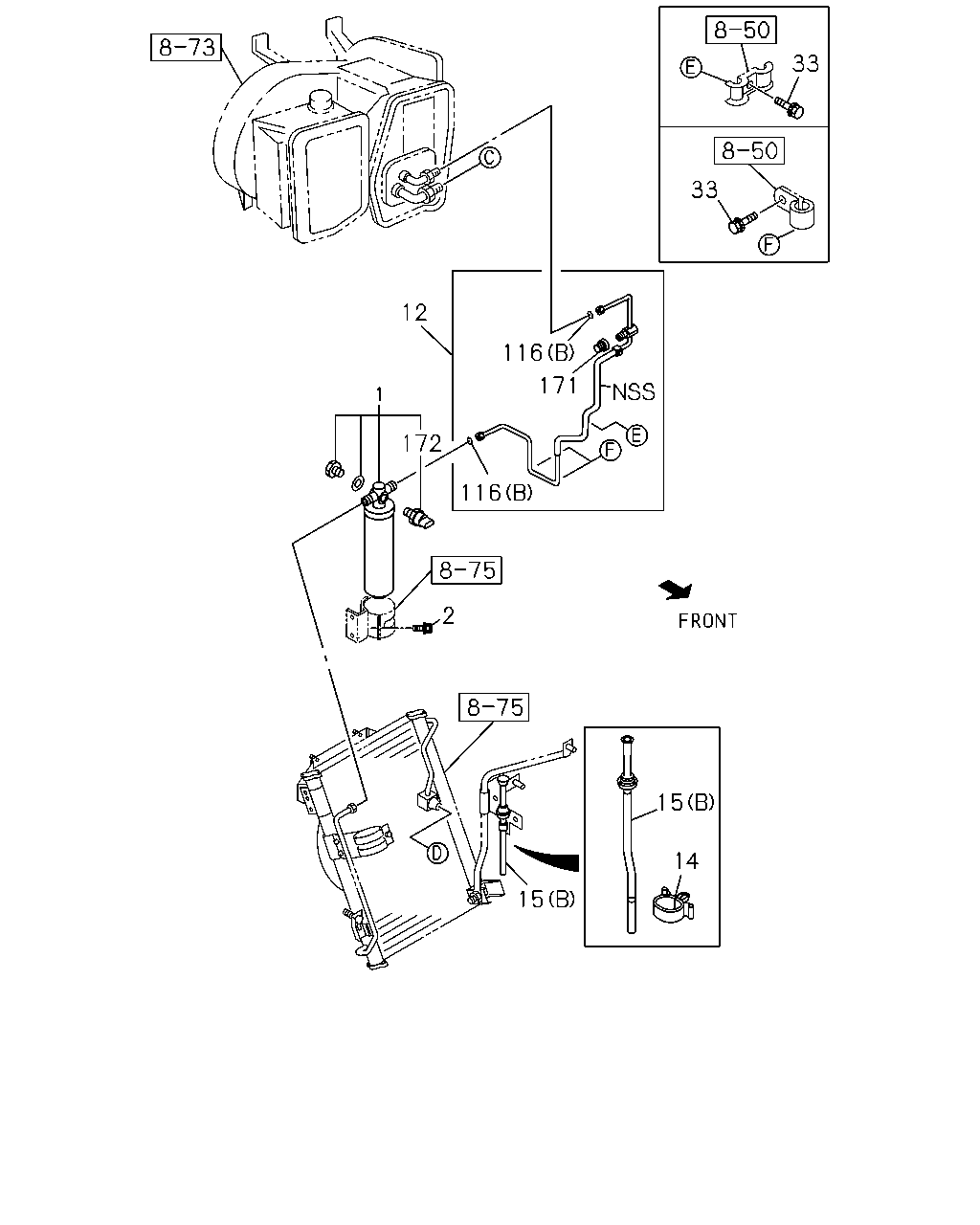

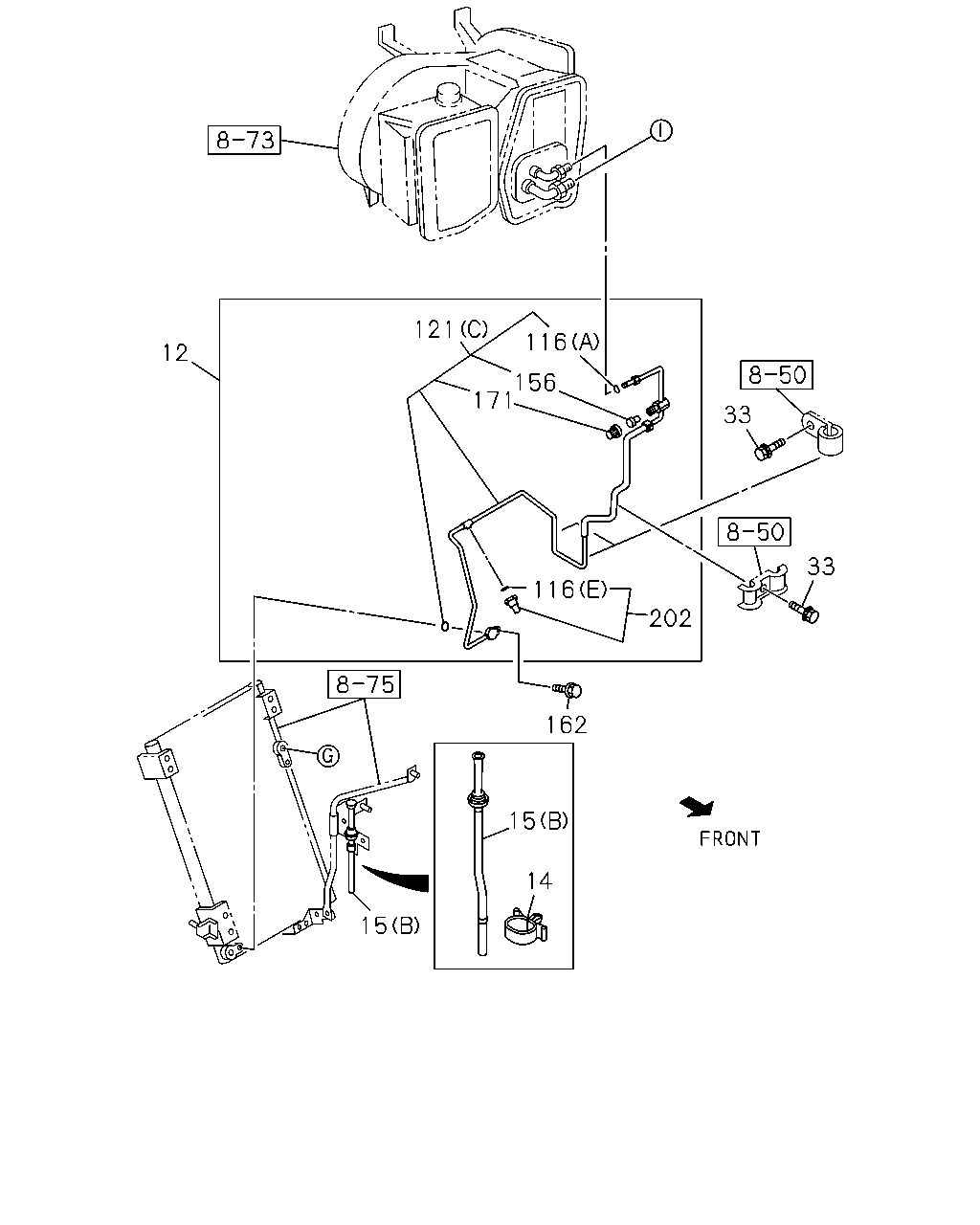

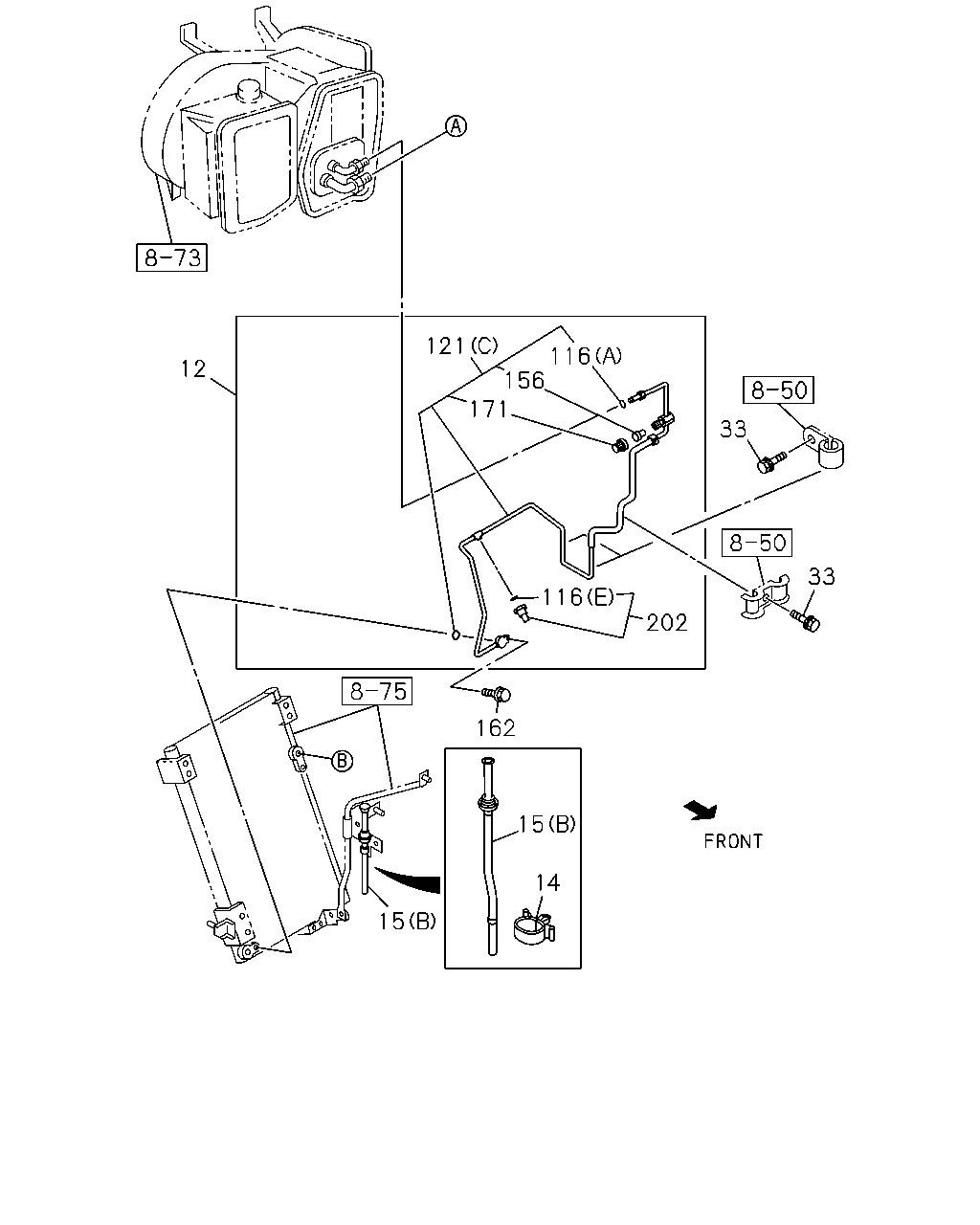

15 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0105-	●	●

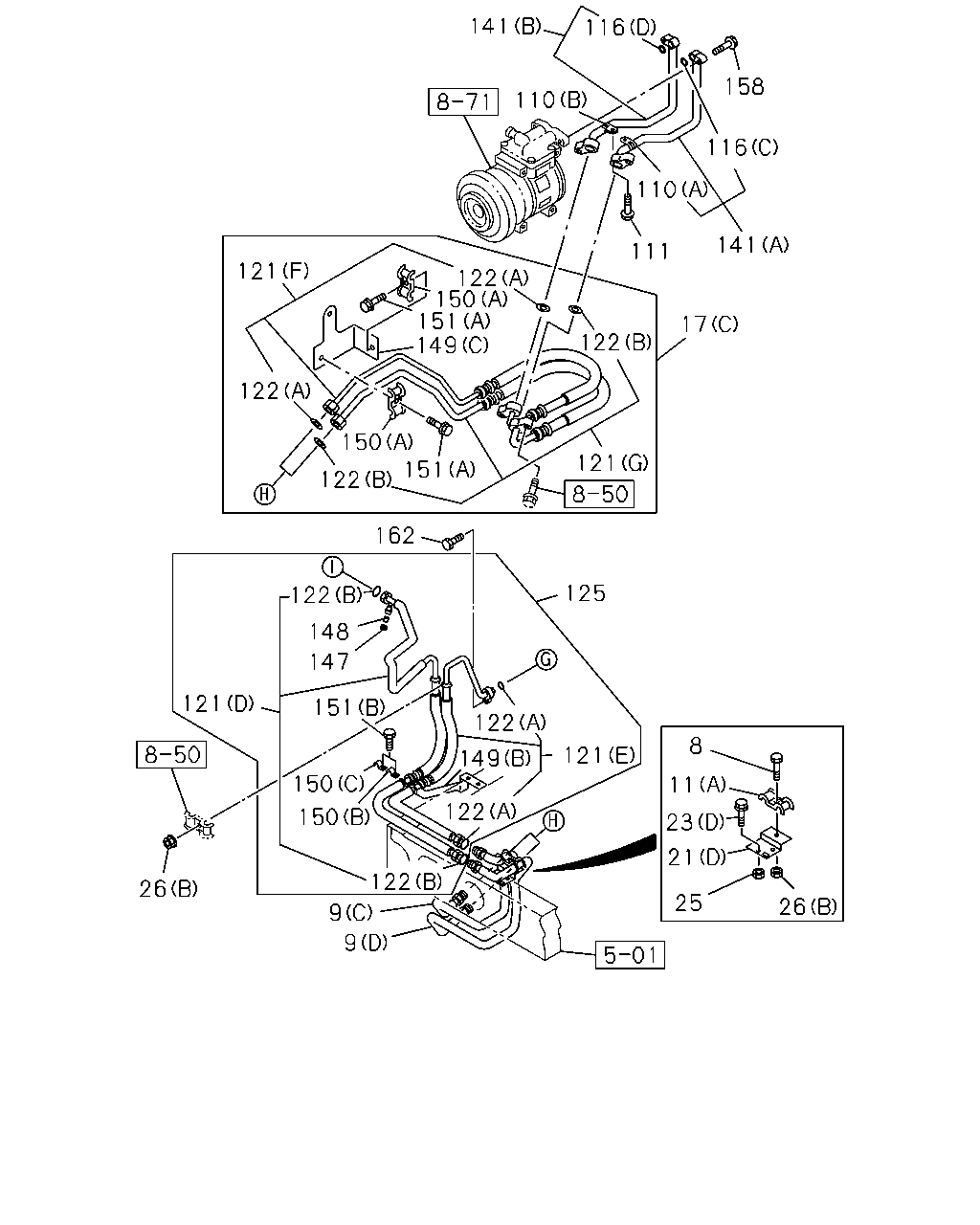

121 122 122 150 162 151 121 122 149 151 150 122 111 141 110 17 116 110 158 116 125 122 121 26 150 150 151 148 147 122 149 122 122 9 9 121 8 11 23 21 25 26 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83567-785-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B)	1-83567-786-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (A)	1-83567-796-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (C)	1-83572-923-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (B)	1-83567-797-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (D)	1-83572-924-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (C)	1-83572-921-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (D)	1-83572-922-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83567-793-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B)	1-83567-794-0	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) ID=12.2 & 16.2	1-83574-190-0	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-850-0	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-616-1	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-646-0	01	1	0105-0209	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83572-695-0	01	1	0210-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83571-998-0	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83571-930-1	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83571-777-1	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-018-0	01	1	0105-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	9-09110-408-0	02	1	0105-0512	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	0-91110-508-0	02	1	0601-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
110	CLAMP; PIPE TO MTG BRKT PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-243-0	01	1	0210-	●	●
110	CLAMP; PIPE TO MTG BRKT PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-244-0	01	1	0210-	●	●
111	BOLT; CLAMP PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	1-83539-326-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=7.4	8-97095-906-0	02	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	8-97178-772-0	01	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	8-97161-776-0	02	1	0105-0209	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83572-880-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83577-043-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83572-881-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83577-044-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (F)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (G)	1-83572-836-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-859-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-686-1	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83572-687-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83567-795-0	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (D)	1-83572-801-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83572-801-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	1-83572-802-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (E)	1-83572-802-1	01	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> PE-SERIES ENG<1A0> (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=11.7	1-83539-317-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) ID=11.7	1-83539-317-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=11.7	1-83539-317-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> PE-SERIES ENG<1A0> (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=14.5	1-83539-324-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=14.5	1-83539-324-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=14.5	1-83539-324-0	02	1	0210-	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) ID=11.7	8-97095-907-0	02	1	0210-	●	●
125	HOSE; FLEX,UNIT TO CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-541-0	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-545-0	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-870-1	01	1	0210-0302	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-969-0	01	1	0303-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83572-704-1	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-704-1	01	1	0210-	●	●
141	PIPE; COOLER,CMPR HOSE TO PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-843-0	01	1	0210-	●	●
141	PIPE; COOLER,CMPR HOSE TO PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-844-0	01	1	0210-	●	●
147	CAP; FLEX HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0105-0209	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> CAP MARK L	8-97095-910-0	01	1	0210-	●	●
148	VALVE; FLEX HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0105-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	8-97095-909-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B)	1-83573-227-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83573-023-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83573-025-0	01	1	0105-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83573-206-0	01	1	0105-0209	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83573-206-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83574-246-0	02	1	0105-0209	●	●
150	CLIP; HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-246-0	02	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83574-246-0	02	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83574-254-0	01	1	0105-0209	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-254-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83574-255-0	01	1	0105-0209	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-255-0	01	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83539-328-0	02	1	0105-0209	●	●
151	BOLT; CLIP FIX,COOLER HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-328-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A)	1-83539-328-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83539-336-0	02	1	0105-0209	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0210-	●	●
158	BOLT; PIPE FIX PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) M6X30 FLANGE	1-83539-325-0	02	1	0210-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE	0-28680-625-0	02	1	0205-0209	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-0409	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-0512	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE	0-28680-625-0	02	1	0105-0204	●	●

15 14 15 2 116 172 1 12 171 116 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83535-087-0	01	1	0105-0209	●	●
2	BOLT; RECEIVER TANK 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83572-538-0	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83567-718-1	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0210-	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0105-0105	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=7.4	8-97095-906-0	02	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	8-97178-772-0	01	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	8-97161-776-0	02	1	0105-0209	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> CAP MARK H	8-97095-911-0	01	1	0105-0209	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-97080-101-0	01	1	0105-0209	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83544-044-0	01	1	0105-0209	●	●

122 122 122 145 38 144 181 181 17 37 122 122 148 26 9 9 122 122 147 125 8 11 26 23 21 25 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83567-785-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B)	1-83567-786-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (A)	1-83567-796-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (C)	1-83572-923-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (B)	1-83567-797-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> PE-SERIES ENG<1A0> (D)	1-83572-924-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (C)	1-83572-921-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0105-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> EXC. FRONT SPOILER<VP1> (D)	1-83572-922-0	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83567-793-0	01	1	0105-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B)	1-83567-794-0	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) ID=12.2 & 16.2	1-83574-190-0	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-850-0	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-616-1	01	1	0105-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-646-0	01	1	0105-0209	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C)	1-83572-695-0	01	1	0210-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83571-998-0	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83571-930-1	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83571-777-1	01	1	0105-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83573-018-0	01	1	0105-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	9-09110-408-0	02	1	0105-0512	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	0-91110-508-0	02	1	0601-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
37	CONNECTOR; CMPR TO FLEX HOSE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-173-0	01	1	0105-0209	●	●
38	CLIP; CONNECTOR PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> PE-SERIES ENG<1A0> (A) ID=11.7	1-83539-317-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=11.7	1-83539-317-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) ID=11.7	1-83539-317-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=11.7	1-83539-317-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> PE-SERIES ENG<1A0> (B) ID=14.5	1-83539-324-0	02	1	0105-0105	●	●
122	GASKET 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=14.5	1-83539-324-0	02	1	0105-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=14.5	1-83539-324-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=14.5	1-83539-324-0	02	1	0210-	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209	●	●
122	GASKET 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) ID=11.7	8-97095-907-0	02	1	0210-	●	●
125	HOSE; FLEX,UNIT TO CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-541-0	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-545-0	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-870-1	01	1	0210-0302	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-969-0	01	1	0303-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83572-704-1	01	1	0105-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-704-1	01	1	0210-	●	●
144	BOLT; CONN TO CMPR PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	0105-0209	●	●
145	BOLT; CLIP,CONNECTOR PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	0105-0209	●	●
147	CAP; FLEX HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0105-0209	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> CAP MARK L	8-97095-910-0	01	1	0210-	●	●
148	VALVE; FLEX HOSE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0105-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	8-97095-909-0	01	1	0210-	●	●
181	GASKET; CONNECTOR PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0105-0209	●	●
181	GASKET; CONNECTOR PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	01	1	0105-0209	●	●

15 14 15 162 202 116 33 33 116 171 156 121 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83572-538-0	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83567-718-1	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0210-	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0105-0105	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=7.4	8-97095-906-0	02	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	8-97178-772-0	01	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	8-97161-776-0	02	1	0105-0209	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83572-880-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83577-043-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83572-881-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83577-044-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (F)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (G)	1-83572-836-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-859-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-686-1	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83572-687-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83567-795-0	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (D)	1-83572-801-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83572-801-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	1-83572-802-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (E)	1-83572-802-1	01	1	0210-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	8-97095-909-0	01	1	0105-0209	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE	0-28680-625-0	02	1	0205-0209	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-0409	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-0512	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE	0-28680-625-0	02	1	0105-0204	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> CAP MARK H	8-97095-911-0	01	1	0105-0209	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-97080-101-0	01	1	0105-0209	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83564-392-0	01	1	0105-0209	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	0210-	●	●

33 202 116 156 116 171 33 12 121 162 15 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	1-83572-538-0	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83567-718-1	01	1	0105-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0210-	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0105-0105	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) ID=7.4	8-97095-906-0	02	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	8-97178-772-0	01	1	0105-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B)	8-97161-776-0	02	1	0105-0209	●	●
116	GASKET; PIPE PE-SERIES ENG<1A0> AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83572-880-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E)	1-83577-043-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83572-881-1	01	1	0210-0302	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D)	1-83577-044-0	01	1	0303-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (F)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (G)	1-83572-836-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-83572-859-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-83572-686-1	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B)	1-83572-687-0	01	1	0105-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C)	1-83567-795-0	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (D)	1-83572-801-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83572-801-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (E)	1-83572-802-1	01	1	0105-0209	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (E)	1-83572-802-1	01	1	0210-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	8-97095-909-0	01	1	0105-0209	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE	0-28680-625-0	02	1	0205-0209	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-0409	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-0512	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE	0-28680-625-0	02	1	0105-0204	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> CAP MARK H	8-97095-911-0	01	1	0105-0209	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0>	8-97080-101-0	01	1	0105-0209	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83564-392-0	01	1	0105-0209	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	0210-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
