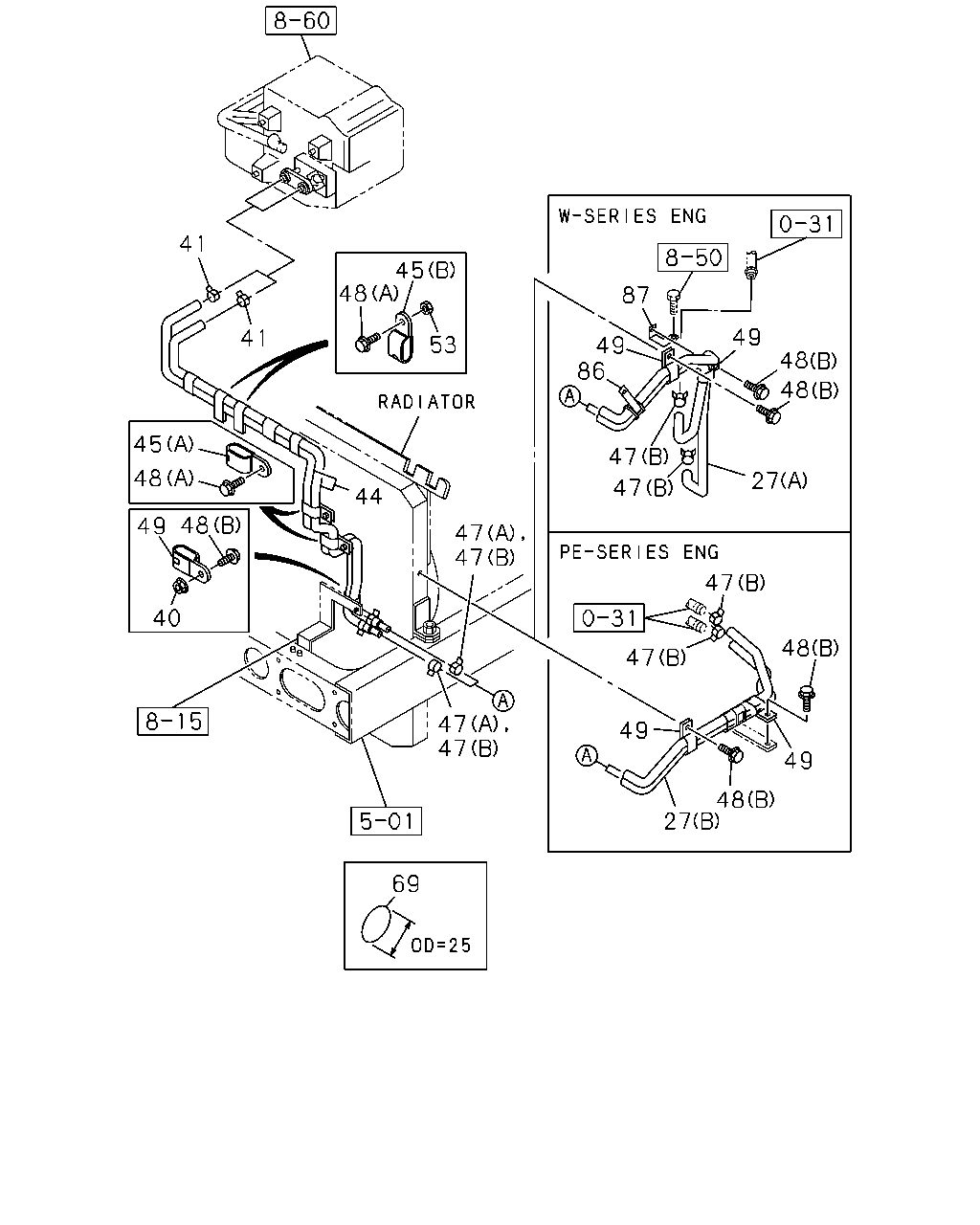

8-45 — HEATER PIPING (#12601) — 29 parça

41 41 48 45 53 45 48 49 48 40 44 47 47 47 47 69 87 49 86 49 48 48 47 47 27 47 47 48 49 48 49 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-598-1	01	1	0105-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83565-614-0	01	1	0105-0108	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83565-795-0	01	1	0109-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83565-618-1	01	1	0105-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83565-758-0	01	1	0105-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	0105-	●	●
44	HOSE; WATER,HTR,INL	1-83565-663-1	01	1	0105-	●	●
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	02	1	0105-	●	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	0105-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	0105-0108	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	0105-0108	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	04	1	0109-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0201-0512	●	●
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28680-820-0	03	1	0105-0112	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28680-820-0	02	1	0201-0512	●	●
48	BOLT; CLIP FIX (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-	●	●
49	CLIP; WATER HOSE,HTR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	0109-0109	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	0105-0108	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ELECTRONIC GOV RED4(Q4F) ID=24X2 L=25	1-09700-710-0	02	1	0109-0109	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	0110-	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	03	1	0105-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ELECTRONIC GOV RED4(Q4F)	1-83573-076-0	01	1	0109-0109	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2>	1-83571-857-0	01	1	0105-	●	●
