◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11434 - FTS(PAKISTAN)S-TIRE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#126001) — 6 parça

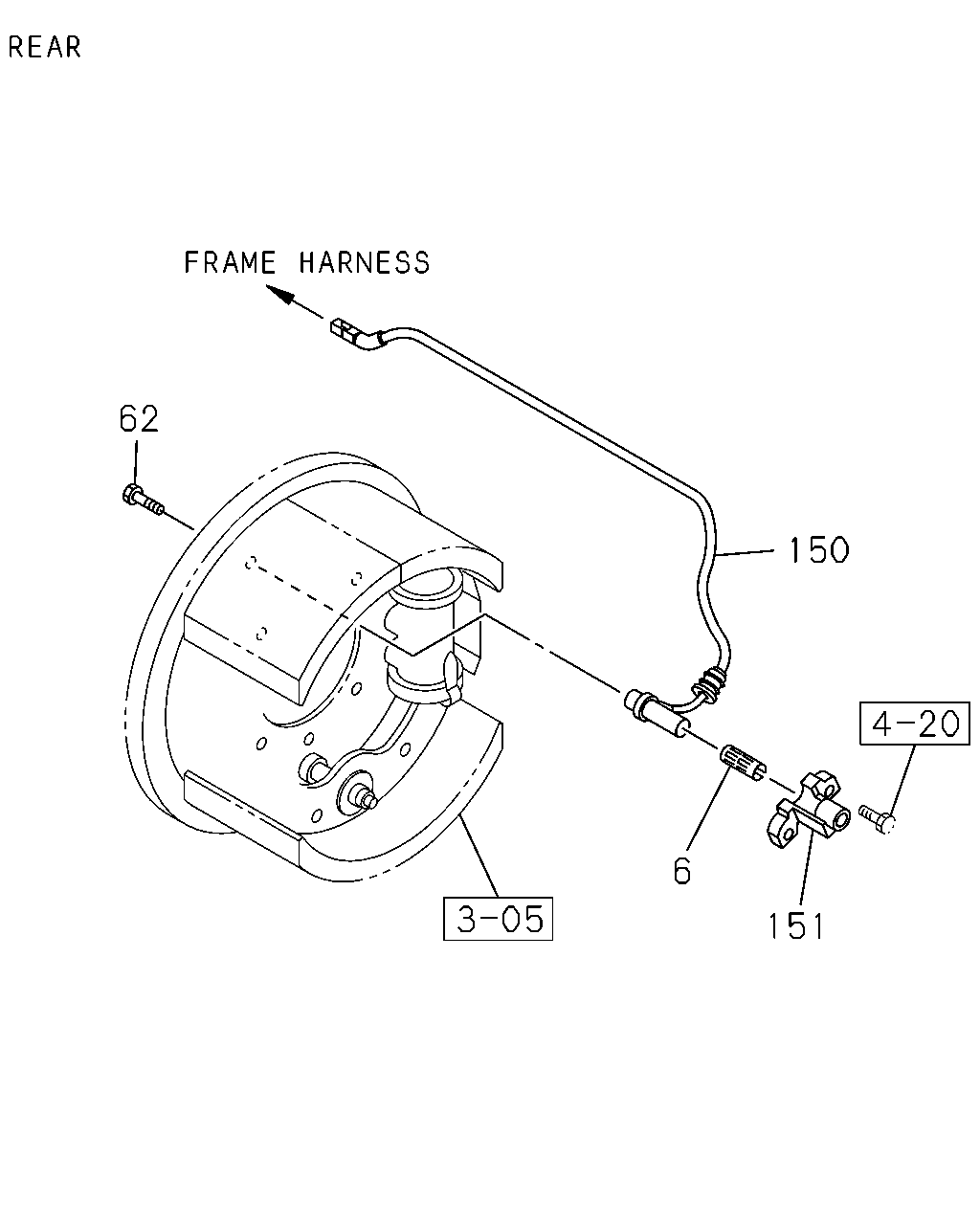

çizim 373556
6 151 150 62
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR
CONVERTING INTO 6X6<BCC> 		1-83129-260-1 02 1 1307-1401
62 BOLT; SENSOR
CONVERTING INTO 6X6<BCC> M8X16 		9-05820-816-0 02 1 1307-1401
150 SENSOR; SPEED,ABS
CONVERTING INTO 6X6<BCC> 		8-98130-881-0 01 1 1307-1401
150 SENSOR; SPEED,ABS
CONVERTING INTO 6X6<BCC> 		8-98130-882-0 01 1 1307-1401
151 BRACKET; SPD SENSOR
CONVERTING INTO 6X6<BCC> 		1-83129-403-0 01 1 1307-1401
151 BRACKET; SPD SENSOR
CONVERTING INTO 6X6<BCC> 		1-83129-404-0 01 1 1307-1401
